Lionel Gingerbread Junction Docksider Manuale utente

73-0219-250

8/13

CAUTION—ELECTRIC TOY

NOT RECOMMENDED FOR CHILDREN UNDER FOURTEEN YEARS OF AGE.

AS WITH ALL ELECTRIC PRODUCTS, PRECAUTIONS SHOULD BE OBSERVED

DURING HANDLING AND USE TO PREVENT ELECTRIC SHOCK.

TRANSFORMER RATINGS—INPUT: 120 VAC; 60 Hz ONLY.

AC OUTPUT: 18 V; 80 VA

Gingerbread Junction

Docksider Ready-to-Run Set

Owner’s Manual

Gingerbread Junction

Docksider Ready-to-Run Set

Owner’s Manual

Set Includes:

• Docksider steam locomotive

• Gondola

• Candy cane flatcar

• Caboose

• Eight curve O-36 FasTrack sections, three 10” straight FasTrack sections,

one FasTrack terminal section

• CW-80 Transformer

• Replacement traction tire

• Lionel DVD

• Owner’s Manual

Congratulations!

Congratulations on your purchase of your ready-to-run train set! This set features everything you

need to get started—a mighty CW-80 Transformer, a huge loop of easy-to-assemble FasTrack

track, a string of detailed cars, and a powerful Lionel locomotive.

Have fun growing with this complete train set! Start with the set components, then follow your

imagination into your own miniature world. Expand your railroad empire with additional FasTrack

track sections, enhance your layout with accessories, lengthen your consist with extra cars, or operate

a new locomotive at the head end of your train! Explore the possibilities at your authorized Lionel

dealer.

Use this Owner’s Manual to learn how to set up, operate, and maintain your train set for years of

reliable operation.

The transformer included with this set should be periodically

examined for conditions that may result in the risk of ﬁre, electric

shock, or injury to persons (such as damage to the output cord,

blades, housing, or other parts). In the event that such conditions

exist, the transformer should not be used until properly repaired.

Parents!

Table of contents

Creating your layout

Operating your CW-80 Transformer safely 4

Building your Lionel layout 5

Joining the FasTrack track sections 6

Wiring your CW-80 Transformer 7-8

Running your train

Running your train set 9

Adding smoke fluid to your locomotive’s smoke generator 10

Operating the couplers 10

Experiencing the features of the CW-80 Transformer 11-12

Reverse unit procedure 13-14

CW-80 Transformer operation

Powering your layout with the CW-80 Transformer 15

Setting the accessory output 16

Maintaining and servicing your set

Lubricating your locomotive 17

Replacing your locomotive’s traction tire 18

Replacing your locomotive’s lamp 18

Troubleshooting 18-19

FCC Statement 19

Limited Warranty/Lionel Service 20

The following Lionel marks are used throughout this Owner’s Manual and are protected under

Lionel®, LEGACY™, FasTrack®,TrainMaster®, Odyssey®, RailSounds®, CrewTalk™, TowerCom™,

DynaChuff™, StationSounds™, Pullmor®, ElectroCoupler™, Magne-Traction®, CAB-1®Remote

Controller, American Flyer®, Lionel ZW®, ZW®, MagniVision®, TMCC®, Lionelville®, Wireless

Tether™, Powerhouse™, LionMaster®, Conventional Classics™, Postwar Celebration Series™,

TruRail™, PH-1 Powerhouse®, Powermaster®, Powerstation-Powerhouse®, Accessory Motor

Controller™, AMC™, Accessory Switch Controller™, ASC™, Action Recorder Controller™, ARC™, Track

Power Controller 300™, TPC 300™, Track Power Controller 400™, TPC 400™, Block Power

Controller™, BPC™, Operating Track Controller™, OTC™, FatBoy™, Lionel Lines®, Joshua Lionel

Cowen Series™, Lockon®, TrainSounds™, MultiHorn™, MultiWhistle™, Choo-Choo™

Operating your CW-80 Transformer safely

Your Lionel CW-80 Transformer is listed by Underwriter’s Laboratory Inc. and has been

carefully designed to ensure peak performance. When using electrical products, basic

safety precautions should be maintained.

Be sure to observe the following guidelines:

• Read the manual thoroughly before using this device.

• This device is not recommended for children under fourteen years of age.

• Parents should periodically inspect this product for potential hazards and, if necessary,

have them repaired by an authorized Lionel Service Center. In the event that such a condi-

tion exists, the transformer should not be used until it has been properly repaired.

• The CW-80 Transformer is intended to be used indoors. Do not use this device if water is

present. Serious or fatal injuries may result.

• Use the CW-80 Transformer only for its intended purpose.

• The CW-80 Transformer was meant to operate on 120-volt, 60-Hertz power. Do not connect

this product to any other power supply.

• Do not operate the CW-80 Transformer with a damaged cord, plug, or case.

• To avoid the risk of electrical shock, do not disassemble the unit. There are no user service-

able parts inside. If damaged, take this product to an authorized Lionel Service Center. A

list of authorized Service Centers is packed with this unit.

• Do not operate the CW-80 Transformer on your layout unattended. Obstructed accessories

or stalled trains may overheat, resulting in damage to your layout.

• Always unplug the CW-80 Transformer from the power source when not in use.

• Never insert objects into the ventilation slots on this product. Damage to sensitive

electronic components can result.

Creating your layout

Building your Lionel layout

Your set comes with eight curved, three straight, and one terminal section of track. Figure 1

provides some examples of layouts that you can build with these track sections.

By adding more FasTrack track sections, you can create an endless number of exciting

track arrangements for more fun, action, and variety. The railroad empire of your dreams can

quickly become a reality!

Creating your layout

Figure 1. Track layout ideas

FasTrack Add-on Track Packs make it easy to expand your railroad. Each Track Pack

includes all the track sections you need to create a more advanced layout using the sections

included with this set. Refer to Figure 2 to explore the possibilities.

Figure 2. Add-on Track Pack layouts

Inner Passing Loop Add-on Track Pack

6-12028

Figure 8 Add-on Track Pack

6-12030

Outer Passing Loop Add-on Track Pack

6-12031

Siding Track Add-on Track Pack

6-12044

Track Packs available separately.

Creating your layout

Joining the FasTrack track sections

FasTrack track sections join together easily. With interlocking roadbed sections and large

rail tabs, the track fits together securely so you always get good electrical contact. Take a

look at Figure 3 to see how to join the track sections.

1. Line up your two sections of track.

2. Insert the rail tabs into the openings at the ends of the corresponding

rails.

3. Press the sections together until the interlocking roadbed snaps into

place.

Figure 3. Joining the track sections

Rail tab

Wiring your CW-80 Transformer

Creating your layout

Connect your FasTrack terminal section to the CW-80 Transformer. Use the wires that

are already attached to the terminal section. Make sure that all connections are secure.

Loose connections can produce extremely high temperatures. For this reason, do not touch

the terminals or track connections during use. Also, do not locate scenery materials such as

lichen or ground foam near the terminals.

1. Feed the wires through the notch in the FasTrack terminal section. Refer to

Figure 4 on page 8.

2. Loosen the red TRACK thumbscrew terminal, then slide the red

spade-shaped connector into position. The thumbscrew post should be positioned

between the “blades” of the spade connector. Be sure that the blades are touching the

metal post. Tighten the thumbscrew to secure the connection.

3. Loosen the black TRACK thumbscrew terminal, then slide the black

spade-shaped connector into position. Tighten the thumbscrew to secure the

connection. The thumbscrew post should be positioned between the “blades” of the spade

connector. Be sure that the blades are touching the metal post.

4. If you need to power an accessory (available separately at your

authorized Lionel dealer), connect the accessory to the ACCESSORY

thumbscrew terminals. Use the accessory wire included with the CW-80 Transformer.

5. Plug the CW-80 Transformer into your wall outlet (120 volts).

As your layout expands, you may also make power connections with the stripped ends

of wires, placing no more than two wires on each terminal. For best performance on large

layouts, it is recommended that you use 16-gauge wire to connect your CW-80 Transformer to

the track. On larger layouts where several track connections are required, the use of separate

junctions/terminal strips (available at your local electronics store) is recommended to

prevent voltage drops.

To prevent the excessive build up of heat, be sure to select the proper wire gauge

for your layout. Follow these guidelines:

• Track connections must be made with 18-gauge wire or heavier. Larger

layouts require a minimum of 16-gauge wire.

• Use 24-gauge wire only when connecting single accessories that require lower

current.

• When wiring multiple accessories (two or more) or accessories that require

higher current, be sure to use 18- to 16-gauge wire.

Caution!

Creating your layout

Wiring your CW-80 Transformer (continued)

120/60z

0~18VAC

TRACK ACCESSORY

Figure 4. Controller connections

FasTrack terminal section

Notch

Spade-shaped

connector

Running your train

Running your train set

With track power off, place your train set on the track.

Refer to the following section for information on coupling the cars.

Power up your locomotive with your transformer.

Your locomotive is designed to operate on 7-15 volts alternating cur-

rent. Virtually all Lionel and Lionel-compatible alternating-current transformers

are suitable.

Do not power your locomotive with direct-current (DC) transformers.

The locomotive was designed for use with alternating-current (AC)

transformers only.

Move ‘em out!

Get your locomotive moving. Your locomotive goes through a repeating pattern

of operations: forward, neutral, reverse, neutral, and so on. To sequence the reverse

unit, press the DIRECTION button on your transformer, or briefly bring the throttle

all the way back to the OFF position and then forward. Each press of the DIRECTION

button or interruption in track power causes the locomotive to advance to the next

operational state.

Adjust track voltage until your locomotive moves at your desired speed.

Note!

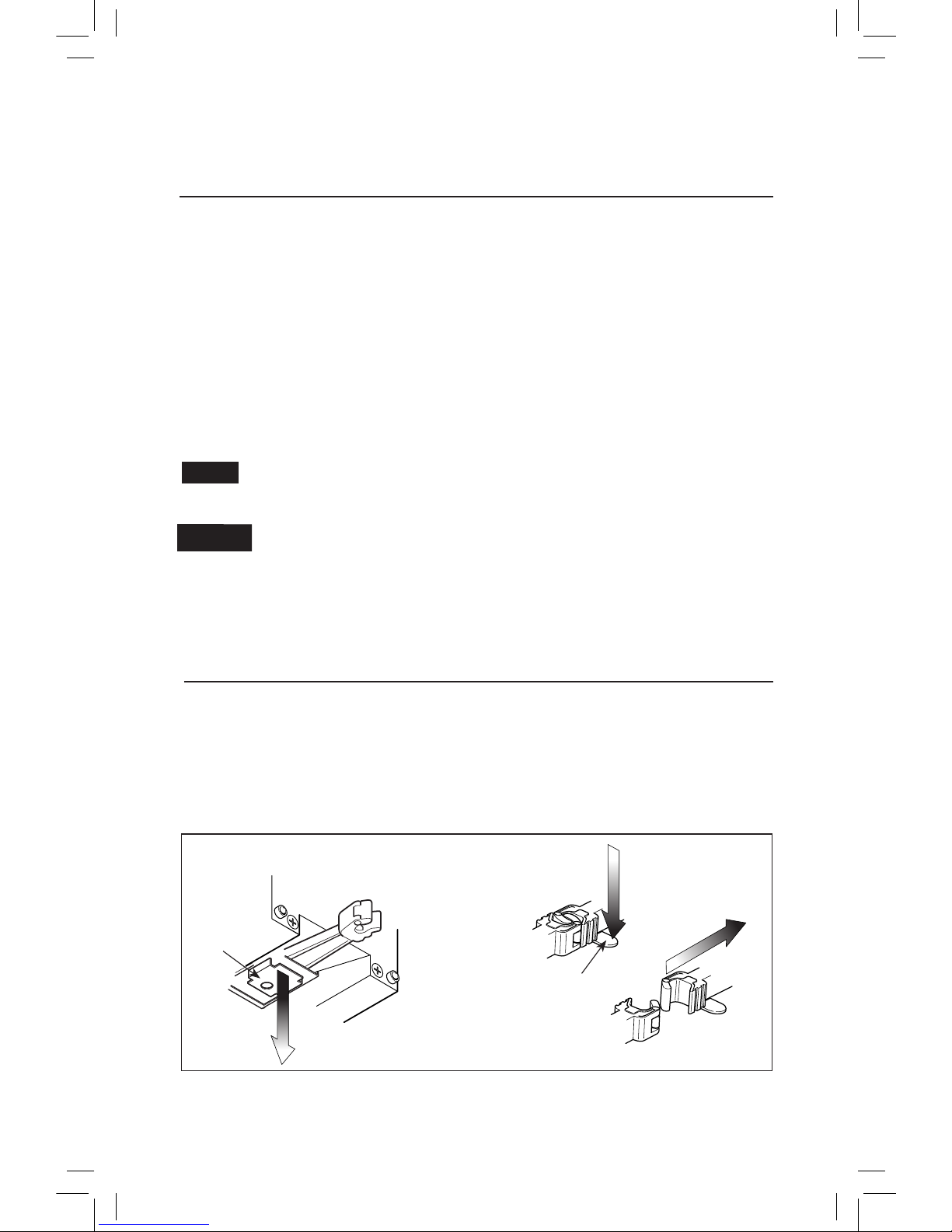

Figure 5. Uncoupler trigger operation

Operating the couplers

Your locomotive is equipped with two magnetic couplers, which are designed for use with an

Uncoupling Track section (6-12020, 6-12054), not included. To uncouple your locomotive,

simply position the uncoupling trigger over the magnet on the Remote-Control or Uncoupling Track

section and press UNCOUPLE on the controller. Also, you may use the rolling stock’s uncoupling

tabs, if the car is equipped with this feature. As illustrated in Figure 4, the magnet will pull down the

uncoupling trigger to release the coupler.

Running your train

our locomotive is equipped with a smoke generator that produces safe, clean white smoke dur-

ing operation if the smoke unit switch is in the ON position. Refer to Figure 6 on page 12 for the

location of the switch.

The smoke generator requires the periodic addition of Lionel smoke ﬂuid in order to function. A

small bottle of smoke ﬂuid is included with this set. Press down and unscrew the cap. Pierce the end

of the nozzle with a pin, then add about four drops of ﬂuid directly into the locomotive’s stack. Smoke

production commences momentarily. It will start faster if you run your locomotive at higher speeds.

When smoke production decreases, add more ﬂuid (about four drops). An idle locomotive will not

smoke.

Smoke production is greater at higher voltages and when the locomotive is pulling a heavy load or

a long consist.

If you prefer to operate the locomotive without smoke or you do not want to add smoke

ﬂuid, slide the smoke unit switch to the OFF position.

When the smoke unit switch is in the ON position, always keep a small amount of smoke

ﬂuid in the locomotive’s smoke generator; the generator’s element can become dam-

aged if operated without smoke ﬂuid. This is particularly true if your locomotive sits in

neutral for an extended period of time without smoke ﬂuid in the generator.

Adding smoke ﬂuid to your locomotive’s smoke generator

Underside of locomotive

Uncoupling

trugger

With rolling stock

Uncoupling tab on

rolling stock coupled

to the locomotive

Note!

Caution!

Indice

Altri manuali Lionel Giocattolo

Lionel

Lionel American Flyer 2-8-8-2 Steam Locomotive Manuale utente

Lionel

Lionel ACF 40-Ton Stockcars Manuale utente

Lionel

Lionel Baby Toy Manuale utente

Lionel

Lionel 6-24154 Manuale utente

Lionel

Lionel F9 Manuale utente

Lionel

Lionel 390E Manuale utente

Lionel

Lionel American Flyer U-Boat Manuale utente

Lionel

Lionel New York Central Flyer Manuale utente

Lionel

Lionel Flatcar Manuale utente

Lionel

Lionel Inspection Vehicle Manuale utente

Lionel

Lionel SD60-M Manuale utente

Lionel

Lionel Iron Bert Manuale utente

Lionel

Lionel New York Central Flyer Manuale utente

Lionel

Lionel Empire State Express Hudson Manuale utente

Lionel

Lionel O-27 Santa Fe FT Passenger set Manuale utente

Lionel

Lionel 71-4094-250 Manuale utente

Lionel

Lionel Heritage Freight Manuale utente

Lionel

Lionel Madison TrainSounds Baggage Car Manuale utente

Lionel

Lionel Christmas Toy Store Manuale utente

Lionel

Lionel FlyerChief GP7 Manuale utente

Lionel

Lionel Pennsylvania Flyer Deluxe Manuale utente

Lionel

Lionel Pennsylvania 4-6-2 K4 Manuale utente

Lionel

Lionel Gang Car Manuale utente

Lionel

Lionel O-27 Santa Fe FT Passenger set Manuale utente

Manuali Giocattolo popolari di altre marche

marklin

marklin 37321 Manuale utente

Canon

Canon PAPER CRAFT Manuale utente

GREAT PLANES

GREAT PLANES Pitts M-12S Manuale utente

NOCH

NOCH 14261 Manuale utente

Hausler

Hausler 450 SE V2 Manuale utente

Dynaflite

Dynaflite Daydream Manuale utente

MiniacRC

MiniacRC MIGHTY MINI P40 WARHAWK Manuale

Kenner

Kenner Batman 63651 Manuale utente

LEGO

LEGO 8527 Manuale utente

iKarus

iKarus ECO 8 Manuale utente

Multiplex

Multiplex EasyStar II Manuale di istruzioni

Walkera

Walkera 38 Manuale di istruzioni

Hasbro

Hasbro TRANSFORMERS BUMBLEBEE Manuale utente

MD MXION SWD Manuale utente

Mattel

Mattel Disney Pixar Cars Cozy Cone Spiral Rampway Manuale utente

marklin

marklin 39671 Manuale utente

Meccano

Meccano 15103 Manuale utente

LEGO

LEGO TECHNIC 8735 Manuale utente
