Lite H.264 DVR

User’s Manual

Version 1.5

DVR User’s Manual

Caution and Preventive Tips

•Handle with care, do not drop the unit

•Mount the unit in an equipment rack or place it on a solid, stable surface

•Indoor use only. Do not place the unit in a humid, dusty, oily, or smoky site

•Do not place it in an area with poor ventilation or in an area close to fire or other sources of

heat. Doing so may damage the unit as well as cause fire or an electric shock

•When cleaning is necessary, shut down the system and unplug the unit from the outlet

before uncovering the top cover. Do not use liquid cleaners or aerosol cleaners. Use only

a damp cloth for cleaning

•Always shut down the system prior connecting or disconnecting accessories, with the

exception of USB devices

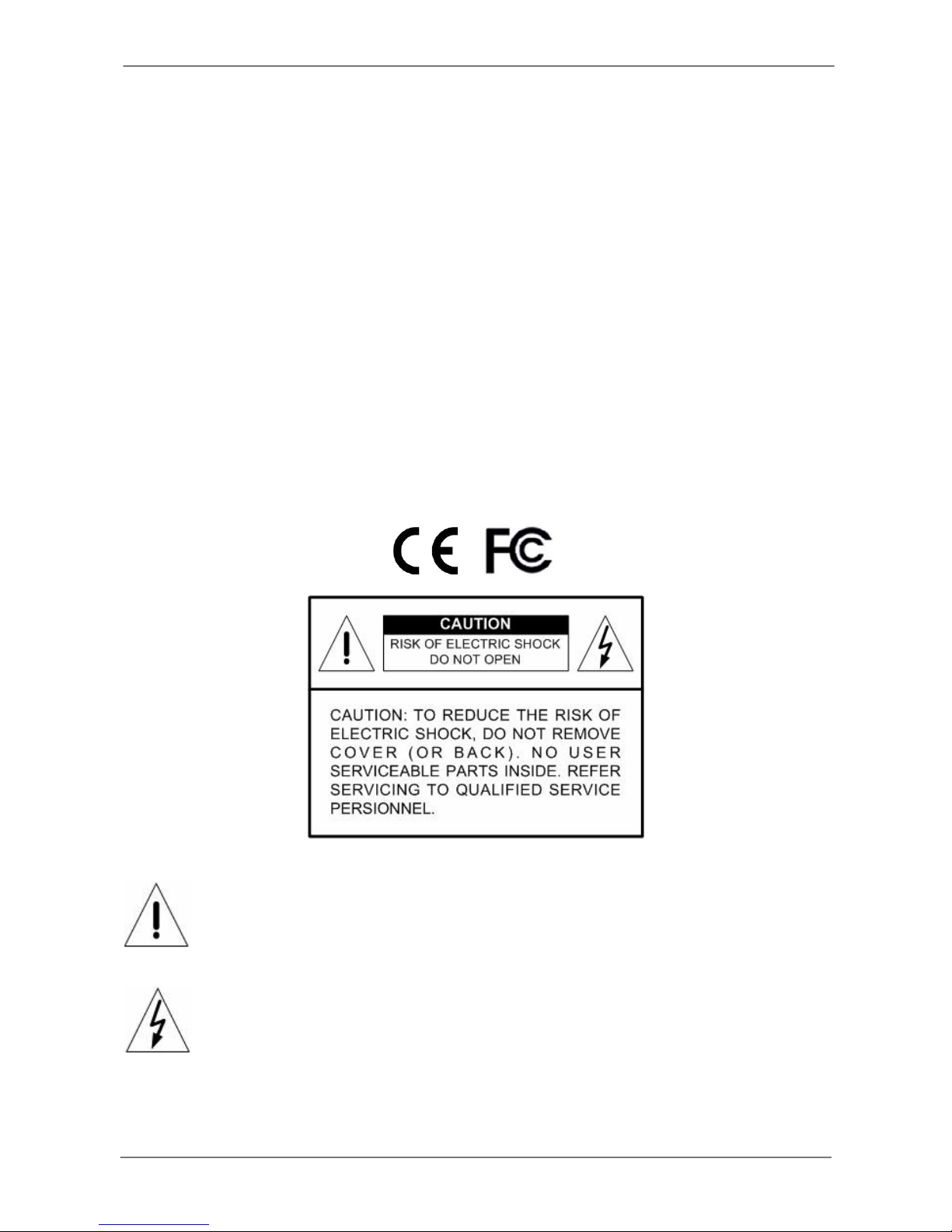

This symbol intends to alert the user to the presence of important operating and

maintenance (servicing) instructions in the literature accompanying the

appliance.

This symbol intends to alert the user to the presence of unprotected “Dangerous

Voltage” within the product’s enclosure that may be strong enough to cause a

risk of electric shock.

DVR User’s Manual

Important Information

Before proceeding, please read and observe all instructions and warnings in this manual.

Retain this manual with the original bill of sale for future reference and, if necessary, warranty

service. When unpacking your unit, check for missing or damaged items. If any item is missing,

or if damage is evident, DO NOT INSTALL OR OPERATE THIS PRODUCT. Contact your

dealer for assistance.

Rack Mounting

Consult with the supplier or manufacturer of your equipment rack for the proper hardware and

procedure of mounting this product in a safe fashion. Avoid uneven loading or mechanical

instability when rack-mounting units. Make sure that units are installed to get enough airflow

for safe operation. The maximum temperature for rack-mounted units is 40 °C. Check product

label for power supply requirements to assure that no overloading of supply circuits or over

current protection occurs. Mains grounding must be reliable and uncompromised by any

connections.

DVR User’s Manual

Table of Content

1. Overview .......................................................................................................................7

2. System Setup................................................................................................................8

2.1 Position the DVR .................................................................................................8

2.2 Select Video Format ............................................................................................8

2.3 Connect Devices to the DVR ...............................................................................9

2.4 Rear Panel Connections......................................................................................9

3. General System Setup ...............................................................................................11

3.1 Front Panel Introduction .................................................................................... 11

3.1.1 LED Definition ...................................................................................... 11

3.1.2 Function Keys.......................................................................................12

3.2 Entering OSD Setup Menu ................................................................................14

3.2.1 User Management................................................................................15

3.3 Power Up / Shutdown the DVR..........................................................................16

3.4 System Date / Time Setting ...............................................................................17

3.4.1 Set Date / Time.....................................................................................17

3.4.2 Daylight Saving Time............................................................................18

3.4.3 Network Time Protocol Setup ...............................................................19

3.5 Record Schedule / Quality Setting .....................................................................20

3.5.1 Schedule Setup ....................................................................................20

3.5.2 Preset Record Configuration ................................................................21

3.5.3 Per Camera Configuration....................................................................21

3.5.4 Record Event Video Only .....................................................................22

3.5.5 ezRecord Setup....................................................................................22

3.5.6 Data Lifetime ........................................................................................23

3.5.7 Circular Recording................................................................................23

3.5.8 Audio Recording...................................................................................24

3.5.9 Purge Data ...........................................................................................24

3.6 Event Setting .....................................................................................................25

3.6.1 Internal Buzzer .....................................................................................25

3.6.2 Event Icon ............................................................................................25

3.6.3 Email Notice .........................................................................................25

3.6.4 Email Attachment .................................................................................26

3.6.5 Event Full Screen .................................................................................26

3.6.6 Event Duration......................................................................................26

3.6.7 Per Channel Config ..............................................................................26

3.6.7.1 Channel Select......................................................................27

3.6.7.2 Video Loss Detect .................................................................27

3.6.7.3 Motion Detect ........................................................................27

DVR User’s Manual

3.6.7.4 Motion Detect Indicator .........................................................27

3.6.7.5 Detection Configuration.........................................................27

3.6.7.6 Alarm In.................................................................................28

3.6.7.7 Alarm Out..............................................................................28

4. Basic Operation..........................................................................................................29

4.1 View Live / Playback Video................................................................................29

4.1.1 Viewing Modes .....................................................................................29

4.1.2 Digital Zoom .........................................................................................30

4.1.3 View Live Cameras ..............................................................................30

4.1.4 View Recorded Video ...........................................................................30

4.2 Sequence ..........................................................................................................32

4.2.1 Sequence with Main Monitor ................................................................32

4.2.2 Sequence with Call Monitor(8CH & 16CH models only).......................32

4.3 Search Recorded Video.....................................................................................33

4.3.1 Search by Time ....................................................................................33

4.3.2 Calendar Search ..................................................................................34

4.3.3 Search by Event ...................................................................................35

4.4 Video Export ......................................................................................................36

4.4.1 ezBurn Introduction ..............................................................................36

4.4.2 Export Normal Video ............................................................................37

4.4.3 Export Event Video...............................................................................38

4.5 Dome Control.....................................................................................................38

4.5.1 Dome Connection.................................................................................38

4.5.2 Dome Protocol Setup ...........................................................................39

4.5.3 RS485 Setup........................................................................................39

4.5.4 Dome Controlling Keys.........................................................................40

4.5.5 Setting Preset Points............................................................................41

4.5.6 Calling Preset Points ............................................................................42

5. Remote Monitoring Software.....................................................................................43

5.1 Remote Monitoring System Requirements ........................................................43

5.2 Installation of Software.......................................................................................44

5.2.1 Change Internet Settings......................................................................44

5.2.2 Install the Remote Monitoring Software................................................46

5.2.2.1 Login / Logout .........................................................................47

5.2.2.2 Software Upgrades .................................................................48

5.3 Basic Operation .................................................................................................48

5.3.1 View Live Video....................................................................................48

5.3.1.1 Select Display Mode ...............................................................49

5.3.1.2 Operating Cameras with Dome Control ..................................49

5.3.2 Instant Recording .................................................................................50

DVR User’s Manual

5.3.2.1 Record Video Instantly ............................................................50

5.3.2.2 Playback Instant Recorded Video ...........................................50

5.3.3 Playback Video.....................................................................................51

5.3.3.1 Playback Remote Video..........................................................51

5.3.3.2 Playback Local *.drv Files.......................................................52

5.3.3.3 Playback Controls ...................................................................52

5.3.4 Verify Digital Signature .........................................................................53

5.3.5 Search from Event List .........................................................................53

5.3.6 Take a Snapshot...................................................................................54

5.3.7 Health Status ........................................................................................54

5.3.8 Remote Monitoring Software Trouble Shooting Guide .........................55

Appendix A: Recommended HDDs ................................................................................56

Appendix B: Remote Controller .....................................................................................57

Appendix C: Setting up a DVR behind a Router ...........................................................59

DVR User’s Manual

1. Overview

Lite H.264 DVR is an integrated digital video recorder that combines the

features of a time-lapse audio / video recorder, a multiplexer, and a video

server to create a single security solution.

Its outstanding triplex operation enables users to view live video, search and

playback any recorded video by date/time or event, and remotely monitor the

unit via internet on PC, MEANWHILE the recording of the DVR unit is

ongoing simultaneously.

Lite H.264 DVR is enhanced to provide H.264 compression mode. Moreover,

a marvelous implementation is the brand-new experience of Graphical User

Interface (GUI) that optimizes the monitoring controls of the unit.

Lite H.264 DVR is pre-installed with remote viewing and configuration

software, which is a Web-browser plug-in allowing users to view live or

recorded video images, and enables remote configuration. The remote

software is stored in Lite H.264 DVR and deployed over a LAN, WAN or

Internet connection to remote Windows-based computers. This simplifies the

installation and maintenance of the software components so all remote users

are using the same software coming from the unit.

DVR User’s Manual

2. System Setup

The notices and introduction on system installation will be described

particularly in this chapter. Please follow the description to operate the unit.

In order to prevent the unit from data loss and system damage that caused by

a sudden power fluctuation, use of an Uninterruptible Power Supply (UPS) is

highly recommended

2.1 Position the DVR

First, note to position / mount the DVR in a proper place and be sure to power

off the unit before making any connections. The placed location should avoid

hindering or blocking the unit from airflow. Enough airflow is needed to

protect the unit from overheating. The maximum allowable temperature of

operating environment is 40°C.

The unit utilizes heat-conducting techniques to transfer internal heat to the

case, especially to the bottom side of the unit.

NOTE: Be sure the rubber feet are not removed, and always leave a

space for air ventilation on the unit’s bottom side.

2.2 Select Video Format

The DVR is designed to operate under either NTSC or PAL video formats.

The switch is on the rear panel.

DVR User’s Manual

2.3 Connect Devices to the DVR

This section lists some important notices that should be read before making

any connection to the DVR.

Connecting Required Devices

Before power up the unit, cameras and a monitor should be connected to the

unit for basic operation. If needed, connect a call monitor for displaying full

screen video of all installed cameras in sequence.

Connecting Short-term Device

If any short-term devices shall be installed to the DVR as parts of the unit

system, such as USB ThumbDrive® or any USB devices, etc, make sure

those devices are connected only after the unit is powered up. The reason is

because the DVR can recognize the external devices only after the power-up

process is done completely.

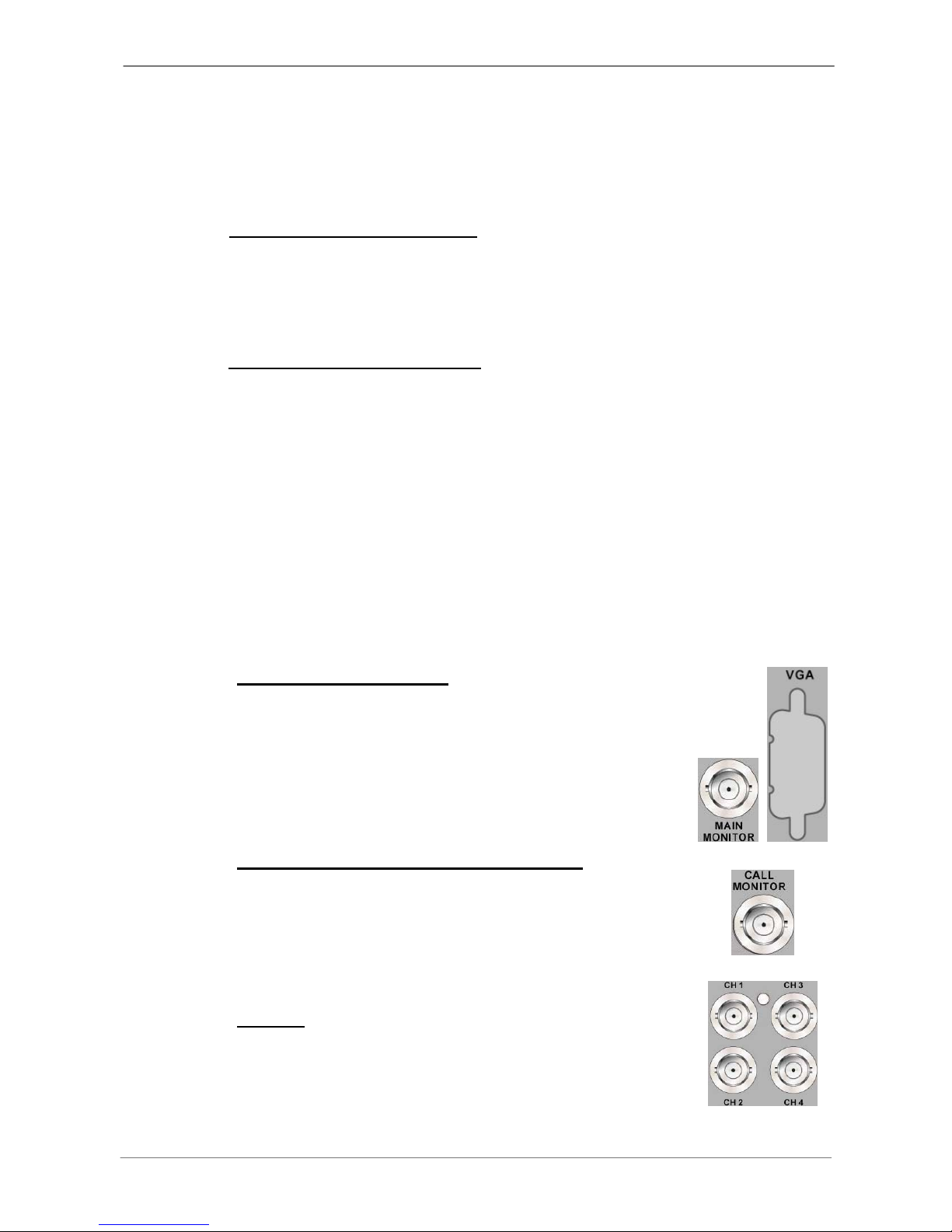

2.4 Rear Panel Connections

There are various connectors on the rear panel for the DVR installations. The

following shows the detailed description of each connector.

Main Monitor (BNC/ VGA)

BNC and VGA output connectors are offered for

connecting to a main monitor. The main monitor displays

live image and playback recorded video in either

full-screen or split-window format. VGA output connector

is optional.

Call Monitor (8CH and 16CH models only)

The call monitor is used to display full screen video of all

installed cameras in sequence. The BNC call monitor

connector allows users to connect the DVR with an

optional call monitor.

Video In

A group of BNC connectors is offered for video input

streams from installed cameras. The number of

connectors is equal to the number of channels.

Indice

Altri manuali LiteOn Registratore digitale

LiteOn

LiteOn LVW-5025 Series Manuale utente

Manuali Registratore digitale popolari di altre marche

FLIR

FLIR M3100E Series Manuale utente

VTRACKPRO

VTRACKPRO FPRO300 Manuale utente

Swann

Swann NVR-7085 models Manuale utente

XtendLan

XtendLan DVR-1670C Manuale utente

urmet domus

urmet domus 1093/004AHD Manuale utente

Holux

Holux M1 Manuale utente

CMOS DOTCOM

CMOS DOTCOM ANX-1670 Manuale utente

Whistler

Whistler D16VRS Manuale utente

Defender Security

Defender Security 82-20235 Manuale utente

MISUMI

MISUMI MP-WF100M Manuale utente

Speco

Speco D8HU Manuale utente

UST

UST DDR-E04AA Istruzioni per l’uso

Consolidated

Consolidated Digital Video Recorder Manuale utente

Mace

Mace DVR0404RW Guida rapida

RCA

RCA RTD315W Manuale utente

FSM

FSM Colibri Grande PRO Manuale utente

Hauppauge

Hauppauge HD PVR 2 Manuale utente

Identivision

Identivision ICR-PH161i PIONEER Manuale utente
