www.litewave.co.uk Flexible LED Tape (240511) R3
Installation
Although the product is tested after manufacturing, it is highly advisable to test the Flexible LED Tape before cutting or fixing
in place to make sure it has not been damaged in transit, and that it is the correct colour.
To test Connect the red (+) wire of the LED Tape to the positive wire of a 12 Volt DC Switchmode Power Supply* (a 9v pp3
will also work for testing), then connect the black wire of the LED Tape to the negative (-) wire of the power supply (or pp3
battery). Ensure that all of the LEDs are fully lit, but AVOID VIEWING THE LEDS DIRECTLY.

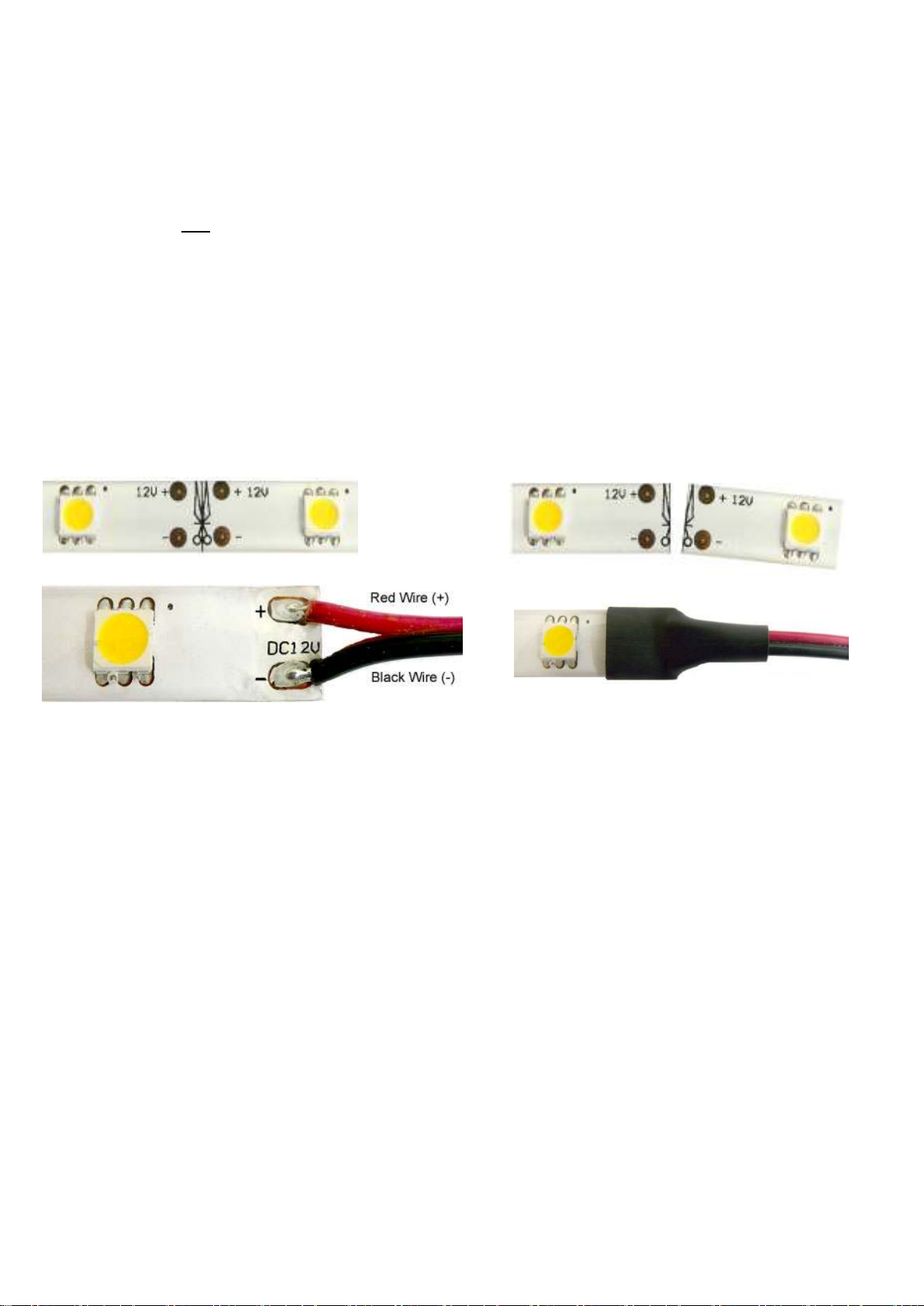

The LED Tape has two wires at both ends each with a small black connector (only 1 end needs to
be connected to the power) you will need to remove one black connector only. If the other end
connector or wire at the opposite end of the LED Tape is removed or cut it should be insulated to
avoid the possibility of short-circuit.

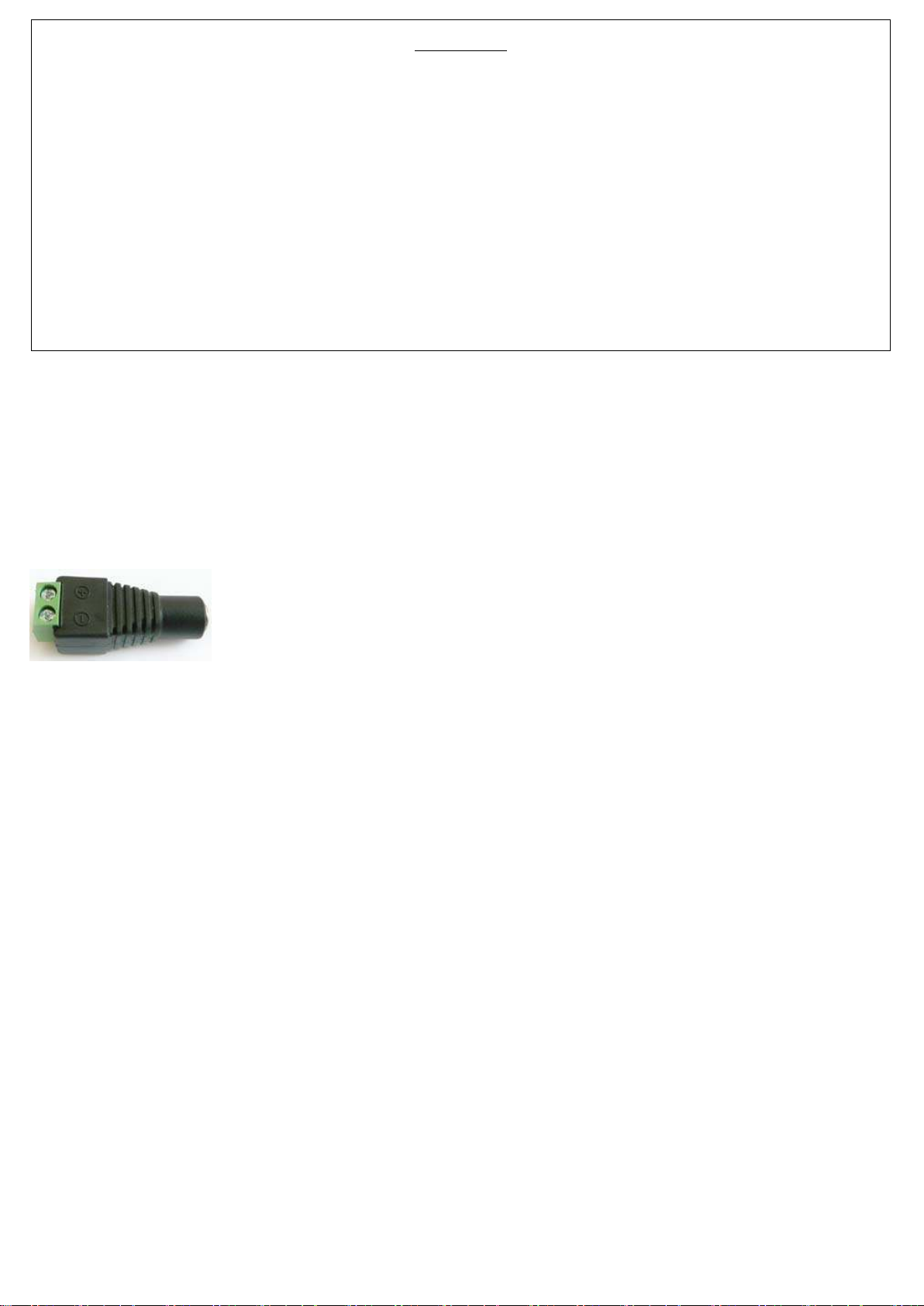

The wires can be connected to the output of the power supply with the DC Adaptor supplied (5A
is the maximum load that should be put on it), alternatively you could use a terminal block, or bullet connectors. Whatever
the connection method the wires should be located in the dry. Remove the small black connector from the wire of the LED
Tape so that you can connect the wires to the terminal block. The LED Tape will only light if connected the right way around
with the + output of the power supply to the + input of the LED Tape, this is usually the red wire.
Next identify the location where the Tape is to be fixed. Do not fix the Tape where it will be permanently wet. With suitable
insulation covering any exposed wired connections the tape will not be damaged by moderate amounts of atmospheric
moisture or the occasional water spray. If the tape is powered-up while submerged in water there is a risk of short-circuit and
possibly even fire in the long term. Equally, do not affix the tape directly to a metal surface as there is a risk of creating a
short-circuit on the back of the tape if accidentally perforated.
Once the location for the Tape has been decided upon simply remove the 3M Adhesive backing strip and carefully lay the
Tape in place working from one end to the other ensuring there are no raised sections. Using a lint-free cloth gently press
between the LEDs on the tape to remove any air bubbles and activate the adhesive, however, make sure you do not press
directly on the LEDs themselves as this could damage them.
Wiring
The 2 wires from the LED Tape can be extended if necessary by using any low-voltage 2-Core cable with a current rating of 3
Amps or greater. With long cable runs the use of a cable with a higher current rating will ensure minimal voltage-drop in the
wiring which could otherwise affect the brightness. 6M of LED Tap is th maximum r comm nd d l ngth for a
continuous run (spur) or join d l ngths otherwise brightness may not appear uniform along the entire length and the Tape
may be overloaded. If longer runs are required, and the power supply has adequate capacity, additional lengths should be
wired back directly to the supply forming separate spurs. The tape itself is unsuited to carrying more than 3 Amps so do not
extend it with excess lengths or other types of current load.
If a power supply having a significantly greater current capacity than the current requirement of the LED product(s) is to be
used then a safety fuse will be required along the positive input wire to the product. This is to prevent excess current flowing
WARNING
WARNINGWARNING
WARNING
Before use please remove the LED Tape from its bag and allow the odour to dissipate in an unused room or
outdoor building. Wash Hands after handling.
This product uses High Brightness LEDs. Direct viewing of the SMD LEDs at close range should be avoided.
Keep product away from children.
Clean the LED Tape with damp a tissue only.
Litewave LTD. Will not accept responsibility for any other issues arising from improper use or fitting of this product
where such matters are beyond our control.
Having highlighted a number of safety issues and warnings in this installation guide Litewave LTD. will accept NO
responsibility for issues arising from any failure to comply with these instructions and recommendations.
