Lithonia Lighting TWA Manuale utente

Installation Instructions

TWA TWAC

Lithonia Lighting Outdoor

One Lithonia Way, Conyers, GA 30012

Phone: 800-279-8041 Fax: 770-918-1209

www.lithonia.com

Part Number: RJ5210090 Rev B

Revision Date: 6/11/10

SAVE THESE INSTRUCTIONS

WARNING

To reduce the risk of death, injury or property damage from fire, electric shock, cuts,

abrasions, falling parts, and other hazards:

•Serviceoftheequipmentmustbeperformedbyqualifiedservicepersonnel.

•Installationandmaintenance must be performed byaperson familiar with the constructionand

operationofthis product and any hazards involved.Allapplicablecodes and ordinances must

befollowed.

•Readthisdocument before installing, servicing, ormaintaining this equipment or installinga

lamp.These instructions do not coverall installation, service, and maintenancesituations. If

your situation is not covered, or if you do not understand these instructions or additional

informationisrequired, contactLithoniaLighting or your local Lithonia LIghtingDistributor.

•Readandfollowallwarningsandinstructionsprovidedbythe lamp manufacturer.

WARNING

Before installing, servicing, or maintaining this equipment, follow these general precautions.

To reduce the risk of electrocution:

•Makesuretheequipment is properly grounded.

•Alwaysde-energizethe circuit and/or equipment before connecting to,disconnecting

from,orservicingtheequipment.

To reduce the risk of fire:

•Keep material away that can burn from hot lamp.

•Make sure lamps are correctly installed.

•Use supply conductors with a minimum installation temperature rating as specified on

equipment.

To reduce the risk of personal injury from cuts, abrasions, or falling parts:

•Wearglovestopreventcutsorabrasionsfromsharpedgeswhen removing from carton,

handlingandmaintainingthisequipment.

•Donot use abrasive materials, glasscleaners or other solventsonreflector or lens.

Thesesubstancesmay damage equipment and causepartstoeventually break and

fall.

•Do not install a damaged fixture.

CAUTION: Observelampmanufacturer’srecommendations and restrictions on lamp operation,

including but not limited to ballast type, burning position, replacement and cycling. Use only lamps that

complywithapplicableANSI standards.

NOTICE: If lamp is marked it contains mercury. Follow disposal laws. See www.lamprecycle.org

Lithonia Lighting, a division of Acuity Brands Lighting, Inc., assumes no responsibility for claims arising out of

improper or careless installation or handling of this product.

IMPORTANT SAFETY INSTRUCTIONS

READ AND FOLLOW ALL SAFETY INSTRUCTIONS!

SAVE THESE INSTRUCTIONS AND DELIVER TO OWNER AFTER INSTALLATION

Installation Instructions

TWA TWAC

Lithonia Lighting Outdoor

One Lithonia Way, Conyers, GA 30012

Phone: 800-279-8041 Fax: 770-918-1209

www.lithonia.com

Part Number: RJ5210090 Rev B

Revision Date: 6/11/10

Delivery: Upon receipt of fixture and accessories (packed separately), thoroughly inspect for any freight damage. All damage

should be reported to the delivery carrier. Compare the catalog description listed on the packing slip with the fixture label on

the inside of the housing to be sure you have received the correct merchandise.

Lamp Installation: Loosen the 2 closing screws, hinge door assembly forward to access lamp compartment . Verify that the lamp source

and wattage corresponds with the fixture and ballast label. HID -Screw the lamp securely into the socket, back it out one or two turns,

and tighten securely again. This procedure properly seats the lamp in the socket. Close door using the standard closing screws.

Compact Fluorescent: Push lamp into socket until the socket retention clips snap secure (you will hear a click).

Troubleshooting: If this fixture fails to operate properly, check to make sure: The proper lamp is installed correctly. • The fixture is

wired correctly. • The lamp is not faulty. • The fixture is grounded correctly. • The line voltage at the fixture is correct.

Multi-tap Ballast (TB): The multi-tap ballast will be prewired for 277V at the factory. First determine the correct line voltage. Then

select the corresponding fixture voltage lead, remove the crimped cap and connect to the supply voltage lead. The fixture lead marked

COM should be connected to the neutral supply lead for 120 or 277. For 208 or 240, connect the other incoming hot leg to the fixture lead

marked "COM". Be sure to cap off all unused fixture leads individually.

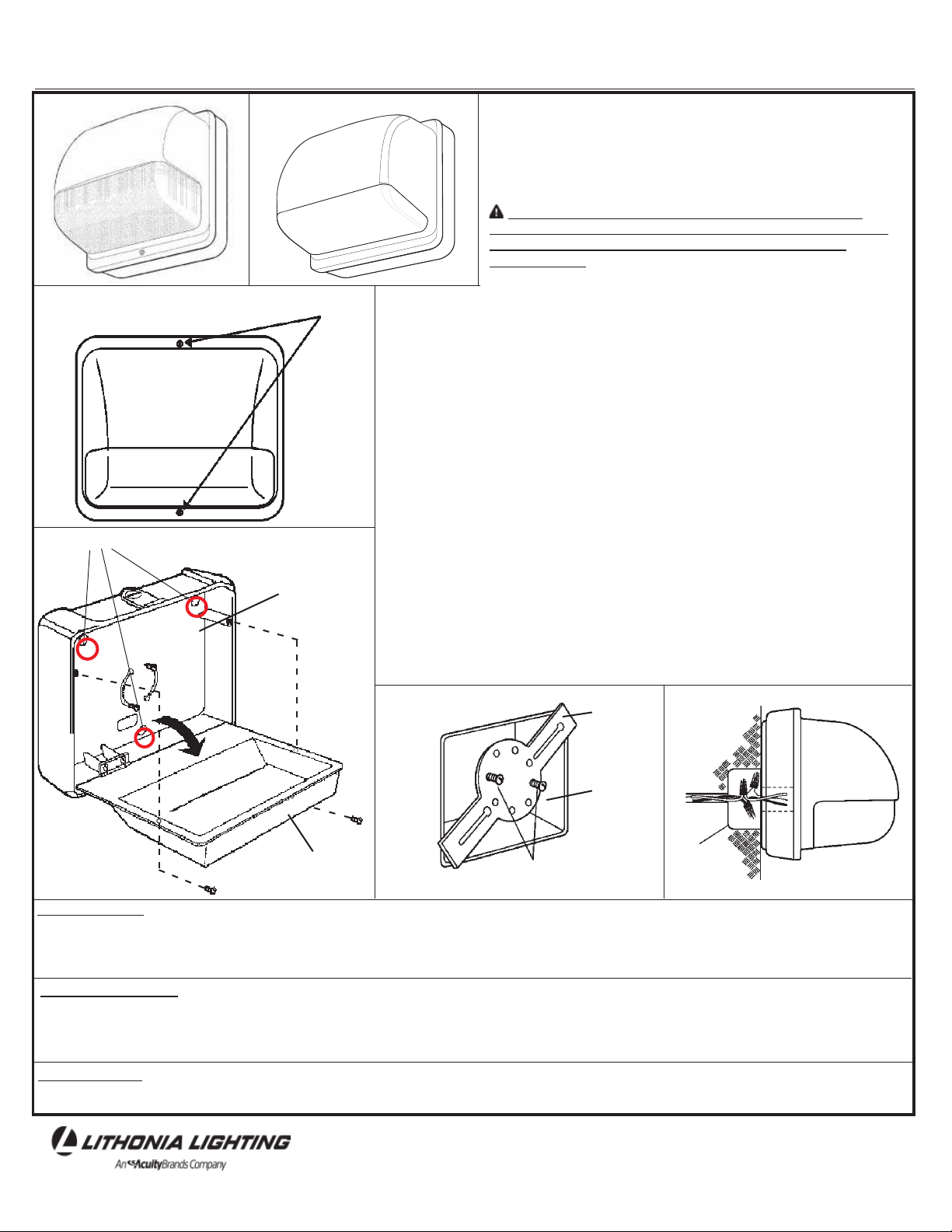

1. Loosen the 2 captive lens screws and remove front cover.

(Figure 1) Remove cartoned lamp (if provided).

2. Loosen 2 captive screws from component cover and hinge

downward. (Figure 2)

CAUTION: APPLY A CONTINUOUS BEAD OF WEATHER -

PROOF CAULKING BETWEEN MOUNTING PLATE AND WALL TO

ENSURE WEATHER - TIGHT INTEGRITY OF ELECTRICAL

COMPONENTS.

3. Preferred mounting method: Punch out the 3/8" knockouts (3)

in the cast back plate. Position cast back plate against the wall and mount with

1/4" screws (by others). (Figure 2)

4. Alternate mounting method: Attach adaptor strap to outlet box with 2 screws.

Make sure strap is attached so screws are somewhat horizontally opposed from

each other (Figure 3). Position cast back plate such that the 2 adaptor strap

screws fit though the keyhole slots in the cast back plate. Rotate entire assem-

bly clockwise until fixture seats tightly against the wall.

5. Make wiring connections. For multi-tap ballast, follow instructions below.

Push wires back through the oblong opening in the back housing, into the outlet

box. (Figure 4)

6. Reverse step 2: Raise hinged component cover and tighten screws.

7. Remove lamp from package and install per lamp installation instructions below.

8. Reverse step 1: Reinstall the front cover by tightening lens screws.

(Optional Tamper Resistant Torx . screws are provided. For installation, remove existing door

closure screws and insert the optional screws. These fasteners require a Torx T20 with

center pin reject driver or bit to install and remove.

JBOX

SCREWS IN

HARDWARE BAG

ADAPTOR

STRAP

TWAC

TWA

BACK

PLATE

COMPONENT

COVER

Figure 1

Figure 3

LOOSEN

Figure 2

Figure 4

Knockouts (step 3)
