Little Tikes Island Wavemaker Manuale utente

ASSEMBLY INSTRUCTIONS

Island Wavemaker™

XIM651359-R1 - 1/21

Adult assembly required. Approx. assembly time: 30 min.

Look for video of assembly at

littletikes.com/videoinstructions

#651359M

years

WARNINGS!

• Adult Assembly Required

• Keep these instructions for future reference.

• Prior to assembly, this package contains small parts: hardware which is a choking hazard

and may contain sharp edges and sharp points. Keep away from children until assembled.

• Adult supervision required. Do not leave children unattended.

• Use this product on a rm, level surface and avoid using near swimming pools, on or near

steps, hills or inclines.

• This product is intended for outdoor domestic family use only.

• This product is intended for use by children ages 2 years and up.

• Do not allow children to sit, stand, play or climb on the top surface. Failure to do so may

cause the product to become unstable.

• Intended for use with the supplied accessories only.

• Never ll with anything except clean tap water. Use of other liquids may be harmful

or damage the unit. Never ll with sand or dirt.

• Do not store or leave water in product when not in use.

DISPOSAL

Disassemble and dispose of equipment in such a manner that no hazardous conditions

such as, but not limited to, small parts and sharp edges exist at the time equipment is discarded.

Thank you for choosing the Little Tikes©Island Wavemaker™ .

We strive to provide a durable, easy-to-assemble toy thats made to last,

giving your child years of imaginative, engaging fun!

• Read through all the instructions rst.

• Clear a at surface to lay out all the materials so everything is close at hand.

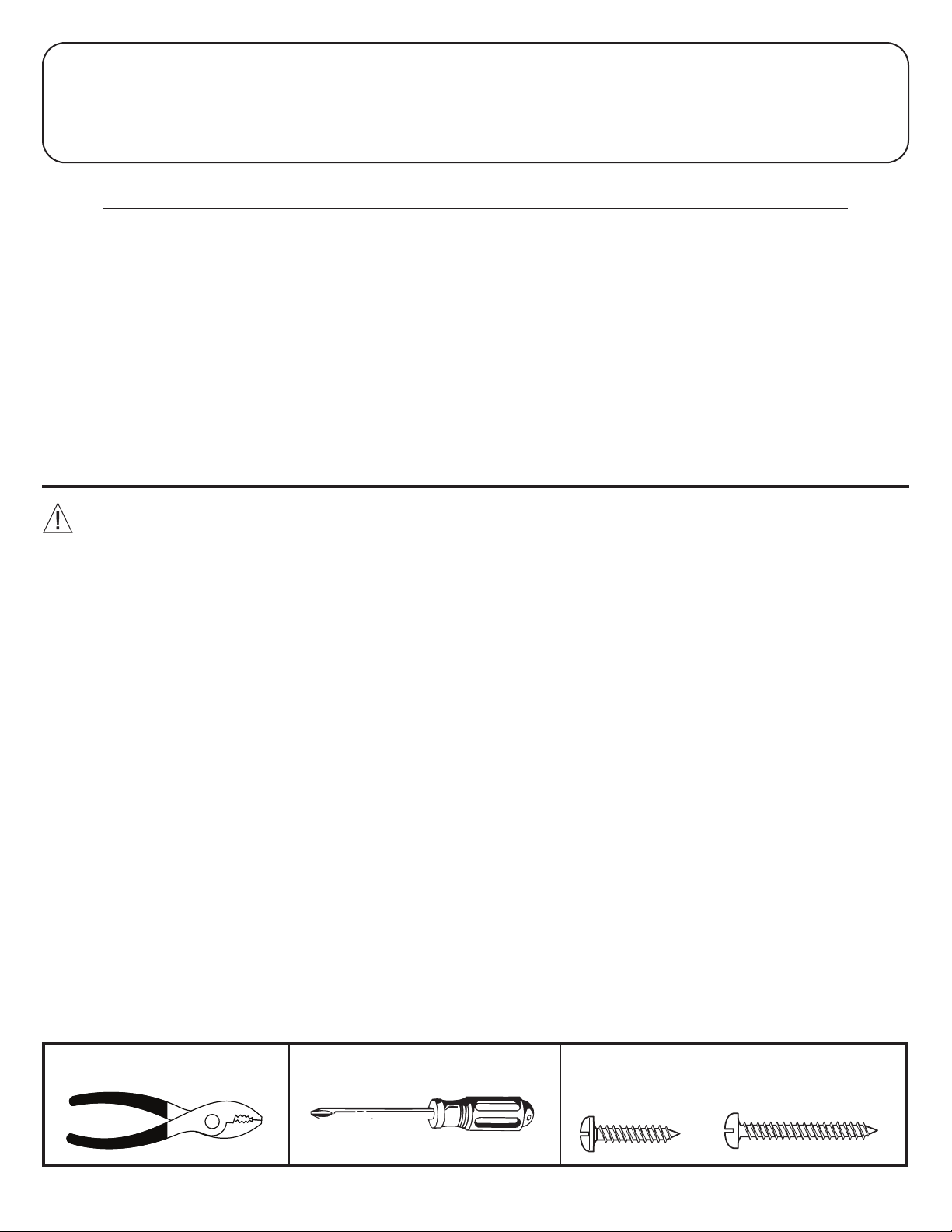

• You will need a Phillips head screwdriver, and pliers (not included) to assemble the Island Wavemaker™.

- When installing screws, be sure screws are tightened snugly, but do NOT OVER-TIGHTEN.

• The parts are listed below - each part is identied with a letter in RED for easy reference.

• Illustrations are for reference only. Styles may vary from actual contents.

• If you have any questions, we’re here to help. Give our customer service team a

call at 1-800- 321-0183.

Really important information you should know!

Tools Required (not included)

Shown actual size

(4) 1 ¼" (3.17cm)(14) ¾" (1.9cm)

Tools Required (not included)

Steering Wheel (1)

Paddle Cover 2 (1)

A Few Things Before You Start!

BEFORE you begin assembly, make sure

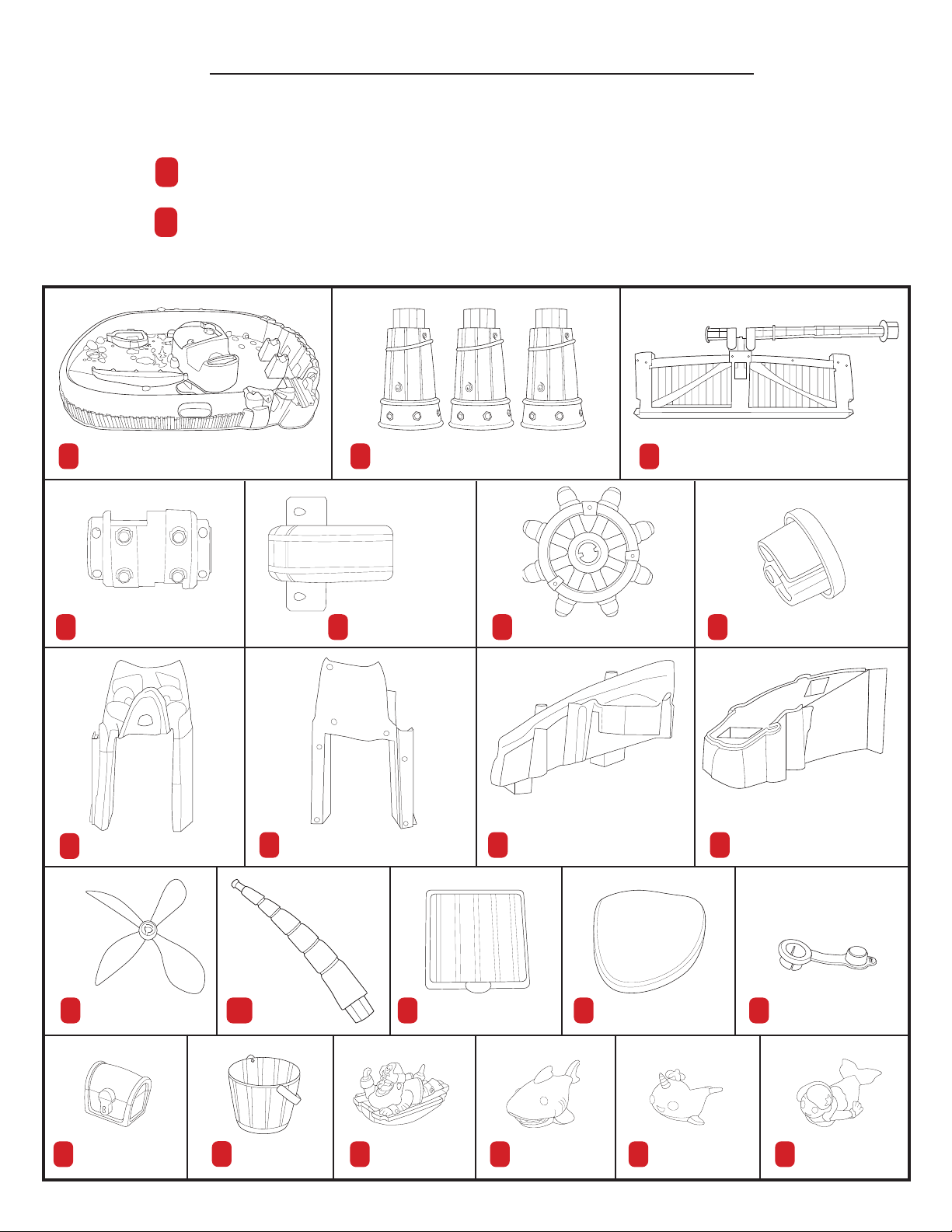

you have all the parts listed below.

Some packages of hardware may have extras pieces.

Questions? We’re here to help.

Little Tikes customer service team at 1-800-321-0183.

Illustrations are for reference only. Styles may vary from actual contents.

Table Top (1)

Table Legs (3)

Skull Front (1)

Crank assembly (1)

Paddle Cover 1 (1)

Steering Wheel Cap (1)

Boat Deck Cover (1)

Treasure Cover (1)

Drain Plug (1)

Treasure Chest(1)

Skull Back (1)

Slide Top (1)

Slide Bottom (1)

Palm Tree Top (2)

Palm Tree

Base (1)

Bucket (1)

Pirate (1)

Shark (1)

Narwhal (1)

Mermaid (1)

Let’s get started!

First insert the drain plug (part P) into opening

on table top (part A)

Push drain plug through the opening.

Close the drain plug.

Recommended

(not included)

Next, ip table over.

Work the plug around the

opening, pulling only the

plug edge through.

The plug edge

should be

completely

pulled through

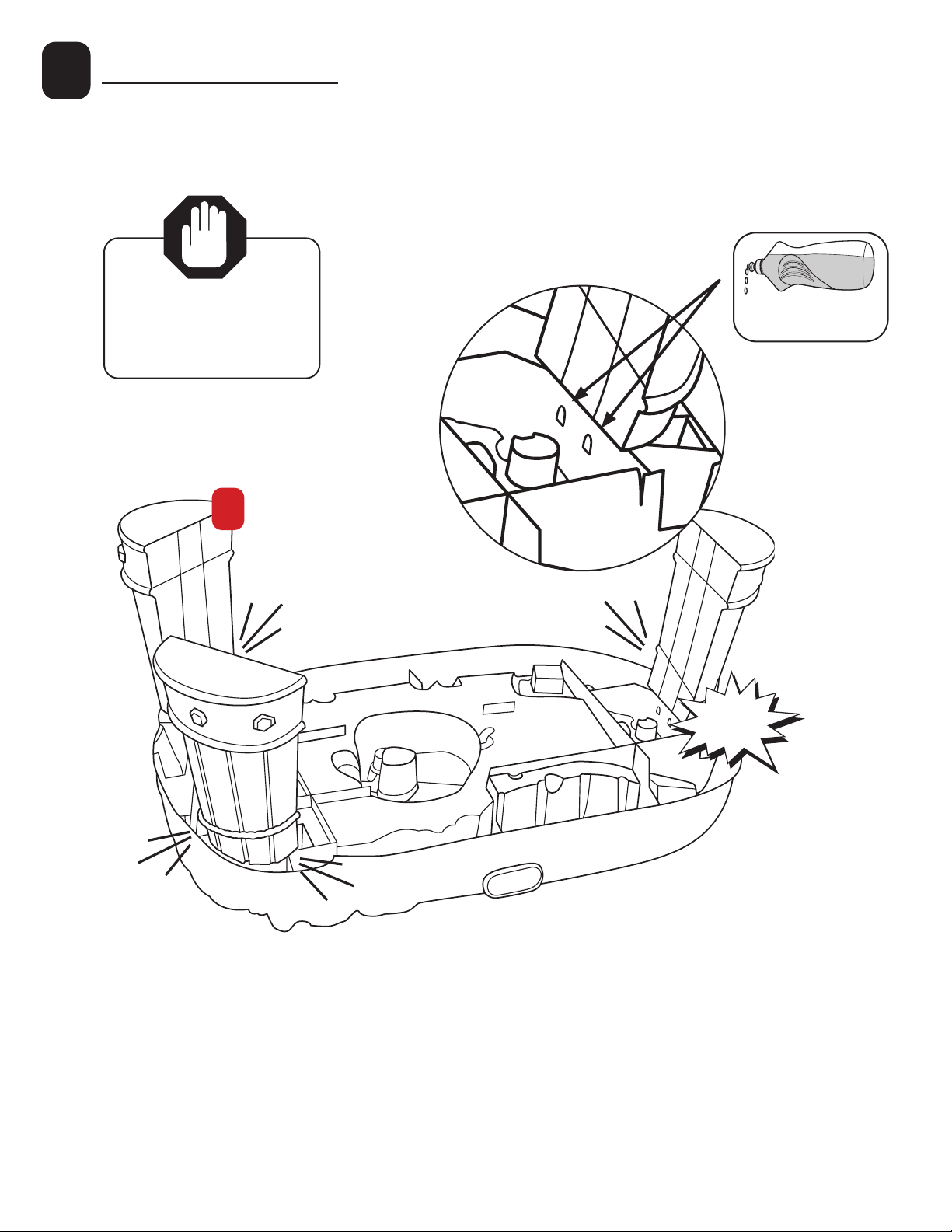

Attach the legs

Insert 3 table legs (part B) into table top (part A),

snap into place.

Place on at

surface before you

push legs in

Snap!

Assembly Hint: 1 tbsp.

of liquid soap

Bx3

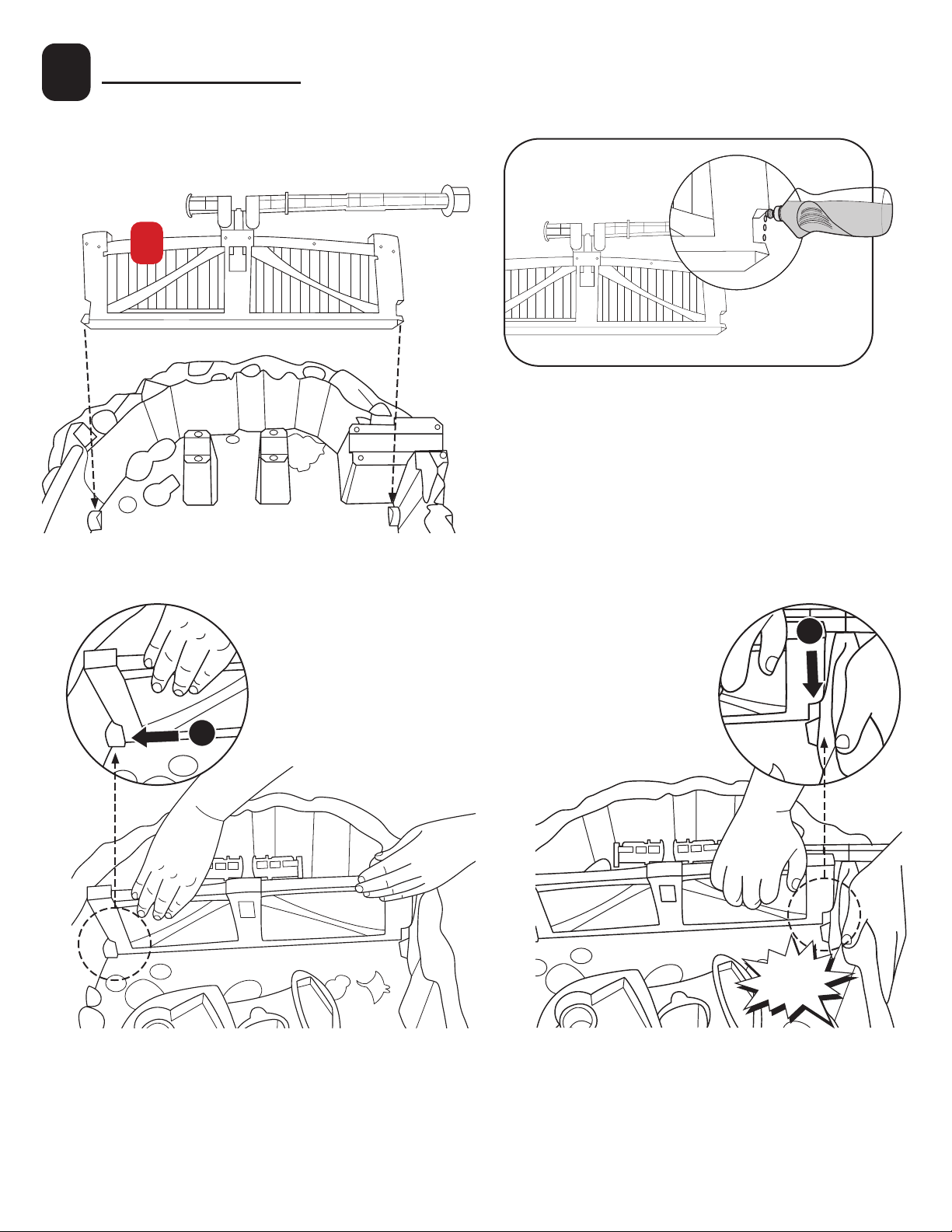

Get crankin’!

Flip table right side up. Get ready to insert

the crank assembly (part C).

Assembly Hint: 1 tbsp.

of liquid soap

FIRST, insert one corner of crank assembly

(part C) into opening. THEN, press opposite corner into opening,

snap into place.

Snap!

1 ¼" (3.17cm)

Insert (4) 1¼" (3.17 cm) screws to

attach the paddle cover 2 to base.

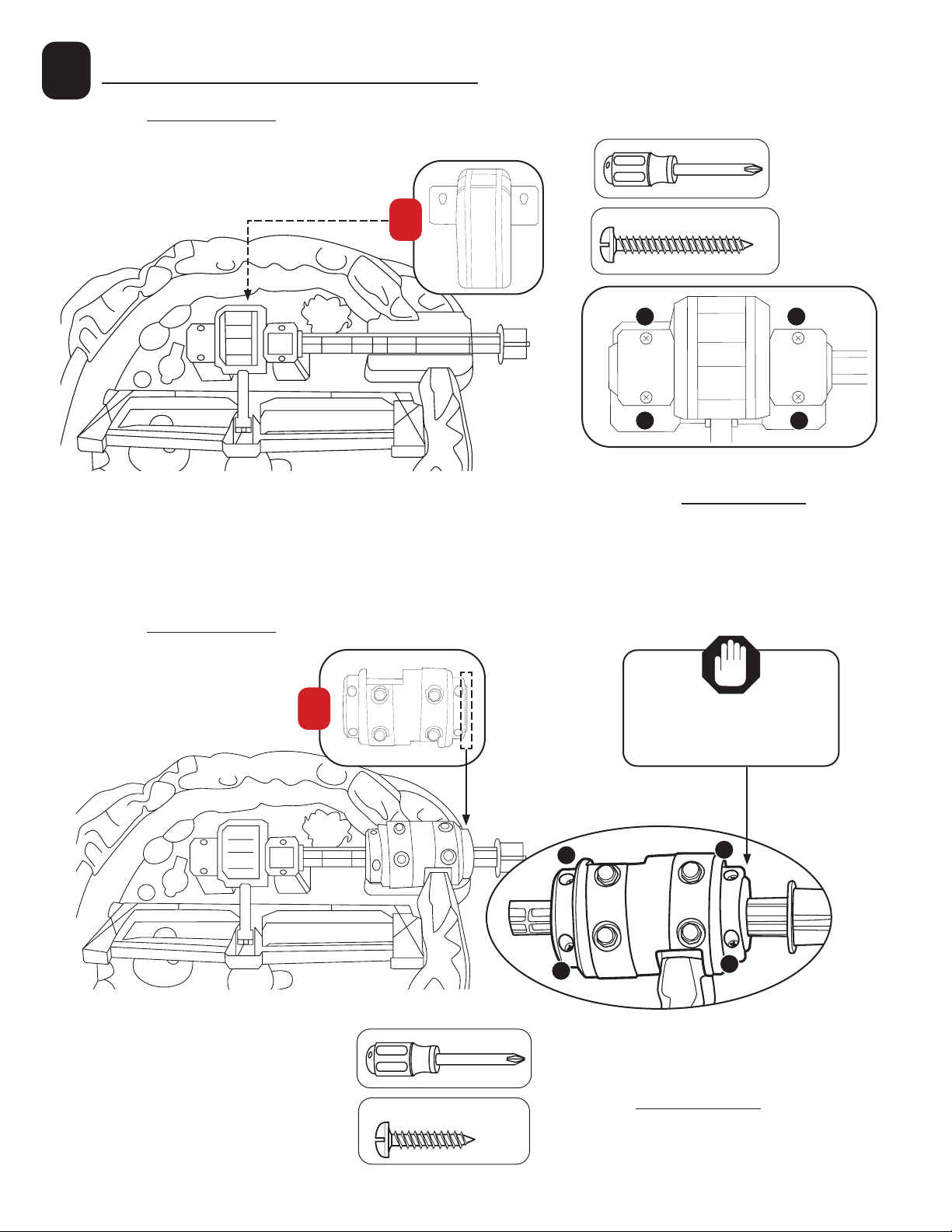

Attach the paddle cover

Place paddle cover 2 (part E), over crank assembly.

Place paddle cover 1 (part D), over crank assembly.

2 4

¾" (1.9cm)

Insert (4) ¾" (1.9 cm) screws to

attach the paddle cover 1 to base.

Ridge MUST FACE

outer edge.

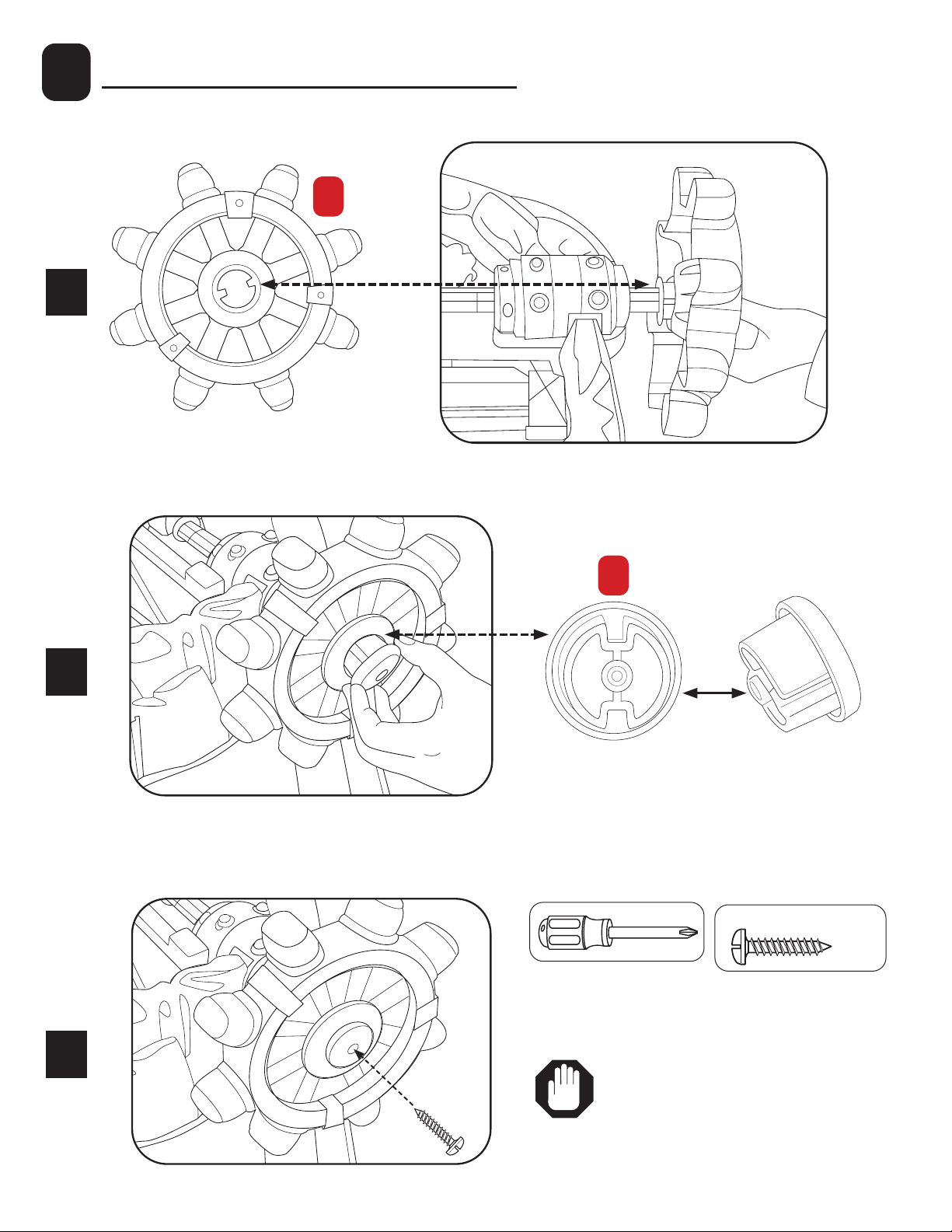

Get the steering wheel on!

Align notches on steering wheel (part F) wth the

slots on the axle of crank assembly.

Part is keyed to t

Align slots on steering wheel cap (part G) with

notches on steering wheel and slide into place.

¾" (1.9cm)

Insert (1) ¾" (1.9 cm) screw

through the steering wheel cap

and secure.

Make sure screw is tightened.

It’s time for the Palm trees!

Spins!

Snap palm tree top (L) onto palm tree base (M).

Repeat for the second palm tree

Mx2

Align notches on palm tree

assembly to notches on base.

Press to t each palm tree

into table.

Part is keyed to t

Skulls and slides, oh my!

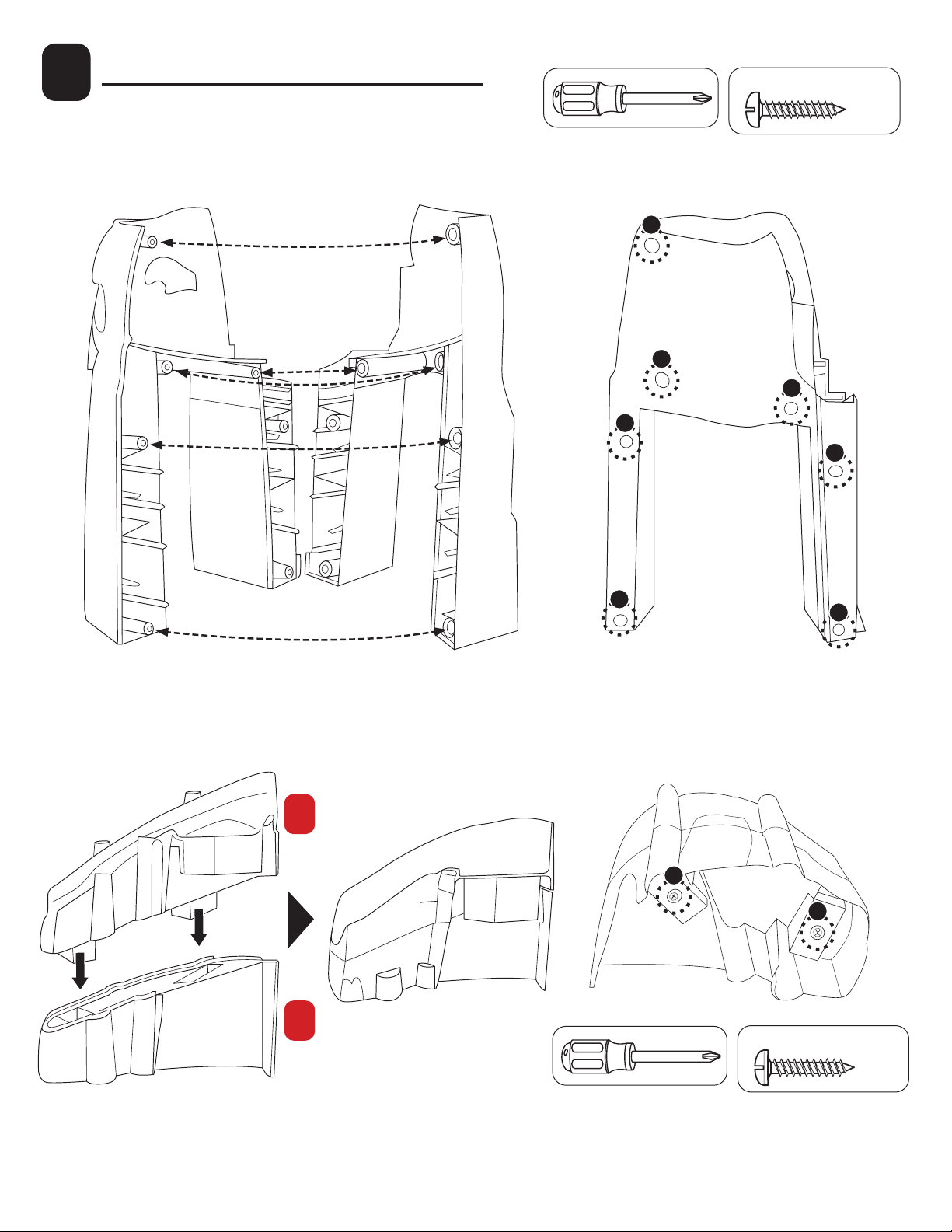

Align skull front (part H) to skull back (part I)

to t together.

¾" (1.9cm)

Insert (7) ¾" (1.9 cm) screws to secure.

¾" (1.9cm)

Insert (2) ¾" (1.9 cm) screws to secure.Press slide top (J) onto slide bottom (K).
