Little Wonder Optimax 9270-12-01 Manuale di programmazione

OPERATORS / PARTS MANUAL

MAN 4166799

Rev. A 07-2011

Original Language Instructions

Owners Manual and Safety Instructions for

OPTIMAX BLOWER

9270-12-01

GX270 HONDA SP

9270-13-01

EX270 SUBARU SP

9390-12-01

GX390 HONDA SP

9400-13-01

EX400 SUBARU SP

9570-14-01

570 VANGUARD SP

MODELS:

Self Propelled Maximum Output Blower

CALIFORNIA

Proposition 65 Warning

Diesel engine exhaust and some

of its constituents are known to the

State of California to cause cancer,

birth defects and other reproductive

harm.

WARNING

The engine exhaust from this product

containschemicalsknowntotheState

of California to cause cancer, birth

defects or other reproductive harm.

CALIFORNIA

Proposition 65 Warning

Battery posts, terminals, wiring

insulation, and related accessories

contain lead and lead compounds,

chemicals known to the State of

California to cause cancer and birth

defects or other reproductive harm.

WASH HANDS AFTER HANDLING.

LITTLE

WONDER

BLOWER

IMPORTANT MESSAGE

On behalf of everyone at Little Wonder, we would like to thank you for your purchase of a Little Wonder Gasoline

Powered Optimax Blower. This professional blower was designed to the highest standards to ensure you many

hours of uninterrupted service.

This manual provides the information necessary for safe and efcient operation and service. For your safety, it

is critically important that you read and understand this entire manual before operating your blower.

LITTLE WONDER

SCHILLER GROUNDS CARE, INC.

1028 STREET ROAD, P.O. BOX 38

SOUTHAMPTON, PA 18966

7-2011

TABLE OF CONTENTS FIGURES PAGE

SAFETY.........................................................................................................................................................4-8

SET UP INSTRUCTIONS............................................................................................................................9-10

CONTROLS....................................................................................................................................................11

OPERATION / MAINTENANCE .....................................................................................................................12

ADJUSTMENTS.............................................................................................................................................13

STORAGE / TORQUE SPECIFICATIONS .....................................................................................................14

INTAKE GUARD ASSY .......................................FIGURE 1 .........................................................................15

ENGINE ASSY ....................................................FIGURE 2 .........................................................................16

HOUSING ASSY .................................................FIGURE 3 .........................................................................17

WARRANTY ............................................................................................................................... BACK COVER

MANY USES:

The extreme versatility offered by Little Wonder’s line of blowers makes them ideally suited for a wide variety

of jobs; blowing leaves, grass clippings, thatch, blowing tennis courts dry, cleaning large driveways, stadiums,

parking lots and other hard surfaces, precleaning roofs before repair and countless other jobs.

This Operator’s Manual is part of the machine. Suppliers of both new and second-

hand machines must make sure that this manual is provided with the machine.

LITTLE

WONDER

BLOWER

MODEL NUMBER: This number appears on

sales literature, technical manuals and price lists.

SERIAL NUMBER: This number appears only

on your unit. It contains the model number fol-

lowed consecutively by the serial number. Use

this number when ordering parts or seeking war-

ranty information.

Schiller Grounds Care, Inc.

1028 Street Road

Southampton, PA 18966 U.S.A

Phone: 215-357-5110

Fax: 215-357-8045

MODEL NUMBER

SERIAL NUMBER

SAFETY

NOTICE !!!

Unauthorized modications may present extreme

safety hazards to operators and bystanders and

could also result in product damage.

Schiller Grounds Care, Inc. strongly warns against,

rejects and disclaims any modications, add-on

accessories or product alterations that are not

designed,developed,testedandapprovedbySchiller

Grounds Care, Inc. Engineering Department. Any

Schiller Grounds Care, Inc. product that is altered,

modied or changed in any manner not specically

authorized after original manufacture-including the

additionof“after-market”accessoriesorcomponent

parts not specically approved by Schiller Grounds

Care, Inc. will result in the Schiller Grounds Care,

Inc. Warranty being voided.

Any and all liability for personal injury and/or

property damage caused by any unauthorized

modications, add-on accessories or products not

approved by Schiller Grounds Care, Inc. will be

considered the responsibility of the individual(s) or

company designing and/or making such changes.

Schiller Grounds Care, Inc. will vigorously pursue

full indemnification and costs from any party

responsible for such unauthorized post-manufacture

modications and/or accessories should personal

injury and/or property damage result.

This symbol means:

ATTENTION!

BECOME ALERT!

Your safety and the safety of others is involved.

Signal word denitions:

The signal words below are used to identify levels

of hazard seriousness. These words appear in this

manualandonthesafetylabelsattachedtoSchiller

Grounds Care, Inc. machines. For your safety and

thesafetyofothers,readand followtheinformation

given with these signal words and/or the symbol

shown above.

DANGER indicates an imminently hazardous

situationwhich, ifnot avoided,WILLresult indeath

or serious injury.

WARNING indicates a potentially hazardous

situation which, if not avoided, COULD result in

death or serious injury.

CAUTION indicates a potentially hazardous situation

which,ifnotavoided,MAY resultinminorormoderate

injury. It may also be used to alert against unsafe

practices or property damage.

CAUTION used without the safety alert symbol

indicates a potentially hazardous situation which, if

not avoided, MAY result in property damage.

LITTLE

WONDER

BLOWER

SAFETY

SITE PREPARATION AND CIRCUMSTANCES

– Evaluate the terrain to determine how to safely

perform the job. Only use accessories and

attachments approved by the manufacturer.

– Be sure the area is clear of pets and people,

especially young children. Never assume they

will remain where you last saw them. Stop the

machine if any enter the area.

MACHINE PREPARATION

Operator preparation and training

Read the Operation & Safety

Manual

– If an operator or mechanic

cannot read English, it is

the owner's responsibility

to explain this material to

them. If any portion of

this material is unclear,

contact your factory

representative for clarication.

– Become familiar with the safe operation of the

equipment, operator controls and safety signs.

Be prepared to stop the engine quickly in an

emergency. Do not operate or allow another

person to operate this machine if there are any

questions about safety.

– All operators and mechanics should be trained.

The owner is responsible for training the users.

– Wear appropriate clothing, including safety

goggles or safety glasses with side shields when

operating. Wear substantial footwear. Do not

operate barefoot or wearing open sandals. Long

hair, loose clothing or jewelry may get tangled in

moving parts.

– Wear appropriate hearing protection.

_ Wear dust mask to avoid breathing dust.

– Wear safety glasses.

– Never allow children, unskilled or improperly

trained people to operate this equipment. Local

regulations can restrict the age of the operator.

– Keep warning labels and this operator's manual

legible and intact. Replacement labels and

manuals are available from the factory.

– Do not operate machine while under the

inuence of drugs or alcohol, or any other

condition of impairment.

– The owner/user can prevent and is responsible

for accidents or injuries occurring to themselves,

other people or property.

MULTIPLE OPERATORS

– Keep a safe distance between operators when

working together.

MACHINE PREPARATION

– Do not tamper with or defeat safety devices.

Keep guards, shields and interlock safety devices

in place and in proper working condition. They

are for your protection.

– Keep all fasteners such as nuts, bolts and pins

well secured.

– Verify that machine and attachments, if any, are

in good operating condition.

LITTLE

WONDER

BLOWER

OPERATING SAFELY

IN GENERAL

– Use extra care when loading or unloading the

machine into a trailer or truck.

– Do not run the engine in an enclosed area where

dangerous carbon monoxide fumes can collect.

– Never leave a running machine unattended.

Always stop engine when leaving the operator

position.

– Do not blow towards people, cars, windows, or

other items which could be injured or damaged

by the blown debris.

– Keep hands away from the blower air intake and

outlet.

STARTING

– Start according to instructions in this manual or

on the machine.

– Do not change engine governor settings or

overspeed the engine. Operating the engine

at excessive speed can increase the hazard of

personal injury.

– Use extreme caution when reversing.

INTERRUPTING OPERATION

- Before leaving the operator's position:

- Park on level ground.

- Release the traction drive bail.

- Shut off the engine.

- Stop the engine, and wait until the fan stops

moving:

- before refueling;

- Stop the engine, and disconnect the spark plug

wire(s):

- before clearing blockages;

- before checking, cleaning or working on the

machine;

- if the machine begins to vibrate abnormally:

shut off machine immediately. Inspect

and have repairs made as needed before

restarting;

- except for repairs or adjustments as specically

noted, such as for carburetor adjustment,

where the engine must be running. Keep

hands and feet clear of moving parts in these

circumstances.

- Allow the fan to come to a complete stop when

stopping operation to clear blockages, unclog,

inspect the machine, do maintenance or repair.

- Reduce the throttle setting during engine shut-

down and, if the engine is provided with a shut-

off valve, turn the fuel off at the conclusion of

operation.

OPERATING ON SLOPES

USE EXTRA CARE WHEN OPERATING ON SLOPES.

EVALUATE THE RISKS INVOLVED BEFORE OPER-

ATING ON A SLOPE

- Slopes are a major factor related to slip and fall

accidents that sometimes lead to severe injury or

death. All slopes require extra caution.

- Do not operate on slopes if uneasy or uncertain.

Ultimate responsibility for safe operation on slopes

rests with the operator.

- Donotoperateonsteepslopes. Poorfootingcould

cause a slip and fall accident.

- Keep all movement on slopes slow and gradual.

- Do not operate near drop-offs, ditches or embank-

ments. You could lose your footing or balance or

drive the machine off the edge.

- Do not turn on slopes unless necessary, and then

turn slowly and downhill when possible.

- Be sure of your footing on slopes.

- Watch for holes, ruts, bumps, rocks and other hid-

den objects. Uneven terrain could cause a slip and

fall accident. Tall grass can hide objects.

SAFETY

LITTLE

WONDER

BLOWER

Fuel

- Gasoline (petrol)) and die-

sel fuels are ammable;

gasoline (petrol) vapors

are explosive. Use extra

care when handling.

- Store only in containers

specically designed for

fuel.

MAINTENANCE SAFETY

In general

- Maintain machine according to manufacturer's

schedule and instructions for maximum safety

and best results.

- Park machine on level ground.

- Never allow untrained personnel to service ma-

chine.

- Guards should only be removed by a qualied

technician for maintenance or service.

- Adjust or repair only after the engine has been

stopped and the fan has stopped moving.

- Disconnect spark plug wire(s) before doing any

maintenance.

- Replace parts if worn, damaged or faulty.

For best results, always replace with parts

recommended by the manufacturer.

- Do not dismantle the machine without releasing

or restraining forces which may cause parts to

move suddenly.

- Provide adequate support, e.g. jack stands for

lifted machine or parts if working beneath.

- Do not put hands or feet near or under rotating

parts.

- Clean up spilled oil or fuel thoroughly.

- Replace faulty mufers.

- To reduce re hazards, keep the engine, muf-

er, and fuel storage area free of grass, leaves,

debris buildup or grease.

WARNING

Fans

Do not straighten or weld fans. Replace dam-

aged or failed fans..

- When refueling or checking fuel level:

- Stop the engine and allow to cool;

- Do not smoke;

- Refuel outdoors only;

- Use a funnel;

- Do not overll;

- If fuel is spilled, do not attempt to start the

engine until the spill is cleaned up and vapors

have cleared.

- Replace caps on fuel containers and tanks

securely.

Sparks from static electricity can start res or

cause explosions. Flowing fuel can generate static

electricity. To prevent static electricity sparks:

- Keep containers electrically grounded. Do not ll

containers in a vehicle or on a truck or trailer bed

with a plastic liner. Fill containers on the ground

away from the vehicle.

- When practical, remove petrol (gasoline)

powered equipment from the truck or trailer

and refuel it on the ground. If equipment must

be refueled on the truck or trailer, refuel from

a portable container rather than a dispenser

nozzle.

- Keep the dispenser nozzle in contact with the rim

of the fuel tank or container opening until fueling

is complete. Do not use a nozzle lock-open

device.

- If fuel is spilled on clothing change it immediately.

STORAGE SAFETY

- Stop the engine and allow to cool before storing.

- Drain the fuel tank outdoors only.

- Store fuel in an approved container in a cool, dry

place.

- Keep the machine and fuel containers in a locked

storage place to prevent tampering and to keep

children from playing with them.

- Do not store the machine or fuel container near an

open ame, spark, or appliance, such as a water

heater, or a pilot light.

- Keep petrol (gasoline) storage area free of grass,

leaves and excessive grease to reduce re haz-

ard.

- Clean grass and debris from cutting units, drives,

mufers and engine to help prevent res.

SAFETY

LITTLE

WONDER

BLOWER

SAFETY

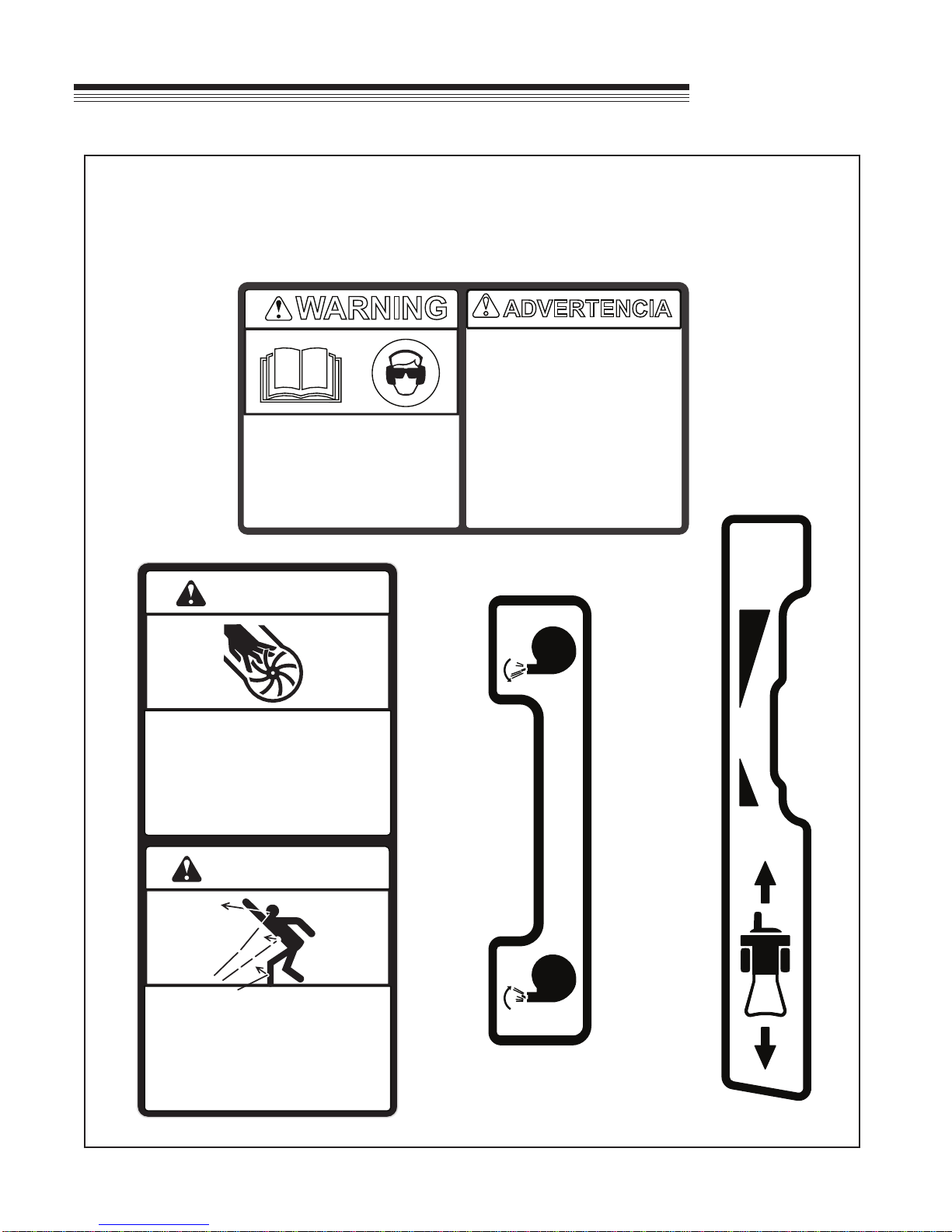

SAFETY DECALS

An important part of the safety system incorporated in this blower are the warning labels found on the blower.

Replace labels if damaged or illegible.

-Read and understand Operator

manual and labels.

-Wear hearing and eye protection.

-Replace labels and Operator

manual if lost or damaged.

BEFORE STARTING:

WARNING

-Lea y entienda el manual del

operador y las etiquetas.

-Pide que alguien lea y explique el

manual y las etiquetas a usted si

usted no lee Inglés.

-Use protección ocular y auditiva.

-No haga funcionar sin los

protectores en su lugar.

-Pare el motor antes de dar servicio

-La gente a más durante la

operación.

4165977

ADVERTENCIA

Antes de comenzar:

WARNING

Thrown objects

-Keep bystanders away.

-Do not blow toward people or pets.

-Do not blow toward items that may

be damaged by flying debris.

-Keep hands and feet away.

-Stop engine and remove spark plug

wire before servicing.

-Do not operate without guards in

place.

Fan blades can cut/crush.

DANGER

4165975

4165913

4166816

LITTLE

WONDER

BLOWER

FIGURE 4

FIGURE 2

FIGURE 1

SET-UP INSTRUCTIONS

1. Open box. Remove upper handle and cardboard

insert.

2. Cut the back of the box open. Use lower handle to

roll unit out of the box.

3. Locate hardware package.

4. Install upper handle to lower handle with (4) 3/8-16

x 1-34 carriage bolts and (4) 3/8-16 anged nylon

insert nuts from the hardware package. Tighten

the nuts securely but not so much as to crush the

tube. (Figure 1) NOTE: There are two handle height

positions to choose from.

5. Route the throttle cable in front of lower handle

crossbar. Install to the left side of the upper handle

with (2) 10-32 x ½ thread forming screws from the

hardware package. (Figure 2)

6. Ensure the center link of the chain is on the center

tooth of the deector sprocket before connecting the

deector cable. (Figure 3)

7. Route the deector cable in front of the lower handle

cross bar. Remove one of the nuts and the bolts

from the end of the deector cable and install the

cable through the key slot into the bracket on the

upper handle and reinstall nut and bolt. Move the

clevis from the control lever and install over the end

of the cable. Reconnect the clevis to the control lever

with a ¼ x 5/8 clevis pin and hairpin cotter. (Note:

The deector can be moved and held in place with

the locking knob to help connect the clevis tting

to the control lever. Move the control lever to the

rear to more easily connect the cable. Loosen the

knob so the deector moves freely after the clevis is

connected.) (Figure 4)

FIGURE 3

LITTLE

WONDER

BLOWER

FIGURE 5

FIGURE 6

FIGURE 7

FIGURE 8

8. Move the deector control lever to the front of the

slot. Adjust the jam nuts on the cable tting so

the deector is completely closed. Lock the nuts

against the bracket when the adjustment is correct.

9. Secure the throttle and deector cables to the

handle tubes with cable ties from the hardware

package. Trim off excess. (Figure 5)

10. Move the speed control lever Aall the way

forward. Turn the vertical rod Binto the swivel Con

the speed control. Pull up on the rod Bto move the

speed control to its forward stop. Turn the rod in or

out of the swivel unit it just goes into the pivot plate

E. (Use the lower pivot plate hole for the upper

handle position.) Secure the rod B to the pivot

plate E with two hairpin cotters. (Figure 6 & 7)

11. Route the clutch cable up the front of the right

handle tube and around the outside of the handle.

Route as shown in Figure 6 and install the snap

retainer Din the hole in the speed control bracket.

(Figure 6) Lift the clutch bail to get sufcient slack

to connect the Z-bend on the end of the clutch to

the clutch bail. (If sufcient slack is not available,

the bail may be squeezed together and removed

from the handle to connect the Z-bend then

reinstall. (Figure 8)

12. Secure the clutch cable to the speed control

bracket and handle tube with cable ties as shown

(Figure 6)

10. Fill the engine with oil to the level indicated on the

dipstick. Fill the fuel tank with clean, fresh regular

grade unleaded gasoline.

SET-UP INSTRUCTIONS
