Lochinvar SYNC SB 1000 Guida all'applicazione

SYNC-RP-Rev. A

47 14 44

SYNC®

Condensing Boilers

SB 1000 - 1500

Replacement Parts List

PARTS & SERVICE DEPARTMENT

Nashville, Tennessee

615-889-8900 • Fax: 615-547-1000

www.Lochinvar.com

42 43 39

18 19 20 17 5617

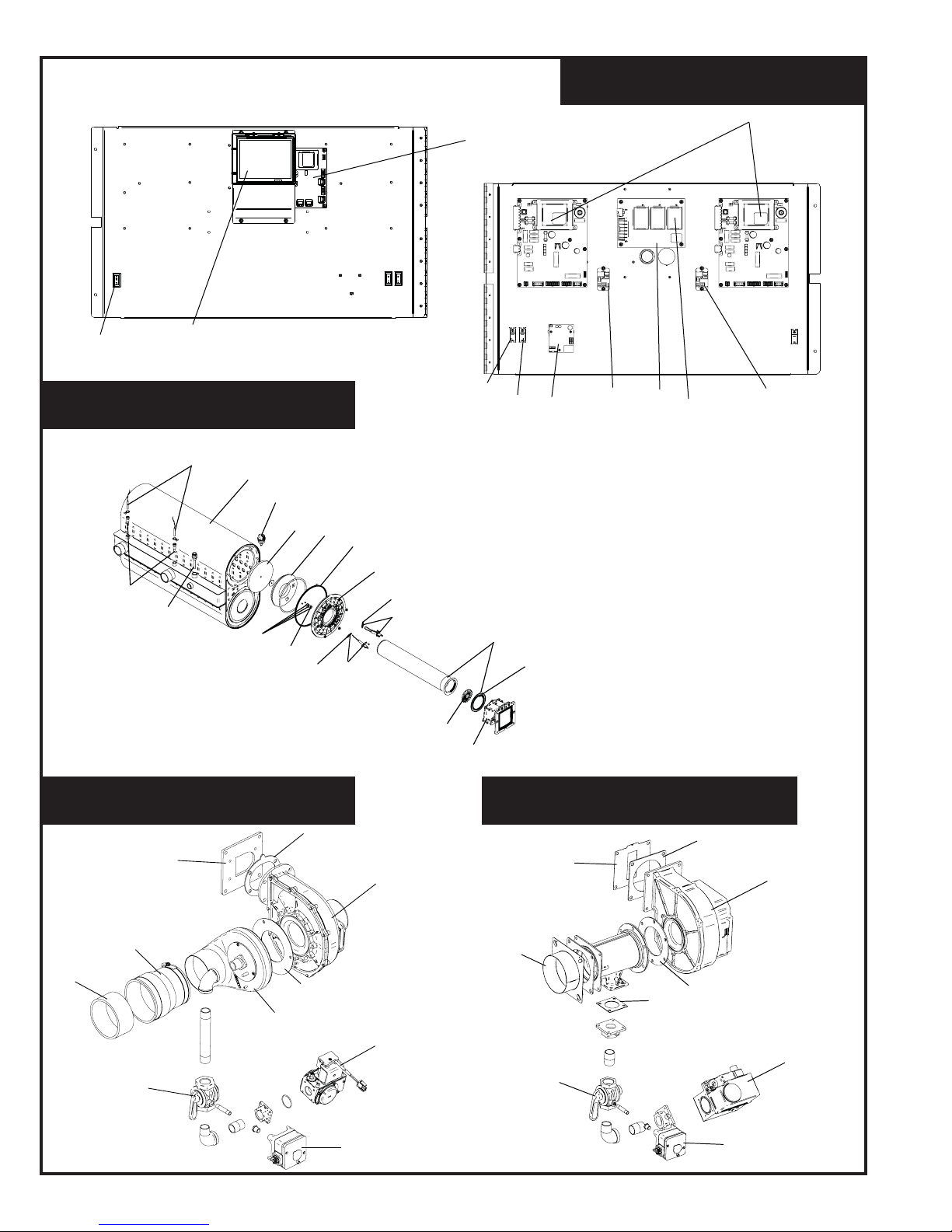

CONTROL PANEL ASSEMBLY

GAS TRAIN SB 1000

HEAT EXCHANGER ASSEMBLY

2 of 4

SYNC-RP-Rev. A

GAS TRAIN SB 1300, 1500

3 of 4

SYNC-RP-Rev. A

ITEM

NO. PART NO. DESCRIPTION MODEL NO.

HEAT EXCHANGER ASSEMBLY

1 HEX30000 HEAT EXCHANGER SBN/L1000

1 HEX30001 HEAT EXCHANGER SBN/L1300

1 HEX30002 HEAT EXCHANGER SBN/L1500

CONTROLS

2 RLY20023 LOW VOLTAGE CONNECTION BOARD ALL

3 RLY20027 INTEGRATED CONTROL SBN/L1000

3 RLY20022 INTEGRATED CONTROL SBN/L1300-1500

3 RLY30008 INTEGRATED CONTROL HIGH ALTITUDE SBN/L1000

3 RLY30007 INTEGRATED CONTROL HIGH ALTITUDE SBN/L1300-1500

4 RLY20006 USER INTERFACE CONTROL (LCD) ALL

5 RLY2085 PUMP RELAY BOARD ALL

6 RLY2222 1.5HP PUMP RELAY ALL

7 RLY20020 ECS937 CONTROL BOARD ALL

8 TST2032 INLET/OUTLET SENSOR ALL

9 TST2044 BULBWELL, INLET/OUTLET SENSOR ALL

10 HLC2701 MANUAL RESET HIGH LIMIT ALL

11 TST2306 BULBWELL, HIGH LIMIT ALL

12 FAN3037 FAN ASSEMBLY SBN/L1000

12 FAN3038 FAN ASSEMBLY SBN/L1300-1500

13 PRS2054 AIR PRESSURE SWITCH ALL

13 PRS20018 AIR PRESSURE SWITCH (HIGH ALTITUDE) ALL

14 PRS2046 GAS PRESSURE SWITCH, LOW ALL

15 PRS2047 GAS PRESSURE SWITCH, HIGH ALL

16 SWT2006 ON/OFF SWITCH ALL

17 RLY2105 RELAY, 24VAC ALL

18 SWT2002 MOMENTARY OFF SWITCH, RED ALL

19 SWT2003 MOMENTARY OFF SWITCH, BLACK ALL

20 WTR2220 MRLWCO BOARD ALL

- WTR2222 PROBE, LWCO ALL

- WTR20000 BOOT, LWCO ALL

GAS VALVES

21 VAL3207 GAS VALVE ASSEMBLY SBN/L1000

21 VAL3213 GAS VALVE ASSEMBLY SBN/L1300-1500

22 GKT2050 GAS VALVE GASKET SBN/L1300-1500

23 GAC2028 GAS CUT OFF VALVE 3/4" SBN/L1000

24 GAC2029 GAS CUT OFF VALVE 1X1 SBN/L1300-1500

25 GKT2049 GASKET, VENTURI SBN/L1300-1500

26 VAL30003 AIR SHROUD ASSEMBLY SBN/L1000

27 GKT2080 AIR SHROUD GASKET SBN/L1000

- GAC2031 GAS CUT OFF VALVE 1 1/2" ALL

PILOT & BURNER ASSEMBLIES

28 PLT3023 FLAME SENSOR W/ GASKET ALL

29 GKT2450 GASKET, FLAME SENSOR ALL

30 PLT30000 IGNITOR W/GASKET ALL

31 GKT2449 GASKET, IGNITOR ALL

32 BNR30000 BURNER W/ GASKET SBN/L1000

32 BNR30001 BURNER W/ GASKET SBN/L1300

32 BNR30002 BURNER W/ GASKET SBN/L1500

33 GKT2062 GASKET, BURNER ALL

34 MSC20031 STABILITOR ALL

©-10/08-Printed in U.S.A.

4 of 4

SYNC-RP-Rev. A

ITEM

NO. PART NO. DESCRIPTION MODEL NO.

PILOT & BURNER ASSEMBLIES (Continued)

35 WTR20001 FLAP VALVE ASSEMBLY W/ GASKET ALL

36 GKT2034 GASKET, FAN ALL

37 GKT2438 GASKET, FAN ALL

38 WTR3068 HEAT EXCHANGER ACCESS DOOR KIT ALL

39 GKT2063 GASKET DOOR RUBBER ALL

MISCELLANEOUS

40 MSC3180 SIGHT GLASS ALL

41 GKT2453 GASKET, SIGHT GLASS ALL

42 FIB2167 DIVIDER PLATE, INSULATION BAFFLE ALL

43 FIB2168 BURNER PLATE, INSULATION, DOOR ALL

44 MSC2242 DISPLAY BEZEL ALL

45 RLV2003 RELIEF VALVE 50 PSI ALL

46 RLV2023 AIR VENT VALVE ALL

47 GTP2900 GAUGE TRIOMETER, 75# PSI ALL

48 JKB20001 ADAPTER, FAN SBN/L1000

49 JKB60071 AIR SHUTTER SBN/L1300

50 CPG2064 COUPLING 4" SBN/L1000

51 CPG20000 COUPLING 6" ALL

52 PVC20025 INLET STIFFENER SBN/L1000

53 JKD5040 INLET ADAPTER SBN/L1300-1500

- FUS2000 1.25 AMP ALL

- FUS2001 3.15 AMP ALL

- FUS2002 5 AMP ALL

- TST2311 OUTDOOR AIR SENSOR ALL

- MSC2973 CONDENSATE TRAP ALL

- SWT2011 BLOCKED DRAIN SWITCH ALL

- TST3403 FLUE TEMP SENSOR KIT ALL

- KIT3046 NEUTRALIZER KIT ALL

- KIT3085 ALARM BELL KIT ALL

- KIT30047 SIDEWALL VENT KIT ALL
