Floor Protector Construction (Hearth)
For Floor Protector minimum dimensions refer to following data. The floor protector must extend at least 300mm
beyond the door opening of the heater and 200mm to each side of the door opening. Floor Protector specs (AS/NZS
2918:2001) minimum ash hearth only eg. Ceramic tile glued to a heat sensitive floor. A provision has been made at the
rear of the pedestal for seismic restraint by bolting through the two holes through the hearth and floor.
Clearance Requirements
The Micros ash Hearth has been tested to the Australian/New Zealand Standard AS/NZS 2918:2001 and all
installations must be in accordance with the minimum clearances to combustibles indicated in these instructions.
The minimum clearances to combustibles may be reduced if the combustible walls are shielded with an approved
non-combustible material. Details of suitable shielding materials and appropriate clearance reduction factors are
present in Section 3 of AS/NZS 2918:2001.

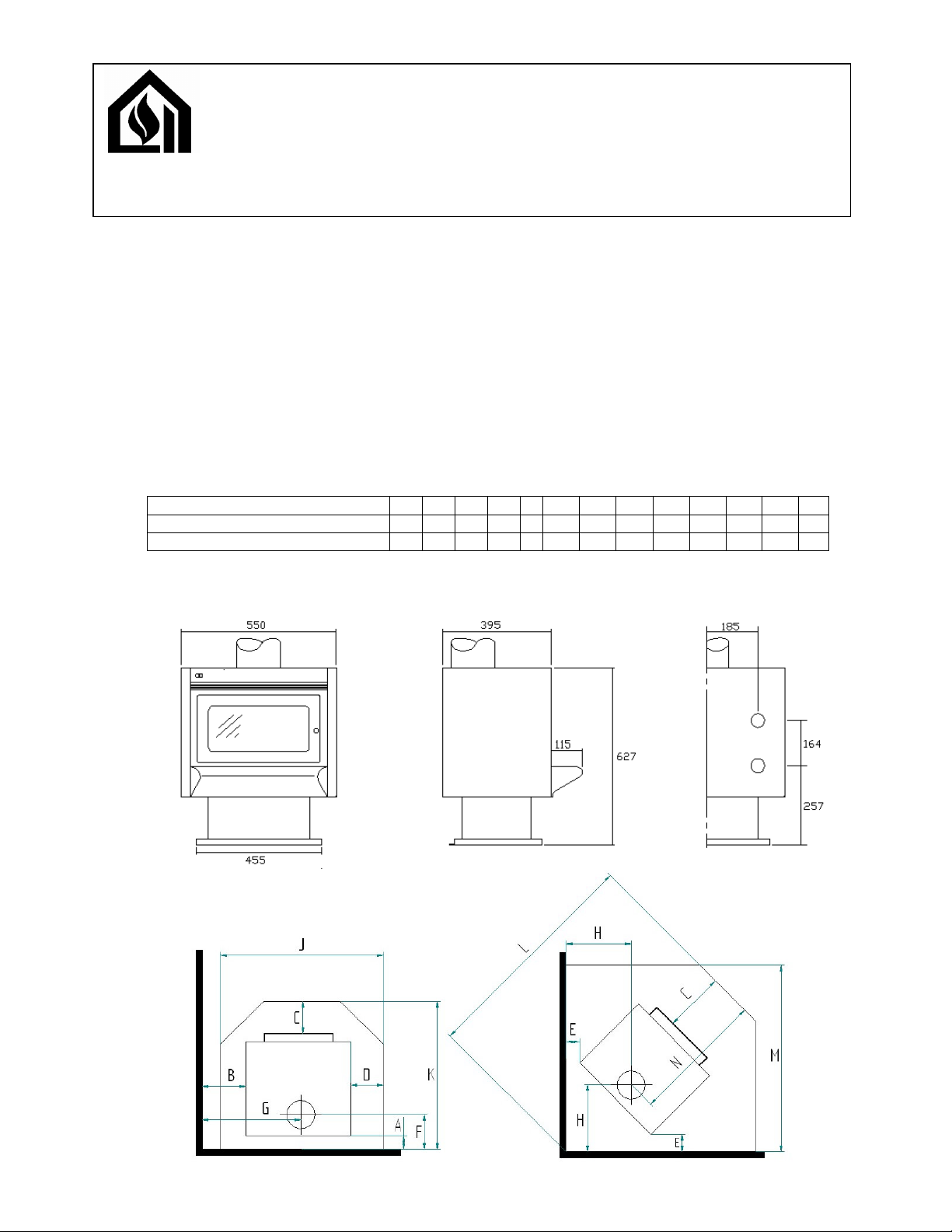

Minimum clearances to combustibles in millimetres AS/NZS 2918:2001
NEW ZEALAND A B C D E
F G H J K L M N
Without flue shield 275
195
171
136
50
418
470
346
822
957
1028
864
539
With Logaire Double flue shield 100
220
171
136
50
243
495
346
822
782
1028
864
539
All specifications are subject to change or variation without notification.
LOGAIRE
Micros
specifications Ash Hearth

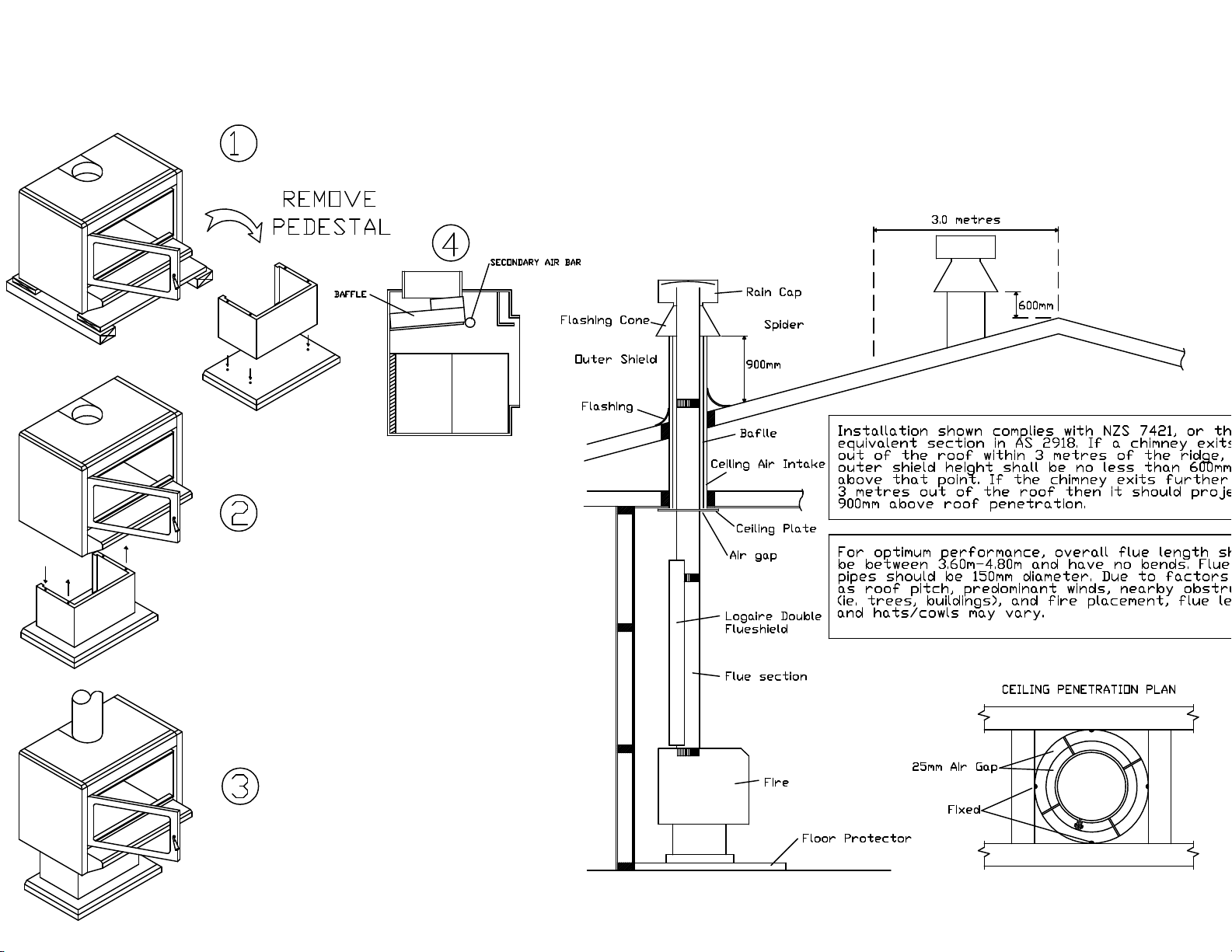

1Remove the contents from the fire and
assemble the pedestal and base unit
using the nuts and bolts supplied.
(Note: the 4 longer bolts are for stage 2).
The ash shelf also needs bolting to the
lower front of the unit at this stage as well.
2Lower the fire onto the now assembled
pedestal and base unit and bolt to the fire.
3Place assembled fire in position and
seismic restraint to the floor.
4Next, if not already fitted in place, fit the
baffle plate into place. The baffle plate is
to be situated in the upper half of the fire
and sits onto the brackets welded inside
the firebox.
5 The Ash shelf will need to be unpacked
and assembled to the
firebox.
Attention
The air bar may need to be put into position.
Please ensure the tab on the side of the fire
is tapped over to secure the air bar in place.
To remove the air bar simply pry the tab
open with a screwdriver.
