PLEASE READ THIS INSTRUCTION MANUAL CAREFULLY BEFORE OPERATING YOUR UNIT.

CDU650

INSTRUCTION MANUAL

• MP3/WMA/AM/FM/CD Receiver

• Flip Down/Full Detachable Front Panel

• SD/MMC/USB and Front Aux Input

• CD-R/CD-RW Compatible

• Oversized, Active Black Matrix Display

CDU650 CD/CDR/CDRW/MP3/USB/SD COMPAT IBLE

SUB

18 17

CDU650 CD/CDR/CDRW/MP3/USB/SD COMPAT IBLE

SUB

261615781 14 2 3 5 6 279

2524232221201910131211

(1-6)

POWER

RPT

INT MP3

PAUSE

DISP

RDM

AS/PS

ENTER

SEL VOL

VOL

TUNE/SEEK

BAND

LOUD

SUB

MODE

+10-10

2 93

2123

19 20 12

(1-6)

CONTENTS

Installation ............................................................................................................ 1

Installation in the dashboard ............................................................................ 1

Detaching and Attaching the front panel ......................................................... 1

Supporting the Unit ............................................................................................ 2

Wiring Connection ............................................................................................ 2

Operation ............................................................................................................... 3

Locations of Controls ....................................................................................... 3

General Controls .............................................................................................. 4

CD/MP3/WMA Control ................................................................................... 6

How to Selet MP3/WMA Files .......................................................................... 7

Troubleshooting ................................................................................................... 8

Specications ...................................................................................................... 9

53mm

182mm

2182mm

53mm

134

Release screw and

bracket

Bend these

claws, if necessary

INSTALLATION

PRECAUTIONS

•

Choose the mounting location carefully so that the unit will not interfere with normal driving functions.

• Avoidinstallingtheunitwhereitmaybesubjecttohightemperatures,suchasfromdirectsunlightor

hotairfromtheheater,orwhereitmaybesubjecttodust,dirtorexcessivevibration.

• Useonlythesuppliedmountinghardwareforasafeandsecureinstallation.

• Besuretoremovethefrontpanelbeforeinstallingtheunit.

Mounting angle adjustment

Adjustthemountingangletolessthan20°.

MOUNTING EXAMPLE – Installation in the dashboard

Note: Keep the release key in the safe place as you may need it in future to remove the unit from the car.

Detaching and attaching the front panel

The front panel of this unit can be detached to prevent theft.

FOLDING DOWN AND DETACHING/ATTACHING THE FRONT PANEL

Before detaching the front panel, be sure to press the button (1) OFF rst.

Then press the button and detach the panel by pulling it towards you as illustrated.

Notes:

•

Do not press the front panel hard against the unit when attaching it. It can be easily attached by pressing

it lightly against the unit.

• Whenyoucarrythefrontpanelwithyou,putitinthesuppliedfrontpanelcase.

• Donotpresshardorgiveexcessivepressuretothedisplaywindowofthefrontpanelwhenattaching

it to the unit.

CLEANING THE CONNECTOR

The unit may not function properly if the connectors be-

tween the unit and the front panel are contaminated with

dirt.Inordertopreventthisfromhappening,detachthe

front panel by pressing the button and clean the con-

nectors from time to time.

Clean the connectors with a cotton swab and contact

cleaner as illustrated. Clean each pin carefully and make

sure not to damage the connecting points.

Cotton Swab

Rear of

front panel Main unit

< 10°

INSTALLATION

TO SUPPORT THE UNIT 1. UNIT

2. RELEASE CASE

3. DASHBOARD

4. HEX NUT

5. LOCKWASHER

6. PLAIN WASHER

7. CARBODY

8. REARSUPPORTSTRAP

9. TAPPING SCREW

10.M5X15HEXBOLT

WIRING CONNECTION

L (WHITE)R(RED)

LINE OUT

ANTENNA

CONNECTOR

ISO CONNECTOR

FUSE 10A

GREY +

GREY/BLACK –

FRONT

RIGHT

SPEAKER

VIOLET +

VIOLET/BLACK –

REAR

RIGHT

SPEAKER

FRONT

LEFT

SPEAKER

REAR

LEFT

SPEAKER

+ WHITE

– WHITE/BLACK

+ GREEN

– GREEN/BLACK

ISO A/B PLUG

POWER

ANTENNA

BLUE

IGNITION SWITCH (B+)

RED

MEMORY YELLOW

BACK UP

BLACK

GROUND (–)

SUBWOOFER

GREEN

YELLOW

FUSE REPLACEMENT

Ifthefuseblows,checkthepowerconnectionandreplacethefuse.Ifthefuseblowsagainafterthe

replacement,theremaybeaninternalmalfunction.Inthiscase,consultyournearestrepaircenter.

Warning

Usethespeciedamperagefuseforeachlead.Useofahigheramperagefusemaycauseserious

damage.

1. POWERON/OFF( )

2. FUNCTIONSELECTBUTTON:BASS/TREBLE/BALANCE/

FADER/BEEP/ADJTIME/AUDIODSP

3. VOLUP/VOLDOWNFORBASS/TREBLE/BALANCE/FADER /

 BEEP/ADJTIME/AUDIODSP

4. PRESETSTATIONS(1,2,3,4,5,6)

5. STEREO/MONOBUTTON(ST)

6. LOCAL/DISTANTBUTTON(LOC)

7. EQUALIZERCONTROL(EQ)

8. DISPLAYBUTTON(DISP)

9. MODE/SUBWOOFERBUTTON(MODE/SUB)

10.BAND/LOUDNESSBUTTON(BD/LD)

11. AUTOMATICORMANUALTUNING

(FREQ UP ORFREQDOWN /

 CDTRACK/SEARCHBUTTON

12.AUTOSEEKSEARCHTUNING(AS/PS)

13.‘SCAN’AUTOMATICTUNINGCONTROL(SCAN)

14.MUTEBUTTON(MUTE)

15.LCDDISPLAY

16. OPENPANELRELEASEBUTTON ( )

17.CDSLOT

18.CDEJECTBUTTON( )

19.PAUSEBUTTON

20.REPEATBUTTON

21.INTROBUTTON(PreviewallTracks)

22.RANDOMBUTTON

23,24.10TRACKSEARCHDOWN/UP

25.USBPORT

26.SD/MMCCARDSLOT

27. AUX IN

28.RESETBUTTON

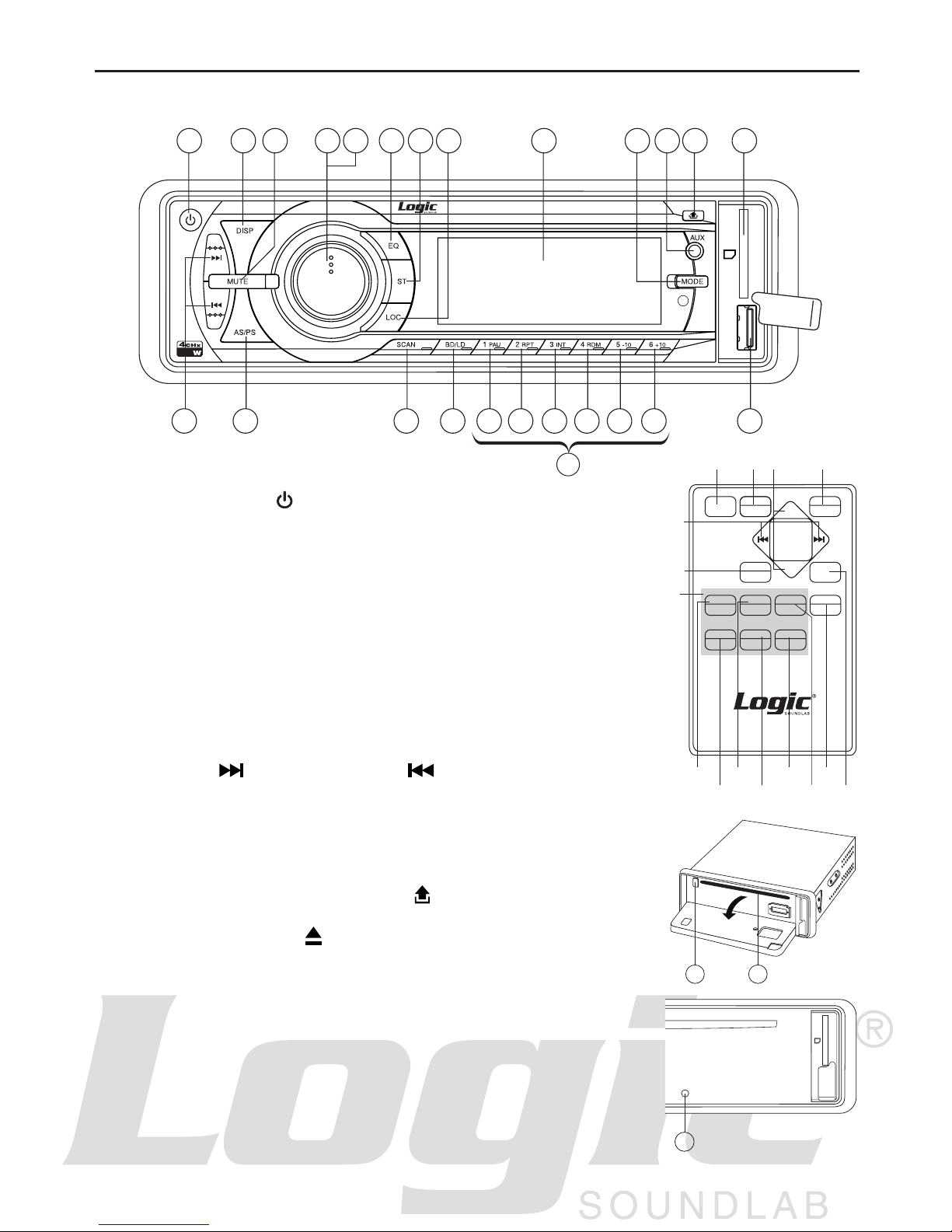

OPERATION

LOCATIONS OF CONTROLS

RESET

Detachthefrontpanel,

RESET is found

at the panel base

CDU650 CD/CDR/CDRW/MP3/USB/SD COMPATIBLE

SUB

18 17

CDU650 CD/CDR/CDRW/MP3/USB/SD COMPATIBLE

SUB

261615781 14 2 3 5 6 279

2524232221201910131211

(1-6)

POWER

RPT

INT MP3

PAUSE

DISP

RDM

AS/PS

ENTER

SEL VOL

VOL

TUNE/SEEK

BAND

LOUD

SUB

MODE

+10-10

2 93

2123

19 20 12

(1-6)

CDU650 CD/CDR/CDRW/MP3/USB/SD COMPAT IBLE

SUB

18 17

CDU650 CD/CDR/CDRW/MP3/USB/SD COMPAT IBLE

SUB

261615781 14 2 3 5 6 279

2524232221201910131211

(1-6)

POWER

RPT

INT MP3

PAUSE

DISP

RDM

AS/PS

ENTER

SEL VOL

VOL

TUNE/SEEK

BAND

LOUD

SUB

MODE

+10-10

2 93

2123

19 20 12

(1-6)

CDU650 CD/CDR/CDRW/MP3/USB/SD COMPATIBLE

SUB

18 17

CDU650 CD/CDR/CDRW/MP3/USB/SD COMPATIBLE

SUB

261615781 14 2 3 5 6 279

2524232221201910131211

(1-6)

POWER

RPT

INT MP3

PAUSE

DISP

RDM

AS/PS

ENTER

SEL VOL

VOL

TUNE/SEEK

BAND

LOUD

SUB

MODE

+10-10

2 93

2123

19 20 12

(1-6)

OPERATION

GENERAL CONTROLS

1. POWER ON/OFF

 Bypressingthiskey,theunitisswitchedonandoff.Thisunitisturnedonbypressinganykey.

2. SELECT

3. VOLUME UP/DOWN

 By turning the VOL (3) knob Right or Left, you can adjust VOL/BASS/TREB/BAL/FAD in the

orderlisted.Toselecteachfunction,PresstheSEL(2)buttonbrieyuntilthedesiredfunctionis

shownonthedisplay.Figure1showshowfunctionsareselected:

1 2 3 4 5

SEL SEL SEL SEL SEL

Fig. 1 Selection of sound control function

 1.VOL2.BAS3.TRB4.BAL5.FAD

 TurningtheVOLknobRightorLeft.Increaseordecreasethevolmebyturning

VOLVOL

ThesebuttonscanbeusedtoadjusttheBASS,TREBLE,BALANCEandFADER.

BEEP MODE (2)

PresstheSELbuttonagain(formorethan2seconds)toactivateSelectingmodeforBEEP:

2 sec.

SEL BEEP 2nd / ALL / OFF

VOL

2 sec.

BEEP

SELSELFLAT / POP / ROCK / CLASSICALDSP

SELADJVOL

2 sec.

BEEP

SELSELADJ to set hourto set minute /

VOL VOL

VOL

ALL Buttonsoundisonpermanently

2nd

Buttonsoundistriggeredbysecondarybuttonfunctions(holdbuttondownforawhile)

OFF Buttonsoundisoff

ADJUST TIME (2)

PresstheSELbuttonagain(formorethan2seconds)toactivateSelectingmodeforADJUST

TIME:

2 sec.

SEL BEEP 2nd / ALL / OFF

VOL

2 sec.

BEEP

SELSELFLAT / POP / ROCK / CLASSICALDSP

SELADJVOL

2 sec.

BEEP

SELSELADJ to set hourto set minute /

VOL VOL

VOL

 TurnVOLknobclockwisetosethoursandcounterclockwisetosetminutes.

AUDIO DSP CONTROLS (2)

PresstheSELbuttonagain(formorethan2seconds)toactivateSelectingmodeforDSP:

2 sec.

SEL BEEP 2nd / ALL / OFF

VOL

2 sec.

BEEP

SELSELFLAT / POP / ROCK / CLASSICALDSP

SELADJVOL

2 sec.

BEEP

SELSELADJ to set hourto set minute /

VOL VOL

VOL

4. PRESET STATIONS

 Sixnumberedpresetbuttonsstoreandrecallstationsforeachband.

Storing a station:

1. Select a band (if needed)

2. Select a station

3. Hold a preset button longer than one second. Preset station number appears in the display

when station is saved.

Recall a station:

1. Select band (if needed)

2. Press a preset button for less than one second to select stored station.

5. STEREO/MONO BUTTON

Press ST button to switch between stereo and mono sound for FM radio reception. When reception

ofanFMstationisweak,listeningqualitycanbeimprovedbyswitchingtomonosound.

6. LOCAL/DISTANT BUTTON

 PressLocal/Distant(LO/DX)buttonforlisteningtoweakstations.“LOCAL”indicatorwillappear

on the display. Press this button again (Distant mode) for normal operation.

7. EQUALIZER CONTROL

Press EQtoselectbetweenOff/Pop/Rock/Classic/Flatequalizermodes.

8. DISPLAY BUTTON (Set the Clock)

 Selectsradiofrequencyorclockdisplay.

 Tosettheclock:

 1.Withclockdisplayselected,holddown(DISP)buttonuntilclockdisplaystartsashing.

2. Rotate

VOLVOL

tochangeminutes,

VOLVOL

to change hours.

3. Press (DISP) button to start clock.

9. MODE / SUBWOOFER BUTTON

Press MODEtoselectbetween:AUX/TUNER/CD-MP3/USBorMMC/SDmodes.

SUBWOOFER: Press and hold the button to engage subwoofer output.

10. BAND SELECTOR / LOUDNESS BUTTON

 Pushthisswitchtoselectthedesiredband,eitherAMorFM.

LOUDNESS: PressandholdthebuttontoselectLOUDNESSmode.

11. AUTOMATIC OR MANUAL TUNING (FREQ UP OR FREQ DOWN )

(A) RADIO MODE

 Whenpressedforlessthan1second,thesekeysoperateasSEEKTuningmode.

 Whenpressedlongerthan1second,theyoperateasMANUALtuningmode.

 Ifthekeysarenotpressedfor3seconds,theywillreturntoAutomaticmode.

(B) CD/MP3/WMA PLAYER MODE

Whenpressedforlessthan1second,thesekeysoperateasTRACKUPorTRACKDOWNmode.

When pressed longer than 1

second

,theywilloperateasCUEorREVIEWmode.

12. AUTOMATICALLY STORE STATIONS

 Selectsixstrongstationsandstorethemincurrentband.

1. Select a band (if needed)

2. Hold AS/PS button for more than three seconds. The new stations replace stations already

stored in that band.

Preset Scan

Scan stations stored in current band

1. Select a band (if needed)

Hold AS/PS for more than one second but less than three seconds. Radio pauses for ve

seconds at each station. Press AS/PS again to stop scanning when desired station is reached.

13. ‘SCAN’ AUTOMATIC TUNING CONTROL

 ThiskeyoperatesRADIOSCAN.Theoperationissimilartonormalsearchbutholds5seconds

oneverystationdetectedinRADIOSCANmode.

14. MUTE BUTTON

Press this button to mute the sound at once. Press again to return to previous volume level.

15. ACTIVE MATRIX DISPLAY

 TheActiveMatrixDisplaywilldisplaythecurrentstateoftheunit.

16. OPEN PANEL RELEASE BUTTON

Press button and the front panel will open.

OPERATION

CD/MP3/WMA CONTROL

Inserting the CD

Carefully slide the CD or CD-R or CD-RW through the CD slot into the CD compartment. The CD

starts playing automatically.

TRACK/SEARCH BUTTON

FORWARD AND REVERSE TRACK SEARCH (11)

Pressandreleasetoadvancetonexttrackortoreturntothebeginningofthecurrenttrack(track

number will be displayed). Press and hold to fast forward or reverse . Play will begin at the

point when you release the button.

17. CD SLOT

18. CD EJECT BUTTON

Press the EJECT button to remove the CD. The receiver will automatically switch to radio

mode.

19. PAUSE BUTTON

Press to pause CD playback. Press again to resume playback.

20. REPEAT BUTTON ‘RPT’

 Whenthisbuttonispressed,‘RPT’indicationisdisplayedandtheselectedtrackwillbecontinually

repeated until the Track Repeat mode is cancelled by pressing ‘RPT’ button again.

21. INTRO BUTTON (Preview all Tracks) ‘INT’

 Whenthisbuttonispressed,‘INT’indicationisdisplayedandtherstseveralsecondsofeach

track are played. Press again to stop intro and listen to current track.

22. RANDOM BUTTON ‘RDM’

 Whenthisbuttonispressed,‘RDM’indicationisdisplayedandeachtrackisplayedinrandom

orderinsteadofnormalprogression.TocancelRANDOMmode,press‘RDM’buttonagain.

23, 24. 10 TRACK DOWN/UP SELECT: (In case of MP3/WMA les)

 PressButton5:10Trackdown/PressButton6:10Trackup

OPERATION

RESET

HOW TO SELECT MP3/WMA FILES

Searching by Track:

• PressAS/PS. Digit starts blinking.

• Turn“VOL”knobtorightorleftuntilthedesiredtracknumbershowsthenpressVOL knob.

• Songnumberyouselectedwillstarttoplay.

Searching by Folder:

• PressAS/PS twice.

• Turn“VOL”knobtorightorlefttoselectfoldernamethenpressVOL knob.

• Turn“VOL”knobtorightorlefttoselectletoplaythenpressVOL knob to start playback.

25. USB PORT

Enhanced control of connected Portable Media such as Flash Drives and digital MP3 players by

usingfunctionkeysontheCDU650ortheremotecontrolunit.

 CDU650featuresthelatestID3Tagsupport,whichallowsyoutoseethesong’snameandfolder

locationontheblackmatrixdisplay.

26. MULTI-MEDIA CARD (MMC) / SD CARD SLOT

Supports MP3/WMA ID3 format music only.

27. FRONT AUX IN

 Convenientfront“AUXIN”inputjackallowseasyconnectionofPortablemediasuchasiPodand

other digital MP3 Players.

28. RESET

Reset button is located on the housing.

Theresetbuttonistobeactivatedforthefollowingreasons:

• Initialinstallationoftheunitwhenallwiringiscompleted.

• Allthefunctionbuttonsdonotoperate.

• Errorsymbolonthedisplay.

OPERATION

TROUBLESHOOTING

Check all wiring connections before referring to the list below. If problems persist after

consultingthelist,contactyournearestservicedealer.

SYMPTOM CAUSE SOLUTION

No power.

Disc cannot

be loaded or

ejected.

No sound.

Sound skips.

The operation

keys do not

work.

The radio does

not work. The

radio station

automatic

selection does

not work.

The car ignition switch is

not on.

The fuse is blown.

A CD is in the player.

Disc is inserted upside down.

CD is very dirty or defective.

Temperature inside the

car is too high.

Condensation is present

in the CD player.

Volume control is set to

the minimum level.

Wiring is not properly

connected.

The disc is extremely

dirty or defective.

The built-in microcomputer

is not operating properly.

The antenna cable is not

connected.

The signals are too weak.

The installation angle is

more than 20 degrees.

If the power supply is properly

connected to the car accessory

circuits, but the engine is not on,

switch the ignition key to "ACC".

Replace with a new fuse of equal

rating.

Remove the disc in the player,

then insert a new one.

Insert the CD with the label facing up.

Clean the disc or try to play a new one.

Allow the ambient temperature

to cool to a normal level.

Leave the player off for an hour

or so, then try again.

Adjust volume to a desired level.

Check wiring connections.

Make sure the head unit is installed

at an angle of less than 20 degrees

from horizontal.

Clean the CD or try to play a new

one.

Press the RESET button and try

again.

Insert the antenna cable firmly.

Select a station manually.

Front panel is not attached

or seated properly.

Remove and reinsert the front panel

according to the instructions in this

manual and try again.

Indice

Altri manuali Logic Ricevitore per auto

Logic

Logic DM800i Manuale utente

Manuali Ricevitore per auto popolari di altre marche

Motorola

Motorola VWA63 Manuale utente

Nextar

Nextar D3201 Manuale utente

Alpine

Alpine CDE-163BT Manuale utente

Pioneer

Pioneer DEH-P645R Manuale utente

Axxera

Axxera XDMA7600 Istruzioni operative

XM OnyX Manuale utente

Sound Storm

Sound Storm STM93R Manuale utente

Soundstream

Soundstream VIR-5000 Manuale utente

Avson

Avson MKT Platform Manuale utente

Sony

Sony MEX-1HD - Audio Library System Manuale utente

Pioneer

Pioneer DVH-P500UB Manuale utente

JVC

JVC KD-AHD69 Manuale utente

Blaupunkt

Blaupunkt SANTIAGO CR 87 Manuale utente

Sony

Sony CDX-4160 - Cd Receiver Manuale utente

XFIRE AUDIO

XFIRE AUDIO BMW42S Manuale utente

VDO

VDO CD 2253 Manuale utente

Volvo

Volvo 13 84 580 Manuale utente

ZENEC

ZENEC ZE-160DVD Manuale utente
