Logik L2GBMP410 Manuale utente
2GB/4GB/8GB Music and Video
Multimedia Player
Instruction Manual
L2GBMP410
L4GBMP410
L8GBMP410
Congratulations on the purchase
of your new Logik Multimedia Player.
It has many exciting features to make
your listening to music experience more
enjoyable.
We recommend that you spend some time
reading this instruction manual in order to
fully understand these features.
You will also nd some tips and help with
troubleshooting common issues.
Read all the safety instructions carefully
before using the Multimedia Player and
keep this instruction manual for future
reference.
Contents
Product Overview...................................................................................................5
Unpacking the Multimedia Player.......................................................................................... 5
Features............................................................................................................................................ 5
Identication of Parts and Controls....................................................................................... 6
Connecting to a Computer.....................................................................................7
System Requirements................................................................................................................. 7
Installing the Driver for Windows 98 SE ............................................................................... 7
Loading Files from a Computer to the Multimedia Player............................................. 7
Disconnecting the USB Cable .................................................................................................. 8
Charging the Battery................................................................................................................... 8
Battery Level Indication ............................................................................................................. 8
Basic Operation ......................................................................................................9
Power On/O the Multimedia Player.................................................................................... 9
Resetting the Multimedia Player............................................................................................. 9
Key Hold Function........................................................................................................................ 9
Entering the Main Menu............................................................................................................ 9
Music Playback .....................................................................................................10
Playing Music ............................................................................................................................... 10
Displaying Lyrics .........................................................................................................................11
Entering the Music Setup Menu ...........................................................................................11
– To Set Repeat ....................................................................................................................11
– To Set Equalizer................................................................................................................12
– To Set 3D Sound Eect..................................................................................................13
– To Set Play Rate ................................................................................................................13
– To Navigate Music Files .................................................................................................14
Voice Recording and Playback ............................................................................15
Entering the Voice Setup Menu.............................................................................................17
– To Set Repeat ....................................................................................................................17
– To Set Equalizer................................................................................................................18
– To Set 3D Sound Eect..................................................................................................19
– To Set Play Rate ................................................................................................................19
– To Navigate Recorded Files..........................................................................................20
– To Record Voce .................................................................................................................20
Photo Playback .....................................................................................................21
Entering the Photo Setup Menu...........................................................................................21
Movie Playback.....................................................................................................22
Deleting Files and Folders ...................................................................................23
E-Book Viewing.....................................................................................................24
Customising Settings ...........................................................................................25
Time.................................................................................................................................................25
Power..............................................................................................................................................26
Language.......................................................................................................................................26
Display............................................................................................................................................26
Record.............................................................................................................................................27
System Tools.................................................................................................................................27
Hold Time ......................................................................................................................................27
Converting Video to MTV Format........................................................................28
Hints and Tips........................................................................................................29
Specications........................................................................................................30
Safety Warnings....................................................................................................31
GB-5
Basic Operation Connecting to a
Computer
Product Overview
Hints and Tips
Specications and
Safety Warning
Product Overview
Unpacking the Multimedia Player
Remove all packaging from the unit. Retain the packaging. If you dispose it please do
so according to local regulations.

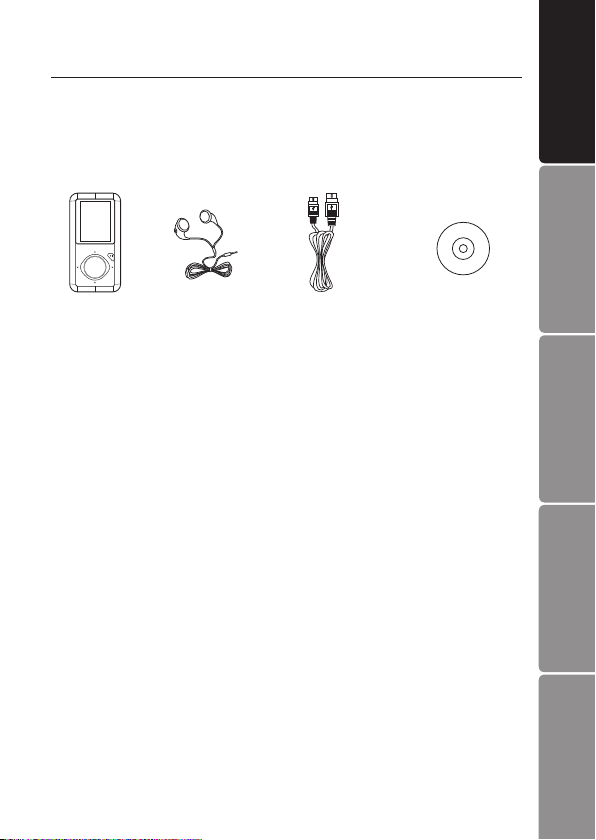

The following items are included:
If items are missing or damaged, please contact partmaster (UK only).
Tel: 0844 800 3456 for assistance.
Features
• 1.8 inch colour LCD, 128×160 pixel
• Built-in rechargeable Li-polymer battery
• USB 2.0 high speed transmission
• Supports playback of MP3, WMA, WAV audio les
• Supports multiple equalizer (EQ) and 3D sound eects
• Supports multiple playback mode: section repeat, le repeat, folder repeat and
random
• Supports the basic information of titles, artists and albums of music les(ID3 tag)
• Supports lyrics synchronisation, displayed on screen while music is playing
• Supports viewing of JPEG and BMP picture les
• Supports converted MTV video format (le transformation tool included)
• Supports viewing of e-book in TXT format
• Supports voice recording via the build-in microphone
• Multiple language user’s interface
Multimedia
Player
Installation CD with
Instruction Manual
part number:
54-809-30000209
Earphones
part number:
50-110-26900119
USB Cable
part number:
38-012-10300019
GB-6
Hints and TipsBasic Operation
Connecting to a
Computer
Product Overview Specications and
Safety Warning
Identication of Parts and Controls
1
10
2
3
46
7
9
11
8
5

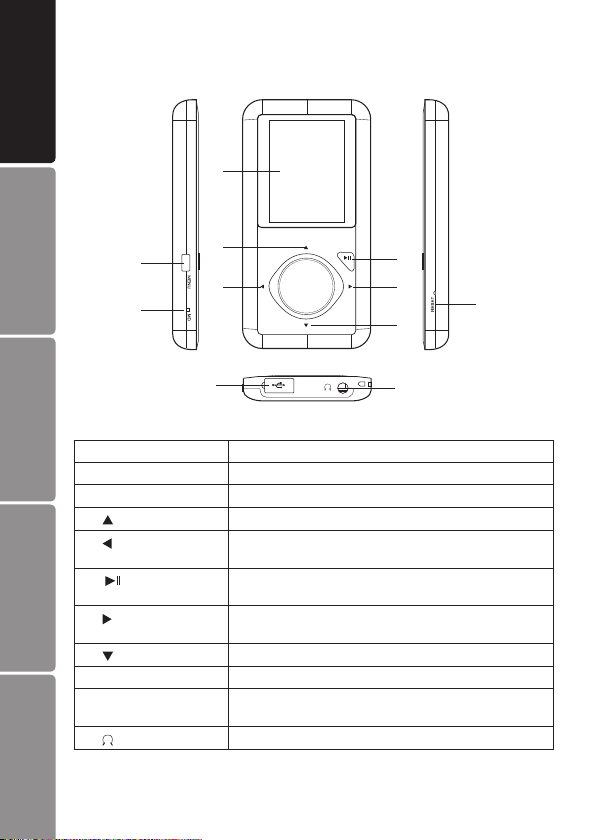

1 MENU Power on/o; Open or exit sub-menu; Stop recording
2 MIC Microphone for voice recording
3 Screen Screen display area
4 Increase volume; Navigate upwards; Previous picture/line
5 Previous track/page/screen; Fast backward; Navigate
leftwards; Return to previous screen
6 Start /Pause playback; Enter main menu; Conrm
selection in the main menu
7 Next track; Fast forward search; Navigate rightwards;
Conrm and enter next screen.
8 Decrease volume; Navigate downwards; Next picture/line
9 RESET Press the RESET hole/button if a malfunction occurs.
10 USB cable connection
port with cover
Remove the USB cover and connect to the computer with
the supplied USB cable.
11 Earphones Socket Connect with the supplied earphones.
GB-7
Basic Operation Connecting to a
Computer
Product Overview
Hints and Tips
Specications and
Safety Warning
Connecting to a Computer
System Requirements
Your computer system must meet the following requirements:
• Pentium 200MHz or above
• Microsoft Windows 98SE / 2000 / ME / XP / Vista®
• 120MB of available hard disk space
• USB port supported
• CD-ROM drive
Installing the Driver for Windows 98 SE
If your computer is running Windows ME / 2000 / XP / Vista®, no driver is required.
If your computer is running Windows 98 SE, you must install the driver provided on the
CD before connecting the Multimedia player to your computer.
1. Insert the installation CD into the CD-ROM drive.
2. Execute the “USB Disk Win98 Driver Version xxx.exe” le in the CD and follow
the instructions in the pop-up window to complete the installation.
3. Restart the computer.
Make sure the Multimedia player is disconnected from the
computer when installing the driver.
Loading Files from a Computer to the Multimedia Player
Files can be transferred directly into the Multimedia player using the USB data cable.
1. Connect the Multimedia player to the computer using the USB cable.
2. The computer system will detect “New Hardware” and start to install the driver
automatically. Wait for the system to nish the installation. When it has nished, a
new “Removable Disk” will be created in “My Computer”.
3. Select the les on your computer and simply drag and drop them into the
“Removable Disk”.
Please do not disconnect the Multimedia player from the computer during le transfers
as it may cause the le transfer process and Multimedia player to malfunction.
GB-8
Hints and TipsBasic Operation
Connecting to a
Computer
Product Overview Specications and
Safety Warning
Disconnecting the USB Cable
After completing the le transfer, disconnect the USB cable in the following way:

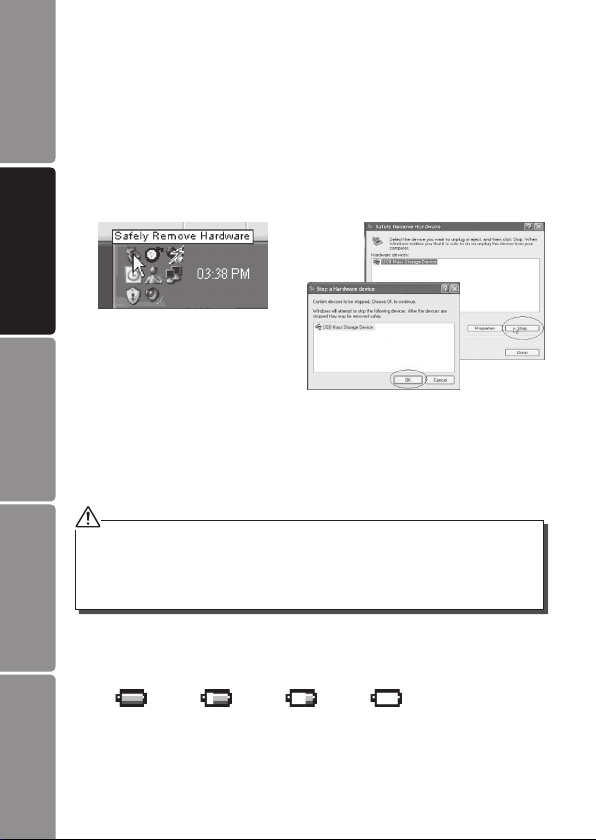

1. Double click the green arrow “Safely Remove Hardware” in the taskbar on the
bottom right of the window.
2. Select “USB Mass Storage Device” and click “Stop”.
3. The “Stop a Hardware device” pop-up window will appear, select “USB Mass
Storage Device” and click “OK”. Then you can unplug the Multimedia player
safely.
Charging the Battery
Your Multimedia player has a built-in rechargeable Li-polymer battery. The battery is
charged automatically whenever the Multimedia player is connected to a computer.
If you charge the Multimedia player while loading les to the Multimedia player, it may
take a longer time.
• Fully charge the Multimedia player before you use it for the rst time (~8 hours) or when you haven’t
used it for a long period of time.
• Charge the Multimedia player immediately when the “Low battery” message is displayed.
• Do not overcharge the battery as it may shorten its life.
• The Multimedia player does not function while charging.
Battery Level Indication
The approximate power levels of your battery are indicated as follows:
Full Two-third full Low Empty
GB-9
Basic Operation Connecting to a
Computer
Product Overview
Hints and Tips
Specications and
Safety Warning
Basic Operation
Power On/O the Multimedia Player
Make sure the battery is sucient and the earphones are connected.
• Press and hold the MENU button to power on.
• Press and hold the MENU button to power o.
Resetting the Multimedia Player
If the user interface is not responding, you will need to use a pointed object to insert
into the RESET hole/button to re-initialise the system of your Multimedia player.
Key Hold Function
The keys will be locked in Music and Voice mode after a set time if no button is pressed.
• To deactivate the lock function, press and hold the button for 2 seconds and then
release.
• To lock all buttons of the Multimedia player, see “Hold Time” on page 27 for details.
Entering the Main Menu
Press and hold the button to open the main menu. Use the buttons to select an
item and press the button to conrm your selection. All available options are listed
below.

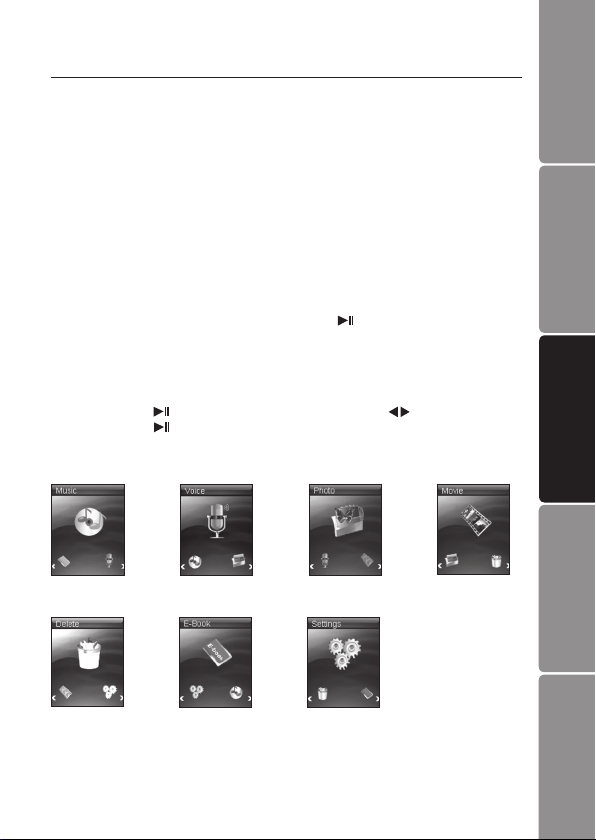

Music playback Photo playback
E-Book viewing
Voice recording
playback
Customising
settings
Deleting les
and folders
Movie playback
GB-10
Hints and TipsBasic Operation
Connecting to a
Computer
Product Overview Specications and
Safety Warning
1
2
3
4
5
6
715
14
13
12
11
10
9
8
2. Press the button to display the following screen.
Music Playback
Playing Music
1. Press and hold the button to enter the main menu.
Press the buttons to select Music.
Make sure the battery power level is sucient and the earphones are connected correctly.
3. Press the button to play the music. While playing music, you can:
• Pausing/Resume Playing:
Press the button to pause playing. Press the button again to resume
playing.
• Skipping Tracks:
Press the buttons to skip to previous / next track.

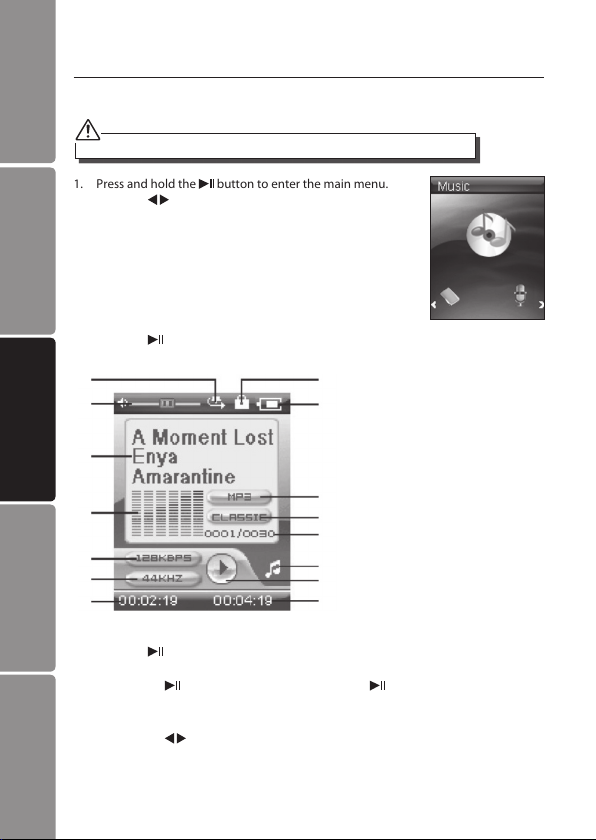

1. Play mode indicator
2. Volume level
3. Playing le name / ID3 tag /Lyrics
4. Spectrum display
5. Bit rate
6. Sampling frequency
7. Elapsed time of the track
8. Key locked indicator
9. Remaining battery power indicator
10. File format
11. Current EQ indicator
12. Current track / Total track number
13. Current mode
14. Play/Pause/Stop/Fast forward/
Rewind
15. Total time of the track
Questo manuale è adatto per i seguenti modelli
2
Indice
Altri manuali Logik Lettore multimediale portatile
