Logik L32DLCD11 Manuale utente
32” HD Ready 1080p Digital LCD TV
with DVD Player
Instruction Manual
L32DLCD11
L32DLCD11_IB_110607.indd 1 11年6月7日 下午3:12
L32DLCD11_IB_110607.indd 2 11年6月7日 下午3:12
Contents
Preparation .........................................................................................................................................................................................5
Unpacking the TV ...............................................................................................................................................................................................................5
Installing / Removing the Base Stand .........................................................................................................................................................................6
Front / Right Side View and Controls ...........................................................................................................................................................................7

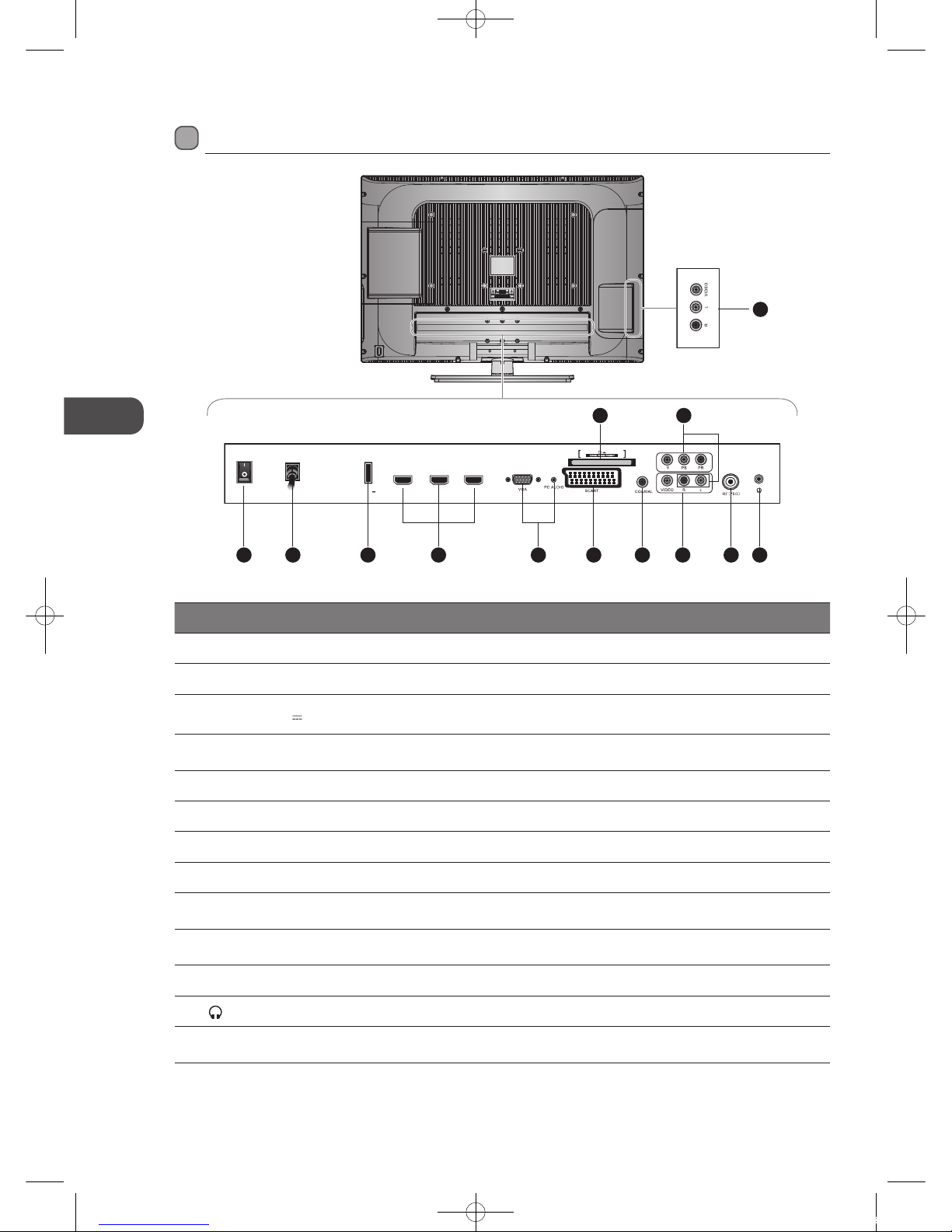

Rear View and Sockets ......................................................................................................................................................................................................8

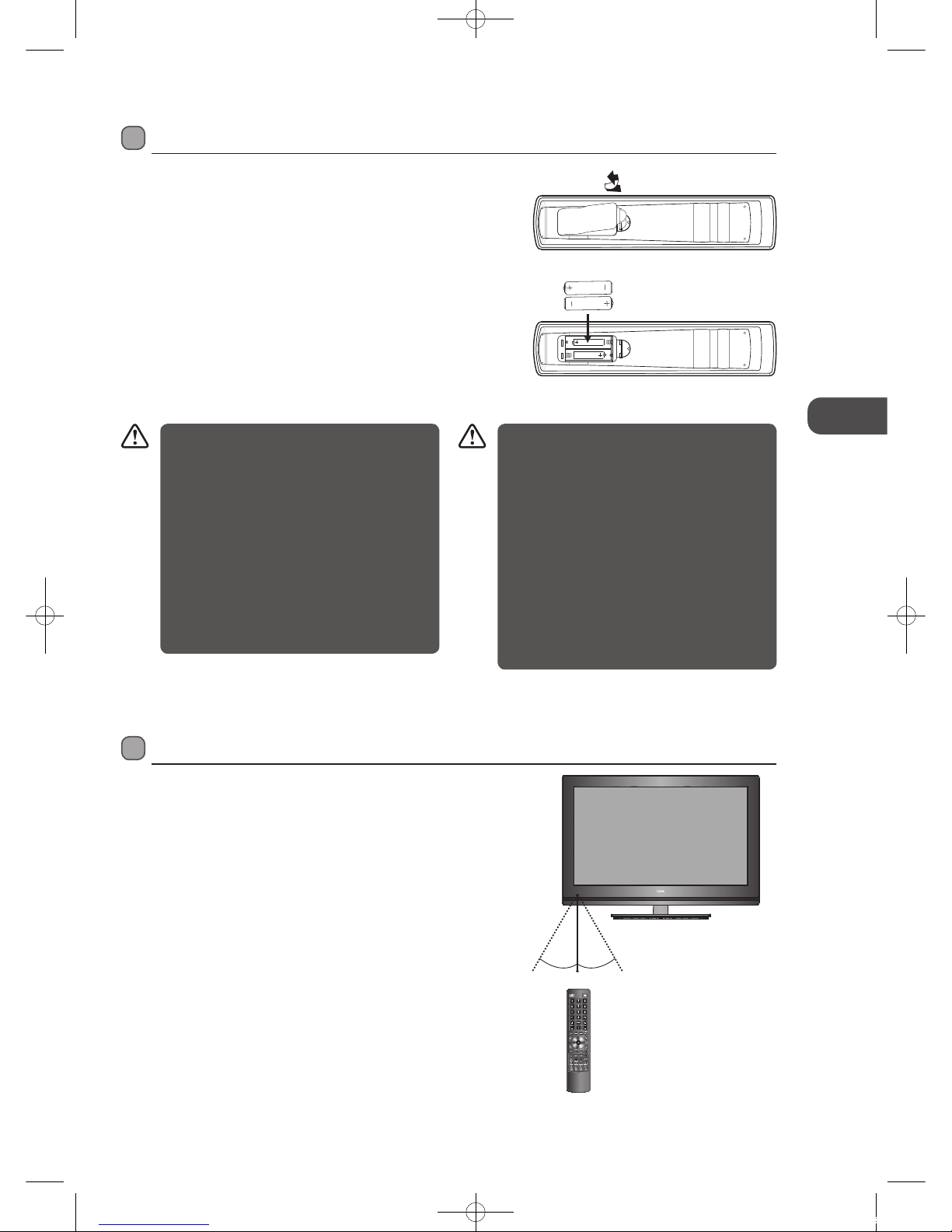

Installing Batteries in the Remote Control ................................................................................................................................................................9
Remote Control Operation Range ................................................................................................................................................................................9

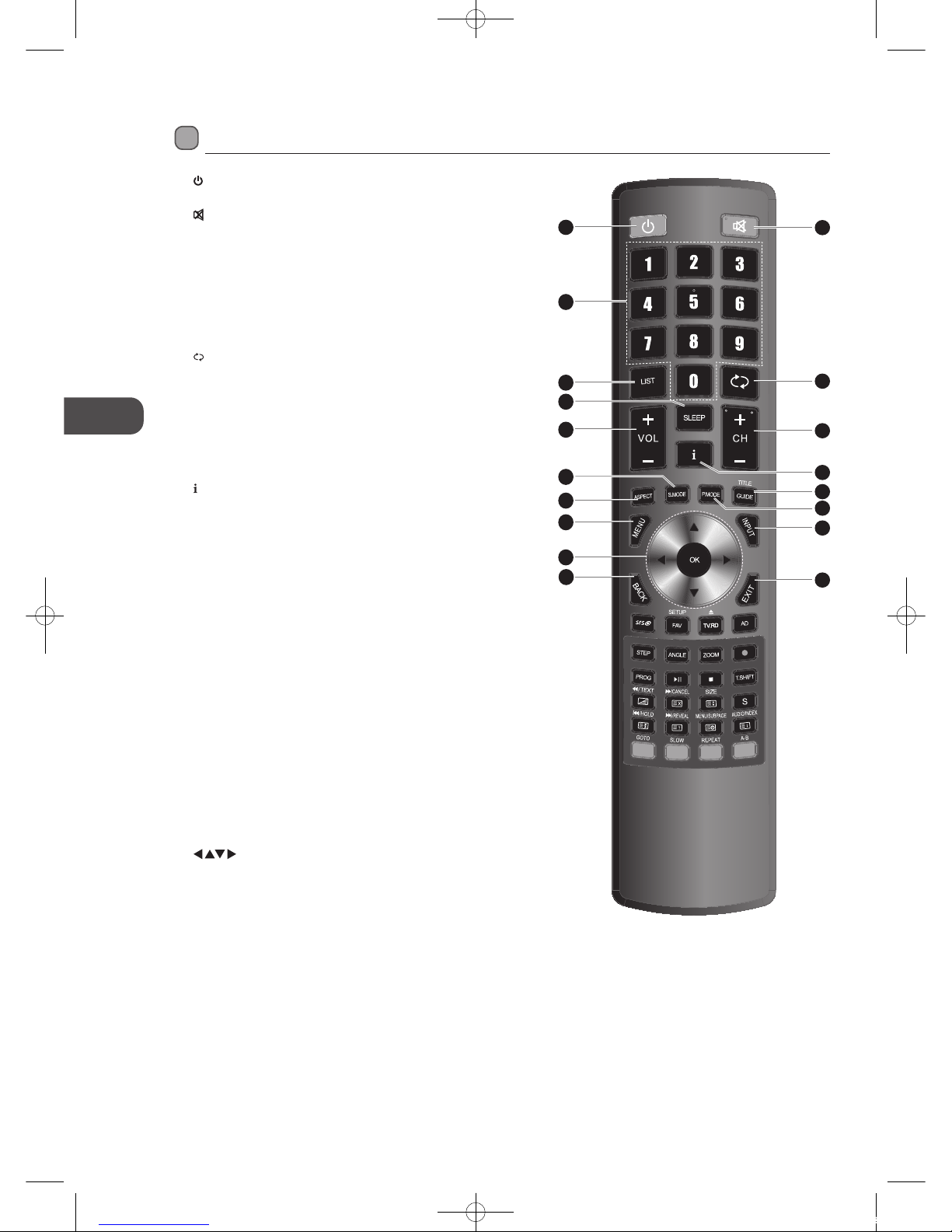

Remote Control .................................................................................................................................................................................................................10
Connections ......................................................................................................................................................................................13
Making Video and Audio Connections .....................................................................................................................................................................13
Connecting an AV Device with an HDMI Cable .....................................................................................................................................................13
Connecting a Computer with a VGA Cable .............................................................................................................................................................14
Connecting an AV Device with a Component (YPbPr) Cable ...........................................................................................................................14
Connecting an AV Device with a SCART Cable ......................................................................................................................................................15
Connecting an AV Device with Composite Cable .................................................................................................................................................15
Connecting a Coaxial Audio Receiver .......................................................................................................................................................................16
Connecting Earphones ...................................................................................................................................................................................................16
Connecting a USB Storage Device ..............................................................................................................................................................................17
Connecting the Aerial .....................................................................................................................................................................................................17
Initial Setup ......................................................................................................................................................................................18
Turning the TV on for the First Time ..........................................................................................................................................................................18
− Selecting the Input Source................................................................................................................................................................................19
− Display Channel Information ...........................................................................................................................................................................19
− Volume Adjustment .............................................................................................................................................................................................19
Using the Features ...........................................................................................................................................................................20
Customising the Channel Setting (TV, DTV or Radio Mode) ............................................................................................................................ 20
− Auto Tuning (ATV / DTV mode)....................................................................................................................................................................... 20
− ATV Manual Tuning (ATV mode) .....................................................................................................................................................................21
− DTV Manual Tuning (DTV mode) ....................................................................................................................................................................21
− Channel Edit (ATV Mode) .................................................................................................................................................................................. 22
− Channel Edit (DTV Mode) .................................................................................................................................................................................. 23
− Signal Information (DTV Mode) ...................................................................................................................................................................... 24
− CI (Common Interface) (DTV Mode) .............................................................................................................................................................. 24
− Software Update (Over Air Download) (DTV mode) .............................................................................................................................. 25
− Software Update (USB) ...................................................................................................................................................................................... 26
Customising the Picture Setting ................................................................................................................................................................................ 26
Customising the Sound Setting ................................................................................................................................................................................. 28
− Stereo / Dual Sound Reception (ATV Mode) .............................................................................................................................................. 29
− Speaker Sound Output Selection (DTV Mode) ......................................................................................................................................... 29
Customising the Time Settings................................................................................................................................................................................... 29
Customising the Option Setting .................................................................................................................................................................................31
− OSD Language .......................................................................................................................................................................................................31
− TT Language ...........................................................................................................................................................................................................31
− Audio Language (DTV Mode) .......................................................................................................................................................................... 32
− Subtitle Language (DTV Mode) ...................................................................................................................................................................... 33
− Hearing Impaired ................................................................................................................................................................................................. 33
− PVR File System (DTV Mode) ............................................................................................................................................................................ 34
− Aspect Ratio ........................................................................................................................................................................................................... 35
− Blue Screen ............................................................................................................................................................................................................ 36
− Backlight ................................................................................................................................................................................................................. 36
− HDMI CEC (Consumer Electronics Control) (HDMI Mode) .................................................................................................................... 37
− Restore Factory Default ..................................................................................................................................................................................... 38
Customising the LOCK Setting .................................................................................................................................................................................... 38
− Lock System ........................................................................................................................................................................................................... 38
− Set Password ......................................................................................................................................................................................................... 39
− Block Channel ....................................................................................................................................................................................................... 40
− Parental Guidance ................................................................................................................................................................................................41
− Key Lock .................................................................................................................................................................................................................. 42
L32DLCD11_IB_110607.indd 3 11年6月7日 下午3:12
Teletext (ATV Mode) ........................................................................................................................................................................................................ 43
− To Turn on Teletext Function........................................................................................................................................................................... 43
Digital Teletext (DTV Mode) ......................................................................................................................................................................................... 44
− Teletext within Digital Service ........................................................................................................................................................................ 44
EPG (Electronic Programme Guide) (DTV Mode) ................................................................................................................................................. 44
− Switch On / O EPG ............................................................................................................................................................................................. 44
− Select a Programme ........................................................................................................................................................................................... 45
Using the Features via USB Port .....................................................................................................................................................46
Photo .................................................................................................................................................................................................................................... 46
Music ..................................................................................................................................................................................................................................... 46
Movie .................................................................................................................................................................................................................................... 47
Text ........................................................................................................................................................................................................................................ 48
PVR (Personal Video Recorder) .......................................................................................................................................................49
Time Shift Function (DTV Mode) ................................................................................................................................................................................ 49
Recording DTV Programme onto a USB Storage Device .................................................................................................................................. 50
Timer Programming ....................................................................................................................................................................................................... 50
Play Recorded Programme ...........................................................................................................................................................................................51
Using the DVD Features ...................................................................................................................................................................53
Using the Built-in DVD Player ...................................................................................................................................................................................... 53
Compatible Disc Types .................................................................................................................................................................................................. 53
− Supported Formats ............................................................................................................................................................................................. 53
− Region Code .......................................................................................................................................................................................................... 53
Basic DVD Playback Functions .................................................................................................................................................................................... 54
− Playing the DVD ................................................................................................................................................................................................... 54
− Menu Playback (for DVD) .................................................................................................................................................................................. 54
− Stopping Playback ............................................................................................................................................................................................... 54
− Previous / Next (for DVD / CD / Multimedia discs) .................................................................................................................................. 54
− Forward / Backward (for DVD / CD / Multimedia discs) ......................................................................................................................... 54
− Pause (for DVD / CD / Multimedia discs) ..................................................................................................................................................... 54
− Repeat (for DVD / CD / Multimedia discs) ................................................................................................................................................... 54
− Info (for DVD / CD / Multimedia discs) ......................................................................................................................................................... 55
− PROG (for DVD / CD / Multimedia discs)...................................................................................................................................................... 55
− Angle (for DVD) ..................................................................................................................................................................................................... 55
− Step (for DVD) ........................................................................................................................................................................................................ 55
− Zoom (for DVD) ..................................................................................................................................................................................................... 55
− Goto (for DVD) ....................................................................................................................................................................................................... 55
− Audio (for DVD / CD) ........................................................................................................................................................................................... 56
− Repeat A-B (for DVD / CD)................................................................................................................................................................................. 56
Playing Multimedia Discs .............................................................................................................................................................................................. 56
Using the DVD System Setup Page ........................................................................................................................................................................... 57
Using the DVD Language Setup Page...................................................................................................................................................................... 58
Using the DVD Audio Setup Page .............................................................................................................................................................................. 59
Using the DVD Speaker Setup Page .......................................................................................................................................................................... 60
Using the DVD Dolby Digital Setup Page ............................................................................................................................................................... 60
Maintenance .....................................................................................................................................................................................61
Hints and Tips ...................................................................................................................................................................................62
Display Modes ..................................................................................................................................................................................64
YPbPr Mode ....................................................................................................................................................................................................................... 64
PC Mode .............................................................................................................................................................................................................................. 64
HDMI Mode ....................................................................................................................................................................................................................... 64
Specifications ...................................................................................................................................................................................65
Safety Warnings ...............................................................................................................................................................................66
L32DLCD11_IB_110607.indd 4 11年6月7日 下午3:12
GB
5
Preparation

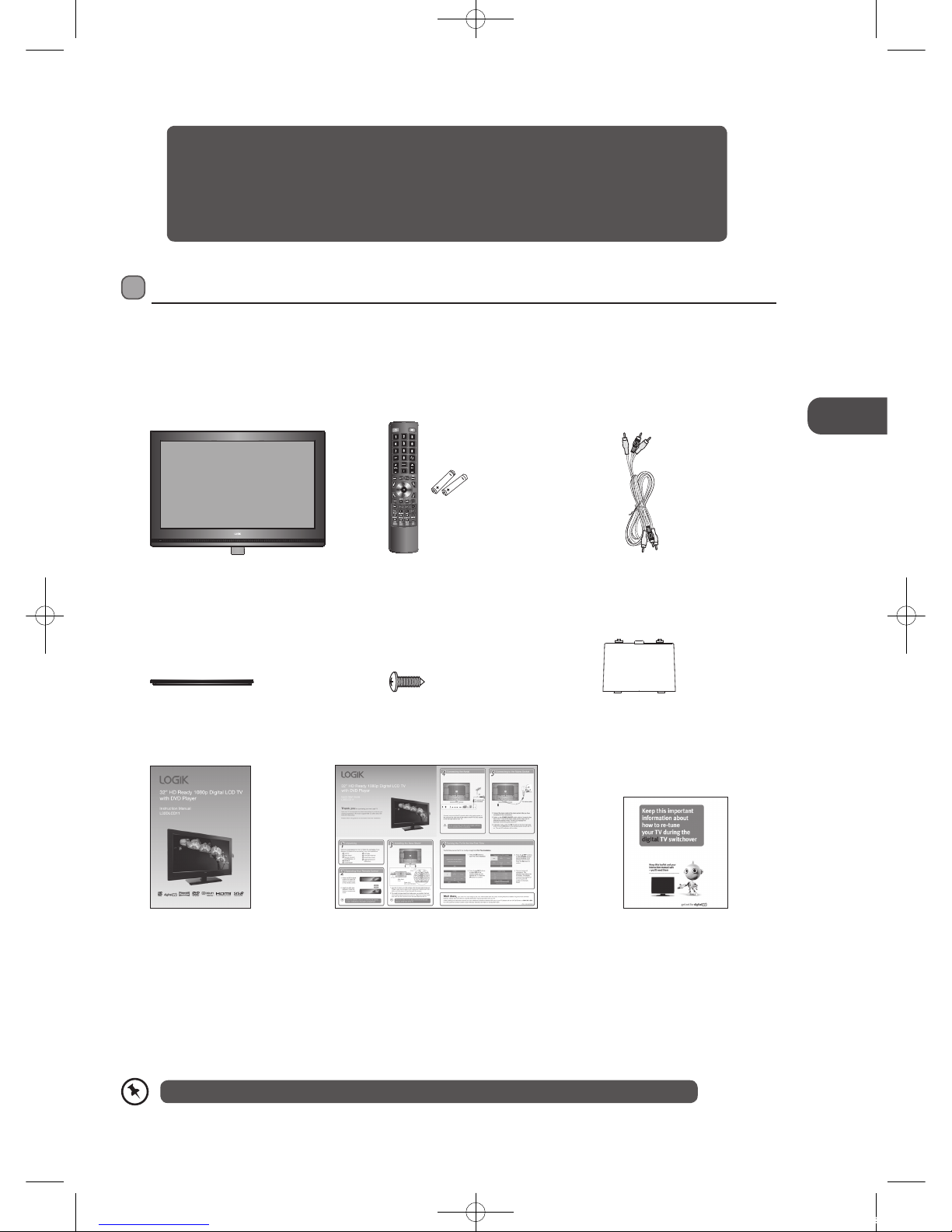

Unpacking the TV
Remove all packaging from the TV. Retain the packaging. If you dispose of it please do so according to local regulations.
The following items are included:
Screw A x 6
(P.N.: I.03.TP4016A01)
Cover Board
(P.N.: I.01.532606281)
AV Cable
(P.N.: E.14.113150013)
Remote Control / AAA Batteries x 2
(P.N.: I.14.000000760 & E.17.101570001)
Instruction Manual
(P.N.: I.08.103285201)
Quick Start Guide
(P.N.: I.08.246328521)
Digital TV Switchcover Addendum
(P.N.: I.08.557724771)
Thank you for purchasing your new Logik 32" HD Ready 1080p Digital LCD TV with DVD Player.
Your new TV has many features and incorporates the latest technology to enhance your viewing
experience. We recommend that you spend some time reading this instruction manual in order that you
fully understand these features. You will also find some hints and tips to help you resolve any issues.
Read all the safety instructions carefully before use and keep this instruction manual for future reference.
If items are missing, or damaged please contact Partmaster (UK only). Tel: 0844 800 3456 for assistance.
Preparation
Video
Video
R
R
L
L
TV
TV Base
(P.N.: I.01.501321001)
L32DLCD11_IB_110607.indd 5 11年6月7日 下午3:12
GB
6
Preparation
5. Attach the cover board.
6. Mounting on the wall. This TV is designed to be wall-
mounted with a standard 400 mm x 200 mm mounting
kit designed for flat-panel TVs (sold separately).
Mount this TV according to the instructions included
in the mounting kit. Due to space restrictions, we
recommend that you make all connections (refer to
page 13-17 for details) before mounting on to the wall.
3. To install the base stand first
make sure you position the front
of the base stand at the front of
the TV. Align the 6 screw holes
and then use the 6 screws to fix
the base stand to the TV.
4. To remove the base stand, lay the TV down on a flat
surface with the back side facing up. Please make sure
to place a soft cushioned material (such as a pillow or
thick piece of foam) beneath the screen. Untighten
the 6 screws that hold the base stand to the rear of
the TV. Slide the base stand out.
1. Disconnect all cables connected to the TV.
2. Lay the TV down on a flat surface with the back side
facing up. Please make sure to place a soft cushioned
material (such as a pillow or thick piece of foam)
beneath the screen.
TV Front
Base Stand
Front
screw
unscrew

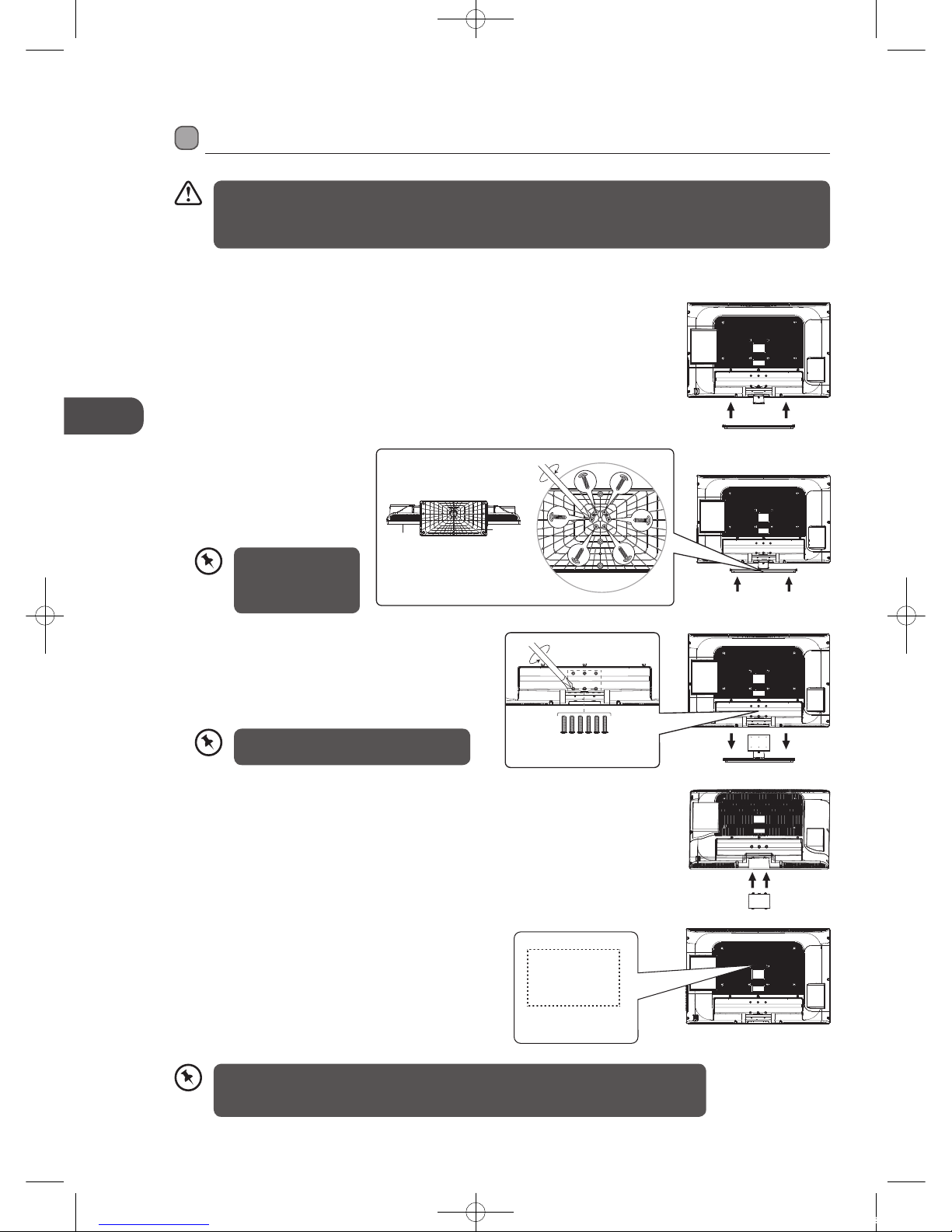

Installing / Removing the Base Stand
Screws x 3
(P.N.: xxxxxxxxxxx)
Screw A x 6
(P.N.: I.03.TP4016A01)
400 mm
200 mm
Four mounting holes
(size M5 screw)
• Please read this instruction manual carefully while setting up your TV.
• If you require additional assistance please call our UK Call Centre on 0844 561 1234. Our UK
Customer Contact Centre is open Monday-Saturday 8am-8pm or Sunday 8am-6pm.
Keep all the spare screws should you want
to use the base stand option.
The screw holes will
only align if the front
of the base stand is at
the front of the TV.
• Remove the base stand before mounting the TV onto the wall.
• The LCD display is very fragile, and must be protected at all times when installing and removing the base stand. Be
sure that no hard or sharp object, or anything that could scratch or damage the LCD display, comes into contact with
it. DO NOT exert pressure on the front of the TV at any time because the screen could crack.
Screw B x 6
(P.N.: I.03.MP4010001)
L32DLCD11_IB_110607.indd 6 11年6月7日 下午3:12
GB
7
Preparation

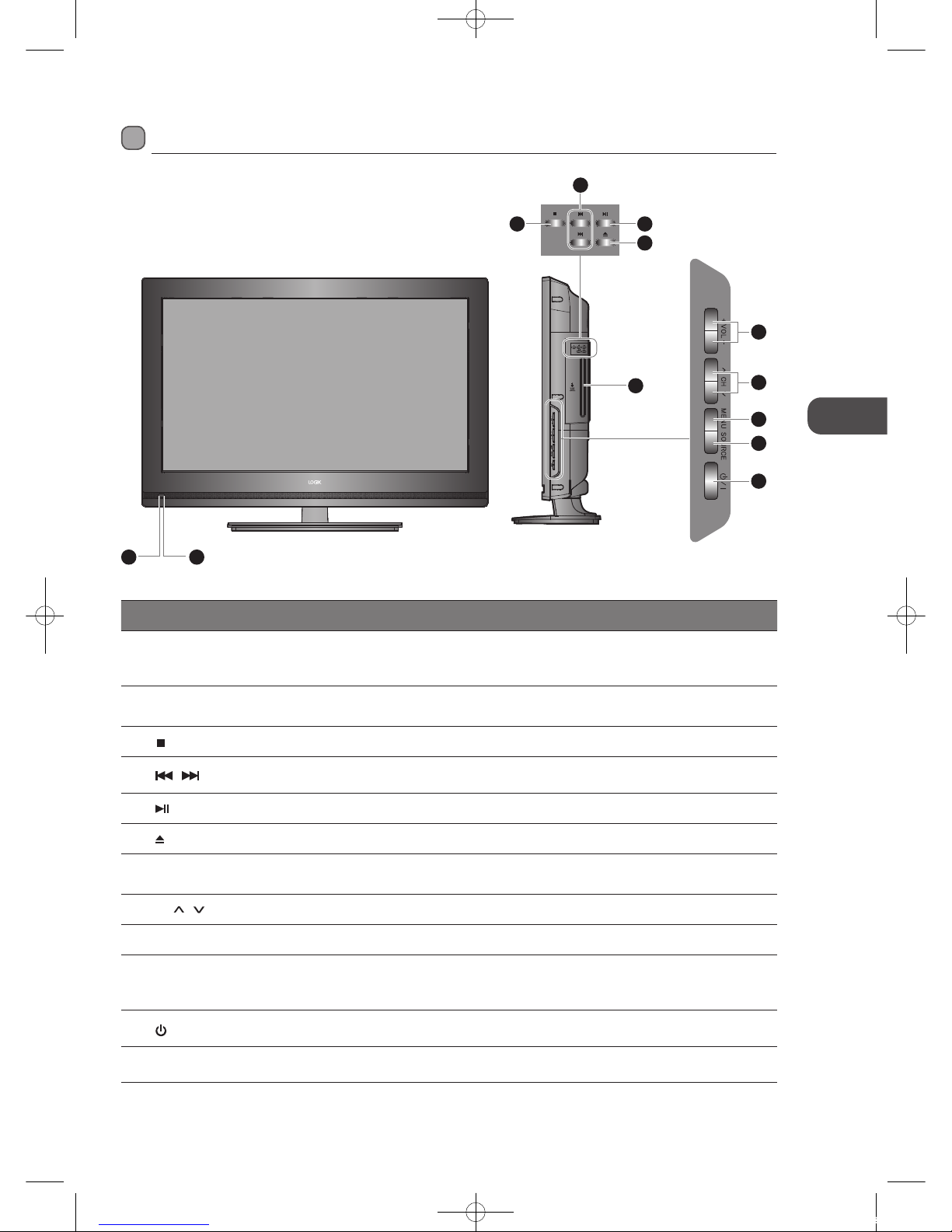

Front / Right Side View and Controls
Item Description
1 POWER LED
Illuminates blue when the TV is turned on. Illuminates red when the TV is in standby
mode. The LED will illuminate blue when the timer programming has started in the
standby mode.
2 IR (Infrared Receiver) Receives IR signals from the remote control.
Do not put anything near the sensor, as its function may be affected.
3 Press to stop playback. (DVD mode)
4 / Press to skip to the beginning of the previous or next chapter / track / photo. (DVD
mode)
5 Press to start playback or pause. (DVD mode)
6 Press to eject disc. (DVD mode)
7 VOL + / – Adjusts the volume.
Press to select and adjust a setting in the OSD menu.
8 CH / Press to select a channel or select a sub-menu from the OSD menu.
9 MENU Displays the OSD (on screen display) menu.
10 SOURCE
Press to select among different input signal sources:
DTV / ATV / DVD / AV1 / AV2 / SCART / YPBPR / HDMI1 / HDMI2 / HDMI3 / PC / MEDIA.
Confirmed the selection on OSD menu.
11 / I Switches the TV on from standby mode.
Switches the TV back to standby mode.
12 Disc Slot Insert the disc with the label side facing backwards you (12 cm discs only. Don't insert
8 cm discs)
7
12 8
9
10
11
1 2
3 5
6
4
L32DLCD11_IB_110607.indd 7 11年6月7日 下午3:12
GB
8
Preparation
Rear View and Sockets
Socket Description
1 POWER ON/OFF Switch on the POWER ON/OFF switch to turn the TV to standby mode.
2 AC Connects the mains cable to the mains socket.
3 USB Output 5V 500mA Allows the insertion of a USB storage device to play video, audio, photo and text files
(Media mode) and record DTV programmes on to a USB storage device.
4 HDMI1 / 2 / 3 To connect to a High-Definition (HD) signal output device, such as a set-top box, blu-ray
disc player or AV receiver.
5 VGA / PC AUDIO To connect to a computer or other devices with a VGA interface.
6 CI (Common Interface) Slot Allows the insertion of a Common Access Module. (Refer to page 24 for details)
7 SCART To connect to a VCR, DVD Player, or other AV device with a SCART output socket.
8 COAXIAL To connect to the audio socket on the digital/standard 5.1 audio system.
9 Y, PB, PR / AUDIO (L/R) To connect to a DVD player, Digital Set-Top-Box, or other AV devices with component
(YPbPr) video and audio output sockets.
10 AV1 VIDEO / AUDIO (L/R) To connect to the Composite VIDEO and AUDIO (L/R) output sockets on external video
devices.
11 RF To connect to the aerial socket on the wall with the RF coaxial cable.
12 To connect to the earphones.
13 AV2 VIDEO / AUDIO (L/R) To connect to the Composite VIDEO and AUDIO (L/R) output sockets on external video
devices.
HDMI1
HDMI3
COMPONENT
AV1 IN
HDMI2
POWER
ON/OFF AC USB
OUTPUT 5V 500mA
4 5 71 32 8 11 1210
13
96
AV2 IN
L32DLCD11_IB_110607.indd 8 11年6月7日 下午3:12
GB
9
Preparation
Remote Control Operation Range
Point the remote control at the TV no more than 5 metres from the
remote control sensor on the TV and within 60° in front of the TV.
The operating distance may vary depending on the brightness of the
room.
Installing Batteries in the Remote Control
1. Press and lift the back cover to open the battery compartment of the
remote control.
2. Insert two AAA size batteries. Make sure to match the (+) and ( - ) ends
of the batteries with the (+) and ( - ) ends indicated in the battery
compartment.
3. Close the battery compartment cover.
Handling the Batteries
• Improper or incorrect use of batteries may cause
corrosion or battery leakage, which could cause
fire, personal injury or damage to property.
• Only use the battery type indicated in this
manual.
• When the batteries are exhausted, the remote will
not function. Replace both batteries at the same
time with new ones.
• Do not install new batteries with used ones and
do not mix different types of batteries.
• Do not dispose of used batteries as domestic
waste. Dispose of them in accordance with local
regulations.
Handling the Remote Control
• Take care of your fingernails when you press and
hold the battery release tab.
• Do not drop or cause impact to the remote
control.
• Do not spill water or any liquid on the remote
control.
• Do not place the remote control on a wet object.
• Do not place the remote control under direct
sunlight or near sources of excessive heat.
• Remove the battery from the remote control
when not in use for a long period of time, as it
could cause corrosion or battery leakage and may
result in physical injury and/or property damage
including fire
30° 30°
5M
L32DLCD11_IB_110607.indd 9 11年6月7日 下午3:12
GB
10
Preparation
1.
Switches the TV between on and standby mode.
2. MUTE
Mutes and restores your TV sound.
3. 0-9 Number Button
Press to select a programme. (ATV / DTV mode)
Select numbered items in a menu. (DVD mode)
4. LIST
• Display channel list. (ATV / DTV mode)
• Press to select a track number above 10. For example, to
select track 23 press twice followed by 3. (DVD mode)
5. RECALL
Return to the previous viewing channel. (ATV / DTV mode)
6. SLEEP
Sets the TV sleep timer: OFF / 10 / 20 / … / 180 / 240 min.
7. VOL + / –
Adjusts the volume.
8. CH + / –
Select a channel.
9.
• Display the present channel information such as the current
time and channel name. (ATV / DTV mode)
• Display the present disc information. (DVD mode)
10. S.MODE
Select sound mode: Standard / Music / Movie / Sports /
Personal.
11. ASPECT
Allows you to watch the screens in various formats: Auto / 4:3
/ 16:9 / Zoom / Smart Zoom / Dot to Dot / Subtitle. (Dot to Dot
only operates in YPBPR / HDMI mode)
12. GUIDE
Displays the EPG (Electronic Programme Guide). (DTV mode)
TITLE
Displays the DVD title content. (DVD mode)
13. P.MODE
Select picture mode: Dynamic / Standard / Mild / Personal.
14. MENU
Display the OSD (On Screen Display) menu.
15. INPUT
Select among the dierent input signal sources:
DTV / ATV / DVD / AV1 / AV2 / SCART / YPBPR / HDMI1 / HDMI2 /
HDMI3 / PC / MEDIA.
16.
Allows you to navigate the OSD menus and adjust the system
settings to your preference.
OK
Conrm the selection in the OSD menus.
17. BACK
Return to the previous menu in the OSD menus.
18. Exit
Exit the OSD menu.
Remote Control
12
5
8
12
15
18
9
13
3
4
7
11
14
16
17
6
10
L32DLCD11_IB_110607.indd 10 11年6月7日 下午3:12
Indice
Altri manuali Logik Combinazione TV DVD
Logik
Logik L17LIDI9E Manuale utente
Logik
Logik L24FED13 Manuale utente
Logik
Logik L22DVDB11 Manuale utente
Logik
Logik L19DVDB19 Manuale utente
Logik
Logik L24DVDB19 Manuale utente
Logik
Logik L24DVDB11 Manuale utente
Logik
Logik L22DVDB20 Manuale utente
Logik
Logik L22LDVB11 Manuale utente
Logik
Logik L22LDVB19 Manuale utente
Logik
Logik L26HED12 Manuale utente
