Logitech G Pro X Superlight Manuale utente

PRO X SUPERLIGHT

SETUP GUIDE |设置指南 |設定指南 |설치 가이드

All manuals and user guides at all-guides.com

ENGLISH . . . . . . . . . . . . . . . . . . . . . . . . 3

简体中文 . . . . . . . . . . . . . . . . . . . . . . . . 10

繁體中文 . . . . . . . . . . . . . . . . . . . . . . . . 17

한국어 . . . . . . . . . . . . . . . . . . . . . . . . . 24

All manuals and user guides at all-guides.com

3ENGLISH

PACKAGE CONTENTS

3 4

1 Mouse

2 Optional grip tape

3 Receiver (installed in extension adapter)

4 USB charging and data cable

5 Surface preparation cloth

6 Optional POWERPLAY aperture door

withPTFEfoot

All manuals and user guides at all-guides.com

4ENGLISH

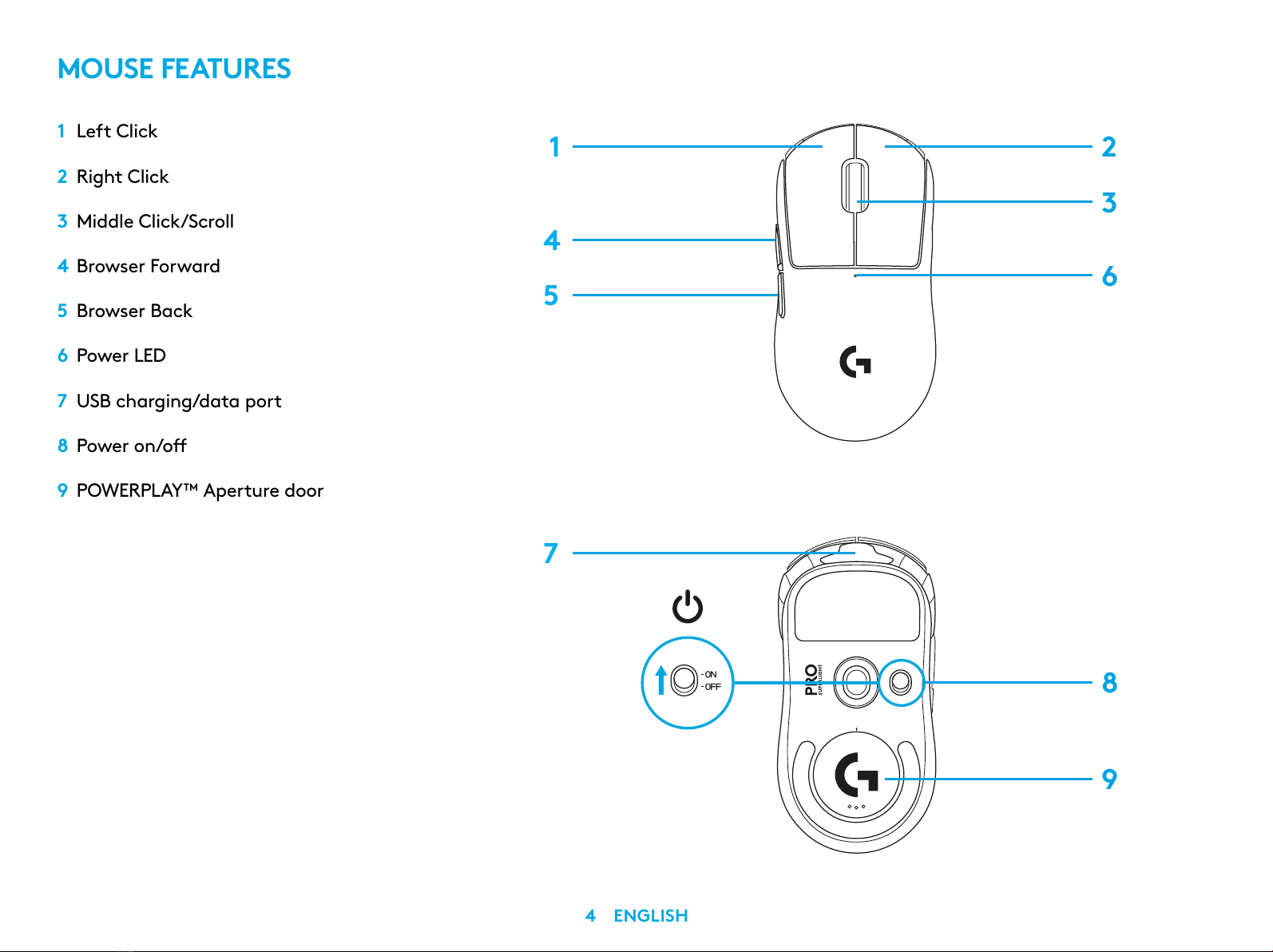

MOUSE FEATURES

1 Left Click

2 Right Click

3 Middle Click/Scroll

4 Browser Forward

5 Browser Back

6 Power LED

7 USB charging/data port

8 Power on/o

9 POWERPLAY™ Aperture door

All manuals and user guides at all-guides.com

5ENGLISH

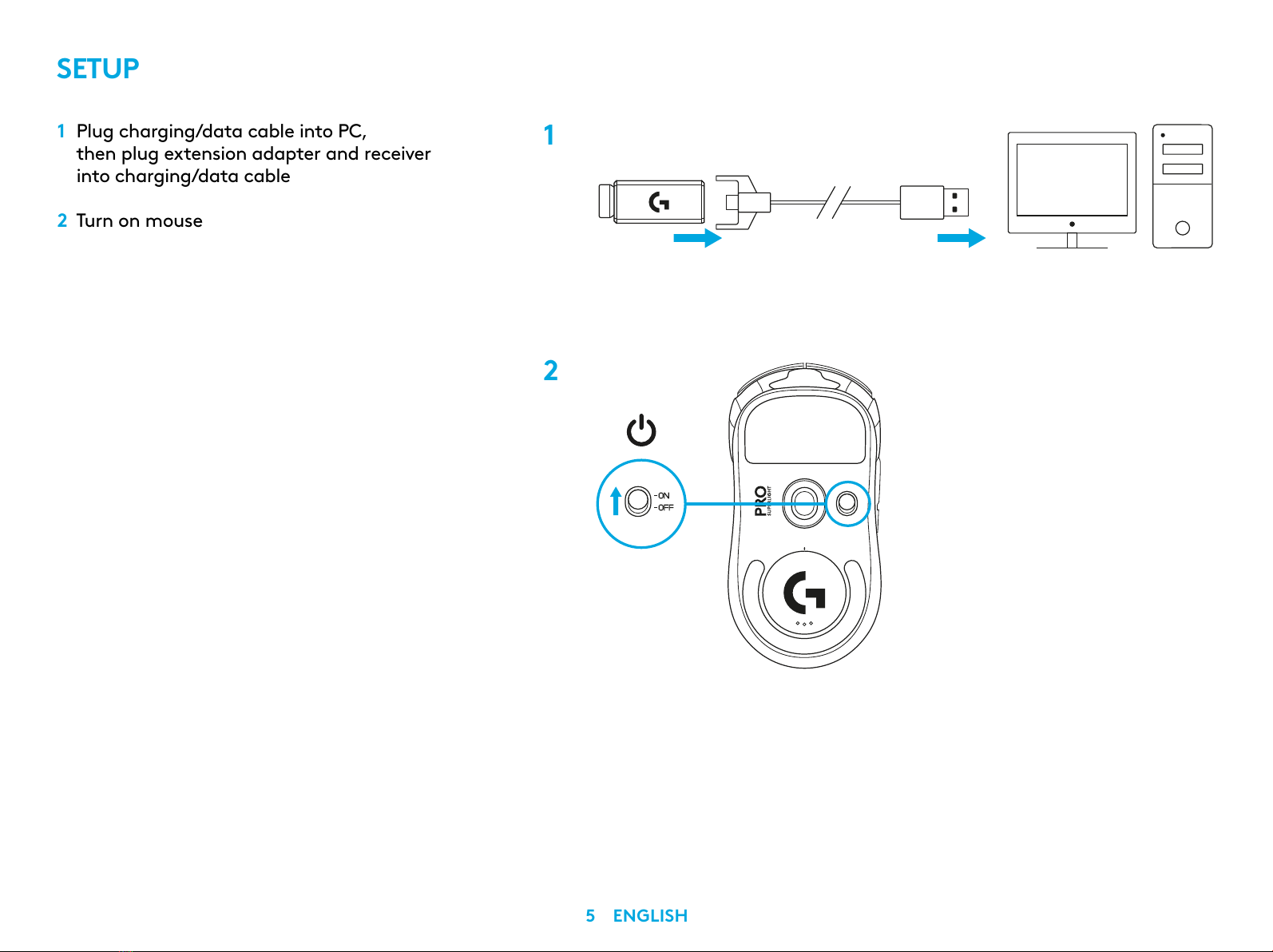

SETUP

1 Plug charging/data cable into PC,

thenplugextension adapter and receiver

intocharging/data cable

2 Turn on mouse

All manuals and user guides at all-guides.com

6ENGLISH

3 To congure mouse settings like DPI, download G HUB software from

logitechG.com/GHUB

logitechG.com/ghub

All manuals and user guides at all-guides.com

7ENGLISH

> 2 m

~ 20 cm

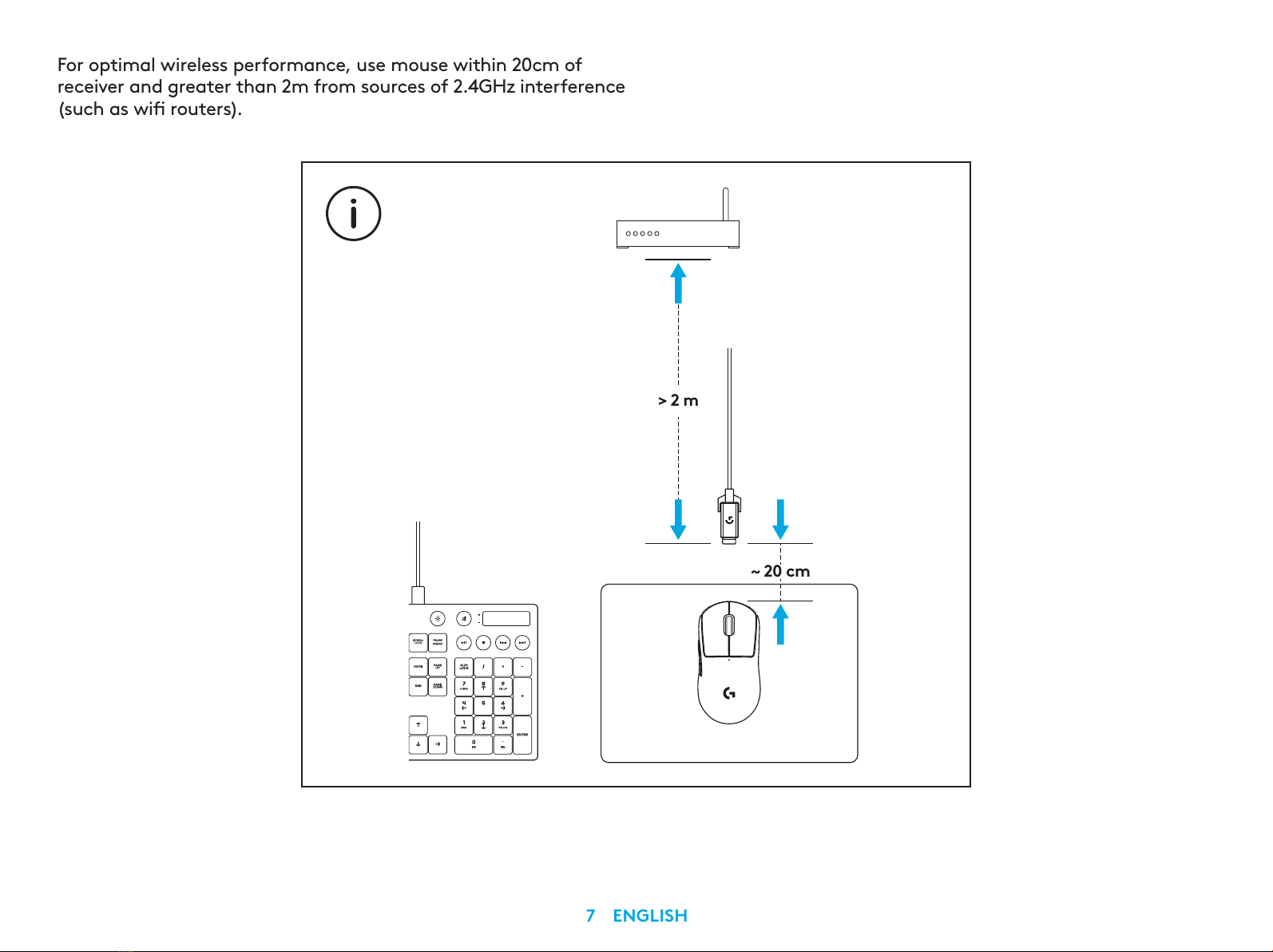

For optimal wireless performance, use mouse within 20cm of

receiver and greater than 2m from sources of 2.4GHz interference

(such as wi routers).

All manuals and user guides at all-guides.com

8ENGLISH

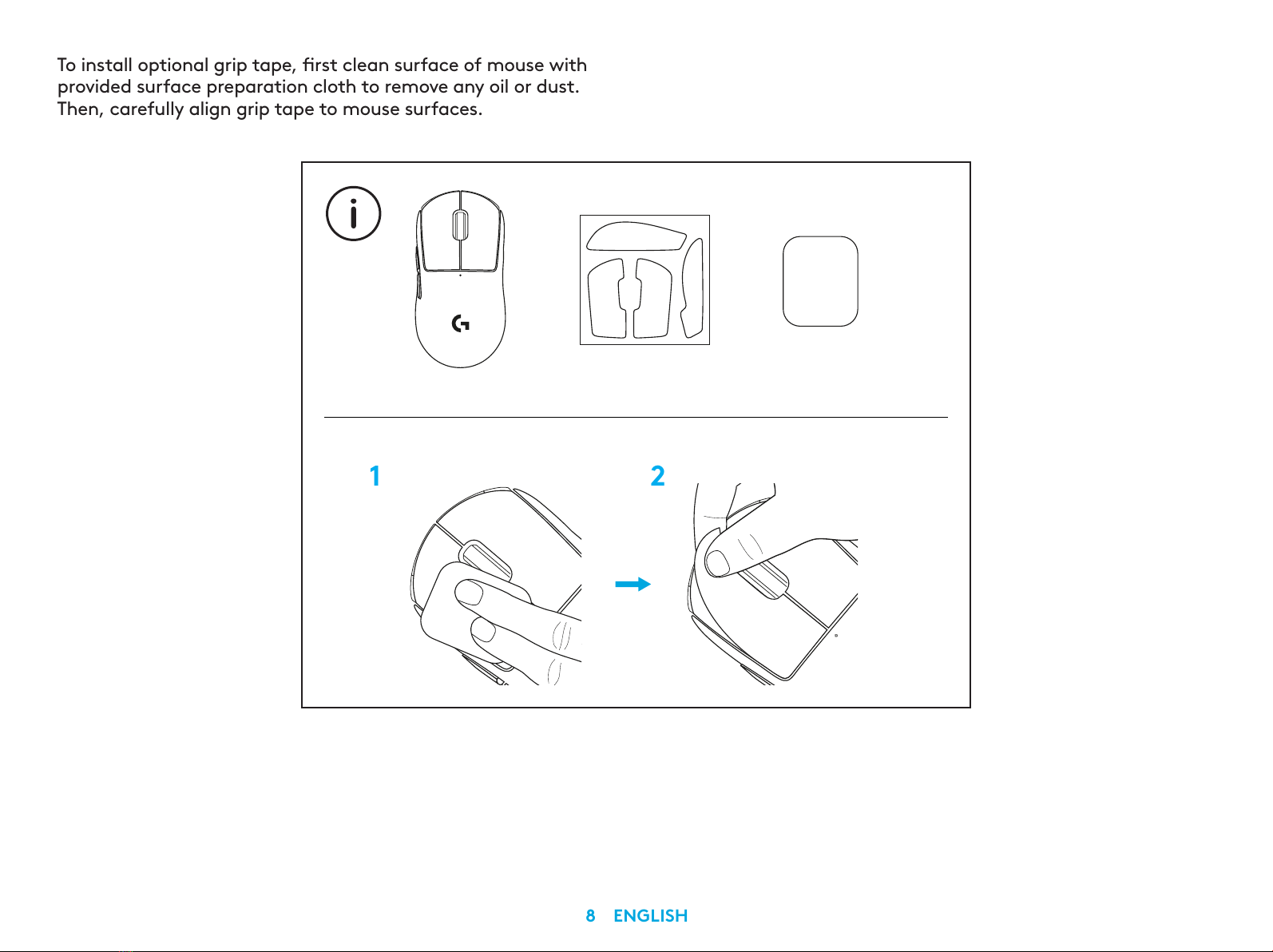

To install optional grip tape, rst clean surface of mouse with

provided surface preparation cloth to remove any oil or dust.

Then,carefully align grip tape to mouse surfaces.

1 2

All manuals and user guides at all-guides.com

9ENGLISH

The USB receiver can be stored inside the mouse by removing the POWERPLAY

aperture door. This can prevent the receiver from being lost when using the mouse

with the Logitech G POWERPLAY wireless charging system.

Removing this door also allows the included, optional aperture door with PTFE foot

to be installed instead of the default aperture door.

PTFE

All manuals and user guides at all-guides.com

10 简体中文

包装内容

3 4

1 鼠标

2 可选握胶

3 接收器（预装于扩展适配器中）

4 USB 充电/数据线

5 表面清洁布

6 带PTFE 脚垫的可选 POWERPLAY 底盖
