Logitech G502 Proteus Spectrum Manuale utente
Logitech® G502 Proteus Core
Setup Guide
2
English. . . . . . . . . . . . . . . . . . 3
Deutsch . . . . . . . . . . . . . . . . . 13
Français . . . . . . . . . . . . . . . . 23
Italiano. . . . . . . . . . . . . . . . . 33
По-русски . . . . . . . . . . . . . . . . 43
Magyar . . . . . . . . . . . . . . . . 53
Česká verze . . . . . . . . . . . . . . 63
Po polsku . . . . . . . . . . . . . . . .73
Eesti . . . . . . . . . . . . . . . . . . 83
Latviski . . . . . . . . . . . . . . . . 93
Lietuvių . . . . . . . . . . . . . . . . 103
Hrvatski . . . . . . . . . . . . . . . . 113
Srpski . . . . . . . . . . . . . . . . . 123
Slovenščina . . . . . . . . . . . . . . 133
Slovenčina. . . . . . . . . . . . . . . 143
Română . . . . . . . . . . . . . . . . 153
Български . . . . . . . . . . . . . . . . 163
Українська . . . . . . . . . . . . . . . 173
www.logitech.com/support . . . . . . . . . . . . . . . . . . . . . . . . . . 183
English 3

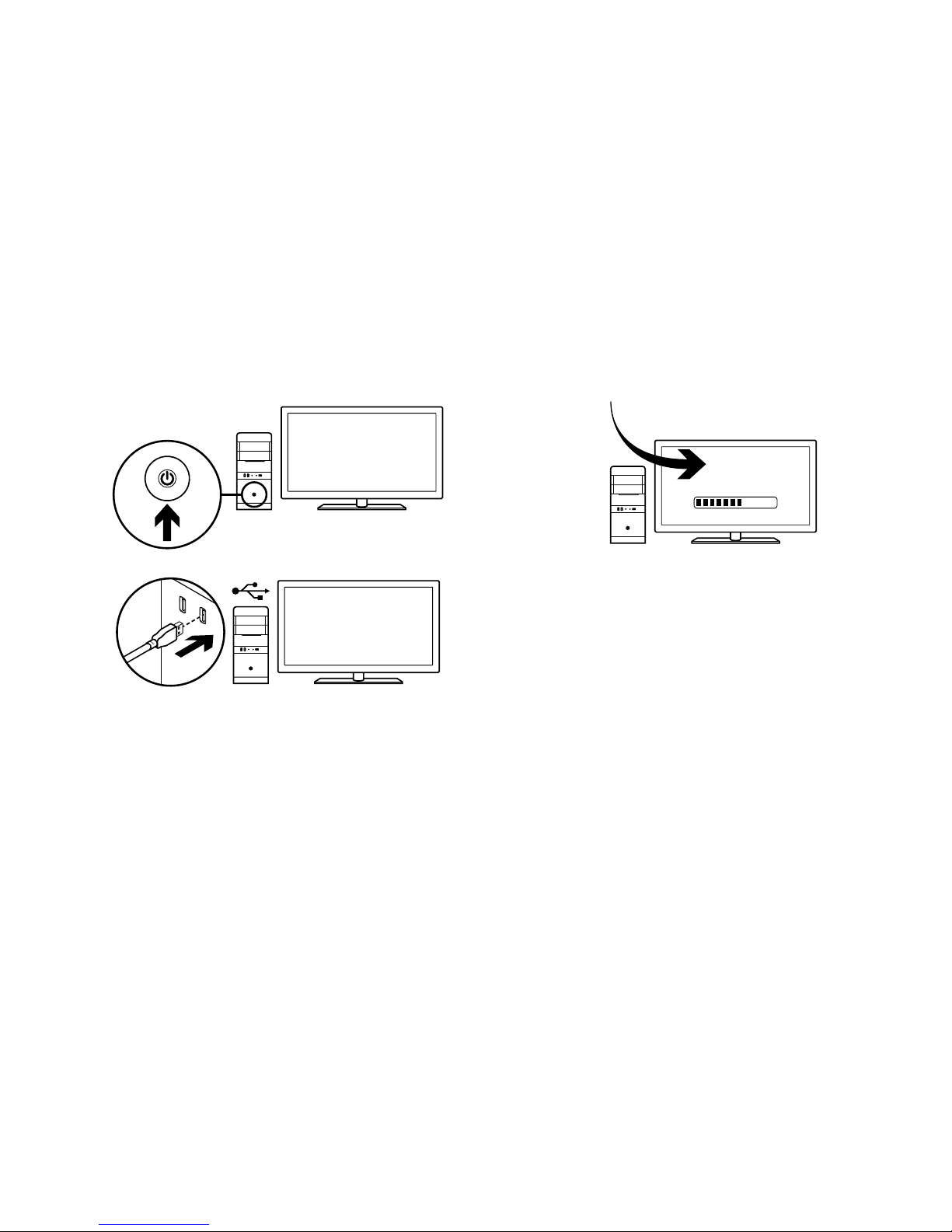

1
2
Your G502 is ready to play games.
If you would like to customize your G502,
refer to the next section.
3
You can customize the three onboard
profiles of the G502—surface tuning,
button programming, and tracking
behavior—using the Logitech Gaming
Software. Download this free software
and learn how to customize the G502
at www.logitech.com/support/g502
On
USB
4 English
4 To adjust the weight and balance of
your G502, first open the weight door
by grasping the mouse firmly in your right
hand and pulling the blue tab down with
your left thumb.
English 5
5 You can place up to five 3,6 gram weights
in a number of dierent orientations.
Experiment with dierent positions
for the weights to find an overall weight
and balance that feels right for you.
6 English
6
After inserting the weights, close the weight
door by inserting the tabs on the weight
door into the slots on the left side of
the mouse and rotating the door down
until the magnet holds the weight door
firmly closed.
7
Out of the box, the sensor for the G502
is configured to deliver amazing
tracking across a wide range of surfaces.
For an extra edge, it can also be further
tuned for optimal performance with the
specific surface that you use for gaming.
To tune the sensor, use the Logitech
Gaming Software.
English 7
11 fully programmable buttons
1. Left (Button 1)
2. Right (Button 2)
3. Wheel click (Button 3)
4. Back (Button 4)
5. Forward (Button 5)
6. DPI Shift (Button G6)
7. DPI Down (Button G7)
8. DPI Up (Button G8)
9. Scroll left (wheel tilt left)
10. Scroll right (wheel tilt right)
11. Profile select (Button G9)
12. Wheel mode shift (not programmable)
5
6
7
8
1
11
12
3
9
10
2
4
8 English
Profile 1*
(High-DPI
gaming)
Profile 2*
(Low-DPI
gaming)
Profile 3*
(Standard:
unshifted)
Profile 3*
(Standard:
G-shifted)
DPI values 1200, 2400,
3200, 6400
400, 800, 1600,
2400
2400 2400
Default DPI
value
2400 1600 2400 2400
DPI Shift value 1200 400 N/A N/A
Reports/sec 1000 1000 500 500
1Button 1
(left click)
Button 1
(left click)
Button 1
(left click)
Button 1
(left click)
2Button 2
(right click)
Button 2
(right click)
Button 2
(right click)
Button 2
(right click)
3Button 3
(middle click)
Button 3
(middle click)
Button 3
(middle click)
Ctrl-T
English 9
Profile 1*
(High-DPI
gaming)
Profile 2*
(Low-DPI
gaming)
Profile 3*
(Standard:
unshifted)
Profile 3*
(Standard:
G-shifted)
4Button 4 (back) Button 4 (back) Button 4 (back) Ctrl-Shift-Tab
5Button 5
(forward)
Button 5
(forward)
Button 5
(forward)
Ctrl-Tab
6DPI Shift (sniper) DPI Shift (sniper) G-Shift (double
functions)
N/A
7DPI Down DPI Down Ctrl-C Ctrl-X
8DPI Up DPI Up Ctrl-V Ctrl-Z
9Scroll left Scroll left Scroll left Ctrl-F4
10 Scroll right Scroll right Scroll right Ctrl-Shift-T
11 Next profile Next profile Next profile Ctrl-0
10 English
Onboard profiles
The G502 has three preconfigured profiles,
one each for high sensitivity gaming,
low sensitivity gaming, and standard mouse
usage. Use Button 9 (see mouse drawing)
to rotate through these default profiles.
When you change profiles, the DPI indicator
lights will change color from cyan to blue
for three seconds and will indicate the new
mode as shown here:
DPI indicators
DPI values are shown using the three LEDs
indicated in the mouse drawing. The image
below shows which DPI value is being
indicated by the LED panel.
Prof. 1 Prof. 2 Prof. 3
DPI 1 DPI 2 DPI 3 DPI 4 DPI 5
