Logitech Keyboard Folio Mini Manuale utente
Setup Guide | Guide d’installation
Keyboard Folio Mini
Logitech Keyboard Folio Mini
2
Contents
English. . . . . . . . . . . . . . . . . . 3
Français . . . . . . . . . . . . . . . . 12
Español . . . . . . . . . . . . . . . . 21
Português . . . . . . . . . . . . . . . 30
www.logitech.com/support . . . . . . . . . . . . . . . . . . . . . . . . . . 39
Logitech Keyboard Folio Mini
English 3
Know your product
1. iPad mini holder
2. Protective folio
3. Function keys
4. Keyboard
5. Bluetooth light
6. Battery status light
7. Bluetooth
connect button
8. On/o switch
9. Micro-USB
charging port
10. Micro-USB
charging cable
11. Product documentation
Setup Guide | Guide d’installation
Keyboard Folio Mini
5 6
1
2
4
3
7
8
9
10
11
Logitech Keyboard Folio Mini
4 English
Setting up the keyboard folio mini
Getting started
1. Open the keyboard folio mini and insert
your iPad mini in the iPad mini holder:
2. Move the iPad mini holder into the
typing position (see “Using the keyboard
folio mini”).
Establishing connection with
your iPad mini
The keyboard folio mini links to
your iPad mini via a Bluetooth connection.
The first time you use the keyboard folio
mini, you must pair it with your iPad mini:
1. Turn on the keyboard:
The Bluetooth light blinks to indicate
that the keyboard is discoverable,
ready for pairing with your iPad mini.
The first time you turn on the keyboard
it remains discoverable for 15 minutes.
If the status light turns red, charge
the battery. For more information,
see “Charging the keyboard battery.”
Logitech Keyboard Folio Mini
English 5
2. On your iPad mini:
•Make sure your iPad mini’s Bluetooth
feature is on. Select Settings >
Bluetooth > On.
•Select “Logitech Keyboard Folio Mini”
from the Devices menu.
3. If your iPad mini requests a PIN,
enter it using the folio keyboard
(not on your iPad mini).
When successful connection is made,
the Bluetooth light turns on for
a short time, and then turns o.
Connecting to another iPad mini
1. Make sure the keyboard is turned on.
2. Make sure your iPad mini’s Bluetooth
feature is on. Select Settings >
Bluetooth > On.
3. Press the Bluetooth Connect button:
The keyboard is discoverable for
3 minutes.
4. Select “Logitech Keyboard Folio Mini”
on your iPad mini’s Devices menu.
5. If your iPad mini requests a PIN,
enter it using the folio keyboard
(not on your iPad mini).
When successful connection is made,
the Bluetooth light turns on for a short
time, and then turns o.
Logitech Keyboard Folio Mini
6 English
Storing your iPad mini for travel
1. Insert your iPad mini in the
iPad mini holder.
2. Close the keyboard folio mini:
Using the keyboard folio mini
Two viewing positions
The keyboard folio mini provides
two viewing positions—one for typing
and another for browsing.
To type, move the iPad mini holder into the
typing position, aligning it with the built-in
magnet to secure it. Turn on the keyboard:
To browse, place the iPad mini holder
in the browsing position remembering
to switch o the keyboard to conserve
battery power:
If you don’t use the keyboard for a while
in the typing position, it enters sleep mode
automatically. Pressing any key wakes it.
Typing position
Browsing position
Logitech Keyboard Folio Mini
English 7
Light indicators
Status light
Blinking green The battery is charging.
Green The battery is charged (more than 20%).
Red Battery power is low (less than 20%). Recharge the battery.
Bluetooth light
Blinking blue Fast: The keyboard is in discovery mode, ready for pairing.
Slow: The keyboard is trying to reconnect to your iPad mini.
Solid blue Bluetooth pairing or reconnection is successful.
Logitech Keyboard Folio Mini
8 English
Function keys
Home = iPad mini Home screen
Fn + 1 = Lock screen
Locks or unlocks the
iPad mini screen
Fn + 2 = Siri
Use your voice to send messages,
make calls, schedule meetings,
and more
Fn + 3 = Search
Launches the iPad mini
search function
Fn + 4 = Switch language
Switches the keyboard language
Fn + 5 = Virtual keyboard
Shows/hides the virtual keyboard
Fn + 6 = Slide show
Fn + 7 = Previous track
Fn + 8 = Play/Pause
Fn + 9 = Next track
Fn + 0 = Mute
Fn + dash = Volume down
Fn + plus = Volume up
Fn + X = Cut
Fn + C = Copy
Fn + V = Paste
Fn + Left cursor = Select left
Selects text on the left,
word by word
Fn + Right cursor = Select right
Selects text on the right,
word by word
Fn + Spacebar = Switch
applications
Note: To select a function key, press and hold the Fn key, and then press the key indicated above.
Logitech Keyboard Folio Mini
English 9
Charging the keyboard battery
If the status light is red the keyboard folio
mini battery needs to be charged.
1. Plug one end of the micro-USB cable
into the charging port, and the other end
into a USB port on your computer.
The status light blinks green as
the battery charges.
Note: Please note the power input max
is 5V, 200mA, if you use an alternative
charging solution.
2. Charge the battery until the status light
turns solid green.
Battery information
•A fully charged battery provides about
three months of use when the keyboard
is used about two hours a day.
•Charge the battery if the status light
turns red briefly after the keyboard
turns on.
•When not in use, turn o the keyboard
to conserve battery power.
•The keyboard enters sleep mode
automatically if not used for a while
in the typing position. Press any key
to wake it.
USB
Logitech Keyboard Folio Mini
10 English

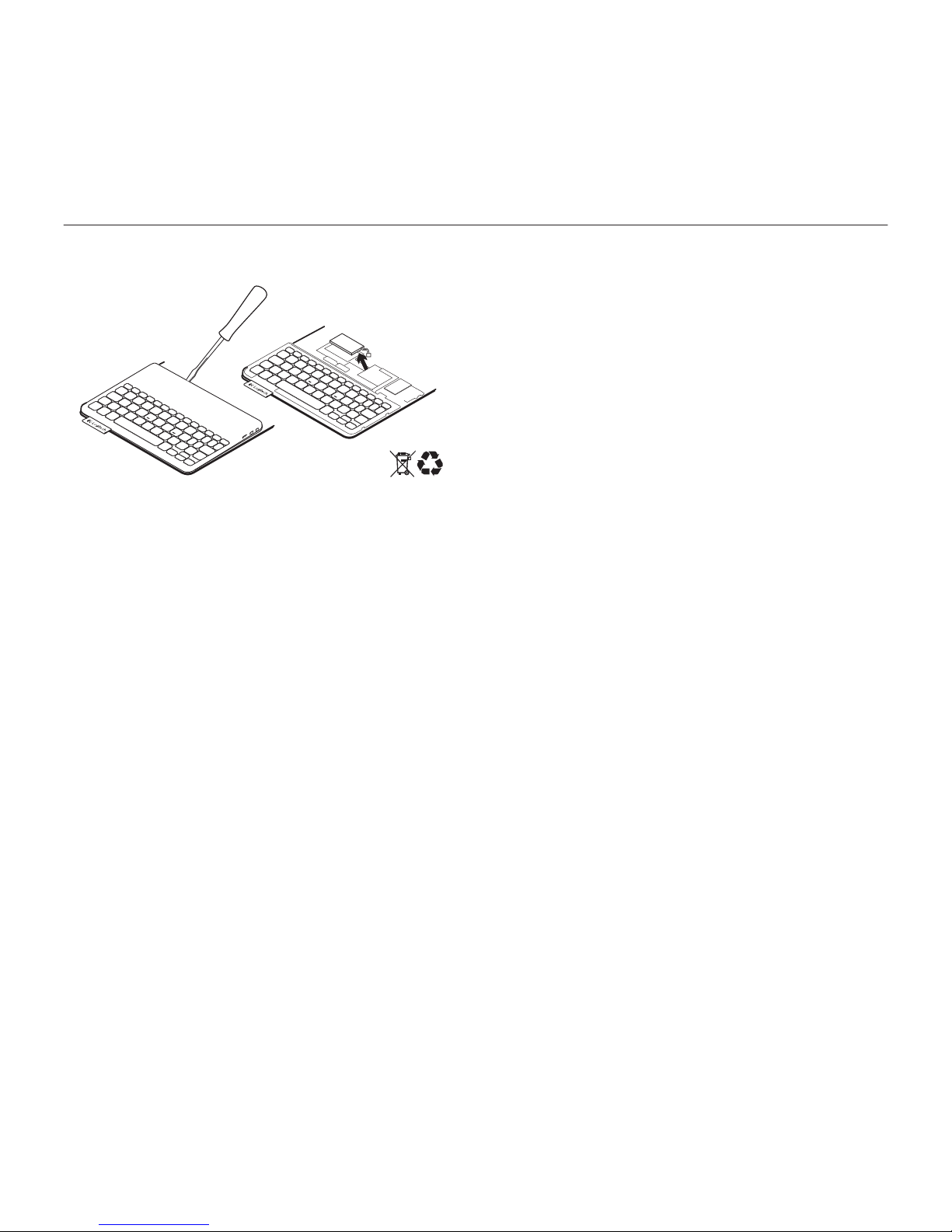

Battery disposal at product
end of life
1. Pry o top cover of keyboard
with screwdriver.
2. Detach battery from circuit board
and remove battery.
3. Dispose of your product and its battery
according to local laws.
Visit Product Central
There’s more information and support
online for your product. Take a moment
to visit Product Central to learn more about
your new keyboard folio mini.
www.logitech.com/support/
keyboardfoliomini
Browse online articles for setup help,
usage tips, and information about
additional features.
Connect with other users in our Community
Forums to get advice, ask questions,
and share solutions.
Find a wide selection of content including:
•Tutorials
•Troubleshooting
•Support community
•Online documentation
•Warranty information
•Spare parts (when available)
3
2
1
