Logitech C920s Pro Istruzioni di montaggio

C920sPRO HD WEBCAM

Complete Setup Guide

Guide d'installation complet

CONTENTS

English . . . . . . . . . . . . . . . . .3

Français . . . . . . . . . . . . . . . .8

Español . . . . . . . . . . . . . . . . 13

Português . . . . . . . . . . . . . . 18

KNOW YOUR PRODUCT

Autofocus

HD 1080p lens

LED activity light

Universal

mountingclip

Tripod thread*

USB-A cable

Dual microphone

Attachable

privacy shutter

*Tripod not included

3English

ATTACH THE PRIVACY SHUTTER

1 Attach external privacy shutter by locating the lens

onthe webcam.

WHAT’S IN THE BOX

1 Webcam with 5 ft (1.5 m) attached USB-A cable

2 Privacy shutter

3 User documentation

2 Snap it onto the front of the webcam, directly over

the center.

3 Manually adjust the privacy shutter to open or close

as desired.

USB-A

4English

SETTING UP THE WEBCAM

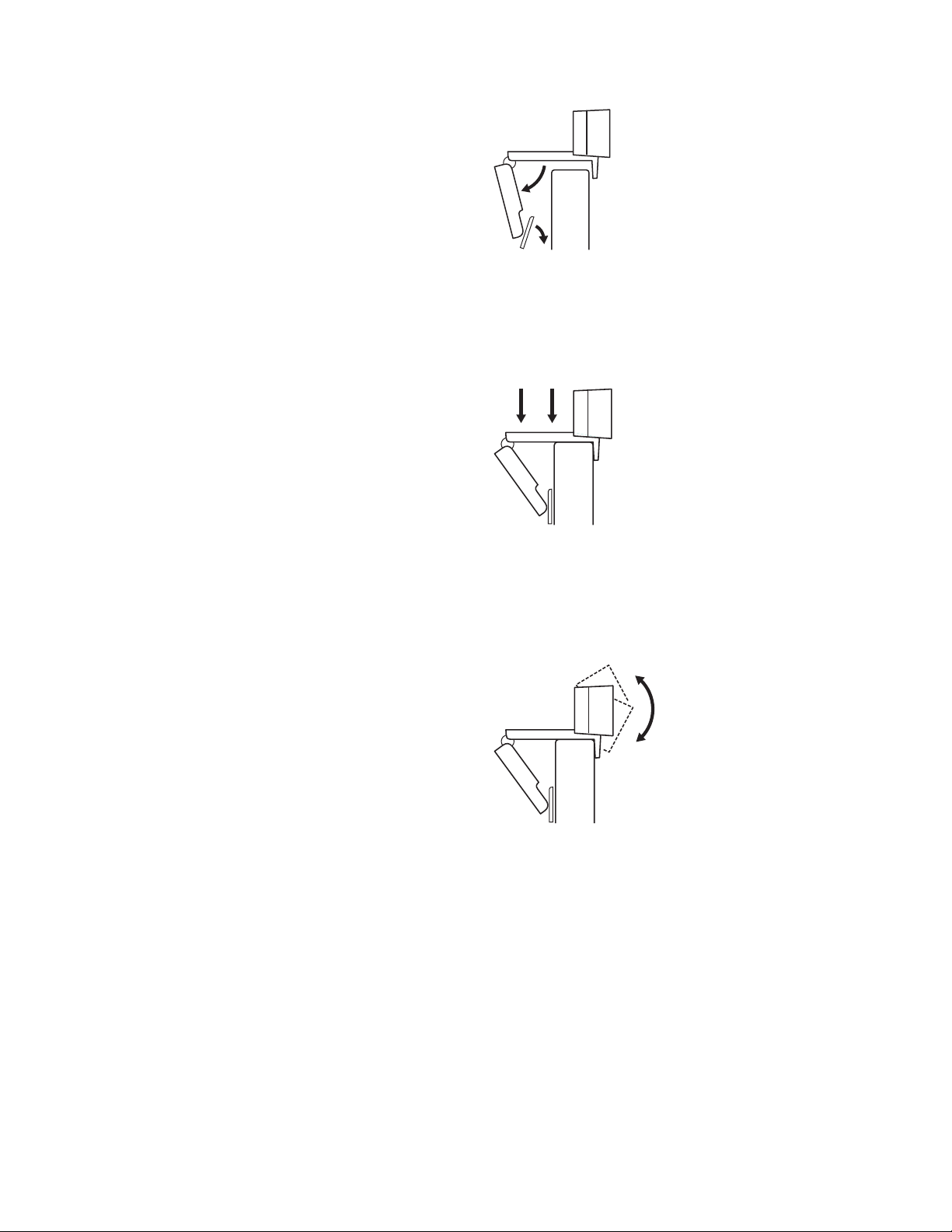

For placement on a monitor

1 Place your webcam on a computer, laptop or monitor

at a position or angle you desire.

2 Adjust the webcam to make sure the foot

ontheuniversal mounting clip is ush with the back

ofyour device.

3 Manually adjust the webcam up/down to the best

position to frame yourself.

5English

For placement on a tripod*

1 Locate the ¼ inch tripod thread on the bottom

oftheuniversal mounting clip.

2 Secure the webcam on your tripod by twisting it

intothe ¼ inch thread.

3 Place your webcam with the tripod anywhere

youdesire to the best position to frame yourself.

* Tripod not included

CONNECTING THE WEBCAM VIA USB-A

Plug the USB-A connector into the USB-A port

onyourcomputer.

6English

SUCCESSFUL CONNECTION

LED activity light will light up when the webcam is in use

by an application.

INCLUDING FIXED MOUNTING CLIP:

Height x Width x Depth:

1.70 in (43.3 mm) x 3.70 in (94 mm) x 2.80 in (71 mm)

Cable Length: 5 ft (1.5 m)

Weight: 5.71 oz (162 g)

DIMENSIONS

www.logitech.com/support/C920s

Europe S.A. and/or its aliates in the U.S. and other countries. Logitech assumes noresponsibility

for any errors that may appear in thismanual. Information contained herein issubject to change

without notice.

PRÉSENTATION DU PRODUIT

Objectif HD 1080p

avec mise au point

automatique

Témoin lumineux

d’activité

Clip de xation

universel

Filetage

dutrépied*

Câble USB-A

Double microphone

Volet

de condentialité

amovible

*Trépied non inclus

8Français

FIXATION DU VOLET DE CONFIDENTIALITÉ

1 Fixez le volet de condentialité externe en localisant

l’objectif sur la webcam.

CONTENU

1 Webcam avec câble USB-A de 1,5 m (5 pieds) joint

2 Volet de condentialité

3 Documentation utilisateur

2 Fixez-le à l’avant de la webcam, directement sur

lecentre.

3 Ajustez manuellement le volet de condentialité

pourl’ouvrir et le fermer à votre convenance.

USB-A

9Français

INSTALLATION DE LA WEBCAM

Fixation sur un écran

1 Placez votre webcam sur un ordinateur, un ordinateur

portable ou un écran à l’angle ou dans la position

devotre choix.

2 Ajustez la webcam pour vous assurer que le pied

duclip de xation universel est aligné avec l’arrière

devotre dispositif.

3 Ajustez manuellement la webcam vers le haut/bas

pour vous cadrer au mieux.

10 Français
