USER’S GUIDE

LW2277

Version 2.0

WIRELESS SECURITY CAMERA

WITH AUDIO

LW2277

ENGLISH FRANÇAIS ESPAÑOL

Pictures of white camera in instructions are for

illustration purposes only.

Safety Precautions

• Read this guide carefully and keep it for future

reference.

• Follow all instructions for safe use of the product and

handle with care.

• Use the camera within given temperature,

humidity, and voltage levels noted in the Technical

Specifications.

• Do not disassemble the camera.

• Do not point the camera directly towards the sun or a

source of intense light.

• For outdoor use, installation in a sheltered location is

recommended.

• Periodic cleaning may be required. Use a damp cloth

only. Do not use harsh cleaners or aerosol cleaners.

• Power supply cords should be routed so that they are

not likely to be walked on or pinched by items placed

upon or against them, paying particular attention to

cords at plugs.

• Slots and openings in the case are provided for

ventilation to ensure reliable operation of the video

product and to protect it from overheating. These

openings must not be blocked or covered.

• Do not use attachments unless recommended in the

instructions as they may cause a hazard.

• The cameras provided with this system should be

mounted to a wall or ceiling only as instructed in this

guide, using the provided mounting brackets.

• Never push objects for any kind into this video product

through openings.

• Never spill liquid of any kind on the video product.

• It is recommended to use a surge protector with this

video product.

• The wireless receiver is not weatherproof. Install the

receiver in an indoor location only.

Legal Notice Regarding Audio Recording

Audio recording without consent is illegal in certain

jurisdictions. Lorex Technology Inc. assumes no liability

for use of its products that does not conform with local

laws.

ENGLISH

Product Includes..............................2

Wireless Receiver............................3

Wireless Camera.............................4

Installing the Camera......................5

Installation Tips & Warnings .....................5

Mounting Positions ..................................5

To Install the Camera ...............................6

Connecting to a DVR .......................8

Connecting to a TV ..........................9

On-Screen Display.........................10

Pairing Cameras ...........................11

Appendix A:

Technical Specifications .................12

Camera ...............................................12

Receiver............................................... 12

Dimensions...........................................13

Appendix B:

Frequently Asked Questions..........14

Appendix C: Extending

Wireless Signal Range...................17

Appendix D: Troubleshooting ........19

Need Help?...................................19

Table of Contents:

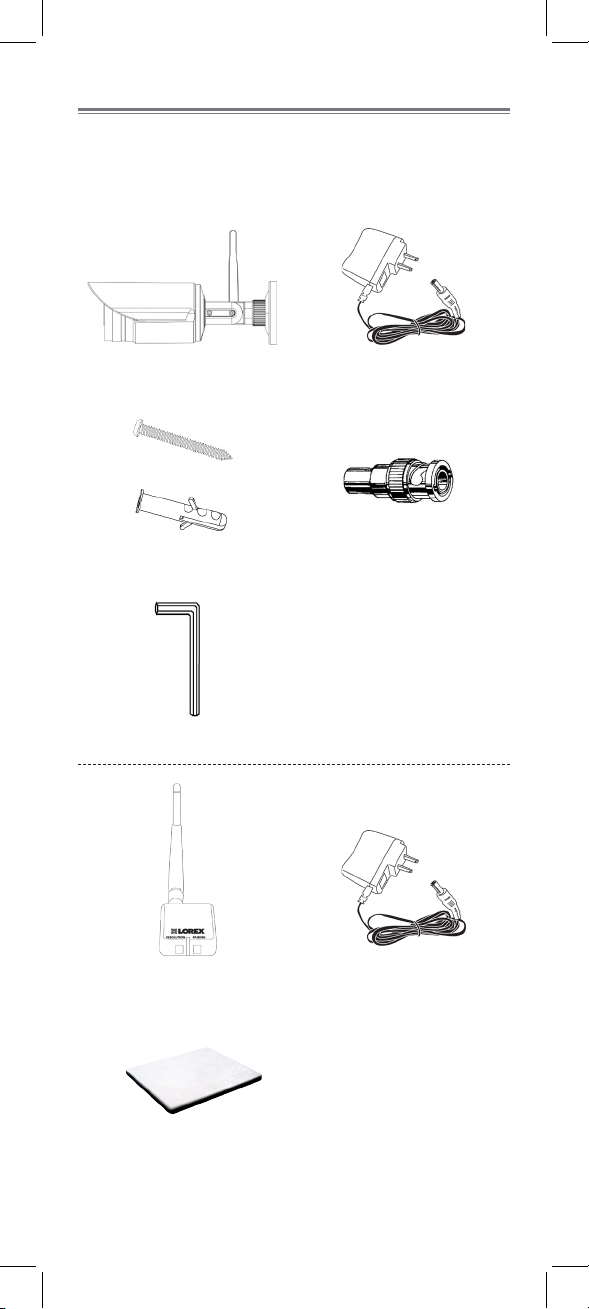

Product Includes

Power Adapter

x1*

Receiver

x1*

Double-Sided Tape

x1*

* Number of cameras and receivers may vary by model.

Camera Power Adapter

x3*

x1*

Screws & Anchors

x1*

RCA-to-BNC Adapter

x1*

Check your package to confirm that you have received

the complete system, including all components shown

below.

Allen Key

x1*

ENGLISH

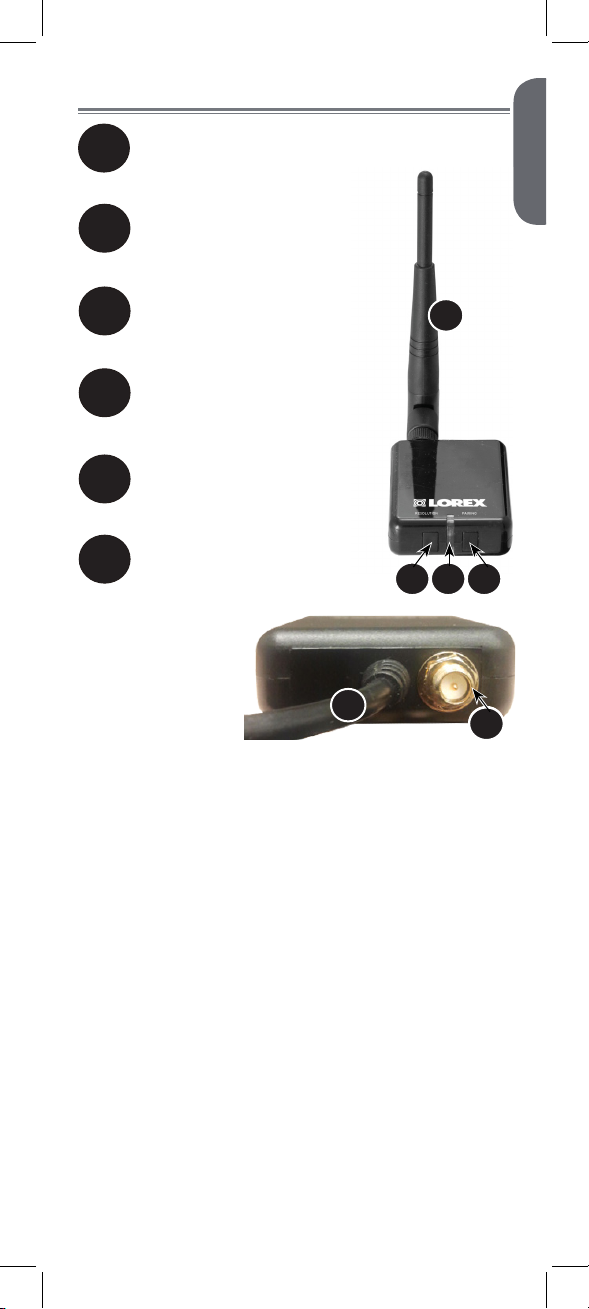

Wireless Receiver

Removable Wireless Antenna (SMA):

Connects to antenna jack on the

back of the receiver.

1. VGA mode has a resolution of 640 X 480 pixels; QVGA

mode has a resolution of 320 X 240 pixels. Use VGA mode

for best video performance. Use QVGA mode for a higher

video frame rate.

23 4

Front LED:

Glows green to indicate the

receiver is powered on.

Pairing button:

For details, see See “Pairing

Cameras” on page 11.

Termination cable:

Contains power, RCA video,

and RCA audio connectors.

Antenna jack:

Connection point for the

wireless antenna.

Resolution button:

Press to switch between VGA

and QVGA resolution1.

Wireless Camera

Removable Wireless Antenna (SMA):

Connects to antenna jack on the back of the

camera.

Camera stand

Pairing button:

For details, See “Pairing Cameras” on page

11.

AC Power Cable

Antenna jack:

Connection point for

the wireless antenna.

ATTENTION: This camera includes an Auto Mechanical

IR Cut Filter. When the camera changes between Day/

Night viewing modes, an audible clicking noise may

be heard from the camera. This clicking is normal and

indicates that the camera filter is working.

3Microphone

ENGLISH

Installing the Camera

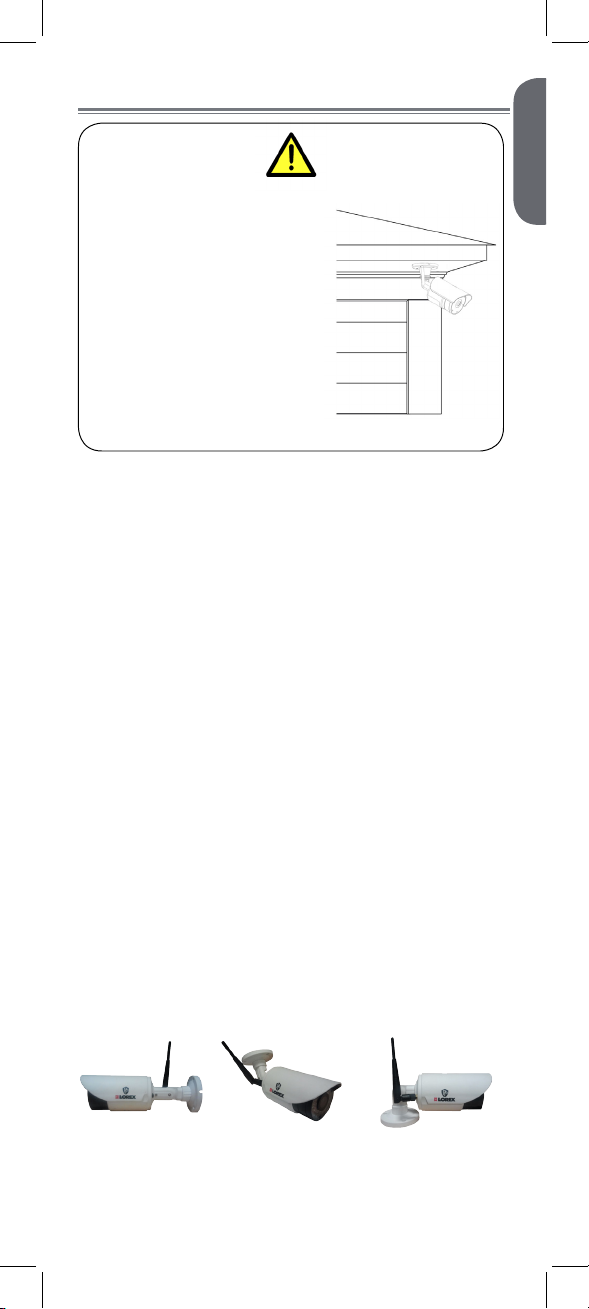

Cameras are suitable for

outdoor installation.

Installation in a sheltered

location is recommended.

For example, install under

shelter protected from the

elements, such as beneath

roof eaves. The diagram to

the right shows an example

of an ideal location for

outdoor placement.

Installation Tips & Warnings

• Aim the cameras to best optimize the viewing area:

select a location for the camera that provides a clear

view of the area you want to monitor.

• Install camera in an area that is free from dust, and

that is not in line-of-sight to a strong light source or

direct sunlight.

• Avoid installing the camera where there are thick

walls or obstructions between the camera and the

receiver.

• Avoid installing in a location which requires the

wireless signal to pass through cement, concrete,

and metal structures. This will reduce the range of

transmission. For details, s See “Appendix B:

Frequently Asked Questions” on page 14.

• Select a location for the camera that has an ambient

temperature between 14°F ~ 122°F (–10°C ~ 50°C).

• Not intended for submersion in water. For

outdoor use, installation in a sheltered location is

recommended.

Mounting Positions

You may mount your camera on a wall, ceiling, or

counter. See the images below for recommended

configurations of the camera stand and antenna.

WALL CEILING COUNTER

2Adjust the position and angle of the camera

until the desired view is set:

B) Loosen lower screw with the

included Allen key to adjust the

camera’s vertical position.

C) Loosen upper screw with the

included Allen key to rotate the

camera housing.

A) Turn the adjustment ring

to tighten / loosen the stand

connection. Adjust the camera’s

horizontal position.

A B

To Install the Camera

3Screw the antenna to the back of the camera.

Use the included mounting screws to mount the

camera to the mounting surface:

• Mark the position of the screw holes on the wall.

• Drill holes and insert the drywall plugs (included)

as needed.

• Firmly attach the stand to the wall using the

provided screws.

Cable Notch

NOTE: Before you begin,

decide whether to run the

power cable through the wall /

ceiling (drilling required)

or along the wall / ceiling.

If you run the cable

along the wall / ceiling,

you must run it through the cable notch on

the base. This will keep the camera base flush to the

surface when mounted.

ENGLISH

4Connect the power cable from the camera to

the power adapter. Plug the power adapter

into a power outlet or surge protector.

Connecting to a DVR

Before powering on the receiver, make sure

to first connect and power on the camera.

This will ensure a proper connection.

1Screw the antenna to the back of the receiver.

Connect the RCA-to-BNC adapter (included)

to the yellow video cable. Connect the yellow

video cable to a BNC video input on your

recording device.

4Connect the power cable to the power

adapter. Plug the power adapter into a power

outlet or surge protector.

5Place the receiver in a place that will have

clear reception to your camera1.

6OPTIONAL: Use the included double-sided

tape to attach the wireless receiver to a flat

surface (e.g. a desk or a wall).

1. Avoid installing in a location which requires the wireless

signal to pass through cement, concrete, and metal structures.

This will reduce the range of transmission.

NOTE: The audio input number or name should

match the video input where you connect the video

input (e.g. Video Input 1 and Audio Input 1).

VIDEO (yellow)

AUDIO (white)

Connect the white audio input cable to an

audio input on your recording device.
