Lorex P10 LNZ44P12 Manuale utente

Instruction Manual

PTZ Series

P10

LNZ44P12 4MP IP

PTZ Camera

Thank you for purchasing this product. Lorex is committed to

providing our customers with a high quality, reliable security

solution.

This manual refers to the following model:

LNZ44P12

For the latest online manual, downloads and product updates, and

to learn about our complete line of accessory products, please visit

our website at:

lorextechnology.com

WARNING

RISK OF ELECTRIC

SHOCK

DO NOT OPEN

WARNING: TO REDUCE THE RISK OF ELECTRIC

SHOCK DO NOT REMOVE COVER. NO USER

SERVICEABLE PARTS INSIDE.

REFER SERVICING TO QUALIFIED SERVICE

PERSONNEL.

#; r. 4.0/47037/47040; en-US

The lightning flash with arrowhead symbol,

within an equilateral triangle, is intended to

alert the user to the presence of

uninsulated "dangerous voltage" within the

product’s enclosure that may be of

sufficient magnitude to constitute a risk of

electric shock.

The exclamation point within an equilateral

triangle is intended to alert the user to the

presence of important operating and

maintenance (servicing) instructions in the

literature accompanying the appliance.

WARNING: TO PREVENT FIRE OR SHOCK HAZARD,

DO NOT EXPOSE THIS UNIT TO RAIN OR

MOISTURE.

CAUTION: TO PREVENT ELECTRIC SHOCK,

MATCH WIDE BLADE OF THE PLUG TO THE WIDE

SLOT AND FULLY INSERT.

#; r. 4.0/47037/47040; en-US

Table of contents

1 Safety Instructions ...... ....... .... ..... ..... .... ..... ..... 1

2 Getting Started .... ....... .. .. ... .. .. ... .. .. ....... ....... .. 2

3 Connecting the Camera ..... .. ....... ....... .. .. ... .. .. ... 4

3.1 Option 1: Connecting the Camera to an

NVR...... ....... .. .. ... .. .. ... .. .. ....... ....... .. . 4

3.2 Connecting Cameras to the Local Area

Network (LAN)...... .. .. ... .. .. ... .. .. ....... ...... 5

3.3 Adding the PTZ Camera to the LNR / NR

Series NVRs.... .. .. ....... .. .. ... .. .. ... .. .. ... .. . 9

3.4 Adding the PTZ camera to the LNK

Series NVRs.... .. .. ... .. .. ... .. .. ....... .. .. ... ..11

4 Installation ..... ....... .. .. ... .. .. ... .. .. ....... ....... .. .. .13

4.1 Installation Tips & Warnings ..... .. .. ... .. .. .....13

4.2 Installation (Indoor / Outdoor)... .. .. .. ... .. .. ... .14

5 Controlling the PTZ Camera with an NVR . .. .. ... .. .. ..18

6 Controlling the PTZ camera with LNR / NR

Series NVRs. .. ... .. .. .. ... .. .. ..... .. ..... .. .. .. ... .. .. ... .19

6.1 Controlling the PTZ Camera . .. .. ... .. .. ....... ..20

6.2 Advanced PTZ Controls. .. ... .. .. ....... ....... ..22

7 Controlling the PTZ camera with LNK Series

NVRs . .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .28

7.1 Controlling the PTZ camera... .. .. ... .. .. ... .. .. .29

8 Technical Specifications ... ....... .. .. ... .. .. ... .. .. .....34

8.1 Dimensions . .. . .. .. .. . .. .. .. . .. .. .. .. . .. .. .. . .. .. .36

9 Troubleshooting . .. ....... ....... ... ... ... .. ... ... ... .. ....37

10 Inserting the microSD Card (Optional) and

Resetting the Camera....... .. .. ... .. .. ... .. .. ....... .....39

#; r. 4.0/47037/47040; en-US vii

1 Safety Instructions

• Read this guide carefully and keep it for future reference.

• Follow all instructions for safe use of the product and handle with

care.

• Use the camera within given temperature, humidity, and voltage

levels noted in the Technical Specifications.

• Camera is rated for outdoor use and is weatherproof when prop-

erly installed. Camera is not intended for submersion in water. In-

stallation under a sheltered environment is recommended.

• Do not disassemble the camera.

• Do not point the camera directly towards the sun or a source of in-

tense light.

• Use only the supplied regulated power supply. Use of a non-regu-

lated, non-conforming power supply can damage this product and

voids the warranty.

• Make sure to install the camera in a location that can support the

camera weight.

• Make sure there are no live electrical cables in the area where you

plan to mount the camera.

• Periodic cleaning may be required. Use a damp cloth only. Do not

use anything other than water to clean the dome cover, as chemi-

cals such as acetone can permanently damage the plastic.

#; r. 4.0/47037/47040; en-US 1

2 Getting Started

The camera comes with the following components:

PTZ Camera Wall Mount Power Adapter

100ft (30.5m)

Ethernet

Extension Cable

Mounting Screws &

Anchors (4x)

M6x14 Screws (3x)

#; r. 4.0/47037/47040; en-US 2

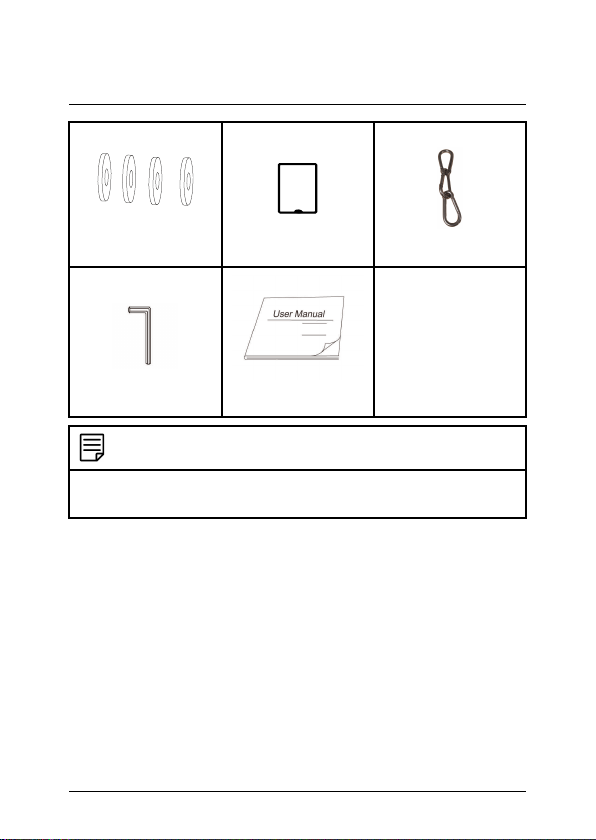

2 Getting Started

Flat Washers (4x) Rubber Ring Safety Chain

Allen Key Instruction Manual

NOTE

Your accessories might appear different from the ones depicted in

this guide.

#; r. 4.0/47037/47040; en-US 3

3 Connecting the Camera

NOTE

It is recommended to connect the camera to your NVR and test

the PTZ controls before permanent installation. For instructions on

how to set up PTZ controls, see 5 Controlling the PTZ Camera with

an NVR, page 18.

3.1 Option 1: Connecting the Camera to an NVR

1. Connect the PoE+ connector on the camera cable to the included

Ethernet extension cable.

2. Connect the Ethernet extension cable to one of the PoE+ ports

on the back panel of your NVR.

NOTE

• You can use up to a 300ft (91m) CAT5e Ethernet cable to con-

nect the camera to your NVR.

• The camera is Compatible with the LNR / NR / LNK Series

NVRs, excluding the LNR200 and LNR300 Series. For the

most up-to-date list of compatible recorders, please visit

lorextechnology.com/compatibility.

#; r. 4.0/47037/47040; en-US 4

3 Connecting the Camera

3.2 Connecting Cameras to the Local Area Network (LAN)

For flexibility, you may also connect the camera to the same Local

Area Network (LAN) as the NVR. This is accomplished by connecting

the camera to the same router as the NVR. For these installations, an

external PoE+ switch (sold separately) or power adapter (included)

must be used to provide power to the camera. You also must add the

camera on the NVR before it will show a picture on the monitor or be

recorded by the NVR.

#; r. 4.0/47037/47040; en-US 5

3 Connecting the Camera

What is PoE+?

PoE (Power over Ethernet) is a technology that allows Ethernet cables

to carry electrical power to connected devices. High-powered devices

such as PTZ cameras use PoE+ (also known as PoE class 4 or IEEE

802.3at), which provides more power to connected devices than

standard PoE. Compatible NVRs use integrated PoE+ ports to pro-

vide power and PTZ commands to the camera, as well as video con-

nection to the NVR. PoE+ ports will provide up to 30W to each

connected device, whereas standard PoE (class 3) ports only provide

up to 15W. In order to use this PoE+ rated camera without a power

adapter, you must connect it directly to a compatible NVR (Compati-

ble with the LNR / NR / LNK Series NVRs, excluding the LNR200 and

LNR300 Series) or a PoE+ switch on the same network as the NVR.

PoE+ switches are available for purchase on

lorextechnology.com (model #: ACCLPS241B (4–channel model)

or ACCLPS281B (8–channel model)).

Complete the following steps to connect the camera to the NVR over

the LAN.

#; r. 4.0/47037/47040; en-US 6
