Lorex SG7380 Manuale utente

1/3”CCD Color Pan / Tilt

Dome Camera

With 3X Digital Zoom

SG7380

BEFORE OPERATING THIS SYSTEM, PLEASE READ THIS MANUAL THROUGHLY AND

RETAIN IT FOR FUTURE REFERENCE

FOR MORE INFORMATION

WWW.STRATEGICVISTA.COM

Thank you for purchasing the SG7380 indoor, mini color dome camera incorporating Pan/Tilt

control, as well as a 3x Digital Zoom function. LOREX is committed to providing our customers

with a high quality, reliable security product that customers have come to expect from us.

This camera features a 1/3-inch Sony color CCD and Digital Signal Processing (DSP), allowing

for excellent picture quality under varying conditions.

This compact smoked acrylic dome blends with any décor and provides discrete video

surveillance. The motorized controls have the ability to give you a viewing angle of 330º

horizontal and 90ºvertical.

This dome camera can connect to any Color LOREX, Home Sentinel or Sylvania observation

system or DVR with Pan/Tilt capability.

To learn more about this Dome Camera and see the complete range or Lorex products, please

visit our website at:

www.strategicvista.com

Explanation of two Symbols

The lightning flash with arrowhead symbol, within an equilateral

triangle, is intended to alert the user to the presence of un-insulated

"dangerous voltage" within the product's enclosure that may be of

sufficient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateraltriangle is intended to

alert the user to the presence of important operating and maintenance-

(servicing) instructions in the literature accompanying the appliance.

THE GRAPHIC SYMBOLS WITH SUPPLEMENTAL MARKING ARE ON

THE BOTTOM OF THE SYSTEM.

“WARNING –TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE

THE UNIT TO RAIN OR MOISTURE”

CAUTION

RISK OF ELECTRIC SHOCK. DO NOT OPEN.

CAUTION! TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE

COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE.

REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

-i-

CONTENTS:

GENERAL PRECAUTIONS ----------------------------------------------------------------------- 1

FEATURES -------------------------------------------------------------------------------------------- 1

SYSTEM CONTENTS ------------------------------------------------------------------------------ 2

CAMERA COMPONENTS ------------------------------------------------------------------------ 3

INSTALLATION ------------------------------------------------------------------------------------- 4

OPERATION ---------------------------------------------------------------------------------------- 4

TECHNICAL SPECIFICATIONS ---------------------------------------------------------------- 5

•Compatible with select Lorex, Sylvania and Home Sentinel

Observation Systems andDVR’s

•High Resolution Color CCD camera

•480 lines, 1.0 lux

•Indoor Pan/Tilt Dome System

•Auto Pan -330°, Auto Tilt -90°

•3x Digital Zoom

•Light Weight, Compact Size

•6 pin Din connection

•Smoked housing provides unobtrusive appearance

GENERAL PRECAUTIONS:

-1-

FEATURES:

All the warnings and instructions of this manual should be followed

Remove the plug from the outlet before cleaning. Do not use liquid aerosol detergents. Use

water damped cloth for cleaning

To reduce the risk of fire or electric shock, do not expose this appliance to rain or moisture.

Do not place anything on top of the unit that might spill or fall into it.

Do not attempt to service this unit yourself as opening or removing covers may you to dangerous voltage

or other hazards. Please refer all servicing to qualified service personnel.

Keep enough space around the unit for ventilation. Slots and openings on the monitor should

not be blocked.

During flashes of lightning or cracks of thunder, or when the system is not used for a long time,

unplug the system power supply to protect the unit from lightening or power surges

SYSTEM INCLUDES:

MINI COLOR PAN/TILT DOME CAMERA 1 -65 FT CABLE

-2-

OWNER’S MANUAL

CHECK YOUR PACKAGE TO MAKE SURE THAT YOU RECEIVED THE COMPLETE

CAMERA SYSTEM, INCLUDING THE COMPONENTS SHOWN ABOVE

MOUNTING BRACKET

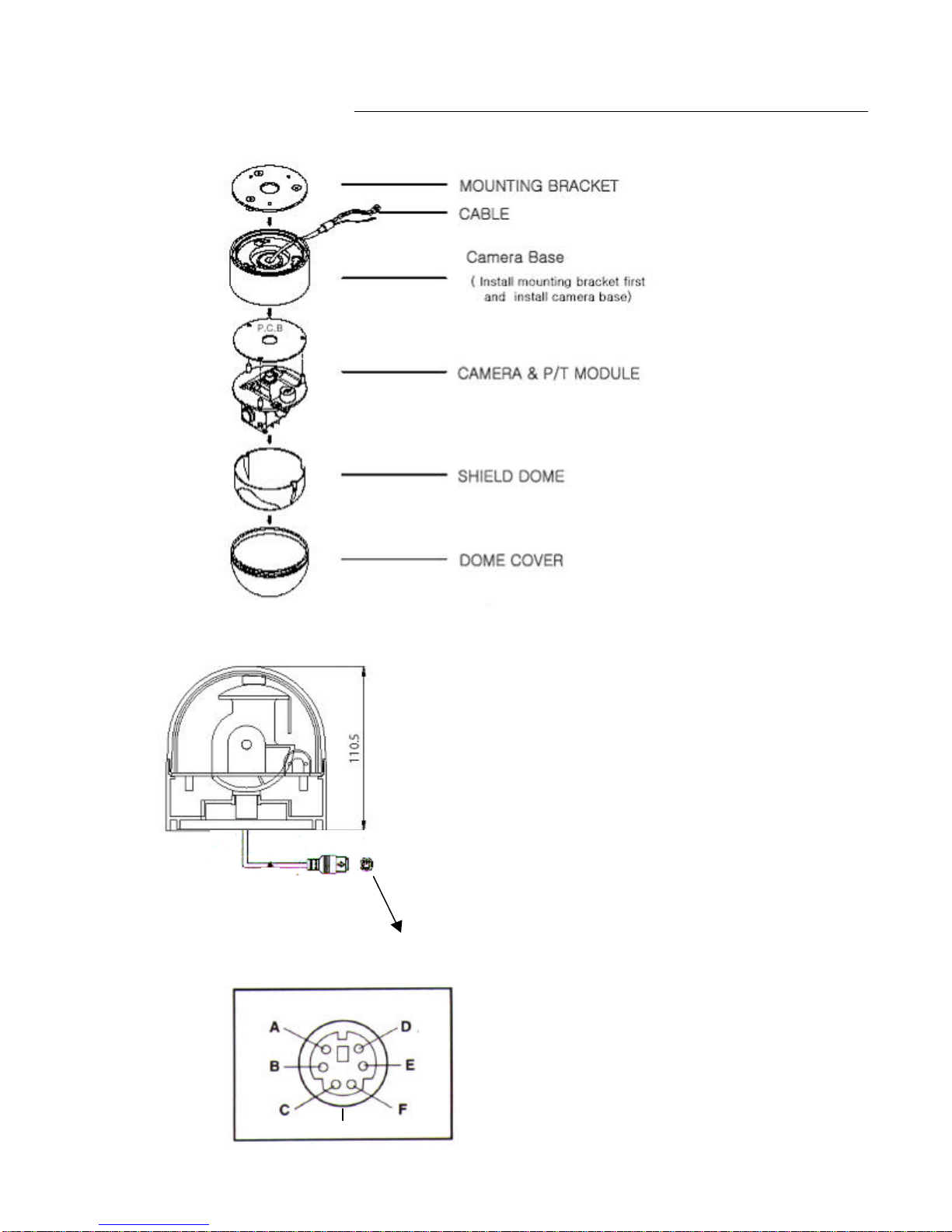

CAMERA COMPONENTS

-3-

G)Ground ( Metal outer case )

Video Input

Audio Out

Camera Audio AMP: B+ 12V ( Power )

MINI 6 PIN DIN JACK VIEW ( AT CAMERA )

B+ 12V ( Power )

Audio Input

N.C. ( Not Connected )

INSTALLATION:

Before installation make sure that:

(A) You have the proper lift equipment or ladder to reach the installation

(B)Electrical power is not connected to the dome camera and surveillance monitor

during installation

To install the dome camera on a ceiling or wall follow these procedures:

1.) Connect the 65 ft Din cable (included with the dome camera) to the wired lead

of the dome camera

2.) Attach the adaptor plate on the ceiling or wall, using the 3 screws provided

(M3X20 screw). The mounting bracket must be attached to a structural object, such

as a wall stud or ceiling rafter, that supports the weight of the camera

3.) Twist the base of the dome camera on to the adaptor plate on the ceiling or wall.

Note: Do not hold the clear plastic bubble or swivel when you attach the dome to

the adapter plate

4.) Connect the other end of the 65 ft cable to theCamera 1 input on the back of

the monitor (the monitor must be equipped with a built-in Pan/Tilt Zoom

feature available on“Channel 1 Input”only)

5.) Connect power to the observation system

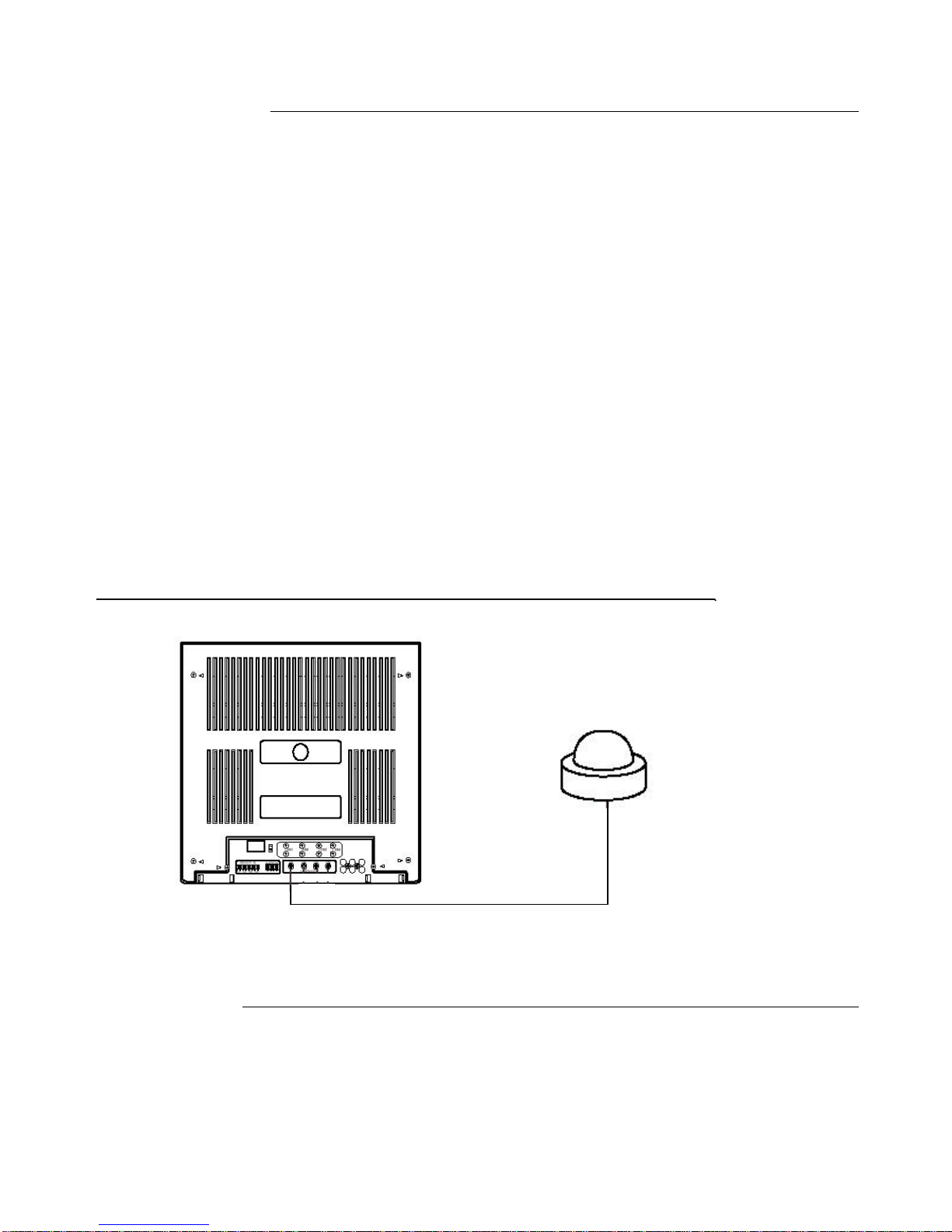

Typical Configuration showing a dome camera connected to an Observation System:

OPERATION:

To access and operate the Pan/Tilt Zoom feature please refer to the manual for the Lorex,

Sylvania, or Home Sentinel Observation System or DVR that you purchased

Dome Camera

Camera 1 input

Monitor

-4-

TECHNICAL SPECIFICATIONS:

90% RH MaxOperating Humidity

Powered from monitor via cablePower Supply

-10°C ~ +50°C(-14°F ~ 122°F)Operating Temperature

4.2”(Diameter) x 4.4”(Height)Dimensions

1Vp-p (75Ohm)Video Output

1.0 Lux (F1.2)Minimum Illumination

Pan -Max 330°/Tilt -Max 90°Pan/Tilt Travel

Pan-50°/sec., Tilt-40°/secPan/Tilt speed

3xDigital Zoom Ratio

More than 4dBS/N Ratio

1/60 ~ 1/100,000 sec.Shutter Speed

3.8mmLens

480 LinesHorizontal Resolution

15.734KHz (H), 59.94Hz (V)Scanning Frequency

525 Lines 2:1 InterfaceScanning System

410KEffective Pixels

1/3" Interline Transfer Color CCDImage Sensor

Because our product are subject to continuous improvement, SVC reserves the right to modify product

design and specifications without notice and without incurring any obligation. E&OE

-5-
