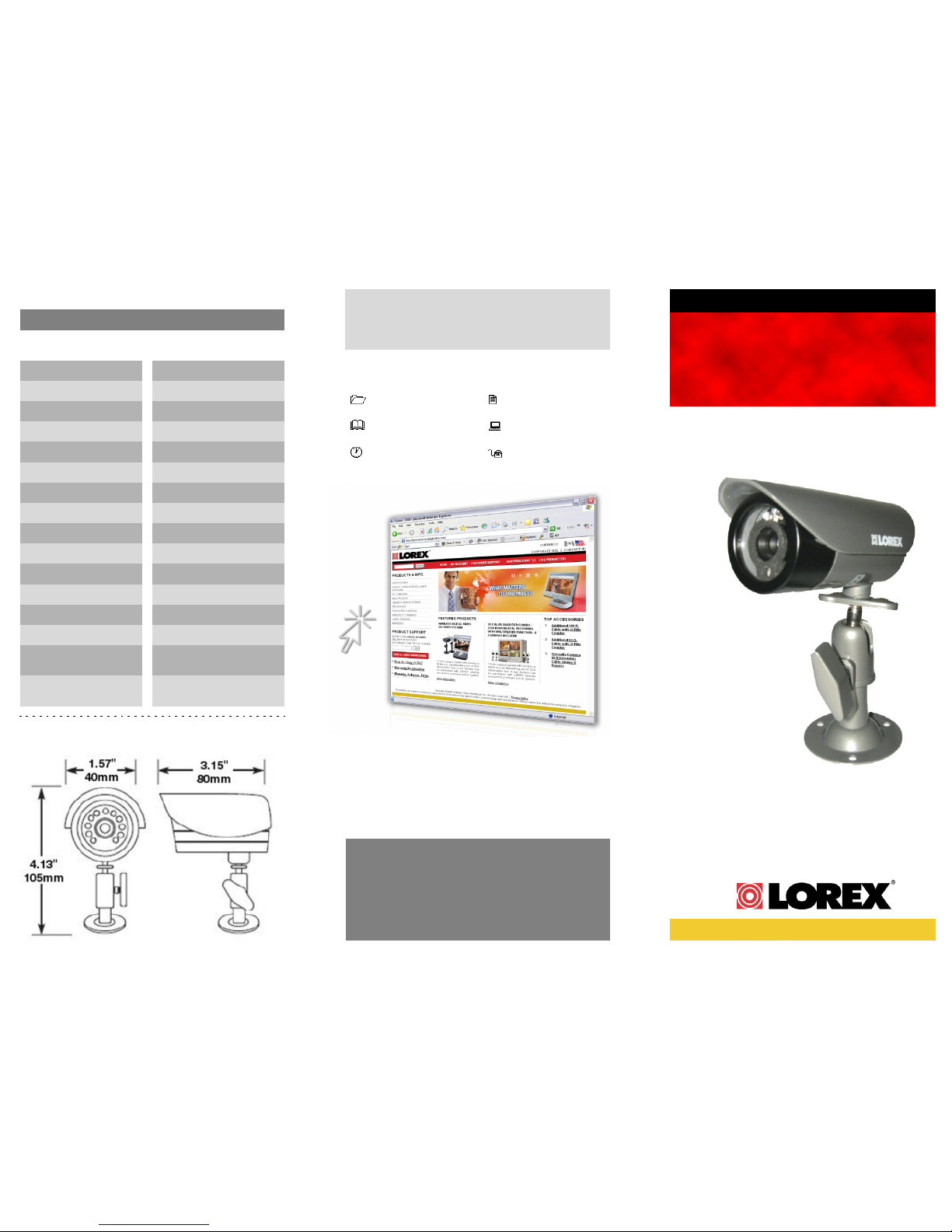

Lorex SG7524 Manuale utente

LOREX Technology Inc.

products are subject to continuous improvement,

LOREX and its subsidiaries reserve the right to mod-

ify product design, specifications and prices, without

notice and without incurring any obligation. E&OE

Quick Set-up Guide

It’s all on the web

Product Information

User Manuals

Quick Start Guides

Specification Sheets

Software Upgrades

Firmware Upgrades

VISIT

www.lorexcctv.com

H O M E & B U S I N E S S S E C U R I T Y

DAY / NIGHT COLOR CMOS BULLET

CAMERA

Model: SG7524 Series

4. Camera Specifications

Specifications:

Dimensions:

510 x 492

2:1 Interlace NTSC

1/60 ~ 1/100,000 Sec.

14°F ~ 122°F

(-10°~ 50°C)

3.0 LUX

1/3” Color CMOS

330 TV Lines

3.15” (L) x 1.57” (D)

80mm (L) x 40mm (D)

4.5mm Fixed F2.0

Image Sensor

Effective Pixels

Scanning System

Resolution

AES

Sync. System

Min. Illumination

White Balance

Lens

Video Output

Power Supply

Power Consumption

Operating Temp

Dimensions

Internal

AWB

1.0 Vpp @ 75 OHM

7.5V DC 300mA

7.5V DC 180mA

Viewing Angle 70 Degrees Diagonal

Operating Humidity Less than 90%

1. Package Contents 2. Installing the Video Camera 3. Connecting the Camera

1 x 60 ft. (18m) DIN to

RCA Extension Cable

1 x AC Power Adaptor

1 x Color CMOS Bullet

Camera with Sunshade

Housing

1. Attach the camera to the supplied stand. Mount

the camera stand to the desired mounting surface

2. Connect the Extension cable to the camera:

The mounting stand is designed to

permanently mount the camera to a surface.

CAMERA DIN INPUT

CABLE

VIDEO / POWER

CONNECTIONS

CONNECTIONS:

YELLOW: Video Connection

RED: Power Connection

3. Connect the Yellow RCA Cable (on the

Extension Cable) to the System.

4. Connect the A/C Power Adaptor to the Exten-

sion cable (Red connector). Plug the Power

adaptor to a wall outlet

Setup Diagram:

RED: Connect to the Power Adaptor

YELLOW: Connect to the VIDEO port

Features:

• Durable Weather resistant metal Camera

suitable for Indoor or Outdoor installations*

• 11 high intensity IR LEDs provide illumination

in low light conditions**

• Color video in standard lighting, automatically

changes to B&W video in low light conditions.

• Easily Connects with RCA Video input.

• Easily mounts to walls

* Weather resistant against dust and light rain - IP44 Rated

**IR illumination range of 13’ / 4m under ideal condition. Objects at

or beyond this range may be partially or completely obscured

3 x Screws (for Camera

Base attachment)
