DMC2161

(R2)

WWW.LOREXCCTV.COM

System Contents

Ensure your computer is connected to the Internet

in order for you to obtain any program updates.

Insert the mCAM Application Software CD into your computer’s

CD-ROM drive. Follow the instruction dialog boxes to guide you

through the installation process.

Note: You will need to accept the License Agreement

* This set-up guide is intented for users using Internet Explorer as their Internet browser

SETTING UP YOUR mCAM

installation should take approximately 20 minutes

20:00

1 - Color Camera with 6 ft Cable

1 - 9V Power Adapter

1 - Camera Mounting Stand (desk mount)

1 - USB Video Grabber

1 - 55 ft (17 meter) Audio/Video/Power Cable

1 - 3 (0.9 meter) ft Audio/Video/Power Cable

1 - USB Cable (6ft)

1 - Clip-on stand

1 - AV Cable (7”)

1 - User Manual

1 - Quick Setup Guide

1 - mCAM Application Software CD

USB Video Grabber

55 ft Audio/Video

Power Cable

3 ft Audio/Video

Power Cable

9V Power Adapter

Color Camera with

6ft Cable USB Cable (6ft) Clip-on Stand

AV Cable (7”)

mCAM Application

Software CD

Compatible with:

Windows Vista™

Windows Media Center™

Windows XP™

Computer

Page 2

DMC2161

(R2)

WWW.LOREXCCTV.COM

3 ft Audio/Video

Power Cable

Color Camera with

6ft Cable

AV Cable (7”)

USB Cable (6ft)

Color Camera with

6ft Cable

SETTING UP YOUR mCAM

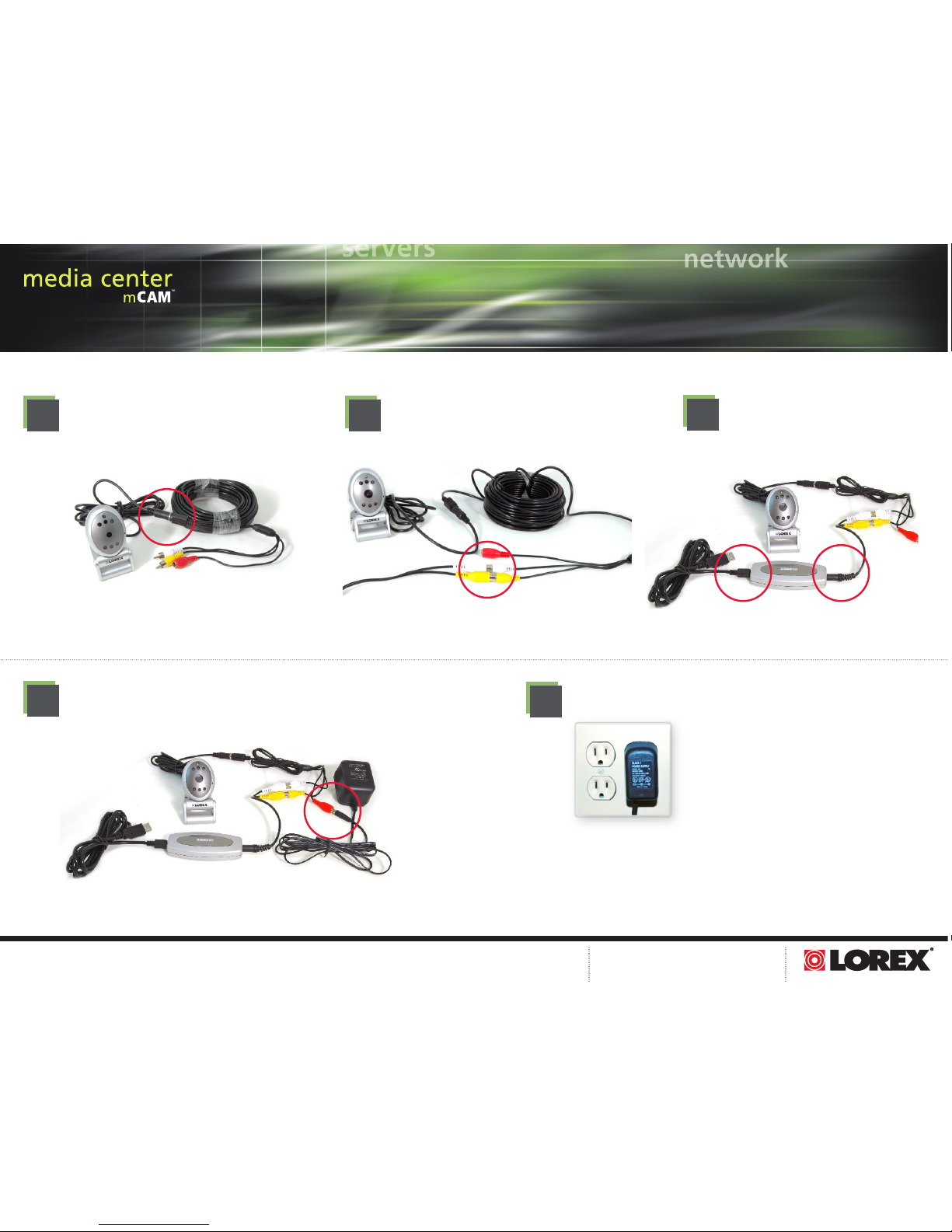

Determine the camera distance to your

computer. Connect the camera either

to the 3ft Audio/Video/Power cable or

the 55ft Audio/Video/Power cable

3Connect the 7” AV cable (in step 4)

to the video grabber. Connect the

USB cable to the video grabber

3 ft Audio/Video

Power Cable

Color Camera with

6ft Cable

AV Cable (7”)

USB Cable (6ft) USB Video Grabber

9V Power Adapter

Connect the Power cable to

the 9V Power Adapter

6Plug the 9V Power Adapter

into an electrical outlet

Connect the Audio/Video/Power

cable (in step 3) to the 7” AV cable

USB Video Grabber

Color Camera with

6ft Cable

55 ft Audio/Video

Power Cable

3 ft Audio/Video

Power Cable

AV Cable (7”)

55 ft Audio/Video

Power Cable

Page 3

DMC2161

(R2)

WWW.LOREXCCTV.COM

SETTING UP YOUR mCAM

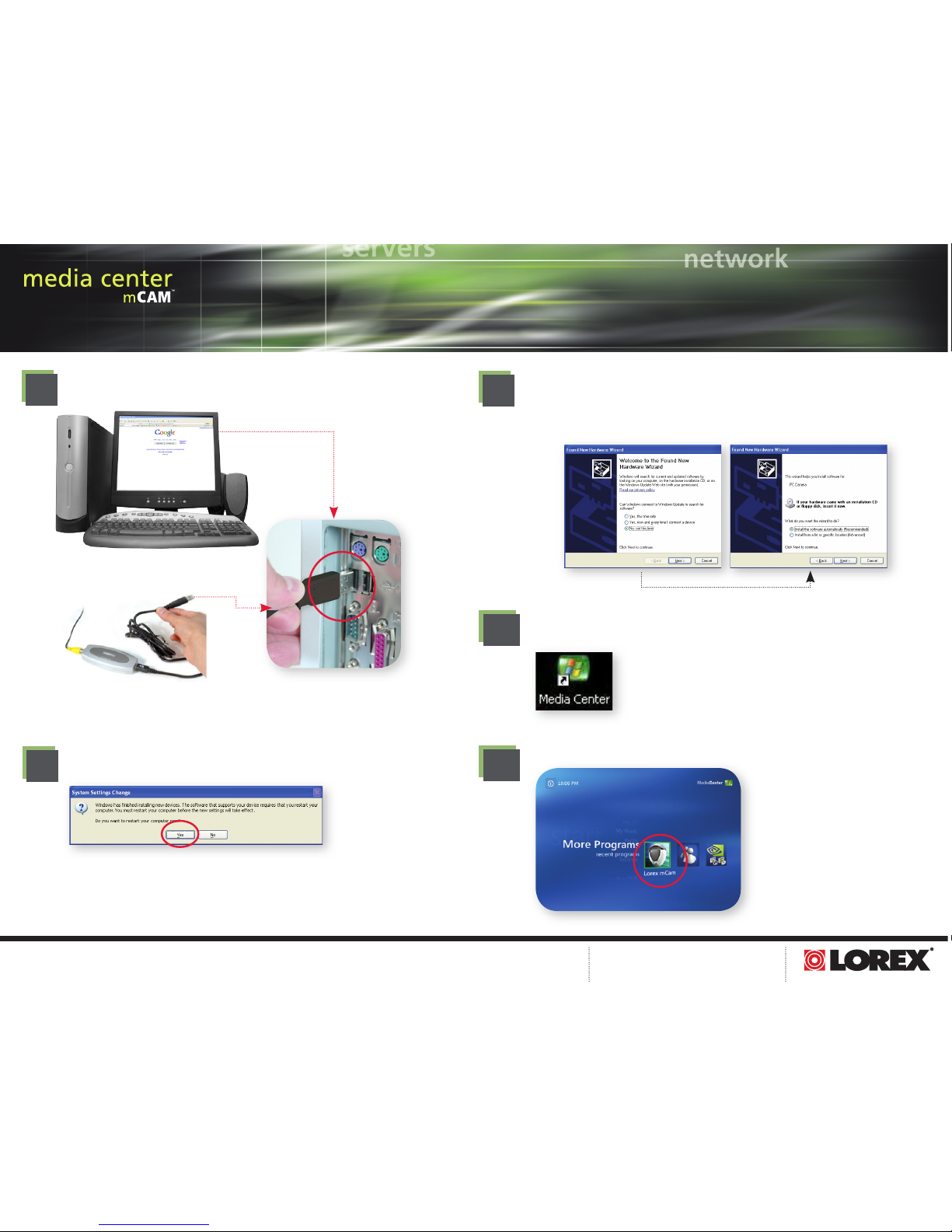

Follow the New Hardware Wizard dialog boxes to install the new hardware.

Select NO, not this time in the Hardware Wizard screen followed by pressing the

Next button. Select the Install the Software automatically (recommended)

button, and when prompted click the Finish button

Restart your Computer

Note: Restart your computer before opening

the mCAM application

Connect the USB Video Grabber into your computer’s USB Port

Back of a Computer

USB Video Grabber

11AOpen the Media Center Application Software

For systems with Windows Media Center™

Select More Programs and Select Lorex mCAM

11B

Computer

Page 4

DMC2161

(R2)

WWW.LOREXCCTV.COM

SETTING UP YOUR mCAM





It’s all on the web









Product Information

User Manuals

Quick Start Guides

Speciﬁcation Sheets

Software Updates

Firmware Upgrades

For additional information or troubleshooting help, refer to your owners

manual for assistance. you can also call or email for further support.

Toll Free Technical Support: 1-888-42 LOREX (1-888-425-6739)

Email Support: [email protected]

Website: www.lorexcctv.com

To learn more about this

system, please print

or refer to the Owners

manual on the CD.

Information in this document is subject to change without notice. As our products are subject to continuous improvement, Lorex Technology and our subsidiaries reserve the right to

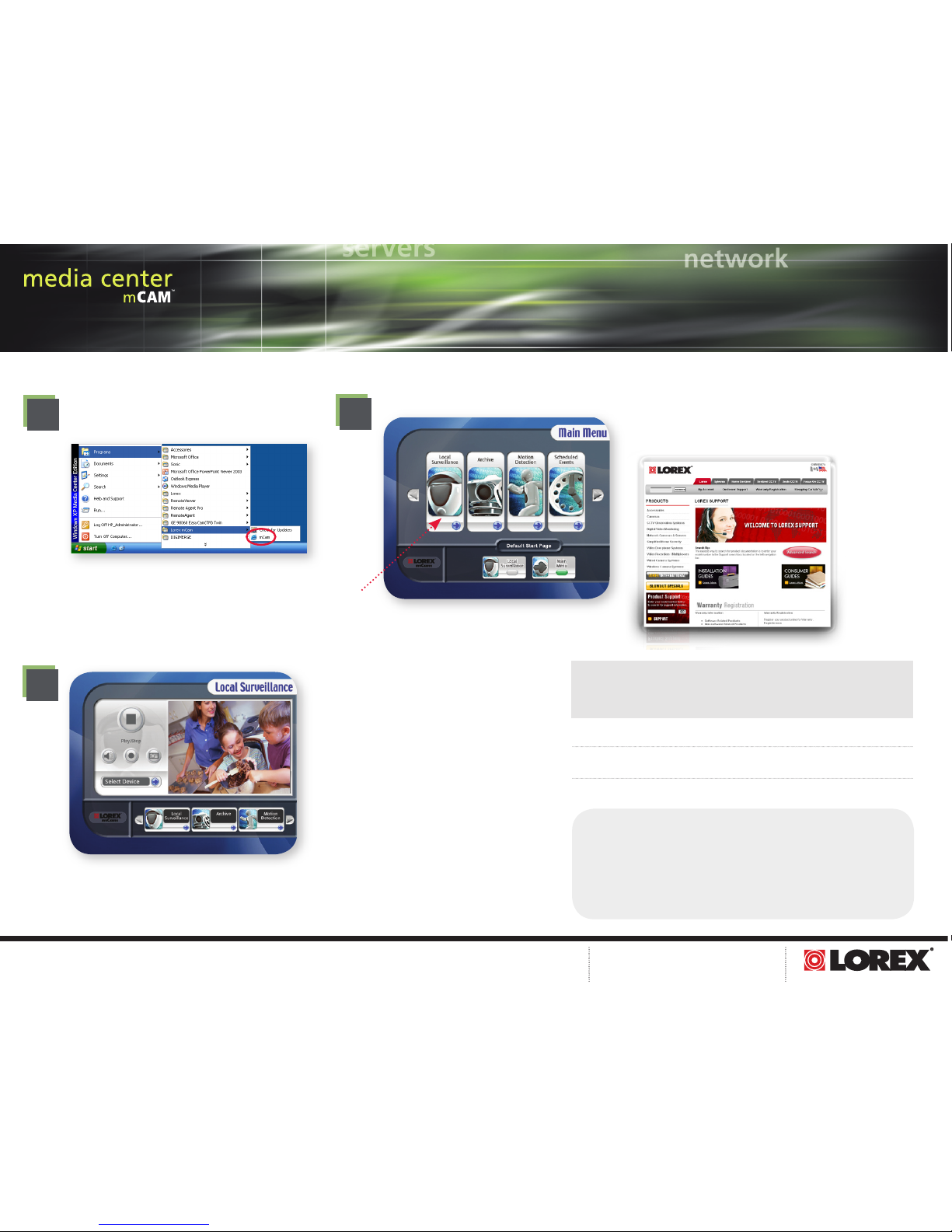

For systems using other Windows operating

system*

Select Start--->All programs--->Lorex mCAM--->

mCAM to access the Main Menu using your web

browser.

* See user manual for minimum system requirements

Select the Local Surveillance Icon
