Louroe Electronics ASK-4 101B Manuale utente

Contents Description

APR-1 listed Audio Base Station.

Used for listening to live audio

from microphone, as well as

audio playback from DVR’s, VCR’s

or other audio devices.

Verifact B Microphone Listed Line Level, Electret condenser

microphone with preamp. Picks up

normal sounds within 30’ circle.

May be located Up to 1000’ from

APR-1 Base Station.

AD-1 listed AC ADAPTER.

Supplies 12 Vdc to APR-1 and

Microphone.

Dual RCA Cable RCA cable for connection to a

DVR/VCR or other Audio devices

that accept line level input

(0dB @ 600Ω).

2 Conductor shielded cable, 22

gauge with a 24 gauge drain

wire.

NOTE: Unshielded cable is not

satisfactory for audio

systems.

WIRING REQUIREMENTS

AUDIO MONITORING SYSTEM

INSTALLATION AND OPERATING INSTRUCTIONS

ASK-4 #101B

Page 1 of 8

LOUROE ELECTRONICS 6 9 5 5 VA L J E A N AVENUE, VAN NUYS, CA 91406 TEL (818) 994-6498 FAX 994-6458

website: www.louroe.com e-mail: [email protected]

(818)

ASK4_101B_inst 2/15

6955 VALJEAN AVE, VAN NUYS, CA 91406

PH: (818)994-6498 / FAX: (818)994-6458

/ www.louroe.com[email protected]

APR-1 Base Station

Verifact B Microphone

DUAL RCA Cable

AD-1

The ASK-4 #101B is a single zone audio monitoring system designed to interface witha DVR, VCR

or other recording devices that accept line level audio input. The APR-1 Audio Base Station contains

a built-in 3” speaker and volume control ro producing live audio and audio playback. The Verifact B is

an onmidirectional pre-amplified microphone that produces line level output. The microphone is

extende 3’ long for use in high ceiling applications.

[1] Power-Volume Turns “ON” power to the unit and controls the audio volume

through the Speaker[9].

[2] Power Indicator Lights (green) when the power is present to the unit.

[3] Mute Indicator Lights (orange) when Mute Switch[6] is pushed in. Audio is muted.

[4] Playback Indicator Lights (yellow) when Push for Playback[7] is pushed in to “ON” position.

[5] Overload Indicator Flashes or lights (red) when there is a short in the power supply.

[6] Mute Switch Used to mute the audio on both live and playback mode.

[7] Push for playback Used for DVR/VCR playback. May also be used to listen to audio from an

external source. Press switch to listen to playback. Switch must be “OUT”

or “OFF” when monitoring and recording, otherwise live audio is muted.

[8] Headphone Jack Used for private listening. Any 3.5mm stereo headphone with 8Ωto

600Ωimpedance can be used.

[9] Speaker (3”) Provides live audio. Muted when a headphone is connected to

Headphone Jack [8].

DESCRIPTION

THE APR-1 IS SHOWN BELOW. ALL CONTROLS ARE LOCATED AT THE FRONT PANEL. ALL CONNECTIONS ARE

MADE AT THE REAR PANEL.

INSTALLATION AND OPERATING INSTRUCTIONS

FRONT PANEL LAYOUT OF APR-1

Page 2 of 8

LOUROE ELECTRONICS 6 9 5 5 VA L J E A N AVENUE, VAN NUYS, CA 91406 TEL (818) 994-6498 FAX 994-6458

website: www.louroe.com e-mail: [email protected]

(818)

APR-1

MUTE PUSH FOR

PLAYBACK

PWR

MUTE

PLAYBACK

OVERLOAD

SINGLE ZONE AUDIO BASE STATION

OFF MAX

POWER-VOLUME

[3]

[4]

[5]

[1]

[2]

[6] [7] [8]

[9]

ASK4_101B_inst 2/15

SENSITIVITY SWITCH OF VERIFACT B MICROPHONE

For special installations that require less microphone sensitivity or where there is background noise, a sensitivity switch is

mounted to the microphone pre-amp (PC Board) and has two positions, N and L:

N represents normal sensitivity (0dB ouput into 1kΩ)

L represents low sensitivity (-6dB output into 1kΩ)

Louroe VERIFACT microphones are always shipped with the sensitivity switch in normal (N) position. Do not change

unless necessary. To change the sensitivity setting, use a small screwdriver and move slide switch from N to L position.

The switch is mounted on the back side of the microphone housing.

NOTE REGARDING INTERFACING ASK-4 #101 WITH A DVR OR PC SOUNDCARD

The APR-1 Audio Base Station of ASK-4 #101B is compatible with all commercial DVR’s and PC Soundcards

that accept line level input (0dB@600Ωor higher). An RCA cable is included with the kit for connecting Audio

Out to Audio In of DVR. If DVR’s audio input is a 3.5mm jack, an RCA to 3.5mm adapter (not supplied) must

be attached to the plug that connects to DVR’s Audio Input. Check with DVR’s specifications to determine if

the audio input requires a stereo or mono 3.5mm plug.

PC soundcards contain a standard 3.5mm stereo Audio Input or Line Input. Do not use Mic Input of

soundcard. Louroe microphones are line level (0dB@600Ω) and will overdrive the Mic Input. Use “Audio

Input” or Line Input” of the soundcard.

INSTALLATION AND OPERATING INSTRUCTIONS

+12 Vdc INPUT OUTPUT

AUDIO

BA C

MIC INPUT

VAN NUYS, CA

[10] [11] [12] [13]

[10] Power Jack Accepts 12Vdc power from Model AD-1 Power Supply

(included with APR-1 Audio Base Station). AD-1 has a 90°2.1mm female plug.

[11] AUDIO IN Jack (RCA) Accepts audio playback from an external source (DVR/VCR).

Audio playback is produced through the speaker. The Push for Playback[7]

must be “IN” during audio playback and “OUT” when

not used for playback.

[12] AUDIO OUT Jack (RCA) Provides audio output and connection to a DVR, VCR, etc.

[13] Audio Terminal Block A 3-pin terminal block marked A, B, C.

Accepts wiring from the remote Louroe™ Microphone.

A is 12Vdc Power

B is Audio

C is Ground

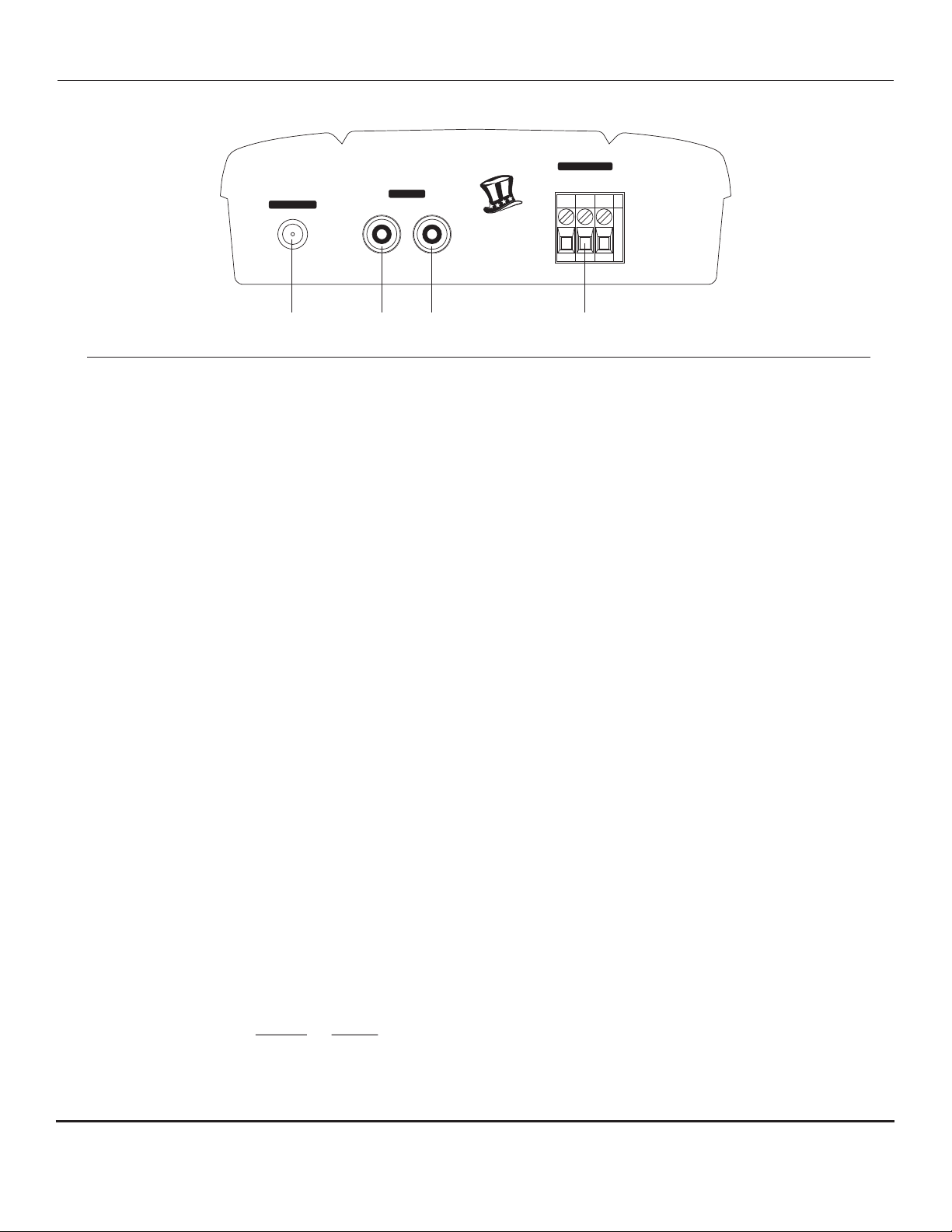

REAR PANEL LAYOUT OF APR-1

Page 3 of 8

LOUROE ELECTRONICS 6 9 5 5 VA L J E A N AVENUE, VAN NUYS, CA 91406 TEL (818) 994-6498 FAX 994-6458

website: www.louroe.com e-mail: [email protected]

(818)

ASK4_101B_inst 2/15

INTERCONNECTION DIAGRAM

AUDIO OUT

AUDIO IN

+12 Vdc INPUT OUTPUT

AUDIO

BA C

MIC INPUT

VAN NUYS, CA

VERIFACT B MICROPHONE TO APR-1 BASE

STATION TO DVR, ETC.

Rear Panel of APR-1

REAR PANEL OF DVR WITH

RCA TYPE AUDIO INPUT

A B C

VERIFACT A

AD-1

AC Adapter

120V/12Vdc, 500mA

“Audio In” of APR-1

connects to “Audio Out”

of DVR or other receiving device

NOTE: If DVR’s audio input and output are 3.5mm (mini jack) type, use the appropriate adapter

at one end of RCA patch cable for connection. Check with manufacturer’s specifications

to determine if 3.5mm audio input/output is mono or stereo.

“Audio Out” of APR-1

connects to “Audio In”

of DVR or other receiving device

ABC

2 Conductor shielded cable, 22

gauge with a 24 gauge drain

wire.

NOTE: Unshielded cable is not

satisfactory for audio

systems.

WIRING REQUIREMENTS

INSTALLATION AND OPERATING INSTRUCTIONS

Terminal Block Identifier

for Microphone

(A) Red - 12Vdc power

(B) Black - Audio Output

Page 4 of 8

LOUROE ELECTRONICS 6 9 5 5 VA L J E A N AVENUE, VAN NUYS, CA 91406 TEL (818) 994-6498 FAX 994-6458

website: www.louroe.com e-mail: [email protected]

(818)

ASK4_101B_inst 2/15

INSTALLATION TIPS

1. Use overall shielded audio cable only. West Penn 452, Belden 8451 or equivalent.

UNSHIELDED CABLE IS NOT SATISFACTORY FOR SOUND SYSTEMS.

2. When used in cashier’s booth, microphone should be installed closer to the customer rather than the

cash register, as the drawer sound may dominate the recording. It should be installed closest to the

area that needs to be monitored and documented.

3. Avoid installing microphone near air vents, air conditioner, fans and other equipment that generate

high sound and air pressure.

4. If using a VCR, it may have both intermittent and constant speed playback. See VCR’s manual on

how to select constant speed.

5. The APR-1 and microphone should have a barrier or solid wall between them in order to avoid audio

feedback, especially when they are in close proximity to each other up to 25’ (7.6 m).

7. Press “REC” on the recording device and record live audio for several minutes.

8. Press Push for Playback Switch[7] to “ON” position. Playback Indicator LED[4] will illuminate yellow.

9. Press “PLAY” on the DVR/VCR to playback recorded audio from the APR-1.

10. Press Mute Switch[6] to mute audio heard on the speaker. Mute Indicator LED[3] will light and no audio can be

heard on the speaker on both live and playback audio. When Mute Switch[6] is ON Playback Indicator LED[4] will

not light even when the Push for Playback Switch[7] is pushed in and the audio is muted.

4. Plug headphone into the Headphone Jack[8]. Speaker[9] output is muted and sound is transmitted through the

headphone.

5. Using the dual RCA cable (supplied), connect DVR/VCR’s AUDIO OUT jack to APR-1’s AUDIO IN Jack[11].

6. Connect DVR/VCR’s AUDIO IN jack to APR-1’s AUDIO OUT Jack[12].

WIRING CONNECTIONS AND TEST

Both the Verifact B Microphone and APR-1 Audio Base Station contain a 3-pin terminal block marked A, B, C.

A = 12Vdc Power Red Wire

B = Audio Black Wire

C = Ground Bare Wire

1. Starting with the microphone, connect RED wire to Pin A, BLACK wire to Pin B and BARE wire to Pin C. Connect

other end of cable to Terminal Block on back panel of APR-1 Base Station matching RED wire to Pin A, BLACK wire

to Pin B and BARE wire to Pin C. Refer to drawing on page 4.

2. Plug AD-1 power supply (AC Adapter) into the Power Jack[10] located on back panel of APR-1 first. Then connect 2-

prong block into standard 110/120 AC wall receptacle or power strip.

3. Turn “ON” power to APR-1 by rotating the Power-Volume Knob[1] clockwise. The green PWR[2] LED will illuminate.

Adjust volume of audio by rotating the knob either clockwise to increase or counterclockwise to decrease. Locate

microphone so as not to create feedback with the APR-1. The further the microphone is from the APR-1 the less

feedback it generates. System works best if there is an acoustical barrier between the microphone and the

APR-1, such as a wall or room divider. If there is no wall or barrier, microphone should be mounted at least 25 ft.

from the APR-1 Base Station.

2 Conductor shielded cable, 22 gauge

with a 24 gauge drain wire.

West Penn 452 or equivalent

INSTALLATION AND OPERATING INSTRUCTIONS

Page 5 of 8

LOUROE ELECTRONICS 6 9 5 5 VA L J E A N AVENUE, VAN NUYS, CA 91406 TEL (818) 994-6498 FAX 994-6458

website: www.louroe.com e-mail: [email protected]

(818)

ASK4_101B_inst 2/15

NOTES

INSTALLATION AND OPERATING INSTRUCTIONS

SPECIFICATIONS (Microphone - Model B)

Frequency response

Current drain

Output

Supply voltage

50 Hz to 15 kHz

10 mA

Line Level (0 dBV, 600Ω@ 1 kHz)

12Vdc

Dimensions

Weight 3.5 oz

4"Dia x 1 ½"H

Type

Electret Condenser

Page 6 of 8

LOUROE ELECTRONICS 6 9 5 5 VA L J E A N AVENUE, VAN NUYS, CA 91406 TEL (818) 994-6498 FAX 994-6458

website: www.louroe.com e-mail: [email protected]

(818)

ASK4_101B_inst 2/15

SPECIFICATIONS (Base Station - APR-1)

Monitor output power

Audio input impedance

Freq. response

1W@8

10K

100 Hz to 10 kHz

Headphone impedance

Power supply

Dimensions

Weight

Shipping Weight of kit

8 to 600

12 Vdc, 500 mA

8 ¼"L x 5 ¾”W x 1 3/8" H

1 lb 6 oz

3 lbs

Audio output impedance 600W@ 1kHz

INSTALLATION AND OPERATING INSTRUCTIONS

IMPORTANT NOTICE

When this equipment is used as part of an audio monitoring

system, the law requires that the public be given notice of

AUDIO MONITORING ON THE PREMISES. A decal notice

is included with each microphone shipped.

Federal Law References:

Federal Regulations, US Code, Title 18. Crime and Criminal

Procedure, Sec 2510.

AUDIO

MONITORING

These Premises

Page 7 of 8

LOUROE ELECTRONICS 6 9 5 5 VA L J E A N AVENUE, VAN NUYS, CA 91406 TEL (818) 994-6498 FAX 994-6458

website: www.louroe.com e-mail: [email protected]

(818)

WARRANTY

LOUROE ELECTRONICS warrants that at the time of shipment products manufactured by LOUROE ELECTRONICS to be free of defects in material and workmanship.

Should a defect appear within one year (12 months) from date of shipment, LOUROE ELECTRONICS will, at its sole discretion, repair or replace the defective equipment.

This equipment shall not be accepted for repair or return without prior notification by LOUROE ELECTRONICS .

This warranty does not extend to any Louroe product that has been subjected to improper or incorrect installation, misuse, accident, or in violation of installation

instructions provided by LOUROE ELECTRONICS.

Returned shipments to LOUROE ELECTRONICS shall be at customer’s expense. LOUROE ELECTRONICS will return the equipment prepaid via best way.

ASK4_101B_inst 2/15

MANUFACTURED

IN THE

Page 8 of 8

LOUROE ELECTRONICS 6 9 5 5 VA L J E A N AVENUE, VAN NUYS, CA 91406 TEL (818) 994-6498 FAX 994-6458

website: www.louroe.com e-mail: [email protected]

(818)

ASK4_101B_inst 2/15

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Louroe Electronics Sistema di altoparlanti

Louroe Electronics

Louroe Electronics LE-363 Manuale utente

Louroe Electronics

Louroe Electronics AP-4TB-RM Manuale utente

Louroe Electronics

Louroe Electronics ASK-4 501-TLM-CF Manuale utente

Louroe Electronics

Louroe Electronics LE-018 Manuale utente

Louroe Electronics

Louroe Electronics ASK-4 101 Manuale utente

Louroe Electronics

Louroe Electronics APR-1 Manuale utente

Louroe Electronics

Louroe Electronics Verifact A USB Manuale utente

Louroe Electronics

Louroe Electronics LE-019 Manuale utente

Louroe Electronics

Louroe Electronics Verifact DVGC Manuale utente

Louroe Electronics

Louroe Electronics ASK-4 300 Manuale di servizio

Louroe Electronics

Louroe Electronics ASK-4 Guida utente

Louroe Electronics

Louroe Electronics ASK-4 Manuale utente

Louroe Electronics

Louroe Electronics ASK-4 304-DV Manuale utente

Louroe Electronics

Louroe Electronics ASK-4 102 Manuale utente

Louroe Electronics

Louroe Electronics AP-1TB Manuale utente

Louroe Electronics

Louroe Electronics VERIFACT L-DT Manuale utente

Louroe Electronics

Louroe Electronics ASK-4 101-DV Istruzioni operative

Louroe Electronics

Louroe Electronics AP-2TB Manuale utente

Louroe Electronics

Louroe Electronics ASK-4 KIT #501 Manuale utente

Louroe Electronics

Louroe Electronics verifact agc Manuale utente

Louroe Electronics

Louroe Electronics ASK-4 501 Manuale utente

Louroe Electronics

Louroe Electronics ASK-4 122 Manuale utente

Louroe Electronics

Louroe Electronics ASK-4 101C Manuale utente

Louroe Electronics

Louroe Electronics ASK-4 # 304 Manuale utente

Manuali Sistema di altoparlanti popolari di altre marche

JVC

JVC CA-MXK5R Manuale utente

LG NB4532B Manuale utente

JVC

JVC CA-FSH100 Manuale utente

5Core

5Core Pro Series Manuale utente

EAW

EAW MQV1394e Manuale utente

Lynx

Lynx GXR-LA10A Manuale utente

iLive

iLive ITB066B Manuale utente

RDX

RDX QuickStation 4 Manuale utente

Electro-Voice

Electro-Voice S-122 Manuale utente

Sven

Sven SPS-619 GOLD Manuale utente

Pioneer

Pioneer CS-7070 Manuale utente

EAW

EAW UB82e Manuale utente

Sondpex

Sondpex Active Speaker System and Digital Music... Manuale utente

JVC

JVC NX-PN7 Manuale utente

Marshall Amplification

Marshall Amplification AR-DM61-BT Manuale utente

Yamaha

Yamaha NX-A01 - Speaker Sys Manuale utente

SE Audiotechnik

SE Audiotechnik I-LINE Manuale utente

Gemini

Gemini WRX-843 Series Manuale utente
