DESCRIPTION

OPERATIONS

Model AOPSP-PB is a wall mount two-way call stations containing a built-in line level electret condenser microphone, a

4”(101mm) speaker and a 1”(25.4mm) call button. It is designed to interface with various modes of audio/video

transmission systems such as:

IP Network Cameras

DVR’s

Video Servers

PC Soundcards

Provided with the unit are two back boxes for either flush or surface mounting to a wall. The AOPSP-PB can be used as a

stand alone unit or with companion AOP-XD. The AOP-XD Audio Transceiver Interface unit provides two-way audio

with the receiving device (IP Network Camera, etc.). Also, a built-in 1” (25.4mm) call button for provides switch closure

activation with the receiving device.

The AOP-XD provides power to the AOPSP-PB Speakerphone and drives the audio signals (line level) into the audio

input of the above receiving devices. It also receives the return audio signals from the “Audio Out” or “Speaker Out” of the

DVR, etc. and amplifies the output level for broadcasting through the speaker portion of the AOPSP-PB Speakerphone.

AOP-XD contains adjustable audio level controls for listen and talkback. Located on the back panel of the AOP-XD are

two RCA audio input and output jacks for accommodating most DVR’s, IP Network Camera’s audio inputs etc.

When the AOPSP-PB is used as a standalone unit, a 12Vdc power supply is needed.

Model AOPSP-PB

is for flush or surface

mounting to a wall or flat surface

Back Boxes

Flush Mount

(Plastic)

Surface Mount

(Steel)

The gain of the microphone and speaker are factory adjusted. If it is necessary to change the gain of either or both the

audio output of the microphone and speaker of the unit, it has to be done in small increments. For adjusting the gain of

the microphone, rotate clockwise to increase or counterclockwise to decrease, the potentiometer marked “MIC” slowly

until the desired level is attained. Somebody at the head-end has to listen to it while the adjustments are made. If the

microphone’s gain is too high, it will attenuate the audio output of the speaker. The output of the speaker will then be

cutting off as you talk. If this happens, rotate the potentiometer marked “MIC” slowly counterclockwise to decrease the

gain of the microphone until the talkback sound at the speaker no longer cuts off.

To adjust the audio output of the speaker, rotate the “SPKR” potentiometer clockwise (increase) or counterclockwise

(decrease) slowly until the desired loudness is attained. If the audio from the microphone starts to get low, rotate the

“SPKR” potentiometer counterclockwise a small increment at a time until the microphone audio becomes louder again.

This unit has a built-in muting system that if the microphone’s is too high it is going to mute the speaker and vice versa.

aopsp-pb 03/11

Page 1 of 8

AOPSP-PB

BI-DIRECTIONAL SPEAKERPHONE

INSTALLATION AND OPERATING INSTRUCTIONS

6955 VALJEAN AVE, VAN NUYS, CA 91406

PH: (818)994-6498 / FAX: (818)994-6458

/ www.louroe.com[email protected]

Color Code of recommended wiring is:

RED - 12Vdc power to microphone

BLACK - Audio Output

BARE - Ground (microphone)

WHITE - Speaker

block marked A, B, C, SP

A = 12Vdc power (red wire)

B = Audio output (black wire)

C = Ground (bare wire)

SP = Speaker connection (white wire)

Bring one end of recommended cable and connect as follows:

Located on the bottom right side of PC board is a 4-pin terminal

WIRING CONNECTION TO SPEAKER AND MICROPHONE OF AOPSP-PB

WIRING CONNECTION FROM AOPSP-PB TO

COMPANION AOP-XD AUDIO INTERFACE UNIT

Connect the two wires (black and green) attached to Call Button Switch to the contacts of the

receiving device, using wire nuts and 22 gauge stranded wire. Refer to the receiving device

manufacturers instructions for proper connection.

The rear panel of AOP-XD has a 4 pin terminal block marked A, B, C, SP

Bring in other end and connect as follows:

1) Red wire to terminal A

2) Black wire to terminal B

3) Bare wire to terminal C

4) White wire to terminal SP

APPLYING POWER TO MODEL AOP-XD

Included with the AOP-XD is a 24V, 1A Power Supply. First connect small end to the 24Vdc jack located on

the back panel of AOP-XD. Then plug large 2-prong power block into a standard 120V electrical outlet or

power strip. Green LED on front panel will illuminate, indicating unit is powered. Model AOP-XD will send

power to the remote AOPSP-PB Call Station. For instructions regarding the functions of AOP-XD, refer to

accompanying AOP-XD instructions.

1) Connect RED wire to terminal marked “A”

2) Connect BLA CK wire to terminal marked “B”

3) Connect BARE wire to terminal marked “C “

4) Connect WHITE wire to terminal marked “SP “

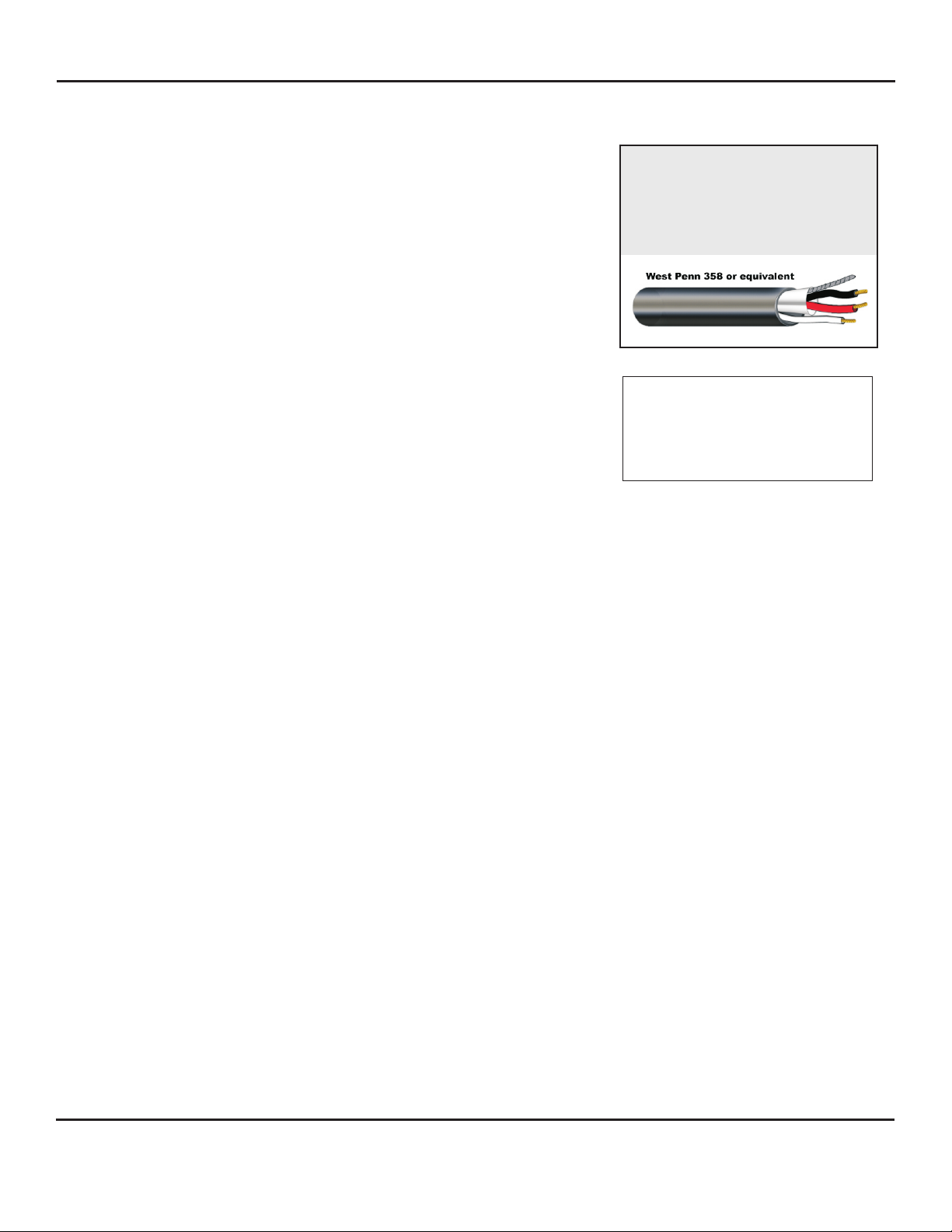

WIRING REQUIREMENTS

3 Conductor consisting of:

2 Conductor shielded, 20 gauge

with 22 gauge drain

1 Conductor unshielded, 20 gauge

All in the same jacket

Drill an opening top, bottom or

back side of backbox for

passing wiring or for connecting

conduit

Page 2 of 8

LOUROE ELECTRONICS® 6 9 5 5 VA L J E A N AVENUE, VAN NUYS, CA 91406 TEL (818) 994-6498 FAX 994-6458

website: www.louroe.com e-mail: [email protected]

(818)

INSTALLATION AND OPERATING INSTRUCTIONS

WIRING CONNECTION TO SPEAKER AND MICROPHONE OF AOPSP-PB

WIRING CONNECTION TO AOPSP-PB CALL BUTTON

WIRING CONNECTION FROM AOPSP-PB TO

AOP-XD AUDIO INTERFACE UNIT

aopsp-pb 03/11

REAR PANEL OF AOPSP-PB

BLACK (B)

RED (A)

CALL BUTTON

WHITE (SP)

BARE (C)

GREEN

WIRE

NUT

ELECTRET

CONDENSER

MICROPHONE

Callbutton Switch

side view

WIRE

NUT

PC Board

+12Vdc

SPEAKER

ADJUST

MIC

ADJUST

WHITE

BLACK

+24Vdc, 1A

BARE

RED

TO SWITCH CLOSURE OF

AUDIO RECEIVING DEVICE

(refer to manufacturer’s

instructions for connection)

ABCSP

INPUT

To “Audio In” of

DVR, IP Network

Camera, Video

Servers, etc.

To “Audio Out” of

DVR, IP Network

Camera, Video

Servers, etc.

MODEL AOP-XD

AUDIO INTERFACE

(rear panel)

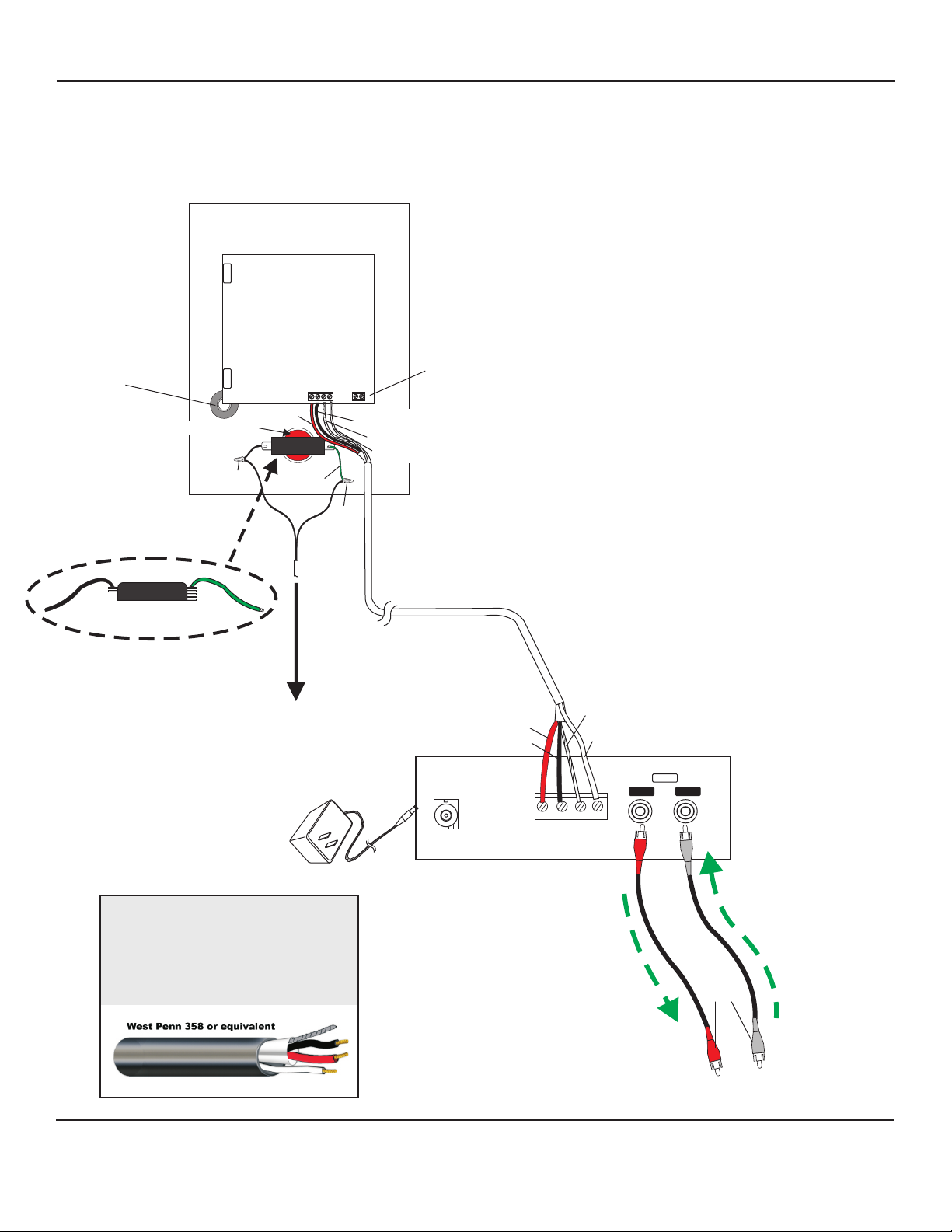

INTERCONNECTION DIAGRAM

BETWEEN LOUROE MODEL AOPSP-PB

AND

AOP-XD AUDIO TRANSCEIVER INTERFACE

INPUT

AUDIO

OUTPUT

RCA Plug

Color Code of recommended wiring is:

RED - 12Vdc power to microphone

BLACK - Audio Output

BARE - Ground (microphone)

WHITE - Speaker

24Vdc, 1A

POWER SUPPLY

(INCLUDED)

WIRING REQUIREMENTS

3 Conductor consisting of:

2 Conductor shielded, 20 gauge

with 22 gauge drain

1 Conductor unshielded, 20 gauge

All in the same jacket

+12V power

Page 3 of 8

LOUROE ELECTRONICS® 6 9 5 5 VA L J E A N AVENUE, VAN NUYS, CA 91406 TEL (818) 994-6498 FAX 994-6458

website: www.louroe.com e-mail: [email protected]

(818)

INSTALLATION AND OPERATING INSTRUCTIONS

aopsp-pb 03/11

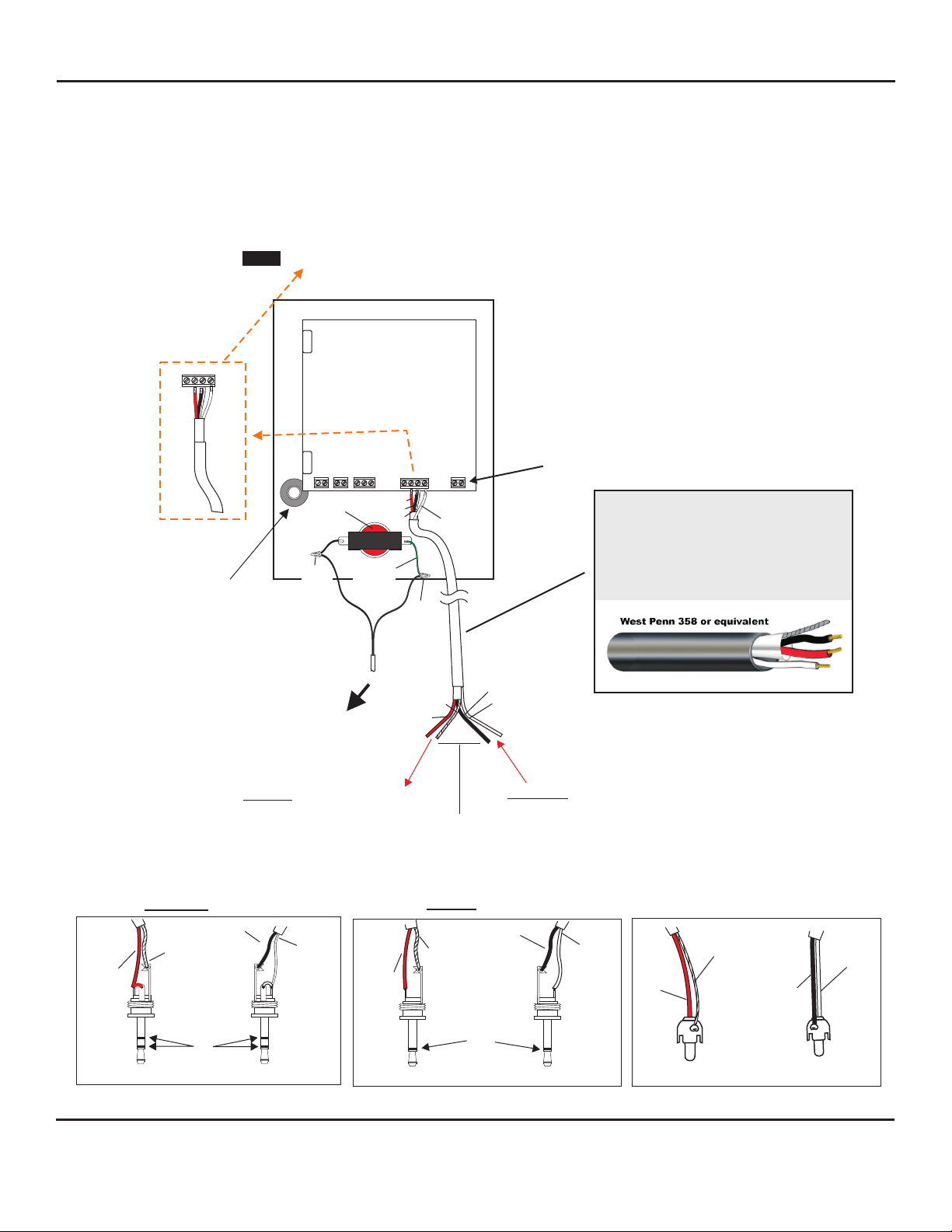

INTERCONNECTION DIAGRAM

CONNECTING LOUROE MODEL AOPSP-PB

DIRECTLY TO AN IP CAMERA, DVR,

VIDEO SERVER, ETC. USING 3-COND. SHIELDED CABLE

EXT

MIC SPKR +12Vdc

AUDIO

OUT

AUDIO

A B C

TALKBACK

ADJUST

MIC

ADJUST

LOUROE MODEL AOPSP-PB

WHITE (SP)

BLACK (C)

(B) RED

TO AUDIO OUT OF IP CAMERA, DVR, ETC.

TO AUDIO IN OF IP CAMERA, DVR, ETC.

NOTE: BLACK AND BARE WIRES ARE COMMON GROUND

BARE (C)

BLACK (C)

RED (B)

4-PIN TERMINAL BLOCK IDENTIFIER OF AOPSP-PB (A,B,C,SP)

( ) B = Audio Output

( ) C = Ground (audio) and Ground (speaker) (black wire)

( ) SP = Speaker output

A = not used with this application

red

bare

white

West Penn 358

or equivalent

WHITE (SP)

Audio Out

Audio Out Audio In

Audio In

Bare Wire

Red Wire

RCA CONNECTION

3.5mm MONO CONNECTION

3.5mm STEREO CONNECTION

White Wire

Black Wire

White Wire

Red Wire

Bare Wire

Audio Out

Audio In

Red Wire

Black Wire

White Wire

Bare Wire

WIRING REQUIREMENTS

3 Conductor consisting of:

2 Conductor shielded, 20 gauge

with 22 gauge drain

1 Conductor unshielded, 20 gauge

All in the same jacket

CALL

BUTTON

ELECTRET

CONDENSER

MICROPHONE

GREEN

WIRE

NUT

WIRE

NUT

TO SWITCH CLOSURE OF

AUDIO RECEIVING DEVICE

(refer to manufacturer’s

instructions for connection)

EXT

MIC SPKR

AUDIO

OUT

AUDIO

AOP-XD is not used for this application.

+12Vdc,500mA power required

(AD-1 power supply included)

Connect to this 2-pin terminal block

12 Vdc power is required to connect the AOP-SP-E directly to

an IP camera or DVR such as AD-1 power supply.

Positive 12Vdc connects to terminal marked “+”

Negative 12 Vdc or ground

connects to terminal marked “GND”

(wire with white stripes)

+12Vdc

GND

Page 4 of 8

LOUROE ELECTRONICS® 6 9 5 5 VA L J E A N AVENUE, VAN NUYS, CA 91406 TEL (818) 994-6498 FAX 994-6458

website: www.louroe.com e-mail: [email protected]

(818)

INSTALLATION AND OPERATING INSTRUCTIONS

aopsp-pb 03/11

SPECIFICATIONS (Microphone)

Microphone output

Type

line level (0 dB @ 1kΩ)

Electret Condenser

Supply voltage 12 Vdc

SPECIFICATIONS (Speaker)

Speaker Power output

Speaker Impedance

Speaker magnet

Speaker size

Weight, net

8Ω

3 oz. ceramic

4” (10cm)

3 Lbs. (1.4 Kg)

Microphone element sensitivity

Frequency response

Output Impedance

-45dB

40 Hz to 15 kHz 1 dB

600Ωunbalanced

Dimensions (Face Plate) 6 ¼"H x 8"W

Backbox for AOPSP-PB

metric (158mm H x 203mm W)

Surface Mount Box (metal) 6 ¼"H x 8"W x 2¾”D

Flush Mount Box (plastic)

Backbox Portion 5"H x 6 ? "W x 2 ? ”D

Total including flange 6 ¼"H x 8"W x 2 ? ”D

metric (158mm H x 203mm W x 67mm D)

metric (127mm H x 175mm W x 67mm D)

metric (158mm H x 203mm W x 70mm D)

Page 5 of 8

LOUROE ELECTRONICS® 6 9 5 5 VA L J E A N AVENUE, VAN NUYS, CA 91406 TEL (818) 994-6498 FAX 994-6458

website: www.louroe.com e-mail: [email protected]

(818)

INSTALLATION AND OPERATING INSTRUCTIONS

SPECIFICATIONS (Mechanical)

aopsp-pb 03/11

IMPORTANT NOTICE

When this equipment is used as part of an audio

monitoring system, the law requires that the public be

given notice of AUDIO MONITORING ON THE

PREMISES. A decal notice is included with each

microphone shipped.

Federal Law References:

Federal Regulations, US Code, Title 18. Crime and

Criminal Procedure, Sec 2510.

AUDIO

MONITORING

These Premises

NOTES

Page 6 of 8

LOUROE ELECTRONICS® 6 9 5 5 VA L J E A N AVENUE, VAN NUYS, CA 91406 TEL (818) 994-6498 FAX 994-6458

website: www.louroe.com e-mail: [email protected]

(818)

INSTALLATION AND OPERATING INSTRUCTIONS

aopsp-pb 03/11

WARRANTY

LOUROE ELECTRONICS® warrants that at the time of shipment products manufactured by LOUROE ELECTRONICS® to be free of defects in material and workmanship.

Should a defect appear within one year (12 months) from date of shipment, LOUROE ELECTRONICS® will, at its sole discretion, repair or replace the defective equipment.

This equipment shall not be accepted for repair or return without prior notification by LOUROE ELECTRONICS®.

This warranty does not extend to any Louroe product that has been subjected to improper or incorrect installation, misuse, accident, or in violation of installation

instructions provided by LOUROE ELECTRONICS®.
