Lowrance GlobalMap 6500C Istruzioni per l'installazione e il funzionamento

Pub. 988-0151-361

Addendum I

LCX Sonar/GPS Series 25, 26,

110, 111 and GlobalMapGPS

Series 6500, 6600, 7500, 7600

This addendum addresses the manuals for the units listed above (part

988-0151-311 for the LCX sonar/GPS units and 988-0151-331 for the

GlobalMap GPS units). Since the manuals were written, some changes

have occurred to these units. These changes will affect the installation

and operation of your unit, and include:

Map Dataset Choice Menu (LCX-26, 111; GlobalMap 6600, 7600)

•The Map Dataset Choice menu, featured only in the hard drive units,

now has a Lowrance MMC/SD option.

•The units without a hard drive (LCX-25, 110 and GlobalMap 6500,

7500) no longer have the Map Dataset Choice menu, as indicated in

their respective manuals.

Navigate Trail or Route

•The Navigate Trail/Route procedure has changed from the instruc-

tions listed in the manual. The procedure no longer includes the

step featuring the Navigate Option window.

Installation

•The LCX manual (part 988-0151-311) did not include MMC card in-

stallation instructions for the LCX-110 and LCX-111. This adden-

dum describes those steps.

•Both the LCX series and the GlobalMap series have two communica-

tions ports to exchange NMEA 0183 position data with other de-

vices. This addendum includes the wiring diagram for Com Port 2.

•The drawings showing unit dimensions and cable connections for the

LCX series (manual part 988-0151-311) have changed.

Map Dataset Choice menu

•The Map Dataset Choice menu, now featured only in the units with

the 20 gigabyte hard drive (LCX-26C HD and LCX-111C HD), has

five options: Standard, NauticPath, Fishing Hot SpotsElite,

Lowrance MMC/SD and Navionics. The Standard, NauticPath

and Fishing Hot Spots Elite settings pull information from the

unit's hard drive, so there is no need to place a card into one of

the MMC drawers or doors on the front of the unit. The other two

choices, Lowrance MMC/SD and Navionics, require an MMC, SD

or Navionics card. You must select the Lowrance MMC/SD set-

ting to view information on a MMC or SD card, just as you must

use the Navionics setting to view information on a Navionics

card.

Map Dataset Choice menu (left) for the LCX-26C HD and LCX-111C HD

with the Lowrance MMC/SD option selected (right).

Caution:

Be sure and switch the Map Dataset Choice setting back to

Standard when you are finished with one of the other four chart

options. Otherwise, you will see only the basic background map

instead of the high detail custom map built into the unit's hard

drive.

Map Dataset Choice menu with Standard selected. The Standard op-

tion gives you access to the high detail map on the unit's hard drive.

NOTE:

The LCX-25C and LCX-110C do not have the Map Dataset Choice

menu. To access an enhanced detail custom map (made yourself with

MapCreatesoftware), a FreedomMap, a NauticPath, Fishing

Hot Spots, Fishing Hot Spots Elite or Navionics chart, you must in-

sert an MMC or SD card containing the mapping data into one of the

MMC drawers or doors on the front of the unit. Choose the default

Lowrance setting to view a MapCreate, FreedomMap, NauticPath,

Fishing Hot Spots, MMC or SD card. Only when a Navionics card is

loaded in the MMC drawer will you be able to select the desired

Navionics chart from the Navionics Map Choice menu.

The Navionics Options menu for the LCX-25C and LCX-110C with the

default Lowrance setting chosen.

Navigate Trail/Route procedure

The Navigate Trail or Route procedure has changed. In the manual, it

says after pressing the Navigate button a Navigate Option window will

appear asking if you want to be prompted or directed to intermediate

waypoints along the trail or route. That will not be the case with your

unit.

Highlighting NAVIGATE and pressing ENT is the last command needed to

navigate a trail or route from the Edit Route screen.

Here is the proper procedure for navigating a trail or route:

1. From the My Trails or Route Planning menu, press ↓to the Saved

Trails or Saved Routes list.

To navigate a Trail:

2. Use ↑↓to select a trail, then press ENT|→↓to NAVIGATE|ENT. Press

↓to NAVIGATE and press ENT.

3. Upon arrival at your destination, cancel navigation by pressing

MENU|MENU|↓to CANCEL NAVIGATION|ENT.

To navigate a Route:

2. Use ↑↓to select a route, then press ENT| ↓to NAVIGATE|ENT.

3. Upon arrival at your destination, cancel navigation by pressing

MENU|MENU|↓to CANCEL NAVIGATION|ENT.

Installation

MMC or SD Memory Card Installation for LCX-110 & LCX-111

In the LCX-110 and LCX-111, the two MMC slots are located in com-

partments on the front of the case. The water-proof compartment doors

are located at the lower right corner. The following figure shows a

close-up of one compartment with the door opened.

Memory card compartment with a 16 MB MMC card installed.

To remove an MMC or SD Card

1. Open the card compartment door by unscrewing the thumb screw.

The screw should only be finger tight. If it was over-tightened, use a

thumbnail, a coin or a screwdriver to open the door.

2. Use the ball of your finger or thumb and press down in the center of

the card, then drag the MMC from the slot. Or, use a thumbnail or fin-

gernail to grab the groove in the bottom of the MMC and drag it out.

See the figure above for the groove location.

Insert card face up,

this way

Thumb

screw

MMC groove for card removal

To add an MMC or SD Card

1. Open the card compartment door.

2. Grasp the bottom of the MMC and push the top of the card into the

slot. Once the card is started, press down in the center of the card with

the ball of your finger or thumb and push the card all the way to the

left, until it is firmly seated in the slot.

3. Close the compartment door and fasten the thumb screw finger tight.

Com Port Wiring

The Com-2 communications port wiring diagram below was omitted

from the LCX manual (page 33) and the GlobalMap manual (page 16).

Com-1 can send or receive NMEA 0183 data; Com-2 can only send

NMEA 0183 data.

Com-2 wiring to transmit NMEA position information

to another NMEA-compatible device.

In-Dash and Bracket Installation

The in-dash mounting dimension drawing on page 38 of the LCX man-

ual is only for the LCX-25 and LCX-26. No dash mount kit is available

for the LCX-110 and LCX-111.

In the LCX manual, the drawing on page 37 for an LCX-25 or LCX-26 is

incorrect. A similar drawing for the LCX-110 and LCX-111 was omit-

ted. Both corrected drawings are shown on the following page.

Cable Connections

Following the mounted dimension drawings are illustrations showing

cable connections for the two case types in the LCX series. They correct

page 34 in the LCX manual.

Shield (Ground) Ground

Com-2

To unit

Blue (Transmit) NMEA Receive

To Other

Device

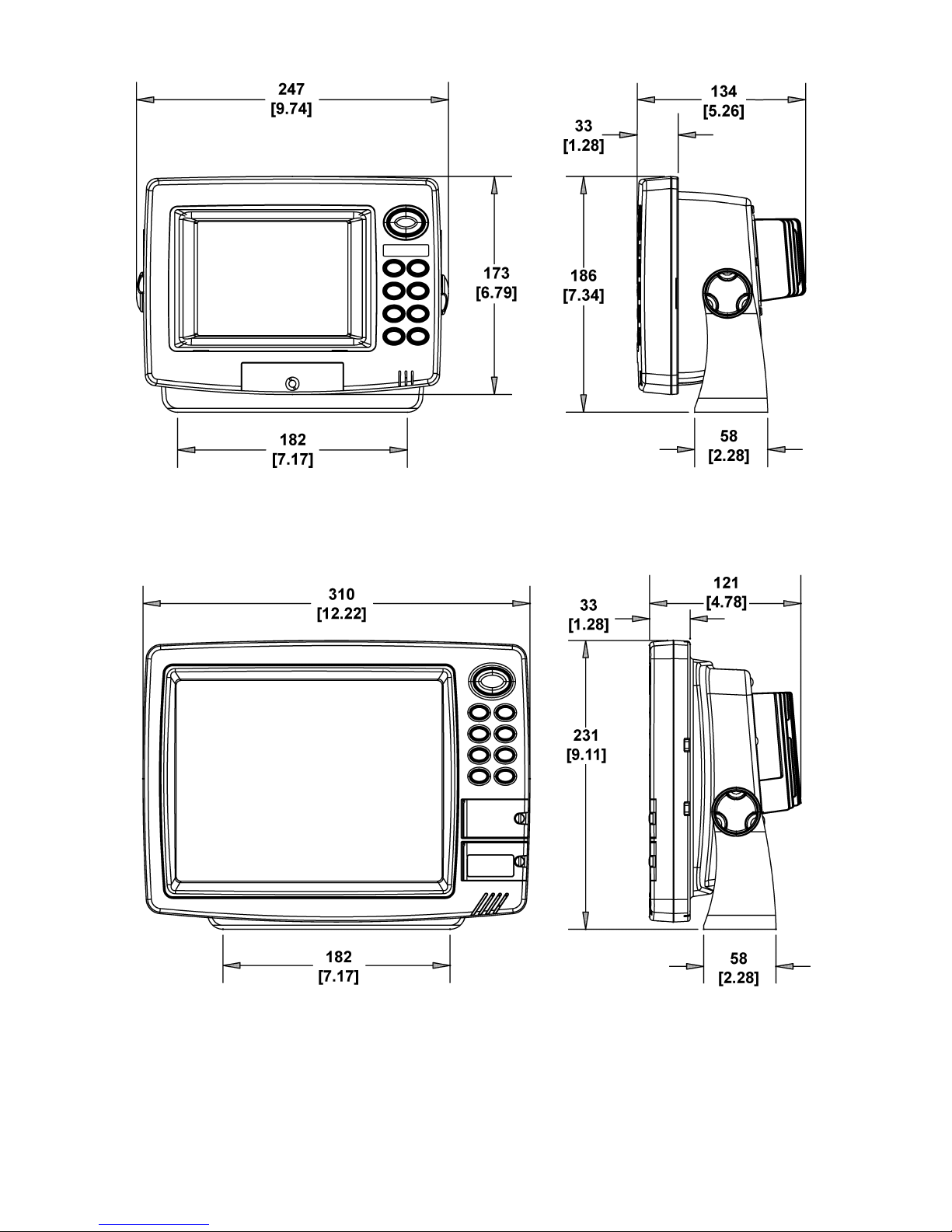

Front view (left) and side view (right) showing dimensions of the LCX-

25 and LCX-26 mounted on gimbal brackets.

Front view (left) and side view (right) showing dimensions of the LCX-

110 and LCX-111 mounted on gimbal brackets.

Millimeter

[Inch]

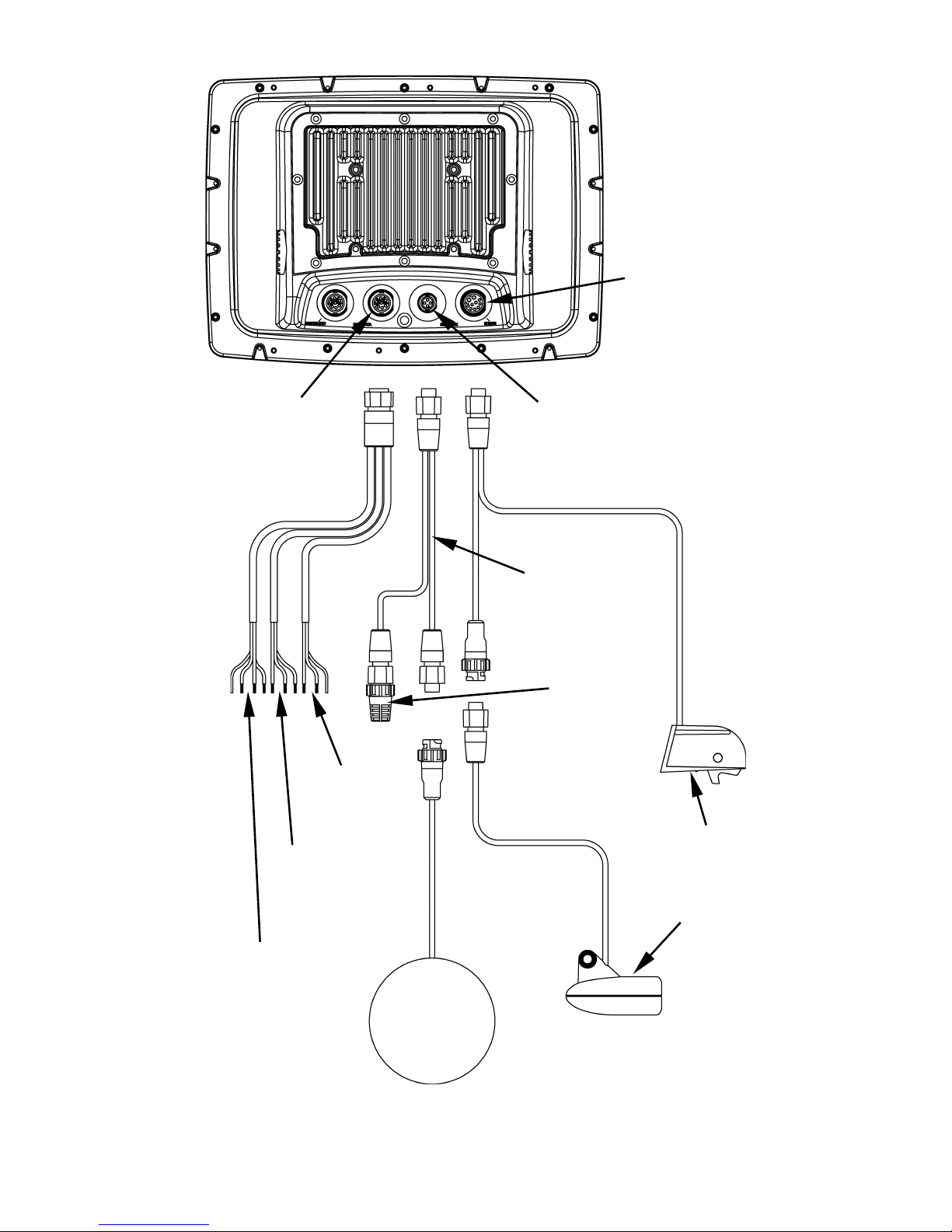

Cable connections, LCX-25 and LCX-26.

Sonar/GPS unit,

rear view

GPS

antenna

module

Power/Data

socket

LGC 2000 25'

extension cable

NMEA 2000

Power Cable

Sonar socket

Transducer

Power

Supply

Cable

Network

socket

SP-BL optional

speed sensor

60-ohm

terminator

NMEA 0183

Data Cable

Cable connections, LCX-110 and LCX-111.

Sonar/GPS unit,

rear view

GPS

antenna

module

Power/Data

socket

LGC 2000 25'

extension cable

NMEA 2000

Power Cable

Sonar socket

Transducer

Power

Supply

Cable

Network

socket

SP-BL optional

speed sensor

60-ohm

terminator

NMEA 0183

Data Cable
