Lowrance IWAY 600C Manuale utente

Pub. 988-0160-331

Turn-by-Turn Mapping GPS and MP3 Player

Quick Start Guide

iWAY™600CQuick Start Guide

The iWAY™600Cwas designed to be easy to use. The buttons along the

right side of the unit's screen open various menus, including turning

the unit on and off. However, the unit's touch screen will be used to

enter most commands.

The iWAY™600Ccan display aerial images.

1. SPEAK/VOLUME – Push this button to have the unit repeat the

current navigation instruction. Press and hold this key to adjust the

volume.

2. MAP/MUSIC – Press this key to switch between map and music

mode.

3. MENU – Press this key to access the Main Menu. From the Main

Menu you can select a command or adjust the unit's different features.

4. FIND – The Find key is used to search for different destinations.

Use this button to access the unit's three Find menus. Use this key to

access the address book to search for contacts you have created.

5. POWER/LIGHT – The Power key turns the unit on and off. It also

controls the backlight. Press POWER to turn the unit on. To activate the

backlight press POWER again.

The unit has three preset backlight levels. Repeatedly pressing POWER

will cycle through the backlight settings. To turn the unit off, press and

hold the POWER key for 3 seconds.

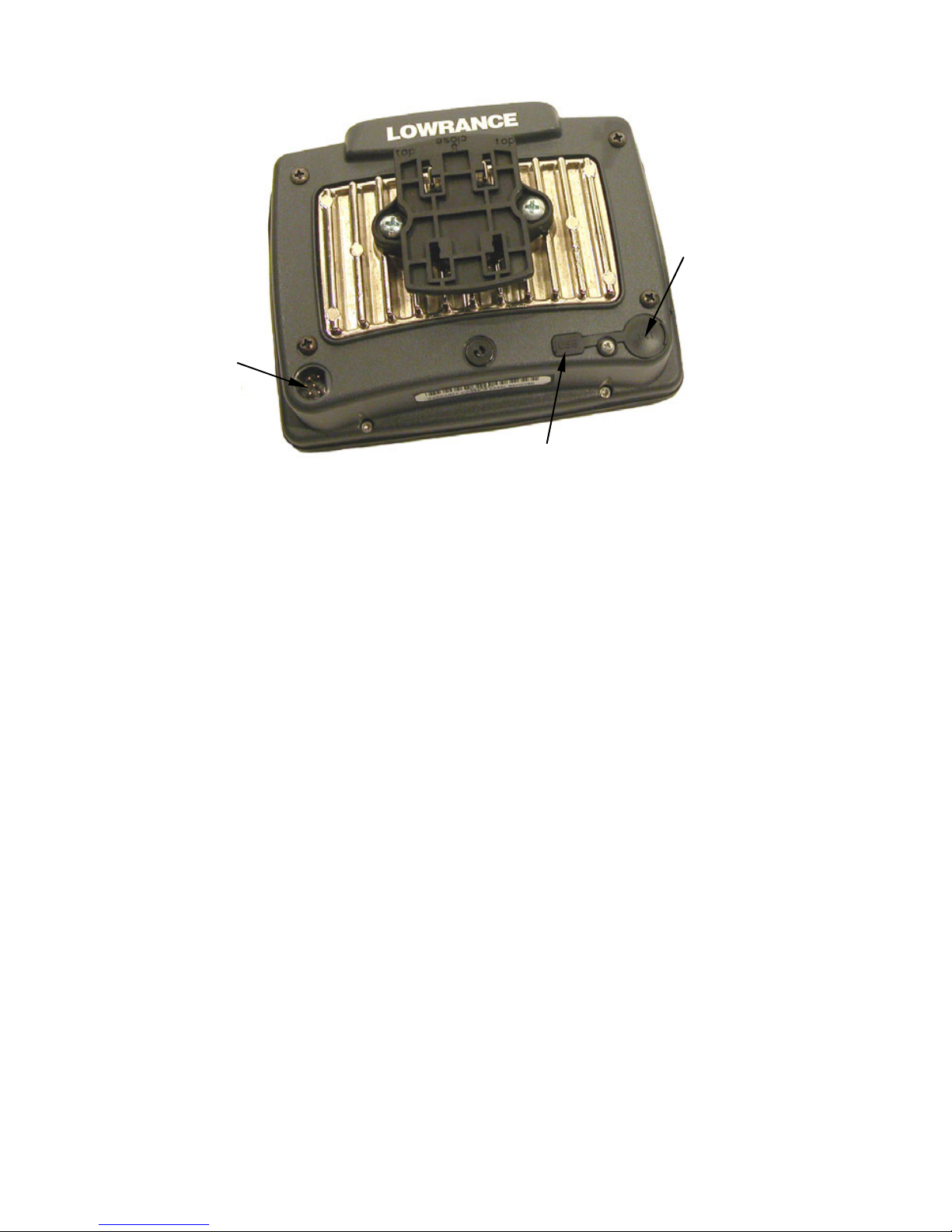

External connections on the back of the iWAY™600C.

Map and Music Mode

The unit has two main modes of operation: Map Mode and Music Mode.

To switch between these two modes, press the MAP/MUSIC button located

on the right side of the unit.

In Map Mode you can drag the map across the screen to focus on a spe-

cific area or point to a nearby restaurant to get detailed information

and navigate to it. Since the touch screen responds to pressure, you will

have to actually push against the screen to scroll the map.

In Music Mode touch the play control buttons to start and stop music or

skip among songs. To use Music Mode you will need to copy music files

to the unit. The iWAY package includes a USB-PC cable so the unit can

be connected to a home computer. Use care when connecting or discon-

necting the USB-PC cable from your home computer. The unit can play

both MP3 and Ogg Vorbis music files.

Caution:

Use a microfiber towel to clean the unit's touch screen. Other

cleaning materials could damage the screen – damage that is

not covered by this product's warranty.

Mounting Instructions

The iWAY package includes a flexible, quick release arm mount. The

flexible arm mount is used to secure the unit to glass or other smooth

surfaces.

Power

socket

for

power

cord

USB cable socket

External

antenna

socket

The flexible arm mount allows you to make non-mar installations with-

out drilling, screws or permanent adhesives. Since the mount is port-

able, it's easy to transfer the GPS unit to another vehicle.

WARNING:

When mounting a GPS unit in an automobile you must

avoid any installation that obscures important instru-

ments and controls or restricts the driver's view through

the vehicle's windows. Avoid placing the GPS where it

could be propelled by an activated airbag. Some states

restrict mounting any electronic device in any location

on an automobile dash or windshield.

Be sure to check your local laws before using these

mounts. Be sure to check the suction mount for ade-

quate adhesion each time you use the unit and reinstall

it if necessary. This is a portable mounting device and

the normal heating and cooling cycle of a car's interior

will eventually loosen the seal. A loose suction cup could

allow the unit to fall or come loose during vehicle opera-

tions.

Installing the flexible suction cup mount

The suction cup base and arm can be adjusted to a position that best

suits your vehicle. The mounting surface should be free of dirt and oil.

While you can attach the flexible suction cup mount to the windshield

before attaching the unit to the suction cup mount, it may be easier if

the suction cup mount is connected to the unit first. You can then at-

tach the entire assembly to the car's windshield.

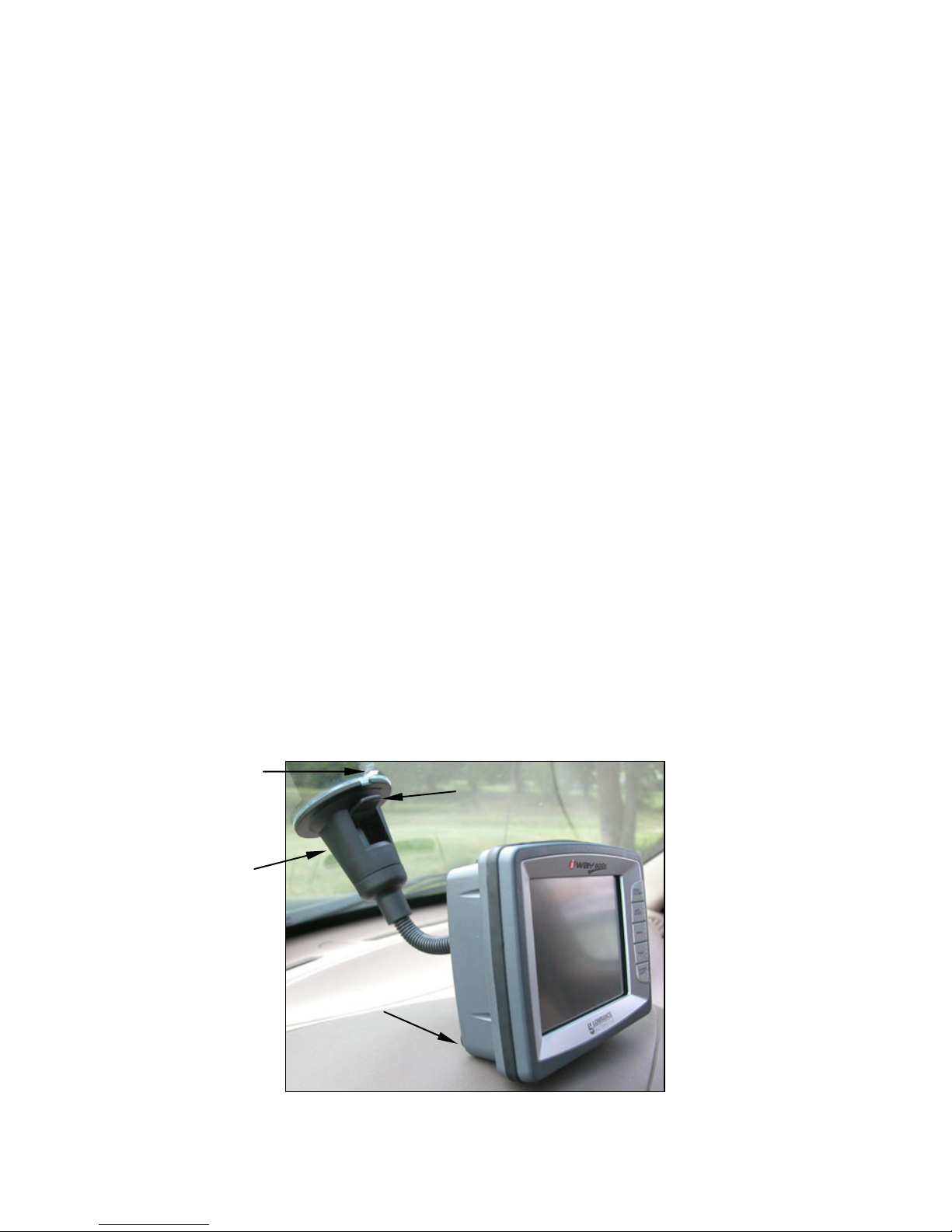

Unit resting on dash with flexible suction cup mount.

Locking

leve

Suction

release

tab

Suction

cup

base

GPS unit

resting on

dash

To attach the flexible suction cup mount to the back of the GPS unit

align the mount with the back of the unit. Place the base of the flexible

suction cup mount against the back of the unit by matching the male

and female connector ends together.

Then snap the mount into place by sliding the flexible suction cup

mount up. Pull down on the flexible suction cup mount to disengage it

from the back of the unit.

The mounting surface should be free of dirt and oil. Press the suction

cup against the mounting surface and, while maintaining pressure,

push the locking lever down until the arm is secure.

NOTE:

Some areas restrict mounting any electronic device to a dash or

windshield. Be sure to check your local laws before using any elec-

tronic mounting device.

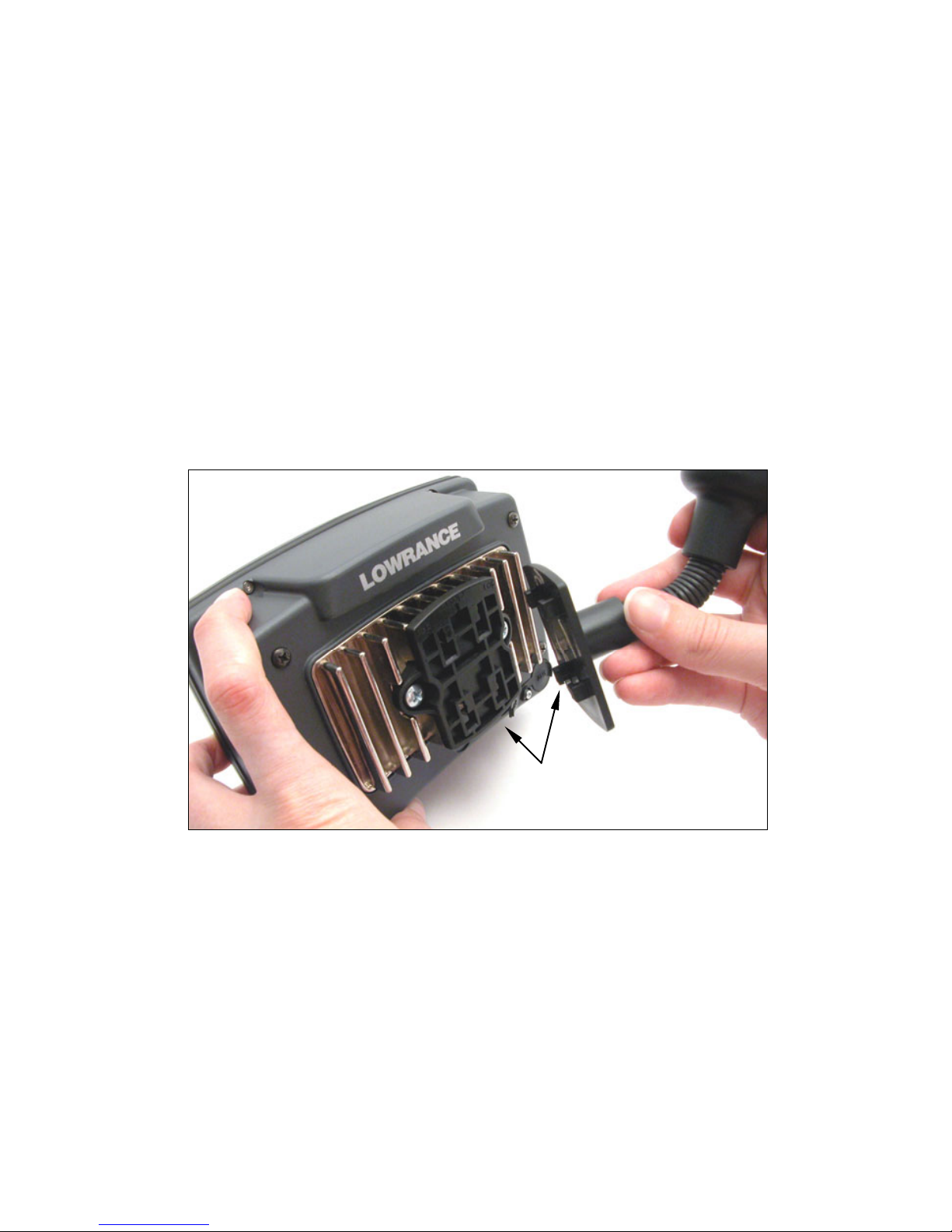

Attaching the unit to mounting arm.

If the suction cup has problems staying secured to the mounting sur-

face, clean the mounting surface and the suction cup with alcohol then

reinstall. Moistening the suction cup may help it stick in some cases.

To remove the suction cup base, disengage the locking lever and pull on

the suction release tab to break the vacuum seal.

Adhesive Mounting Plate

In some automobiles a typical windshield mount may be difficult or un-

desirable. The flat self-adhesive mounting plate allows you to mount

the unit somewhere else, such as on the dashboard or center console.

Align the suction cup mount with the

back of the unit and snap it into place

by sliding the mounting arm up.

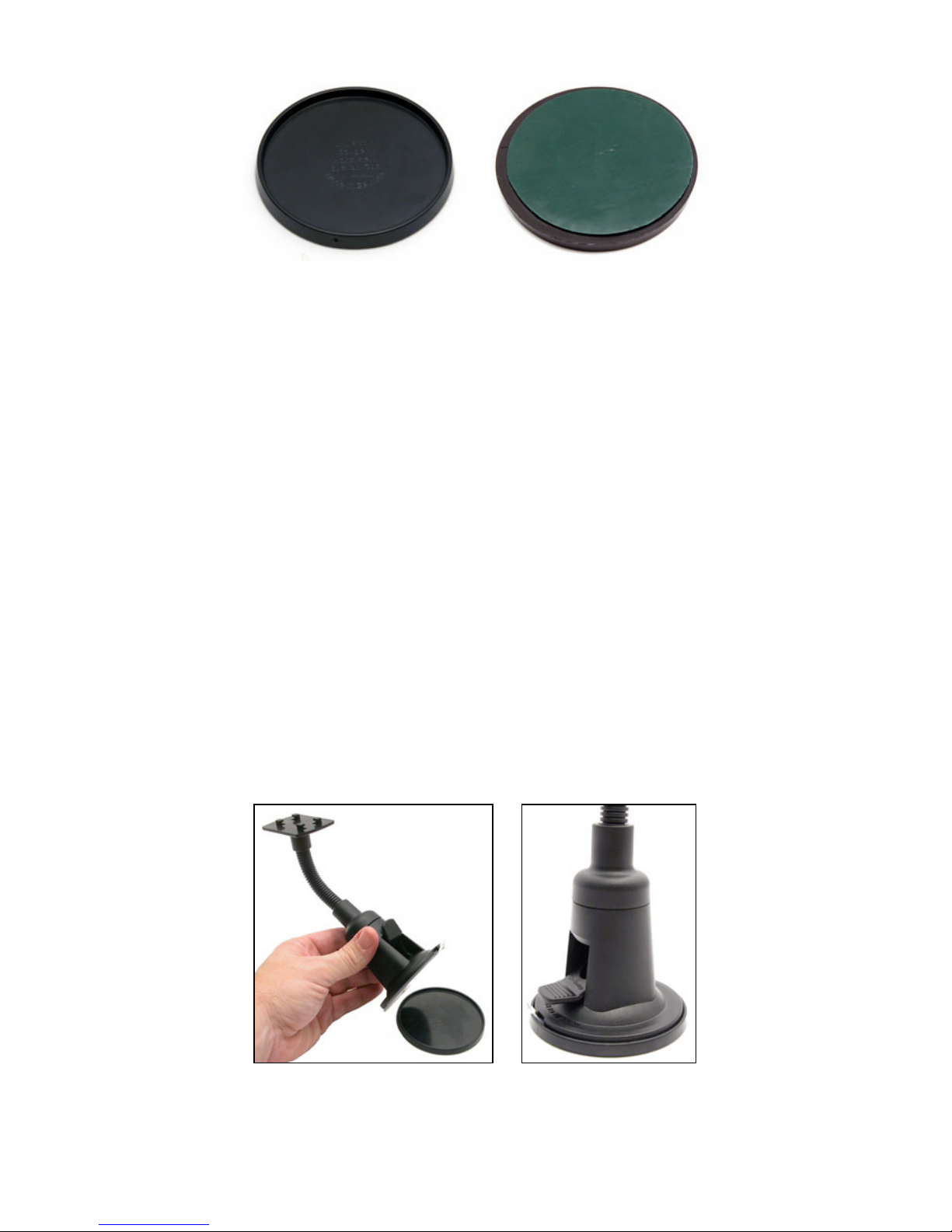

Top view of adhesive mounting plate, at left. Bottom view (right)

shows adhesive pad with paper backing.

The adhesive plate is important in these cases because the suction cup

base will not hold to textured materials covering most dashboards and

center consoles. The plate's smooth, flat surface provides a secure at-

tachment for the mount's suction cup, while the plate's adhesive pad

holds the entire assembly in place.

WARNING:

If you use the adhesive mounting plate it may be ex-

tremely difficult to remove. If you remove the plate it

could leave remnants of the adhesive pad or you could

damage the surface it was attached to.

Determine Plate Location

Once attached, the plate's adhesive pad is difficult or impossible to re-

move. It's important to select the proper location before removing the

adhesive backing. To select a mounting location for the adhesive pad,

connect the GPS unit and mounting arm together. Then attach the

mounting arm's suction cup to the adhesive plate. Hold the entire as-

sembly at the desired location to check how it fits. Make sure the flex

arm can be positioned for easy use.

Attach the mounting arm's suction cup (left) to the adhesive plate. The

flexible suction cup mount (right) locked to the adhesive plate.

Next, power the unit up and make sure the unit can lock on to satel-

lites through the automobile's window. If the unit can not lock on, try

another mounting location. When you have found a suitable mounting

location, make sure the mounting surface is free of dirt and oil. Release

the plate from the suction cup by flipping the locking lever and pulling

the suction release tab. Peel off the adhesive pad's paper backing. Posi-

tion the plate over the spot and press down firmly, maintaining pres-

sure for 20 seconds to ensure the adhesive bonds securely. You can now

attach the suction cup mount and GPS to the plate.

Caution:

Do not leave this unit unattended on an automobile dashboard.

When your car is parked and the GPS is not in use, protect it

from theft and heat by storing it in an unobtrusive location

away from direct sunlight. In warm seasons the temperature on

a car's unventilated or non air-conditioned dash can become hot

enough to prevent the GPS unit from operating.

Long Term Storage

When the GPS is not in use for an extended period of time we recom-

mend bringing it indoors and storing it at room temperature or in some

location with a temperature range of 60º to 90º F.

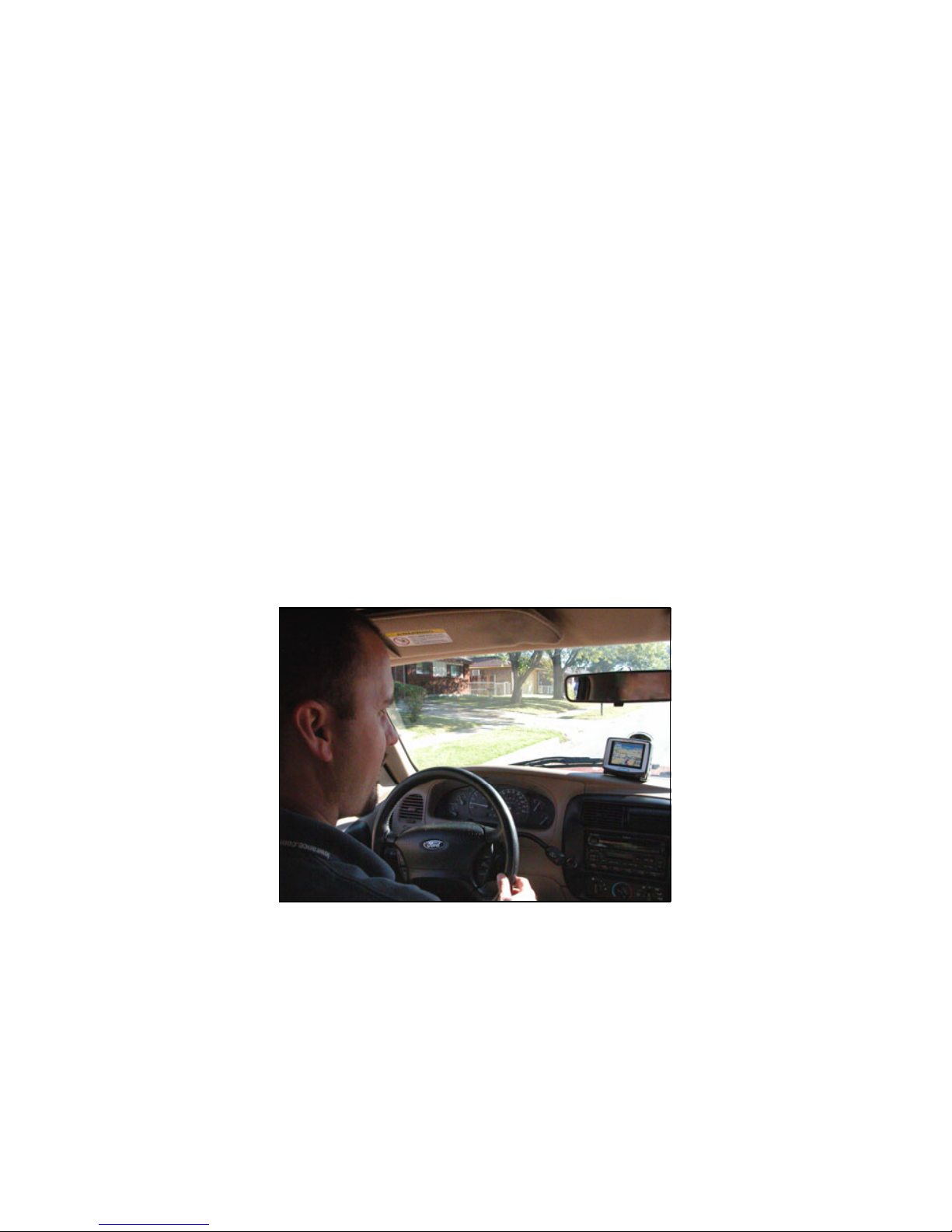

GPS unit centered on dashboard. This photo was taken at passenger

eye level. Notice how the unit was placed so that it does not obstruct

the view of the road ahead through the windshield.

Map Mode Operation

The unit’s map screen is the main display mode. It shows your location

and surroundings. A black arrow icon represents your position on-

screen. The arrow always points in the direction you are traveling.

While the unit is tracking your position, the black arrow icon remains

in the center of the map screen. The map screen scrolls and the map

changes. If you pass under a highway you will see the highway on the

map screen approach the arrow icon then scroll behind even as the

highway overpass dwindles in your rear-view mirror.

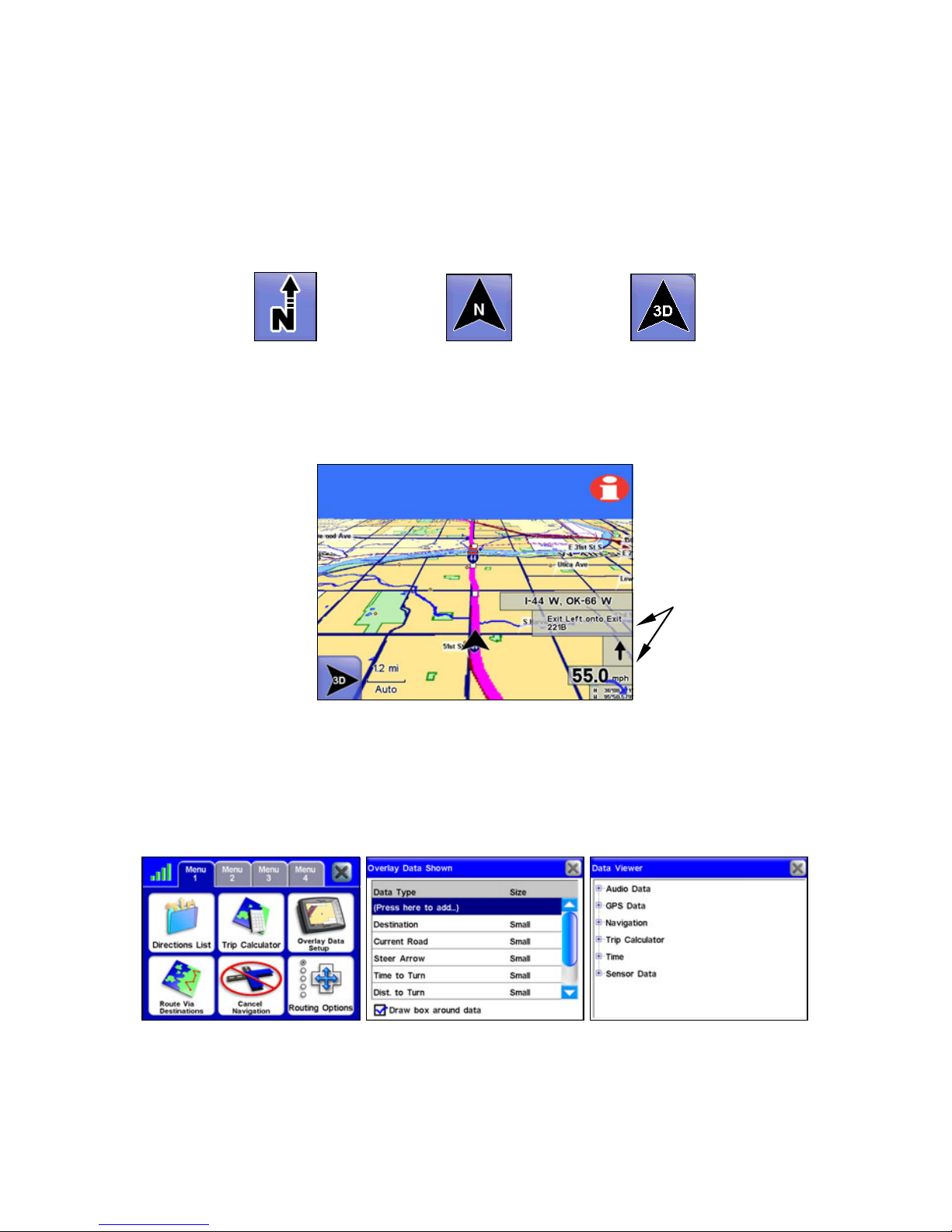

A black arrow icon (left) indicates your position on the map screen.

The map screen with map toolbar buttons is shown at right. Press the

Map Orientation button to select between three different map views.

Map Display Toolbar

The Map Display Toolbar is used to control the map screen. To bring up

the Map Display Toolbar touch the map screen and the cursor and toolbar

will appear. The Map Display Toolbar buttons are:

Clear Cursor clears the toolbar from the screen and centers the map

on your current position.

Map View toggles between three different map screen views. You can

view the regular map screen, aerial view with overlay data or aerial

view without overlay data. The aerial view screens are for selected ar-

eas only.

X clears the cursor and map display toolbar from map screen.

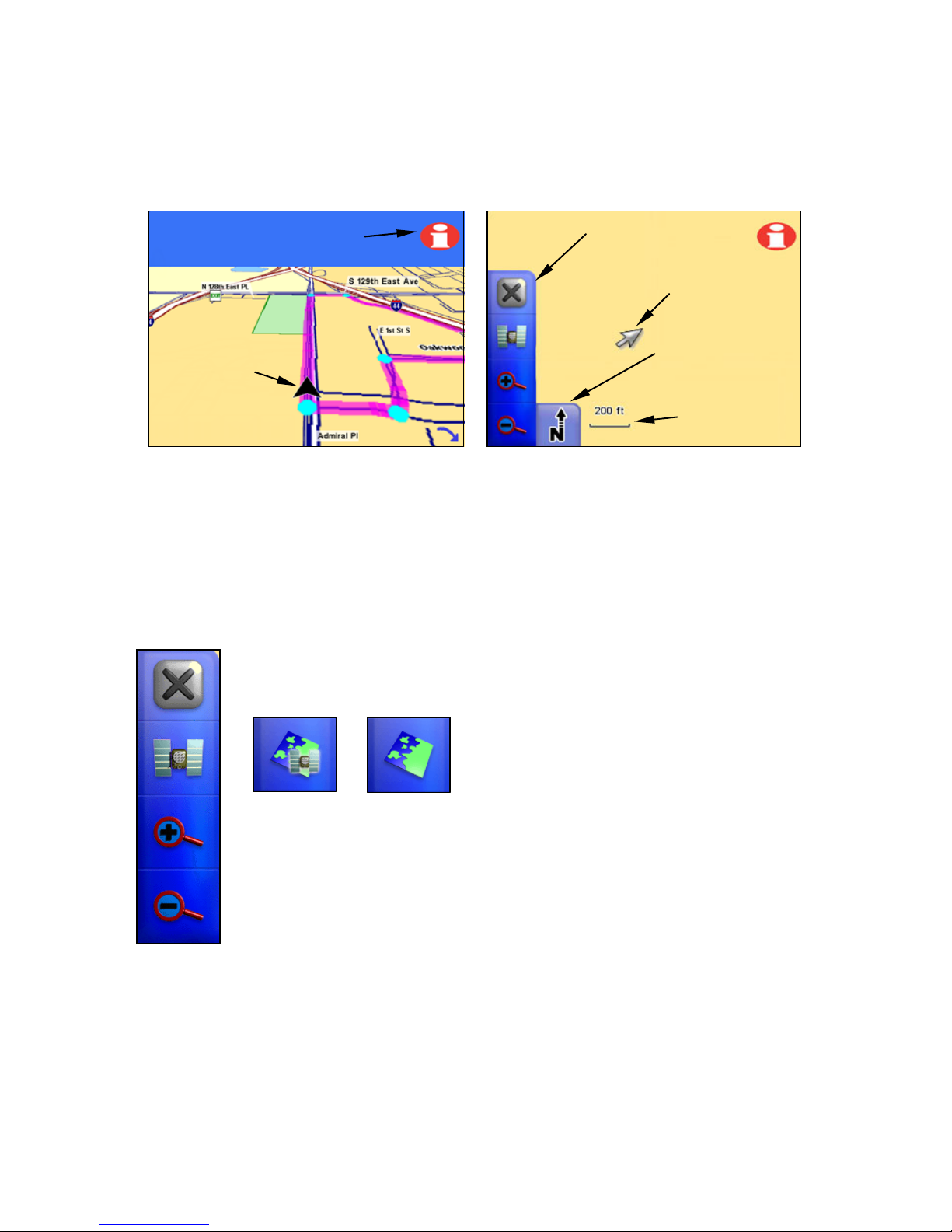

The Map View button toggles between

three different map screen views.

Zoom In.

Zoom Out.

Black

arrow

icon

Map Orienta-

tion button

Range scale

(Auto Zoom)

Curso

Map display

toolbar

Location Information

button

Zoom In and Zoom Out increases or decreases the map view. Control

the zoom to get the most detail possible while still showing all of the

necessary area. You can use this feature in combination with the Move

Map function to focus on an area other than your current location.

The Map Orientation button can be found in the bottom left corner of

the map screen. Touch this button to select between three different

map views:

Overlay Data boxes, like the ones in the bottom right corner of the

next figure, provide textual information about the route you are follow-

ing. Use the overlay boxes to display useful information as you navi-

gate a route.

Map screen with overlay data boxes shown.

Map instructions can be displayed using the overlay data boxes. Use

OVERLAY DATA SETUP from Menu 1 in the Main Menu to select which infor-

mation to display on-screen. Overlay data appears in semi-transparent

boxes on the map screen.

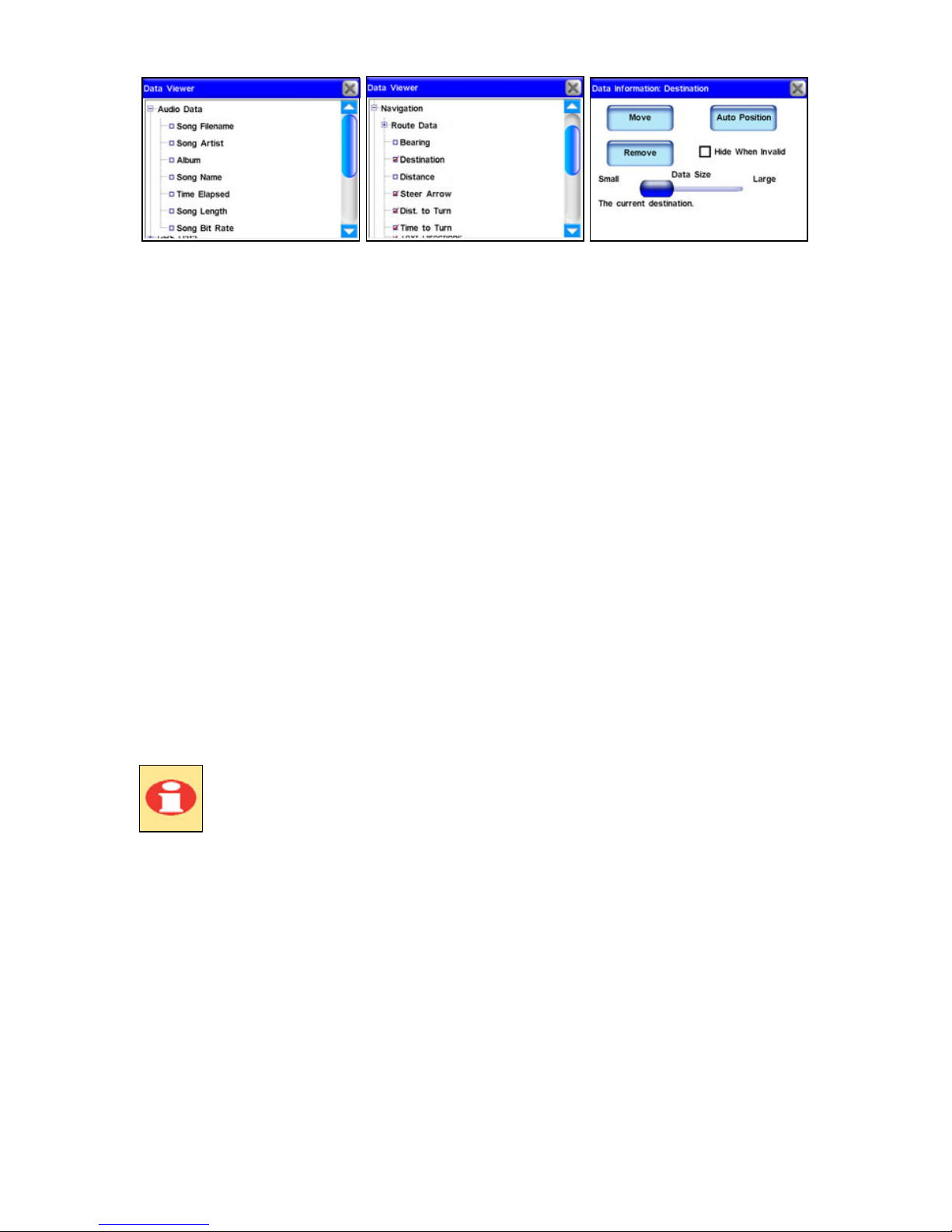

The Overlay Data Setup feature (far left) can be found in Menu1 in the

Main Menu. If you select (Press here to add …) in the Overlay Data

Shown screen (center) the Data Viewer screen will appear. The Data

Viewer screen is shown at right.

Map ove

lay

data boxes.

North Up Track Up 3D View

In the Data Viewer screen you can select the overlay data you want

the unit to display on-screen.

Overlay data can be used to show information such as the distance to

your next turn, the direction and angle of a turn, your speed, estimated

time to destination, text directions and the current road you are travel-

ing on.

The Data Viewer screen is arranged in an expanding tree format. Press

the + sign to view the sub-categories listed under each main category.

When you select Audio Data (left figure above) its subcategories will

appear.

Press in the box to the left of each category to activate it. When a fea-

ture is activated (center figure above) a check mark will appear in the

box next to it. The size of overlay data boxes can be changed using the

slider in the Data Information screen (right figure above).

Each Data Viewer category will have its own Data Information screen.

Bring up the Data Information screen by highlighting and pressing on

the category in the Overlay Data Shown screen.

Location Information button

The Location Information button, shown at left, is located in

the top right corner of the map screen. Pressing this button

will bring up the Location Information or POI Information

screen, depending on whether the cursor is on-screen.

Create Contacts

You can use the Location Information button to save a contact at your

current position and add it to the Address Book. Press the button to

bring up the Location Information screen for your current position, now

select ADD TO ADDRESSBOOK to save your position as a contact.

Altri manuali per iWAY 600C

Indice

Altri manuali Lowrance GPS

Lowrance

Lowrance XOG Manuale utente

Lowrance

Lowrance GlobalMap 5200C GPS Manuale utente

Lowrance

Lowrance LCX-104C Manuale utente

Lowrance

Lowrance AirMap 300 Manuale utente

Lowrance

Lowrance iFINDER Explorer Manuale utente

Lowrance

Lowrance AirMap 2000c Manuale

Lowrance

Lowrance iFINDER GO Istruzioni per il montaggio

Lowrance

Lowrance Elite-5 DSI Manuale utente

Lowrance

Lowrance Nautic Insight HDS-5m Manuale utente

Lowrance

Lowrance 1000 Manuale utente

Lowrance

Lowrance Lowrance iWAY 500C Manuale operativo

Lowrance

Lowrance Endura Out&Back Manuale utente

Lowrance

Lowrance HOOK-4 Manuale utente

Lowrance

Lowrance HDS Live Manuale utente

Lowrance

Lowrance GlobalMap 3000MT Manuale di istruzioni

Lowrance

Lowrance GlobalNav GlobalNav Manuale utente

Lowrance

Lowrance HDS Gen3 Polaris Manuale utente

Lowrance

Lowrance iFINDER Pro IFINDER PRO Manuale utente

Lowrance

Lowrance HDS-5 Manuale utente

Lowrance

Lowrance GlobalMap Baja 840C Manuale utente

Lowrance

Lowrance LGC-2000 Manuale utente

Lowrance

Lowrance Lowrance IWAY 350C Manuale utente

Lowrance

Lowrance Lowrance iWAY 500C Manuale utente

Lowrance

Lowrance GlobalMap 5300C iGPS Manuale utente

Manuali GPS popolari di altre marche

Raven

Raven Cruizer II Manuale

Hama

Hama 53118 Manuale utente

Garmin

Garmin SOUNDER 125 Manuale utente

Garmin

Garmin DEZL 580 Manuale utente

Jigabot

Jigabot EX Manuale utente

Pointer

Pointer Cellocator CelloTrack XT LTE Guida all'installazione

Queclink

Queclink GV55LITE Manuale utente

Voxson

Voxson Voxtrack GPS500 Manuale di istruzioni

Garmin

Garmin ECHOMAP PLUS Manuale utente

Starcom Systems

Starcom Systems Kylos Compact Manuale utente

Garmin

Garmin 15 H Series Manuale utente

Cobra

Cobra Marine MC 600Ci Manuale utente

Cellocator

Cellocator CelloTrack T Manuale utente

Enfora

Enfora Mini-MT GSM2228UG001 Manuale utente

Magellan

Magellan eXplorist 100 Manuale utente

LTE

LTE G50B Manuale utente

Garmin

Garmin DEZL OTR500 Manuale utente

SkyGolf

SkyGolf SkyCaddie SG1 Manuale utente

Lowrance iWAY 600C Manuale utente

Manuali GPS popolari di altre marche
