WARNING
READ EQUIPMENT MANUFACTURES
MANUAL BEFORE USING THIS PRODUCT
•IMPORTANT NOTE: Lamps must have an overall length of
470mm or less. Confirm fit with the lamp in place and fixture set
to the flood position, carefully close the lens door checking for
lamp clearance on the UV lens.
SAFETY
INSTRUCTIONS
•Prior to operation a daily inspection and log are required.
•Users must be authorized, qualified, and certified in their jurisdiction of use.
•It is the user’s responsibility and obligation to determine and comply with all
applicable laws and regulations.
•Do not operate if the unit appears damaged.
•Always use approved safety cables secured to a point capable of supporting the
total weight of the load.
•In case of malfunction disconnect all power supplies, discontinue use, notify
supplier.
•Area under fixture must be always cordoned off and kept clear of all personnel.
•For handling information see page twelve.
•Do not operate without UV lens in place.
•THERE ARE NO USER SERVICEABLE PARTS.
•IF YOU ARE UNSURE ABOUT ANYTHING SUSPEND USE OF THE PRODUCT.
•Questions? Contact LRX LLC service representative, for contact details go to
lrx-lighting.com and click on the contact page.
•For the latest version of this manual please visit “lrx-lighting.com”
LRX Mantis
Check for the latest manual updates at
www.lrx-lighting.com
SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE
3
3
DANGER
•Dangerous voltages are present when power is supplied to the fixture.
•This fixture has more than one power supply. Disconnect lamp power supply
before installation or removal of the lamp.
•Ensure lamp power supply matches lamp manufactures specification.
•Always stand clear of fixture during ignition cycle.
•Ensure fixture meets all local codes prior to operation.
•Safe electrical and working practices must be observed.
WARNING
•This fixture has rotating parts with pinch points.
•Fixtures may move without warning.
•No personal within range of motion.
•Never operate fixture with any covers missing.
•Fixture cooling fans may start automatically, without warning.
WARNING
HEAT AND ULTRAVIOLET RADIATION!
•Arc lamps generate broad spectrum UV radiation.
•Do not operate without complete lamp enclosure in place.
•Do not operate if the UV lens is damaged or missing.
•Limit exposure to high density light.
•UV blocking suntan lotion should be used when working in high density light
locations.
•Excessive exposure to high intensity white light may cause fatigue and skin
irritation.
•High energy light output will burn skin and ignite combustible materials. Do
not operate in the proximity of materials that are adversely affected by heat or
light.
•Failure to adhere to these warnings may result in serious burns or irreversible
skin/eye damage.
•Do not look directly into the light during operation.
LRX Mantis
Check for the latest manual updates at
www.lrx-lighting.com
SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE
4
4
•Personal or flammable objects may not be within 40m (131 feet) of the lens
during operation.
•Lamp housing becomes extremely hot when in operation, avoid contact.
•When fixtures are mounted in close proximity to one another, care must be
taken so that output energy from one fixture is not directed at another fixture,
electrical cabling, mounting structure, etc.
•IMPORTANT: Please follow the operating instructions of the ballast.
LRX Mantis
Check for the latest manual updates at
www.lrx-lighting.com
SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE
5
5
Hand Controller
When the LRX fixture in FIXTURE mode, pins 4 & 5 on the DMX
IN connector become energized to 12VDC to supply power to the hand
controller. No power is supplied to pins 4 & 5 when in DMX mode.
Ensure that fixture is in the correct mode prior to connecting DMX
lines. Always connect the hand controller to the fixture with the
LRX Mantis
Check for the latest manual updates at
www.lrx-lighting.com
SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE
6
6
Fixture Specifications
Electrical: Note this fixture has multiple power sources.
Control power:
•Battery (for programing and parking)
•90-250 AC – non-dimmed feed line 50/60 Hertz
•Watts: 250W
•Power from Lamp Supply
Metal Halide Lamps:
•6KWSE with extended 38mm base (Wolfram)
•6KSE standard 38mm base requires a socket extender part number - G38-
6X, will be required to compensate for the shorter L.C.L. of the standard
6KSE lamp.
•12KWSE with a 38mm base
•18KWSE with a 38 or 51mm base.IMPORTANT NOTE: Lamps must have
an overall length of 470mm or less. Confirm fit with the lamp in place and
fixture set to the flood position, carefully close the lens door checking for
lamp clearance on the UV lens. Osram lamps are 495mm and do not fit.
Tungsten Lamps:
•10KWSE with a 38mm base
•12KWSE with a 38mm base
Head Input Connector:
•Input is configured to accept the Arri type 12/18K connector.
•LRX fixture connector: Cannon part# CB0-28A16PS-A232
•Tungsten mode requires LRX Tungsten input connector with tails that
mate to local distribution.
a. Pin “C” = Line
b. Pin “H” = Neutral
c. Pin “B” = Ground
•See wiring diagram for all pin out connections.
Data Cable:
•Five pin XLR connector
LRX Mantis
Check for the latest manual updates at
www.lrx-lighting.com
SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE
7
7
Physical
•Tilt: 40 degrees above horizontal to 90 degrees below horizontal
•Pan: 330 degrees
•Weight: 57kg/125 pounds approx.
•Designed to accept 29” diameter filter frames, scrims & etc.
•Fixture mounting hooks have been designed to mate with truss chords not
greater than two inches (50.8mm) in diameter.
LRX Mantis
Check for the latest manual updates at
www.lrx-lighting.com
SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE
8
8

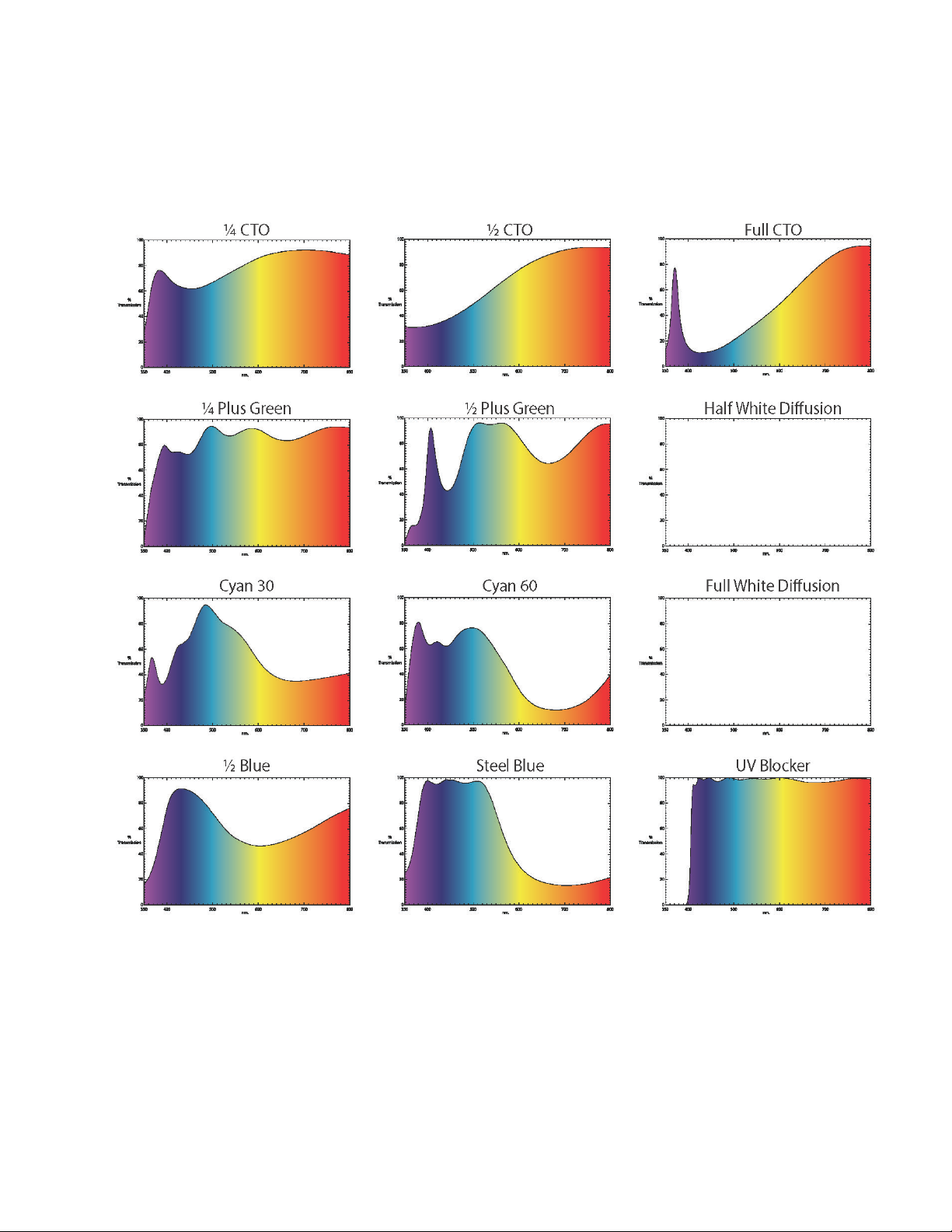

LRX Filters
•Environmentally friendly.
•LRX Lighting offers several high-quality extreme temperature color
correction and diffusion filters. These filters will not burn or change color
and should be the first choice.
•LRX Lighting currently stocks:
•¼CTO, ½CTO & Full CTO
•½CTB & Steel Blue
•Cyan 30 & 60
•¼& ½Plus Green
•½White Diffusion & Full White Diffusion
***Custom colors can be produced to your specifications***
•Industry standard gel type color correction or diffusion filters can be used
with the supplied ring type frames.

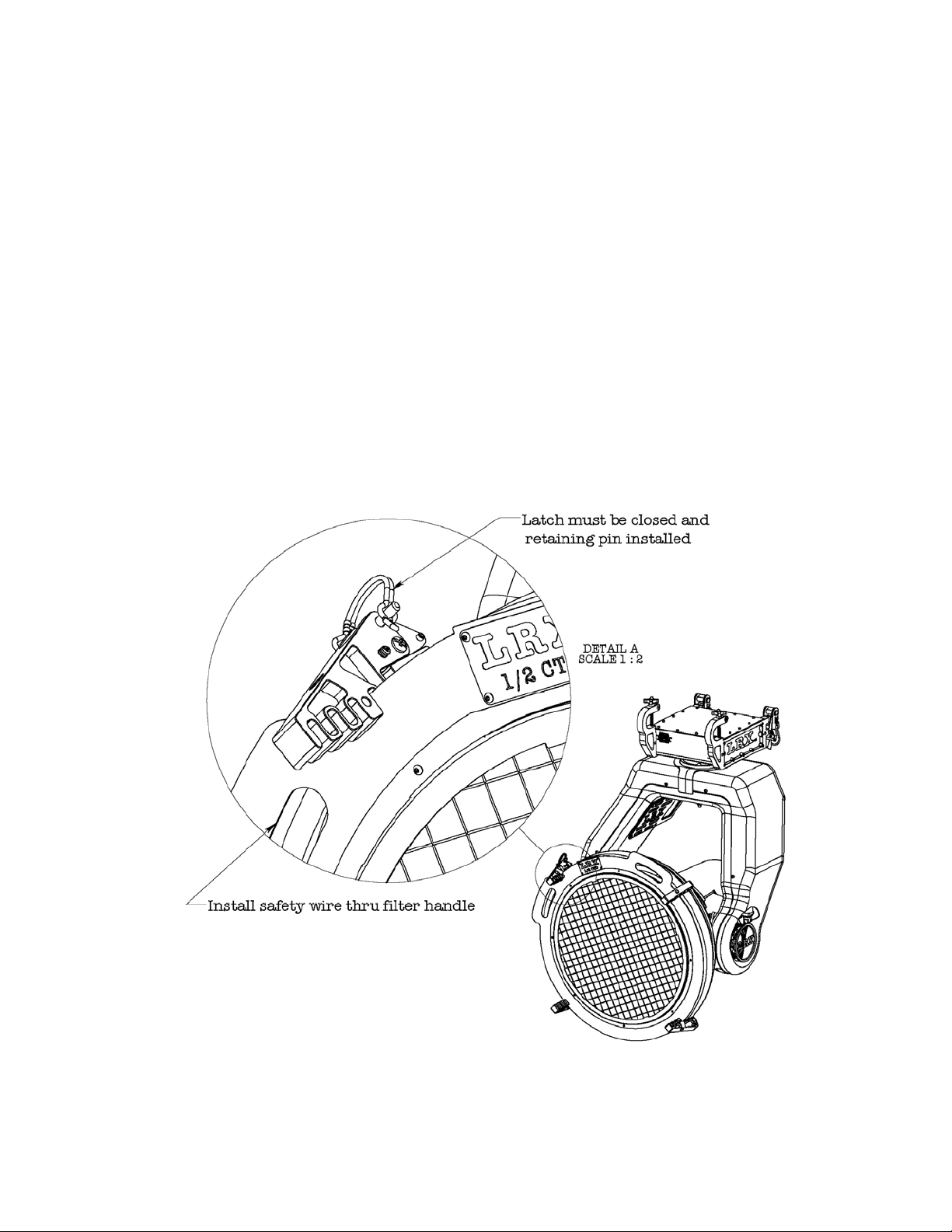

•Attach safety wires as required.
LRX Mantis
Check for the latest manual updates at
www.lrx-lighting.com
SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE
9
9
LRX Mantis
Check for the latest manual updates at
www.lrx-lighting.com
SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE
10
10
Handling the Fixture
•Opening the shipping case cover requires two people to lift. Always use
handles to avoid potential pinch points.
•Heavy lift, minimum two persons, the fixture weight is approximately
57kg/125 pounds.
•Hanging of the fixture creates several potential pinch points.
•Use fixture lifting points, two handles as well as the yoke housing near the tilt
bearing housing are used for lifting.
•If there are any concerns regarding handling, please contact your supervisor.
•Ensure hanger bolts are installed immediately after hanging the fixture.
•Ratchet straps must always have a minimum of one and a half wraps around
the ratchet drum.
Indice
Altri manuali LRX Attrezzatura di illuminazione
