November 2000 1
Copyright © 2000 by LSI Logic Corporation. All rights reserved.
®
LSI22902/22903 Host Adapter
to Intel ISP1100 Internet Server
Quick Installation Guide
The LSI Logic LSI22902/22903 PCI to Dual Channel Ultra2 SCSI Low
Profile Host Adapter is ideally suited for installation into the Intel ISP1100
Internet Server Platform. In this application, the host adapter provides
one internal LVD only channel and one LVD or SE external channel.
1Overview
This document describes installing the LSI22902/22903 into the Intel
ISP1100 Internet Server Platform. The host adapter kit includes the
following items. Refer to Figure 1 for a picture of the complete kit.
•LSI22902 or LSI22903 Host Adapter.
•Host Adapter user’s guide.
This manual contains detailed engineering documentation for the
LSI22902/22903.
•PCI Storage Device Management SDMS 4.0 CD.
This CD contains software and associated documentation for the
LSI22902.
•Internal SCSI cable with attached Ultra2 LVD terminator.
•High Density (HD) LED connector.
•An additional card guide for a standard PC chassis.
2 LSI22902/22903 Host Adapter to Intel ISP1100 Internet Server
Figure 1 LSI22902 Host Adapter Kit
2 Installation
The installation process contains the following four major sections:
•Section 2.1, “Setting up the Installation”
•Section 2.2, “Installing the Host Adapter Board”
•Section 2.3, “Installing New Drives”
•Section 2.4, “Completing the Installation”
LSI22902/22903 Host Adapter to Intel ISP1100 Internet Server 3
2.1 Setting up the Installation
Important: Make sure the ISP1100 server is turned off and is not
plugged into an electrical outlet. Take all precautions to
minimize ESD. A ground strap is recommended.
Step 1. Identify the parts listed below on the LSI22902/22903. Refer to
Figure 2 for a photograph of the board.
•Internal Channel B, 68-pin HD connector, J4.
•Hard drive activity LED connector, J3.
•External Channel A, VHDCI 68-pin connector, J2.
Note: Detailed specifications for both boards are contained in the
host adapter user’s guide.
Figure 2 LSI22902/22903 Close-up
Step 2. Remove the top cover of the Intel ISP1100 server by removing
the top plate screw.
Step 3. Carefully slide the top cover plate back until the beveled front
edge clears the chassis.
4 LSI22902/22903 Host Adapter to Intel ISP1100 Internet Server
Step 4. Lift the cover using the notch in the front of the cover and
remove.
Refer to Figure 3 for a photograph of the ISP1100.
Figure 3 Intel ISP1100 Internet Server
Step 5. Locate the components of the ISP1100. Refer to Figure 4 for a
photograph of an opened unit.
a. Retention bracket.
b. PCI bus riser card.
c. Area for mounting the LSI22902/22903.
Theslotontherightsideoftherisercard.
d. Slimline floppy cable.
White cable approximately 1 inch wide.
e. IDE cables for hard drives and CD-ROM.
Gray cables approximately 2 inches wide.
LSI22902/22903 Host Adapter to Intel ISP1100 Internet Server 5
f. Slimline floppy and CD-ROM assembly.
g. Two hard drive bays.
The ISP1100 is provided with a floppy cable for hard drives,
but no drives are installed or included.
h. IDE cable with hard drive connectors.
The cables are routed under the drive bays and the
CD-ROM/floppy assembly.
i. SCSI hard drive activity LED connector .
J11 on the mainboard.
Figure 4 Intel ISP1100 Server, Cover Removed
2.2 Installing the Host Adapter Board
This section of the manual describes setting up the Intel ISP1100 server
and installing the LSI22902/22903 and other system hardware.
Step 1. Identify the PCI low profile slot for the host adapter board.
6 LSI22902/22903 Host Adapter to Intel ISP1100 Internet Server
Refer to Figure 5.

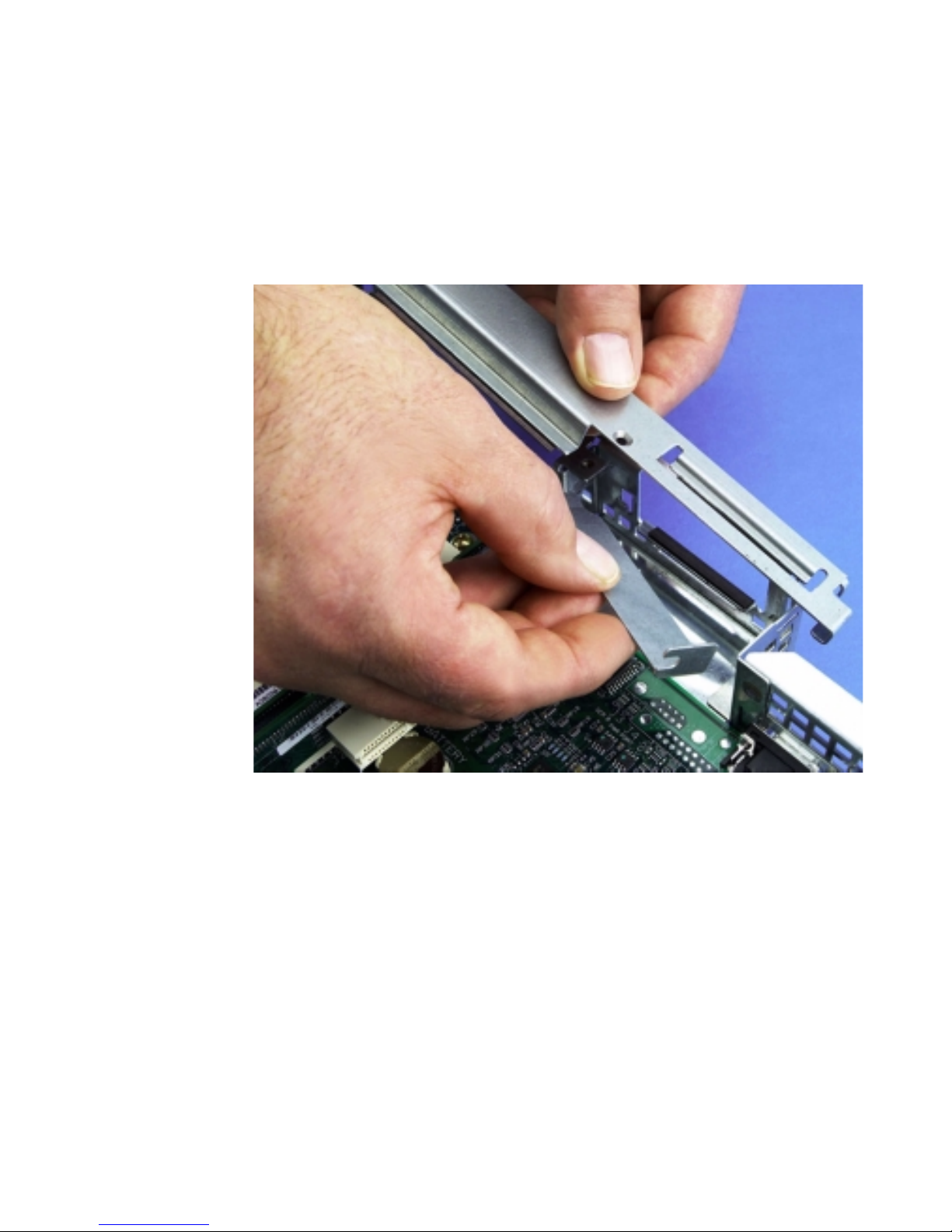

Step 2. On the back of the chassis, remove the two screws holding the
expansion bays retention bracket.
Step 3. Remove the retention bracket and the expansion slot cover.
Figure 5 PCI Slot Location
You can use one of two methods to install the SCSI card in the ISP1100.
Both methods install the board in the same location but use a different
sequence of steps. You might want to review both methods to see which
you prefer. The LSI22902/22903 provides the best performance in a
64-bit PCI SCSI host adapter card, but it provides full functionality in the
32-bit slots of the ISP1100.
2.2.1 LSI22902 Installation Method 1

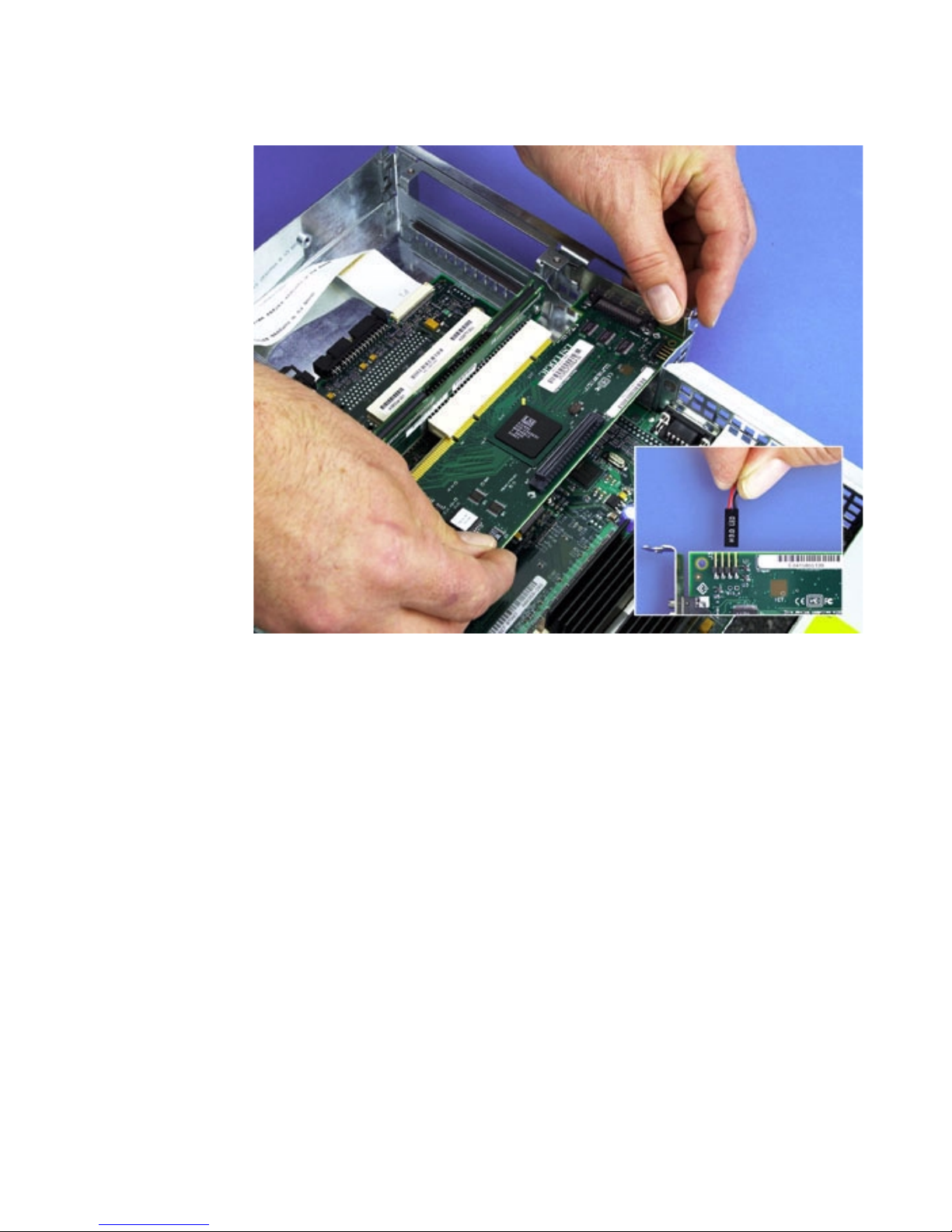

Follow these steps to install the LSI22902/22903 into the ISP1100. Refer
to Figure 6 for a photograph of the Method 1 installation.
LSI22902/22903 Host Adapter to Intel ISP1100 Internet Server 7
Step 1. Attach the hard drive LED cable to the SCSI host adapter card.
Use either pin pairs 1-2 or 3-4, as shown in the inset in
Figure 6.
Step 2. With the host adapter board bracket facing the rear of the
computer, insert the host adapter card in the expansion slot by
carefully pressing the PCI bus edge connector into the PCI slot.
TheSCSIcardalignsitselfproperlytothePCIslotifthecard
guide bracket is in the proper position.
With the card properly inserted, the SCSI card bracket rests in
the tab on the back of the chassis. There is no screw securing
the card guide bracket in place as in a PC.
Step 3. Secure the expansion bay retention clip with the two previously
removed screws.
Figure 6 Method 1 Installation
8 LSI22902/22903 Host Adapter to Intel ISP1100 Internet Server
2.2.2 LSI22902 Installation Method 2
Method 2 is different from the first method in that you remove the riser
card from the ISP1100 to insert the LSI22902/22903, rather than doing
it in place as in Method 1. Refer to Figure 7 for a photograph showing
the host adapter installed in the riser card.
Step 1. Attach the hard drive LED cable to the SCSI host adapter card.
Use either pin pairs 1-2 or 3-4, as shown in the inset in
Figure 7.
Step 2. Gently remove the riser card from the server board connector.
Step 3. Plug the SCSI card in the right slot on the riser card.
Step 4. Press the riser with the installed SCSI card straight down into
the mating connector on the server board.
With the card properly inserted, the SCSI card bracket rests in
the tab on the back of the chassis. There is no screw securing
the card guide bracket in place as in a PC.
Step 5. Secure the expansion bay retention clip with the two previously
removed screws.
LSI22902/22903 Host Adapter to Intel ISP1100 Internet Server 9
Figure 7 Method 2 Installation
At this point in the installation process, you should be at the same point,
regardless of the installation method chosen. Proceed with the next step.
Step 6. Remove the floppy drive cable as shown in Figure 8 by gently
lifting the cable retainer on the connector, pulling the cable from
under the fan assembly bracket, and laying it back to the side.
Do not disconnect this cable from the mainboard.
Step 7. Remove the CD-ROM cable and power cable as shown in
Figure 9.
Press the cable ejector tabs on both sides of the cable and
disconnect the CD-ROM power cable.
10 LSI22902/22903 Host Adapter to Intel ISP1100 Internet Server
Figure 8 Floppy Cable Location
