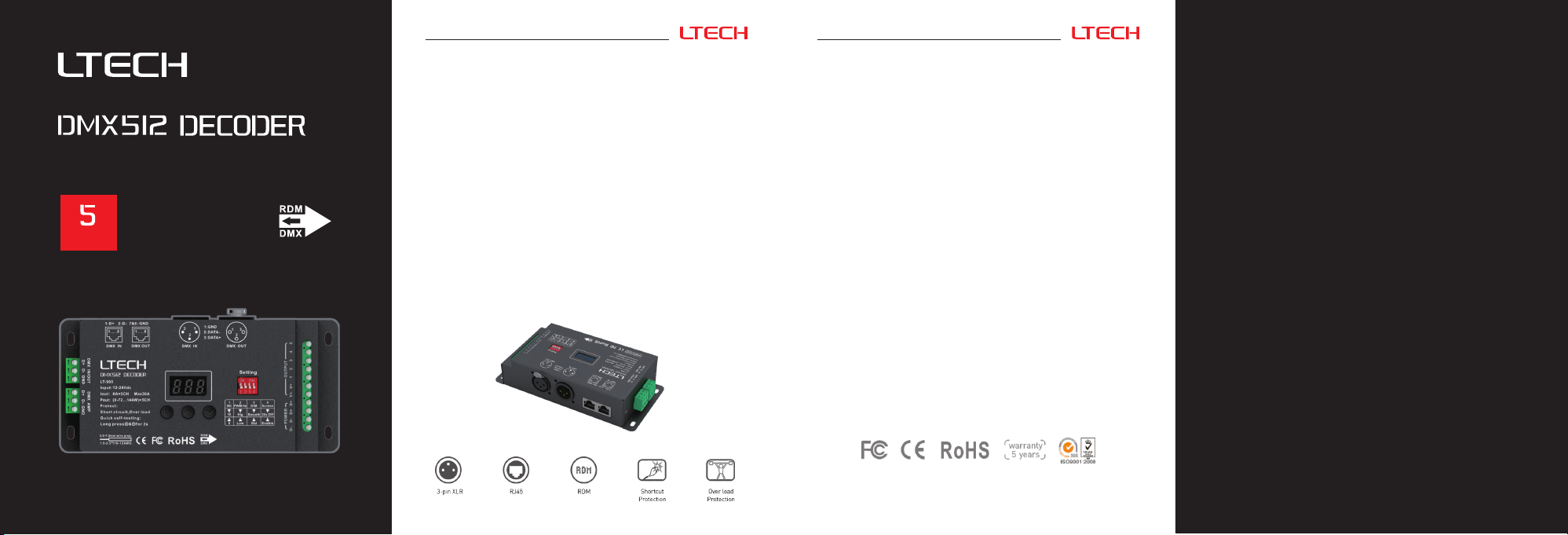

Ltech LT-995 Manuale utente

Product Introduction: Technical Specs:

www.ltech-led.com

Shortcut / Over load protection

8 bit / 16 bit

3 kinds of DMX interfaces

CHANNELS

LT-995

www.ltech-led.com www.ltech-led.com

LT-995

DMX512/RDM

× 5CH Max. 720W

3-pin XLR, RJ45, green terminal

-30℃~65℃

L169×W80×H39mm

L182×W91×H41mm

550g

12 24Vdc

6A 5CH Max. 30A

(0~72W...144W)

8bit (256 levels) / 16bit (65536 levels)

Shortcut / Over load

Model

Input Signal

Input Voltage

Current Load

Protection:

Working Temperature :

Output Power :

DMX Interface :

Grey Level

Dimensions

Package Size

Weight (G.W.)

4. With the operations can be completed

via the RDM master console, such as parameters browsing & setting, DMX

address setting, equipment recognition, etc.

RDM remote management protocol,

3. Support 3 kinds of DMX ports : 3-pin XLR, RJ45, green terminal.

2. Easy operation with digital display and the touch buttons.

1. Designed with 5 channels output, and Max. 6A current per channel, up to

720W output power.

function when fault.

With shortcut protection and over load protection, as well as warning

6. With fast self-testing function.

8. 16bit (65536 levels) / 8bit (256 levels) grey level optional.

7. High/low frequency PWM for optional

456

www.ltech-led.com www.ltech-led.com www.ltech-led.com www.ltech-led.com

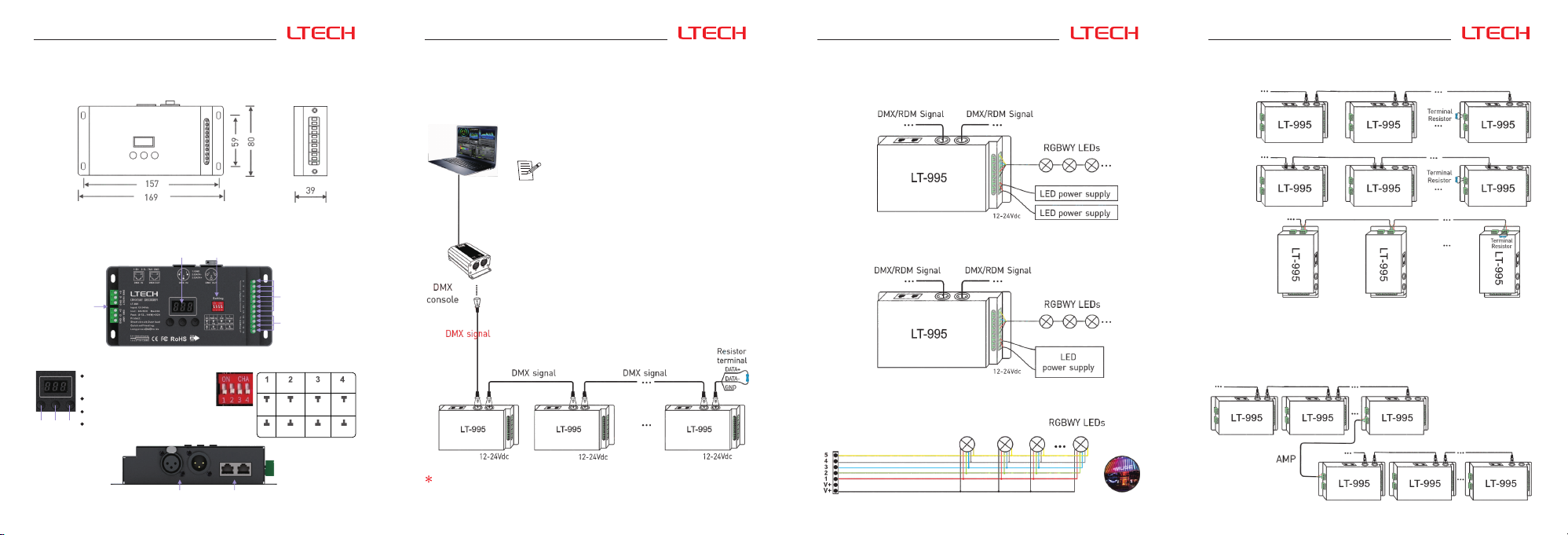

Product Size:

Main Component Descripition:

Wiring Diagram:

3-pin XLR

Connected

in Parallel

RJ45

Connected

in Parallel

Green Terminal

Connected

in Parallel

These 3 terminals can be connected in a mixed way.

4. The connection diagram of :AMP signal amplifier terminal

2 Connecting LED lights:

LT-995 is equipped with 3 types DMX terminals for

users’ selection. The following diagram takes 3-pin

XLR as an example, same connecting method for the

rest two: RJ45 & green terminal (with amplifier

function).

1. DMX console onnectionc :

If the recoil effect occurs because of longer signal line or bad line quality,

please try to connect 0.25W 90-120Ω terminal resistor at the end of each line.

The Unit: mm

RJ45

3-pin XLR

Green terminal

DMX/RDM

input & output

Digital

display

Dip

switch

Green terminal

LED lamps connection

12-24Vdc

Power input

Update Time: 2017.04.18_A0

Digital display Dip switch

Screen

Hig Smooth

Low Std

30S off

Enable

PWM Hz DIM

Bit

Digital display will enter the locked

mode without operating after 15S.

Long press “M” key to unlock.

Short press “M” key to switch numbers.

Press “ ””v” key to adjust value.

3. The connection diagram of 3 kinds of DMX/RDM terminals:

Connecting with green terminal or an extra amplifier will be needed when more than 32

decoders are connected or use overlong signal wire(as shown below).

Signal amplifier should not be more than 5 times continuously.
