Part 2

Please read Part 1 — Important Product

Information, included in your package.

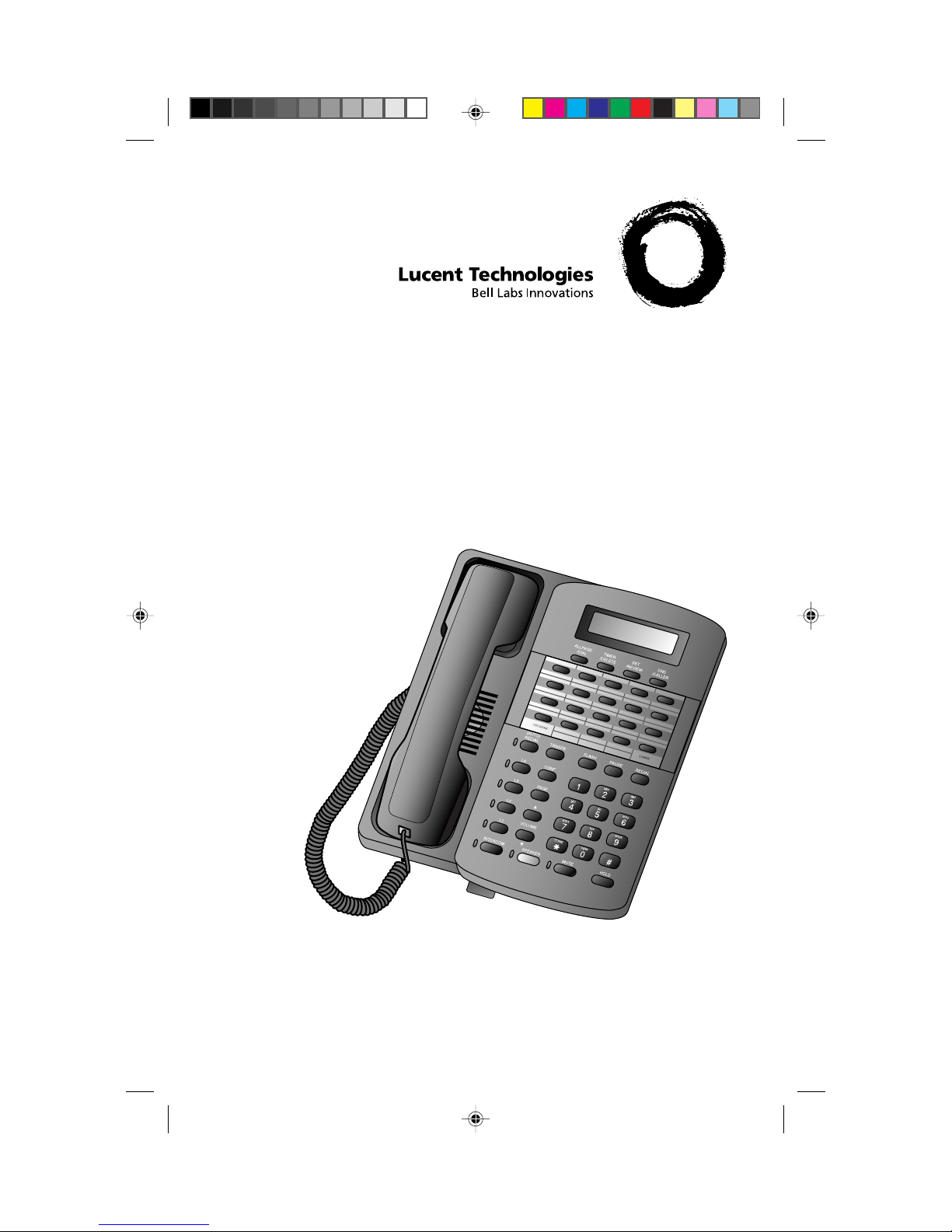

User’s Manual for

Four-Line Intercom/

Speakerphone 954

Lucent 0954 cover.L1 5/9/98, 12:17 PM3

Printed in Mexico. Issue L1

Lucent 0954 cover.L1 5/9/98, 12:17 PM2

CONTENTS

BEFORE YOU BEGIN ........................ 3

INSTALLATION................................. 4

Table/Desk Installation.......................... 4

Wall Installation..................................... 6

TELEPHONE FEATURE SETUP .........10

Assign Intercom Number ....................10

Set the Clock. ...................................... 10

Set Dial Mode ...................................... 10

Set forTwo orThree Phone Lines........11

Set Up for a Private Line...................... 11

Change BATTERY Display ...................11

OPERATION................................... 12

Making a Call....................................... 13

Call Privacy ......................................... 13

Line-In-Use Lights ................................ 13

Volume ................................................ 14

Redial .................................................. 15

Auto Redial.......................................... 15

Hold .................................................... 15

Switch Between Lines .........................15

Mute .................................................... 16

Flash .................................................... 16

TemporaryTone Dialing ...................... 16

Conference Calls ................................. 16

Do Not Disturb.................................... 17

Transfer a Call...................................... 17

Timer................................................... 18

TELEPHONE MEMORY ....................19

Directory Card .................................... 20

Storing Numbers in Memory...............20

Storing a Pause in a

Memory Number ............................. 20

Storing aTemporaryTone Signal

in a Memory Number ...................... 20

Storing Flash in a Memory Number ....20

Erasing Memory Numbers................... 20

INTERCOM OPERATION ..................21

Basic Intercom Operations..................22

Making an Intercom Call or Page ........22

Answering an Intercom Call or Page...22

Ending an Intercom Call or Page.........22

PagingAll Phones ................................ 23

Answering anALLPAGE ....................... 23

Making an Intercom

Conference Call ............................... 23

Room Monitor ..................................... 23

CheckingYour Station Number...........23

IN CASE OF DIFFICULTY .................24

EXPANDING THE 954 SYSTEM........26

CENTREX OPERATION ....................27

Setup Checklist ................................... 27

Setting Up a Fourth Line

for Each Station ............................... 27

Enabling/DisablingAttendant Station..27

Attendant Operation ........................... 28

Setting Ring Delay Duration................28

Answering a Delayed Ring .................. 28

Picking UpAnother Station’s Line .......29

Lucent 0954 book.L1 5/7/98, 10:34 AM1

Lucent 0954 book.L1 5/7/98, 10:34 AM2

BEFORE YOU BEGIN

• You must have a modular telephone jack and electrical outlet near

where you’re installing the phone.

• The total length of telephone line cord used in this system is

important. If the total length of telephone line cord is more than

600 feet,you may need to use a special filter device. You can call

1 800 PCC–9125 for information about this filter. You’ll need to

contact a professional to install this filter.

• Identify the number of phone lines you’ll use.

• All connected phones must have the same Line 1 phone number for

Intercom and Paging to work.

• Assign a different Intercom Extension Number (11 through 22) to

each 954 telephone. You’ll need to do this individually at each

telephone.

• Decide if you want a private line. A private line does not appear on

all connected phones.

Lucent 0954 book.L1 5/7/98, 10:34 AM3

Table/Desk Installation

1 Install 3 AAA batteries.

• Press in on the tabs and remove the telephone base.

• Press in on the tabs on the battery door,and remove it.

• Insert 3AAA batteries,and replace the battery door.

• Replace the telephone base.

NOTE: Batteries retain telephone memory in the event of a power failure.

If power fails, this phone will not work.

INSTALLATION

2 Connect the telephone line cords to the telephone.

NOTE: If the phone rings when you first connect the line cords, you need

to set the phone’s intercom number. See “Assign Intercom Number”in the

TELEPHONE FEATURE SETUP section of this manual.

•Four One-Line Jacks

Modular

Telephone Jacks

Lines 1 and 2

Modular

Telephone Jacks

Lines 3 and 4

Telephone Jacks

Power Cord

Telephone

Line Cords

Standard

Electrical

Outlet

Lucent 0954 book.L1 5/7/98, 10:34 AM4

•Two Two-Line Jacks

INSTALLATION

Telephone

Line Cords

Telephone Jacks

Modular

Telephone Jack

Lines 1 and 2

Modular

Telephone Jack

Lines 3 and 4

Power Cord

Standard

Electrical

Outlet

3 Connect the power adapter.

Use only the power adapter provided with this product. To obtain a

replacement,call 1 800 PCC–9125.

Plug one end of the power adapter into the jack labeled ADAPTER

on the back of the phone. Plug the other end into a standard

electrical outlet.

4 Connect the handset cord.

Plug one end of the coiled handset cord into the jack on the bottom

of the phone. Plug the other end into the handset, and hang up.

5 Check for dial tone.

Lift the handset and listen for a dial tone. If you cannot hear a dial

tone,turn to IN CASE OF DIFFICULTY in this manual.

Lucent 0954 book.L1 5/7/98, 10:34 AM5

Wall Installation

1 Reverse the handset tab.

Hold down the switchhook,then pull the tab out and rotate it 180

degrees. Release the tab so it settles into position.

2 Install 3 AAA batteries.

• Press in on the tabs and remove the telephone base.

• Press in on the tabs on the battery door,and remove it.

• Insert 3AAA batteries,and replace the battery door.

3 Turn the base, as shown, and attach it to the bottom of the

phone.

INSTALLATION

Lucent 0954 book.L1 5/7/98, 10:34 AM6

4 Connect the telephone line cords to the telephone.

•Four One-Line Jacks

•Two Two-Line Jacks

5 Connect the power adapter to the telephone.

Use only the power adapter provided with this product. To obtain a

replacement,call 1 800 PCC–9125.

Plug one end of the power adapter into the jack labeled ADAPTER

on the back of the phone.

Telephone

Line Cords

Telephone Jacks

Modular

Telephone Jack

Lines 1 and 2

Modular

Telephone Jack

Lines 3 and 4

Power Cord

Standard

Electrical

Outlet

INSTALLATION

Standard

Electrical

Outlet

Modular

Telephone Jacks

Lines 1 and 2

Modular

Telephone Jacks

Lines 3 and 4

Telephone Jacks

Power CordTelephone

Line Cords

Lucent 0954 book.L1 5/7/98, 10:35 AM7

6 Mount the phone on the wall.

•Four One-Line Jacks

•Two Two-Line Jacks

NOTE: If you have three modular telephone jacks, mount the phone onto

a jack without a wall-mounting adapter. If you have four modular

telephone jacks, mount the phone onto a jack without a wall-mounting

adapter.

INSTALLATION

Modular

Telephone

Jack Line 1

Modular

Telephone

Jacks Lines

3 and 4 Telephone

Line Cord

Telephone

Line Cord

Standard

Electrical

Outlet

Modular

Telephone

Jack Line 2

Power Cord

Telephone

Line Cord

Standard

Electrical

Outlet

Modular

Telephone

Jack Lines

3 and 4

Modular

Telephone Jack

Lines 1 and 2

Power Cord

Lucent 0954 book.L1 5/7/98, 10:35 AM8
