Luma Surveillance 310 Series Manuale utente
310 Series PTZ
IP Surveillance Camera
Quick-Start
Guide
2
Luma 310 PTZ Camera
Read this before you go on site!
Install your camera with a connection to the Internet via your
NVR or through a network router. This allows you to use OvrC,
a powerful remote maintenance tool. See OvrC.com for details.
In addition, your client can use the Luma Surveillance mobile
app to check on the camera from anywhere.
For installation using this guide, you must be able to access this
camera through a personal computer. If your surveillance system
is not on a network, you’ll have to use the NVR’s local interface
for installation. See the NVR user’s manual for details.
Additional Resources
You can acquire a PDF of the web interface manual and other
materials from the camera’s product page at SnapAV.com.
WARNING: This product can expose you to chemicals
including cadmium, which is known to the State of
California to cause cancer. For more information go to
www.P65Warnings.ca.gov.
3
Luma 310 PTZ Camera
Box ContentsBox Contents
}Camera
}Mounting plate
}3 × wall anchors with screws (2 sets)
}Weatherproofing kit for PoE cable
You must provide:
}Standard slot-head screwdriver
}A network connection (and an NVR, if desired)
}Admin rights to a computer that can access the network
}Mobile device with Luma Surveillance app (recommended)
or CCTV tester
}Power source: PoE or 12V DC
}Phillips screwdriver
4
Luma 310 PTZ CameraLuma 310 PTZ Camera
Safety TipsSafety Tips
}Handle this device with care.
}Do not strike or shake this device.
}Protect the power cord from being stepped on or pinched,
particularly where it connects to the device and the power
outlet.
}Do not operate this device beyond its specified power ratings.
}Do not use this device near any heat sources such as
radiators, heat registers, stoves, or other such heat-generating
equipment.
}The performance and lifespan of the camera is affected by
temperature. For best results, use this device in temperatures
ranging from -20–140 °F.
}Clean this device with a dry cloth. Do not use strong or
abrasive detergents, especially when cleaning the lens. If dirt
is hard to remove, use a mild detergent and wipe gently.
}Save a copy of the configuration settings. This helps when
changing the configuration, when upgrading the device, or
with recovery if unexpected failure or trouble occurs.
}Avoid the chance of a laser striking the camera’s light sensor.
5
Luma 310 PTZ Camera
PrecautionsPrecautions
Before you start, ensure that the device is in good condition
and all the assembly parts are included. Also ensure that your
recorder has the very latest firmware. Use OvrC to update the
firmware, or consult your NVR manual.
}Ensure that all equipment is powered off during installation.
}Ensure the mounting surface is strong enough to hold three
times the weight of the camera and the mount.
}If the mounting surface is cement, use the included expansion
screws to install the camera. If mounting to a wood surface,
use self-tapping wood screws (not included) to secure the
camera.
}If the product does not function properly, please contact
technical support. Do not disassemble the camera for repair
or maintenance.
6
Luma 310 PTZ Camera
Your CameraYour Camera
Before installing, familiarize yourself with your camera.
Tails
The PTZ camera has two leads: a 12V power lead, and a network
jack.
The power cable ends in a standard barrel connector. Attach
this to your 12V power supply.
For outdoor installs, be sure to use the waterproofing kit on
your network cable, as shown on the next page.
7
Luma 310 PTZ Camera
Weatherproofing the PoE CableWeatherproofing the PoE Cable
1. Slide the unterminated cable through the lock nut , the
rubber gasket , and the weatherproof endcap. Face the notched
side of the rubber gasket toward the endcap, as shown.
2. Terminate the RJ45 cable with a network plug .
3. Place the O-ring onto the end of the camera’s network
interface socket with the flat side toward the camera. Push it
past the locking teeth as far as it easily goes.
4. Connect the RJ45 plug to the camera’s network socket .
5. Align the teeth on the weatherproof endcap with the gaps
on the camera’s network socket . Insert the socket into the
endcap. Twist until they click into position (the O-ring gives
you some give while still weatherproofing the connection).
6. Slide the rubber gasket into the weatherproof endcap .
Secure it by screwing the lock nut tightly onto the endcap .
8
Luma 310 PTZ Camera

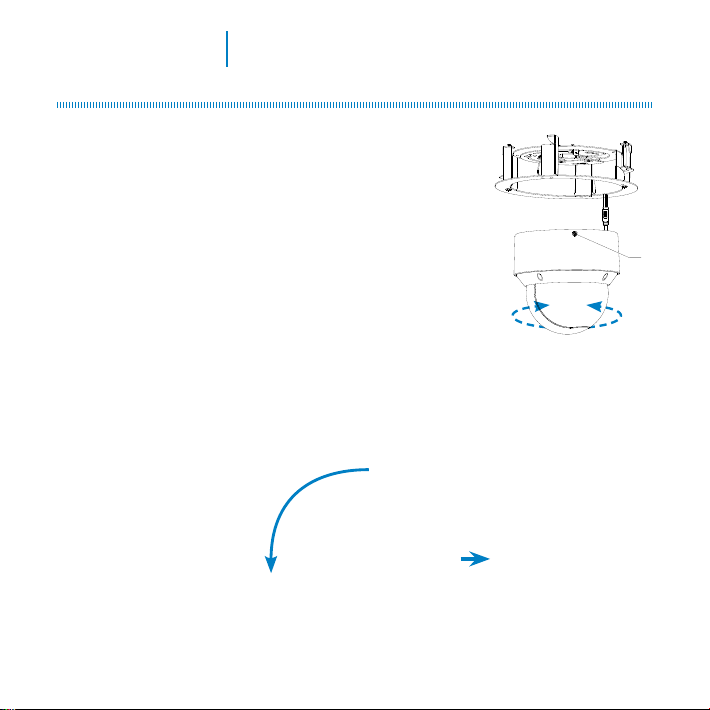

Installation: On-CeilingInstallation: On-Ceiling
Route the cables either from the top of the
mount into the ceiling, or out the side of the
mount to run across the ceiling.
Requirements
The ceiling must be able to hold four times
the weight of the camera and mount. The
ceiling tiles should be 5–40mm thick.
Steps
1. Turn the camera over. Turn the install plate counterclockwise
to separate it from the camera.
2. Place the install
plate in location.
Ensure the front
aims toward the
primary viewing
area; the camera’s
cabling routes out
the back.
LO C K
O P EN
OpenLock
9
Luma 310 PTZ Camera
3. Holding the installation plate in
place, use a pencil to mark the
drilling locations using the plate as
a guide.
4. Drill four holes for mounting screws.
5. Flip the base plate over and attach it
to the ceiling as shown.
6. Route the cables through the cable
hole or conduit and connect them to
the camera tails.
7. Align the PTZ camera
with the base plate.
Insert the PTZ camera
and rotate it clockwise
into the base plate until
the camera can turn
no further (this is the
opposite of step 1). Note
the icons on the side of
the PTZ to ensure you
rotate it properly.
10
Luma 310 PTZ Camera
Install and Run the Luma UtilityInstall and Run the Luma Utility
Use the Luma Utility to locate your camera and set it up.
Visit your product page at SnapAV.com and download
the Luma Utility installer from the Support tab. You
must use v3.0.0.53 build 20170426 or later! Earlier
versions of the utility will not work!
Run the installer. You can click through and accept the defaults.
Pre-Installation Camera Configuration
You’ll find it easiest to connect the camera directly to your PC,
making most adjustments to the camera from the convenience
of your table (prior to physical installation), rather than from
atop a ladder.
Connect the camera to your PC and run the Luma
Utility. It searches for attached Luma Surveillance
devices. If your camera does not appear, check the
connection, ensure the camera is powered up, then
click the Refresh button.
