Luminii Katana KAT Manuale utente

REV2.4

Katana - Installation Instructions

Model KAT-

*LUMINII RESERVES THE RIGHTS TO CHANGE SPECIFICATIONS & INSTRUCTIONS WITHOUT NOTICE

1. PRODUCT TO BE INSTALLED BY A

QUALIFIED ELECTRICIAN

2. USE ONLY WITH CLASS 2 POWER UNIT

3. 24 VOLTS DC

4. SUITABLE FOR DAMP LOCATIONS

5. SURFACE MOUNT ONLY

6. SUITABLE FOR INSTALLATION WITHIN THE

CLOSET STORAGE SPACE

7. TYPE IC

8. INHERENTLY PROTECTED

Please read all instructions prior to installation and keep for future reference!

7777 Merrimac Ave

Niles, IL 60714

T 224.333.6033

F 224.757.7557

[email protected]

www.luminii.com

Page 1 of 2

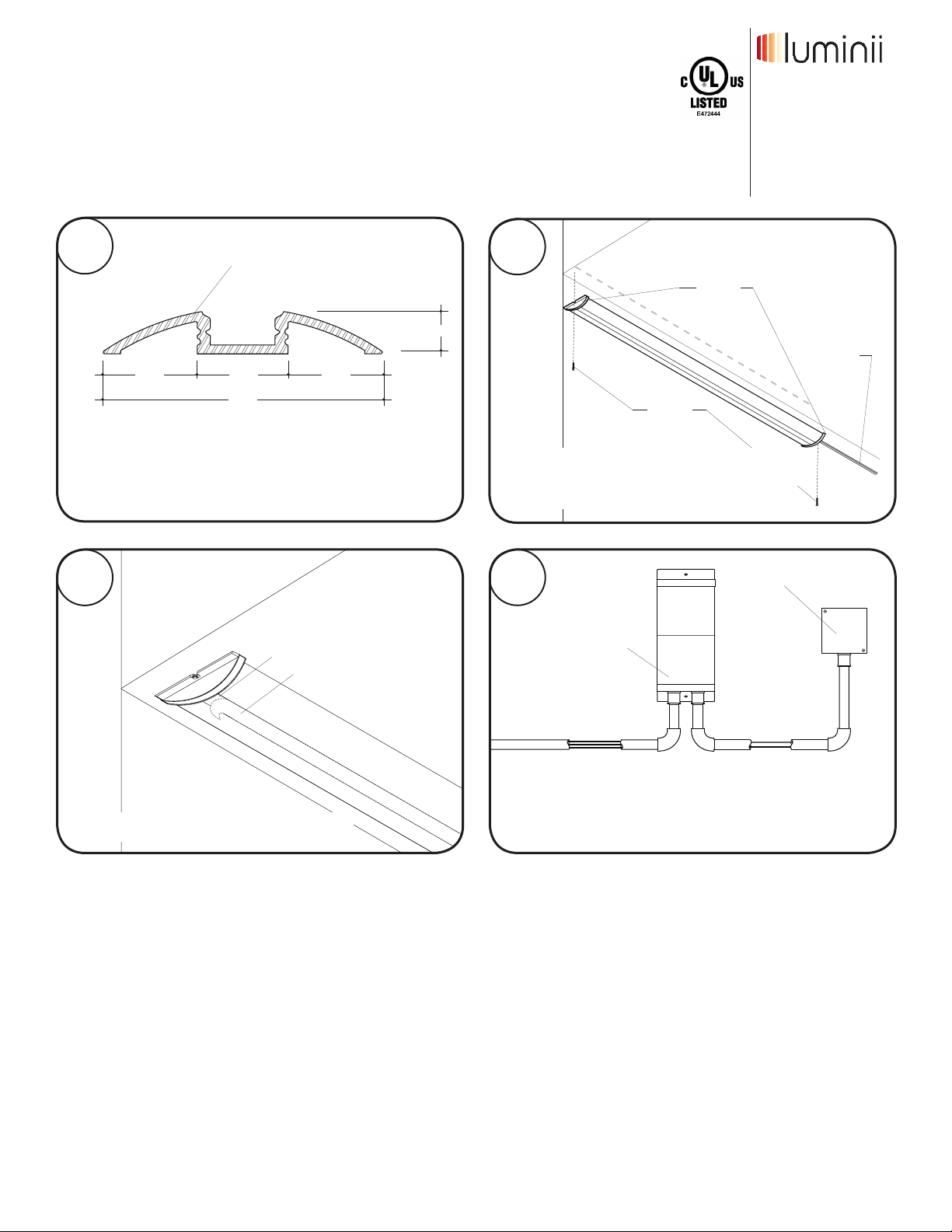

Katana light fixture body

Use the dimensions above for reference, when mounting to the

surface.

2.06”

0.31”

0.66” 0.70”

0.70”

mounting

brackets

mounting

screws

wires to

power

supply

Align the fixture to the determine location,

(low voltage power wires must be present prior to

installing). Secure by tightening the two screw

through the mounting brackets to the drywall.

Ensure power is off to power supply!

Then proceed to connect wires from Katana light fixture to

power supply. Connection can be established with lead wires or

quick-connect powerfeed. For more information please refer to

power supply wiring instructions.

power to Katana

light fixture

24VDC class II

power supply

120VAC line

voltage wires

24VDC low

voltage wires

lens

Remove the protective film from the diffuser lens.

film

REV2.4

Katana - Installation Instructions

Model KAT-

*LUMINII RESERVES THE RIGHTS TO CHANGE SPECIFICATIONS & INSTRUCTIONS WITHOUT NOTICE

1. PRODUCT TO BE INSTALLED BY A

QUALIFIED ELECTRICIAN

2. USE ONLY WITH CLASS 2 POWER UNIT

3. 24 VOLTS DC

4. SUITABLE FOR DAMP LOCATIONS

5. SURFACE MOUNT ONLY

6. SUITABLE FOR INSTALLATION WITHIN THE

CLOSET STORAGE SPACE

7. TYPE IC

8. INHERENTLY PROTECTED

Please read all instructions prior to installation and keep for future reference!

7777 Merrimac Ave

Niles, IL 60714

T 224.333.6033

F 224.757.7557

[email protected]

www.luminii.com

Page 2 of 2

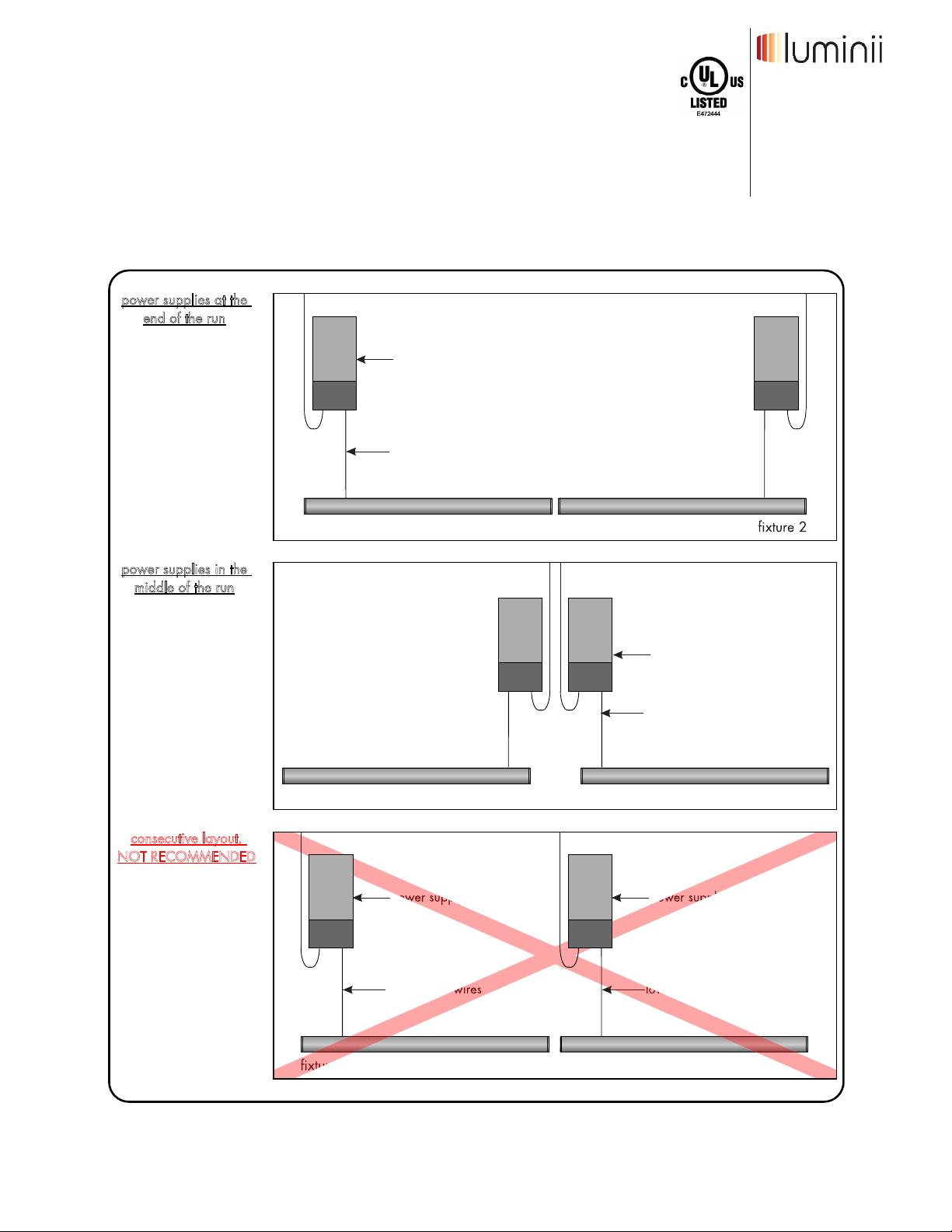

power supplies at the

end of the run

power supplies in the

middle of the run

consecutive layout,

NOT RECOMMENDED

multiple powerfeed layouts

power supply

low voltage wires

ﬁxture 1

ﬁxture 1 ﬁxture 2

low voltage wires

power supply

low voltage wires

ﬁxture 1

power supply

low voltage wires

ﬁxture 2
