Luminox CHRONOGRAPH ALARM Manuale utente

GGM.L003 Ed. 09.12

INSTRUCTION MANUAL

BEDIENUNGSANLEITUNG

MANUAL DE USO

CHRONOGRAPH ALARM

www.luminox.com

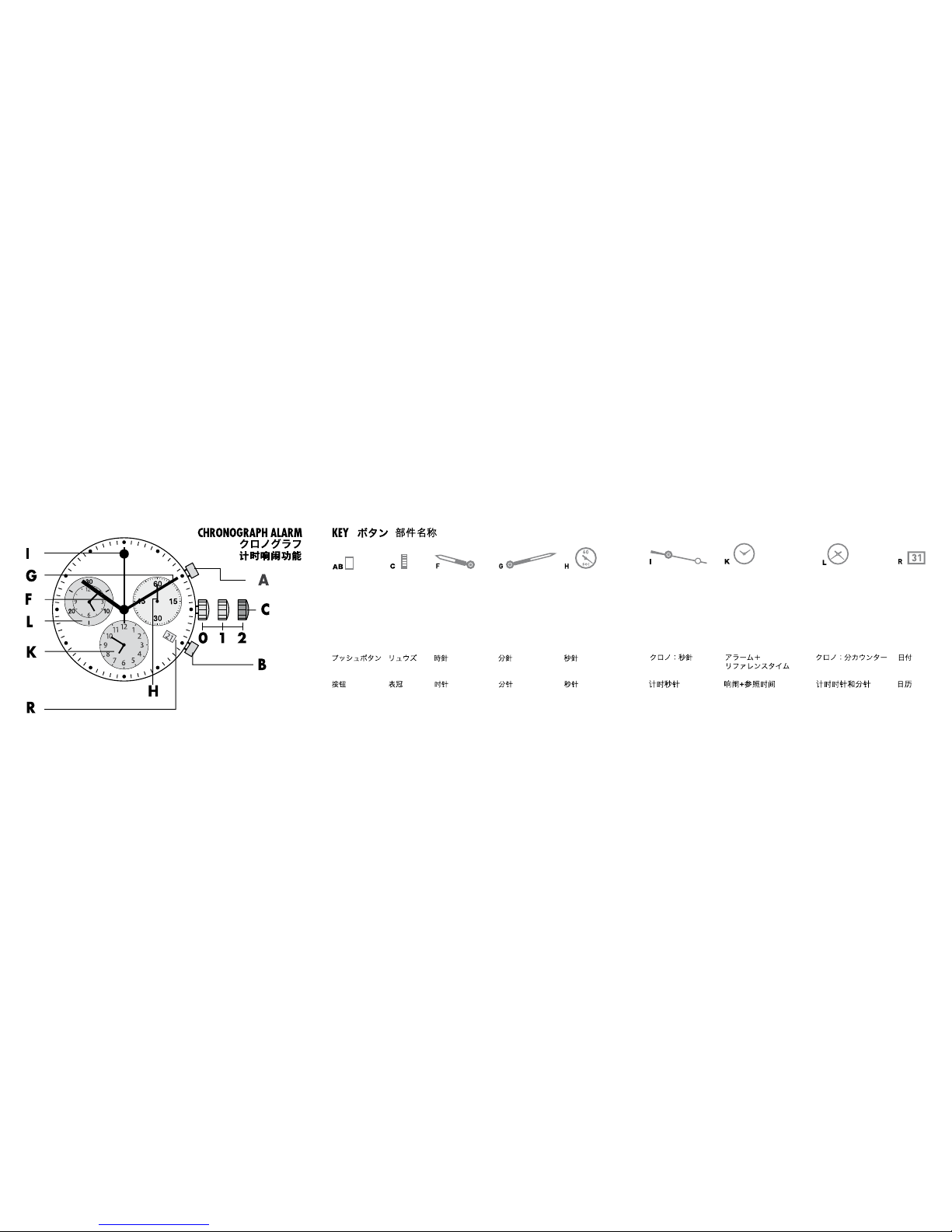

Push button

Drücker

Pulsador

Crown

Krone

Corona

Hour hand

Stundenzeiger

Manecilla de

las horas

Minute hand

Minutenzeiger

Manecilla de

los minutos

Second hand

Sekundenzeiger

Manecilla de los

segundos

min

Chrono: Seconds

Chrono: Sekunden

Cronógrafo:

Segundos

Alarm + reference time

Alarm + Referenzzeit

Hora de despertador +

hora de referencia

Chrono: Minutes and

hours

Chrono: Minuten

und Stunden

Cronógrafo: Minutos

y horas

Date

Datum

Fecha

min

III III

10 1

III

10 1

Adjusting the chronograph

hands to zero position

Example:

One or several chronograph hands are not

in their correct zero positions and have to be

adjusted (e.g. following a battery change).

Pull out the crown to position III (all 3

chronograph hands are in their correct

or incorrect zero position.The display

changes from alarm time to reference

time.)

Keep push-buttons A and B depressed

simultaneously for at least 2 seconds

(the center stop-second rotates by

360° corrective mode is activated).

Center stop-second

Push-button B

Minute counter

Hour counter

Push-button A

Adjusting the center stop-second

Single step A1 x short

Continuous Along

Adjusting the next hand B

Adjusting the minute counter hand

and the hour counter hand

(mechanically coupled)

Single step A1 x short

Continuous Along

III

Returning the crown to position I

Termination of the chronograph hands adjustment

(can be carried out at any time). The display changes

from reference to alarm time.

Chronograph: Basic function

(Start / Stop / Reset)

Example:

Start: Press push-button A.

Stop: to stop the timing, press

pushbutton A once more and read

the 3 chronograph counters:

4h / 20 min / 38 sec

Zero positioning:

Press push-button B.

(The 3 chronograph hands will be reset to

their zero positions).

10 1

Note

The alarm cannot be used as long as the

chronograph is in operation.

Push-button A

Push-button B

Minute counter

Hour counter

10 1

Chronograph:

Accumulated timing

Example:

Start: (start timing)

Stop: (e.g. 15min 5sec following )

Restart:(timing is resumed)

*Stop: (e.g. 10 min 5 sec following )

=25 min 10 sec

(The accumulated measured time is shown)

Reset:

The three chronograph hands are returned

to their zero positions.

Push-button A

Push-button B

Minute counter

Hour counter

Please note:

* Following , the accumulation of the

timing can be continued by pressing

push-button A

(Restart / Stop, Restart / Stop, …)

10 1

Push-button B

Minute counter

Push-button A

Push-button B

Chronograph:

Intermediate or interval timing

Example:

Start:(start timing)

Display interval:

e.g. 10 minutes 10 seconds (timing

continues in the background)

Making up the measured time:

(the 3 chronograph hands are quickly

advanced to the ongoing measured time).

Stop: (Final time is displayed)

Reset:

The 3 chronograph hands are returned to

their zero position

Please note:

* Following , further intervals or inter-

mediates can be displayed by pressing

push-button B (display interval / make up

measured time, ...)

III

10 1

III

10 1

Date 5130.B

Date 5130.D

Setting the date (quick mode)

Pull out the crown to positionII (the watch

continues to run).

Turn the crown until the correct

date

appears.

Push the crown back into position I.

Please note:

The date of the following day must be set in

the calendar changing phase between 9 PM

and midnight.

Setting the date too quickly in quick mode

can result in the incorrect date being

displayed. Switching the date between

01 and 31 (position II) restores the synchro-

nization.

IIIIII

10 1

IIIIII

10 1

Small

minute hand

Reference time

Setting the reference time

Pull out the crown to position III

(second hand stops. The display changes

from alarm time to reference time.)

Activating the setting mode.

Press the push-button for at least

2 seconds. As soon as the small minute

hand jumps forward one minute, this

mode is active.

Short pressing (less than 1 second):

the reference time is moved forward by

the minute.

Medium pressing: (1–2 seconds):

the reference time is moved forward by

the hour.

Long pressing (longer than 2 seconds):

the reference time is moved forward until

the push-button is released.

Please note:

* In order to set the time to the

exact second, must be pulled

out when the second hand is in

position «60» ().III

Once the hour and minute hands

have been set, must be pushed

back into position Iat the exact

second.

IIIIII

10 1

What is the reference time?

The current time is displayed by means of

the hour and minute hand.

Parallel to the current time, the reference

time runs in the background: the alarm time

refers itself to this reference time. Therefore,

resetting the time also requires the identical

correction of the reference time.

If the reference time is not synchronized

with the current time, this results in the alarm

signal being emitted at a different

time to the set alarm time.

Alarm time

*Push the crown back into position I

(the display changes from reference time

to alarm time).

A signal indicates that the alarm is

switched off.

10 1

Alarm time Push-button

Note

The alarm cannot be used as long as

the chronograph is in operation.

Setting the alarm time

Activate the setting mode

Press the push-button for at least

2 seconds. As soon as the small minute

hand jumps forward one minute, this

mode is active.

Setting

Short pressing (less than 1 second):

the alarm time is moved forward by the

minute.

Long pressing (longer than 2 seconds):

the alarm time is moved forward until the

push-button is released.

Please note:

If the push-button is not activated for

10 seconds, the setting mode of the alarm

time deactivates itself. At the same time,

two beeps are emitted to indicate that the

alarm is switched on.

10 1

Alarm time Push-button

Switching the alarm on / off

The alarm is switched on / off by brieﬂy

pressing the push-button:

2 beeps alarm switched on

1 beep alarm switched off

Please note:

The alarm can be set a maximum of 12 hours

before the desired alarm time.

Once the set alarm time has been reached,

a signal is emitted for 20 seconds.

This signal is repeated after two minutes.

Following brief pressing of the push-button,

the signal is immediately switched off.

Deutsch

III III

10 1

III

10 1

Zentrumstoppsekunde

Drücker B

Minutenzähler

Stundenzähler

Drücker A

Ausrichtung der Chronograph-

zeiger auf Nullposition

Beispiel:

Einer oder mehrere Chronographzeiger sind

nicht in ihren korrekten Nullpositionen und

müssen ausgerichtet werden (z.B. nach

Batteriewechsel)

Krone in Position III herausziehen.

(Alle 3 Chronographenzeiger stellen sich

in ihre korrekte bzw. nicht korrekte Null-

position. Anzeige wechselt von Alarmzeit

zur Referenzzeit.)

Drücker A und B gleichzeitig während

mindestens 2 Sekunden drücken.

(Der Zentrumstoppsekundenzeiger dreht

um 360° Korrekturmodus ist aktiviert)

Ausrichtung der Zentrumstoppsekunde

Einzelschritt: A1 x kurz

Kontinuierlich: Alang

Nächsten Zeiger ausrichten B

Ausrichtung des Minutenzählerzeigers

und des Stundenzählerzeigers

(sind mechanisch gekoppelt)

Einzelschritt: A1 x kurz

Kontinuierlich: Alang

III

Krone in Position Izurückdrücken

Abschluss der Chronographzeiger-Ausrichtung.

(dies ist jederzeit möglich. Anzeige wechselt von

Referenz- zur Alarmzeit.)

10 1

Chronograph: Grundfunktion

(Start / Stopp / Nullstellung)

Beispiel:

Start: Drücker Adrücken

Stopp:Um die Zeitmessung abzubrechen,

Drücker A nochmals drücken und die

3 Chronographenzähler ablesen:

4h / 20 Min. / 38 Sek.

Nullstellung:

Drücker Bdrücken.

(Die 3 Chronographenzeiger werden in

ihre Nullstellungen zurückgestellt).

Drücker A

Drücker B

Minutenzähler

Stundenzähler

Hinweis

Solange der Chronograph in Betrieb ist,

kann der Alarm nicht bedient werden.

10 1

Chronograph:

Aufaddierte Zeitmessung

Beispiel:

Start:(Zeitmessung starten)

Stopp: (z.B. 15 Min. 5Sek. nach )

Restart:(Zeitmessung wieder freigeben)

*Stopp: (z.B. 10 Min. 5Sek nach )

= 25 Min. 10 Sek.

(Aufaddierte Messzeit wird angezeigt)

Nullstellung:

Die 3 Chronographenzeiger werden in

ihre Nullpositionen zurückgestellt.

Drücker A

Drücker B

Minutenzähler

Stundenzähler

Hinweise

* Nach kann die Aufaddierung der

Zeitmessung fortgesetzt werden. Dies über

Drücker A

(Restart / Stopp, Restart / Stopp, …)

10 1

Drücker B

Minutenzähler

Drücker A

Drücker B

Chronograph:

Zwischenzeitmessung

Beispiel:

Start:(Messzeit starten)

Zwischenzeit anzeigen:

z.B. 10 Min. 10 Sek. (die Zeitmessung läuft

im Hintergrund weiter)

Messzeit aufholen:

(die 3 Chronographenzeiger werden

im Schnelllauf auf die weitergelaufene

Messzeit nachgeführt.)

Stopp:(Endzeit wird angezeigt)

Nullstellung:

Die 3 Chronographenzeiger werden in

ihre Nullpositionen zurückgestellt.

Hinweise

* Nach können weitere Zwischenzeiten

angezeigt werden. Dies über Drücker B

(Zwi-

schenzeit anzeigen / Messzeit aufholen, ...)

III

10 1

Schnellkorrektur Datum

Krone in Position II herausziehen.

(Uhr läuft weiter)

Krone drehen bis das aktuelle

Datum (Beispiel ) erscheint.

Krone zurück in Position Idrücken.

III

10 1

Hinweise

In der Kalenderschaltphase von 21:00 bis

24:00 Uhr muss das Datum des folgenden

Tages eingestellt werden.

Extreme Beschleunigung in der Schnellkor-

rektur kann zu einer falschen Datumsanzeige

führen. Durch Schalten des Datums von 01

bis 31 (Krone Position II) wird die Synchroni-

sation wieder hergestellt.

Datum 5130.B

Datum 5130.D

Altri manuali per CHRONOGRAPH ALARM

Questo manuale è adatto per i seguenti modelli

Indice

Lingue:

Altri manuali Luminox Orologio

Luminox

Luminox Deep dive 1500 series Manuale utente

Luminox

Luminox F-117 NIGHTHAWK 3400 series Manuale utente

Luminox

Luminox Recon nav SPC 8830 series Manuale utente

Luminox

Luminox SCOTT CASSELL SPECIALS Manuale utente

Luminox

Luminox Black ops 8400 series Manuale utente

Luminox

Luminox NumBered Edition FIELD VALJOUX 1860 SERIES Manuale utente

Luminox

Luminox EVO Ultimate 8362 Manuale utente

Luminox

Luminox OD MILITARY 3040 Series Manuale utente

Luminox

Luminox 1800 series Manuale utente

Luminox

Luminox FIELD ATACAMA 1823 Manuale utente

Luminox

Luminox RECON Point Man series Manuale utente

Luminox

Luminox 7051 Manuale utente

Luminox

Luminox Deep dive 1500 series Manuale utente

Luminox

Luminox Navy Seal Colormark 3151 Manuale utente

Luminox

Luminox Limited Edition TONY KANAAN 1140 SERIES Manuale utente

Luminox

Luminox NAVY SEAL FASTSTRAP 3900 series Manuale utente

Luminox

Luminox 8361.RP Series Manuale utente

Luminox

Luminox Recon point man 8820 series Manuale utente

Luminox

Luminox RECON Point Man series Guida all'installazione

Luminox

Luminox 3080.RP Series Manuale utente

Luminox

Luminox timepiece Manuale utente

Luminox

Luminox Navy Seal Colormark 3081 Manuale utente

Luminox

Luminox 1843 Manuale utente

Luminox

Luminox 1870 series Manuale utente

Manuali Orologio popolari di altre marche

Pandora

Pandora WATCH2 Manuale utente

Casio

Casio QW-4343 Manuale utente

Suunto

Suunto X6 Manuale utente

Seiko

Seiko N830 Manuale utente

MotionX

MotionX 365 Manuale utente

Garmin

Garmin VENU SQ 2 Manuale utente

QCY

QCY Watch GTC Manuale utente

Canyon

Canyon Cindy CNE-KW41WP Manuale utente

Esq

Esq Watches Guida all'installazione

Crane

Crane AA5-CDSM-3A Manuale utente

Timex

Timex W-214 Manuale utente

DETOMASO

DETOMASO MATERA Manuale utente

Geemarc

Geemarc Watch N Shake Manuale utente

LORUS

LORUS W590 Manuale utente

STENLILLE

STENLILLE Actío Manuale utente

Casio

Casio 5594 Manuale utente

Sinn

Sinn HUNTER'S WATCH 3. Edition Manuale utente

Slazenger

Slazenger SLZ800 Manuale utente
