Luxart Smart surround Manuale utente

NEO-ANGLE

SHOWER DOOR

READ THE INSTRUCTIONS CAREFULLY:

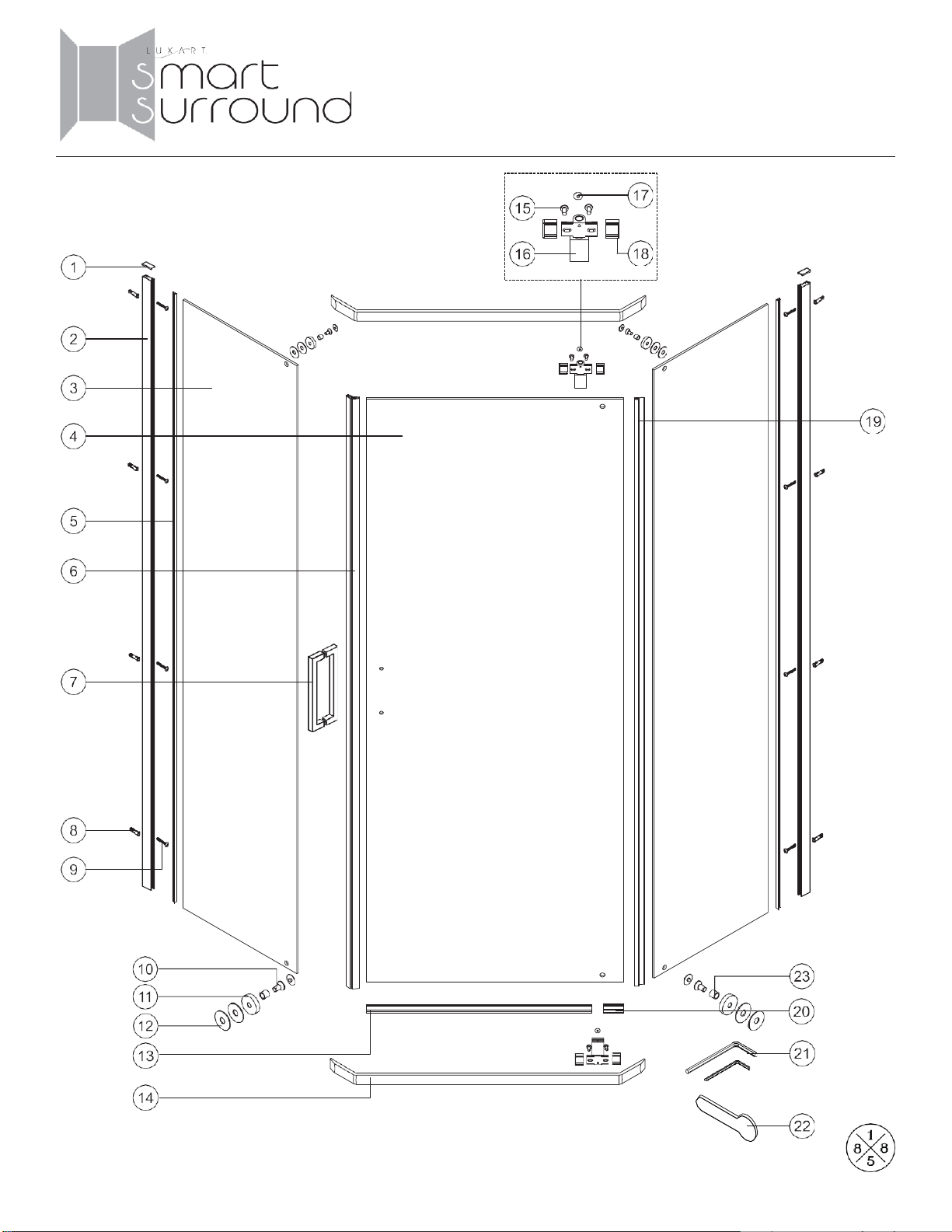

Familiarize yourself with all the parts as shown in the

exploded view. The exploded view will also provide a

helpful reference when relating to the location of the

various parts and how they are mounted.

COPY THE MODEL NUMBER FOR YOUR RECORDS HERE #

LEFT HAND ASSEMBLY RIGHT HAND ASSEMBLY

Need Help? Please call our toll-free customer service line at 1-225-295-4212 for additional assistance or service. If you have any questions or

concerns regarding our warranty plan, please email: customerservice@1858brands.com, Monday-Friday 7:30 AM to 5:00 PM EST

Revised 12/05/2023

NEO-ANGLE

SHOWER DOOR

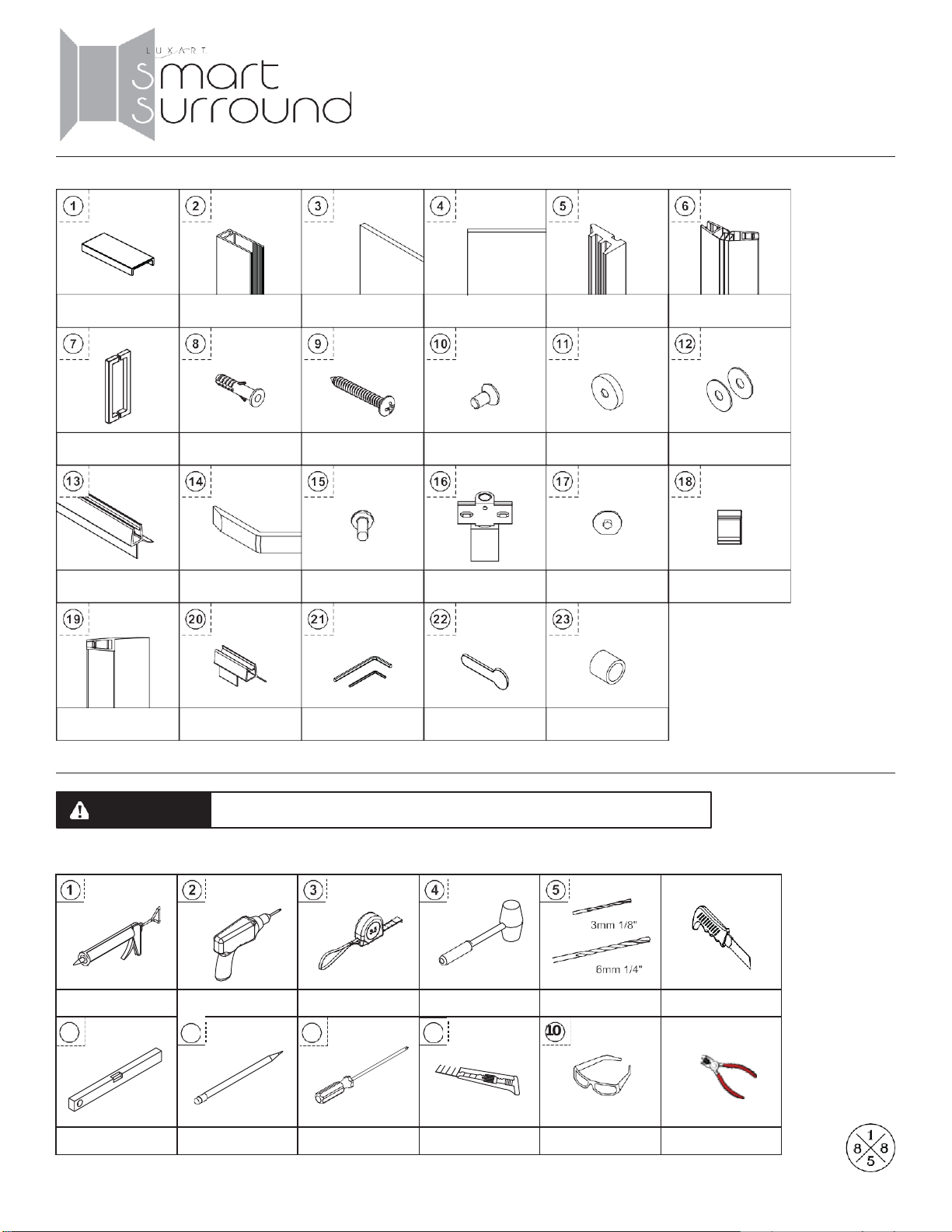

PARTS LIST

Handle

(1 pcs) Wall Anchor

(8 pcs)

Long Drip Strip

(1 pc) Top and Bottom Track

(2 pcs)

Pivot Side Door Seal

(1 pc) Short Drip Strip

(1 pc) Allen Key Kit

(2 pc) Gasket Insertion Tool

(1 pc) Plastic Washer

(4 pcs)

Pivot Assembly

(2 pcs) Allen Head Screw Cover

(6 pcs) Pivot Back Cover

(4 pcs)

Clamping Washer

(4 pcs) Plastic Washer

(8 pcs)

Wall Channel Gasket

(2 pcs)

Door Glass

(1 pc)

Side Panel Glass

(2 pcs)

Wall Channel

(2 pcs)

Channel Cap

(2 pcs) Magnetic Door Seal

(2 pcs)

Screw ST ⅛" x 1⅝"

(Screw ST 4x40)

(8 pcs)

Screw ¼" x ⅝"

(Screw M6x16)

(4 pcs)

Screw ¼" x ⅜"

(Screw M6x10)

(4 pcs)

TOOLS REQUIRED

SILICONE DRILL TAPE MEASURE RUBBER MALLET DRILL BIT KNIFE

LEVEL PENCIL SCREW DRIVERS UTILITY KNIFE SAFETY GLASSES CUTTING NIPPERS

Safety glasses should always be worn when working with tempered glass.

WARNING:

Revised 12/05/2023

NEO-ANGLE

SHOWER DOOR

Revised 12/05/2023

NEO-ANGLE

SHOWER DOOR

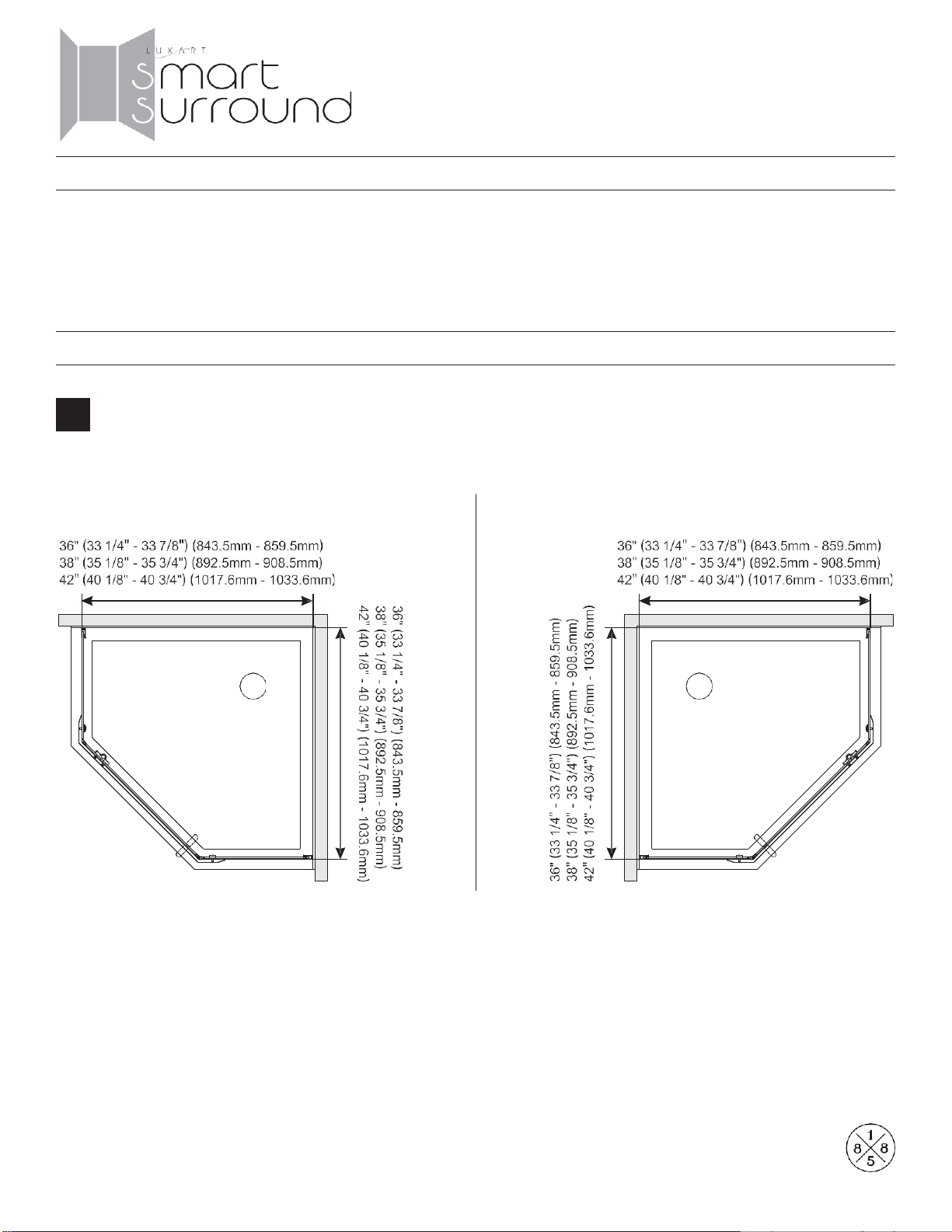

1INSTALLATION MEASUREMENT

Measure from the corner base to the outside of channel.

LEFT HAND ASSEMBLY RIGHT HAND ASSEMBLY

CHOOSE WHETHER YOU ARE INSTALLING LEFT OR RIGHT SHOWER DOOR

Determine which assembly configuration you need to follow based on the location of the shower

head as viewed from the outside of the shower. Follow the appropriate diagram below.

INSTALLATION PROCEDURE / STEP 1

Revised 12/05/2023

NEO-ANGLE

SHOWER DOOR

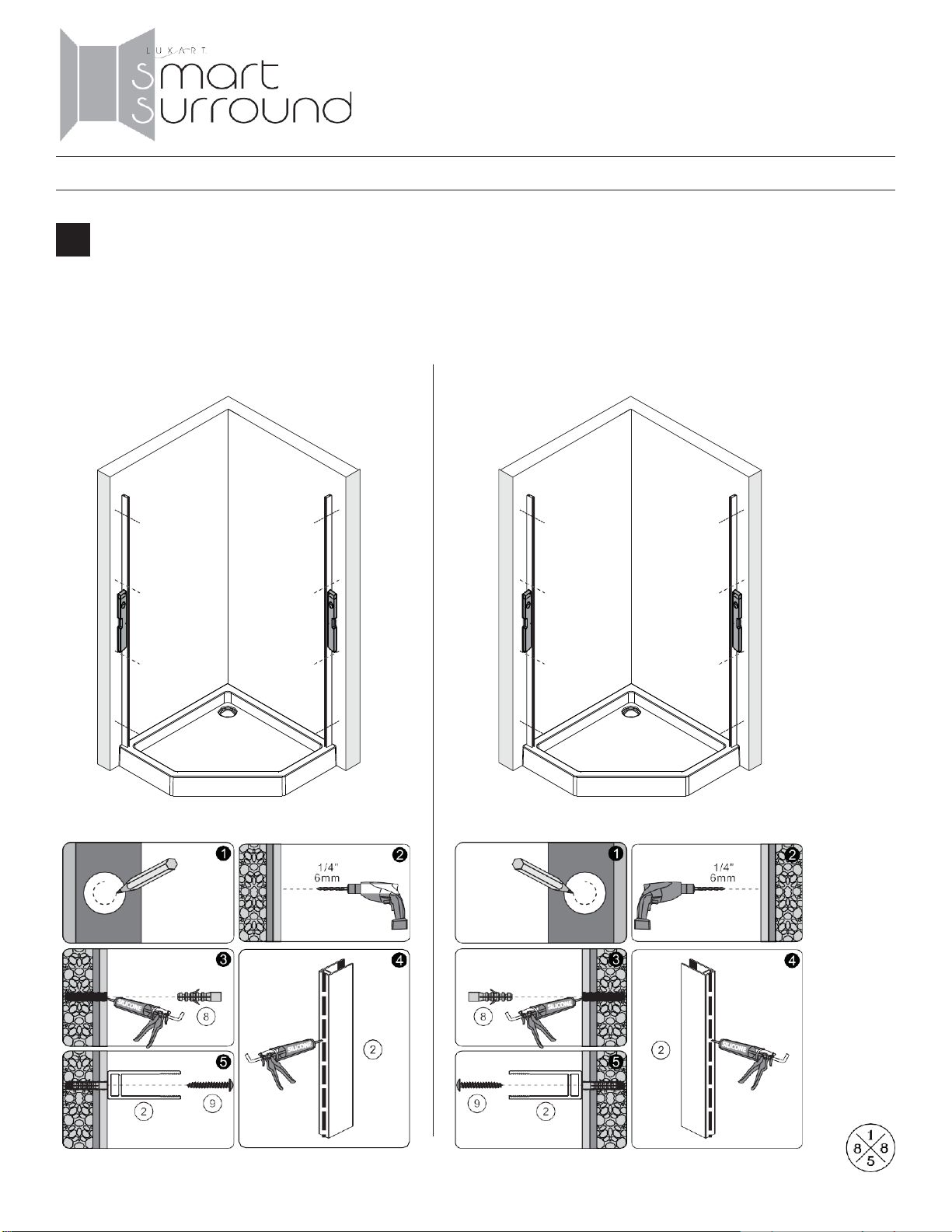

21.Put & level wall channel (2) at the installation position, then mark the drilling hole.

2. Drill hole with 1/4" (6mm) drill bit.

3. Glue a little silicone into the hole, then insert wall anchor (8).

4. Glue a little silicone on the back of wall track (2).

5. Fix wall channel (2) with screw 1/8" x 15/8" (9) against the wall.

INSTALLATION PROCEDURE / STEP 2

LEFT HAND ASSEMBLY RIGHT HAND ASSEMBLY

Revised 12/05/2023

NEO-ANGLE

SHOWER DOOR

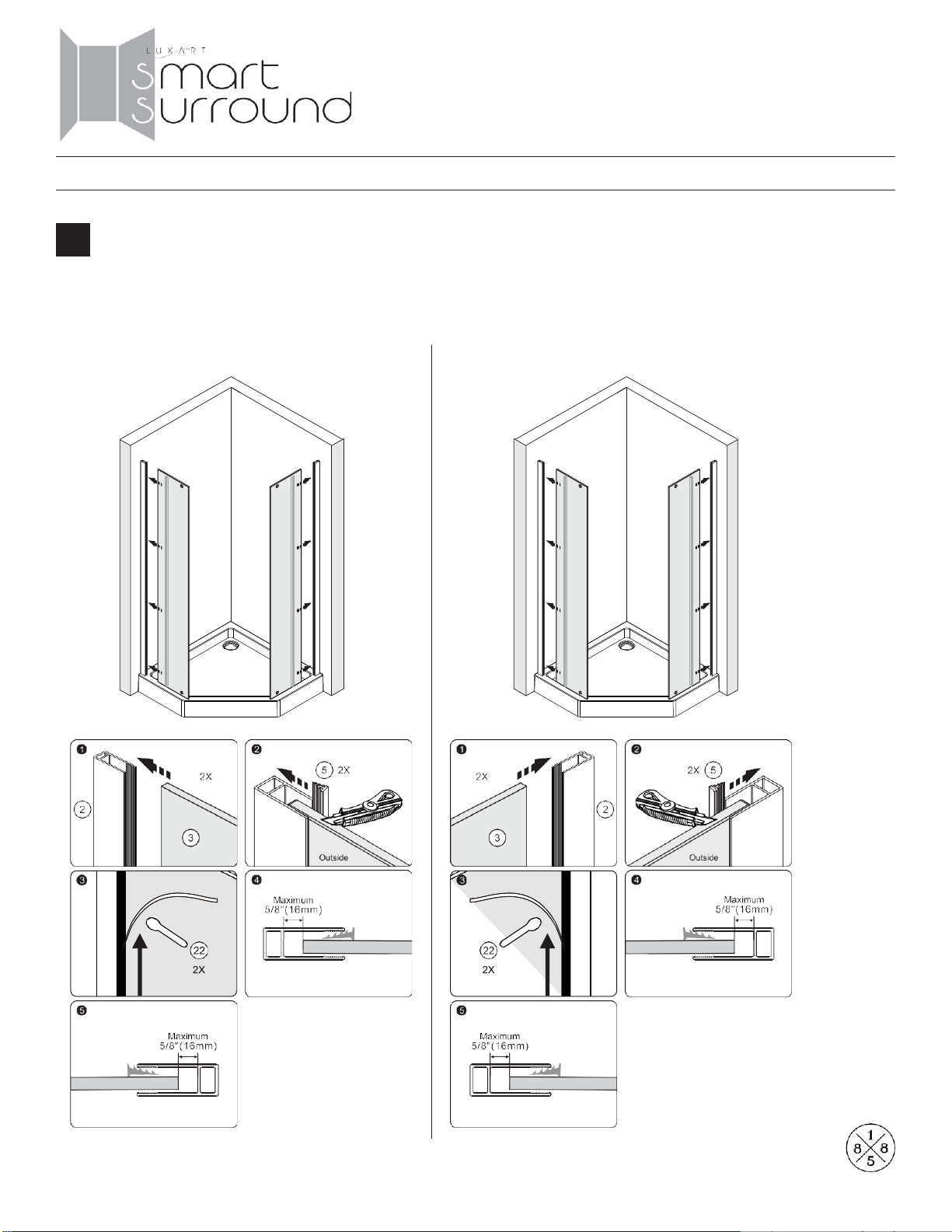

31. Insert fixed panel (3) into wall channel (2) slot.

2-3. Place wall channel gasket (5) between the fixed panel (3) and the channel (2).

Use the squeeze gasket tool (22) to push the gasket snuggly into place.

4-5. NOTE: the maximum adjusting range of both wall channel (2) is 5/8" (16mm).

INSTALLATION PROCEDURE / STEP 3

LEFT HAND ASSEMBLY RIGHT HAND ASSEMBLY

Revised 12/05/2023

NEO-ANGLE

SHOWER DOOR

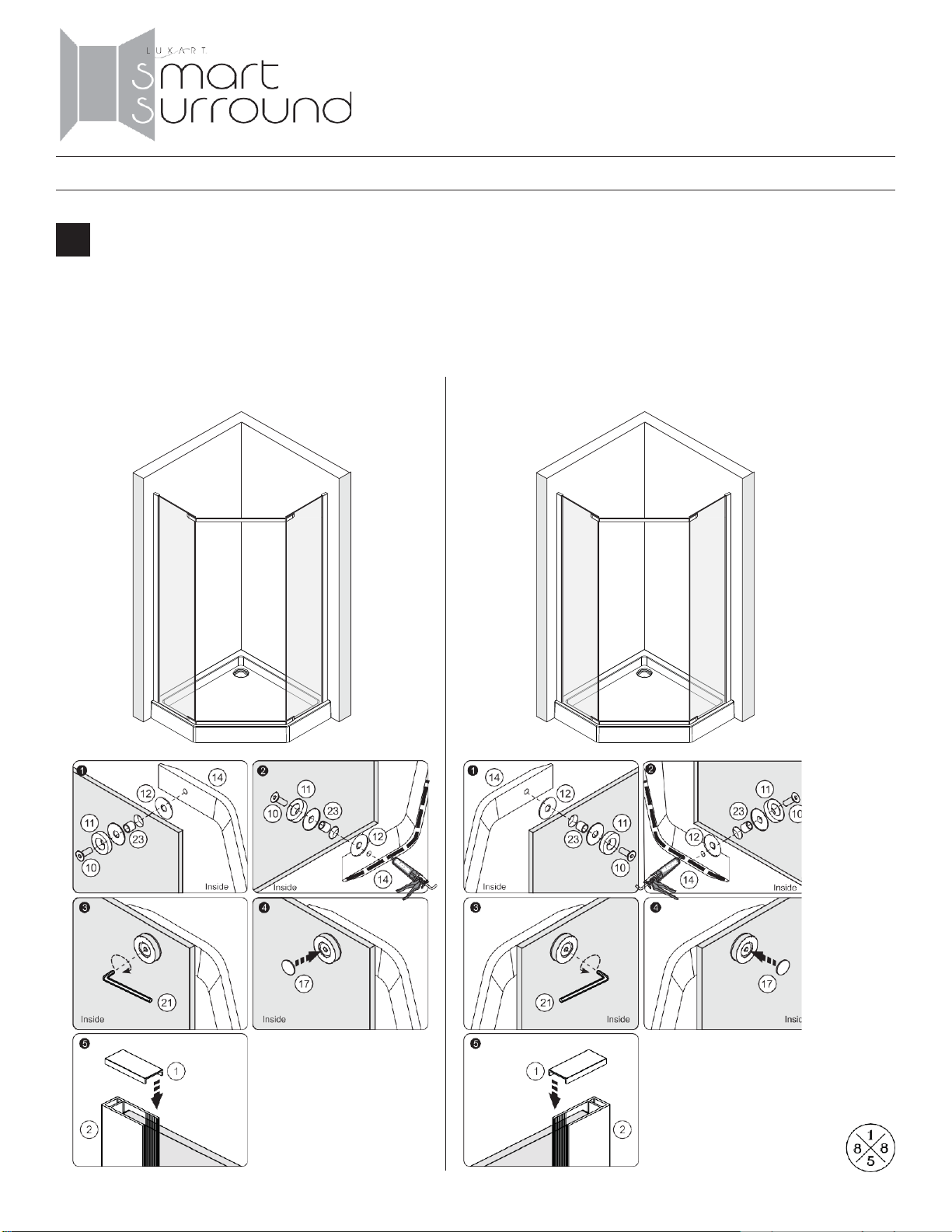

41. Install washers (11,12, 23) on the glass and use the screw 1/4" x 5/8" (10)

to fix the top & bottom track (14).

2. Glue a little silicone at the bottom of bottom track (14).

3. Use the allen key kit (21) to tighten the screw.

4. Install the screw cap (17).

5. Install the wall channel cap (1).

LEFT HAND ASSEMBLY RIGHT HAND ASSEMBLY

INSTALLATION PROCEDURE / STEP 4

NEO-ANGLE

SHOWER DOOR

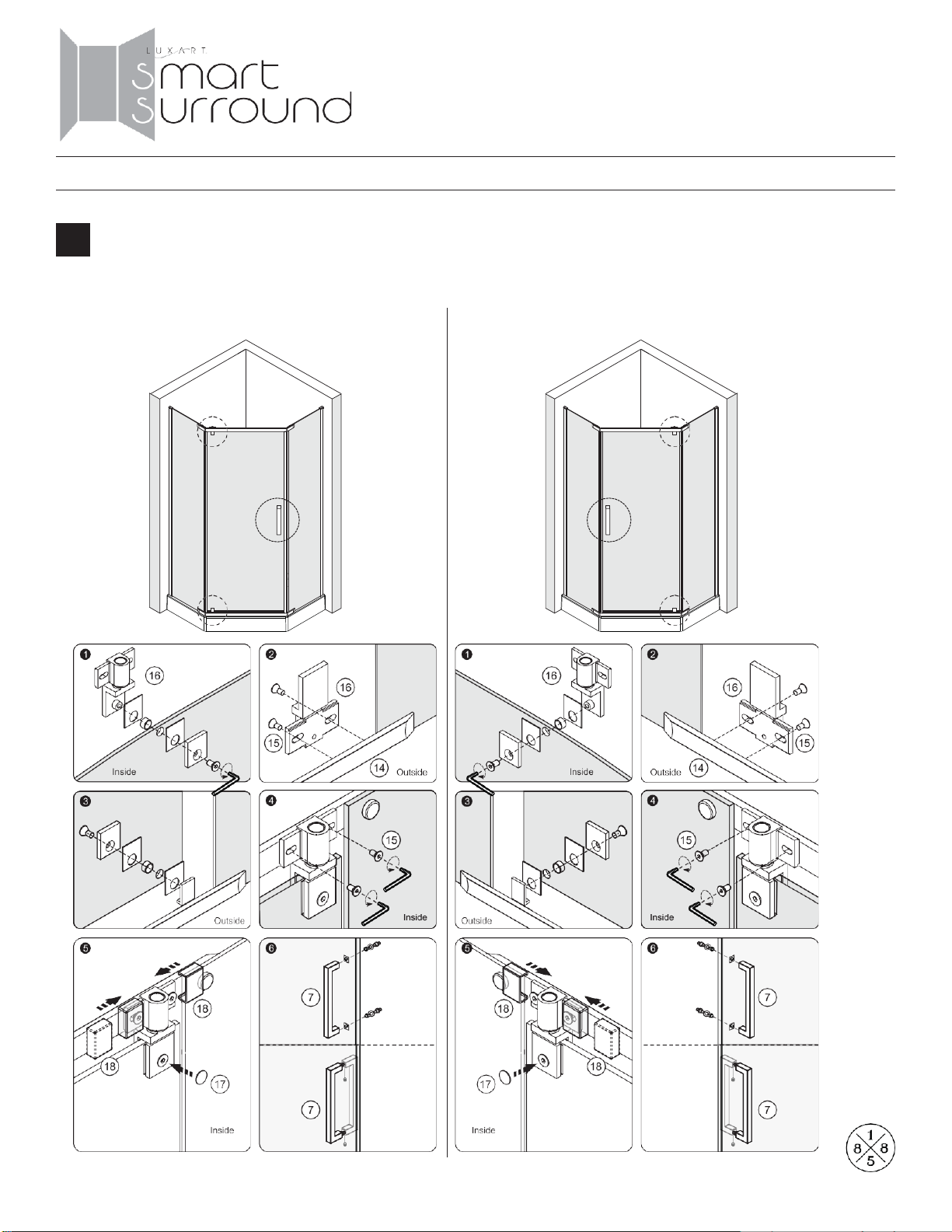

51-4. lnstall the top and bottom pivot kit (15,16) on the door glass (4) and top and bottom track

(14).

5. Put the pivot back cover (18) on the pivot base, install screw cap (17) on the pivot kit.

6. Install the handle (7).

INSTALLATION PROCEDURE / STEP 5

LEFT HAND ASSEMBLY RIGHT HAND ASSEMBLY

Revised 12/05/2023

NEO-ANGLE

SHOWER DOOR

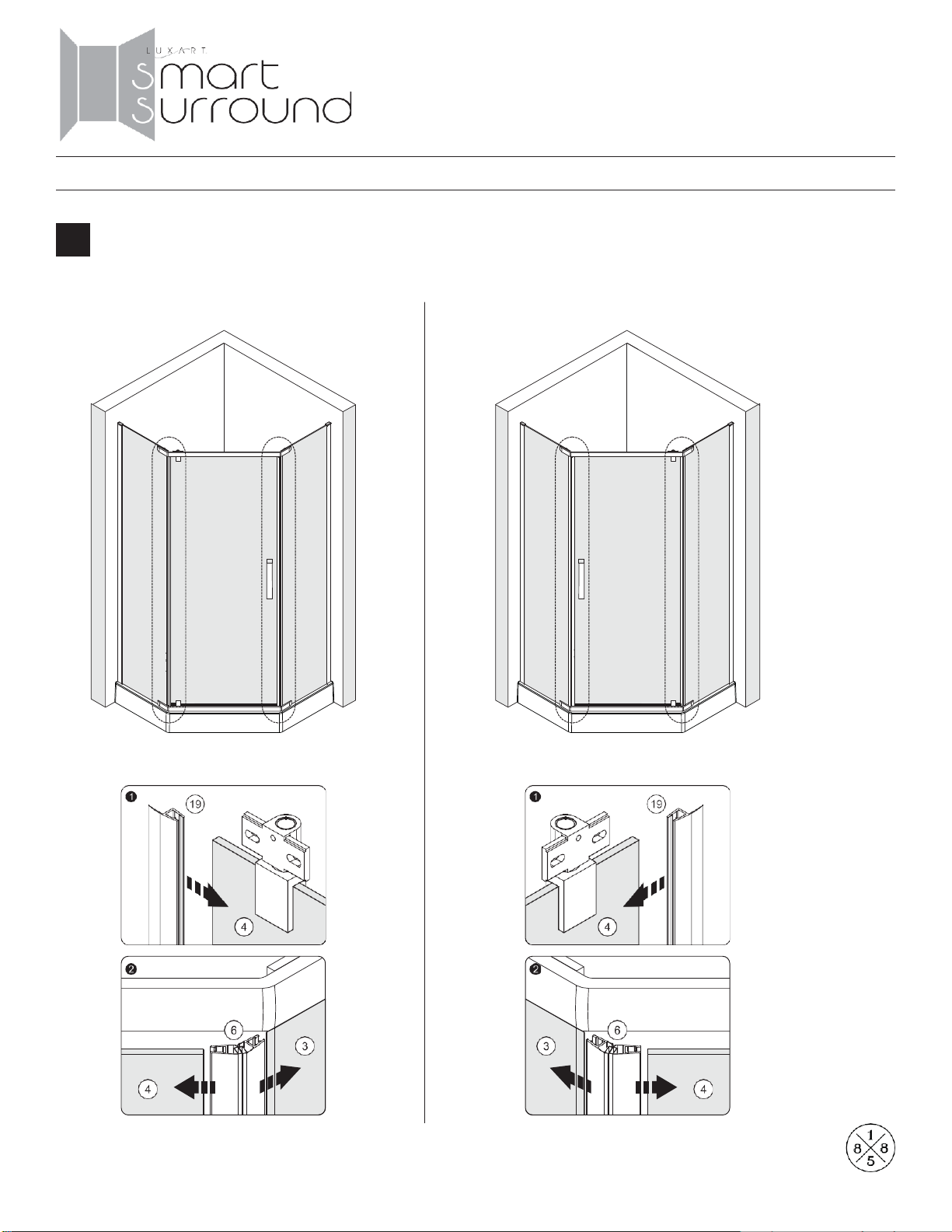

61. Install the pivot side door seal (19) on the door panel (4).

2. Install the magnetic door seal (6) on the fixed panel (3) and door panel (4).

INSTALLATION PROCEDURE / STEP 6

LEFT HAND ASSEMBLY RIGHT HAND ASSEMBLY

Revised 12/05/2023

NEO-ANGLE

SHOWER DOOR

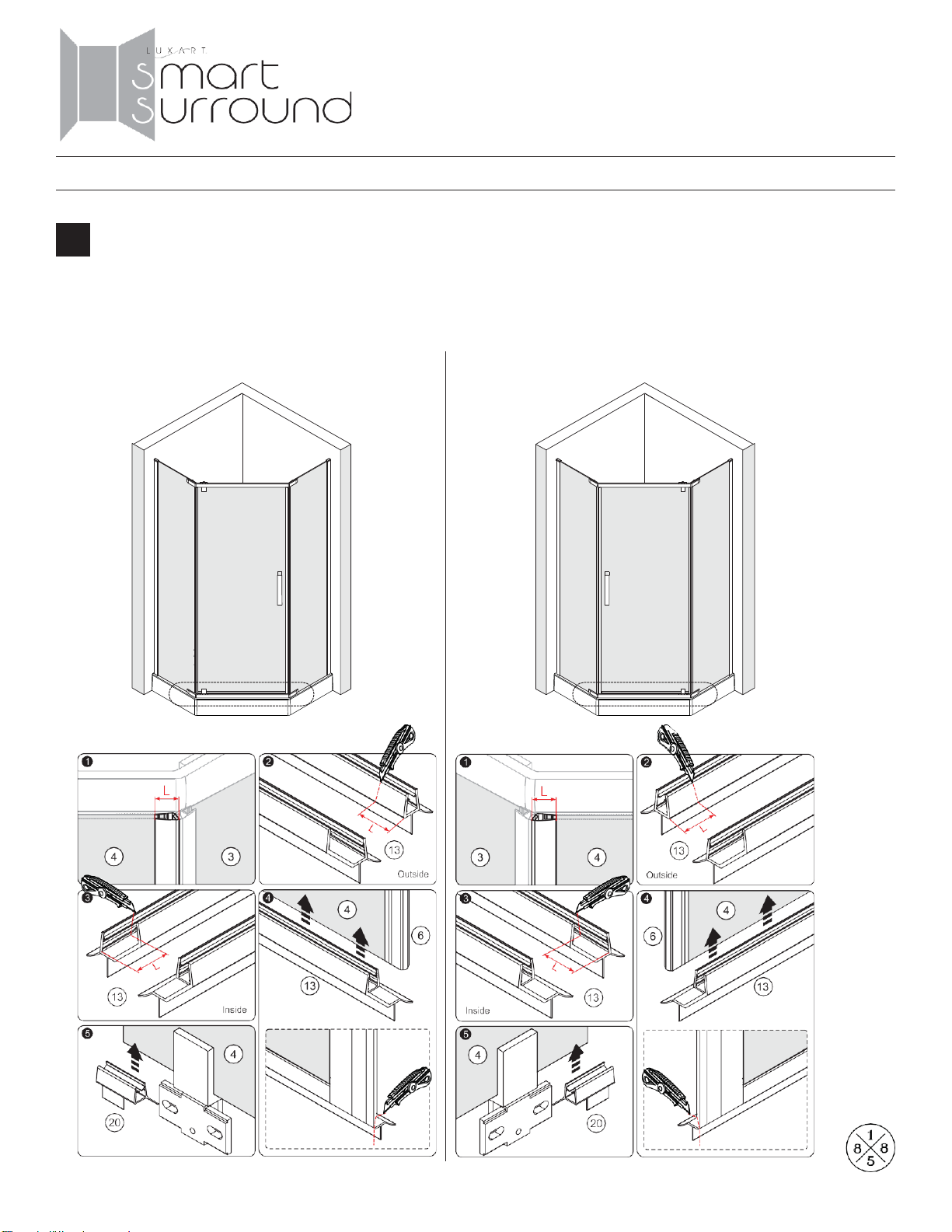

71. Measuring the “L” width of magnetic gasket (L).

2-3. Per the “L” size, cutting the both extra edge of bottom gasket

(13).

4. Installed long drip strip (13) on the door glass (4), the cutting position of long drip strip

(13) need to be is at the same level with magnetic gasket (L).

5. Installed short drip strip (20) on the door glass (4).

LEFT HAND ASSEMBLY RIGHT HAND ASSEMBLY

INSTALLATION PROCEDURE / STEP 7

Revised 12/05/2023
