Luxier FTF01-TB Manuale utente
1FTF01 Rev.3.1 01/2021
Luxier
Model Number:
FTF01-TB (Brushed Nickel)
FTF01-TC (Chrome)
FTF01-TM (Matte Black)
FTF01-TO (Oil Rubbed Bronze)
Features:
- Brass and Zinc Alloy Construction
- Single Hole Installation
- Drip Free 40 mm Ceramic Cartridge
- Hand shower ow rate 1.8 gpm at 80 psi
- Tub spout ow rate 3.7 gpm at 20 psi
- Rough-in kit included
- Complies with:
IAPMO / UPC / cUPC
ADA

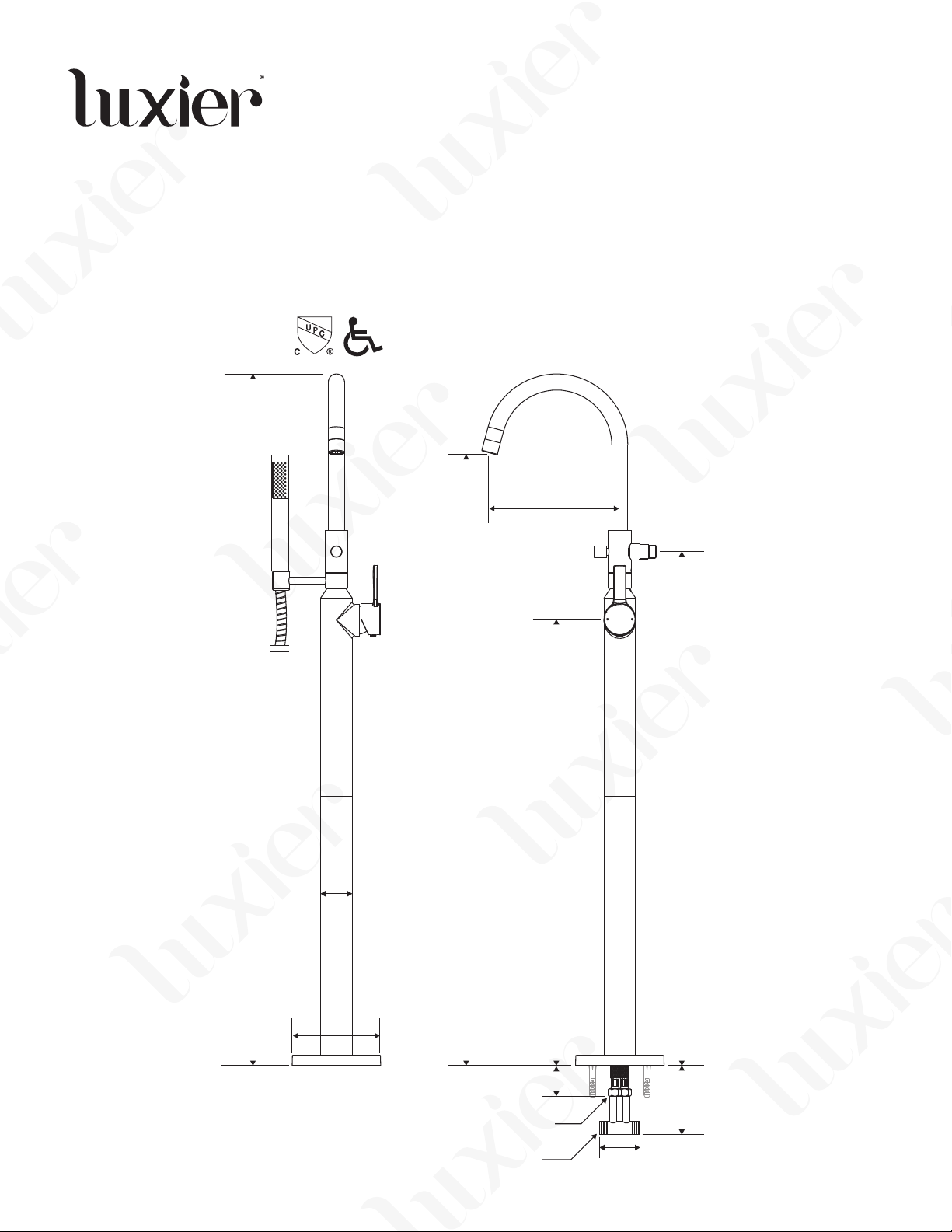

Freestanding Floor Mount Bathtub Filler
32”
38 1/8”
27 3/4”
43 1/16”
8 1/8”
5 1/2”
1 3/4”
2”
3 1/2”
4 1/4”
1/2” NPT
G3/8
* Drawings not to Scale. All Measurements are Approximate *
2FTF01 Rev.3.1 01/2021
Luxier
Thank you for purchasing Luxier products. Please read the information below and keep this
installation guide for future reference. If you require assistance, please contact our customer service
department at 1-877-711-8828, Monday - Friday 9AM - 5PM Paci c Time or by email at
Limited Lifetime Warranty (For USA Only)
The manufacturer warrants this product to be leak and drip free during daily normal household use
for as long as it is owned by the original purchaser of this product. Please keep a copy of the original
invoice as proof of purchase.
Should a malfunction occur within the warranty period, Luxier USA will, as its option, (1) repair or
replace the defective part(s) or product at no charge; (2) issue a refund of the purchase price paid
for the product (Valid within 30 days from the date of purchase); or (3) issue a credit to be applied
against the purchase of a new Luxier product. Shipping/delivery charges may apply and are in Luxier
USA’s sole discretion.
This limited warranty shall not apply to goods which have been subject to accident, negligence,
improper installation, product abuse, product misuse, or use of cleaners containing abrasives, alcohol
or other organic solvents, whether performed by a contractor, service company, or yourself, are
excluded from this warranty.
Our responsibility under this warranty is limited to only to replacement parts and no other costs.
Luxier USA will not be responsible for labor charges and/or damage incurred by installation, repair or
replacement, nor for any indirect incidental or consequential damages, losses, injury or costs of any
nature relating to this faucet. Except as provided by law, this warranty is in lieu of and excludes all
other warranties, conditions, and guarantees, whether expressed or implied, statutory or otherwise,
including without restriction those merchantability of tness for use.
This limited warranty is non-transferable. This limited warranty only applies to products purchased
and installed in the United States. This limited warranty covers the original consumer purchase only
and does not include business, commercial or industrial use of this product. To obtain service under
the Limited Warranty, please contact Luxier USA at [email protected]. The Luxier USA Customer
Care Department will determine whether to repair or replace your product, issue a refund, or issue a
credit.
3FTF01 Rev.3.1 01/2021
Luxier
Important Points
• This installation guide is subject to change without notice, please contact us to request the most
updated version of this installation guide.
• This is a general installation guideline, actual installation may vary. Consult a professional if
necessary.
• Read and understand this instructions completely before installation.
• Please follow all local building and plumbing codes.
• Product drawings in this installation guide is for illustration purpose only. Actual product may vary
depends on model.
• Always take extra precautions and wear appropriate safety equipment when installing this
product.
• Wrap all threaded connections, except the aerator in the spout, with Te on (PTFE) tape. Always
wrap in a counterclockwise direction.
• When installing your new faucet, rst hand tighten the water supply hoses then use a wrench to
give the compression nuts an additional (1/4) turn. Do not overtighten the compression nuts as it
will reduce the integrity of the sealed connection.
You may also need the following tools
1. Safety Glasses 5. Adjustable / Pipe Wrench
2. Teon (PTFE) Tape 6. Screwdriver
3. Plumber’s Putty and Caulking 7. Electric Drill
4. Pipe Cutter
Maintenance Guide
Please follow the cleaning material manufacturer’s instructions. Damage caused by improper
treatment will not be covered by product warranty. In addition, pay attention to the following points:
• Regular cleaning can prevent mineral build up on faucet spout.
• Carefully read the cleaner product label to ensure the cleaner is safe for use on the material.
• Test the cleaner on a small area before using on the entire surface.
• Use a mild detergent such as liquid dishwashing soap and warm water for cleaning.
• Do not use abrasive / harsh chemical when cleaning the xture as they will damage and dull the
nish.
• When using spray cleaners, spray rst onto a soft cloth or sponge. Never spray directly onto the
faucet as droplets can enter openings and gaps and cause damage.
• After cleaning, rinse thoroughly with clean water to remove any cleaner residue.
4FTF01 Rev.3.1 01/2021
Luxier
Installation
1. Insert the Top Tube over Water Supply
Hoses. Thread the Top Tube to the Body and
tighten it fully. Slide the Escutcheon onto the
Bottom Tube and connect it to the Top Tube.
Make sure the Tubes are fully tightened.
Water Supply Hoses
Top Tube
Body
Bottom Tube
Escutcheon
1

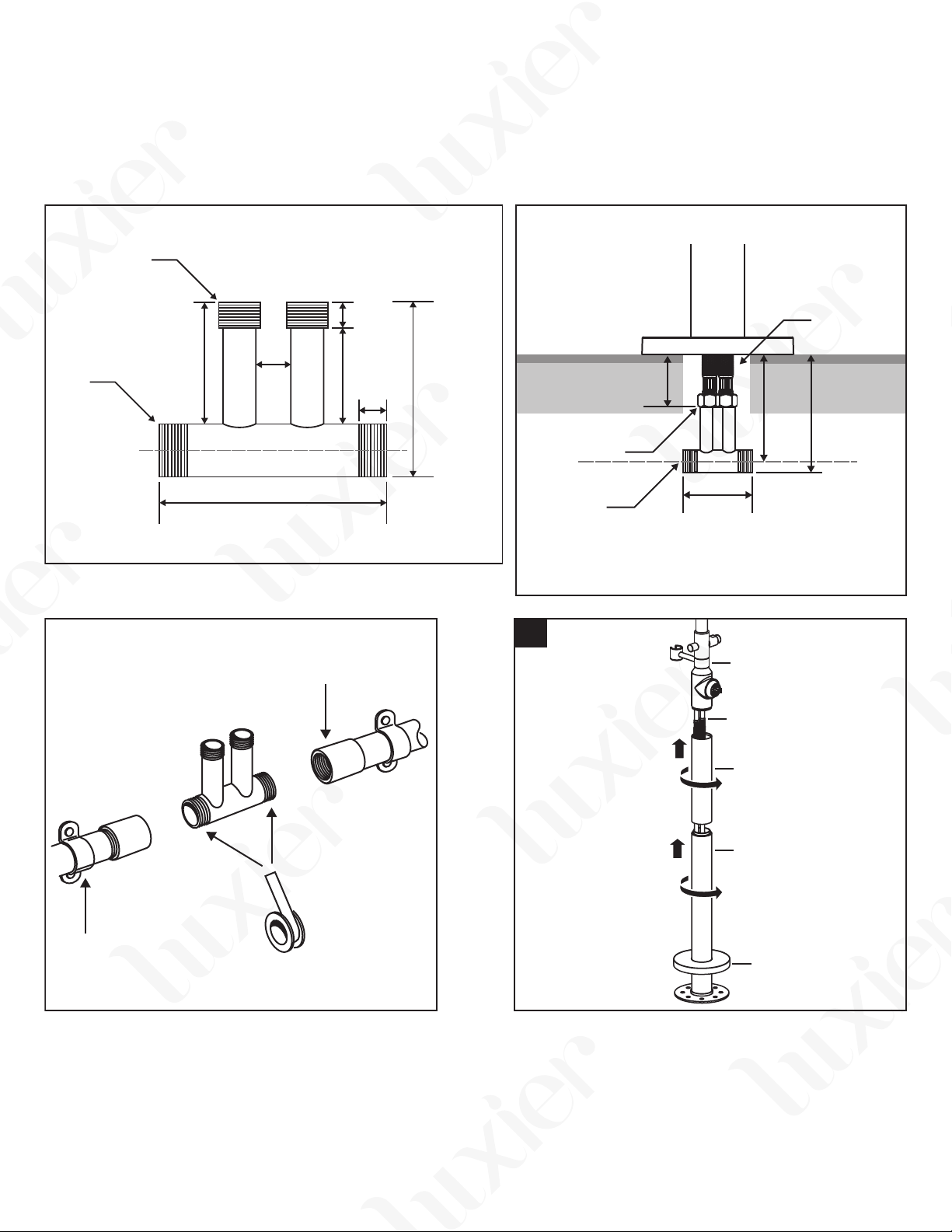

The T-Connector needs to be tted to both the hot and cold water pipes before installing the Tub Filler. The
T-Connector should be about 3 7/8” below the surface of the nished oor and the oor opening should be
2.5” in diameter. See gure B.
IMPORTANT: This product should be installed by professional installers.
IMPORTANT: It is strongly recommended to dry t all parts before nal installation.
IMPORTANT: Provide adequate clearance around the Tub Filler.
4 1/4”
3 7/8”
1 3/4”
3 1/2”
1/2” NPT
G 3/8 Thread
2.5” Diameter Hole
Suboor
Tiled Floor
* Drawings not to Scale. All Measurements are Approximate *
Figure B. Recommended T-Connector Depth
3 1/2”
2 3/4”
1/2” NPT
G 3/8 thread
0.4”
0.6”
0.43” 1.57”
1.97”
Figure A. T-Connector Dimensions
* Drawings not to Scale. All Measurements are Approximate *
Water Pipe
Pipe Support
Figure C. Pipe Connection
Figure C. Secure water pipes to oor joist
with pipe supports. Apply PTFE tape to the
threads of the T-Connector before connecting
to the water pipes. Do not overtighten the
connections.
5FTF01 Rev.3.1 01/2021
Luxier
Installation
3. Make sure the oor is level in both directions.
Determine the distance from the nished wall to
the center of the oor water supply hose. Make
sure there is enough clearance around the Tub
Filler. Mark the center line. Drill a 2.5” diameter
hole for the water supply hoses. Insert the
water supply hoses through the hole and place
tub ller assembly on the oor and check for
alignment.
Level
Finished Wall Line
2.5” Hole
Base Board
Top View
3
4. With the Tub Filler Assembly aligned in the
desired position, mark each of the 4 mounting
holes from the base on the oor. Use a drill with
3/8” drill bit, drill the holes 2” deep and insert
the included anchors. Make sure the anchors are
ush with the nished oor.
5. Place the Tub Filler over the T-Connector
and connect both water supply hoses to the
T-Connector. Do not overtighten the connections.
4

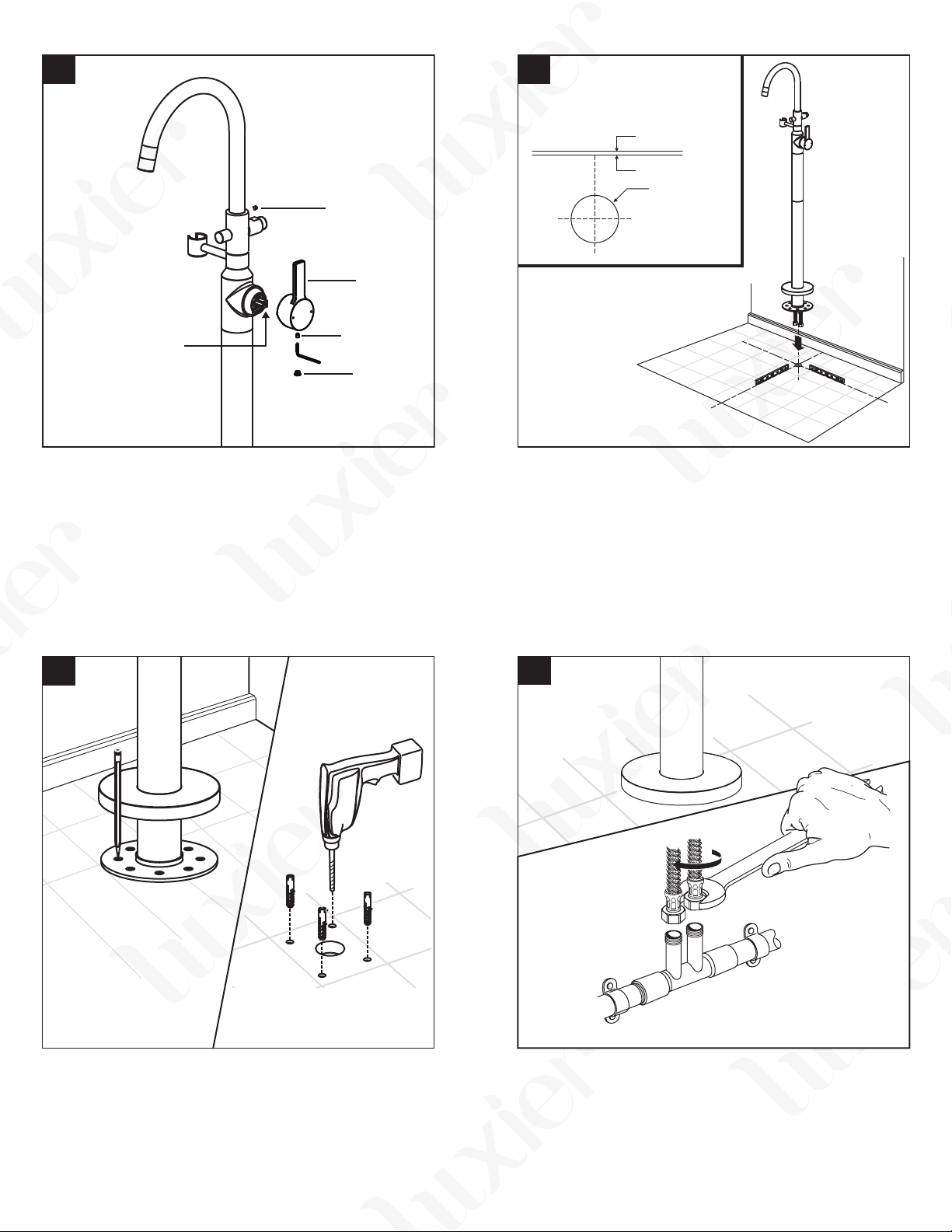

2. Remove the Cap and Setscrew from the
Handle and loosen the Setscrew with the
included Hex Wrench. Insert the Handle on the
cartridge stem, tighten the Setscrew and install
Cap to the Handle. (NOTE: The top Setscrew
can be loosened to swivel the spout if needed.
Tighten the Setscrew if the position of the spout
was changed.)
Setscrew
Handle
Setscrew
Cap
Cartridge Stem
2
5
6FTF01 Rev.3.1 01/2021
Luxier
Installation

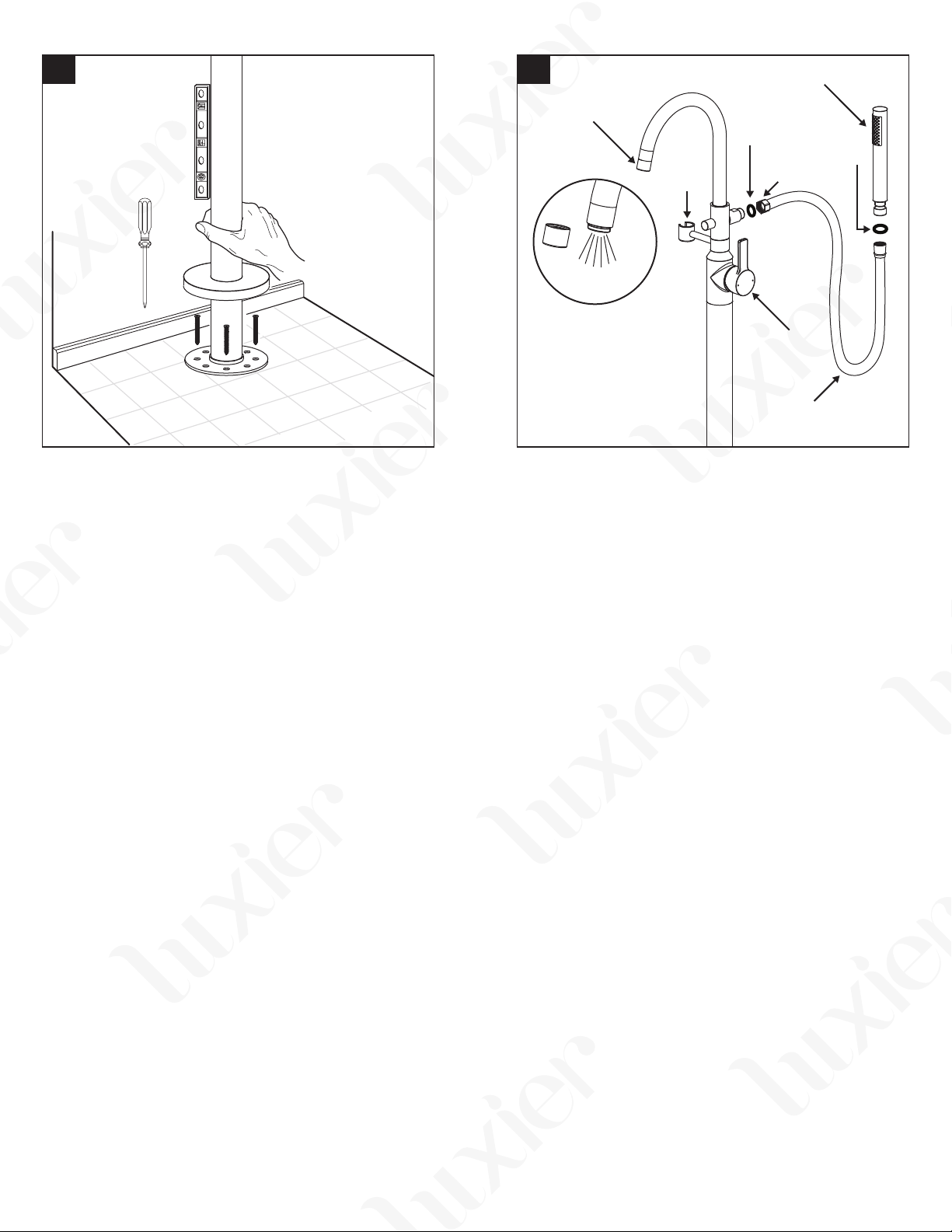

6. Hold the Tub Filler Assembly in place and
install the four Mounting Screws. Check
alignment and level before fully tightening the
screws. After tightening the screws slide the
Escutcheon down to cover the ange.
7. Connect the Hand Shower Hose (5) to the
Tub Filler with the hex nut end to the Tub Filler.
(NOTE: Make sure the rubber washers (1) are
installed on both end of the hose)
Hand tighten the Hand Shower Wand (6) to the
Hand Shower Hose (5). The Hand Shower Wand
should be placed in the Holder (3) when not in
use.
Remove the aerator assembly (2) from the
spout and turn on water for 1 minute and check
for leaks at all connections. Move the Handle
(4) throughout the temperature range to ush
out any debris in both hot and cold water lines
thoroughly. The installation is now complete.
6
Hex Fitting
1
5
2
3
4
1
6
7
7FTF01 Rev.3.1 01/2021
Luxier

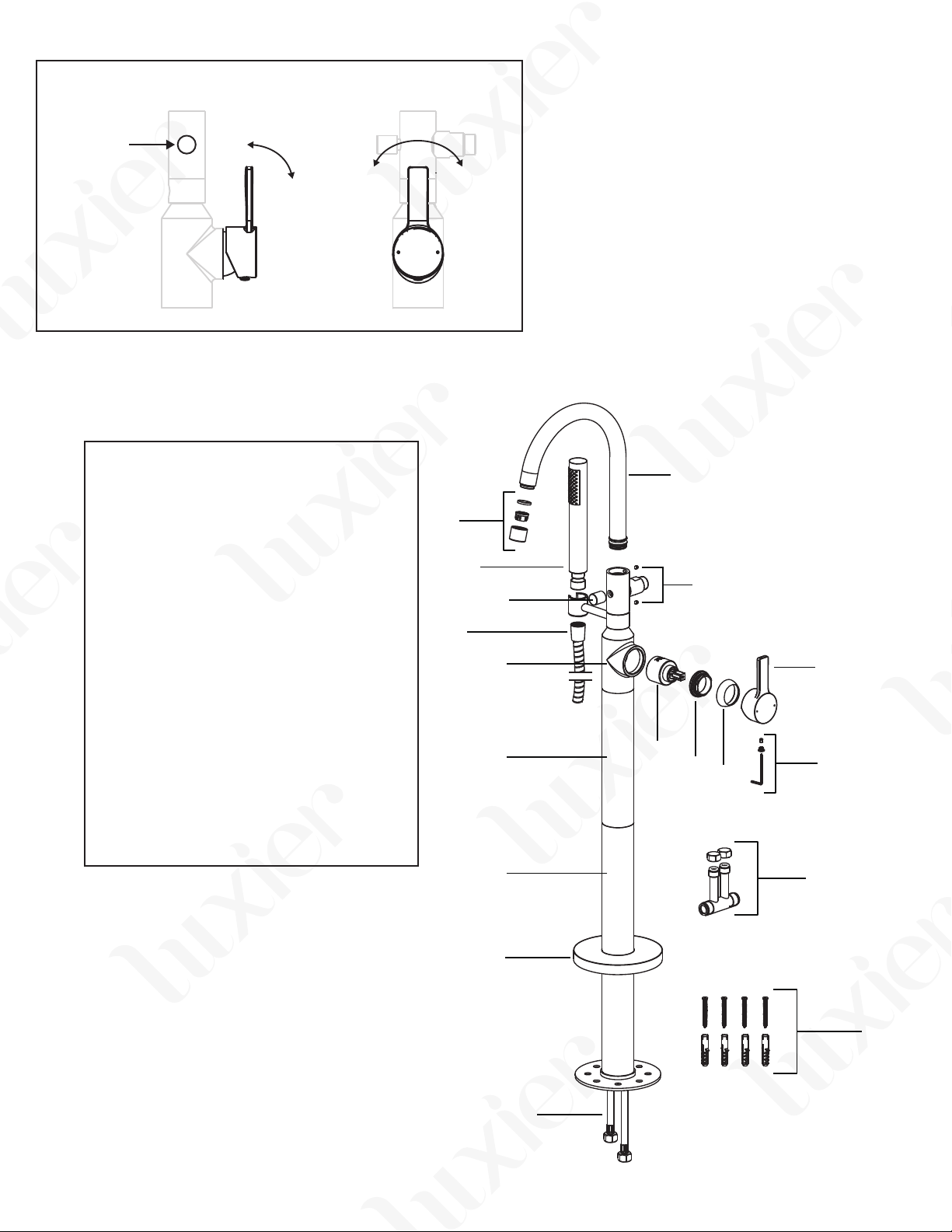

Parts
Operations
01. Aerator Assembly
02. Hand Shower Wand
03. Diverter Knob
04. Hand Shower Hose
05. Body
06. Top Tube
07. Bottom Tube
08. Escutcheon
09. Hot and Cold Water Supply Hose
10. Mounting Screws and Anchors
11. T-Connector
12. Cartridge
13. Cartridge Locking Nut
14. Dome Cap
15. Cap, Setscrew and Hex Wrench
16. Handle
17. Setscrews
18. Spout
OFF
Front View
Diverter Knob
Side View
ON HOT COLD
To operate the tub ller simply move the
handle to the ON position to turn on the water.
Adjust the temperature by moving the handle
from side to side to set the desired water
temperature.
To operate the hand shower wand, remove
the hand shower from its holder and direct the
jets into the tub. Pull the diverter knob on the
faucet body. Push the diverter knob to direct
the water back to the spout.
1
2
3
5
4
6
7
9
8
10
11
15
16
18
17
12 13 14
