Introduction
Congratulations on your purchase of the Oxygen 8,part of the USB Keystation
series of MIDI controllers brought to you by M-Audio.You may use your Oxygen
8 in conjunction with a USB equipped PC or Macintosh computer and
appropriate music software to enter a full range of MIDInote and controller
information.You will be able to discover the wonderful world of Computer
Music with a set of complete musical instruments from your sound card,sound
modules, or workstation. The Oxygen 8 gives you full control over MIDI
parameters,while utilizing proven M-Audio USB MIDI interface technology.The
Oxygen 8 will also serve your needs as a standalone MIDI controller.
This manual will help you become familiar with the powerful features of the
Oxygen 8.After reading the manual carefully,you will have a clear understanding
of how to transmit different MIDI messages to other instruments and
equipment. For ease of use of MIDI implementation, we strongly recommend
that you have the manual at hand when you are using the keyboard,especially if
you are new to the world of MIDI.
Oxygen 8 Features
•The Oxygen 8 MIDI controller keyboard provides 25 dynamic keys,pitch and
mod wheels,a data slider,and 8 assignable rotary controllers.
•Connects easily to your computer’s USB port.No tools,and no disassembly
is required.When used with USB,the Oxygen 8 may be parasitically powered
by your computer’s USB port.
•The Oxygen 8 may also be used as a completely portable standalone
controller when powered by 6AA-size batteries.
•The Oxygen 8 provides two MIDI OUT jacks for connecting to MIDI devices
from either your computer, or as a standalone MIDI controller.
•There is also a socket for an optional sustain-footswitch.
•Although the Oxygen 8 has no built-in sound capabilities, it offers a great
variety of useful MIDI functions.
Oxygen 8 Overview
The Oxygen 8 is a fully functional MIDI controller. Its 25 keys can be set to play
any octave or transposed pitch,while the Oxygen 8’s pitch wheel,mod wheel and
data slider with the addition of eight programmable rotary knobs make it the most
versatile MIDI controller of its class.Its compact size and ability to run on battery
power make it the ultimate in portable keyboard controllers.Virtually any type of
MIDI controller information can be sent from the Oxygen 8 to your computer,
using the power and convenience of the Mac or PC computer’s USB port.
Additionally, the Oxygen 8 can operate as a “standalone” MIDI controller,
independent of the computer.The rear panel MIDI port marked “keyboard” is
used for this purpose.
2
Contained within the Oxygen 8 is a USB MIDI interface.Simply plug the Oxygen
8 into your computer’s USB port, install the included drivers and enable the
MIDI interface within your music software. This combination of a versatile
keyboard controller and a USB MIDI interface allows you record and control
MIDI information within your music application,plus adds a MIDI output port to
which you can connect a MIDI sound module or drum machine.The rear panel
MIDI port marked“USB” is used for this purpose.
The Oxygen 8 may be powered by one of three sources:external power supply,
internal batteries, or “parasitically” from the voltage it receives from the USB
port.For the most consistent perfomance,we recommend using a power supply
or batteries,even when using the Oxygen 8 with your computer’s USB port.To
power from the USB port only, plug the Oxygen 8 directly into the computer’s
USB port,or into a powered USB hub.When using the Oxygen 8 in standalone
mode, a power supply or batteries must be used. Six AA-size batteries are
required when using battery power. When using an external power supply
(optional), it is important to use only a supply with the proper 9vDC, 500ma
rating.These may be purchased locally or through MIDIMAN.
On a PC: You must be running Windows 98 or higher to properly use the
Oxygen 8.Also,your motherboard must support USB or you will need to install
a PCI to USB host adapter to provide the USB ports. It is possible for a
motherboard to support USB and yet not have the physical port connectors
installed. A simple USB back panel extender can be purchased at a computer
supply store and can be installed easily to provide USB port connectors.
On an Apple Computer: Your Apple must support USB with the built-in native
ports present. Standard iMac’s or G3/G4’s with USB ports will work just fine. A Mac
OS that supports USB will also be required.We recommend OS 9.2.2 or higher.We
cannot guarantee performance of device when using non-Apple USB ports.
IMPORTANT: For MacOS 9, an OMS MIDI driver is provided. You MUST have
a sequencer program that supports OMS, and have OMS properly installed
in order to use the Oxygen 8.
What’s in the Box
Included in your Oxygen 8,you should find:
1. Oxygen 8 USB Keystation MIDI Controller
2. One (1) standard USB cable
3. PC and Mac driver disk
4. Owner’s manual and warranty card
3
Guide to Getting Started
Here’s an outline of steps to begin using your Oxygen 8 on either Mac or PC:
1. Attach the Oxygen 8 to your computer (see“Hardware Installation”).
2. Install the Driver (see“Software Installation”).
3. Hook your sound module to the Oxygen 8 (see“Setting UpYour MIDI Studio”).
4. Configure the Oxygen 8 in your application software (see “Using the
Oxygen 8 in yourApplication Software”).
Hardware Installation
Installing your Oxygen 8 means simply attaching it to your USB port using the
standard USB cable that is included. We recommend that you power down (turn
off) your computer for a first time installation. If you are using the Oxygen 8 in
USB mode,a power supply is not required—the computer’s USB port provides
the power to run the Oxygen 8. The “wall-wart” or battery supply is only
necessary for use in the standalone mode.However,when the Oxygen 8 receives
its power from the USB port, we recommend either plugging directly into the
computer’s USB port (not into the keyboard’s port or a powered USB hub.)
Find a good spot around your computer station to place the Oxygen 8. The USB
port on your computer is a small (1/8” x 3/8”), rectangular connector (A) and
is usually found in a group of two. The other end (B) of your USB cable is‘more
square’ (1/4” x 1/4”) in shape, and should fit easily into the USB connector on
your Oxygen 8. Take the (A) end of the USB cable and plug it into the USB port
on the back of your computer. Take the (B) end of the USB cable and plug it in
to the USB port on the back panel of the Oxygen 8.
Next,powerupyourcomputerand proceedto the nextsection,“SoftwareInstallation.”
Software Installation
MIDI application software communicates with devices such as the MIDI interface
contained within the Oxygen 8 via software known as “drivers.” This software
driver is a special,dedicated program that makes a MIDI interface accessible to an
application. On the included driver disk,M-Audio supplies the drivers that enable
you to use Oxygen 8 with either Windows, Mac OS9 or Mac OSX. Oxygen 8
drivers are supplied on the included dual format CD.
USB Driver Installation for Windows
This driver for the Oxygen 8 USB interface requires Windows 98 or higher.
Please make sure that Windows 98SE, ME, 2000 or XP is installed on your
system, and that your USB port is enabled. Check your computer manual for
more information.
4
To verify your Windows installation after you have carefully followed these
instructions, you may check your system’s “Device Manager,” located in the
Control Panel under “System.” If you look in the Device Manager, you will find
2 parts for the Oxygen 8 KEYSTATION driver;one under the“Universal Serial
Bus” controller group and the other under the “Sound, video, & game
controllers” group.
Windows XP:
1Insert the 'Oxygen 8' CD-ROM into your CD-ROM drive.
2. Open 'My Computer' or 'Windows Explorer' to locate your CD-ROM drive.
Double-click the CD-ROM drive that contains the Oxygen 8 CD-ROM.
Double-click the 'Oxygen 8' folder.
3. Double-click the driver icon to launch the installation procedure.

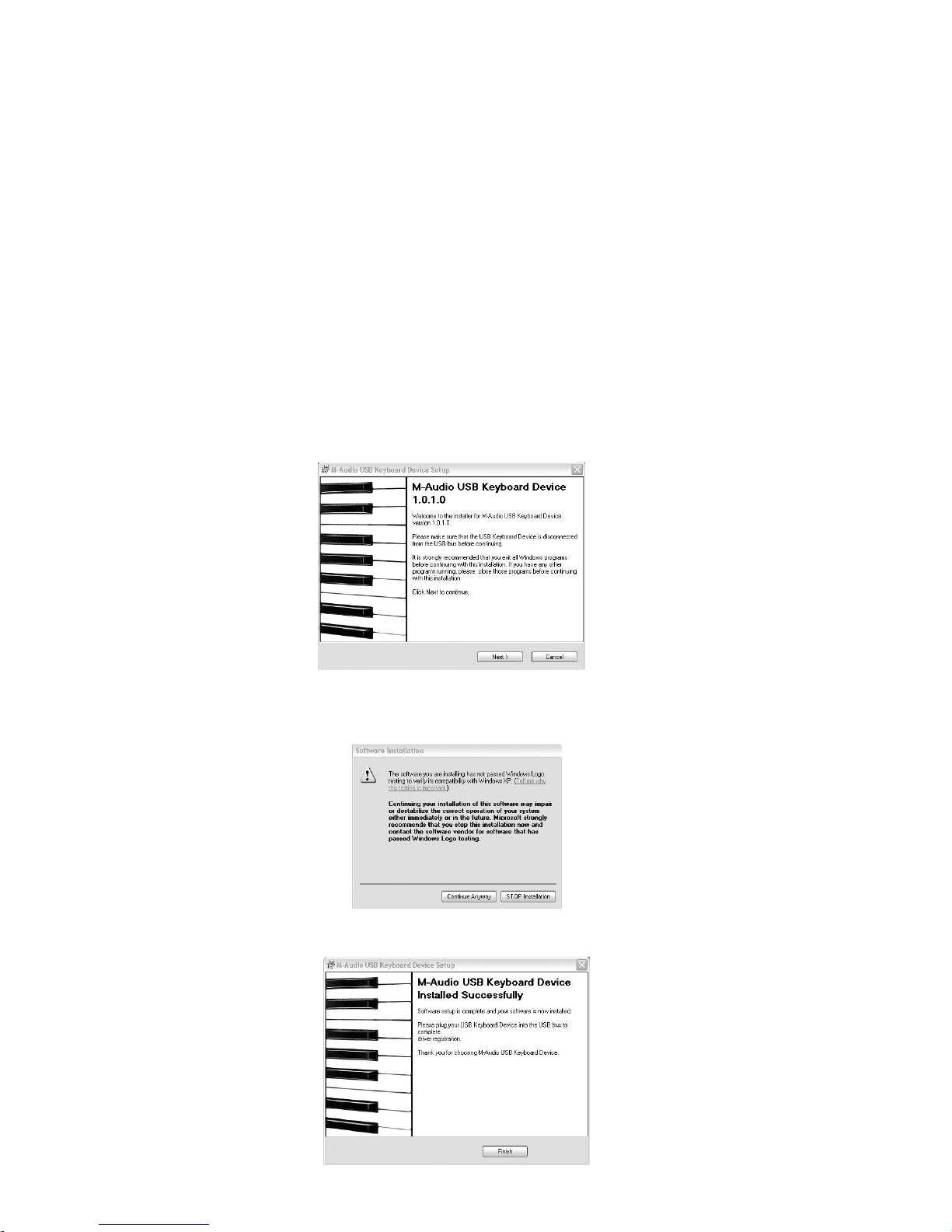

4. You will see an installer window advising you to have your Oxygen 8
DISCONNECTED from the USB bus before continuing.After you verify that
your device is disconnected,click 'Next' to continue.
5. You will see a warning that this device has not passedWindows logo testing.
Click "Continue anyway".
6. When the installer has completed installation,click“Finish”.Plug in your Oxygen 8.
5

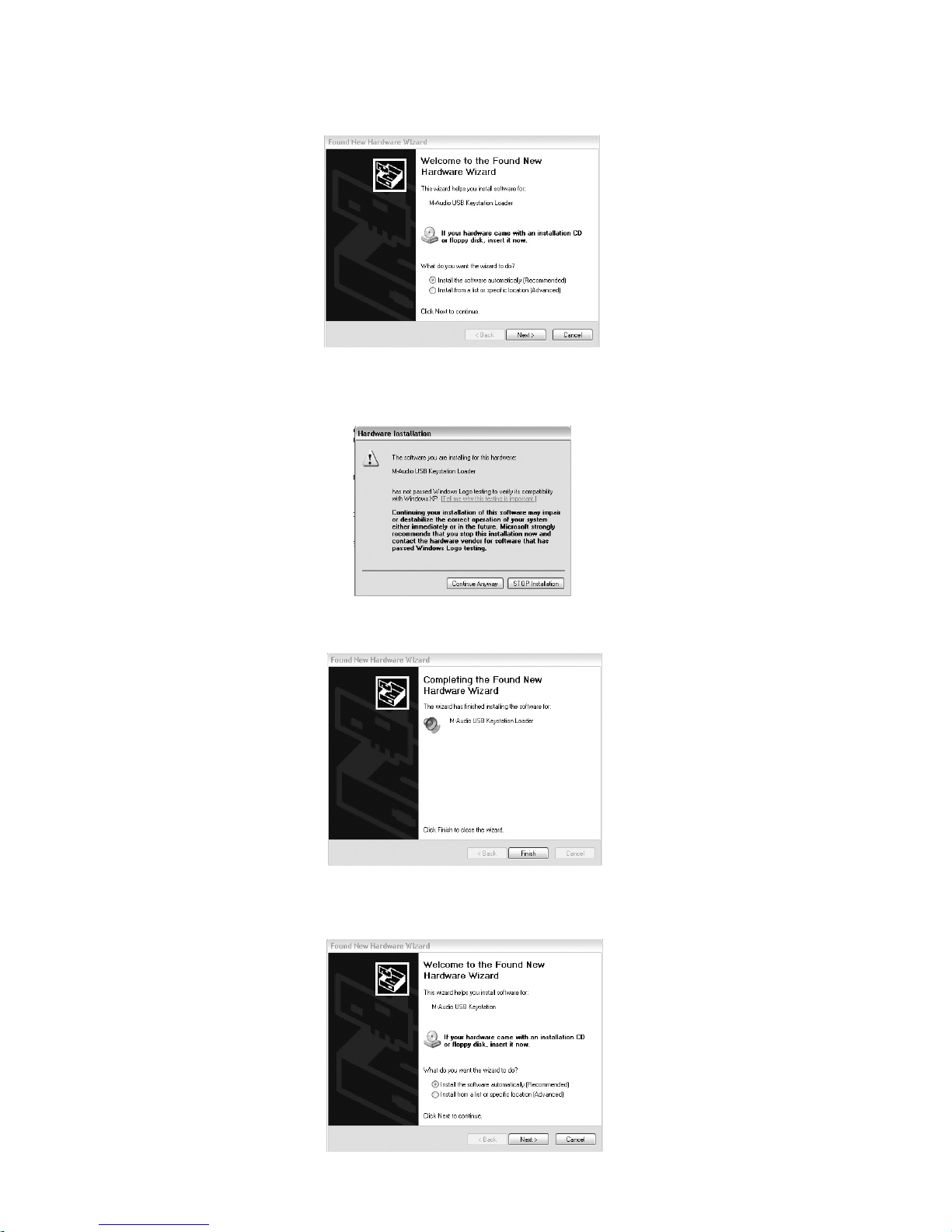

7. You will see a“New Hardware found” dialog.(If you don’t see this dialog at
first,unplug your Oxygen 8 and try again.) Click Next.

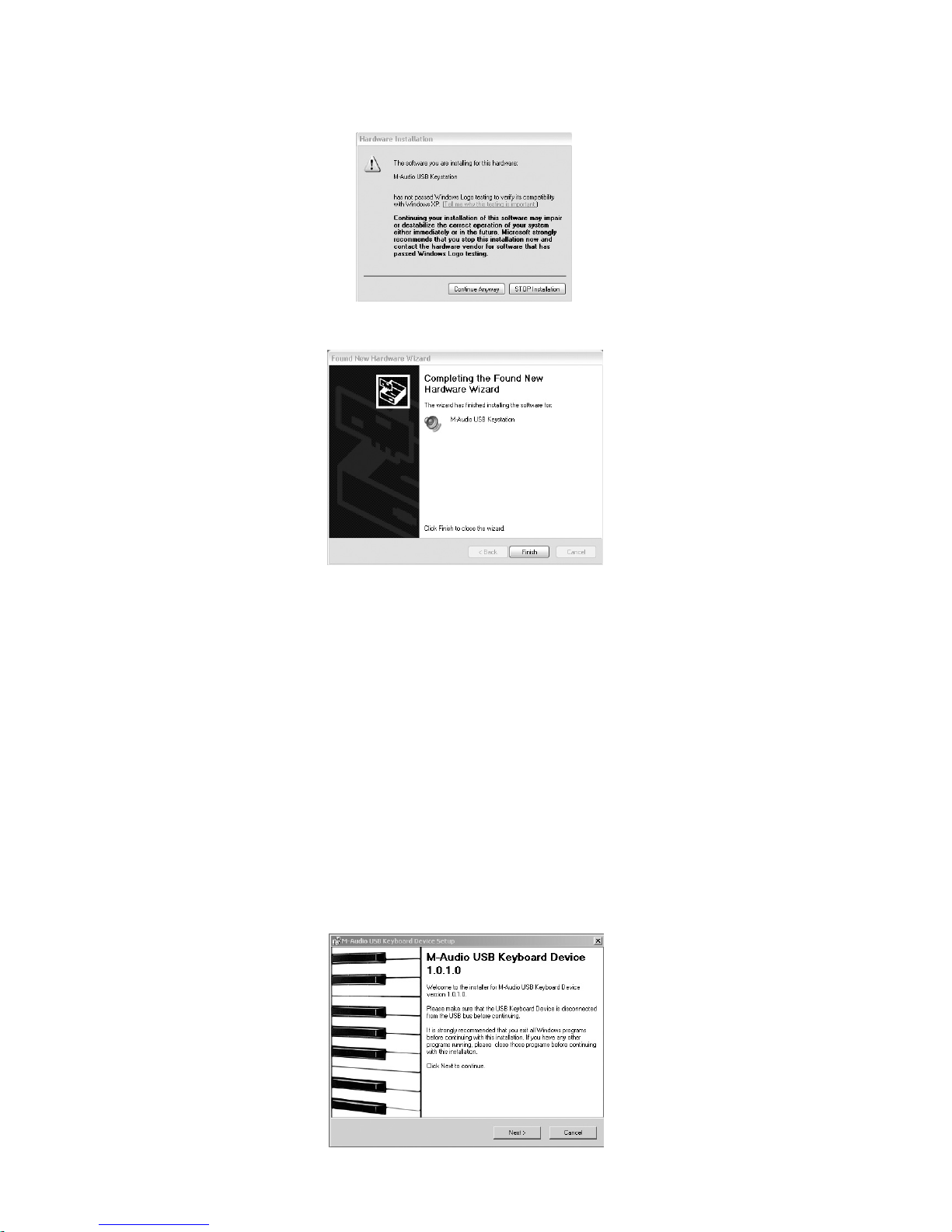

8. You will see another warning that the product has not passedWindows logo
testing.Click "Continue anyway".
9. The installer will finish. Click“Finish” to continue.
10. You will see another window telling you that New Hardware has been found.
Click“Next”.
6
11. Again,the computer reminds you that the product has not passedWindows
Logo testing.Click "Continue anyway".
12. The driver has been installed.
Windows XP Installation is now complete.
Windows 2000
1. Service Pack 2 or higher is required for proper operation of the Oxygen 8
driver. This service pack is available from Microsoft Downloads at
www.microsoft.com/downloads.
2. Insert the M-Audio Driver CD into your CD-ROM drive. Open 'My
Computer' or 'Windows Explorer' to locate your CD-ROM drive. Double-
click the CD-ROM drive that contains the Oxygen 8 CD-ROM.
3. Double-click the Oxygen 8 Folder to open it.
4. Double-click on the Oxygen 8 Installer icon
5. A dialog box will appear,reminding you to exit all currently running programs
and to disconnect the Oxygen 8 from the USB port.Do this,and click“Next”
to continue.
7
The installer will scan your hard drive (this can take some time) and will then
install the necessary files and perform setup actions on your system.A series of
progress bars will show you how the process is going.

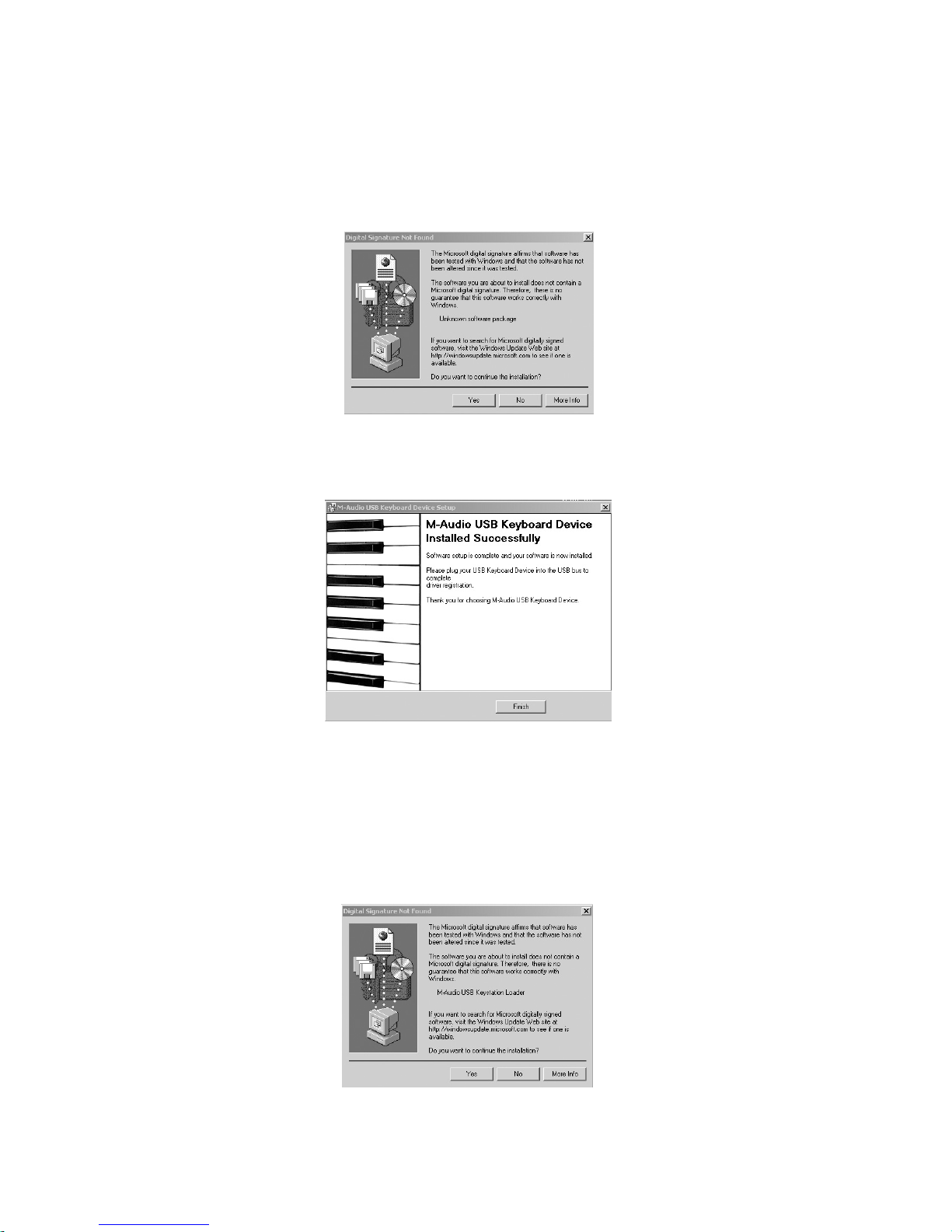

6. At the next prompt, the installer will warn you that this product does not
have aWindows Digital Signature.Click“Yes” to continue.
7. A dialog box will appear, stating that the installation has succeeded. Click
“Finish” to complete the driver installation.
8. Plug the Oxygen 8 into your computer’s USB port.Be sure to either have the
power supply connected and power switch set to 9V, or if not using power
supply, be sure to set the power switch to USB Power. Upon doing so, the
computer will find and install the necessary drivers.
9. The installer will warn you that this product does not have aWindows Digital
Signature.Click“Yes” to continue.
8
10. The installer will warn you again, a second time, that this product does not
have aWindows Digital Signature - again,click“Yes.”
11. The next screen informs you that the installer has completed.Click “Finish”
to continue.
12. Windows 2000 will prompt you to restart the computer, in order to
complete the installation.Click “Yes” to restart with new settings.
Windows 2000 Installation is now complete.
Windows Me and Windows 98 Second Edition
1. Insert the M-Audio Driver CD into your CD-ROM drive. Open 'My
Computer' or 'Windows Explorer' to locate your CD-ROM drive. Double-
click the CD-ROM drive that contains the Oxygen 8 CD-ROM.
2. Double-click the Oxygen 8 Folder to open it.
3. Double-click on the Oxygen 8 Installer icon.
4. A dialog box will appear,reminding you to exit all currently running programs
and to disconnect the Oxygen 8 from the USB port. Do these things and
9
click“Next” to continue.
The installer will scan your hard drive (this can take some time) and will then
install the necessary files and perform setup actions on your system.A series of
progress bars will show you how the process is going.
5. A dialog box will appear, stating that the installation has succeeded. Click
“Finish” to complete the driver installation.
6. Plug the Oxygen 8 MIDI interface into your USB port.Be sure to either have
the power supply connected and power switch set to 9V, or if not using
power supply, be sure to set the power switch to USB Power. Upon doing
so,the computer will find and install the necessary drivers.
Windows Me or 98SE Installation is now complete.
USB Driver Installation for Macintosh
If you are using OS 9,you must first install Opcode’s OMS. This is available on
the MIDISPORT drivers page of our website,or can be installed from the driver
CD by opening the OMS folder and then double clicking the OMS install icon
that asks for the driver signature.
This release version of the Oxygen 8 driver requires Macintosh operating
10
Indice
Altri manuali M-Audio Apparecchiature di registrazione
M-Audio
M-Audio MICROTRACK 24 Manuale utente
M-Audio
M-Audio MobilePre USB Manuale utente
M-Audio
M-Audio Black Box Manuale utente
M-Audio
M-Audio KeyRig49e Manuale utente
M-Audio
M-Audio O2 Manuale utente
M-Audio
M-Audio tirgger finger pro Manuale utente
M-Audio
M-Audio MidAir 25 Manuale utente
M-Audio
M-Audio Delta 1010 Manuale utente
M-Audio
M-Audio Fast Track Ultra Manuale utente
M-Audio
M-Audio Firewire Audiophile Manuale utente
M-Audio
M-Audio MidAir Manuale utente
M-Audio
M-Audio M-Track Hub Manuale utente
M-Audio
M-Audio midiman Thru 1x4 Manuale utente
M-Audio
M-Audio MicroTrack 24/96 Manuale elenco delle parti
M-Audio
M-Audio Trigger Finger Pro Manuale utente
M-Audio
M-Audio ProjectMix I/O Manuale utente
M-Audio
M-Audio X-Session Manuale elenco delle parti
M-Audio
M-Audio M-TRACK plus Manuale utente
M-Audio
M-Audio USB OMNISTUDIO Manuale utente
M-Audio
M-Audio Groove Lab Manuale utente
Manuali Apparecchiature di registrazione popolari di altre marche
Strymon
Strymon NIGHTSKY Manuale utente
Mitsubishi Electric
Mitsubishi Electric 16CH DIGITAL RECORDER DX-TL5000U Manuale utente
Tews Technologies
Tews Technologies TPMC465 Manuale utente
Honeywell
Honeywell Excel 50 Manuale utente
SeaLevel
SeaLevel COMM+8.LPCI Manuale utente
Arturia
Arturia AUDIOFUSE STUDIO Manuale utente
