M-system R3Y-RS8 Manuale utente

R3Y-RS8

P. 1 / 3 EM-8959 Rev.2

BEFORE USE ....

Thank you for choosing M-System. Before use, please check

the contents of the package you received as outlined below.

If you have any problems or questions with the product,

please contact M-System’s Sales Office or representatives.

■ PACKAGE INCLUDES:

RTD input module ...................................................... (1)

■ MODEL NO.

Check that model No. described on the specification label is

exactly what you ordered.

■ INSTRUCTION MANUAL

This manual describes necessary points of caution when you

use this product, including installation, connection and basic

maintenance procedures.

INSTRUCTION MANUAL

MODEL R3Y-RS8

RTD INPUT MODULE

(8 points, isolated)

POINTS OF CAUTION

■ CONFORMITY WITH EC DIRECTIVES

• The equipment must be mounted inside the instrument

panel of a metal enclosure.

• The actual installation environments such as panel con-

figurations, connected devices and connected wires may

affect the protection level of this unit when it is integrated in

a panel system. The user may have to review the CE

requirements in regard to the whole system and employ

additional protective measures to ensure CE conformity.

■ HOT INSERTION/REMOVAL OF MODULES

Removing or replacing modules does not affect other modules

on the same backplane. It is possible to replace them without

removing the power supply. However, replacing multiple

modules at once may greatly change line voltage levels. We

recommend that you replace them one by one.

■ ENVIRONMENT

• Indoor use

• When heavy dust or metal particles are present in the air,

install the unit inside proper housing with sufficient ventila-

tion.

• Do not install the unit where it is subjected to continuous

vibration. Do not subject the unit to physical impact.

• Environmental temperature must be within -10 to +55°C

(14 to 131°F) with relative humidity within 30 to 90% RH in

order to ensure adequate life span and operation.

■ WIRING

• Do not install cables (power supply, input and output) close

to noise sources (relay drive cable, high frequency line, etc.).

• Do not bind these cables together with those in which noises

are present. Do not install them in the same duct.

■ AND ....

• The unit is designed to function as soon as power is

supplied, however, a warm up for 10 minutes is required for

satisfying complete performance described in the data sheet.

INSTALLATION

Use the Installation Base (model: R3-BSx).

R3Y-RS8

P. 2 / 3 EM-8959 Rev.2

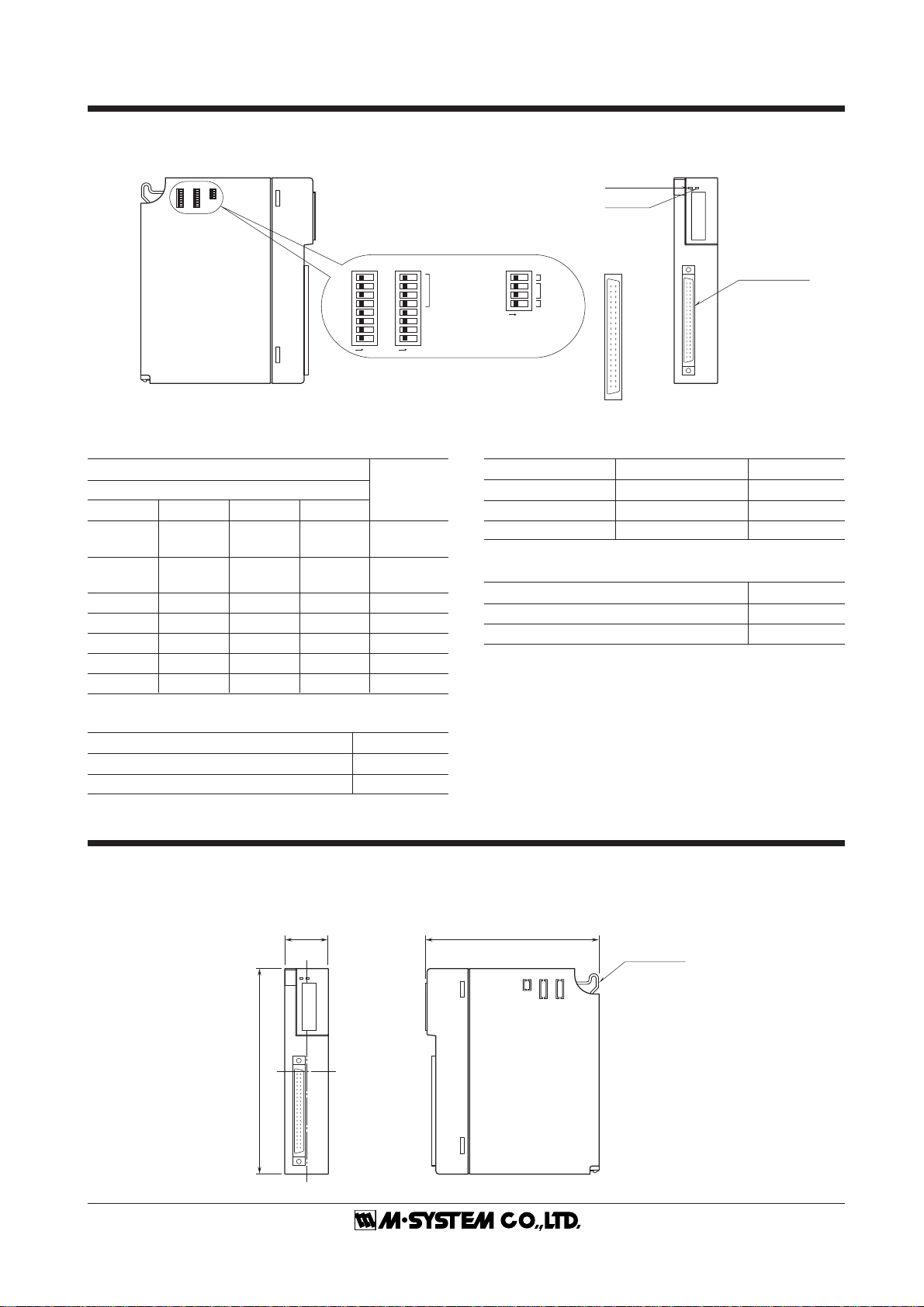

COMPONENT IDENTIFICATION

•Temperature Unit: SW3

•Conversion Rate: SW3

■SIDE DIP SW

•RTD Type: SW1, SW2 (selectable per 4 channels)

SW3-1 BURNOUT

OFF Upscale (*)

ON Downscale

SW3-2 SW3-3 TEMP. UNIT

OFF OFF °C (*)

ON OFF °F

OFF ON

(Absolute Temp)

SW3-4 CONV. RATE

OFF 250 msec. (*)

ON 1 sec.

(*) Factory setting

■ FRONT VIEW■ SIDE VIEW

RUN LED

ERR LED

Input Connector

• Pin Assignment

20 A

SW2SW1

SW3

Input 1-4 (SW1)

Input 5-8 (SW2)

RTD

Conv.

Rate

Temp.

Unit

Burnout

INPUT 1 through INPUT 4 (SW1)

INPUT 5 through INPUT 8 (SW2) RTD

1234

OFF OFF OFF OFF Pt 100 (*)

(JIS '97/IEC)

ON OFF OFF OFF Pt 100

(JIS '89)

OFF ON OFF OFF JPt 100

ON ON OFF OFF Pt 50Ω

OFF OFF ON OFF Ni 100

ON OFF ON OFF

Cu 10 (25°C)

OFF OFF OFF ON Cu 50

TERMINAL CONNECTIONS

Connect the unit as in the diagram below.

■ DIMENSIONS mm (inch)

130 (5.12)

27.5 (1.08) 110 (4.33) POSITIONING

GUIDE

•Burnout: SW3

■STATUS INDICATOR LED

RUN indicator: Bi-color (red/green) LED;

Red when the bus A operates normally;

Green when the bus B operates normally;

Amber when both buses operate normally.

ERR indicator: Bi-color (red/green) LED;

Red with burnout;

Green in normal operating conditions.

R3Y-RS8

P. 3 / 3 EM-8959 Rev.2

M-SYSTEM WARRANTY

M-System warrants such new M-System product which it manufactures to be free from defects in materials and workmanship during the 36-month period following the date that such

productwasoriginallypurchasedifsuchproducthasbeenusedundernormaloperatingconditionsandproperlymaintained,M-System'ssoleliability,andpurchaser'sexclusiveremedies,

under this warranty are, at M-System's option, the repair, replacement or refund of the purchase price of any M-System product which is defective under the terms of this warranty. To

submit a claim under this warranty, the purchaser must return, at its expense, the defective M-System product to the below address together with a copy of its original sales invoice.

THIS IS THE ONLY WARRANTY APPLICABLE TO M-SYSTEM PRODUCT AND IS IN LIEU OF ALL OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING ANY IMPLIED

WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. M-SYSTEM SHALL HAVE NO LIABILITY FOR CONSEQUENTIAL, INCIDENTAL OR

SPECIAL DAMAGES OF ANY KIND WHATSOEVER.

M-System Co., Ltd., 5-2-55, Minamitsumori, Nishinari-ku, Osaka 557-0063 JAPAN, Phone: (06) 6659-8201, Fax: (06) 6659-8510, E-mail: [email protected]

BUS CONNECTOR

INTERNAL POWER

BUS A

BUS B*

INPUT 1

19B

18B

RTD

16B

INPUT 2

15B

14B

RTD

13B

INPUT 3

11B

10B

RTD

INPUT 4

RTD

INPUT 5

19A

18A

RTD

17A

INPUT 6

15A

14A

RTD

13A

INPUT 7

11A

10A

RTD

INPUT 8

RTD

*For dual redundant communication.

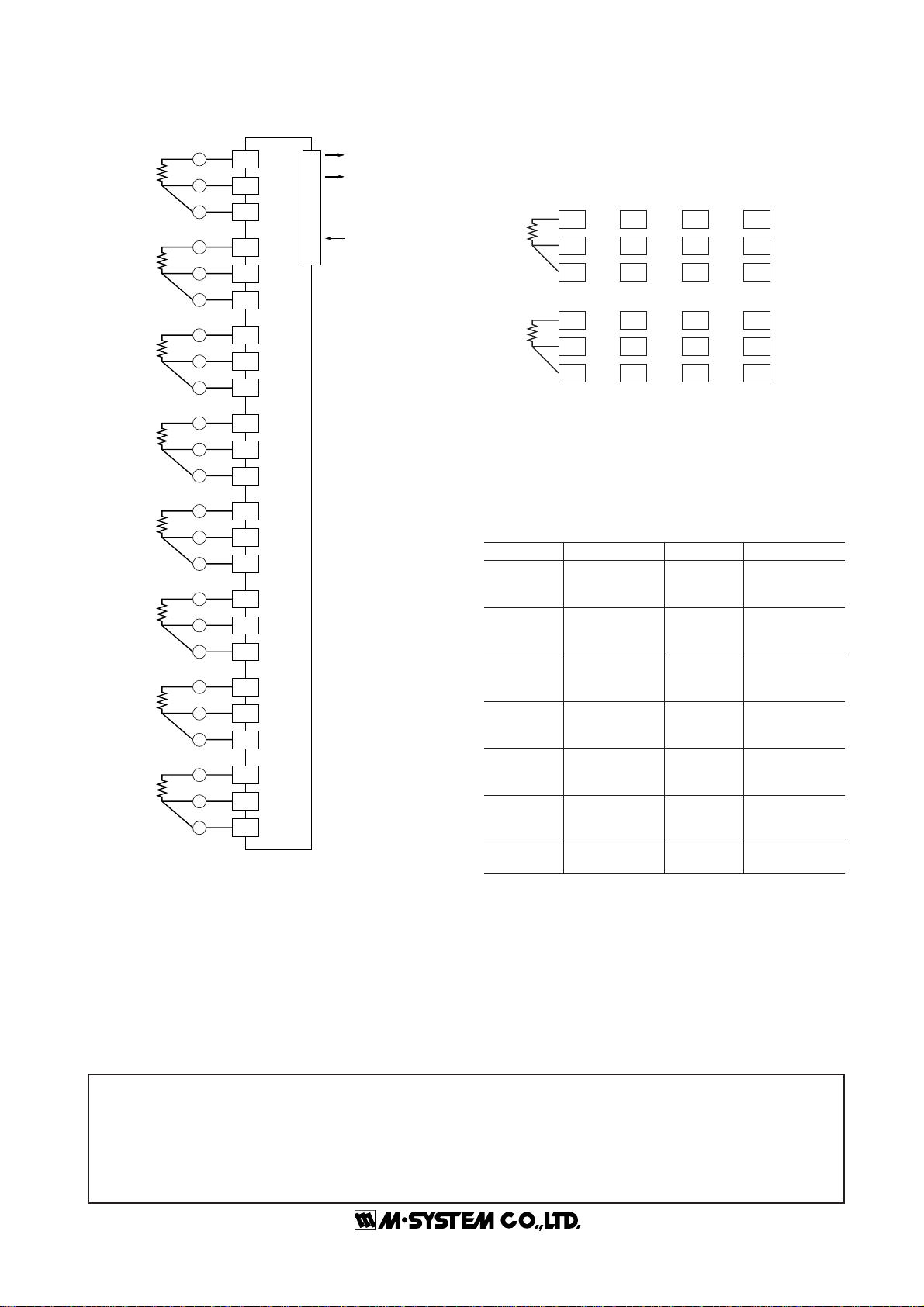

■ CONNECTION DIAGRAM

PIN NO. ASSIGNMENT PIN NO. ASSIGNMENT

1A NC 1B NC

2A NC 2B NC

3A NC 3B NC

4A NC 4B NC

5A IN8B 5B IN4B

6A IN8B 6B IN4B

7A IN8A 7B IN4A

8A NC 8B NC

9A IN7B 9B IN3B

10A IN7B 10B IN3B

11A IN7A 11B IN3A

12A NC 12B NC

13A IN6B 13B IN2B

14A IN6B 14B IN2B

15A IN6A 15B IN2A

16A NC 16B NC

17A IN5B 17B IN1B

18A IN5B 18B IN1B

19A IN5A 19B IN1A

20A NC 20B NC

■ INPUT CONNECTOR (40-pin)

• Unused Input Channels

Close across the unused input terminals with a resistor as

shown below and set the DIP switch for an RTD. The

resistance value must match the RTD type (100Ωfor Pt

100, 50Ωfor Pt 50).

Unused channels left open are equal to the burnout, which

turns the red ERR LED on and sets a burnout flag at the

PLC or the host device.

Unused channelscan be specified and set so on the PC

Configurator Software (model: R3CON) without needing to

connect resistors at the field terminals.

19B

18B

INPUT 1

15B

14B

INPUT 2

11B

10B

INPUT 3

17B 13B 9B 5B

INPUT 4

19A

18A

17A

INPUT 5

15A

14A

13A

INPUT 6

11A

10A

INPUT 7

INPUT 8
