R3Y-SS16N
P. 1 / 3EM-8967
DC CURRENT INPUT MODULE
(16 points, non-isolated) MODEL
R3Y-SS16N
INSTRUCTION MANUAL
BEFORE USE ....
Thank you for choosing M-System. Before use, please check
contents of the package you received as outlined below.
If you have any problems or questions with the product,
please contact M-System’s Sales Office or representatives.
■ PACKAGE INCLUDES:
DC current input module ............................................. (1)
■ MODEL NO.
Confirm Model No. marking on the product to be exactly
what you ordered.
■ INSTRUCTION MANUAL
This manual describes necessary points of caution when
you use this product, including installation, connection and
basic maintenance procedures.
POINTS OF CAUTION
■ HOT INSERTION/REMOVAL OF MODULES
Removing or replacing modules does not affect other mod-
ules on the same backplane. It is possible to replace them
without removing the power supply. However, replacing
multiple modules at once may greatly change line voltage
levels. We recommend that you replace them one by one.
■ ENVIRONMENT
• Indoor use
• When heavy dust or metal particles are present in the air,
install the unit inside proper housing with sufficient ven-
tilation.
• Do not install the unit where it is subjected to continuous
vibration. Do not subject the unit to physical impact.
• Environmental temperature must be within -10 to +55°C
(14 to 131°F) with relative humidity within 30 to 90% RH
in order to ensure adequate life span and operation.
■ WIRING
• Do not install cables (power supply, input and output)
close to noise sources (relay drive cable, high frequency
line, etc.).
• Do not bind these cables together with those in which
noises are present. Do not install them in the same duct.
■ UNUSED INPUT CHANNELS
Set the unused channels to -20 – +20mA or 0 – 20mA range.
Otherwise, set them as “Unused” with PC Configurator soft-
ware: R3CON. Unused channels left open with 4 – 20mA
setting are equal to the input lower than -15%, which sets a
data abnormality at the PLC or the host device.
■ AND ....
The unit is designed to function as soon as power is sup-
plied, however, a warm up for 10 minutes is required for sat-
isfying complete performance described in the data sheet.
INSTALLATION
Use the Installation Base (model: R3-BSx).
R3Y-SS16N
P. 2 / 3EM-8967
B
20
A
20
B
1
A
1
ON
8
7
6
5
4
3
2
1
SW1SW2
ON
8
7
6
5
4
3
2
1
SW3
ON
4
3
2
1
� FRONT VIEW � SIDE VIEW
Input Connector
RUN LED
ERR LED
• Pin Assignment
Conv.
Rate Range
Input 1-8 (SW1)
or
Input 9-16 (SW2)
Functions

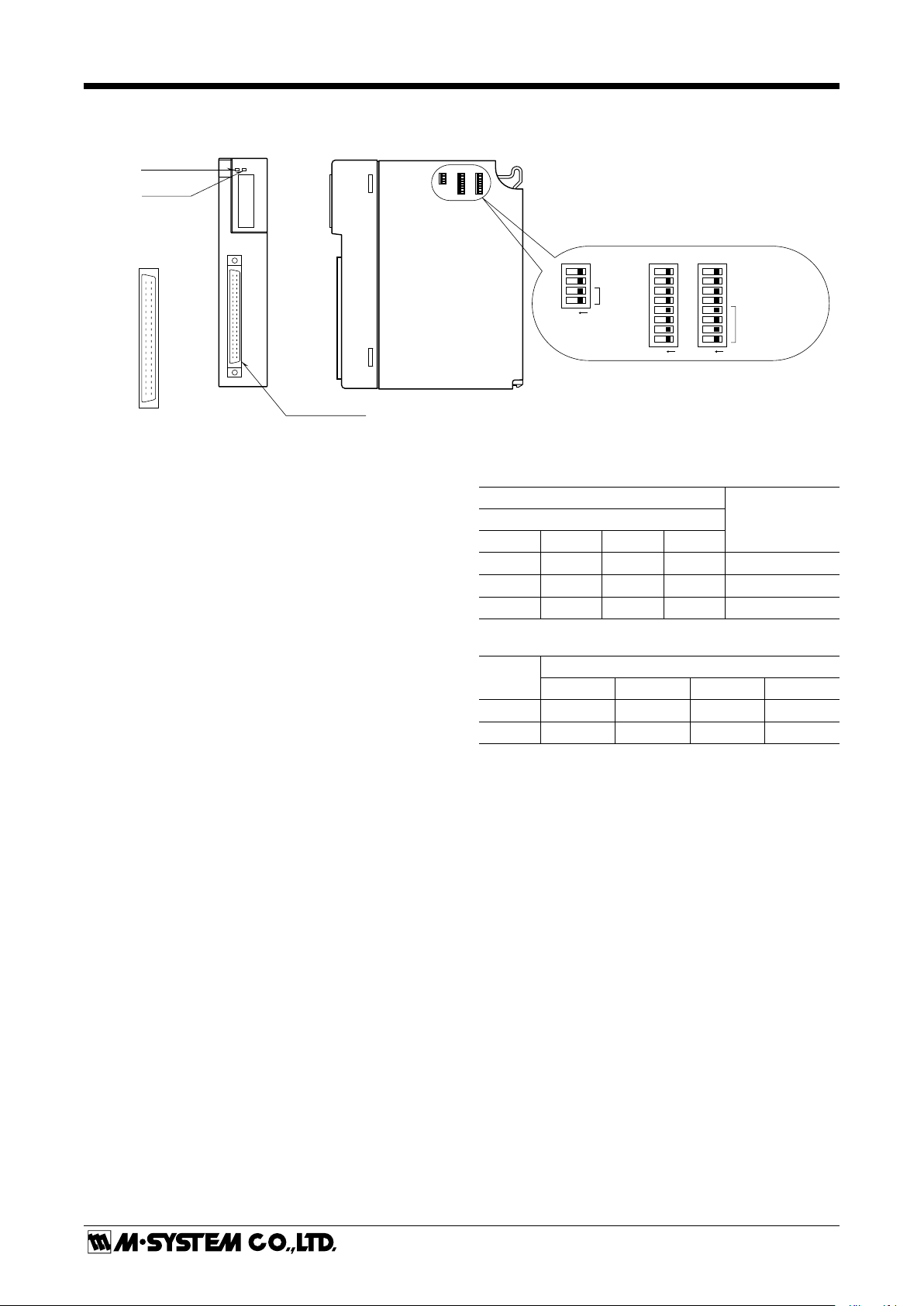

COMPONENT IDENTIFICATION
■ STATUS INDICATOR LED
RUN indicator: Bi-color (red/green) LED;
Red when the bus A operates normally;
Green when the bus B operates normally;
Amber when both buses operate normally.
ERR indicator: Bi-color (red/ green) LED;
Red with the input circuit abnormality (AD
converter response failure);
Green in normal operating conditions.
■ SIDE DIP SW
• Input Range: SW1, SW2 (selectable per 8 channels)
INPUT 1 through INPUT 8 (SW1)
RANGEINPUT 9 through INPUT 16 (SW2)
1 2 3 4
OFF OFF OFF OFF 4 – 20mA (*)
ON OFF OFF OFF 0 – 20mA
OFF ON OFF OFF -20 – +20mA
• Conversion Rate: SW3
SW CONVERSION RATE
100 ms (*)50 ms 20 ms 10 ms
SW3-1 OFF ON OFF ON
SW3-2 OFF OFF ON ON
(*) Factory setting
R3Y-SS16N
P. 3 / 3EM-8967
130 (5.12)
27.5 (1.08) 110 (4.33) POSITIONING
GUIDE
INPUT 1
INPUT 2
INPUT 3
INPUT 4
INPUT 5
INPUT 6
INPUT 7
INPUT 8
INPUT 9
INPUT 10
INPUT 11
INPUT 12
INPUT 13
INPUT 14
INPUT 15
INPUT 16
COM
COM
COM
COM
20A/20B
18A/18B
16A/16B
14A/14B
12A/12B
10A/10B
8A/8B
6A/6B
19A/19B
17A/17B
15A/15B
13A/13B
11A/11B
9A/9B
7A/7B
5A/5B
4A/4B
3A/3B
2A/2B
1A/1B
INTERNAL POWER
BUS A
BUS B*
*For dual redundant communication.
BUS CONNECTOR

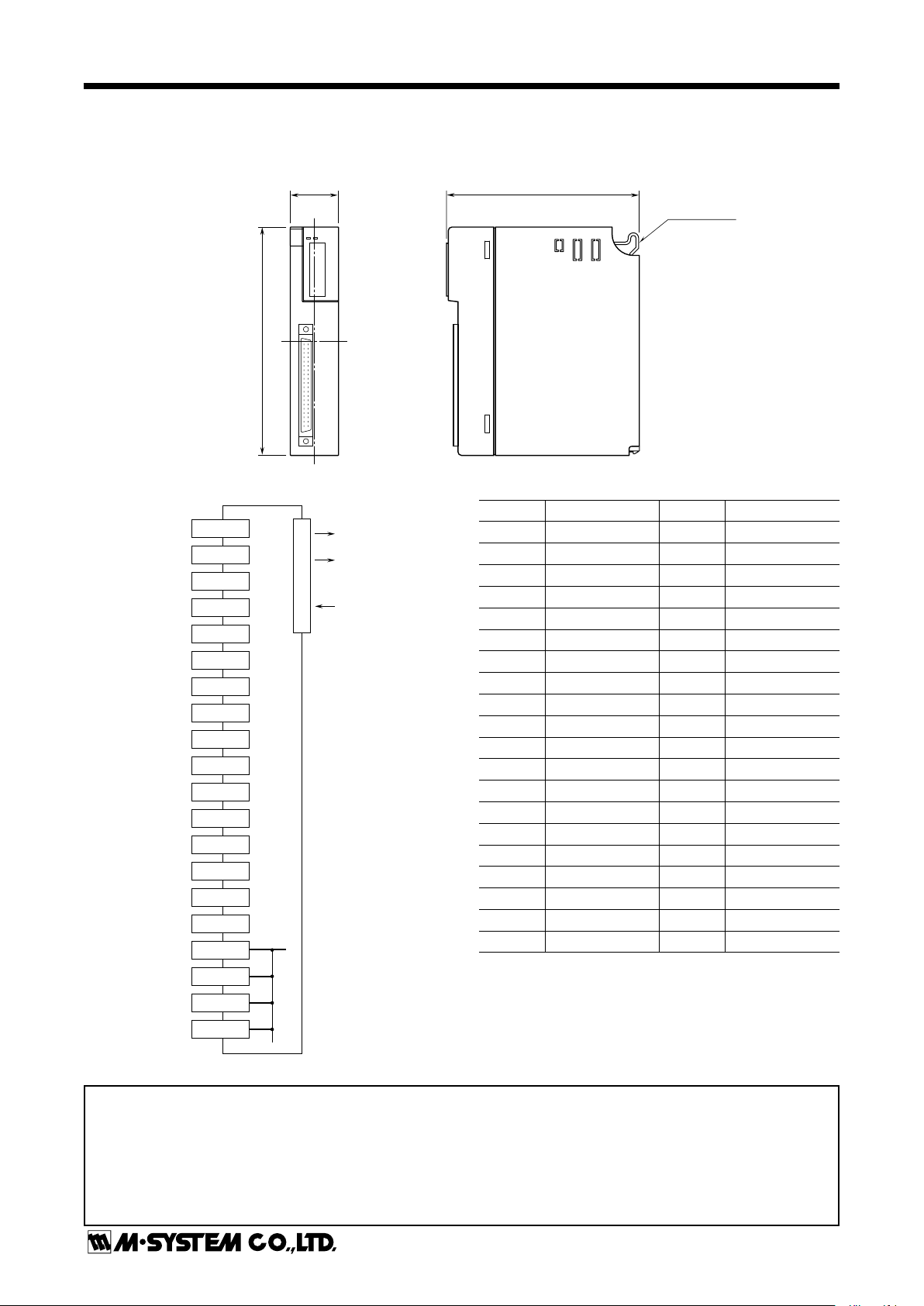

■ DIMENSIONS mm (inch)
■ CONNECTION DIAGRAM
TERMINAL CONNECTIONS
Connect the unit as in the diagram below.
M-SYSTEM WARRANTY
M-System warrants such new M-System product which it manufactures to be free from defects in materials and workmanship during the 36-month period following the date that such
product was originally purchased if such product has been used under normal operating conditions and properly maintained, M-System’s sole liability, and purchaser’s exclusive
remedies, under this warranty are, at M-System’s option, the repair, replacement or refund of the purchase price of any M-System product which is defective under the terms of this
warranty. To submit a claim under this warranty, the purchaser must return, at its expense, the defective M-System product to the below address together with a copy of its original
sales invoice.
THIS IS THE ONLY WARRANTY APPLICABLE TO M-SYSTEM PRODUCT AND IS IN LIEU OF ALL OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING ANY IMPLIED
WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. M-SYSTEM SHALL HAVE NO LIABILITY FOR CONSEQUENTIAL, INCIDENTAL OR
SPECIAL DAMAGES OF ANY KIND WHATSOEVER.
M-System Co., Ltd., 5-2-55, Minamitsumori, Nishinari-ku, Osaka 557-0063 JAPAN, Phone: (06) 6659-8201, Fax: (06) 6659-8510, E-mail: [email protected]
PIN NO. ASSIGNMENT PIN NO. ASSIGNMENT
1A COM 1B COM
2A COM 2B COM
3A COM 3B COM
4A COM 4B COM
5A IN16 5B IN16
6A IN8 6B IN8
7A IN15 7B IN15
8A IN7 8B IN7
9A IN14 9B IN14
10A IN6 10B IN6
11A IN13 11B IN13
12A IN5 12B IN5
13A IN12 13B IN12
14A IN4 14B IN4
15A IN11 15B IN11
16A IN3 16B IN3
17A IN10 17B IN10
18A IN2 18B IN2
19A IN9 19B IN9
20A IN1 20B IN1
■ INPUT CONNECTOR (40-pin)
