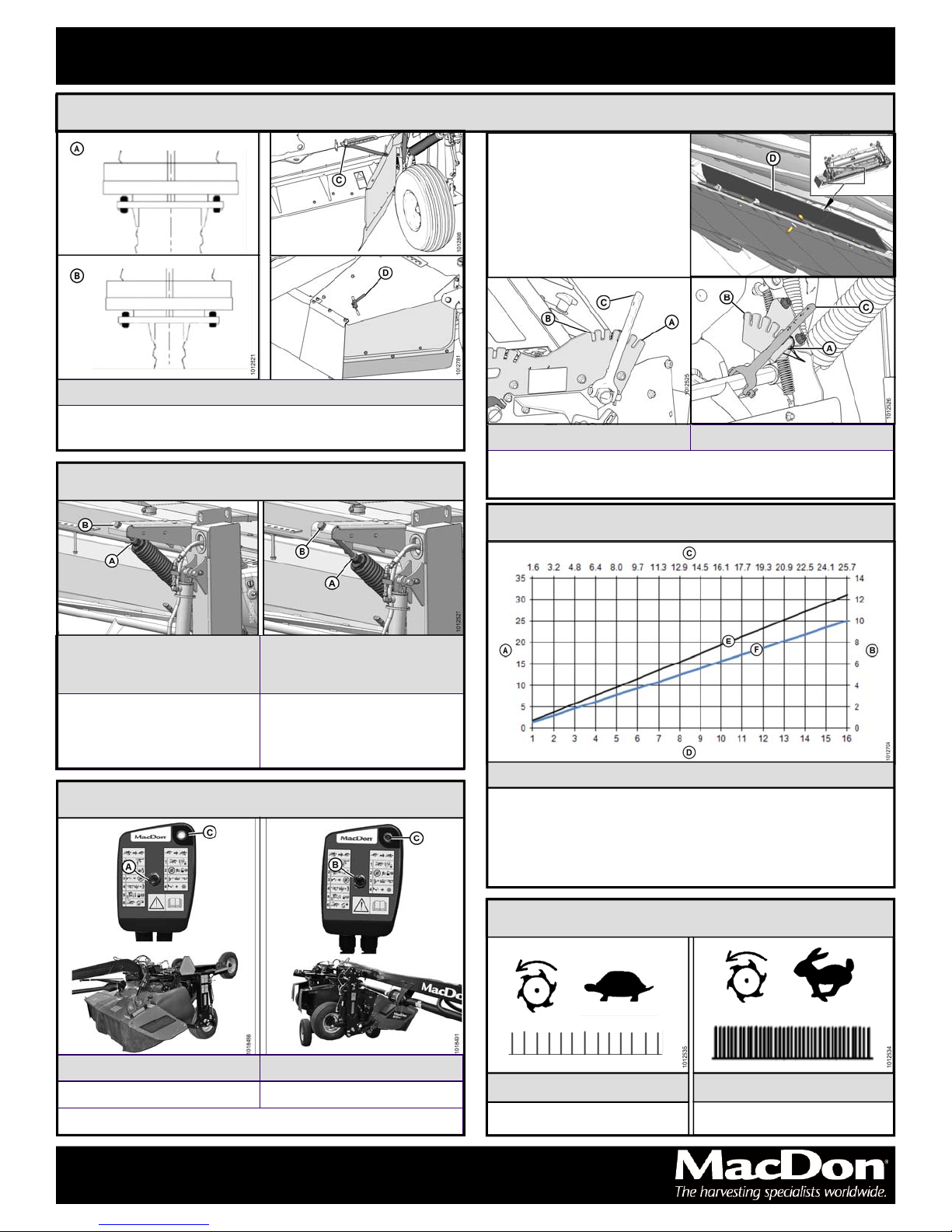

R113/R116 Pull-Type Disc Mower Quick Card MD #214799_A

Supplement to R113/R116 Pull-Type Disc Mower Operator’s Manual

R113/R116 Quick Card

Subject to change without notice.

Use this card as a guide only. Refer to your Operator’s Manual

for detailed settings and adjustment procedures.

Finger Clearance

Increase conditioning:

Move lever forward (A) to lower baffle and decrease clearance (C).

Decrease conditioning:

Move lever aft (B) to raise baffle and increase clearance (C).

Conditioning

Roll Tension

Light crops—less tension:

1. Loosen jam nut (A).

2. Turn bolt (B) counterclockwise to increase exposed thread (C).

3. Tighten jam nut (A).

Heavy/tough crops—more tension:

1. Loosen jam nut (A).

2. Turn bolt (B) clockwise to decrease exposed thread (C).

3. Tighten jam nut (A).

Finger Rotor rpm

Light crop/dry grass:

900 rpm – factory set

Sensitive crop (new/thin alfalfa, thin grass):

600 rpm – swap pulleys (A) and (B)

Header Angle

Smooth/level/firm ground: Steep angle (B)

Rocks/ridges/loose ground: Shallow angle (A)

Hydraulic center-link Mechanical center-link

Cutting Height

Skid Shoes

Short stubble/smooth ground: Upper position (A)

High stubble/rocks/cane: Lower position (B)

Roll Gap

Decrease conditioning:

1. Loosen jam nut (A).

2. Turn lower nut (B) clockwise to increase roll gap (C).

3. Tighten jam nut (A).

Increase conditioning:

1. Loosen jam nut (A).

2. Turn lower nut (B) counterclockwise to decrease roll gap (C).

3. Tighten jam nut (A).

R113/R116 Pull-Type Disc Mower Quick Card MD #214799_A

Supplement to R113/R116 Pull-Type Disc Mower Operator’s Manual

R113/R116 Quick Card Subject to change without notice.

Use this card as a guide only. Refer to your Operator’s Manual

for detailed settings and adjustment procedures.

Transport

1000 PTO rpm

800 PTO rpm

Light/Thin Crop Heavy/Tough Crop

Disc Speed

Smooth/level/firm ground:

16 km/h (10 mph) and higher or until cutting and conditioning quality

are compromised.

Rocks/ridges/loose ground:

Slow to minimize bouncing, uneven stubble, and damage to

cutterbar.

Ground Speed

(A) acres/hr, (B) hectares/hr, (C) km/h, (D) mph, (E) 16 ft., (F) 13 ft.

Float

Tips:

 Sharp blades reduce

horsepower requirements

 Install cutterbar deflectors (D)

when cutting tall, stemmy crops

 Remove cutterbar deflectors (D)

to reduce debris buildup on

cutterbar

Note: Deflectors must not be used

with finger conditioners

Finger Baffle Roll Baffle

Wide baffle position (A): Move lever (C) backward to lower baffle

Narrow baffle position (B): Move lever (C) forward to raise baffle

Windrow

Field Mode Transport Mode

Switch at (A) Light (C) On Switch at (B) Light (C) Off

Refer to Operator’s Manual

Rocks/Ridges/Loose Ground

45 kg (100 lb.) Float Setting Smooth/Level/Firm Ground

55–70 kg (125–150 lb.)

Float Setting

1. Loosen jam nut (A).

2. Turn adjuster bolt (B)

clockwise.

3. Tighten jam nut (A).

4. Loosen jam nut (A).

5. Turn adjuster bolt (B)

counterclockwise.

6. Tighten jam nut (A).

(A) Wide: Deflectors outboard

(B) Narrow: Deflectors inboard Roll Cond: Move handle (C)

Finger Cond: Move handle (D)

Side Deflectors
