Compact Mixers

Mix5 • Mix8 • Mix12FX

Mix Series Compact Mixers are reliably rugged, with

the proven quality you expect from the world leader

in compact mixer design.

With proven high-headroom, low-noise design preamps,

Mix Series mixers sound great and maintain audio quality

from any source. Plus, with their rugged metal chassis

and high-quality components throughout, they are a solid

investment in reliability.

An amazing value, Mix delivers a straightforward feature

set that’s easy to use and the sound quality you need

in rugged designs built to last.

Features:

■5, 8 and 12-channel compact mixers with proven

high-headroom, low-noise performance

■Mic/line inputs with studio-level audio quality

• Multi-band EQ with clean, precise tone shaping

• Pan, level and overload indication

• Phantom power for studio condenser mics

• Low cut ﬁlter (75 Hz) [Mix12FX]

■Multiple stereo 1/4" line inputs

• +4/–10 dB and balance operation [Mix12FX]

■One aux send with stereo 1/4" returns [Mix8]

■12 great-sounding integrated effects including

reverbs, choruses and delays [Mix12FX]

■Dedicated stereo RCA inputs/outputs for playback

or recording

■Main L/R outputs

■Headphone output

■Stereo control room outputs [Mix8 / Mix12FX]

■Rugged, reliable design built to last

■Extremely compact and portable

Applications:

Live sound mixing, rehearsal spaces, gymnasiums,

banquet halls, conference rooms, boardrooms, studio

and ﬁeld recording, multimedia applications and many,

many more.

Like us

Watch our dang videos

Compact Mixers

2/12 PAGES

Mix Series Speciﬁcations:

Noise Characteristics

(20 Hz – 20 kHz bandwidth, 150 source impedance, EIN)

All outputs, master levels and channel levels off –100 dBu

All outputs, master levels unity, all channel levels off –90 dBu

All outputs, master levels unity, 1 channel level unity –85 dBu

Distortion (THD+N)

(20 Hz – 30 kHz bandwidth)

Mic Input to Main Output <0.25% @+4 dBu output

Attenuation / Crosstalk

(20 Hz–20 kHz bandwidth)

Inputs to Outputs @ 1 kHz –85 dB

Main Mix Off @ 1 kHz –75 dB

Frequency Response

Mic input to any output (gain @ unity) +0, –1 dB, 20 Hz to 30 kHz

Equivalent Input Noise (EIN)

(Mic in to Insert Send out, max gain.)

150 termination –125 dBu [Mix5, Mix8]

–122 dBu [Mix12FX]

Common Mode Rejection Ratio (CMRR)

(Mic in to Insert Send out, max gain.)

1 kHz better than –70 dB

Maximum Levels

Mic inputs (XLR) +19 dBu

Aux return in +16 dBu [Mix8]

All other inputs +21 dBu

All outputs +21 dBu

Impedances

Mic in 2 k [Mix5]

3.8 k [Mix8, Mix12FX]

All other inputs 10 k or greater

Tape out 1 k

Phones out 22

All other outputs 120 unbalanced,

240 balanced

High Shelving ±15 dB @ 12 kHz

Mid Peaking ±15 dB @ 2.5 kHz

Low Shelving ±15 dB @ 80 Hz

Low Cut Filter 18 dB/octave, –3 dB @ 80 Hz

AC Power Requirements

Power Connection 2-pin DC connector [US]

3-pin DC connector [EU]

Input 120 VAC, 60 Hz [US]

230 VAC, 50/60 Hz [EU]

Output 18 VAC, 600mA [Mix5, Mix8]

18 VAC, 1000mA [Mix12FX]

Operating Temperature 0˚ – 40˚C

32˚ – 104˚F

Physical Properties (product)

Mix5

Height 1.7 in / 43 mm

Width 5.5 in / 140 mm

Depth 7.7 in / 196 mm

Weight 1.4 lb / 0.6 kg

Mix8

Height 2.1 in / 53 mm

Width 7.8 in / 198 mm

Depth 9.6 in / 244 mm

Weight 2.5 lb / 1.1 kg

Mix12FX

Height 2.1 in / 53 mm

Width 11.7 in / 297 mm

Depth 9.6 in / 244 mm

Weight 3.7 lb / 1.7 kg

Compact Mixers

3/12 PAGES

Mix Series Speciﬁcations Continued:

Physical Properties (packaged product)

Mix5

Height 3.3 in / 84 mm

Width 6.5 in / 165 mm

Depth 11.3 in / 287 mm

Weight 2.0 lb / 0.9 kg

Mix8

Height 3.3 in / 84 mm

Width 9.1 in / 231 mm

Depth 13.3 in / 338 mm

Weight 3.0 lb / 1.4 kg

Mix12FX

Height 3.2 in / 81 mm

Width 13.0 in / 330 mm

Depth 14.6 in / 371 mm

Weight 5.0 lb / 2.3 kg

Ordering Information

Mix5

Mix5 5-Channel Compact Mixer, US

P/N 2044094-00

Mix5 5-Channel Compact Mixer, EU

P/N 2044094-01

Mix5 5-Channel Compact Mixer, JP

P/N 2044094-02

Mix5 5-Channel Compact Mixer, UK

P/N 2044094-03

Mix5 5-Channel Compact Mixer, AU

P/N 2044094-04

Mix5 5-Channel Compact Mixer, CN

P/N 2044094-05

Mix5 5-Channel Compact Mixer, BZ

P/N 2044094-06

Mix8

Mix8 8-Channel Compact Mixer, US

P/N 2044095-00

Mix8 8-Channel Compact Mixer, EU

P/N 2044095-01

Mix8 8-Channel Compact Mixer, JP

P/N 2044095-02

Mix8 8-Channel Compact Mixer, UK

P/N 2044095-03

Mix8 8-Channel Compact Mixer, AU

P/N 2044095-04

Mix8 8-Channel Compact Mixer, CN

P/N 2044095-05

Mix8 8-Channel Compact Mixer, BZ

P/N 2044095-06

Mix12FX

Mix12FX 12-Channel Compact Mixer w/FX, US

P/N 2044096-00

Mix12FX 12-Channel Compact Mixer w/FX, EU

P/N 2044096-01

Mix12FX 12-Channel Compact Mixer w/FX, JP

P/N 2044096-02

Mix12FX 12-Channel Compact Mixer w/FX, UK

P/N 2044096-03

Mix12FX 12-Channel Compact Mixer w/FX, AU

P/N 2044096-04

Mix12FX 12-Channel Compact Mixer w/FX, CN

P/N 2044096-05

Mix12FX 12-Channel Compact Mixer w/FX, BZ

P/N 2044096-06

Compact Mixers

4/12 PAGES

THE INFORMATION CONTAINED

HEREIN IS PROPRIETARY AND

CONFIDENTIAL PROPERTY OF

LOUD TECHNOLOGIES, INC.

UNLESS OTHERWISE SPECIFIED:

ALL DIMENSIONS ARE IN INCHES

DUAL [MM] DIMENSIONS

FOR REF ONLY

TOLERANCE IN INCHES

LINEAR ± 0.13 in / ± 3.3 mm

ANGLES ± 1°

(X.XX) = REF DIMS

NO TOLERANCE IMPLIED

TSC = THEORETICAL SHARP CORNER

DIMENSIONS ACROSS CENTERLINES

TO BE SYMMETRICAL

THIRD ANGLE PROJECTION

NOTES:

1. WEIGHT APPROX. 1.4 lb [0.6 kg]

2. SHIPPING WEIGHT APPROX. 2.0 lb [0.9 kg]

5.0

[127]

1.6

[41]

0.9

[23]

5.5

[140]

135˚

7.7

[196]

1.7

[43]

1.5

[38]

1.3

[33]

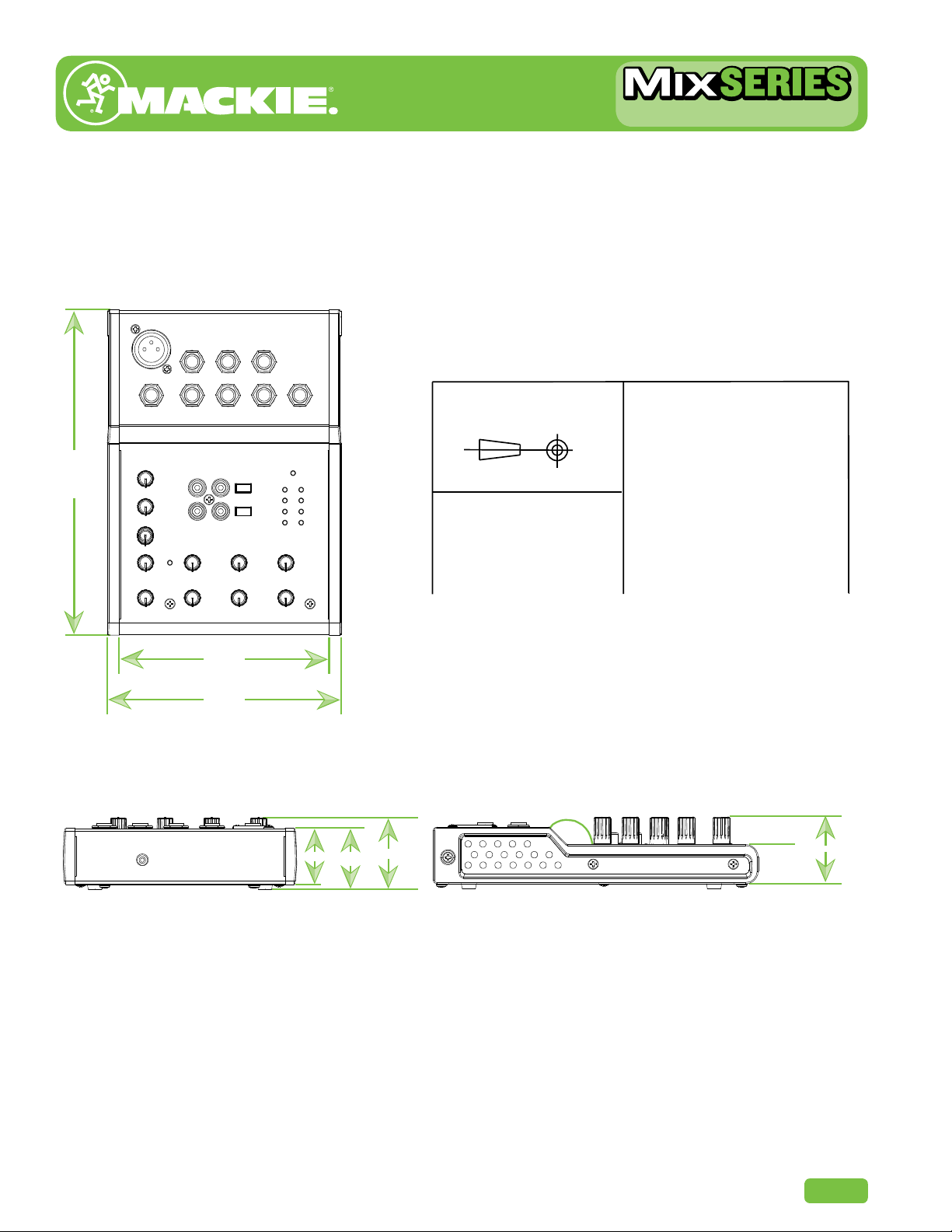

Mix5 Dimensions

Compact Mixers

5/12 PAGES

THE INFORMATION CONTAINED

HEREIN IS PROPRIETARY AND

CONFIDENTIAL PROPERTY OF

LOUD TECHNOLOGIES, INC.

UNLESS OTHERWISE SPECIFIED:

ALL DIMENSIONS ARE IN INCHES

DUAL [MM] DIMENSIONS

FOR REF ONLY

TOLERANCE IN INCHES

LINEAR ± 0.13 in / ± 3.3 mm

ANGLES ± 1°

(X.XX) = REF DIMS

NO TOLERANCE IMPLIED

TSC = THEORETICAL SHARP CORNER

DIMENSIONS ACROSS CENTERLINES

TO BE SYMMETRICAL

THIRD ANGLE PROJECTION

NOTES:

1. WEIGHT APPROX. 2.5 lb [1.1 kg]

2. SHIPPING WEIGHT APPROX. 3.0 lb [1.4 kg]

7.2

[183]

7.8

[198]

135˚

9.6

[244]

2.1

[53]

1.5

[38]

1.3

[33]

1.7

[43]

1.0

[25]

0.9

[23]

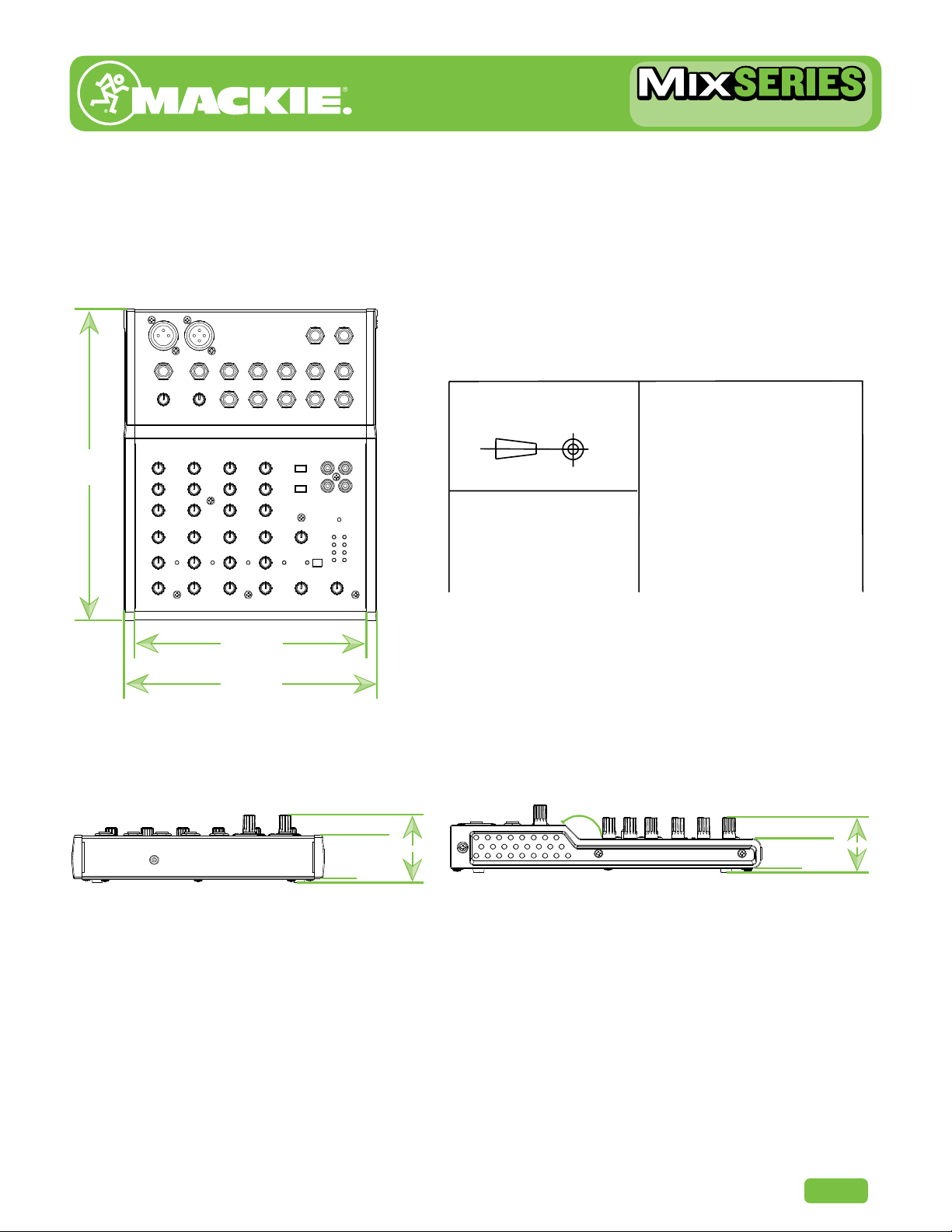

Mix8 Dimensions

6/12 PAGES

Compact Mixers

THE INFORMATION CONTAINED

HEREIN IS PROPRIETARY AND

CONFIDENTIAL PROPERTY OF

LOUD TECHNOLOGIES, INC.

UNLESS OTHERWISE SPECIFIED:

ALL DIMENSIONS ARE IN INCHES

DUAL [MM] DIMENSIONS

FOR REF ONLY

TOLERANCE IN INCHES

LINEAR ± 0.13 in / ± 3.3 mm

ANGLES ± 1°

(X.XX) = REF DIMS

NO TOLERANCE IMPLIED

TSC = THEORETICAL SHARP CORNER

DIMENSIONS ACROSS CENTERLINES

TO BE SYMMETRICAL

THIRD ANGLE PROJECTION

NOTES:

1. WEIGHT APPROX. 3.7 lb [1.7 kg]

2. SHIPPING WEIGHT APPROX. 5.0 lb [2.3 kg]

11.1

[282]

11.7

[297]

9.6

[244]

2.1

[53]

2.0

[51]

1.4

[36]

1.6

[41]

0.9

[23]

Mix12FX Dimensions

7/12 PAGES

Compact Mixers

MIC IN

LINE IN

LINE IN LEFT (MONO)

LINE IN RIGHT

SHELVING EQ

PEAK

MONO CHANNEL

GAIN HIGH

80 12K

LOW

PAN

LEVEL

MAIN MIX

STEREO CHANNELS

2/3 and 4/5

PAN L

SUBNIAMTFEL

SUBNIAMTHGIR

HEADPHONE

OUTPUT

LEFT

RIGHT

METERS

TAPE TO PHONES

TAPE TO MIX

PHONES

LEFT MAIN

MIX OUT

RIGHT MAIN

MIX OUT

CD/TAPE OUT

LEFT

RIGHT

CD/TAPE IN

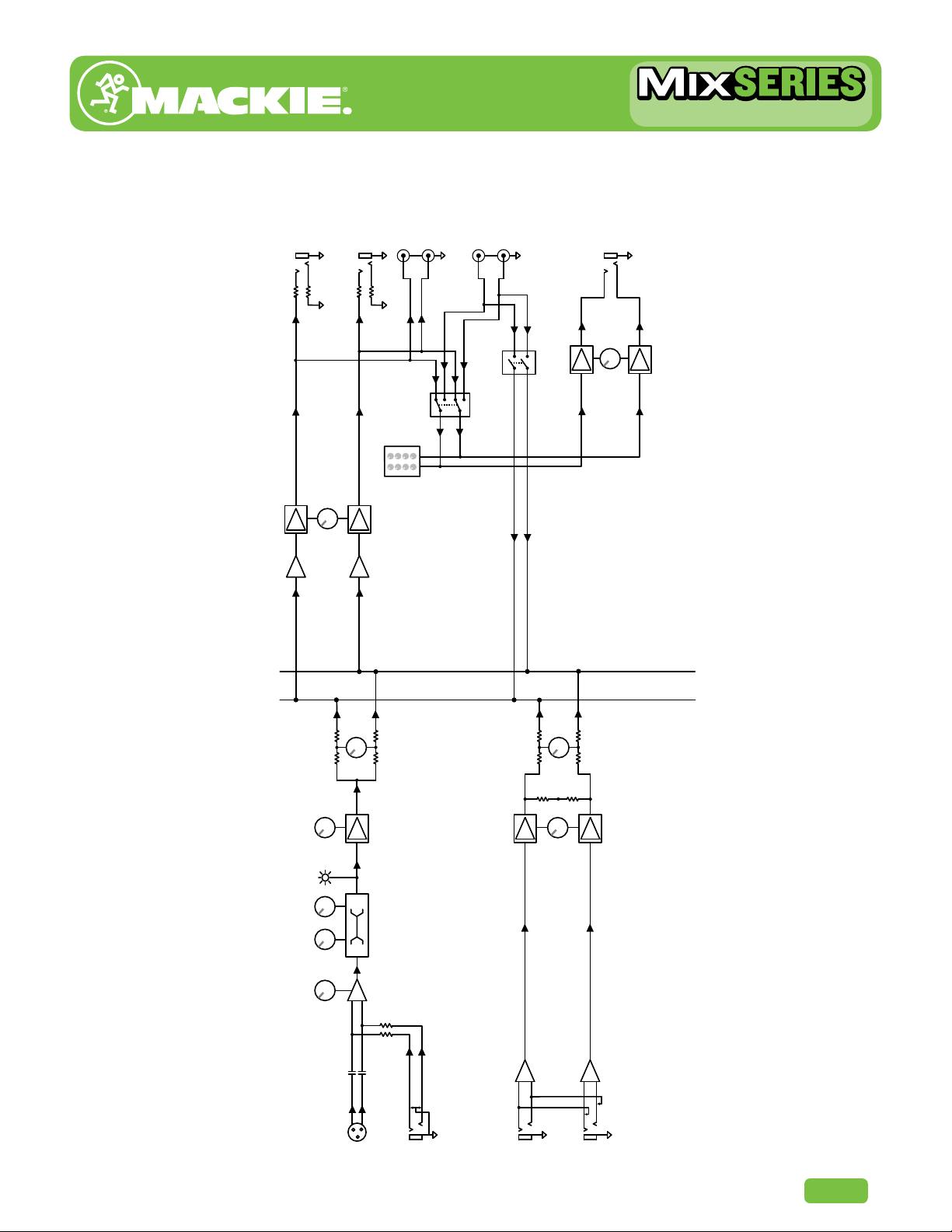

Mix5 Block Diagram

8/12 PAGES

Compact Mixers

PHANTOM

MIC IN

+48 VDC

LINE IN

LINE IN LEFT (MONO)

LINE IN RIGHT

AUX RETURN LEFT (MONO)

AUX RETURN RIGHT

PEAK

MONO CHANNELS

1 and 2

GAIN

HIGHMID

80 12K2.5K

LOW

HIGHMID

80 12K2.5K

LOW

PAN

LEVEL

AUX

MAIN MIX

STEREO CHANNELS

AUX RETURNS

3/4 and 5/6

PAN

AUX

LEFT MAIN BUS

RIGHT MAIN BUS

AUX BUS

AUX SEND

HEADPHONE

OUTPUT

LEFT

RIGHT

METERS

TAPE TO CTRL RM/

PHONES

TAPE TO MIX

CONTROL

ROOM/

PHONES

LEFT MAIN

MIX OUT

RIGHT MAIN

MIX OUT

LEFT

CONTROL

ROOM

OUTPUTS

RIGHT

CD/TAPE OUT

LEFT

RIGHT

CD/TAPE IN

MASTER AUX SEND

LEVEL

Mix8 Block Diagram

9/12 PAGES

Compact Mixers

PHANTOM

MIC IN

+48 VDC

LINE IN

LINE IN LEFT (MONO)

LINE IN RIGHT

PEAK

MONO CHANNELS

1 th

rough 4

GAIN

75Hz

HI PASS

HIGHMID

80 12K2.5K

LOW

–10

PAN

LEVEL

MAIN MIX

STEREO CHANNELS

5/6, 7/8, 9/10, and 11/12

PAN

SUBNIAMTFEL

SUBNIAMTHGIR

SUBXF

FX SEND

PHONES

OUT

LEFT

RIGHT

METERS

TAPE TO CR /

PHONES

TAPE TO MAIN

CR /

PHONES

LEFT MAIN

MIX OUT

RIGHT MAIN

MIX OUT

LEFT

OUTS

RIGHT

TAPE OUT

LEFT

RIGHT

TAPE IN

FX TO MAIN

INTERNAL FX

SIG / OL

Mix12FX Block Diagram

10/12 PAGES

Compact Mixers

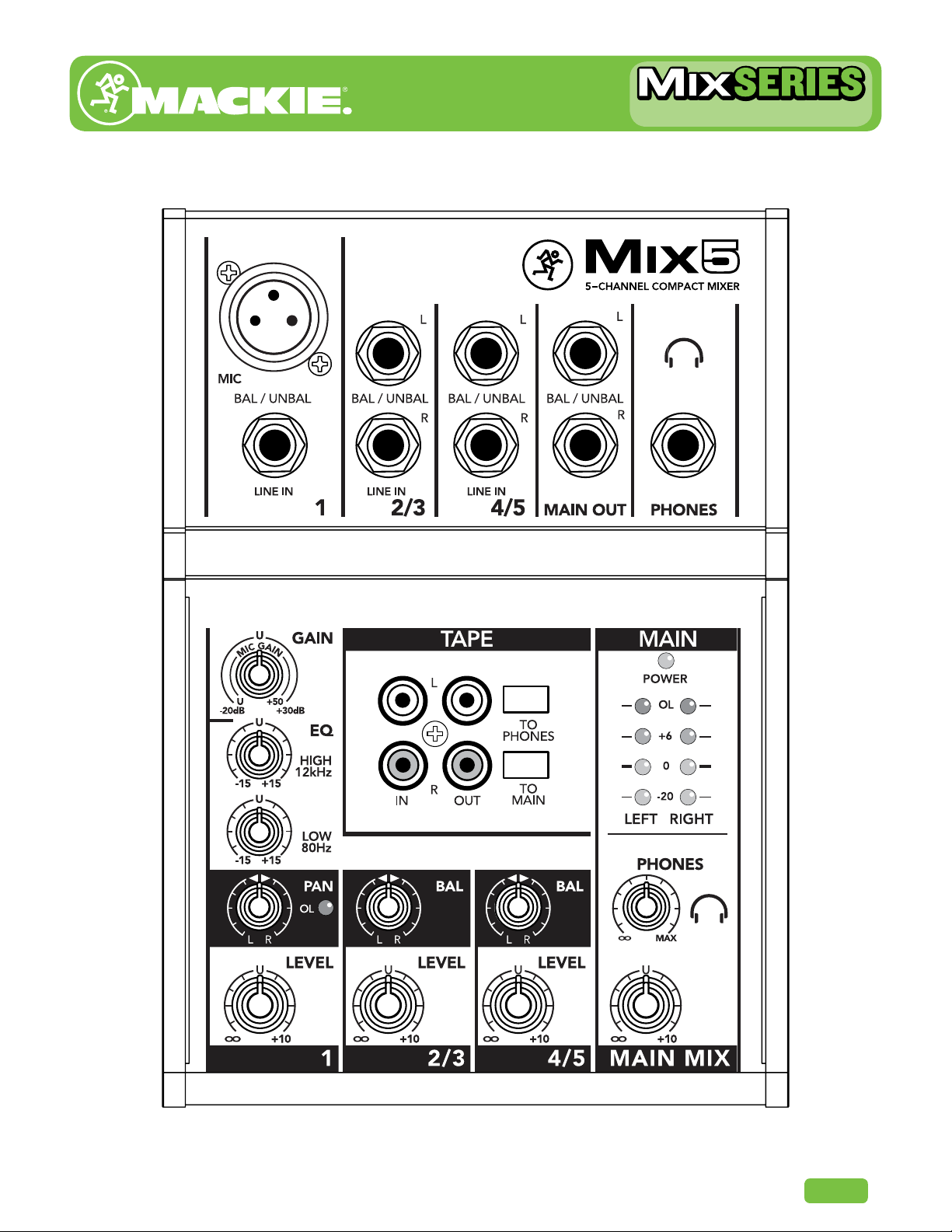

Mix5 Front Panel
