APPENDIX C: MIX FX SERIES SPECIFICATIONS

Frequency Response

Mic Input to any Output (Trim at 0 dB):

+0, –1 dB,

10 Hz to 150 kHz

–3 dB,

10 Hz to 200 kHz

Distortion

THD and SMPTE IMD; 20Hz to 20kHz

Mic Input to Main Output:

< 0.005%

@ +4 dBu output

Noise

20 Hz to 20 kHz BW (150Ω source impedance)

Equivalent Input Noise (EIN): –129 dBu

Residual Output Noise:

Channel and Main Mix levels oﬀ

Main, Ctrl Room, Phones: –105 dBu

Common Mode Rejection Ratio (CMRR)

Mic In: 60 dB @ 1 kHz

Gain @ maximum

Crosstalk

Adjacent Inputs or Input to Output:

–90 dB @ 1 kHz

Input Gain Control Range

0 dB to +50 dB

Phantom Power

+48 VDC

Equalization

Mix.220FX:

High ±15 dB @ 12 kHz

Mid ±15 dB @ 2.5 kHz

Low ±15 dB @ 80 Hz

Mix.260FX (Mono Channels):

High ±15 dB @ 12 kHz

Mid ±15 dB, sweepable

from 100 Hz to 8 kHz

Low ±15 dB @ 80 Hz

Mix.260FX (Stereo Channels):

High ±15 dB @ 12 kHz

Mid ±15 dB @ 3 kHz

Mid ±15 dB @ 500 Hz

Low ±15 dB @ 80 Hz

Mixer Rated Output

Main, Aux, Control Room: +4 dBu

Maximum Rated Output: +22 dBu

Maximum Input Levels

Mic Input: +12 dBu,

Gain @ +10 dB

Line Input: +30 dBu,

Gain @ +10 dB

Tape Input and Aux Returns: +22 dBu

Input Impedance

Mic Input: 2.6 kΩ, balanced

Line Input: 20 kΩ, balanced

Stereo Aux Returns: 20 kΩ, balanced

CD/Tape In: 24 kΩ, unbalanced

Output Impedance

Main 240 Ω, balanced

120 Ω, unbalanced

Ctrl Room, Aux Sends: 120 Ω

Tape Output: 1 kΩ

Phones Output: 25 Ω

VU Meters

Main Left and Right

Mix.220FX

8 segments: Clip (+18), +10, +5, +2, 0, –2, –5, –20

0 LED = 0 dBu

Mix.260FX

12 segments: Clip (+18), +10, +7, +4, +2, 0, –2, –4,

–7, –10, –20, –30

0 LED = 0 dBu

AC Power Requirements

Power Consumption: 40 watts

U.S. 120 VAC, 60 Hz

Europe 240 VAC, 50 Hz

Japan 100 VAC, 50/60 Hz

Korea 220 VAC, 60 Hz

AC Connector: 3-pin IEC 250 VAC

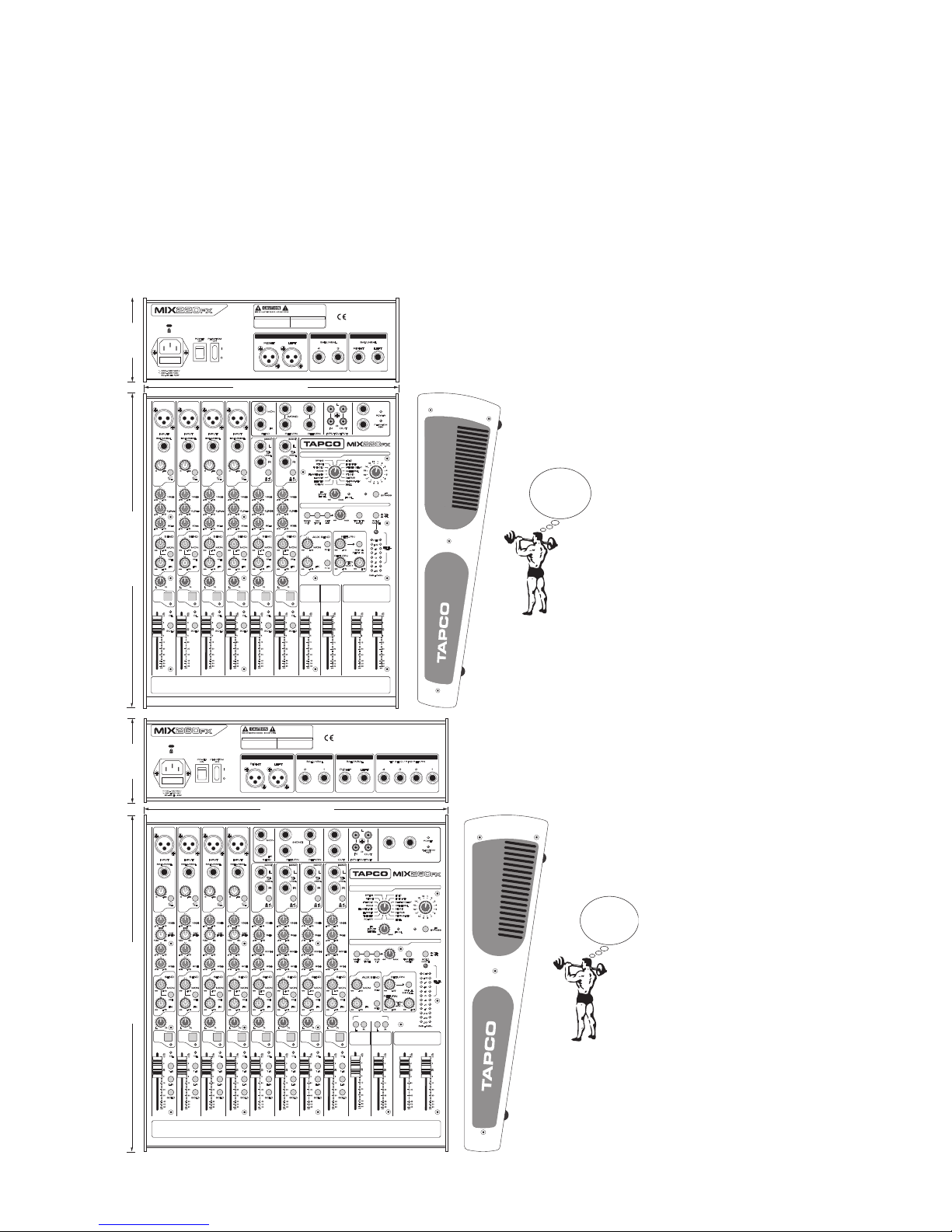

Physical Dimensions and Weight

Mix.220FX

Height: 3.8 in/96 mm

Width: 11.5 in/292 mm

Depth: 14.2 in/360 mm

Weight: Approx. 8.8 lb/4.0 kg

Mix.260FX

Height: 3.8 in/96 mm

Width: 13.7 in/348 mm

Depth: 15.1 in/384 mm

Weight: 9.8 lb/4.4 kg

POWER

PHANTOM

48V

MAIN

MIX

ALT

MASTER

AUX SEND

SOURCE SELECT

VARIATIONS

RUDE SOLO

0dB = 0dBu

SOLO

PRE

MUTEMUTE

ALT

3/4

MON

AUX

SEND

AUX

RETURN

MIC

INPUT

LINE

CLIP

LEVEL

SET

RTRN

AUX 1

+10

-2

-5

-20

BAL/UNBAL

GAIN

SOLO

PHONES

FOOTSW

AUX RETURN

MON

FX RETURN

AUX SEND

(MON0)

MAIN

ALT 3-4

INTERNAL EFFECTS

CONTROL ROOM

FX OL

INPUT

LEVEL

ROTARY

THEATER

FLANGER

ROOM

STAGE

SPRING

TREMOLD

FLANGER+REV

HALL

CHORUS+REV

CATHEDRAL

STUDIO

STEREO DELAY

ECHO

CHORUS

ECHO+REV

75Hz

PRE

MUTEMUTE

ALT

3/4

MON

AUX

SEND

MIC

INPUT

LINE

BAL/UNBAL

GAIN

75Hz

PRE

MUTEMUTE

ALT

3/4

MON

AUX

SEND

MIC

INPUT

LINE

BAL/UNBAL

GAIN

75Hz

PRE

MUTEMUTE

ALT

3/4

EQ EQ

MON

AUX

SEND

MIC

INPUT

LINE

BAL/UNBAL

GAIN

75Hz

PRE

ALT

3/4

MON

AUX

SEND

PRE

ALT

3/4

MON

AUX

SEND

MON

(MONO)

LINE

BAL

UNBAL

-10

(MONO)

LINE

BAL

UNBAL

BYPASS

MAIN

MIX

CD/

TAPE

ALT

3-4

INPUT/OUTPUT

IN OUT

CD/TAPE

MAX

TAPE TO

MAIN

SOLO

MODE

CTRL ROOM/

PHONES

MUTEMUTE MUTEMUTE

PAN PAN PAN PAN BAL BAL

PFL

AFL

0000

-10

+15-15

HIGH

MID

2.5kHz

12kHz

LOW

80Hz

+15-15

HIGH

MID

2.5kHz

12kHz

LOW

80Hz

+15-15

HIGH

MID

2.5kHz

12kHz

LOW

80Hz

+15-15

HIGH

MID

2.5kHz

12kHz

LOW

80Hz

+15-15

HIGH

MID

2.5kHz

12kHz

LOW

80Hz

+15-15

HIGH

MID

2.5kHz

12kHz

LOW

80Hz

+15

+15 +15

RL RL RL RL RL RL

MAX

+15 +15

CONTROL RM OUT

PHANTOM

MAIN OUT

POWER

100 - 120 VAC /

220 - 240 VAC

50 - 60 Hz 40W

LEFT

BAL/UNBAL BAL/UNBAL

RIGHT

RIGHT LEFT

ALT 3/4 OUTS

BROUGHT TO YOU BY THE GROOVY FOLKS IN WOODINVILLE, WA, USA•

MANUFACTURING DATE

SERIAL NUMBER

WARNING

TO REDUCE THE RISK OF FIRE OR ELECTRIC

SHOCK, DO NOT EXPOSE THIS EQUIPMENT TO RAIN OR

MOISTURE. DO NOT REMOVE COVER. NO USER SERVICEABLE

PARTS INSIDE. REFER SERVICING TO QUALIFIED PERSONNEL.

WARNING

TO REDUCE THE RISK OF FIRE OR ELECTRIC

SHOCK, DO NOT EXPOSE THIS EQUIPMENT TO RAIN OR

MOISTURE. DO NOT REMOVE COVER. NO USER SERVICEABLE

PARTS INSIDE. REFER SERVICING TO QUALIFIED PERSONNEL.

AVIS

RISQUE DE CHOC ELECTRIQUE — NE PAS OUVRIR

POWER

PHANTOM

48V

MAIN

MIX

SUB

SUB ASSIGN

TO MAIN MIX

INTERNAL EFFECTS

CONTROL ROOM

RUDE SOLO

0dB = 0dBu

L R L R

1-2

L-R

SOLO

CLIP

+10

-2

-4

-7

-10

-20

-30

PHONES FOOTSW

MAIN OUT

AUX RETURN

MON

FX RETURNAUX SEND

(MON0)

INPUT/OUTPUT

IN OUT

CD/TAPE

PRE

MUTEMUTE

MON

AUX

SEND

MIC

INPUT

LINE

BAL/UNBAL

GAIN

HIGH

12kHz

LOW

80Hz

75Hz

MID

PAN

1-2

L-R

SOLO

PRE

MUTEMUTE

MON

AUX

SEND

MIC

INPUT

LINE

BAL/UNBAL

GAIN

HIGH

12kHz

LOW

80Hz

75Hz

MID

PAN

1-2

L-R

SOLO

PRE

MUTEMUTE

MON

AUX

SEND

MIC

INPUT

LINE

BAL/UNBAL

GAIN

HIGH

12kHz

LOW

80Hz

75Hz

MID

PAN

1-2

L-R

SOLO

PRE

MUTEMUTE

MON

AUX

SEND

MIC

INPUT

LINE

BAL/UNBAL

GAIN

HIGH

12kHz

LOW

80Hz

75Hz

MID

PAN

1-2

L-R

SOLO

PRE

MUTEMUTE

MON

AUX

SEND

HIGH

12kHz

LOW

80Hz

MID

500Hz

BAL

1-2

L-R

SOLO

PRE

MUTEMUTE

MON

AUX

SEND

HIGH

12kHz

LOW

80Hz

MID

500Hz

BAL

1-2

L-R

SOLO

PRE

MUTEMUTE

MON

AUX

SEND

HIGH

12kHz

LOW

80Hz

MID

500Hz

BAL

1-2

L-R

SOLO

MID

3kHz

MID

3kHz

MID

3kHz

MID

3kHz

MID

FREQ

MID

FREQ

MID

FREQ

MID

FREQ

PRE

MUTEMUTE

MON

AUX

SEND

HIGH

12kHz

LOW

80Hz

MID

500Hz

BAL

(MONO)

LINE

BAL

UNBAL

(MONO)

LINE

BAL

UNBAL

(MONO)

LINE

BAL

UNBAL

(MONO)

LINE

BAL

UNBAL

MASTER

AUX SEND

AUX

RETURN

RTRN

AUX 1

SOLO

MAIN

SUB 1-2

MON

SOURCE SELECT

MAIN

MIX

CD/

TAPE

SUB

1-2

PFL

AFL

MAX TAPE TO

MAIN

SOLO

MODE

CTRL ROOM/

PHONES

VARIATIONS

FX OL

INPUT

LEVEL

ROTARY

THEATER

FLANGER

ROOM

STAGE

SPRING

TREMOLD

FLANGER+REV

HALL

CHORUS+REV

CATHEDRAL

STUDIO

STEREO DELAY

ECHO

CHORUS

ECHO+REV

BYPASS

MAX

LEVEL

SET

OL OL OL OL OL OL OL OL

+15-15

-10

000

+15

RL RL RL RL RL RL RL RL

100

POWER

12 1234

LEFT

BAL/UNBAL BAL/UNBAL TIP SEND / RING RETURN

RIGHT

CTRL RM OUT

100 - 120 VAC /

220 - 240 VAC

50 - 60 Hz 40W

PHANTOM

RIGHT LEFT

SUB OUTS CHANNEL INSERTS

MAIN OUTS

BROUGHT TO YOU BY THE GROOVY FOLKS IN WOODINVILLE, WA, USA•

MANUFACTURING DATE

SERIAL NUMBER

WARNING

TO REDUCE THE RISK OF FIRE OR ELECTRIC

SHOCK, DO NOT EXPOSE THIS EQUIPMENT TO RAIN OR

MOISTURE. DO NOT REMOVE COVER. NO USER SERVICEABLE

PARTS INSIDE. REFER SERVICING TO QUALIFIED PERSONNEL.

WARNING

TO REDUCE THE RISK OF FIRE OR ELECTRIC

SHOCK, DO NOT EXPOSE THIS EQUIPMENT TO RAIN OR

MOISTURE. DO NOT REMOVE COVER. NO USER SERVICEABLE

PARTS INSIDE. REFER SERVICING TO QUALIFIED PERSONNEL.

AVIS

RISQUE DE CHOC ELECTRIQUE — NE PAS OUVRIR

14.2 in/360 mm

15.1 in/384 mm

11.5 in/292 mm

13.7 in/348 mm

WEIGHT

Approx.

8.8 lb/

4.0 kg

WEIGHT

9.8 lb/

4.4 kg

3.8 in/

96 mm

3.8 in/

96 mm

Disclaimer

Since we are always striving to make our products

better by incorporating new and improved materials,

components, and manufacturing methods, we reserve

the right to change these speciﬁcations at any time

without notice.
