Getting Started

Mpression Helio Board

Revision 1.4

2015/11/16

Mpression Helio Board

2Getting Started - Mpression Helio Board

Disclaimer

The information in this document (hereinafter called “Information”) is subject to change without notice.

Macnica Inc. (hereinafter called “Manufacturer”) makes no warranty of any kind regarding this document, or of any

liability arising out of the application or use of information in this document, and assumes no responsibility for any

errors that may appear in this document.

This document is distributed without any charge and reselling or copying without written authorization by

Manufacturer is restricted.

IN NO EVENT WILL MANUFACTURER BE LIABLE FOR ANY CONSEQUENTIAL, INDIRECT, EXEMPLARY,

SPECIAL, OR INCIDENTAL DAMAGES, INCLUDING ANY LOST DATA AND LOST PROFITS, ARISING FROM

OR RELATING TO YOUR USE OF THE INFORMATION, EVEN IF YOU HAVE BEEN ADVISED OF THE

POSSIBILITY OF SUCH DAMAGES. THE TOTAL CUMULATIVE LIABILITY OF MANUFACTURER IN

CONNECTION WITH YOUR USE OF THE INFORMATION IN THIS DOCUMENT, WHETHER IN CONTRACT

OR TORT OR OTHERWISE, WILL IN NO EVENT EXCEED THE AMOUNT OF FEES PAID BY YOU TO

MANUFACTURER HEREUNDER FOR USE OF THE INFORMATION. YOU ACKNOWLEDGE THAT THE FEES,

IF ANY, REFLECT THE ALLOCATION OF RISK SET FORTH IN THIS AGREEMENT AND THAT

MANUFACTURER WOULD NOT MAKE AVAILABLE THE DESIGN TO YOU WITHOUT THESE LIMITATIONS

OF LIABILITY.

The Design is not designed or intended for use in the development of on-line control equipment in hazardous

environments requiring failsafe controls, such as in the operation of nuclear facilities, aircraft navigation or

communications systems, air traffic control, life support, or weapons systems (“High-Risk Applications”).

Manufacturer specifically disclaims any express or implied warranties of fitness for such High-Risk Applications.

You represent that use of the Design in such High-Risk Applications is fully at your risk.

Mpression Helio Board

Getting Started - Mpression Helio Board 3

Index

1. Overview ____________________________________________________________________ 4

1.1 Introducion.................................................................................................................................4

1.2 Release Contents and Location ..................................................................................................4

1.3 Prerequisites ..............................................................................................................................4

2. Board Settings ________________________________________________________________ 5

2.1 Board Layout ..............................................................................................................................5

2.2 External Connection ...................................................................................................................5

2.3 Board Revision............................................................................................................................6

2.4 Jumper Settings..........................................................................................................................6

2.5 DIP Switch Settings.....................................................................................................................7

2.5.1 SW1.............................................................................................................................................7

2.5.2 SW4.............................................................................................................................................7

3. Creating MicroSD boot disk for Helio Board _________________________________________ 8

3.1 Creating a MicroSD boot disk from pre-built ALL in One Image.................................................8

4. Running Linux on Helio Board ____________________________________________________ 9

4.1 Setup USB-to-Serial Interface.....................................................................................................9

4.1.1 Install Device Driver for USB-to Serial Chip.................................................................................9

4.1.2 Setup Terminal Software ............................................................................................................9

4.2 Running Linux...........................................................................................................................10

5. Additional Information ________________________________________________________ 11

6. Document Revision History _____________________________________________________ 12

Mpression Helio Board

4Getting Started - Mpression Helio Board

1. Overview

1.1 Introducion

This getting started guide walks you through how to setup a board and booting linux on Helio board.

After reading this document, you will be able to:

Basic setup for the Helio board

Writing microSD boot disk for the Helio board

Run U-Boot and Linux on the Helio board

1.2 Release Contents and Location

Macnica provides some of reference material for Helio Board as follows:

Pre-Built ALL-IN-ONE imeage to create MicroSD boot disk that is included:

Preloader

U-Boot

U-Boot script for bridge management

Linux Kernel

Device Tree Blob

Root File System

Golden Hardware Reference Design (GHRD)

Board References

Schematic

Bill of Materials

PWB data

All components can be downloaded from:

http://www.rocketboards.org/foswiki/Documentation/MacnicaHelioSoCEvaluationKit

1.3 Prerequisites

You need to prepare & setup following tools to boot up a Linux on Helio Board.

Terminal Software like TeraTerm (for UART input/output)

Win32DiskImager (to create SD card boot disk)

http://sourceforge.net/projects/win32diskimager

Mpression Helio Board

Getting Started - Mpression Helio Board 5

2. Board Settings

2.1 Board Layout

This section provides an overview of Helio board and explains how to setup.

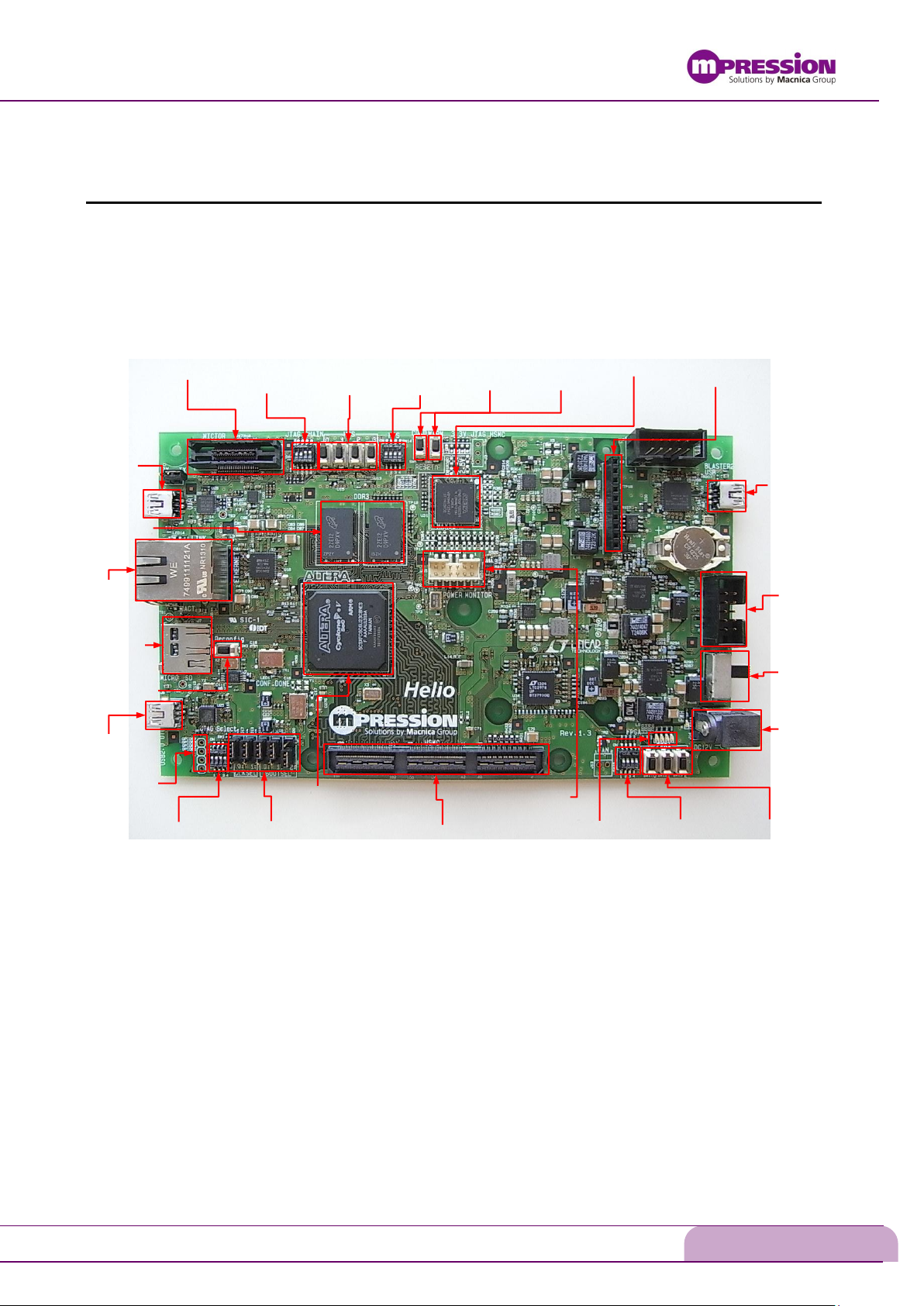

Here is a Helio board top view.

Figure 2-1 Board Top View

2.2 External Connection

This section describes how to setup external connection for boot up a Linux on Helio Board.

External 12V power supply connected to J14 - DC Input

Mini USB cable, connected from host PC to J9

USB connector. This is used for U-Boot/ Linux serial console

Make sure J10 is opened.

[Optional] Mini USB cable, connected from host PC to J11

On-board USB Blaster II. This can be optionally be used for programming the FPGA and

debugging the ARM cores.

Warm Reset

Push Button

(SW6)

MAXII CPLD

(U31)

Cold Reset

Push Button

(SW5)

User Defined

Dip Switch

For HPS

(SW14)

User Defined

Push Button

For HPS

(SW7-SW10)

JTAG Master

Select DIP Switch

(SW4)

JTAG 10pin

Header

(J2)

HSMC Port

(J4)

Cyclone V SX SoC (U1)

MICTOR_38P

Port (J1)

UART Port

(J9)

Gigabit

Ethernet

Port (J9)

Micro SD

Socket Port

(J7)

DDR3-SDRAM

(x32bit)

(U16, U17)

Character

LCD Port

(J8)

On Board USB

Blaster II Port

(J11)

USB 2.0 OTG

Port (J6)

User GPIO TH

(GPIO057,

58,59,61)

JTAG Chain Setting

DIP Switch (SW1)

Re-configuration

Push Button

(SW3)

HPS SettingJumper

(J16-J20)

User DIP Switch

For FPGA

(SW15)

User Push Button

For FPGA

(SW11-SW13)

DC Input Jack

(J14)

User LEDs

(LED3-LED6)

Power Monitor

Port (J15)

Power switch

(SW16)

Mpression Helio Board

6Getting Started - Mpression Helio Board

2.3 Board Revision

You can see your Helio Board revision from board silk as follows. You need this information when you

want to download any documents or resources for Helio Board from RocketBoards.org.

2.4 Jumper Settings

Make sure that following jumpers are set as described below.

Please note that jumper location is different between “Rev.1.3 or later”and “Rev.1.2 or before”. Please

refer to following Figure 2-3 and Figure 2-4 for your reference.

Table 2-1 Jumper Settings

Board Reference

Signal Name

Setting

J16

BOOTSEL0

1-2

J18

BOOTSEL1

2-3

J20

BOOTSEL2

1-2

J17

CLKSEL0

2-3

J19

CLKSEL1

2-3

Figure 2-3 Jumper Settings for Rev.1.3 or later

Figure 2-4 Jumper Settings for Rev.1.2 or before

Figure 2-2 Helio Board Revision

Mpression Helio Board

Getting Started - Mpression Helio Board 7

2.5 DIP Switch Settings

2.5.1 SW1

All switches set to ON as follows. This switch need to be changed if you want to use 3rd party debugger

connected with mictor connector otherwise you do not need to change this switches.

Table 2-2 SW1 Settings

Board Reference

Signal Name

Description

Setting

SW1-1

JTAG_SEL

JTAG Chain Master Interface Select

ON : Select On-board USB Blaster II or JTAG

10pin Header

OFF : Select MICTOR 38pin connector

SW1-2

JTAG_HPS_SEL

Cyclone V SoC HPS JTAG Master Select

ON : Select On-board USB Blaster II or JTAG

10pin Header

OFF : Select MICTOR 38pin connector

SW1-3

This switch has to set ON when normal operation.

SW1-4

This switch has to set ON when normal operation.

2.5.2 SW4

Those switches are used for jtag-chain selection. Default setup as follows.

Table 2-3 SW4 Settings

Board Reference

Signal Name

Description

Setting

SW4-1

HPS_JTAG_EN

ON : Bypass Cyclone V SoC HPS Side

OFF : Cyclone V SoC HPS Side in-chain

OFF

SW4-2

FPGA_JTAG_EN

ON : Bypass Cyclone V SoC FPGA Side

OFF : Cyclone V SoC FPGA Side in-chain

OFF

SW4-3

This switch has to set ON when normal operation.

SW4-4

This switch has to set ON when normal operation.

Figure 2-6 SW1 Settings

Figure 2-5 SW4 Settings

Mpression Helio Board

8Getting Started - Mpression Helio Board

3. Creating MicroSD boot disk for Helio

Board

3.1 Creating a MicroSD boot disk from pre-built ALL in

One Image

The pre-built All in One Image for MicroSD boot disk for Helio board is delivered as an archive named

helio_gsrd_sdimage_[version].tar.gz that is provided from RocketBoards.org.

After extract this archive file, helio_gsrd_sdimage_[version].img is generated.

This SD card image file contains all the items that are needed to run Linux on Helio board.

Preloader

U-boot

U-boot script

Device Tree Blob

Linux Kernel

Linux Root Filesystem

To create MicroSD boot disk, you can use free tool called Win32DiskImager.exe on windows machine.

Please refer [1.3 Prerequisites] . The instructions are as follows:

1. Insert MicroSD card to host PC

2. Execute Win32DiskImager.exe

3. Select all in one image for MicroSD card

4. Click write

*Note executing Win32DiskImager.exe after your PC recognizes MicroSD card

Figure 3-1 Win32DiskImager

Mpression Helio Board

Getting Started - Mpression Helio Board 9

4. Running Linux on Helio Board

4.1 Setup USB-to-Serial Interface

4.1.1 Install Device Driver for USB-to Serial Chip

This section presents how to install the drivers for the USB-to-Serial chip on the Helio board. The

necessary steps on Windows 7 are:

1. Go to following URL and download the VCP Driver Kit archive file.

http://www.silabs.com/products/mcu/Pages/USBtoUARTBridgeVCPDrivers.aspx

2. Extract the downloaded archive and execute one of the installer files:

*Run CP210xVCPInstaller_x64.exe if you have a 64 bit OS, or

*Run CP210xVCPInstaller_x86.exe if you have a 32 bit OS

4.1.2 Setup Terminal Software

Make sure terminal software settings as below

With Linux kernel v3.7 (SoC EDS v13.0)

Baud Rate: 57600

Parity: none

Stop: 1 bit

Flow Control: none

With Linux kernel v3.9 or later (SoC EDS v13.1 or later)

Baud Rate: 115200

Parity: none

Stop: 1 bit

Flow Control: none

Figure 4-1 Terminal Software Setup

Mpression Helio Board

10 Getting Started - Mpression Helio Board

4.2 Running Linux

This section presents how to run the pre-build Linux images on the Helio board.

1. Setup the board as described in 2 Board Settings section.

2. Setup the SD card as described in 3 Creating MicroSD boot disk for Helio Board Section.

3. Connect a serial terminal from host PC to the serial port corresponding to UART USB

connection, and use appropriate settings described in [4.1.2 Setup Terminal Software].

4. Power up the board using PWR switch

5. After successful boot, Linux will ask for the login name. Enter root and press Enter:

Have fun!!

Figure 4-2 Linux boot log

Indice

Altri manuali Macnica Hardware per computer

Macnica

Macnica Mpression 12G-SDI FMC Card Manuale utente

Manuali Hardware per computer popolari di altre marche

EMC2

EMC2 VNX Series Manuale del proprietario

Panasonic

Panasonic DV0PM20105 Manuale utente

Mitsubishi Electric

Mitsubishi Electric Q81BD-J61BT11 Manuale utente

Gigabyte

Gigabyte B660M DS3H AX DDR4 Manuale utente

Raidon

Raidon iT2300 Manuale utente

National Instruments

National Instruments PXI-8186 Manuale utente

Hauppauge

Hauppauge WinTV-HVR-2250 Manuale utente

Kontron

Kontron CP6002 Manuale utente

Manhattan

Manhattan 702843 Manuale utente

Aphex

Aphex 230 Manuale utente

AMD

AMD Phenom II Manuale operativo

Intel

Intel NUC 12 Pro Manuale utente

dbx

dbx Zone Pro 1260 Manuale utente

Galaxy

Galaxy GHDX2-2430S-24F4D Manuale utente

Intel

Intel AXXRMFBU4 Manuale utente

Kontron

Kontron DIMM-PC/MD Manuale utente

ST X-NUCLEO-SAFEA1B Istruzioni operative

STEINWAY LYNGDORF

STEINWAY LYNGDORF SP-1 Manuale utente
