Maco PROTECT STABLE DOOR LOCK Manuale utente
MACO
PROTECT
STABLE DOOR LOCK
TECHNOLOGY IN MOTION
ASSEMBLY INSTRUCTIONS
DOOR LOCKS
2
MACO
PROTECT
● Top sash can be opened whilst bottom sash remains locked
● Both sashes can be locked together to form one door
● In the closed position each sash has its own independent locking system
● Chamfered Hook Bolts
● Dedicated steel latch and bolt strikers from existing PROTECT range
● Available in Hook and i.S cam or Hook only
● Silent Latch Function
● 35mm and 45mm backset
STABLE DOOR LOCK
COMBINATION PVC & TIMBER

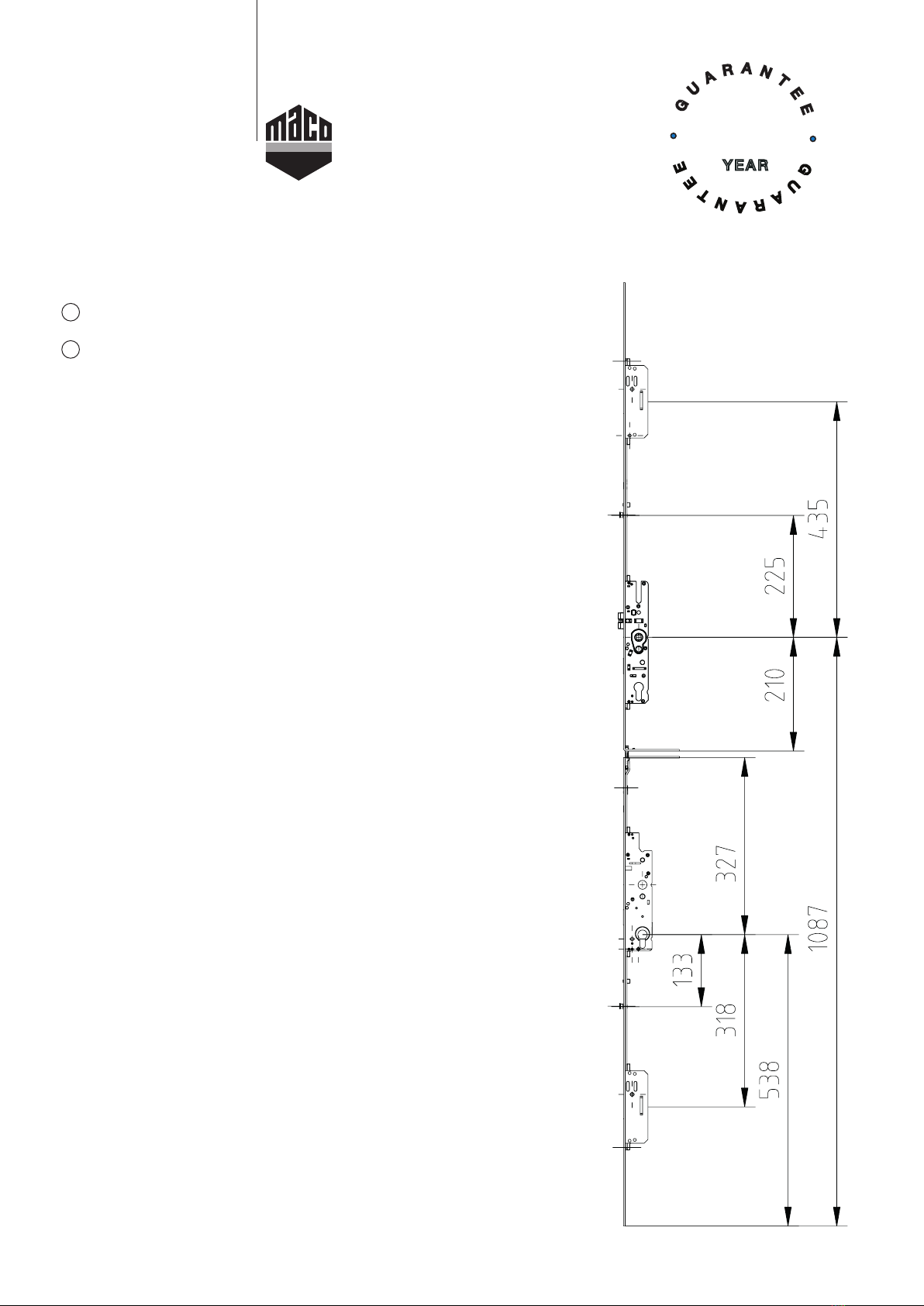

Lockcase Routing Positions
12 Hook-Bolt 2 iS Cam
10
22 Hook-Bolt
3
MACO
PROTECT
a
b
Latch insert Latch
Insert leg
Faceplate
a
b
Latch insert Latch
Insert leg
Faceplate
a
b
Latch insert Latch
Insert leg
Faceplate
a
b
Latch insert Latch
Insert leg
Faceplate

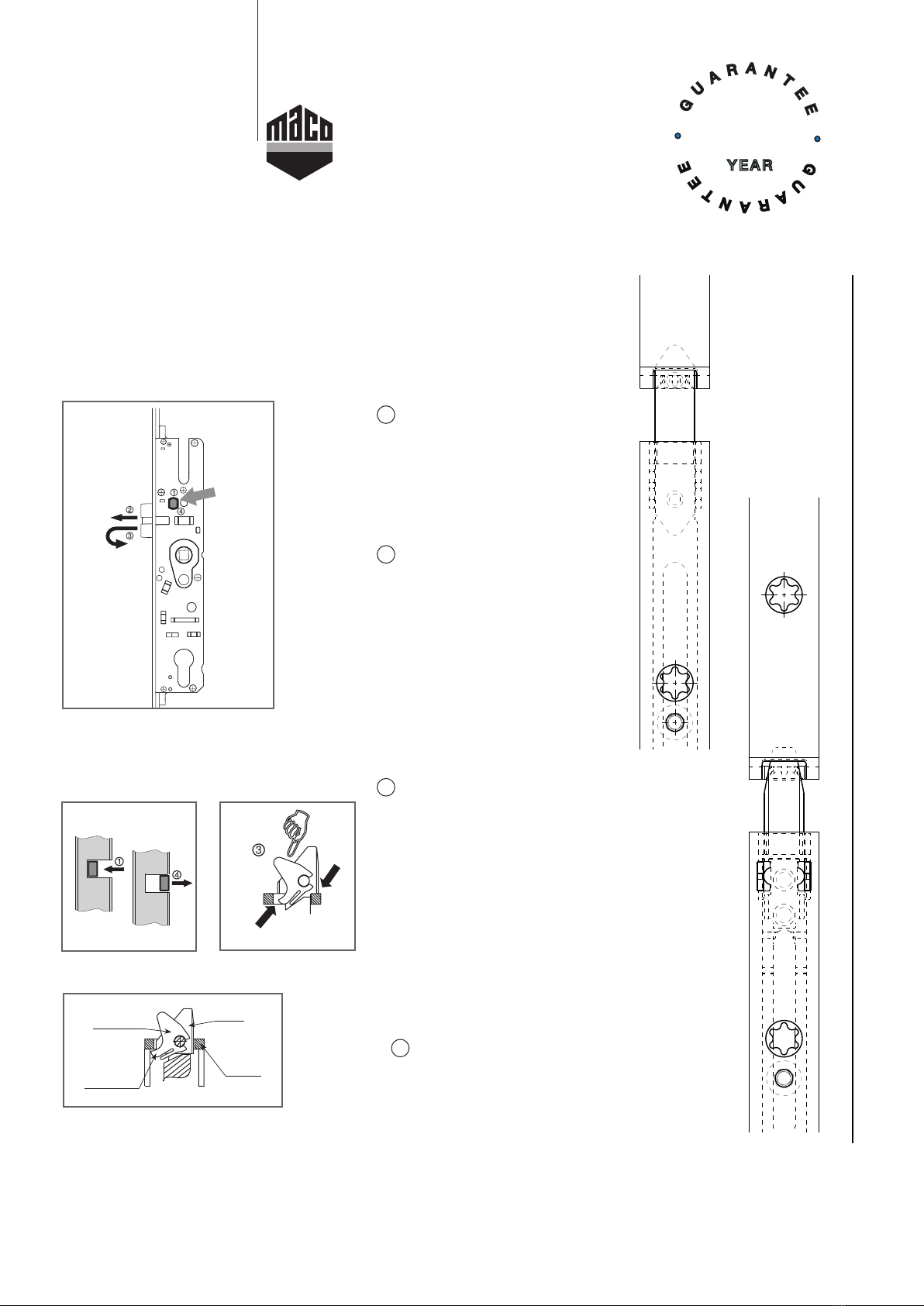

Latch Reversal
Installation Notes
2Remove the latch.
3Reverse the latch
and replace it into the
faceplate slot (a). Ensure
that the leg of the latch
insert locates under the
faceplate (b). Then push
the latch fully in.
4
Ensure that the button
fully returns.
1Push the button.
STABLE DOOR LOCK
COMBINATION PVC & TIMBER
10
38
DM ≥ 45
17,5BS
6,5
6,5
9
6,5
8,5
30 SC
HH
21,5
104
≤ 2
15,5
1
1
2
Routing Detail
Lockcase Machining
1Faceplate Centre Line
2Eurogroove
2
MACO
PROTECT
MACO DOOR & WINDOW
HARDWARE (U.K.) LTD
EUROLINK INDUSTRIAL CENTRE
CASTLE ROAD
SITTINGBOURNE
KENT, ME10 3LY
TEL +44 (0)1795 433900
FAX +44 (0)1795 433901
enquiry@macouk.net
www.macouk.net
Order-STABASSIN - Date: May 2011
All rights reserved and subject to change.
