Macpower & Tytech D8 Manuale utente

D8/D8H/D8-OEM - Manual

Macpower & Tytech Technology Co., Ltd.

www.macpower.com.tw

All functions, specifications and images in this manual may change without prior

notice. Please ask your sales representative for the latest firmware and PDF version

of the manual.

Date: May 10, 2007 - v1.0

P/N: E15-5759100008

Firmware: MPT0507a (2007/05/07)

D8H

OEM

MS-DOS, Microsoft, Windows 98/ME/2000/XP are trademarks of Microsoft Corporation. Apple Macintosh

and Mac are trademarks ofApple Computer. All other third party brands and names are the property of their

respective owners

D8 User Guide

Table of Contents

CHAPTER 1 - INTRODUCTION---------------------- 1

SYSTEM REQUIREMENTS .............................. 2

PC Requirements .................................. 2

Display Panel Requirements................. 2

Other equipment.................................... 2

OPTIONAL ACCESSORIES.............................. 2

PACKAGE CONTENTS.................................... 2

DETAILED VIEW -D8 .................................... 3

Front View.............................................. 3

Rear View.............................................. 3

DETAILED VIEW -D8H.................................. 4

Front View.............................................. 4

Rear View.............................................. 4

REMOTE CONTROL....................................... 5

CHAPTER 2 - HARDWARE INSTALLATION----- 7

3.5” HDD MODIFICATION -D8-OEM............. 8

DRIVE ASSEMBLY -D8.................................. 9

2.5” HDD or CF card.............................. 9

DRIVE ASSEMBLY -D8H............................. 10

2.5” HDD.............................................. 10

3.5” HDD.............................................. 12

WIRELESS KIT ASSEMBLY -D8 ................... 14

WIRELESS KIT ASSEMBLY -D8H................. 15

CHAPTER 3 - SOFTWARE CONFIGURATION-18

NETWORK CATEGORY ................................ 19

[Network Type]..................................... 19

[Automatic IP Address]........................ 19

[IP Address]......................................... 19

[MAC Address]..................................... 19

[SSID] .................................................. 19

[Link PC1]............................................ 19

[Link PC2]............................................ 19

MISC1CATEGORY...................................... 20

[Date Time].......................................... 20

[Time Zone].......................................... 20

[NTP Server]........................................ 20

[Play List]............................................. 20

[Download List].................................... 20

MISC2CATEGORY...................................... 21

[File Copy]............................................ 21

[File Erase]........................................... 21

[Setup Value]....................................... 21

[Play Mode].......................................... 21

[Remote Command Path].................... 21

[Auto ON/OFF]..................................... 21

MISC3CATEGORY...................................... 22

[OSD]................................................... 22

[Scrolling Text]..................................... 22

[Scrolling Text Speed] ......................... 22

[Color].................................................. 22

AUDIO &VIDEO CATEGORY......................... 23

[SPDIF]................................................ 23

[Speakers]............................................ 23

[TV Standard]....................................... 23

[TV Type]..............................................23

[Video Connector] ................................23

[YPbPr Standard].................................23

[VGA Standard]....................................23

CONFIGURATION FILE..................................24

Configuration Tool................................25

Configuration Structure........................26

Configuration Values............................27

FIRMWARE UPDATE ....................................29

CHAPTER 4 - PLAYBACK----------------------------30

MODE 1......................................................30

Shared Folder on WinXP .....................31

Shared Folder on Windows Vista.........33

LAN Disk ..............................................36

MODE 2......................................................38

Disk Management................................39

Scheduled Download...........................40

Creating a Download List.....................41

Downloading New Content...................41

FTP Server...........................................42

MODE 3......................................................44

USB Drive.............................................44

AUTOMATED PLAY MODES ..........................45

[Standard].............................................45

[Repeat]................................................45

[Manual & Standby]..............................46

[Auto ON/OFF].....................................46

PLAYLIST....................................................47

Creating a Playlist................................48

Display Time for Images ......................48

Daily Playlist.........................................49

SCROLLING TEXT........................................50

REMOTE COMMANDS ..................................51

[reboot].................................................51

[downnow]............................................51

[erasehdd] ............................................51

[eraseusb1] ..........................................51

[eraseusb2] ..........................................51

[delfiles]................................................51

[getfiles]................................................51

[restoreconfig] ......................................51

[saveconfig]..........................................51

[reloadplaylist]......................................51

Creating a Command file .....................52

Creating the File Index.........................53

Creating a Delete list............................53

CHAPTER 5 - APPENDIX-----------------------------54

FAQ ..........................................................54

REMOTE CONTROL KEY FUNCTIONS ............55

CONFIGURATION TOOL................................56

Configuration........................................56

Remote Command...............................57

TFTP.........................................................59

ABOUT THIS MANUAL ..................................60

D8 User Guide

Chapter 1 - Introduction

Specially designed as an affordable yet advanced advertisement solution, Macpower's D8

offers an array of new and unique features. Small footprint and customisable firmware

makes this the ideal solution for networked advertisement displays and other broadcasts.

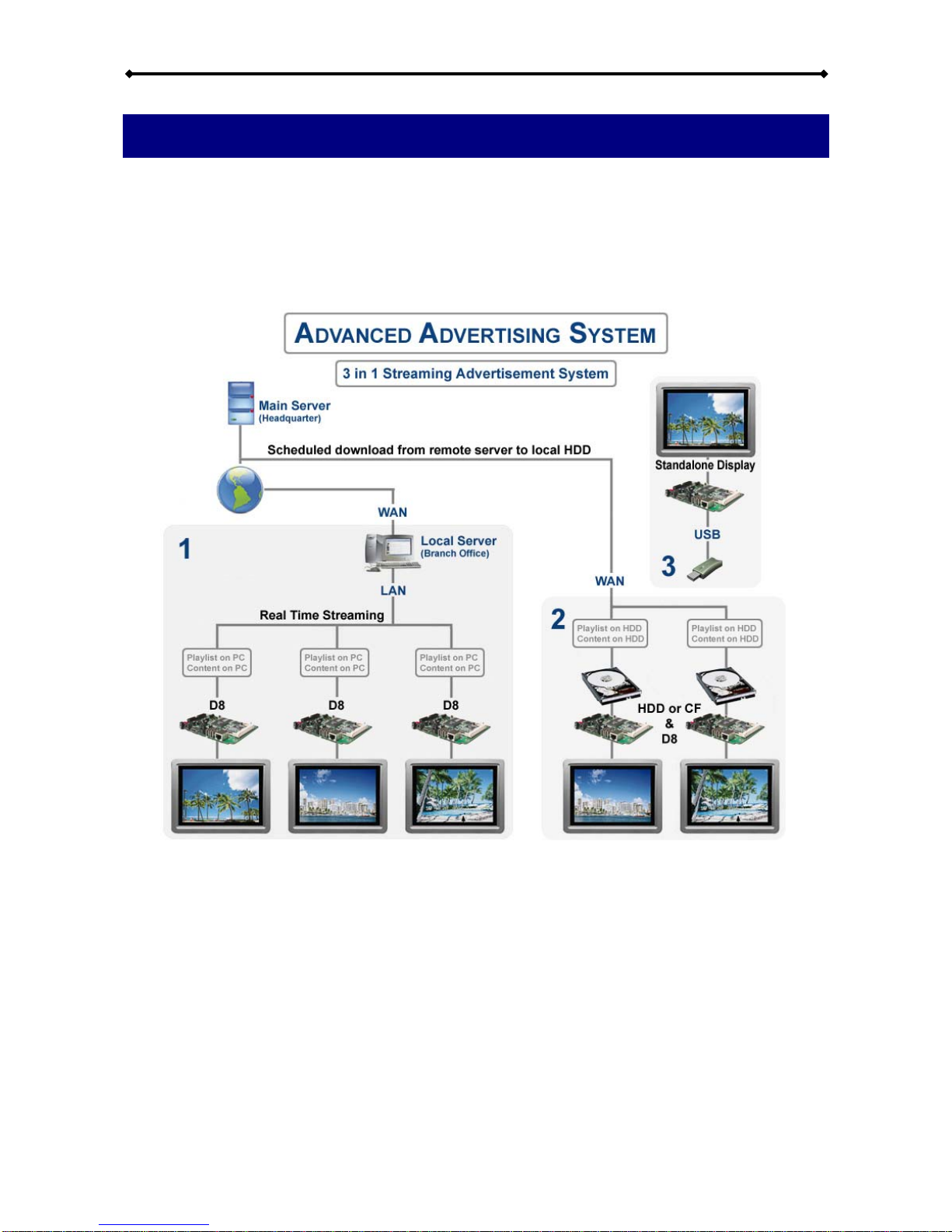

The D8 is a flexible device in that it can be used in conjunction with or without internal

storage media. The following illustration shows three of the possible set-up scenarios for

the device.

1- The D8 is used without internal storage. The content is stored on a PC at the same

location and data is accessed over the local area network (LAN).

2 - A hard drive or CF card is installed and data is stored on the D8. Each unit has its own

storage but new content can automatically be downloaded at a certain time over the

internet (WAN) from a server.

3- There is no network connection whatsoever. The data is accessed from an USB drive

via one of D8’s USB ports.

Note: See Chapter 4 for a detailed explanation on how to set up each of these scenarios.

Page 1 / Chapter 1 - Introduction

D8 User Guide

System Requirements

PC Requirements

•Minimum Intel Processor III 500MHz, 128MB RAM. The faster the processor the better,

as more devices can be connected and you will experience better playback.

•Operating System; WinXP Home, WinXP Professional or Windows Vista.

•10Mbps, 100Mbps or 10/100Mbps Fast Ethernet card, or a USB-to-Ethernet converter

equipped PC.

Display Panel Requirements

•Video/Audio input, standard Composite RCA input. For better quality, S-Video or

Component input is recommended.

•Optional amplifier with surround speaker system.

Other equipment

•Network switch or router.

•Optional hard drive up to 750GB, CF card or USB drive

Optional Accessories

The D8 comes without internal drive. For the D8, you can install either a CF card or a 2.5”

IDE hard drive by using the optional CF/2.5” HDD module. With the D8H, you can install a

2.5” or 3.5” SATA HDD (no extra module required). In addition to your D8 kit, the following

cables and modules are available on request:

•VGAAV cable (15-pin female VGA, left audio RCA, right audio RCA)

•SCARTAV cable (SCART cable for Europe with RGB support)

•802.11b/g Wireless Kit

•3G USB Kit

•CF card module (for D8 only)

•CF card & 2.5” HDD module (for D8 only)

Package Contents

•D8 or D8H

•External Power Adapter

Input 110/240V auto switching, Output +12V/2A

•Composite, Component and VGAAV cables

•Remote Control

•Manual

Note: Package content may vary, depending on model and vendor.

Page 2 / Chapter 1 - Introduction

D8 User Guide

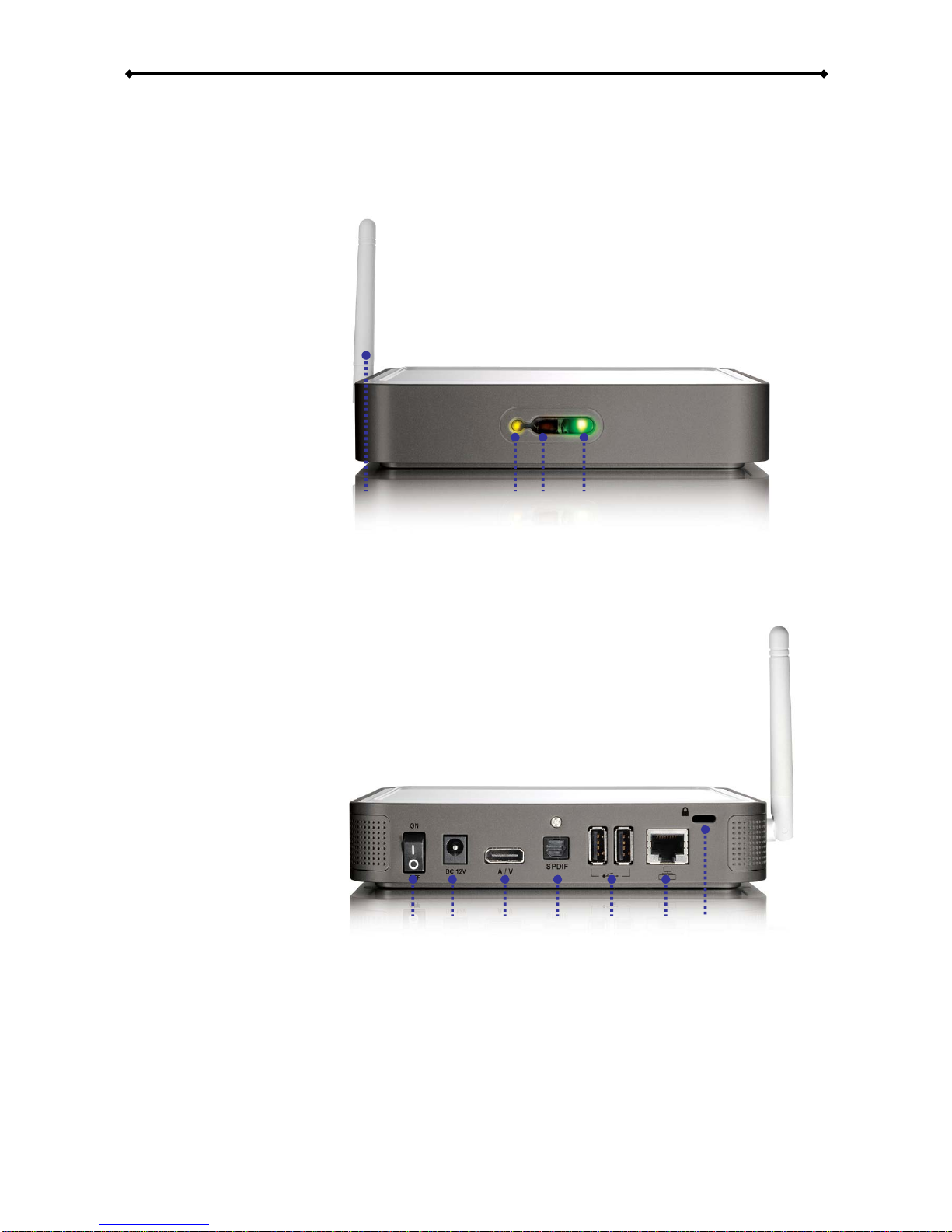

Detailed View - D8

The images below depict the standard D8 enclosure showing the front view with its LED

lights and the rear view with the interface and connections.

Front View

1. 802.11b/g Antenna

2. LAN Access LED

3. Infrared Receiver

4. Power LED

XY Z [

Rear View

1. ON/OFF Switch

2. Power Receptacle

3. A/V multi connector

4. SPDIF audio connector

5. USB 2.0 upstream ports

6. Ethernet RJ-45 port

7. Micro security slot

XYZ[\]^

Note: These images are for reference only. Your model may come in a different colour and

without the 802.11b/g antenna.

Page 3 / Chapter 1 - Introduction

D8 User Guide

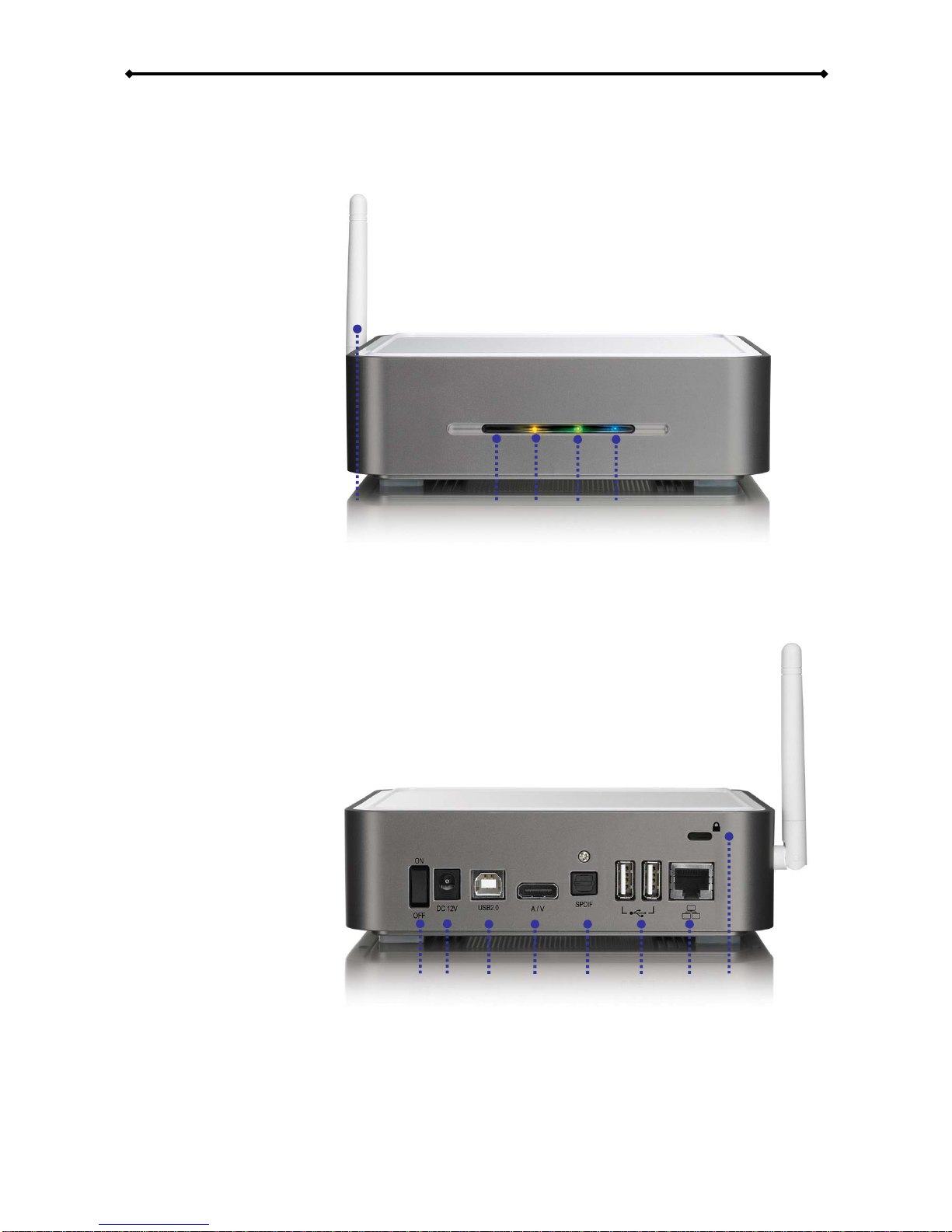

Detailed View - D8H

The images below depict the standard D8H enclosure showing the front view with its LED

lights and the rear view with the interface and connections.

Front View

1. 802.11b/g Antenna

2. Infrared Receiver

3. LAN Access LED

XYZ[\

4. USB LED

5. Power LED

Rear View

1. ON/OFF Switch

2. Power Receptacle

3. USB 2.0 downstream port

4. A/V multi connector

5. SPDIF audio connector

6. USB 2.0 upstream ports

7. Ethernet RJ-45 port

8. Micro security slot

X Y Z[\]^_

Note: These images are for reference only. Your model may come in a different colour and

without the 802.11b/g antenna.

Page 4 / Chapter 1 - Introduction

D8 User Guide

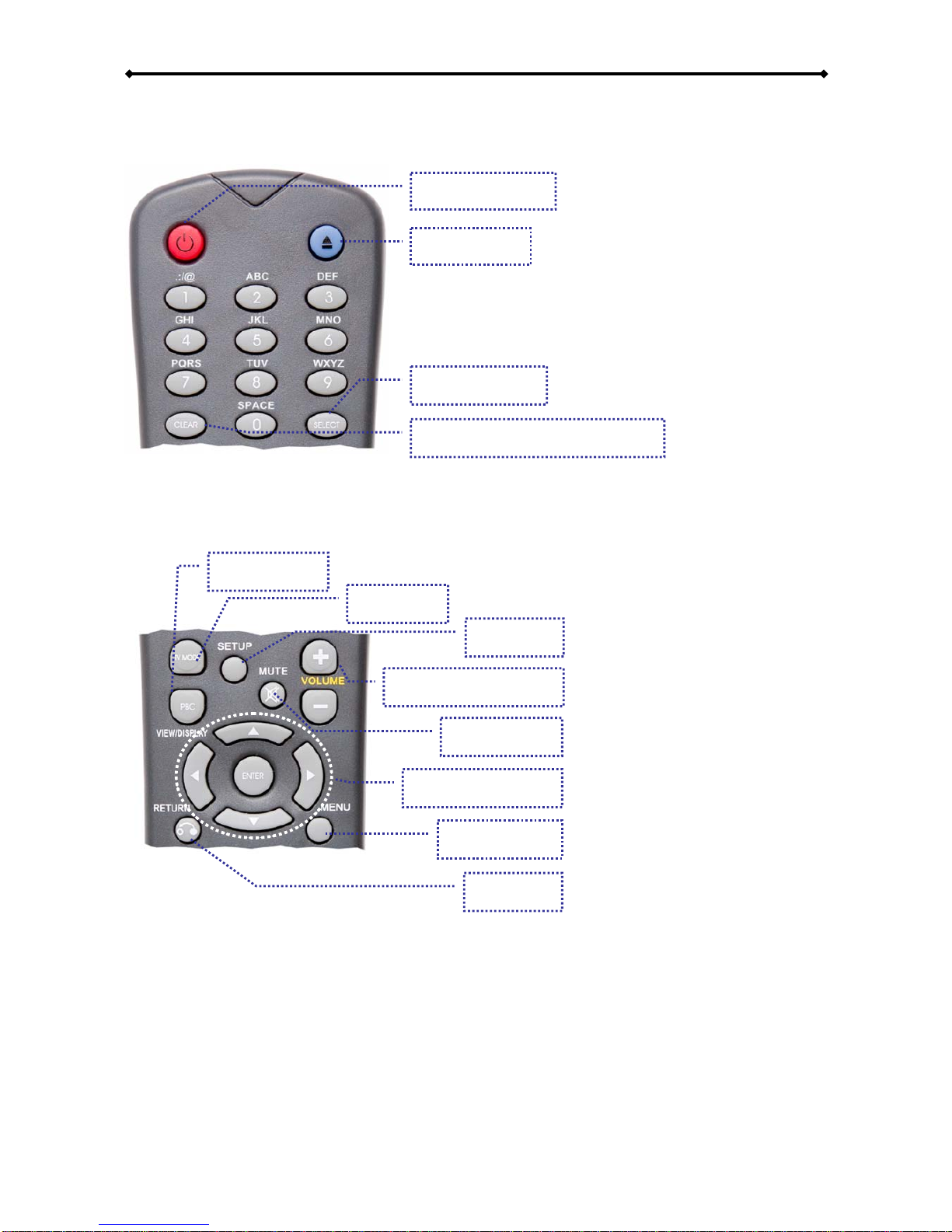

Remote Control

Power ON/OFF

No Function

Input for time, search, login, URL and other text.

Copy

Clear (Delete or Backspace)

[COPY] Copy the selected file from an external storage media to the local drive.

[CLEAR] Delete a letter/number when entering text or delete the selected file.

TV Mode

Setup

No Function

Volume Adjustment

Mute Sound

Navigation Keys

No Function

Return

[TV MODE] Each time this button is pressed, the video output will change - use this when

you only see a blank screen. Once you have a signal on your display, be sure to go to the

setup menu and save your settings.

[SETUP] Press this key to enter the setup menu and change the settings and other

configuration options for your D8. During playback, this button can be used to adjust

contrast, saturation and brightness.

[VOLUME] Adjust the volume for music and video files.

[RETURN] Go one step back and return to the previous menu.

Page 5 / Chapter 1 - Introduction

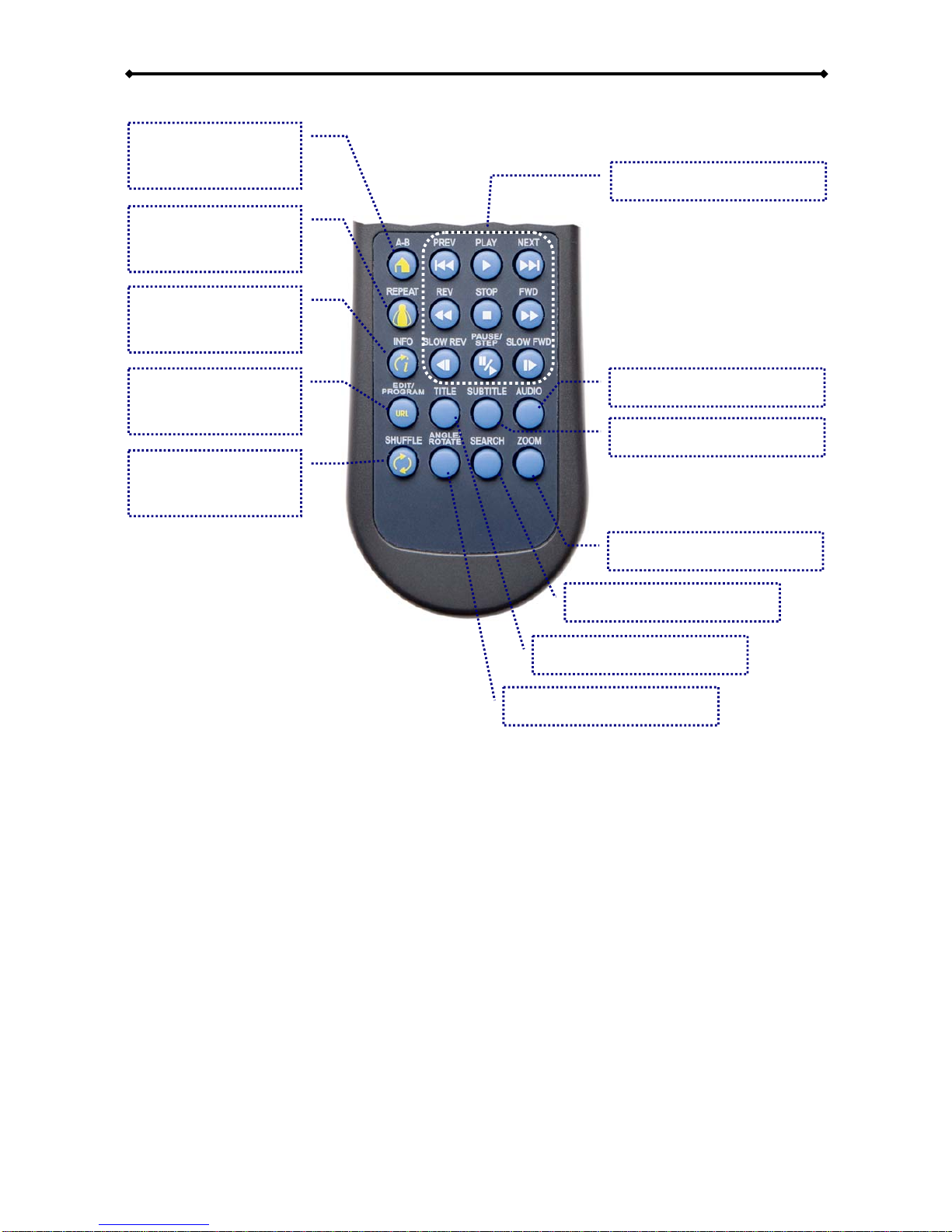

D8 User Guide

A: N/A

B: N/A Playback Functions

No Function

A: N/A

B: Repeat

A: N/A

B: File Info

A: N/A

B: N/A

A: N/A

B: Shuffle

No Function

No function

No Function

Fast forward by time

[REPEAT] Press this button to toggle through the different repeat functions.

[INFO] Press this button to show the file info during playback.

[SHUFFLE] Press this button to turn the shuffle mode ON or OFF.

Note: See Appendix for detailed functions of each key.

Page 6 / Chapter 1 - Introduction

D8 User Guide

Chapter 2 - Hardware Installation

For the download function to work, an internal drive has to be installed. Depending on the

model, this can be following:

D8-OEM

•3.5” IDE drive up to 750GB

•2.5” IDE drive (requires HDD module)

•CF card (requires CF module)

•2.5” IDE drive (requires HDD module)

•CF card (requires CF module)

D8H

•3.5” SATA drive up to 750GB

•2.5” SATA drive

Note: The D8 only supports the FAT32 file system or for CF cards also FAT16. Make sure

your hard drive is formatted using FAT32 before you install it. If formatted using NTFS, the

D8 will be able to read from the drive but will not be able to write to it!

1. Prepare your hard drive and format it using FAT32.

2. Install the drive or CF card and make sure all cables are connected.

3. Switch the power on your D8 to ON, and wait for the system to boot.

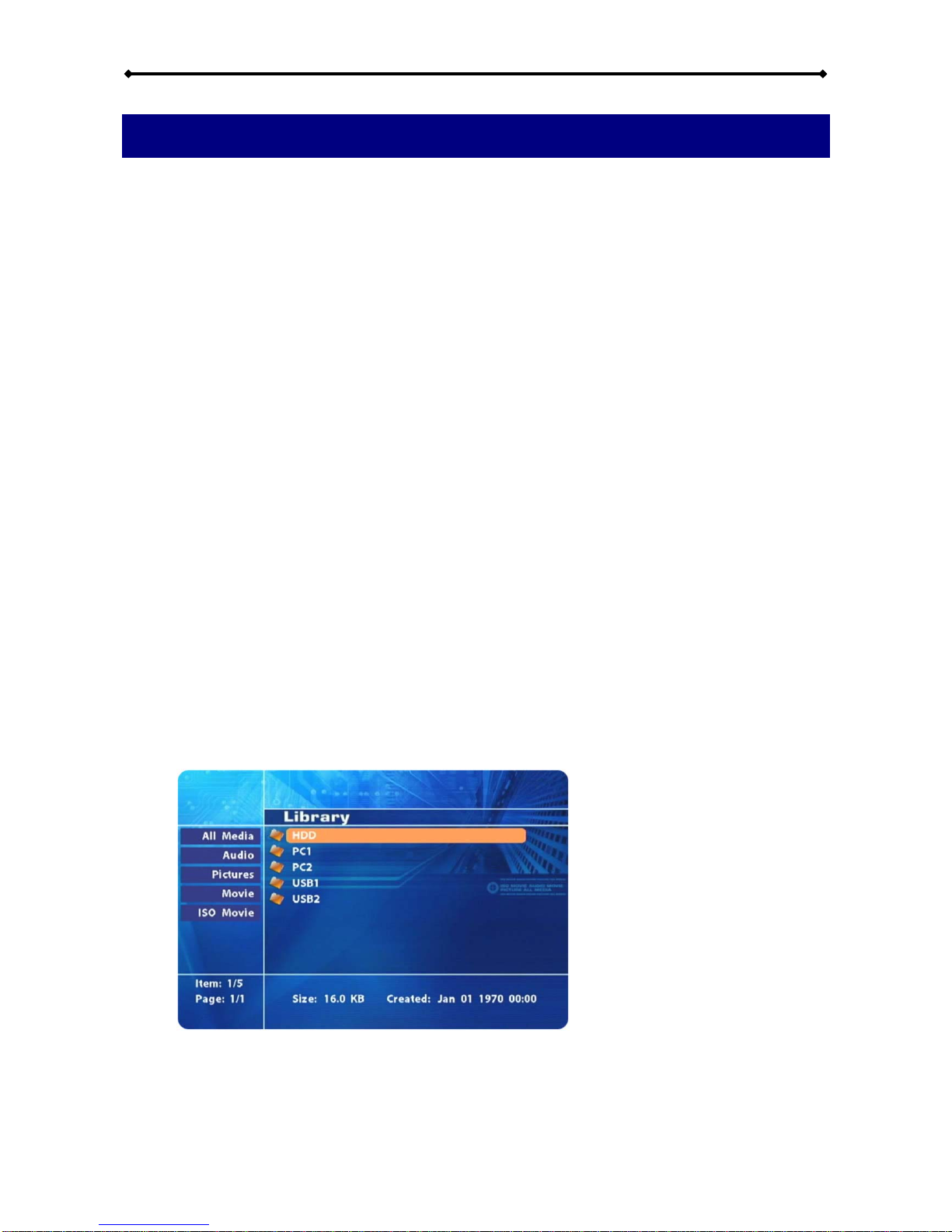

4. If you already have some media files on the drive, you will now be able to access

them from the file library.

5. If the drive is still empty, use the File Copy command in the Setup menu to copy

new files from an external USB drive to the internal HDD or CF card.

Page 7 / Chapter 2 - Hardware Installation

D8 User Guide

3.5” HDD Modification - D8-OEM

For the D8 to recognise the internal drive, the HDD has to spin up and be ready before the

system boots. For some hard drives, the spin up time can be quite long and some drives

may not be recognised at all.

If this is the case with your drive, adjust the jumper on the D8-OEM bridge board to delay

the boot time and leave more time for the drive to spin up. Refer to the following image for

the modified jumper setting.

Note: Leave the jumper at its default position for 2.5” drives and CF cards. This

modification is only necessary for 3.5” drives with a long spin up time. The D8-OEM

supports 3.5” IDE hard drives up to 750GB.

Page 8 / Chapter 2 - Hardware Installation

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Macpower & Tytech Segnaletica digitale

Macpower & Tytech

Macpower & Tytech AR6 Manuale utente

Manuali Segnaletica digitale popolari di altre marche

LG 72WS70MS-B Manuale utente

SMART-AVI

SMART-AVI SIGNAGEPRO Manuale utente

LG 65SM5D Manuale utente

LG 55EW5TK-A.AUS Manuale utente

KeyWest Technology

KeyWest Technology BREEZE Manuale utente

XtendLan

XtendLan XL-DSP-183C Manuale utente

LG 47VL10 Manuale utente

LG WP400 Guida rapida

Dynascan

Dynascan DS861LR4 Manuale utente

Classic Exhibits

Classic Exhibits SEGUE DESIGNS MOD-1363 Manuale utente

LG 22XE1J Manuale utente

protech

protech KT-7290 Manuale utente

WebDT

WebDT 515A Istruzioni per il montaggio

Samsung

Samsung IWJ Series Manuale utente

LG 84TR3B Manuale utente

LG 55EJ5D Guida rapida

EVERI

EVERI Enrollment Kiosk Manuale utente

LG 75XS4G Manuale utente
