Macrom EF-HU1-5561 Manuale utente
1
Ver 1.0 07-06-2011 – Installazione i20
EF-HU1-5561 Easy fit M-DVD5561R for Hyundai i20

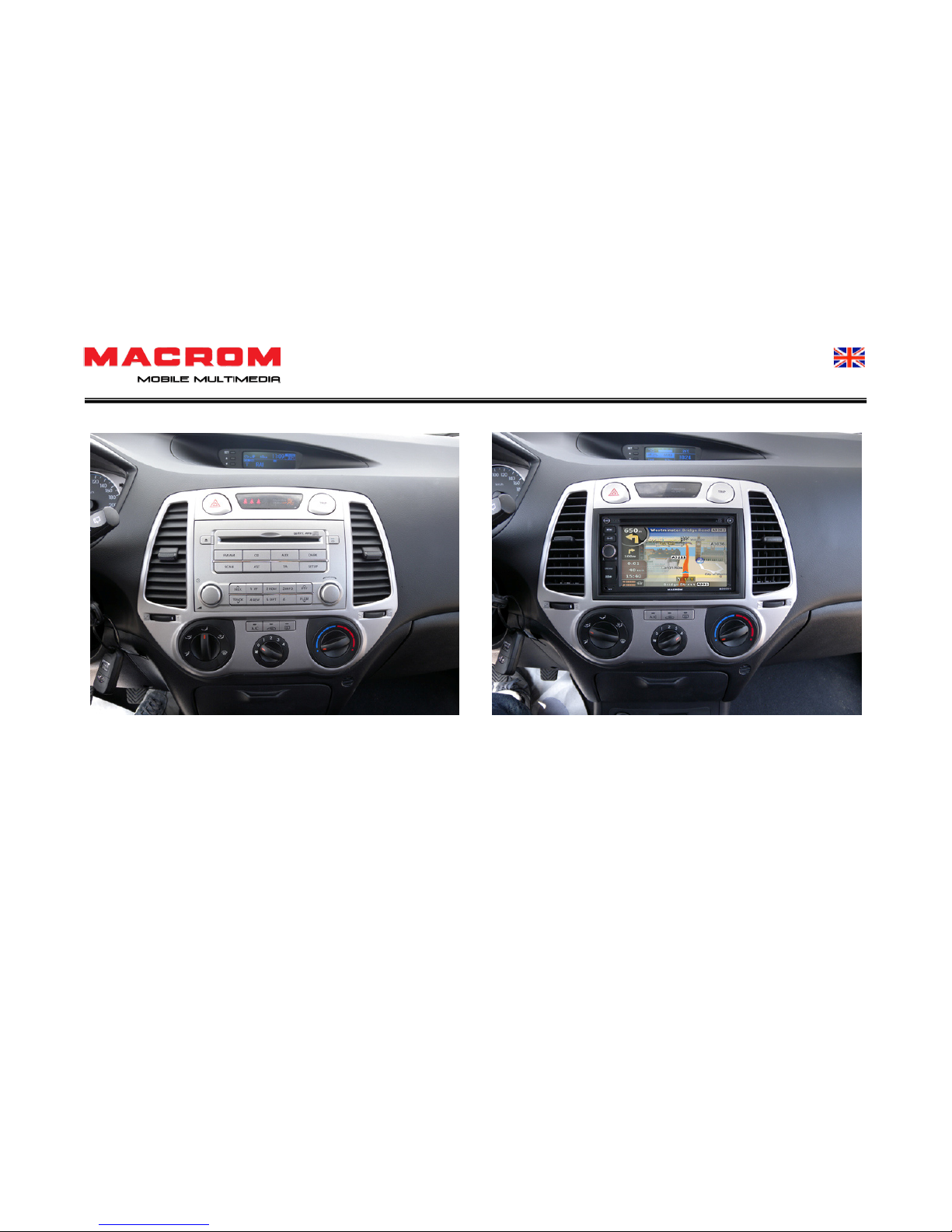

BEFORE AFTER
2
Ver 1.0 07-06-2011 – Installazione i20
EF-HU1-5561 Easy fit M-DVD5561R for Hyundai i20

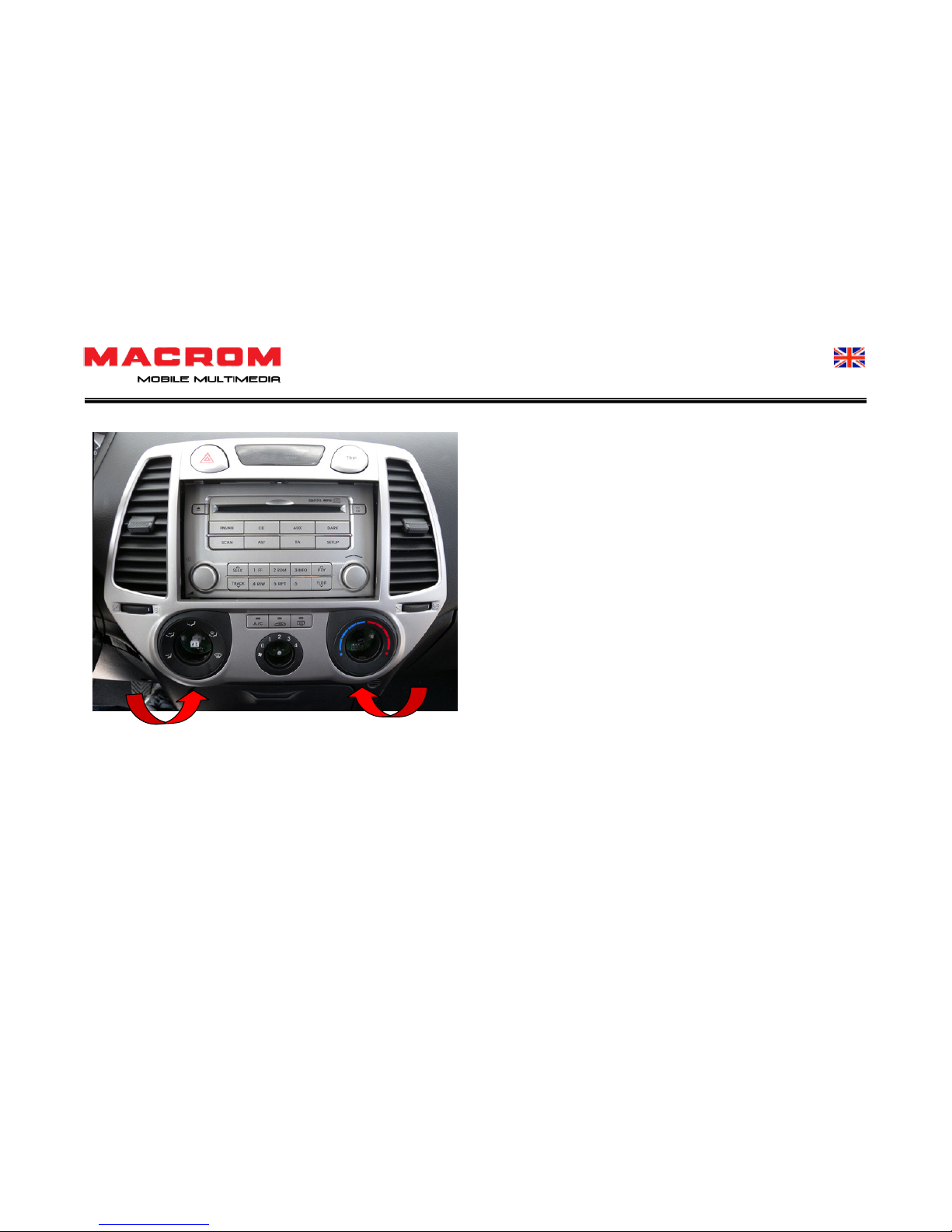

• remove the 3 handles of the air conditioner and after remove
the covering of radio flange.
• Start to remove the flange from the indicated point arrows
• Start removing the silver plastic flange
• Remove the 3 handles of the air conditioner and after
remove the covering of radio flange.
• To remove it leverage in the lower side of the flange
with a plastic flat bar (see arrows on the picture)
• Be sure to use a suitable tool for this operation and
protect the dashboard with paper tape to avoid to
scratch the plastic.
3
Ver 1.0 07-06-2011 – Installazione i20
EF-HU1-5561 Easy fit M-DVD5561R for Hyundai i20

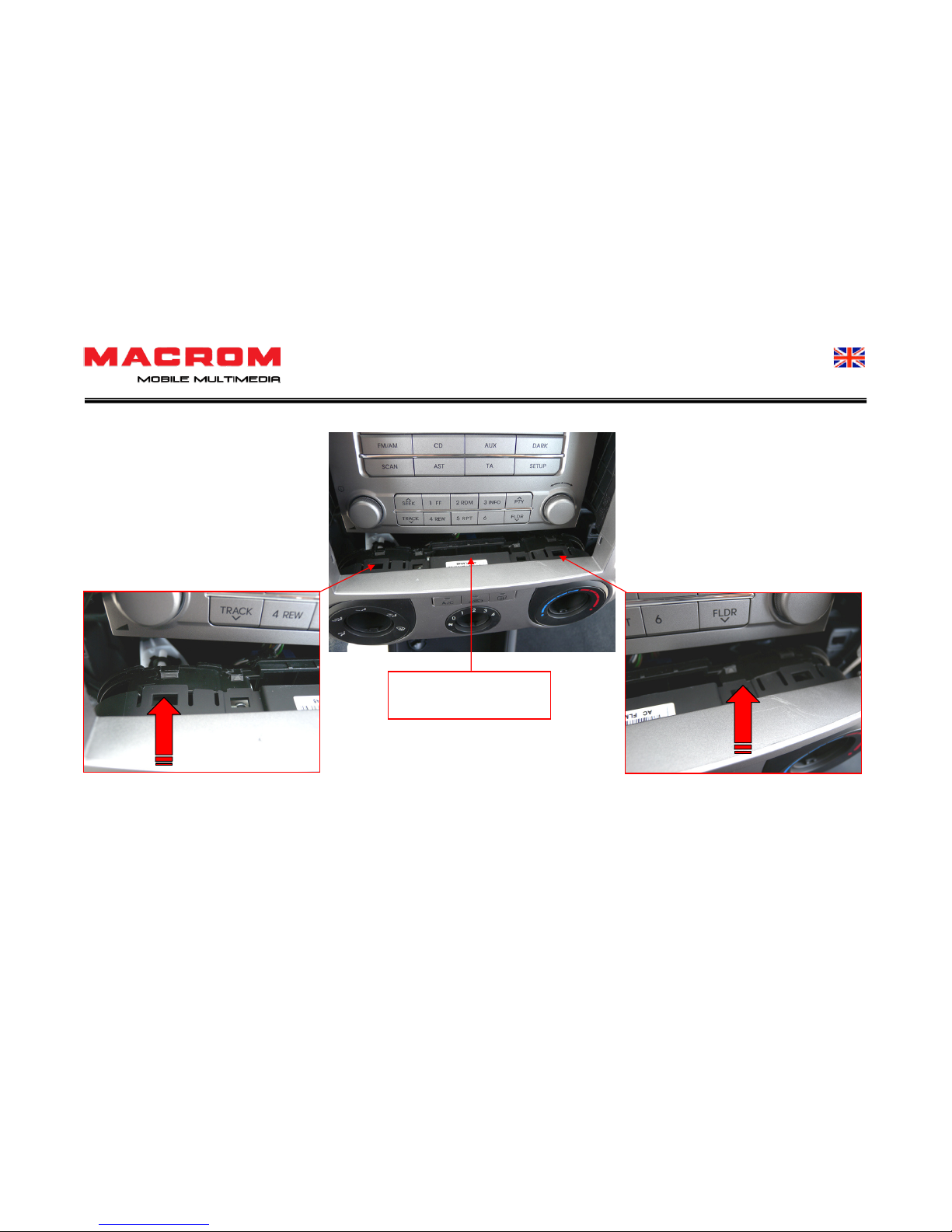

• Before removing the covering of radio flange, it is necessary to release all the clips that close the shell containing the
circuit of air conditioner.
shell containing the circuit of
air conditioner
4
Ver 1.0 07-06-2011 – Installazione i20
EF-HU1-5561 Easy fit M-DVD5561R for Hyundai i20

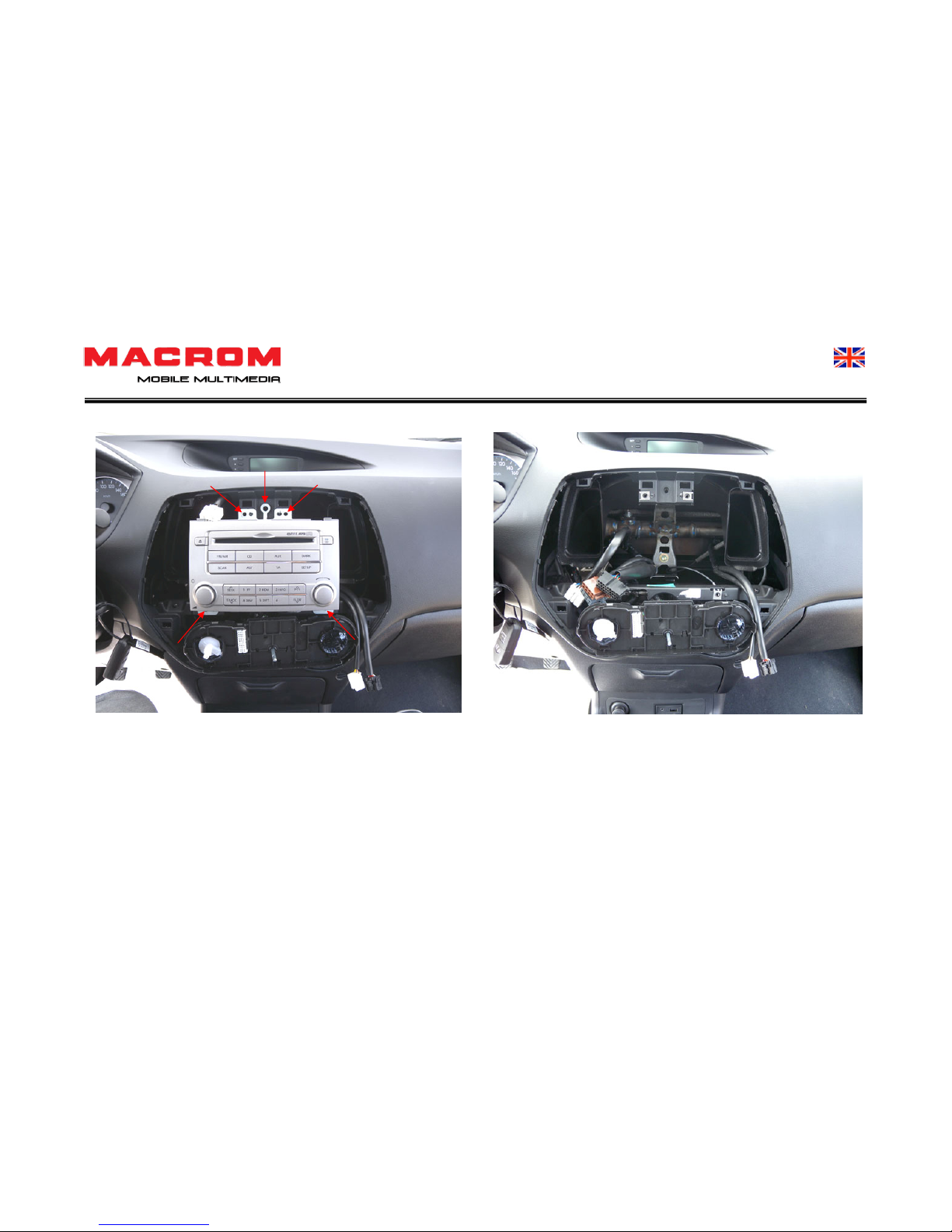

• Remove the 5 screws as indicated to release the OEM head unit.
5
Ver 1.0 07-06-2011 – Installazione i20
EF-HU1-5561 Easy fit M-DVD5561R for Hyundai i20

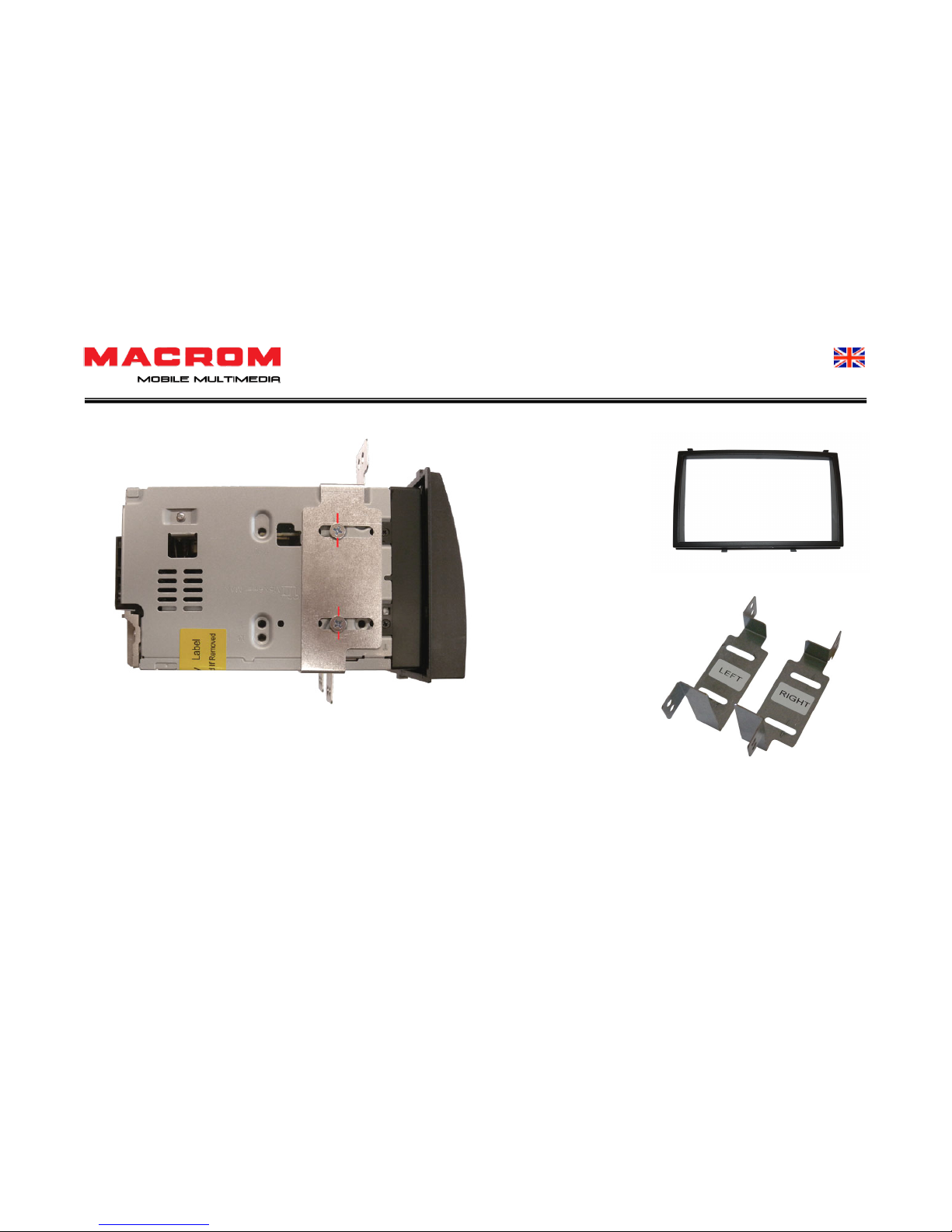

• Mount the metal brackets on the Macrom head unit as indicated paying attention to center the screws on the reference
lines of the brackets.
Facia adapter
Metal bracket
6
Ver 1.0 07-06-2011 – Installazione i20
EF-HU1-5561 Easy fit M-DVD5561R for Hyundai i20

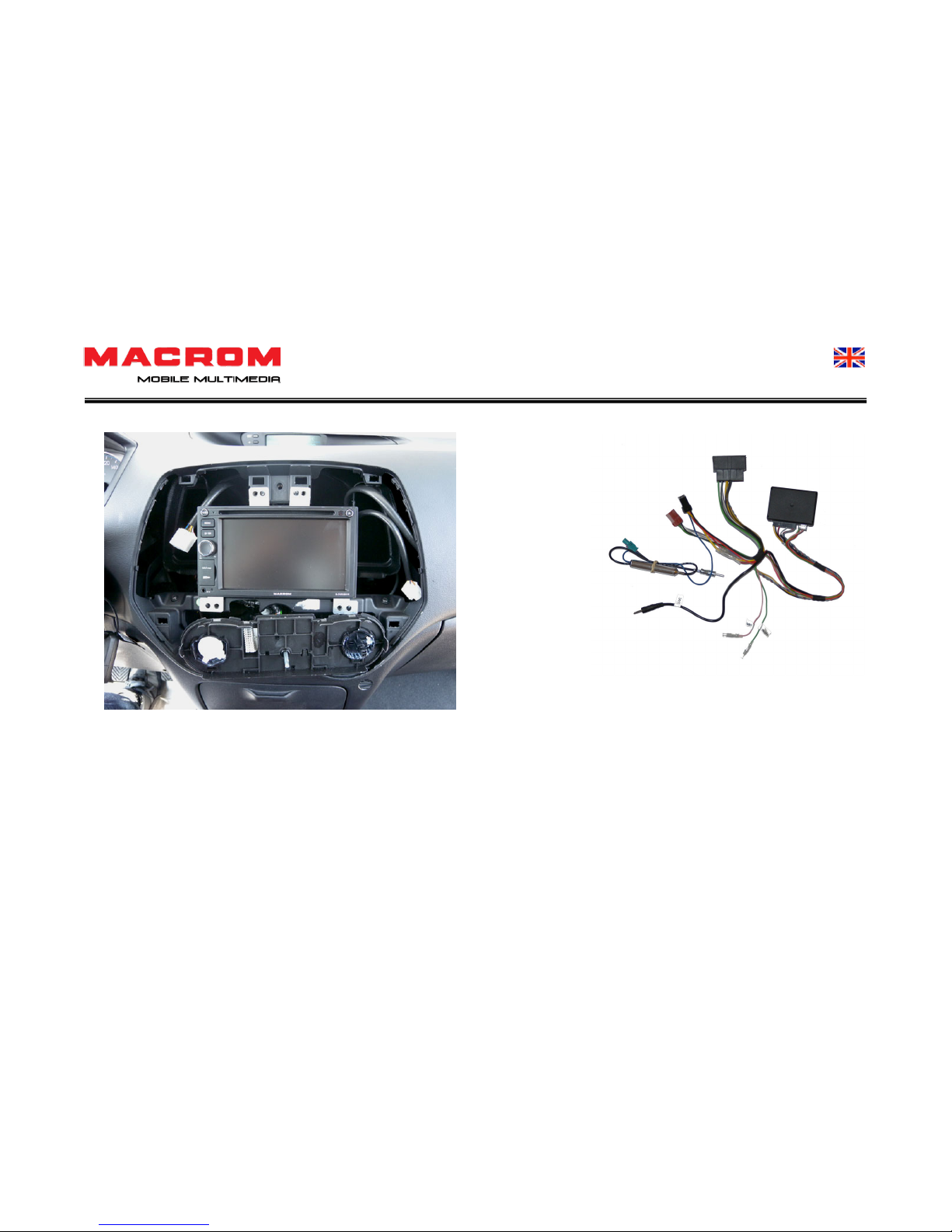

• Connect the head unit to the interface device and place the GPS antenna and the microphone before to close the plastics.
Connection harness with interface
7
Ver 1.0 07-06-2011 – Installazione i20
EF-HU1-5561 Easy fit M-DVD5561R for Hyundai i20
• Pay attention to the GPS antenna position. It MUST be looking to the sky as indicated in the above picture. If not positioned
correctly the GPS signal is bad and may cause a malfunction of the navigation system.
CORRECT ORIENTATION
The orientation provides the positioning of the BLACK surface
facing the sky.
8
Ver 1.0 07-06-2011 – Installazione i20
EF-HU1-5561 Easy fit M-DVD5561R for Hyundai i20
• Insert the Facia adapter before closing.
• To close the plastic, first close the shell containing the air conditioner circuitry.
• Than place the flange on the top side then place the flange below pressing the sides until they are completely looked.
• To complete place the 3 handles of the air conditioner
9
Ver 1.0 07-06-2011 – Installazione i20
EF-HU1-5561 Easy fit M-DVD5561R for Hyundai i20

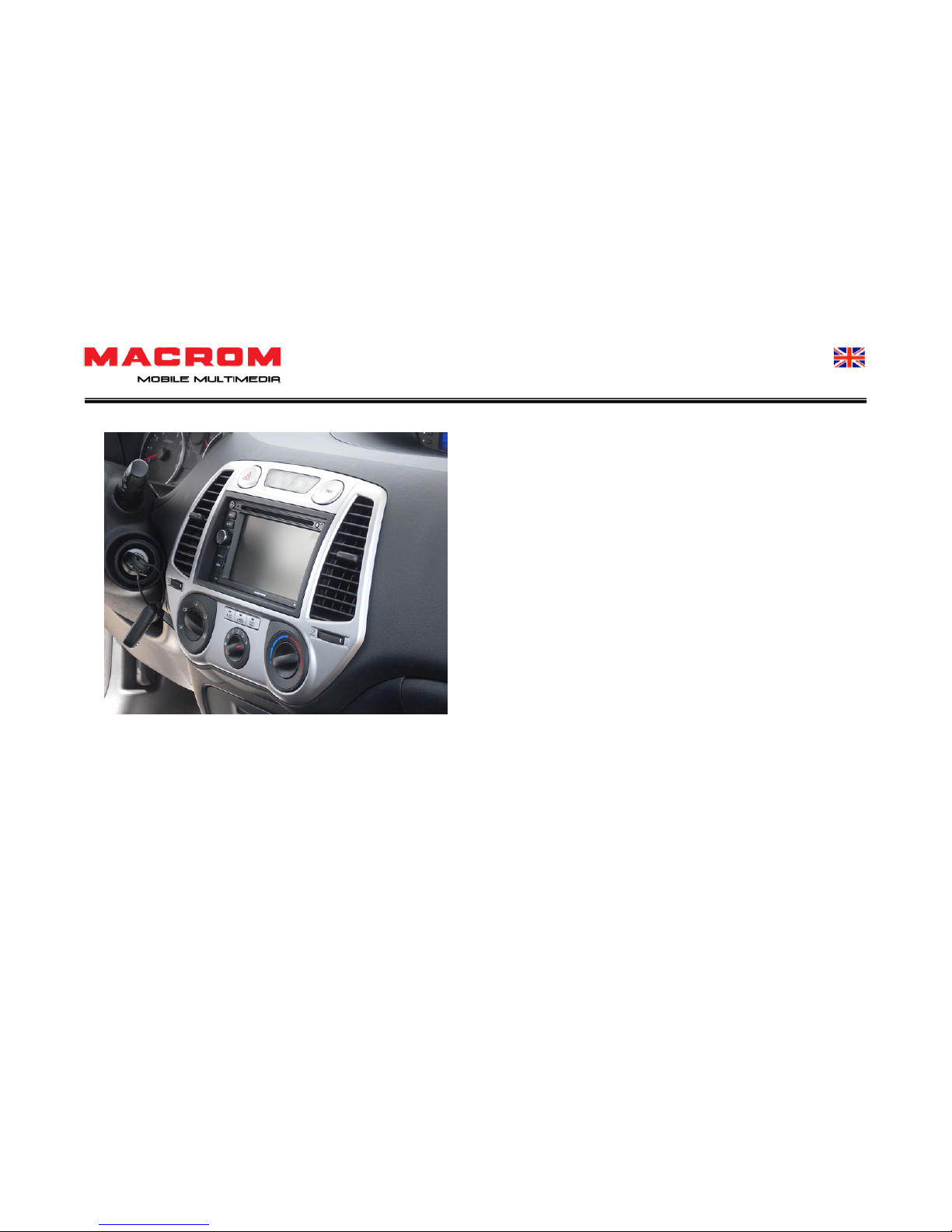

• Now your Macrom entertainment system is ready to play.
10
Ver 1.0 07-06-2011 – Installazione i20
EF-HU1-5561 Easy fit M-DVD5561R for Hyundai i20
ALDINET Spa. - Viale C. Colombo, 8 - 20090 Trezzano s/N (MI) Italy
