Safety Precautions

4. To ensure safe driving, please adjust the volume to a safe

& comfort level in case of emergency situations.

5. Never expose this unit, amplifier, and speakers to moisture or

water for preventing electric sparks or fires.

6. Please don't change the fuse on the power cord without profe-

ssional guidance, using improper fuse may cause damage to

this unit or even cause fire.

7. Please power off this unit at once and send it back to the after-

sales service center or the dealer /distributor you purchased

from if one of the following symptoms is found:

(a). No audio output;

(b). No image output;

(c). Water or other obstacle

enters the unit;

(d). Smoking;

(e). Peculiar smell.

1. Only connect the unit to a 12-volt power supply with negative

grounding.

MUTE

2. Never install this unit where the operation & condition for safety

driving is restrained.

MUTE

3. Never use the video display function in the front when driving to

prevent the violation of laws & regulations and also to reduce the

risk of traffic accident except using for rear view video camera.

MUTE

Safety Information

WARNING

Operate the unit correctly according to the manual instruction to prevent

unnecessary problem.

CAUTION

This product is a CLASS 1 LASER PRODUCT. Use of controls or adjustments

or performance of procedures other than those specified herein may result in

hazardous radiation exposure. Do not open covers and do not repair yourself.

Refer servicing to qualied personnel.

TWO LASER PRODUCTS

Wave length: CD:780nm DVD:650nm

Laser power: No hazardous radiation is emitted with safety protection.

To reduce the risk of re electric shock, and annoying interference, use only the

included components.

CD NOTES

• Playing a defective or dusty CD can cause dropouts in sound.

• Hold CDs as illustrated.

• Do not touch the unlabeled side.

• Do not attach any seal, label or data protection sheet to either

side of a disc.

• Do not expose a CD to direct sunlight or excessive heat.

• Wipe a dirty CD from the center outward with a cleaning cloth.

• Never use solvents such as benzine or alcohol.

• This unit cannot play 3-inch ( 8cm ) CDs.

• Never insert a 3-inch CD contained in the adapter or an irregularly

shaped CD. The unit may not be able to eject it.

Contents

Safety Precautions.................................................1

Safety Information..................................................2

Panel Controls .......................................................3

Remote Controls................................................ 4-5

Getting Started.......................................................6

USB/SD/MMC MP3 Playback................................7

General Operation .................................................8

Rotary Knob Menu........................................... 9-12

Radio ...................................................................13

DVD & AV IN Mode .............................................14

Radio and Clock ..................................................14

RDS ( Radio Data System )........................... 15-16

Disc Playback ......................................................17

Disc Playable.......................................................17

Audio/Video/Picture File Playback.......................18

Track Playback .............................................. 19-20

DVD Playback......................................................21

DVD Setup...........................................................22

DVD System Setup........................................ 22-23

DVD Language Setup..........................................24

DVD Audio Setup.................................................25

DVD Video Setup.................................................26

DVD Digital Setup................................................27

Electrical Connections ................................... 28-29

Installation Guide.................................................30

Anti-Theft System ................................................31

Troubleshooting...................................................32

Specications.......................................................33

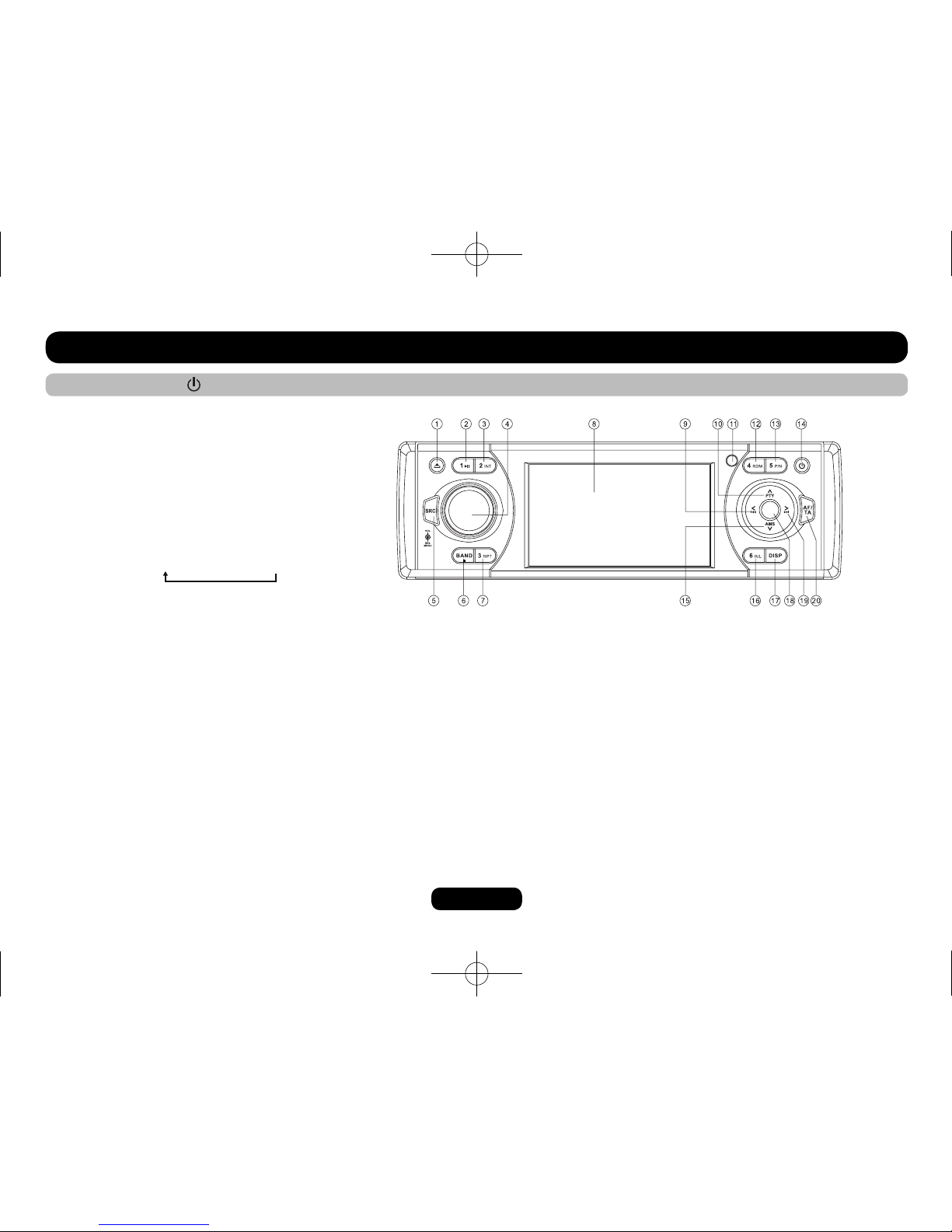

Panel Controls

16 Button 6: - DVD Audio Channel

- VCD Audio Channel L/R/ST

- Folder Down (USB/SD/MP3/Disc)

* Button 1~6: Radio Preset: Press to listen to a preset station.

Hold for more than 2 seconds to store station.

17 Display Switch/Time Adjust

18 Conrm Operation (in settings mode)

19 - Radio Tune

- Track Skip/Seek

- Next Track (DVD/CD mode)

- Fast Forward (DVD/CD mode)

- Manual Tuning Forwards (Radio mode)

- Menu Cursor right (MP3 mode)

20 - Alternative Frequency On/Off

- Trafc Announcements (Press more than 2 seconds to turn on/off)

Power On/Off: Press to turn On/Off the unit.

MUTE

1 Panel Open

2 Button 1: Play/Pause

3 Button 2: Intro Play

4 - Rotate the knob to adjust volume level.

- Push to select BAS/TRE/BAL/FAD/BRI/CON/SAT,

Rotate the knob to adjust level.

5 - Radio

- Disc Play (When disc inserted)

- USB (When USB inserted)

- Card (When SD/MMC inserted)

- AV-in

6 - Band Switch: FM1-FM2-FM3-AM1-AM2

- CT On/Off (press more than 2 seconds when in Radio

FM1/FM2/FM3 mode)

- Stop

7 Button 3: Track Repeat play

8 3.5 inch TFT Display

9 - Radio Tune

- Track Skip/Seek

- Last Track (DVD/CD mode)

- Fast Rewind (DVD/CD mode)

- Manual Tuning Backwards (Radio mode)

- Menu Cursor left (MP3 mode)

10 - RDS Program Type

- Menu Cursor up (MP3 mode)

11 Remote Sensor

12 Button 4: Track Random Play

13 Button 5: - Video System PAL/NTSC/AUTO

- Folder Up (USB/SD/MP3/Disc)

14 - Power On/Off (press more than 2 seconds)

- Mute On/Off

15 - AMS: Radio Auto Preset/Radio Preset Scan

- Menu Cursor down (MP3 mode)

14 - Radio

- Disc Play (when disc inserted)

- USB (when USB inserted)

- Card (when SD/MMC inserted)

- AV-in

15 REPEAT

16 A→B Repeat

17 Stop/Return

18 Play/Pause

19 Goto Search

20 - DVD MENU

- PBC (For VCD 2.0 or up)

21 On Screen Display

22 - DVD Audio

- VCD Audio L/R/ST

23 On Panel Display

24 Angle (DVD only)

25 - Video System PAL/NTSC/AUTO

- Radio Band

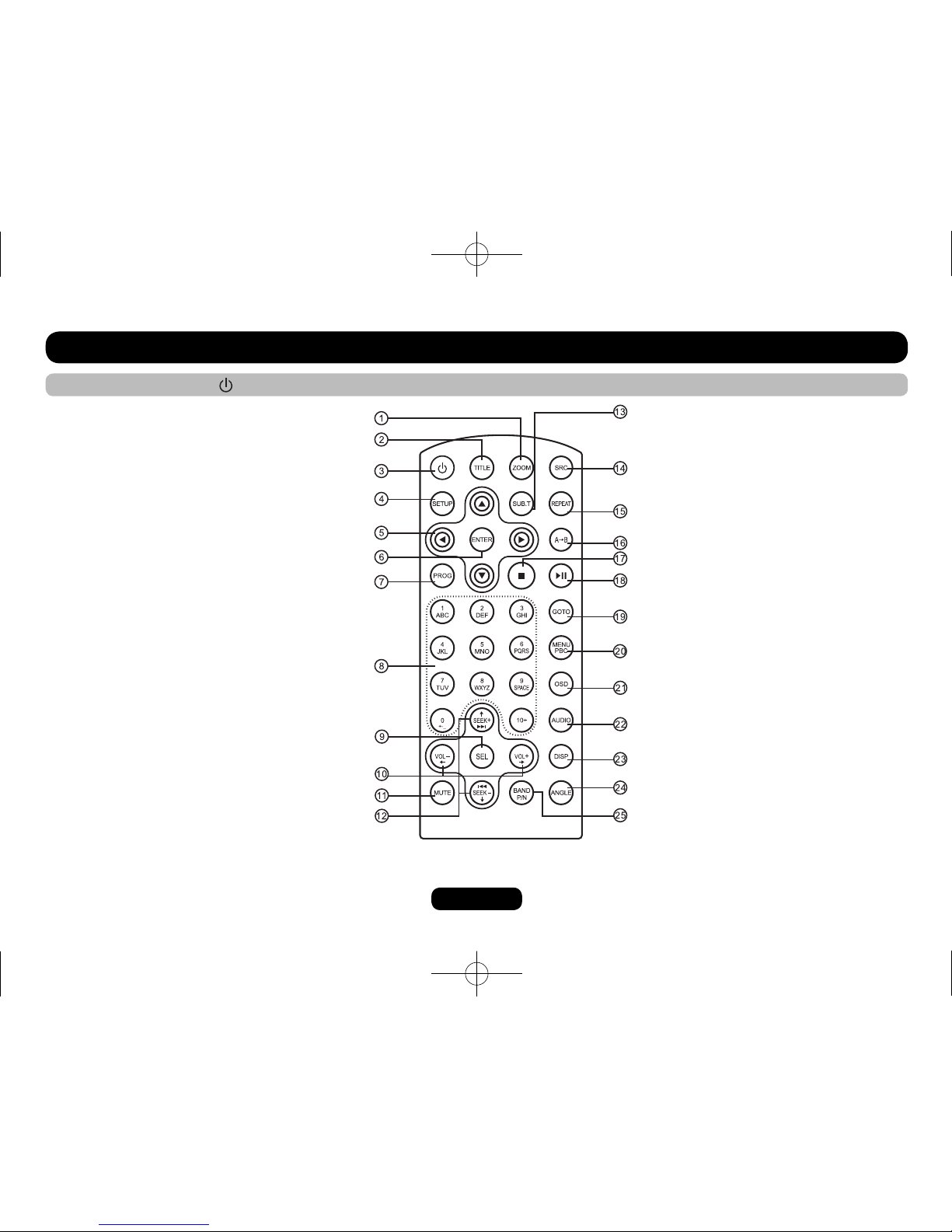

Remote Controls

Power On/Off: Press to turn on/off the unit.

1 Zoom (DVD/VCD only)

2 Title (DVD only)

3 Power On/Off

4 Setup

5 Menu Cursor

6 Enter

7 Program

8 Digit Area

9 - Audio Mode Select Bas/Tre/Bal/Fad/Bri/Con/Sat

- Push more than 2 seconds to Menu mode

10 Volume

11 Mute

12 - Radio Tune

- Track Skip/Seek

13 Subtitle (DVD only)

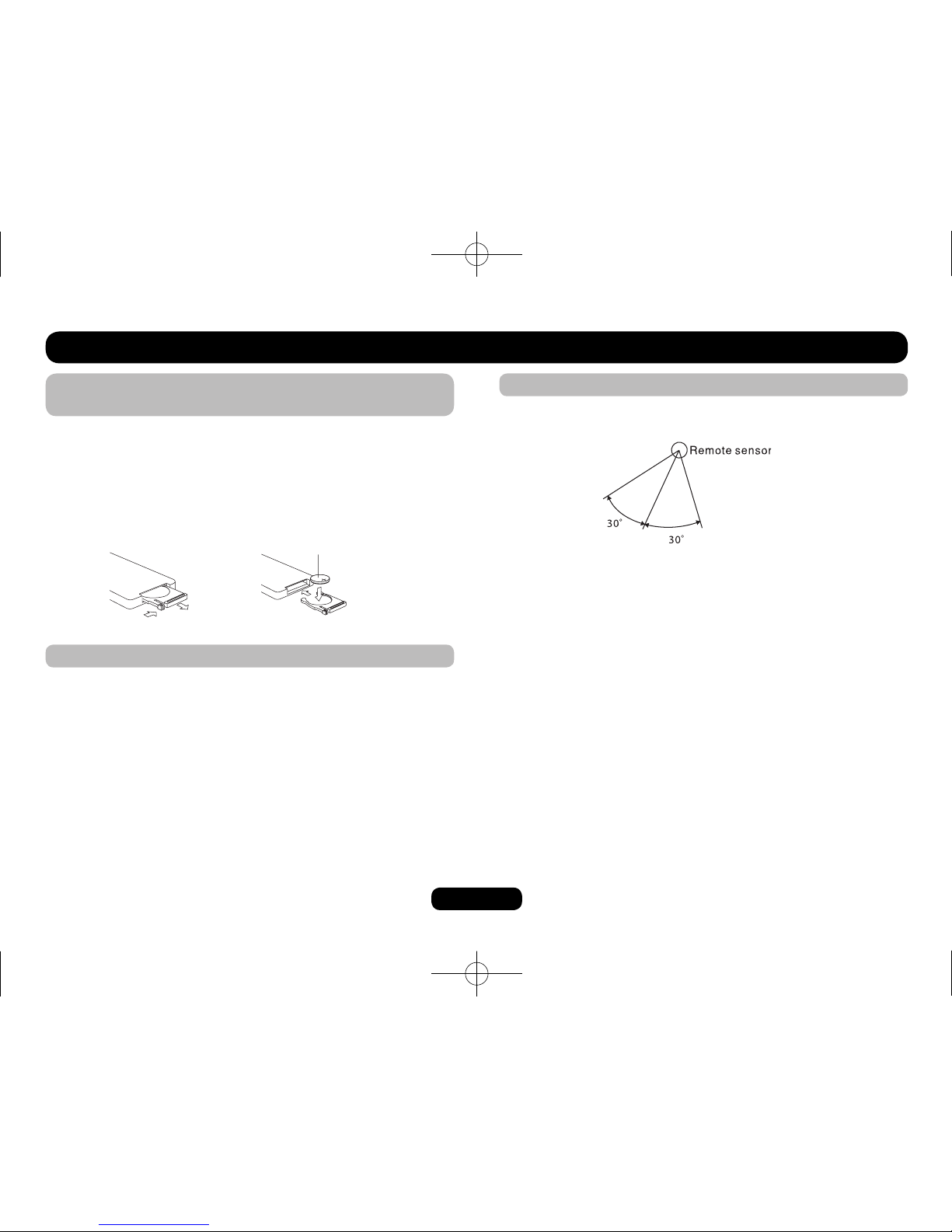

Remote control operating range

The remote control can operate within a distance of 3~5m.

(CR 2025)

Remote Controls

Replacing the lithium battery of remote control

unit.

When the range of the operation of the card remote control

becomes short or no functions while operating, replace the

battery with a new lithium battery. Make sure the battery polarity

replacement is correct.

1. Pull out the battery holder while pressing the stopper.

2. Insert the button-type battery with the stamped(+) mark facing

upward. Insert the battery holder into the remote control.

WARNING :

• Store the battery where children cannot reach. If a child

accidentally swallows the battery, consult a doctor immediately.

• Do not recharge, short, disassemble or heat the battery or

dispose it in a re.

• Do not expose or bring into contact the battery with other metallic

materials.

• When throwing away or saving the battery, wrap it in tape and

insulate; otherwise, the battery may give off heat, crack or even

cause a re.

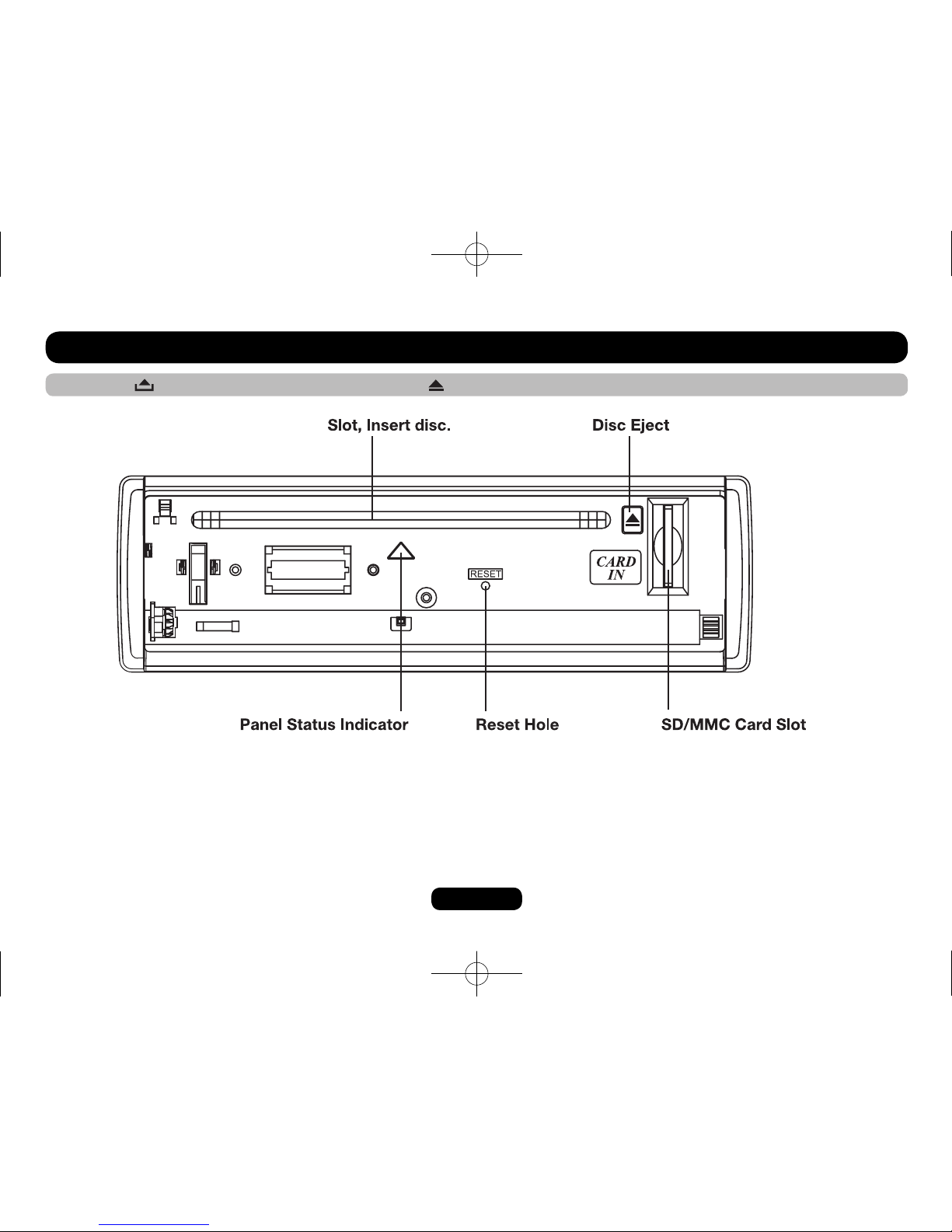

Press the button to open the panel and press to eject the disc.

Light up when you slide the

panel down; flashes when

you remove the panel.

Note: Pressing the RESET button

by inserting a pointed tool such as

the end of an unbent paper clip.

Getting Started

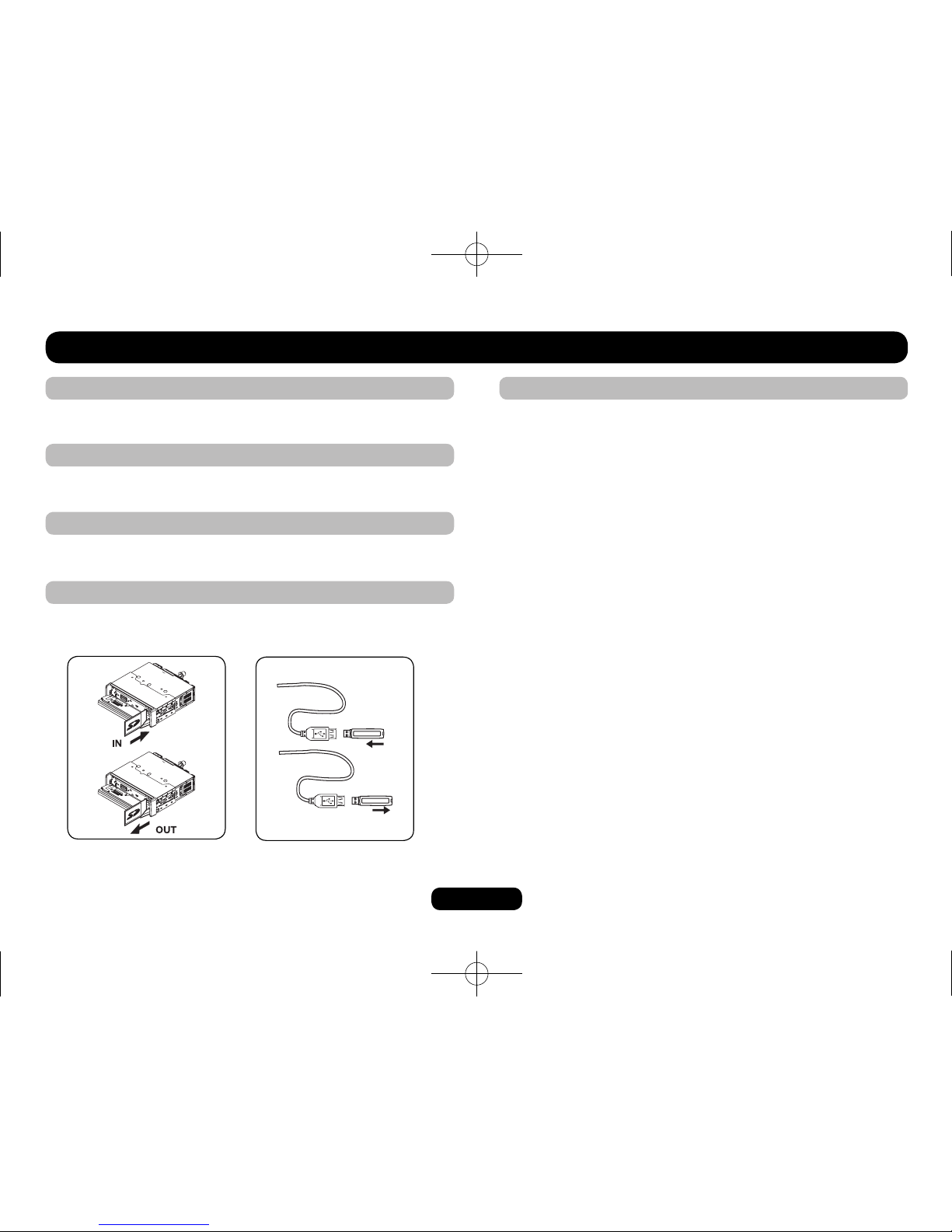

1. Loading SD/MMC card

USB/SD/MMC MP3 Playback

Press the SRC button to non-USB mode and take out the USB

device from the USB jack.

USB/SD/MMC Notes

USB functions (ash memory type) MP3 music play

1. SD/MMC card support

2. USB ash memory 2 in 1 (SD/MMC ) support

3. Support FAT 16 & FAT 32

4. File name: 32 byte/dir name: 32 byte/tag name: 32 byte

5. Tag (id3 tag ver 2.0)

- title/artist/album: 32 byte support

6. Multi card reader not support

7. USB 1.1 support

Open the panel and insert the SD/MMC card into the slot. Close the

panel, the unit will read the le of the card automatically.

2. Take out SD/MMC card

Push SRC button to non-SD mode, press the SD/MMC card to pop

out. Take out the card.

3. Loading USB device

Insert USB device into the USB jack. The unit will read the le in

the USB device automatically.

4. Take out USB device

Switching On and Off

1. Press to turn on the unit.

2. Press SRC once or more to select your desired function: DISC, Tuner (Radio), USB & SD/MMC, AV-in.

3. Press to power off (press more than 2 seconds).

4. When you switch off the system or car ignition, the settings, tuner presets and the volume level will be retained in the unit's memory.

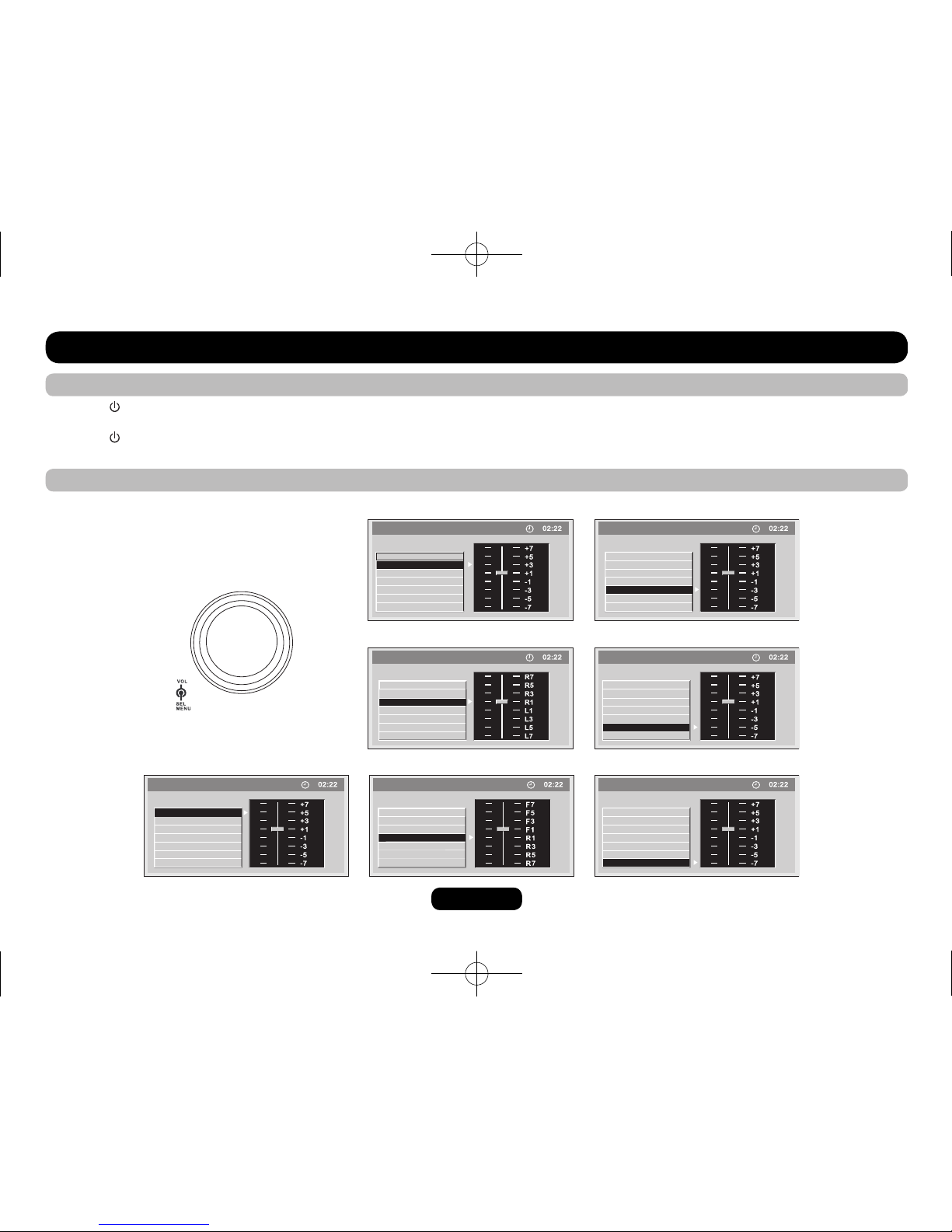

VOL Knob Function

Press the knob once to select BASS/TREBLE/BALANCE/FADER/BRIGHTNESS/CONTRAST/SATURATION, rotate the knob to adjust.

General Operation

BASS

TREBLE

BALANCE

FADER

BRIGHTNESS

CONTRAST

SATURATION

SETTING

BASS

TREBLE

BALANCE

FADER

BRIGHTNESS

CONTRAST

SATURATION

SETTING

BASS

TREBLE

BALANCE

FADER

BRIGHTNESS

CONTRAST

SATURATION

SETTING

BASS

TREBLE

BALANCE

FADER

BRIGHTNESS

CONTRAST

SATURATION

BASS

TREBLE

BALANCE

FADER

BRIGHTNESS

CONTRAST

SATURATION

SETTING

BASS

TREBLE

BALANCE

FADER

BRIGHTNESS

CONTRAST

SATURATION

SETTING

BASS

TREBLE

BALANCE

FADER

BRIGHTNESS

CONTRAST

SATURATION

SETTING

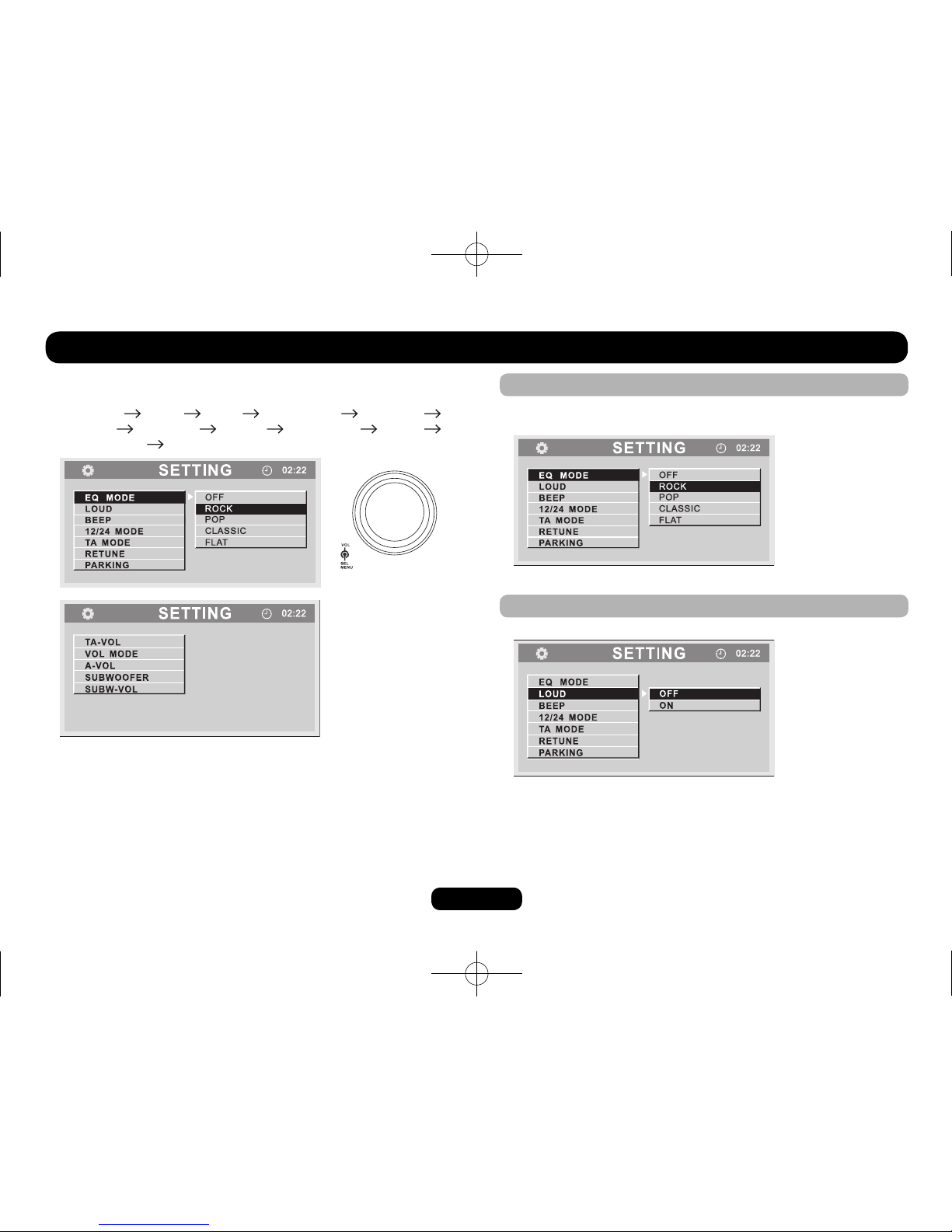

Rotary Knob Menu

EQ mode

Rotate the knob to select EQ sound effect:

ROCK - POP - CLASSIC - FLAT - EQ OFF

LOUD mode

Rotate the knob to choose loud on or off.

Press the knob more than 2 seconds to enter menu mode, then

each press changes the mode as follows:

EQ MODE LOUD BEEP 12 /24 MODE TA MODE

RETUNE PARKING TA-VOL VOL-MODE A-VOL

SUBWOOFER SUBW-VOL
