USER MANUAL

M-AN700

M-AN700DAB

ANDROID

MULTIMEDIA

MONITOR

M-AN-700DAB comune User manual_ENG-IT_.indd 1M-AN-700DAB comune User manual_ENG-IT_.indd 1 04/06/2021 11:23:0804/06/2021 11:23:08

- 2 -

Contents

Safety Precautions ............................................................................................................................. 1-2

Warning...................................................................................................................................................2

Product overview....................................................................................................................................3

Setting.....................................................................................................................................................4

Network and Internet.........................................................................................................................4

Car Infotainment ............................................................................................................................ 4-8

System ................................................................................................................................................9

Radio .....................................................................................................................................................10

DAB .......................................................................................................................................................11

Video......................................................................................................................................................12

Music.....................................................................................................................................................13

Bluetooth ........................................................................................................................................ 14-15

Navigation.............................................................................................................................................16

Connection view....................................................................................................................................16

Dual screen ..........................................................................................................................................16

Specifications .......................................................................................................................................17

Declaration of Conformity....................................................................................................................18

M-AN-700DAB comune User manual_ENG-IT_.indd 2M-AN-700DAB comune User manual_ENG-IT_.indd 2 04/06/2021 11:23:0804/06/2021 11:23:08

- 1 -

Safety Precautions

Never expose this unit, amplifier, and

speakers to moisture or water to prevent

electric sparks or fire.

Please don't change the fuse on the power

cord without professional guidance, using

improper fuse may cause damage to this unit

or even cause fire.

Please contact your nearest dealer if one of

the following symptoms is experienced:

(a). Water or other objects enters the unit.

(b). There is smoke.

(c). Peculiar smell.

Only connect the unit to a 12-volt power

supply with negative grounding.

MUTE

Never install this unit where the operation &

condition for safe driving is impaired.

Never use the video display function in the

front when driving to prevent the violation of

laws & regulations and also to reduce the

risk of traffic accident except for using rear

view video camera.

MUTE

Thank you for purchasing this product. Please

read through these operating instructions

so you will know how to operate your model

properly. After you’ve finished reading the

instructions, keep this manual in a safe place

for future reference.

To ensure safe driving, please adjust the

volume to a safe and comfortable level in

case of emergency situations.

M-AN-700DAB comune User manual_ENG-IT_.indd 1M-AN-700DAB comune User manual_ENG-IT_.indd 1 04/06/2021 11:23:0904/06/2021 11:23:09

- 2 -

1. Never disassemble or adjust the unit without any professional guidance.

For details, please consult any professional car shop / dealer for inquiry.

2. If the front panel or TFT monitor is dirty, please use a clean silicone cloth and neutral detergent

to wipe off the spot. Using a rough cloth and non-neutral detergent such as alcohol for cleaning

may result in scratching or decoloration to the monitor.

3. If any abnormal behavior of the unit is found, please refer to trouble shooting guide of this

manual. If no relevant information is found, please press the [RESET] key on the front panel to

resume factory default.

4. If you have parked the car in hot or cold weather for a long time, please wait until the

temperature in the car becomes normal before operating the unit.

5. Using the car heater in low temperature environment may result in moisture inside the unit, DO

NOT use the unit in this situation. Eject the disc and wipe off the moisture on the disc. If the unit

still doesn't work after a few hours, please contact the service center.

6. Do not impact the LCD monitor which could cause damage.

7. To prevent damage to the screen, avoid touching it with sharp objects.

8. To provide a clear demonstration and an alternative for easy understanding to the operation of

this unit, graphic illustrations are used.

However, some illustrations are different from the actual images displayed on the screen.

9. Operate the unit correctly according to this manual to prevent unnecessary problem. The

guarantee won't be valid if the problem is caused by inappropriate operation.

Safety Precautions

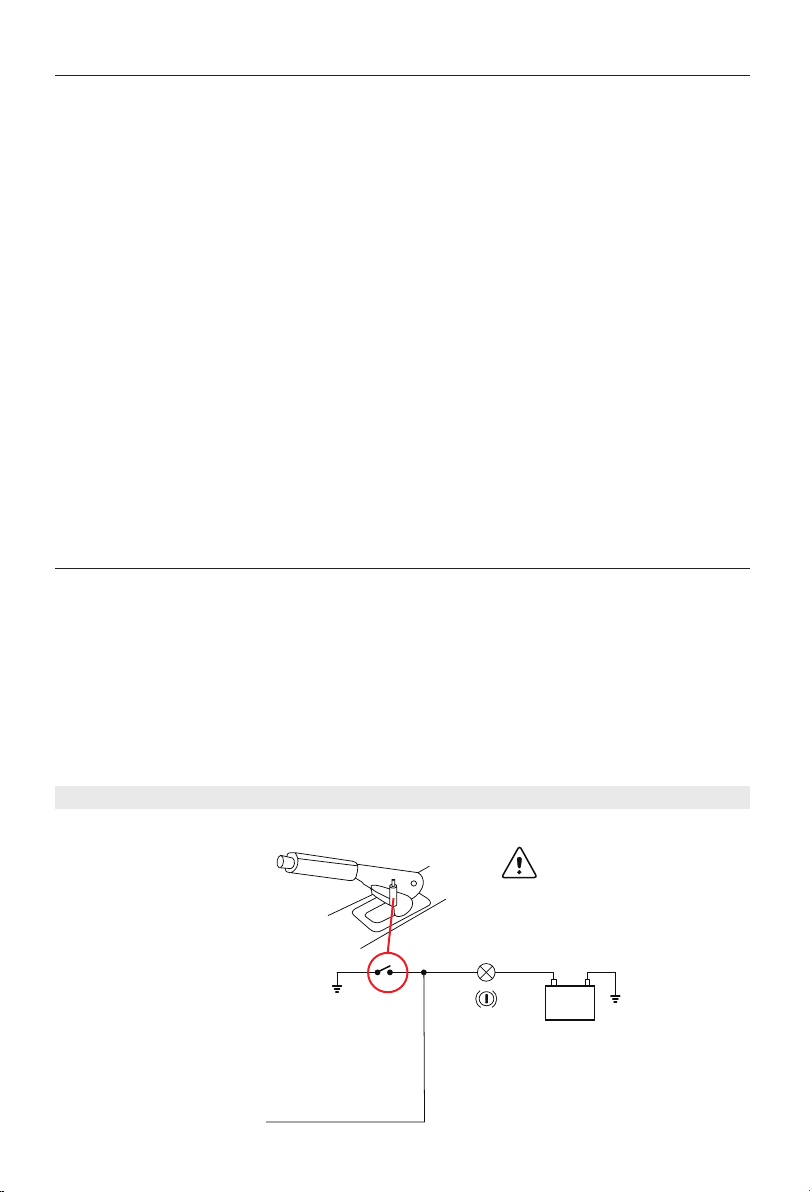

Detect parking brake

• In order to be able to install the android application, the handbrake connection must be

connected. Engage the parking brake for APP installation.

• Connect the cable "BRAKE" to the parking brake switch to view video files on the TFT monitor.

Engage the parking brake for viewing videos.

• When the parking brake is not engaged, the monitor displays "Warning!!!, Video playback is

disabled for your safety. Engage parking brake to watch video.", preventing the driver to watch

content while driving. The rear screens are not interested in this inhibition.

Importante note:

This connection is indispensable for the proper operation.

Warning

Brake light

Battery

Pink

Green with White

Black

Orange with white

Brown with white

Blue

SWC &

CAMERA IN

Camera IN

Video Out

PARKING

REVERSE

SWC GND

SWC2

SWC1

P.CONT

Video Out

Yellow

To connect to

the Parking cable

M-AN-700DAB comune User manual_ENG-IT_.indd 2M-AN-700DAB comune User manual_ENG-IT_.indd 2 04/06/2021 11:23:0904/06/2021 11:23:09

- 3 -

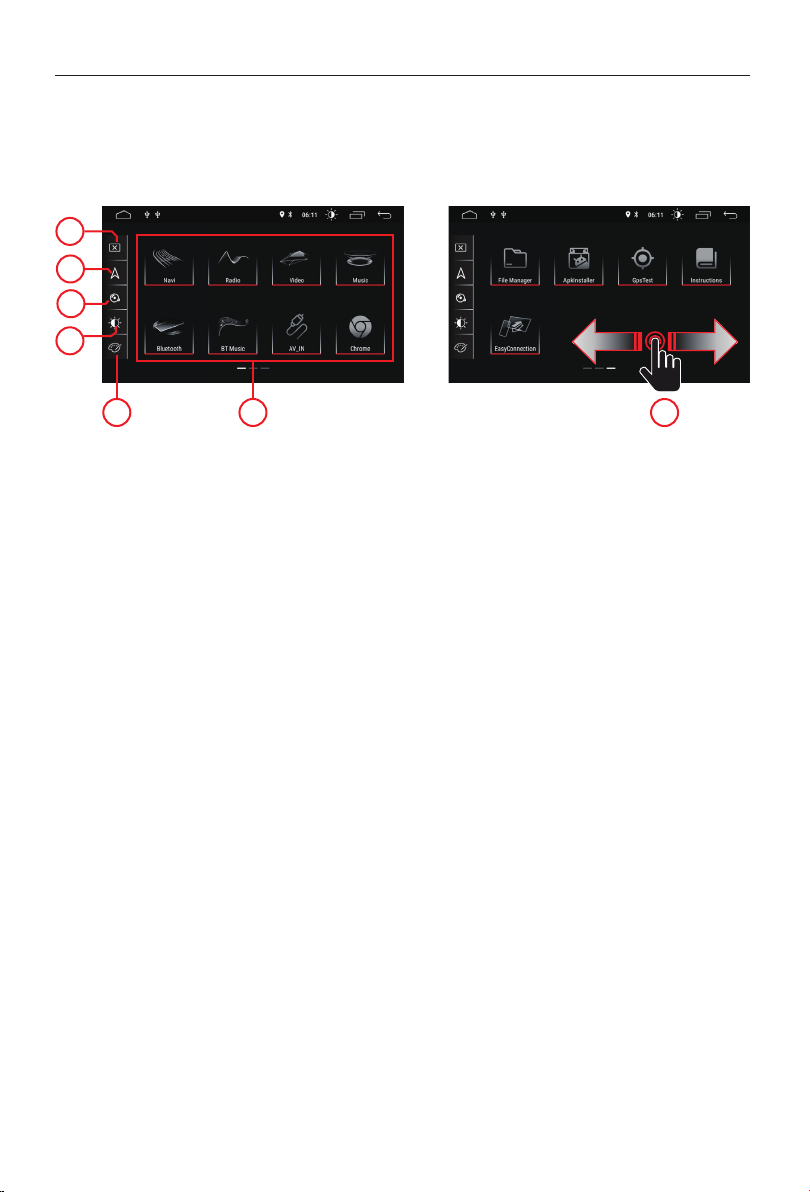

Product overview

Through the home page you can access the functions of the multimedia unit.

Power On / Off the unit

When the unit is connected to the vehicle ignition system, press the front panel to turn on the unit.

To turn off the unit, remove the car ignition key.

1. Screen

Press the icon to turn off the screen. Touch the screen in any position to activate the view.

2. Navigation

Press the icon to go directly to the navigation function.

3. Audio control

Use the audio icon to adjust the sound system.

4. Brightness

Press the icon to access the screen brightness settings.

5. Interface colors

Allows access to the color settings of the user interface.

6. Source selection

Press the app to view Radio, Music, Video, USB Playback, or AVIN mode and other functions.

7. Cursor

Scroll left or right to switch between pages.

Playback mode and position memory

When the car is restarted, the system resumes the previous mode before switching off.

For the radio, it will resume the radio channel before switching off.

For music or video, it will resume playing the last song or video before turning it off.

M-AN-700DAB comune User manual_ENG-IT_.indd 3M-AN-700DAB comune User manual_ENG-IT_.indd 3 04/06/2021 11:23:0904/06/2021 11:23:09

- 4 -

Setting

1. Touch setting icon [ ] on the front panel to enter Settings interface. Select the corresponding

option to enter the corresponding settings option. Move the options bar up and down to find the

desired settings.

Note; some settings require activation via the On-OFF selector.

Rete e Internet

WI-FI

Select On to achieve the Wi-Fi, then select the desired

access points and insert the password.

Hostspot

Select On to achieve the Wi-Fi hotspot, then select the

desired Network name and insert the password.

Car Infotainment (Common)

Standby Time

This function allows to delay the switching off of the device

through the selected time.

Option bar

M-AN-700DAB comune User manual_ENG-IT_.indd 4M-AN-700DAB comune User manual_ENG-IT_.indd 4 04/06/2021 11:23:1004/06/2021 11:23:10

- 5 -

Car Infotainment (Common)

Boot logo

To select the welcome logo it is necessary to entre the

password (5678).

After selected the desiderd logo press (OK) to confirm the

logo update.

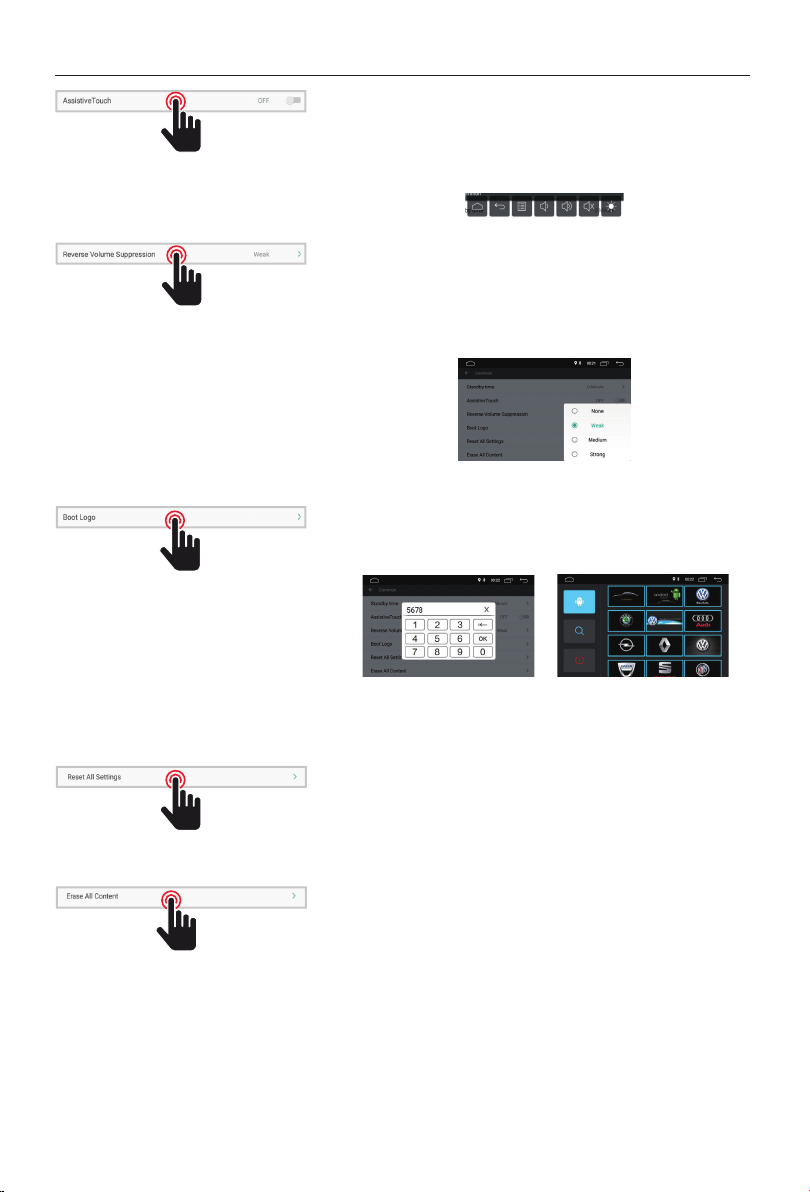

Assistive Touch

User can choose to on or off the touch assist. The touch

assist has 7 most commonly used options and is dispalyed

on top of the screen at the interface where it provides the

user easy maneuver of the unit.

Reset All Setting

In order to restore all factory setting, press the OK button

on popup dialogue. All your settings will be removed.

System Restore

By selecting the System restore, all application installed

by the user will be removed and the system will restore to

the factory settings.

Reverse Volume Suppression

In order to adjust the volume while you drive in reverse

mode, select one of four settings between None, Weak,

Medium and Strong.

The volume will be reduced according the selection.

M-AN-700DAB comune User manual_ENG-IT_.indd 5M-AN-700DAB comune User manual_ENG-IT_.indd 5 04/06/2021 11:23:1004/06/2021 11:23:10

- 6 -

Car Infotainment (Common)

Daytime Backligth Set

Adjusts the brightness of the screen in day mode.

Nighttime Backligth Set

Adjust the brightness of the screen in night mode.

Auto Mode

When the vehicle lights are switched on, it is possible to

select automatically the brightness mode of the screen

according to the above settings.

Key Light Color Key Ligth Color

Allows you to select the color of illuminations keys.

Car Infotainment (Volume)

Volume

The volume level can be changed according to the selected

source.

Car Infotainment (Sound)

Sound

The sound can be modified through the graphic equalizer

and at the moment it is possible to modify the prostrate

point by using the four arrows.

M-AN-700DAB comune User manual_ENG-IT_.indd 6M-AN-700DAB comune User manual_ENG-IT_.indd 6 04/06/2021 11:23:1004/06/2021 11:23:10

- 7 -

Car Infotainment (Video)

Disable Video in Motion

Video playback is disabled for your safety. Engage parking

brake to watch video or select the switch in ON position.

Reversing Assistant Line

NOTE: This feature can only support certain car models.

By enabling this option at reverse position, the assistant line

will be shown at the display by moving the steering and aligned

in accordance to the steering movement during reverse.

Front Cam

Enabling this option, after having disengaged the reverse

gear, it will be possible to view the front camera for a time

between 3, 5 or 8 seconds.

Car Infotainmen (Navigation)

Autostart Navigation

Allows the user to set the automatic start of the navigation

system when the unit is turned on:

File Path

Allows the user to customize the navigation system

according to the installed applications.

Navi Mixed

Allows the user to mix the audio of the navigation system

with the audio of the media sources being played.

Reversing Warning Line

By enabling this option, while driving at reverse position

the assistent line will be shown at the display.

Air Conditioner

NOTE: This feature can only support certain car models.

By enabling this option, the air condition of the car will be

displayed during adjustment.

M-AN-700DAB comune User manual_ENG-IT_.indd 7M-AN-700DAB comune User manual_ENG-IT_.indd 7 04/06/2021 11:23:1004/06/2021 11:23:10

- 8 -

Car Infotainment (Bluetooth)

Auto Connect

By enabling this function, the unit will auto search and

auto connect with the last connected device.

Pin Code 0000

Bluetooth

SWC

About Device

Pin Code

To connect your Bluetooth device to the unit, you need to

pair the device to the unit. Pairing needs only to be done

once. Enter default password “0000”.

Auto Answer

By enabling this function, the unit will auto answer all

incoming calls.

Car Infotainmen (SWC)

Bluetooth

SWC

About Device

Steering Wheel Control Programming

Please follow the steps below to set the functions of your steering wheel.

1. Press CLEAR ALL before proceeding

2. Press a button on the steering wheel

3. Touch the corresponding feature of the control button on the touch screen.

4. When the control button turns blue, it means that the setup was successful.

5. Repeat the steps 2 - 4 to compleate all controll button setting avgailable on your steering wheel.

Car Infotainmen (About Device)

Bluetooth

SWC

About Device

Version Information

System information.

M-AN-700DAB comune User manual_ENG-IT_.indd 8M-AN-700DAB comune User manual_ENG-IT_.indd 8 04/06/2021 11:23:1104/06/2021 11:23:11

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Macrom Monitor

Macrom

Macrom KIT7WBR Manuale utente

Manuali Monitor popolari di altre marche

Linear Acoustic

Linear Acoustic LQ-1000 Manuale utente

AOC

AOC I2579V Manuale utente

Gateway

Gateway FPD1520 Manuale utente

Furuno

Furuno Mu 120c Manuale utente

Asus

Asus VB171D - 17" LCD Monitor Manuale utente

Dell

Dell S2230MX Istruzioni utente

Philips

Philips 107C64 Manuale utente

Dell

Dell S2409WFP Manuale utente

EverFocus

EverFocus EN-7517E Manuale utente

Panasonic

Panasonic TH152UX1 - 152" PLASMA TV Manuale utente

Dell

Dell Precision 7680 Manuale di istruzioni

LG 50PM1M - - 50" Plasma Panel Manuale utente

Bosch

Bosch DDU 9 Manuale utente

Acer

Acer A231HL Manuale utente

Philips

Philips 86BDL4152T Manuale utente

NEC

NEC AccuSync LCD5V Manuale utente

Emay

Emay SleepO2 Manuale utente

IBM

IBM 6360 Istruzioni per l'installazione
