BrainLink Pro Quick Start Manual
Tutorial Application Download
Please use your smartphone to scan the QR code
below to download the BrainLink app, you can use the
in-app instruction to master the basic use of BrianLink
Product Charging
After receiving the product, please charge the product
before use. When charging you need to use the
charging cable inside the package to charge. The red
LED light on the module will stay on while charging,
and the LED light will go off when it is fully charged.
(check the picture below)

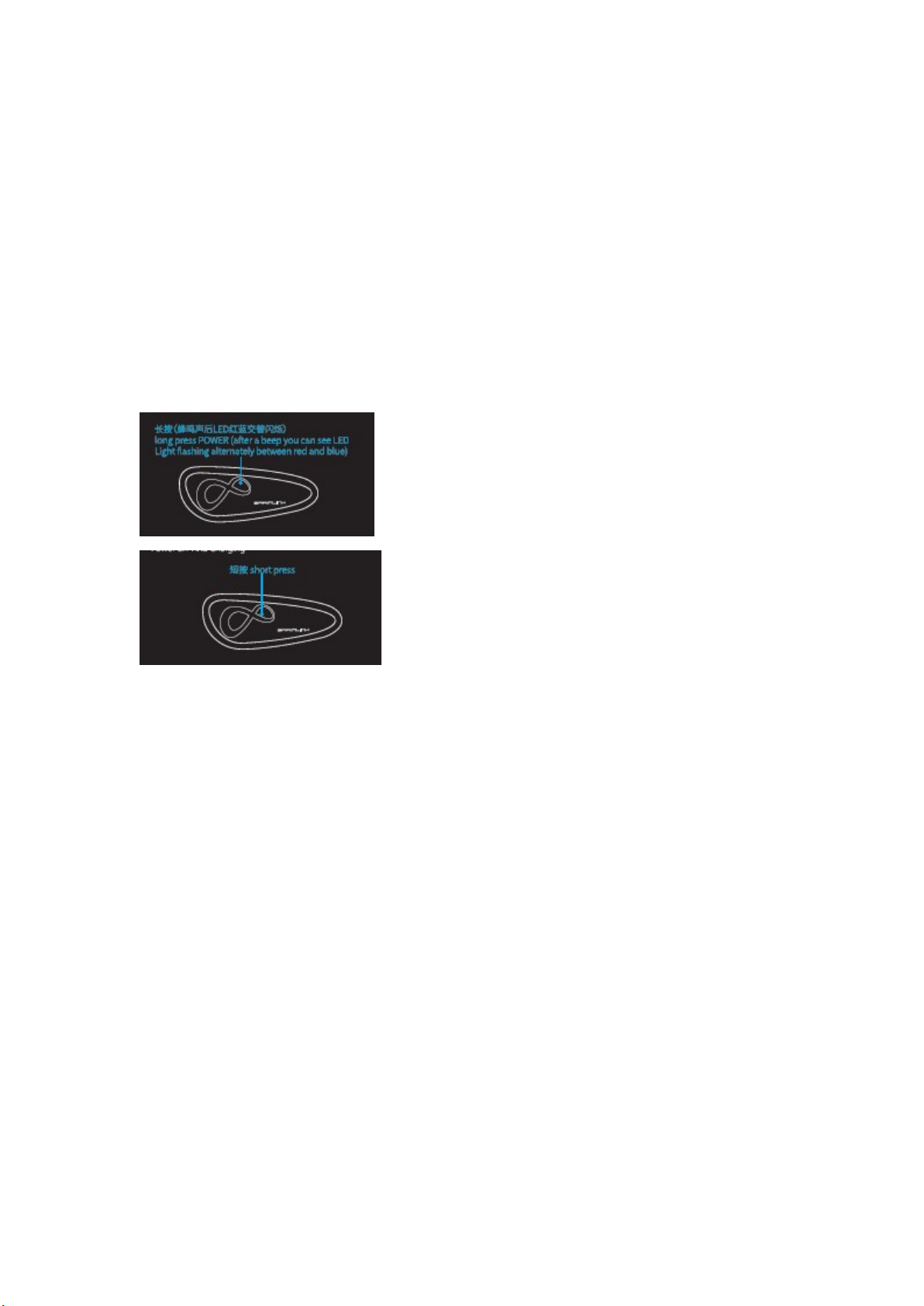

Power Switch
Long press the button of LOGO of the core module
to turn it on.
It will be accompanied by two vibrations; Short press
this switch to turn it off at the same time will be
accompanied by a vibration.
Assembly
Wearing
The product comes with two headbands-the soft
headband contains additional heart rate and frontal
temperature sensors, which are comfortable to wear
and suitable for long time wearing; the hard headband
integrates EmoLight band and ear clip electrode,
which can change color according to the brain state
and provide more sensitive EEG data, suitable for short
time high sensitivity EEG data acquisition.
Attach the fully charged core module to the base of
the headband. Adjust the position of the Flexi band at
the back of the headband to fit your head
circumference.
Headband
The core module of the soft headband is located
above the left ear and the ear clip electrode of the
hard headband is clipped to the left earlobe. There
will be two vibrations to indicate the completion of
wearing after about 1S of correct wearing

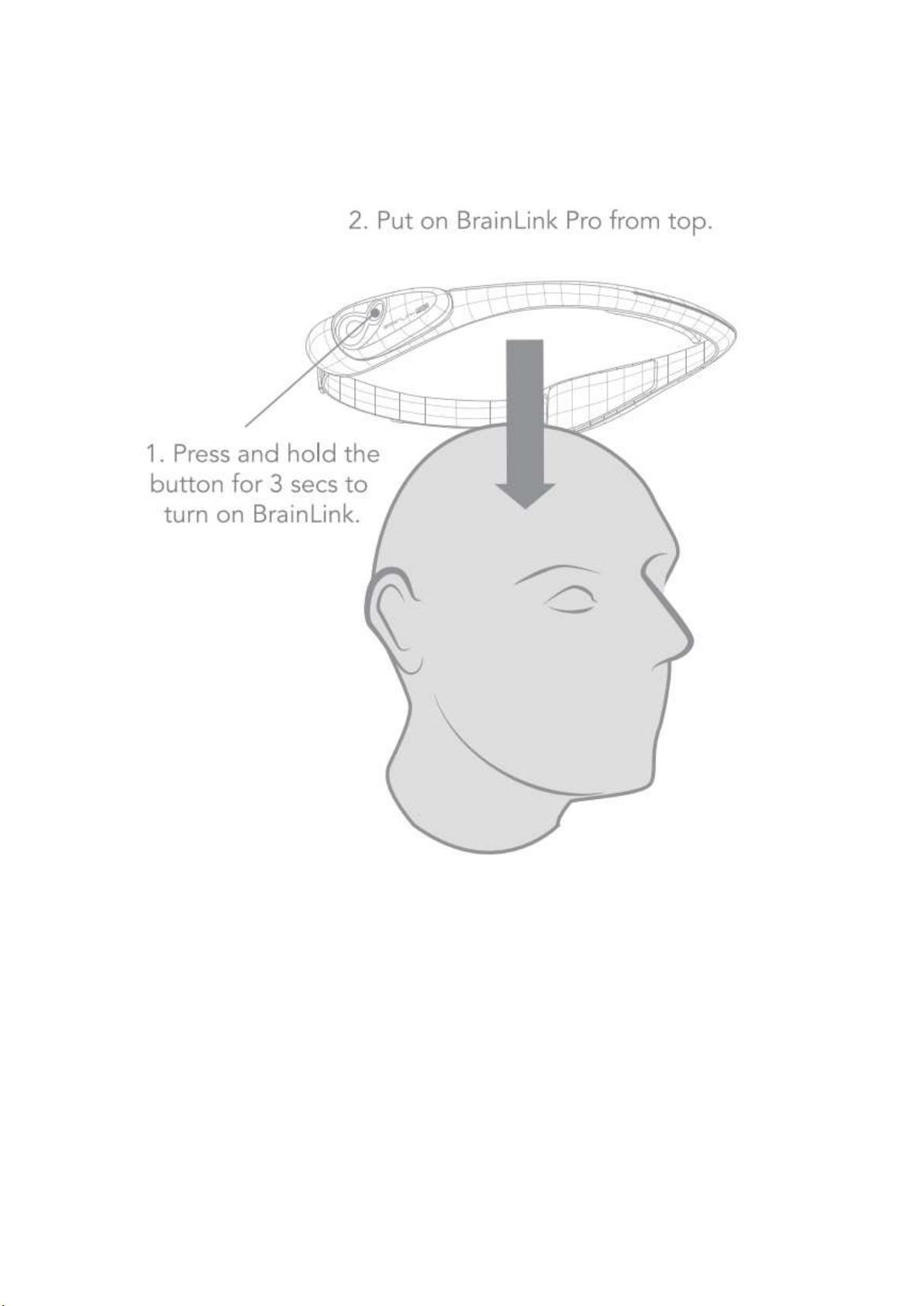

Soft Headband wearing (picture below)
Connect App
Turn on any BrainLink APP, then turn on the power of
the core module
& wait a moment ,in the APP main interface.there will
be an icon in the upper right corner to show the device
wearing and
connection status. When there is a LARGE dot in the
middle, it means the device is wearing correctly
;When there are 1-3 little dots in the middle, it means
the device is not wearing or the
electrode contact is not good ; When there is red
cross in the middle,it
means the device is not connected to Bluetooth.
APP Download
You can scan the QR code below or click this link
https://api.macrotellect.com/api/appListView?lang
uage=en
to go to the official application download
page to download other apps.
