1.0 Welcome
Thank you for purchasing a Macsense HomePod. Your HomePod gives
you access to digital music stored in your computer from anywhere in
the house or office.
About HomePod
…………
About Macsense
………………..
2.0 Before You Start
2.1 Package Contents
Prior to setting up your HomePod, make sure your HomePod package
includes the following items:
• HomePod Unit
• Power Adapter
• Remote Control
• Ethernet Cable
• Stereo Audio Cable
• Installer CD
• Quick Start Guide
• User Manual
2.2 System and Other Requirements
• 802.11b or g Access Point or Wireless Router
• Macintosh G3 or PC Pentium III
• Mac OS 9 and X or Windows 98Me2000XP
Page 6 of 21
3.0 Getting to Know Your HomePod
3.1 Hooking up your HomePod

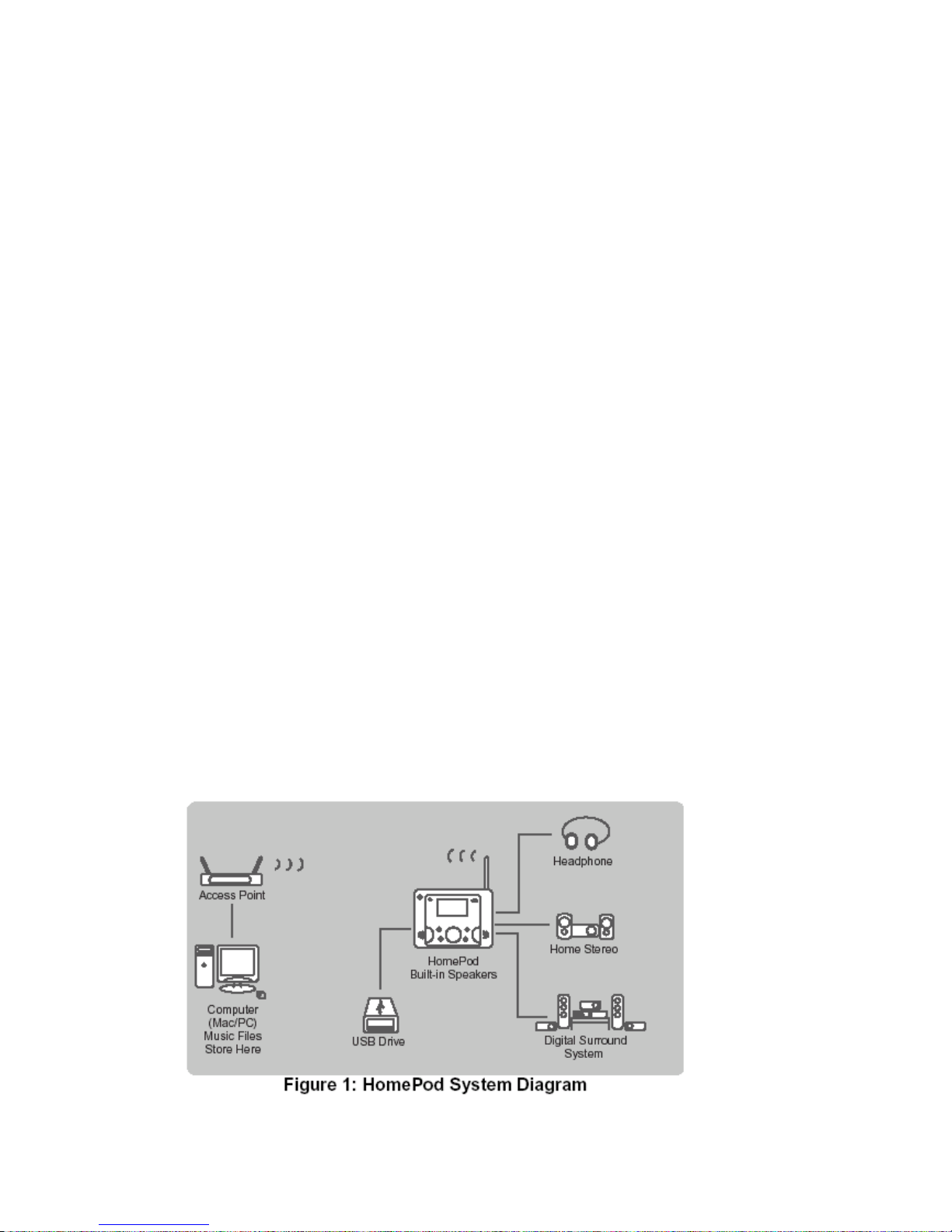

HomePod streams digital music files stores in your computer, over the
local network (either by wired Ethernet or over wireless Wi-Fi network).
Most of the time, HomePod will be used in a wireless setting. A typical
wireless network setup is to have your computer connected to a
wireless router (or an access point) to form a wireless network. And
HomePod also connects to this wireless network.
Your computer stays on the desk, while your HomePod can be placed
anywhere in the house or office where the wireless network has
coverage. The music can then be played through HomePod’s built-in
stereo speaker, or to attached headphones, home stereo system, or
high-end digital surround sound system.
Song files are stored on your computer and is called a “music library”.
Each computer requires a server program to be installed to make the
music library available to the HomePod.
Multiples computers can each have one or more music libraries, and a
HomePod will have access to all these media libraries. Conversely,
multiple HomePods can stream from the same music library, or from
different media libraries from multiple computers. The possibility is
boundless and flexible.
Page 7 of 21

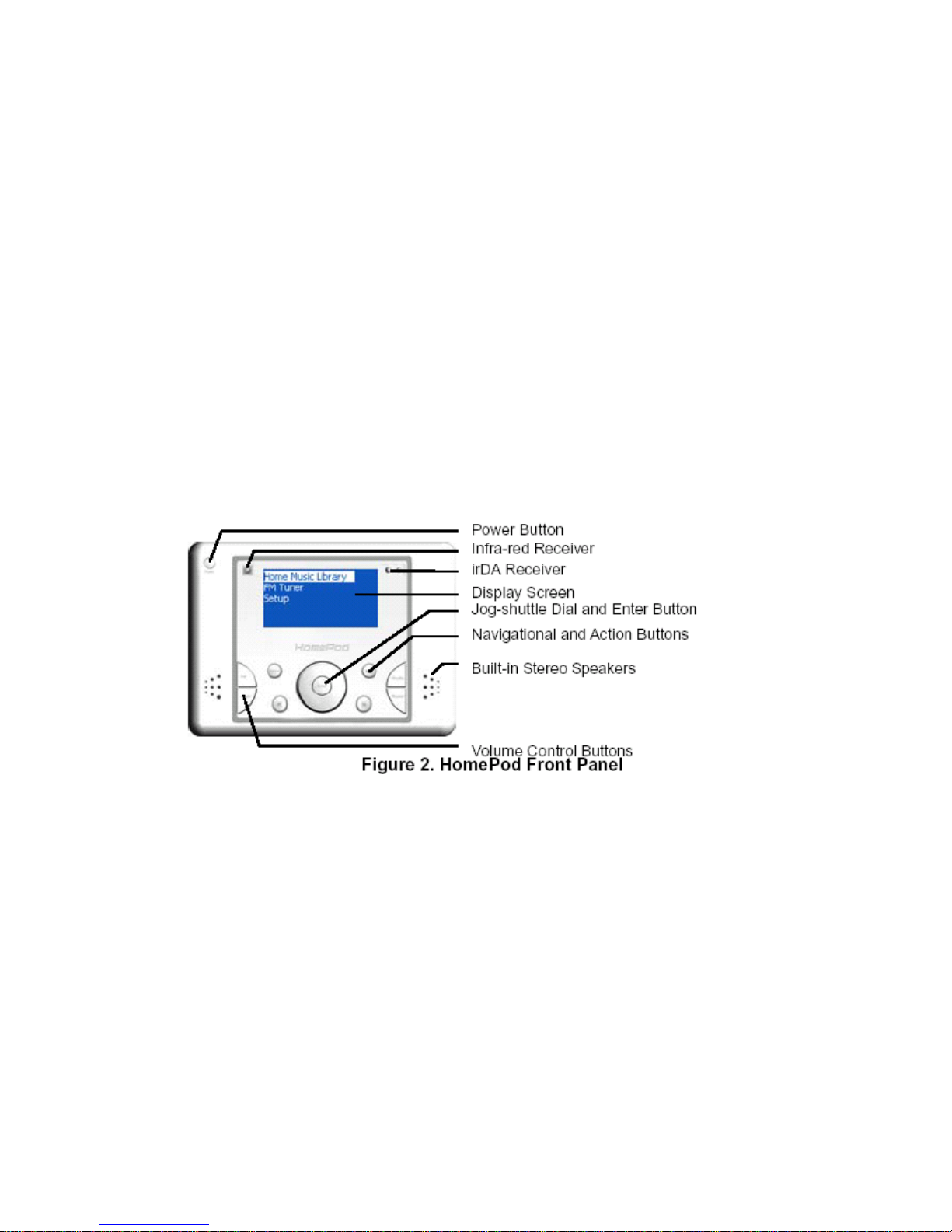

3.2 Front Panel

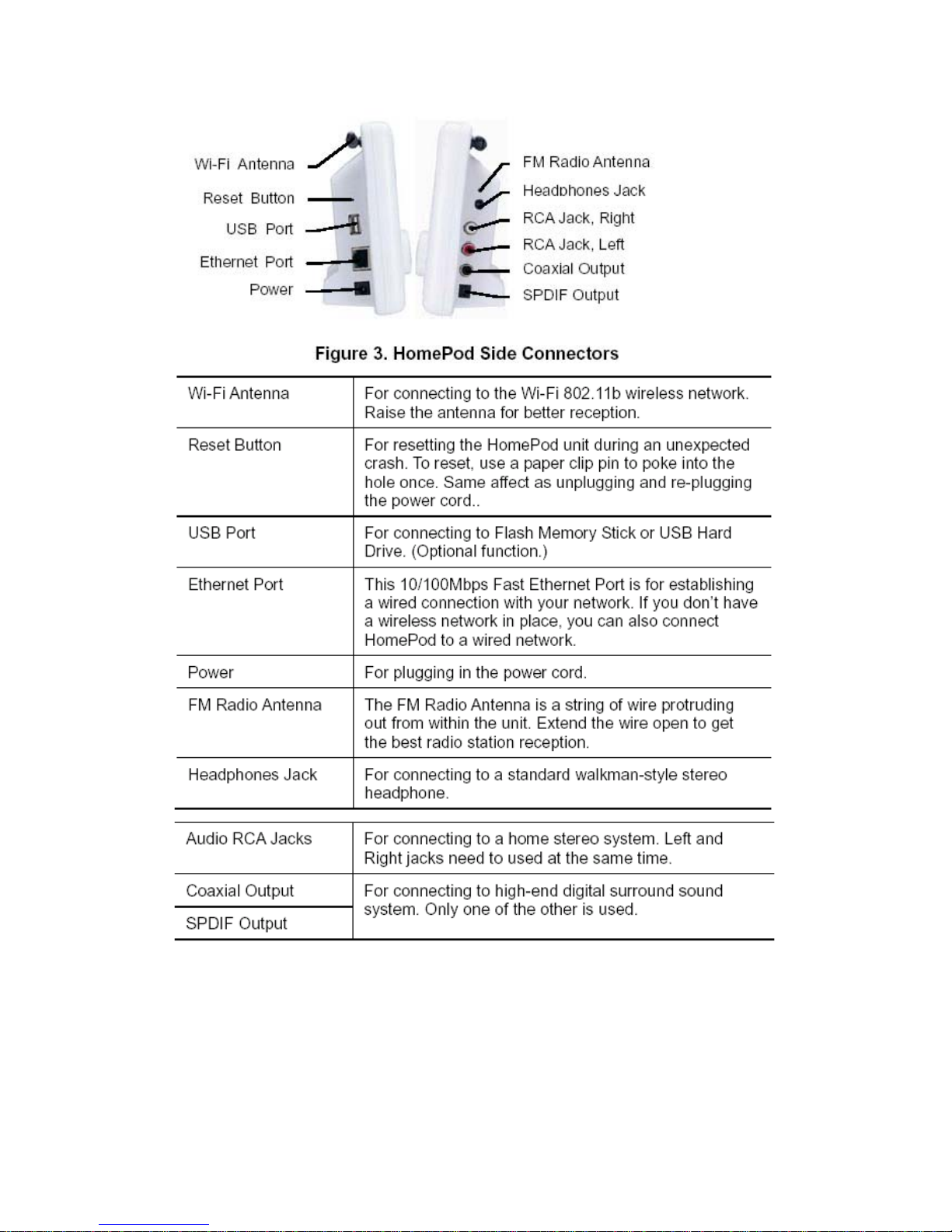

3.3 Side Connectors
HomePod is equipped with a rich set of input and output ports for
interfacing with other systems.
Page 9 of 21
4.0 Software Installation For PC
A small server software, called HomePod Music Server, is required to
be installed in each computer that has music files to share to HomePod.
Use the Installer CD and follow these instructions to complete the
software installation.
4.1 Java Virtual Machine (VM)
HomePod Music Server is based on Java, so each computer requires
Java VM to be installed first.
For Windows PC (98/Me/2k/XP), use the Java VM Installer in the
HomePod CD to install the Java Runtime Environment (JRE). The
HomePod CD includes the current version of JRE at the time of
production. You can also go to Sun’s Official Java site to download and
install the latest release, http://www.java.com/en/download/ .
For Mac, Java VM is built-in into the OS and therefore need not be
installed separately.
4.2 HomePod Music Server Install For PC
After your computer is Java-capable, continue with the HomePod Music

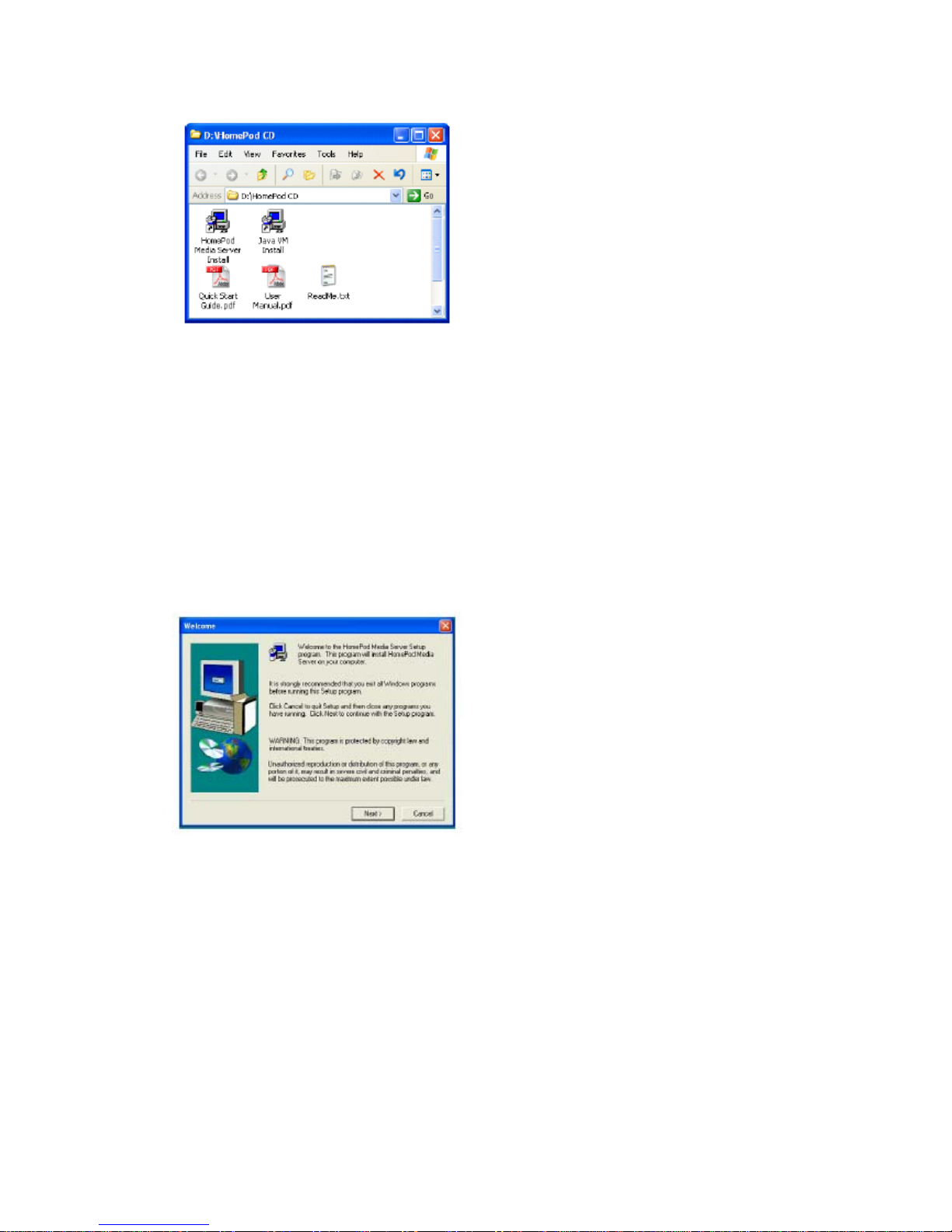

Server installation. On the PC, insert the HomePod CD and run the
HomePod Music Server Installer.
Page 10 of 21

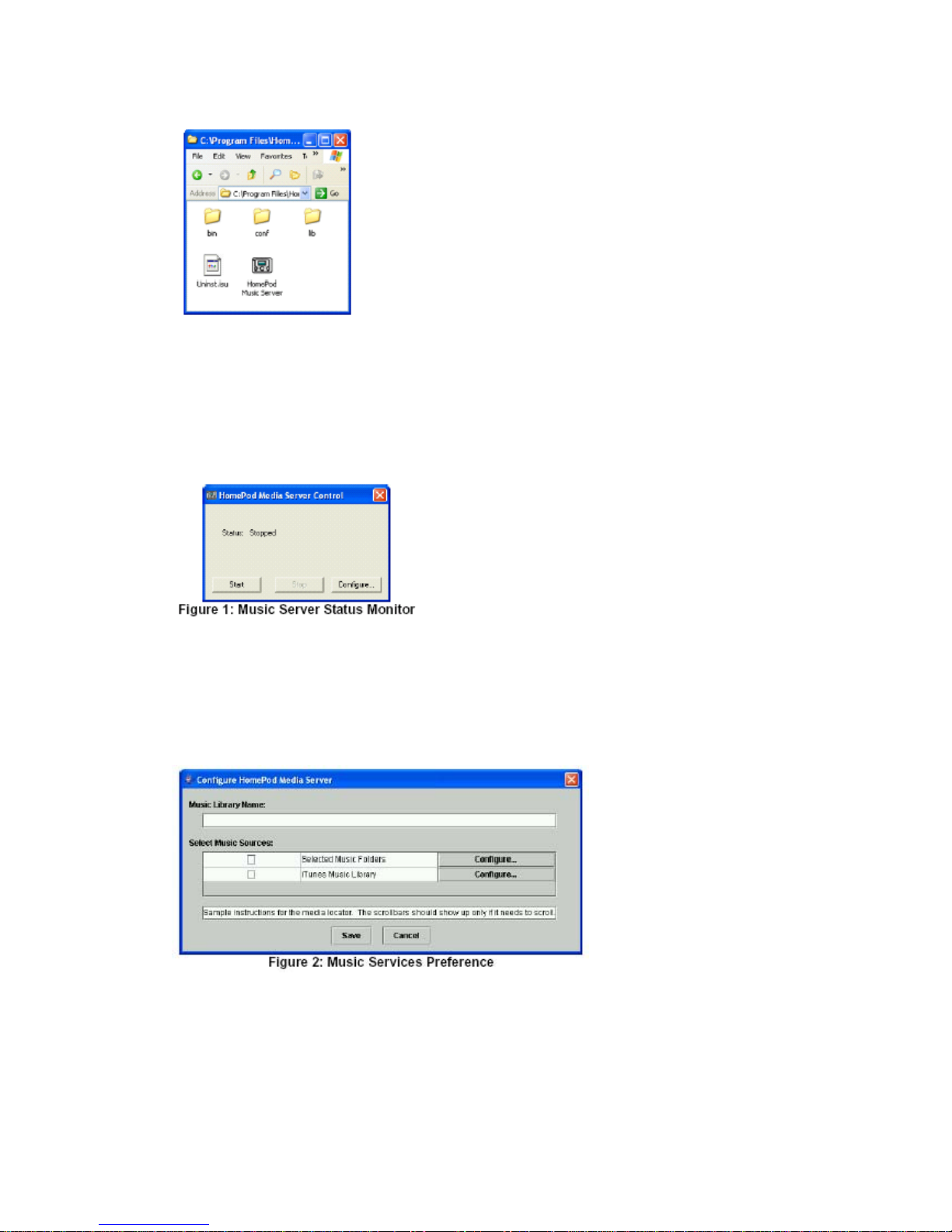

After server software is installed, you should see a new directory
created in the C:\Program Files\HomePod\, like below, and a new entry
in the Start->Programs->HomePod->Music Server->HomePod Music
Server Control.
Page 11 of 21
5.0 Server Configuration for PC
Click on the HomePod Music Server icon or select
Start->Programs->HomePod->Music Server->HomePod Music Server. A
window will show up as below:
This is the HomePod Music Server Status Monitor window. It is an
application that allows you to monitor and configure the server settings.
The window will get minimized to the taskbar if its window is closed, but
will continue to run in the background. Press Configure… button to
open the Music Services Preference window.
The first field “Music Library Name”, define a specific name for your
music collection that will be displayed on the HomePod. Some good
names are, “John’s Music Collection”, “Bedroom Collection”, or “Living
Room Music Library”.
Presently, HomePod Music Server presents two services to serve your
music: by Selected Music Folders or by iTunes Music Library. (Other
services will be added to HomePod Music Server in the near future.)
To activate the service of your choice, first click on the checkbox before
the name of the service. You can also activate both services at once.
5.1 Music Folders Service
This is the most compatible and generic way of music file serving. This
method serves all the music files in the directory that you specify. You
can specify more than one folder, and all its contents will get served to
the HomePod.
When you click on the Configure… button, you will be presented with
Page 12 of 21

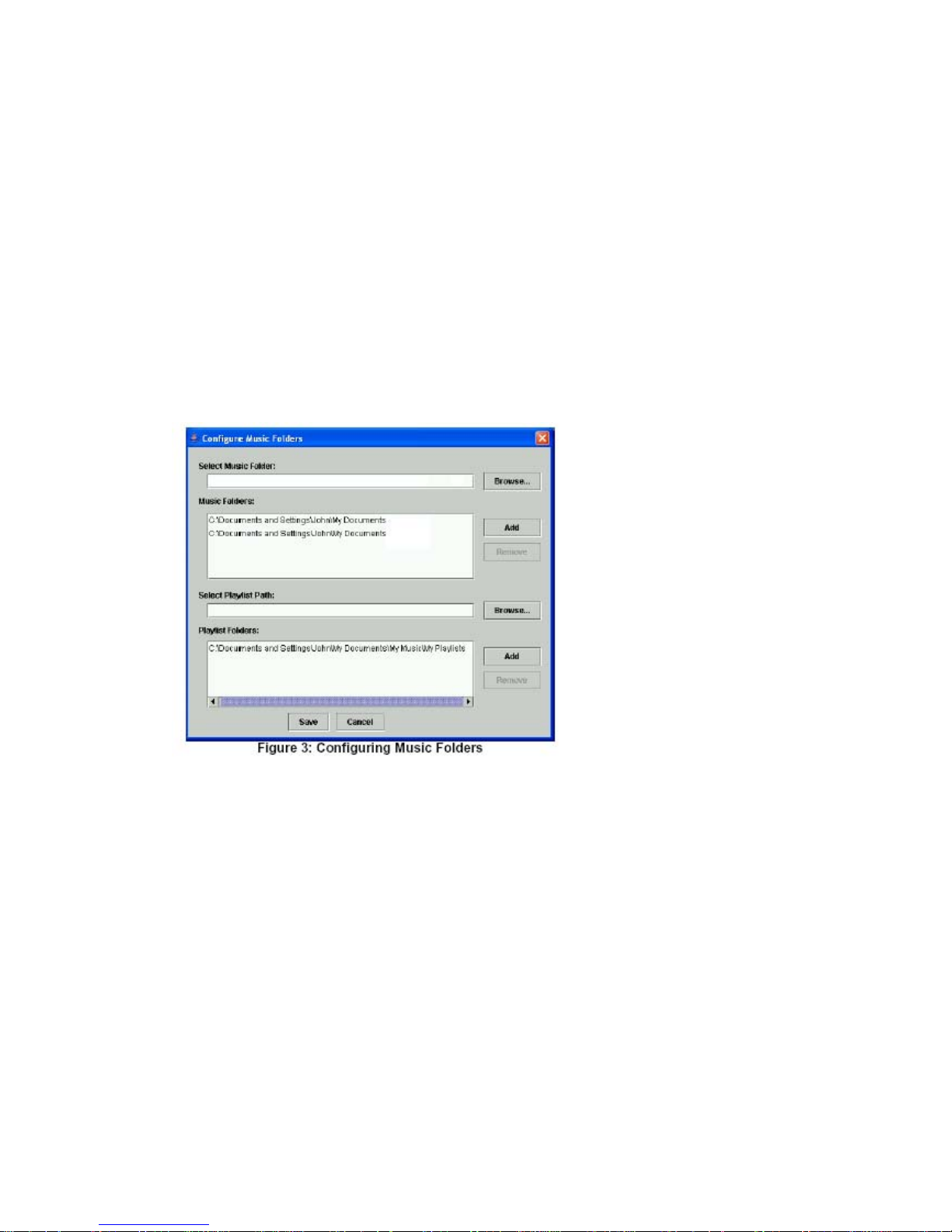

the following window:
The windows presents two sections. In the first section, use the
“Browse…” button to locate the folder that contains your music files.
This may be your C:\My Documents\My Music\ directory, or any folder
with your music files that you'd like to share. The music folder can be
anywhere in your hard disk, and can include other sub-folders. Do the
same to locate your Playlist folders. Press the Save button to save your
settings.
5.2 iTunes Music Library Service
If you use Apple iTunes to manage your music files, then you should
select this method as the preferred way of serving your music files.
When you click on the Configure… button, you will be presented with
the following window:
Page 13 of 21

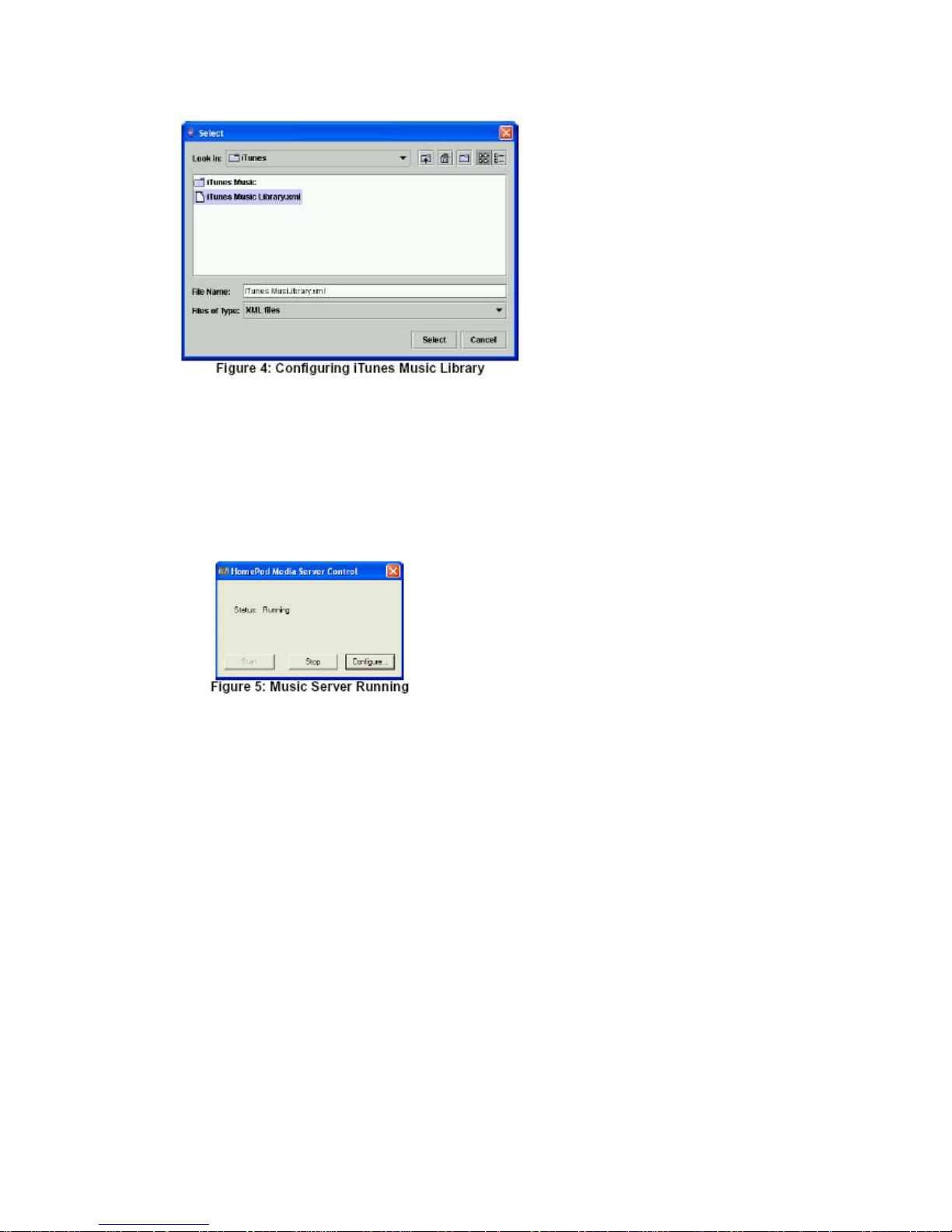

Locate the “iTunes Music Library.xml” file in the iTunes folder, and press
the Select button.
When all configurations are done, return to the Status Monitor window
and press the “Start” button to activate the music server. To stop the
music server, click the Stop button.
Page 14 of 21
6.0 HomePod Basic Operation
6.1 Turning HomePod on and off
To turn on the HomePod, press and release the Power key. You should
be prompted with a startup screen that displays “HomePod Wireless
Audio Services”.
To turn off the HomePod, press and hold the button for 4 seconds.
6.2 HomePod Display Screens

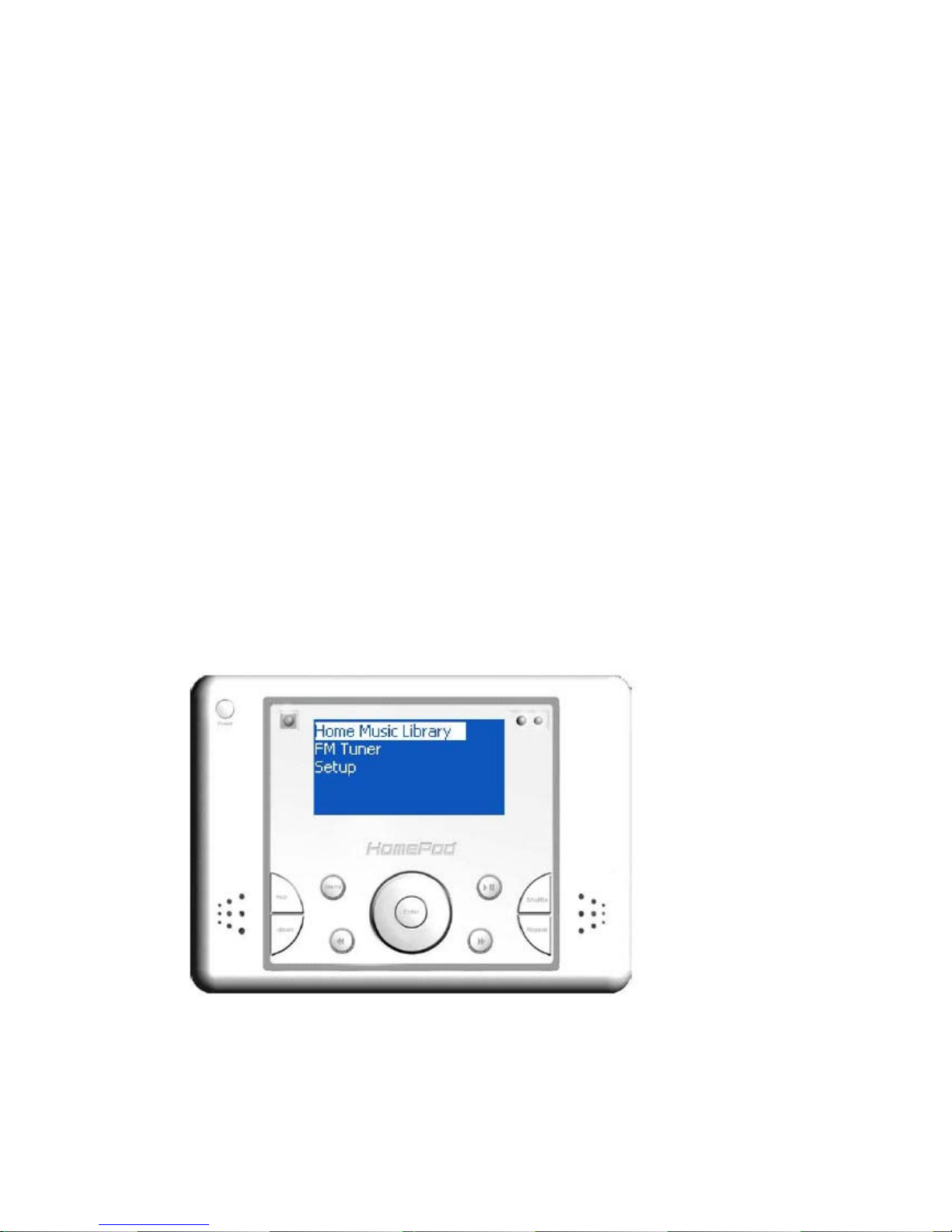

After HomePod is fully boot-up, it will stay in the Main Screen. The Main
Screen will automatically detect and list music libraries found on
computers on the network, listing one line for each music library. If no
library is detected, then the first line will display “Searching for Media
Library”.
Indice
Altri manuali Macsense Lettore multimediale
