MadgeTech Titan S8 Scheda tecnica

Portable Data Acquisition Logger

PRODUCT

USER GUIDE

TABLE OF CONTENTS

2Product Overview

5User Interface

14 Logging Data

17 Viewing Data

19 Managing Data

24 Device Settings

26 Specifications

28 Index

29 Need Help?

To view the full MadgeTech product line, visit

our website at madgetech.com.

TITAN S8

Product User Guide | 2

Titan S8

PRODUCT OVERVIEW

Device Overview

The MadgeTech Titan S8 is a portable, multi-use industrial data logger with eight channels and a user-friendly touchscreen interface.

This versatile logger measures and records temperature, current, voltage and pulse simultaneously and displays data in real-time.

The Titan S8 is compatible for use with many thermocouple, RTD or thermistor probes as well as a number of voltage output sensors,

current switches, transmitters and transducers.

Versatility makes the Titan S8 a perfect companion for industrial engineers, quality assurance professionals, compliance officers or

automotive technicians. The Titan S8’s touchscreen user interface allows for easy set up and configuration.

The Titan S8 is a powerful, independent tool. Unlike other data loggers, the Titan S8 delivers an all-in-one data collection and

monitoring solution that does not require a PC or any downloaded software for operation.

External Features

Home Button

Power Button

LCD Touchscreen

Tabletop Kickstand

Mounting Keyholes

USB Port

Power InputInput Ports

• Power Button: To power on and power off

the device, hold down the Power button for

3 seconds.

• Home Button: The Home button will return the

user to the home screen (details on page 6).

• Input Ports: The Titan S8 features 8 sensor

channel inputs plus one alarm port and a

ground (details on pages 3-4).

• LCD Touchscreen: 5 inch LCD capacitive

touchscreen.

• USB Port: The Titan S8 has a built-in USB port

for downloading data to a flash drive.

• Power Input: Charging port.

Product User Guide | 3

Titan S8

PRODUCT OVERVIEW

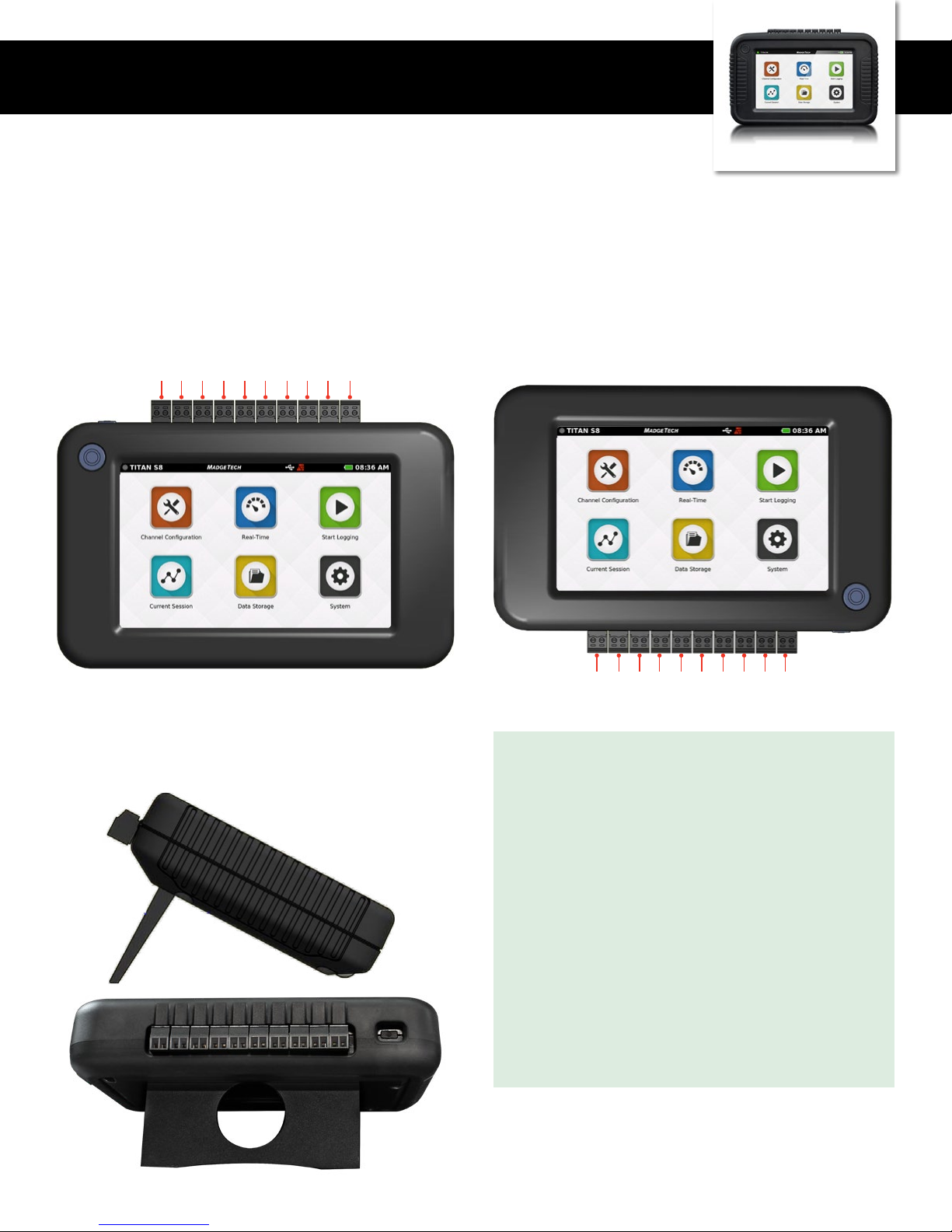

Device Orientation

The Titan S8 display can rotate 180 degrees depending on the desired orientation of the device. This option is available from the

Settings menu under the Display section. Please note: Power restart required in order to apply screen rotation.

Device Ports

The Titan S8 features 10 ports. Please refer to the images

above for the port number as it relates to device orientation.

Channels and Functions

• Ports 1 thru 8 are sensor input channels

(Temperature, Current or Voltage)

• Port 9 serves as an alarm output

• Port 10 serves as a ground for the device

Frequency or Pulse Counter

Can only be used on port 1

3-Wire and 4-Wire PT100 RTD Sensors

Use ports 1-2, 3-4, 5-6, or 7-8

2-Wire PT100 RTD Sensors

Can be used on ports 1-8

Desktop Orientation

For handheld and tabletop use, the inputs will be on the top.

Note port number as it relates to device orientation.

Tabletop Orientation

The Titan S8 features a built in kickstand on the back of the

device for use on flat surfaces.

Wall Mount Orientation

For wall mount use the unit will be rotated so that the inputs will

be on the bottom.

Port:

Product User Guide | 4

Titan S8

PRODUCT OVERVIEW

Sensor Types & Measurement Ranges

Each of the 8 input channels can be individually configured for the following types and sensor ranges.

Powering, Charging and Downloading Data

PARAMETER INPUT TYPE RANGE

Current Current input -5 mA to 50 mA

Frequency (port 1 only) Frequency input 0 to 25,000 Hz

Pulse / Counter (port 1 only) Pulse input 0 to 4,000,000,000 Pulses

Voltage Volt input -0.5 V to 12.0 V

Voltage Millivolt input -100 mV to 2450 mV

Temperature Thermistor NTC-1 (2252) -25 °C to +150 °C

Temperature Thermistor NTC-2 (10K) -25 °C to +150 °C

Temperature PT100 RTD 2-Wire -200 °C to +850 °C

Temperature PT100 RTD 3-Wire -200 °C to +850 °C

Temperature PT100 RTD 4-Wire -200 °C to +850 °C

Temperature Thermocouple J -210 °C to +760 °C

Temperature Thermocouple K -270 °C to +1370 °C

Temperature Thermocouple T -270 °C to +400 °C

Temperature Thermocouple E -270 °C to +980 °C

Temperature Thermocouple R -50 °C to +1760 °C

Temperature Thermocouple S -50 °C to +1760 °C

Temperature Thermocouple N -270 °C to +1300 °C

Temperature Thermocouple B +50 °C to +1820 °C

Power Button

(On/Off)

USB-C Charging Port

(Cable Included)

USB Port

(For offloading data files and

updating device software)

Product User Guide | 5

Titan S8

USER INTERFACE

Top Menu Bar

The top bar of the Titan S8 Interface features status icons and useful information to refer to while using the device.

Home Screen

The Home screen will display the following options when the Home button is selected.

• Channel Configuration: Configure parameters and options for each channel.

• Real-Time: Quickly view Real-Time data for all active channels.

• Start Logging: Start logging using current settings. (Stop logging if device is actively logging.)

• Current Session: View data from the current logging session as graph, tabular or real-time.

• Data Storage: View, Copy, Delete and Add notes to logged sessions.

• System: Access device preferences and options.

Logging Session Indicator

Charging Indicator

Battery Level

Current

Time

Inactive

Delayed Start Configured

External

Memory

Alarm Set

Home Button

Internal Memory

90% - 97% Full

97% - 100% Full

Actively Logging

Stop Logging

The Start Logging icon will

change to "Stop Logging"

when device is recording.

Product User Guide | 6

Titan S8

USER INTERFACE

First Time Use

Follow these steps when the device is powered on for the first time or if the battery has been removed or replaced.

POWER BUTTON

Press and hold the Power Button for

3 seconds to power up the device.

When the device presents the Home screen it is ready to use.

SELECT SCREEN ORIENTATION

For desktop use, inputs are facing upward.

For wall mounted use, inputs are facing downward.

SCREEN READY

Wait for the device to initiate, you will see

the MadgeTech logo when complete.

SET UP INITIAL DATE AND TIME

Enter the local date and time to be used by the device

and click Next to continue to Home screen.

Product User Guide | 7

Titan S8

USER INTERFACE

Channel Configuration

When the Channel Configuration icon is selected, the device will display the screen shown below:

• Channel 1-8: Configures the type of channel input,

units, engineering units (if applicable), alarms and user

calibration adjustments.

• Update: Applies the current channel configuration to make

the device ready to start logging or display real-time data.

• File: Loads previously saved channel configurations.

• Save: Saves the current channel configuration so it may

be loaded and used later.

• Disable All: Clears the configuration of all channels,

returning them to the default disabled status.

• Cancel: Cancels changes and then goes back to the

Home screen.

Select Channel Configuration

Channel Setup

When the user selects a Channel, the device will display the Channel Setup screen with several options:

• Disable (Channel is not being used)

• RTD (RTD probe)

• TC (Thermocouple probe)

• Voltage

• Current

• Thermistor (Thermistor probe)

• Pulse (Only available on channel 1)

Select Channel Configuration Select Channel

Product User Guide | 8

Titan S8

USER INTERFACE

Measurement Setup

When the user selects a Measurement Parameter, the device will display the relevant options for that selection. The example below

shows the Voltage options:

Select Channel Configuration Select Measurement ParameterSelect Channel Select Measurement Type

Select the Measurement button to display a pop-up

screen of relevant measurement types to choose from.

Measurement Units

When the user selects the Units button, the device will display a pop-up menu of the corresponding options for that selection. The

example below shows the Voltage options:

Select Measurement ParameterSelect Channel Select Measurement Units

Engineering Units: This will be an option to set up if

the user selects the Voltage, Current or Pulse sensor (see

details below and on page 9-10).

Select Measurement Type

Product User Guide | 9

Titan S8

USER INTERFACE

Engineering Units

Engineering Units can be applied to any channel measuring Voltage, Frequency or Pulse to display readings in a user selected custom

unit of measure.

Select Measurement Parameter Select Measurement Units Select Engineering Units

• Gain: User selected gain value.

• Offset: User selected offset value.

• Units Label: User selected label to display.

• Apply: Saves the settings.

• File: Retrieves a previously saved Engineering Unit setting.

• Save: Saves the Engineering Unit setting for future use.

• Wizard: Allows the user to set up units by entering the

input and output values for low and high scale points. The

unit will automatically calculate the gain and offset the

from these values.

• Cancel: Returns the user to the Channel Configuration screen.

Select Measurement Type

Product User Guide | 10

Titan S8

USER INTERFACE

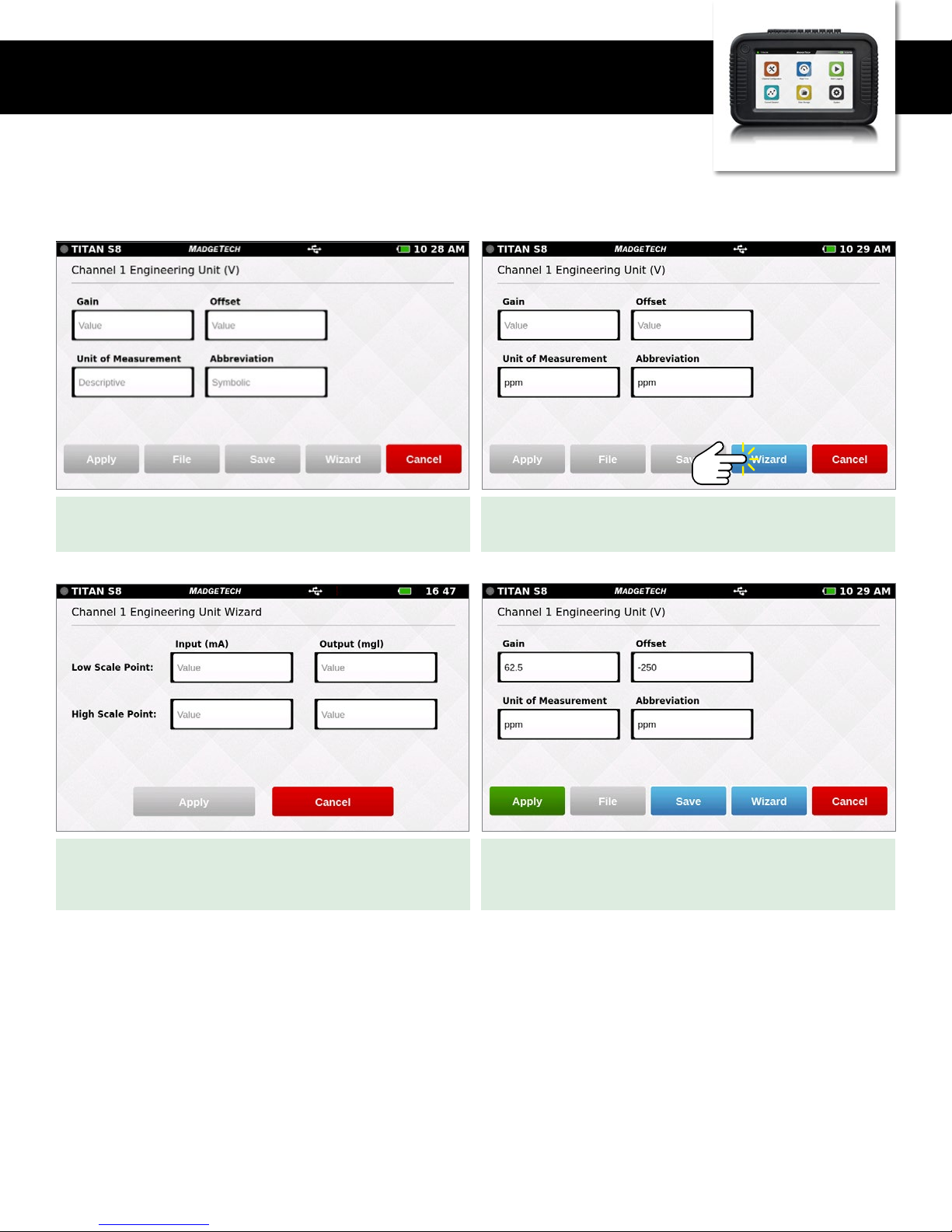

Setting Up Engineering Units

Enter the unit of measurement and abbreviation.

Enter the low and high scale point inputs and outputs and

click Apply.

Click the Wizard button to launch the Engineering Unit Wizard.

The gain and offset are automatically set. Click Save to save

the engineering units to the channel and click Apply to

apply the changes to current logging session.
