Maestro MR853 Manuale utente

Сerticated in Ukraine

Виріб сертифіковано в Україні

Model/Модель: MR853

Owners manual. Electric Meat Grinder

Bedienungsanleitung. Elektrischer Fleischwolf

Instrukcji obsługi. Elektryczny maszynki do mielenia mięsa

Manualul proprietarului. Masina de tocat carne electrica

Руководство по эксплуатации. Электрическая мясорубка

Керівництво з експлуатації. Електрична м’ясорубка

091

All manuals and user guides at all-guides.com

Description of the appliance___________________________________________4

Gerät_______________________________________________________________16

Konstrukcja urządzenia_______________________________________________30

Structura produsului____________________________________________________44

Устройство прибора____________________________________________________56

Склад приладу________________________________________________________70

Pictures/ Bilder/Rysunki/ Figuri/ Рисунки/ Малюнки 1

13 14

All manuals and user guides at all-guides.com

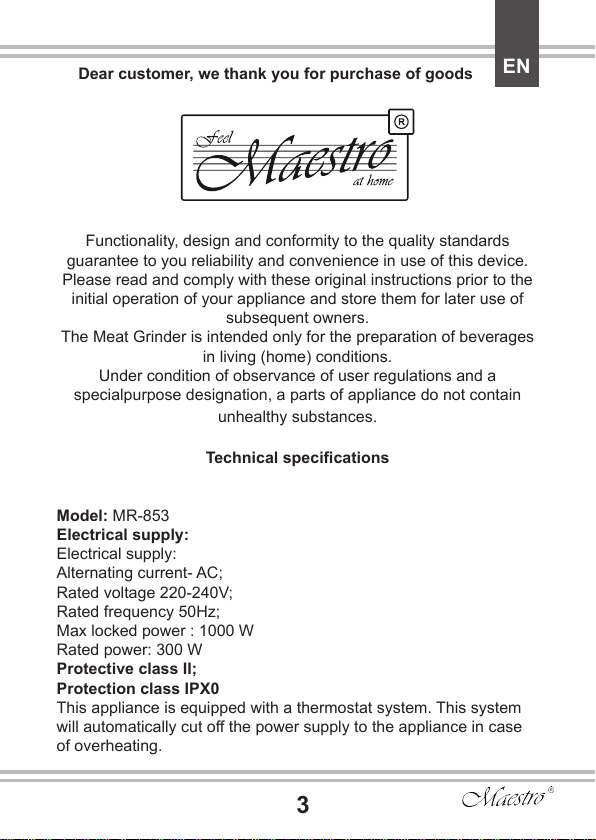

Dear customer, we thank you for purchase of goods

Functionality, design and conformity to the quality standards

guarantee to you reliability and convenience in use of this device.

Please read and comply with these original instructions prior to the

initial operation of your appliance and store them for later use of

subsequent owners.

The Meat Grinder is intended only for the preparation of beverages

in living (home) conditions.

Under condition of observance of user regulations and a

specialpurpose designation, a parts of appliance do not contain

unhealthy substances.

Technical specications

Model: MR-853

Electrical supply:

Alternating current- AC;

Rated voltage 220-240V;

Rated frequency 50Hz;

Max locked power : 1000 W

Rated power: 300 W

Protective class II;

Protection class IPX0

This appliance is equipped with a thermostat system. This system

will automatically cut o󰀨 the power supply to the appliance in case

of overheating.

All manuals and user guides at all-guides.com

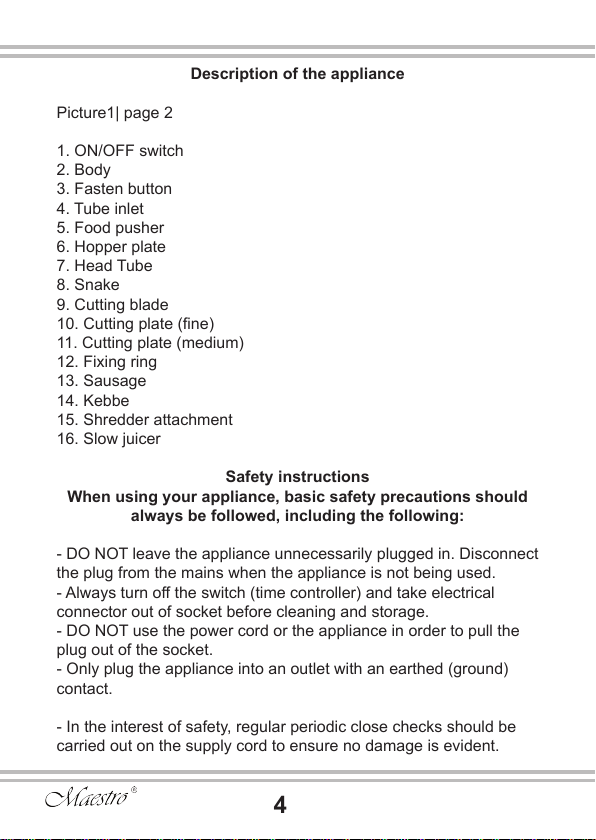

Description of the appliance

Picture1| page 2

1. ON/OFF switch

2. Body

3. Fasten button

4. Tube inlet

5. Food pusher

6. Hopper plate

7. Head Tube

8. Snake

9. Cutting blade

10. Cutting plate (ne)

11. Cutting plate (medium)

12. Fixing ring

13. Sausage

14. Kebbe

15. Shredder attachment

16. Slow juicer

Safety instructions

When using your appliance, basic safety precautions should

always be followed, including the following:

- DO NOT leave the appliance unnecessarily plugged in. Disconnect

the plug from the mains when the appliance is not being used.

- Always turn o󰀨 the switch (time controller) and take electrical

connector out of socket before cleaning and storage.

- DO NOT use the power cord or the appliance in order to pull the

plug out of the socket.

- Only plug the appliance into an outlet with an earthed (ground)

contact.

- In the interest of safety, regular periodic close checks should be

carried out on the supply cord to ensure no damage is evident.

All manuals and user guides at all-guides.com

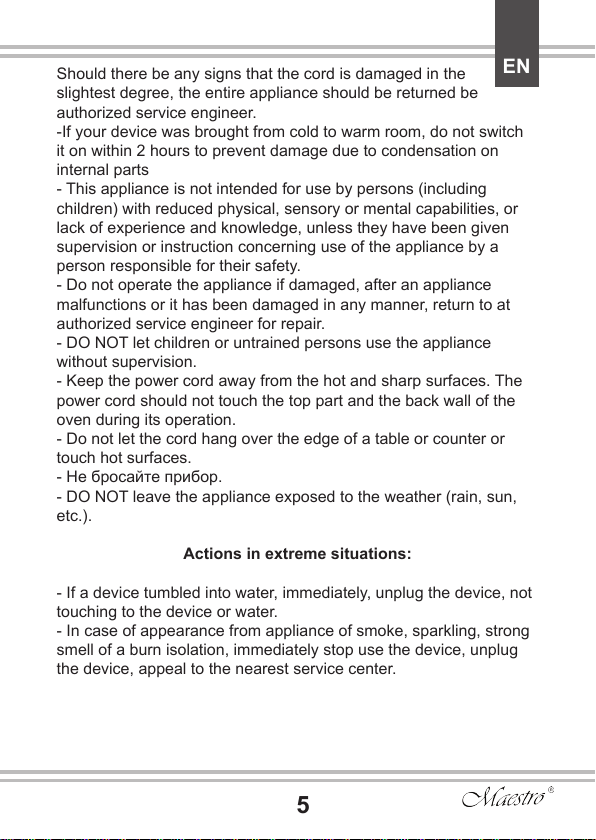

Should there be any signs that the cord is damaged in the

slightest degree, the entire appliance should be returned be

authorized service engineer.

-If your device was brought from cold to warm room, do not switch

it on within 2 hours to prevent damage due to condensation on

internal parts

- This appliance is not intended for use by persons (including

children) with reduced physical, sensory or mental capabilities, or

lack of experience and knowledge, unless they have been given

supervision or instruction concerning use of the appliance by a

person responsible for their safety.

- Do not operate the appliance if damaged, after an appliance

malfunctions or it has been damaged in any manner, return to at

authorized service engineer for repair.

- DO NOT let children or untrained persons use the appliance

without supervision.

- Keep the power cord away from the hot and sharp surfaces. The

power cord should not touch the top part and the back wall of the

oven during its operation.

- Do not let the cord hang over the edge of a table or counter or

touch hot surfaces.

- Не бросайте прибор.

- DO NOT leave the appliance exposed to the weather (rain, sun,

etc.).

Actions in extreme situations:

- If a device tumbled into water, immediately, unplug the device, not

touching to the device or water.

- In case of appearance from appliance of smoke, sparkling, strong

smell of a burn isolation, immediately stop use the device, unplug

the device, appeal to the nearest service center.

All manuals and user guides at all-guides.com

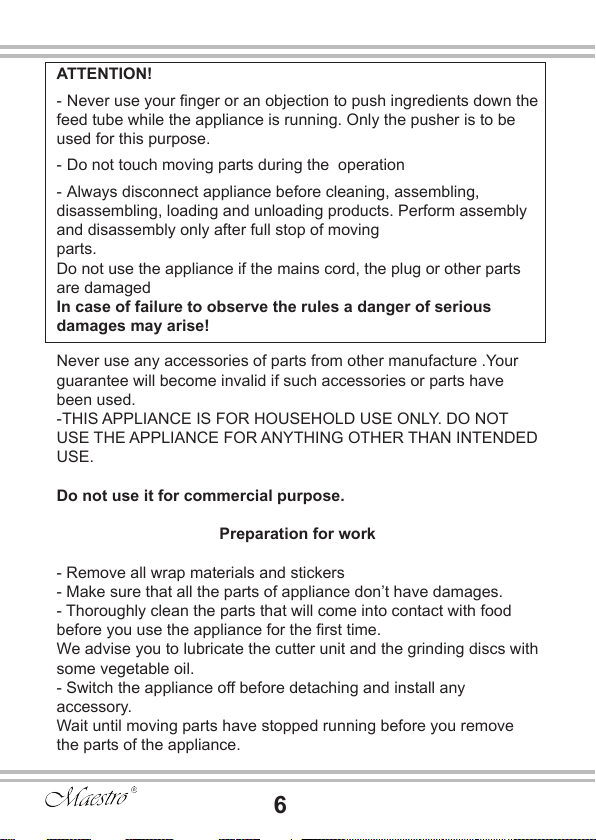

ATTENTION!

-Never use your nger or an objection to push ingredients down the

feed tube while the appliance is running. Only the pusher is to be

used for this purpose.

-Do not touch moving parts during the operation

-Always disconnect appliance before cleaning, assembling,

disassembling, loading and unloading products. Perform assembly

and disassembly only after full stop of moving

parts.

Do not use the appliance if the mains cord, the plug or other parts

are damaged

In case of failure to observe the rules a danger of serious

damages may arise!

Never use any accessories of parts from other manufacture .Your

guarantee will become invalid if such accessories or parts have

been used.

-THIS APPLIANCE IS FOR HOUSEHOLD USE ONLY. DO NOT

USE THE APPLIANCE FOR ANYTHING OTHER THAN INTENDED

USE.

Do not use it for commercial purpose.

Preparation for work

- Remove all wrap materials and stickers

- Make sure that all the parts of appliance don’t have damages.

- Thoroughly clean the parts that will come into contact with food

before you use the appliance for the rst time.

We advise you to lubricate the cutter unit and the grinding discs with

some vegetable oil.

- Switch the appliance o󰀨 before detaching and install any

accessory.

Wait until moving parts have stopped running before you remove

the parts of the appliance.

All manuals and user guides at all-guides.com

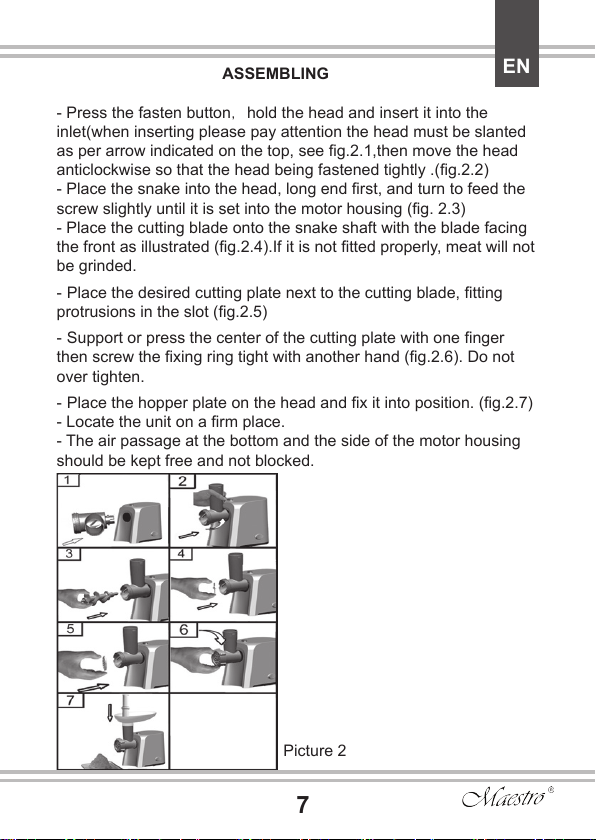

ASSEMBLING

- Press the fasten button，hold the head and insert it into the

inlet(when inserting please pay attention the head must be slanted

as per arrow indicated on the top, see g.2.1,then move the head

anticlockwise so that the head being fastened tightly .(g.2.2)

- Place the snake into the head, long end rst, and turn to feed the

screw slightly until it is set into the motor housing (g. 2.3)

- Place the cutting blade onto the snake shaft with the blade facing

the front as illustrated (g.2.4).If it is not tted properly, meat will not

be grinded.

-Place the desired cutting plate next to the cutting blade, tting

protrusions in the slot (g.2.5)

-Support or press the center of the cutting plate with one nger

then screw the xing ring tight with another hand (g.2.6). Do not

over tighten.

-Place the hopper plate on the head and x it into position. (g.2.7)

- Locate the unit on a rm place.

- The air passage at the bottom and the side of the motor housing

should be kept free and not blocked.

Picture 2

All manuals and user guides at all-guides.com

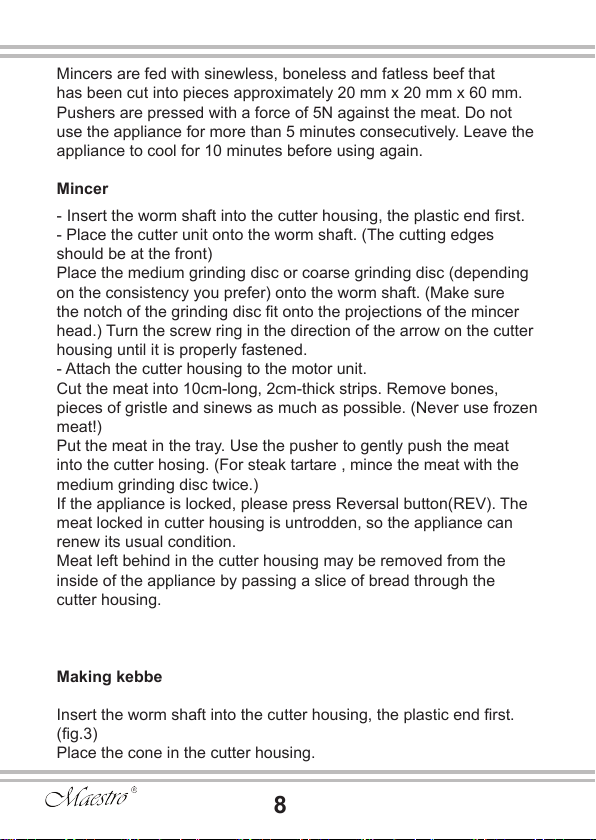

Mincers are fed with sinewless, boneless and fatless beef that

has been cut into pieces approximately 20 mm x 20 mm x 60 mm.

Pushers are pressed with a force of 5N against the meat. Do not

use the appliance for more than 5 minutes consecutively. Leave the

appliance to cool for 10 minutes before using again.

Mincer

-Insert the worm shaft into the cutter housing, the plastic end rst.

- Place the cutter unit onto the worm shaft. (The cutting edges

should be at the front)

Place the medium grinding disc or coarse grinding disc (depending

on the consistency you prefer) onto the worm shaft. (Make sure

the notch of the grinding disc t onto the projections of the mincer

head.) Turn the screw ring in the direction of the arrow on the cutter

housing until it is properly fastened.

- Attach the cutter housing to the motor unit.

Cut the meat into 10cm-long, 2cm-thick strips. Remove bones,

pieces of gristle and sinews as much as possible. (Never use frozen

meat!)

Put the meat in the tray. Use the pusher to gently push the meat

into the cutter hosing. (For steak tartare , mince the meat with the

medium grinding disc twice.)

If the appliance is locked, please press Reversal button(REV). The

meat locked in cutter housing is untrodden, so the appliance can

renew its usual condition.

Meat left behind in the cutter housing may be removed from the

inside of the appliance by passing a slice of bread through the

cutter housing.

Making kebbe

Insert the worm shaft into the cutter housing, the plastic end rst.

(g.3)

Place the cone in the cutter housing.

All manuals and user guides at all-guides.com

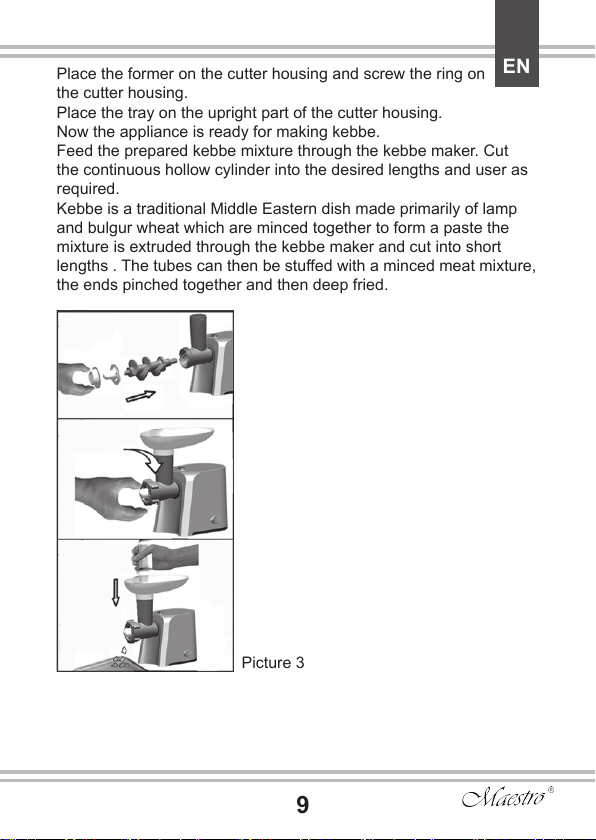

Place the former on the cutter housing and screw the ring on

the cutter housing.

Place the tray on the upright part of the cutter housing.

Now the appliance is ready for making kebbe.

Feed the prepared kebbe mixture through the kebbe maker. Cut

the continuous hollow cylinder into the desired lengths and user as

required.

Kebbe is a traditional Middle Eastern dish made primarily of lamp

and bulgur wheat which are minced together to form a paste the

mixture is extruded through the kebbe maker and cut into short

lengths . The tubes can then be stu󰀨ed with a minced meat mixture,

the ends pinched together and then deep fried.

Picture 3

All manuals and user guides at all-guides.com

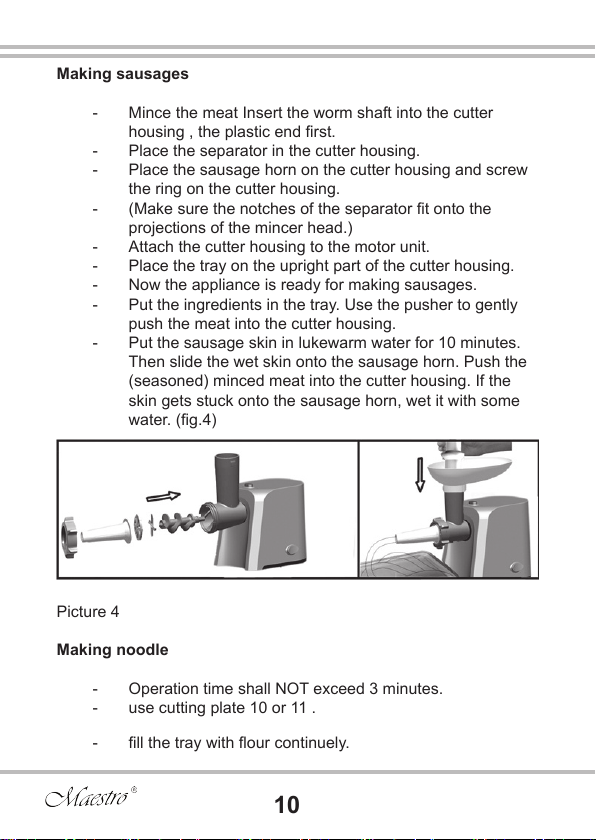

Making sausages

- Mince the meat Insert the worm shaft into the cutter

housing , the plastic end rst.

- Place the separator in the cutter housing.

- Place the sausage horn on the cutter housing and screw

the ring on the cutter housing.

- (Make sure the notches of the separator t onto the

projections of the mincer head.)

- Attach the cutter housing to the motor unit.

- Place the tray on the upright part of the cutter housing.

- Now the appliance is ready for making sausages.

- Put the ingredients in the tray. Use the pusher to gently

push the meat into the cutter housing.

- Put the sausage skin in lukewarm water for 10 minutes.

Then slide the wet skin onto the sausage horn. Push the

(seasoned) minced meat into the cutter housing. If the

skin gets stuck onto the sausage horn, wet it with some

water. (g.4)

Picture 4

Making noodle

- Operation time shall NOT exceed 3 minutes.

- use cutting plate 10 or 11 .

- ll the tray with our continuely.

All manuals and user guides at all-guides.com

Indice

Lingue:

Altri manuali Maestro Tritacarne

Maestro

Maestro MR 850 Manuale utente

Manuali Tritacarne popolari di altre marche

Klarstein

Klarstein Mett Max Manuale utente

Grizzly

Grizzly H7778 Manuale utente

Hobart

Hobart 4822 Manuale utente

Tasin

Tasin TS-108 Manuale utente

Adler Europe

Adler Europe AD 48 Manuale utente

camry

camry CR 4802 Manuale utente

Bake Max

Bake Max BMMG001 Manuale utente

Lumme

Lumme LU-MG2113A Manuale utente

Weston

Weston 35-3201 Manuale utente

Lumme

Lumme LU-2101 Manuale utente

GoWISE USA

GoWISE USA GW88012 Manuale utente

MPM

MPM MMM-07M Manuale utente

Weston

Weston 82-0101-W Manuale utente

BIRO

BIRO 3334SS Manuale di servizio

HOFFEN

HOFFEN MG-0440 Manuale utente

Scarlett

Scarlett SC-MG45M18 Manuale utente

Adcraft

Adcraft MG-1 Manuale utente

Johnson

Johnson tomit Manuale utente
