Magellan EXplorist 210 Manuale utente

Magellan eXplorist 210

Reference Manual

*** Warnings ***

IN THE INTEREST OF SAFETY, DO NOT USE THIS NAVIGATION DEVICE WHILE DRIVING A

VEHICLE.

Please do not try and change any settings on the Magellan eXplorist while driving. Come to a

complete stop or have a passenger make any changes. Taking your eyes off the road is dangerous

and can result in an accident in which you or others could be injured.

USE GOOD JUDGEMENT

This product is an excellent navigation aid, but does not replace the need for careful orienteering

and good judgement. Never rely solely on one device for navigating.

USE CARE

The Global Positioning System (GPS) is operated by the U.S. Government, which is solely respon-

sible for the accuracy and maintenance of the GPS network.The accuracy of position fixes can be

affected by the periodic adjustments to GPS satellites made by the U.S. government and is sub-

ject to change in accordance with the Department of Defense civil GPS user policy and the Fed-

eral Radionavigation Plan. Accuracy can also be affected by poor satellite geometry and

obstructions, like buildings and large trees.

USE PROPER ACCESSORIES

Use only Magellan cables and antennas; the use of non-Magellan cables and antennas may

severely degrade performance or damage the receiver, and will void the warranty.

LICENSE AGREEMENT

Thales grants you, the purchaser, the right to use the software supplied in and with Thales Navi-

gation GPS products (the “SOFTWARE”) in the normal operation of the equipment in accordance

with the terms of the End User License Agreement that is with the product.

The SOFTWARE is the property of Thales and/or its suppliers and is protected by United States

any other copyright material.

You may not use, copy, modify, reverse engineer or transfer this SOFTWARE except as expressly

provided in the license. All rights not expressly granted are reserved by Thales and/or its suppli-

ers.

* * *

No part of this guide may be reproduced or transmitted in any form or by any means, electronic or

mechanical, including photocopying and recording, for any purpose other than the purchaser’s

personal use without the prior written permission of Thales.

* * *

*** Warnings ***

Operation is subject to the following two conditions: (1) this device may not cause interference,

and (2) this device must accept any interference, including interference that may cause undes-

ired operation of the device.

The Magellan Logo, Magellan, eXplorist and TrueFix are trademarks of Thales Navigation Inc.

631268-01 A

Table of Contents 1

eXplorist 210 GPS Receiver 5

Features of the Magellan eXplorist GPS receiver: 5

Button Descriptions: 6

Installing the Battery 8

Using the eXplorist 210 10

Going to a Destination 10

Saving Your Position 11

Tracing Your Steps 11

Additional Features 12

Starting Up 13

Turning the eXplorist On 13

Turning the eXplorist Off 13

Using the eXplorist for the First Time 14

Turning the Display Backlight On/Off 14

Conclusion 18

Navigation Screens 19

Accessing the Navigation Screens 19

Map Screen 19

Map Screen Overview 20

Changing Map Scale 20

Map Screen Modes 20

Showing or Hiding Map Information 21

Customizing the Map Information 22

Changing the Map Orientation 23

Displaying Street Information 23

Changing the Map Detail 24

Changing the Primary Usage 24

Customizing the Display 25

Changing the Track Recording Intervals 25

Compass Screen Overview 26

Compass Screen 26

Customizing the Information Fields 27

Position Screen Overview 28

Position Screen 28

Satellite Status Screen 29

Satellite Status Screen Overview 29

Resetting the Trip Odometer 29

eXplorist 210 GPS File Structure 30

Basic File Structure 30

File Structure Overview 30

Using the Filing System with POIs 31

Using the Filing System with Routes 31

Using the Filing System with Track Logs 32

Marking Your Position 33

Using the eXplorist with MapSend 2

Points of Interest 33

Making POIs for Locations other then your Present Position 34

Marking Your Position (Personalized) 34

Marking a Position by Entering Coordinates 35

Marking a Position from a Map Object 36

Marking a Position using the Map Cursor 36

Searching for a User-Entered POI 37

The POI Database 37

Searching for a Preloaded POI using Alphabetical 38

Searching for a Preloaded POI using Nearest 38

Editing a User-Created POI 39

Viewing a User-Created POI on the Map Screen 40

Deleting a User-Created POI 40

Copying a Preloaded POI 41

Viewing a Preloaded POI on the Map Screen 42

Showing or Hiding a User-Entered POI on the Map Screen 43

Routes 44

GOTO Routes 44

Creating a GOTO Route from the Map Cursor 45

Creating a GOTO Route 45

Multi-Leg Routes 46

Creating a GOTO Route to a Map Object 46

Creating a Multi-leg Route 47

Activating/Deactivating a Route 48

Changing the Destination Leg of an Active Route 49

Editing a Saved Route 50

Deleting a Route 51

Reversing a Route 51

Copying a Route 52

Moving a Route 52

Viewing a Route on the Map 53

Track Logs 54

Starting a New Active Track Log 55

Stopping and Resuming Active Track Logging 55

Saving an Active Track Log 56

Clearing the Active Track 57

Creating a BackTrack Route 57

Viewing the Track Log on the Map 58

Converting the Track Log to a Route 58

Following Saved Track Logs 59

Reversing a Saved Track Log 59

Working with Saved Track Logs 59

Moving a Saved Track Log 60

Copying a Saved Track Log 60

Deleting a Saved Track Log 60

Using the eXplorist with MapSend 3

Advanced Features 61

Computing Best Fish/Hunt Times 61

Accessing Hunting and Fishing Times 61

Changing the Date 62

Displaying Sun and Moon Information 62

Accessing the Sun/Moon Function 62

Changing the Position 62

Viewing the Vertical Profile 63

Changing the Date 63

Simulating on a Saved Route 64

Using the Simulator 64

Connecting to a Personal Computer 65

Changing Modes 65

Communicating with a Personal Computer 65

Working with Files on the Personal Computer 66

Magellan Geocache Manager 67

What is Geocaching? 67

What is the Magellan Geocache Manager? 67

How Do I Install the Magellan Geocache Manager? 67

Using the Magellan Geocache Manager 68

Magellan Geocache Manager Tools 69

Adding Other Downloaded Files to the List 70

Working with Geocache Files 70

Uploading to the Magellan eXplorist 71

Using the eXplorist with MapSend 72

What is MapSend? 72

Overview of Uploading Detail Maps from MapSend to the eXplorist 72

Transferring POIs, Routes, and Tracks to MapSend 75

Transferring POIs, Routes, and Track Between MapSend and eXplorist 75

Transferring Waypoints, Routes, and Tracks from MapSend 76

Preferences 77

Restarting the GPS 77

Changing the Default Folders 80

Using Active Setup 80

Setting the Map Units 81

Selecting Navigational Units of Measure 81

Selecting the Background or Detail Map 81

Selecting the Coordinate System 82

Selecting the North Reference 82

Using the Power Management Tool 83

Setting the Power Off Timer 83

Selecting the Map Datum 83

Using the eXplorist with MapSend 4

Personalizing the eXplorist 84

Setting the Light Timer 84

Clearing Memory 85

Clearing All Track Logs 85

Selecting Languages 85

Clearing Routes 86

Clearing Active Track , User-Entered POIs and Routes 86

Clearing User-Entered POIs and Routes 86

Setting Alarms 87

Resetting the eXplorist to Factory Defaults 87

Setting the Clock 88

Setting the Time & Format 88

Setting Daylight Savings Time 89

Specifications 90

Performance 90

Physical 90

Memory 91

Coordinate Systems 91

Routes 91

Track Logs 91

Power 91

Navigation Screens 92

Alarms 92

Points of Interest 92

Accessories 93

Contacting Magellan Support 94

Contacting Magellan in North America 94

Technical Support 94

Warranty Service 94

Technical support and warranty service 95

Contacting Magellan in Europe 95

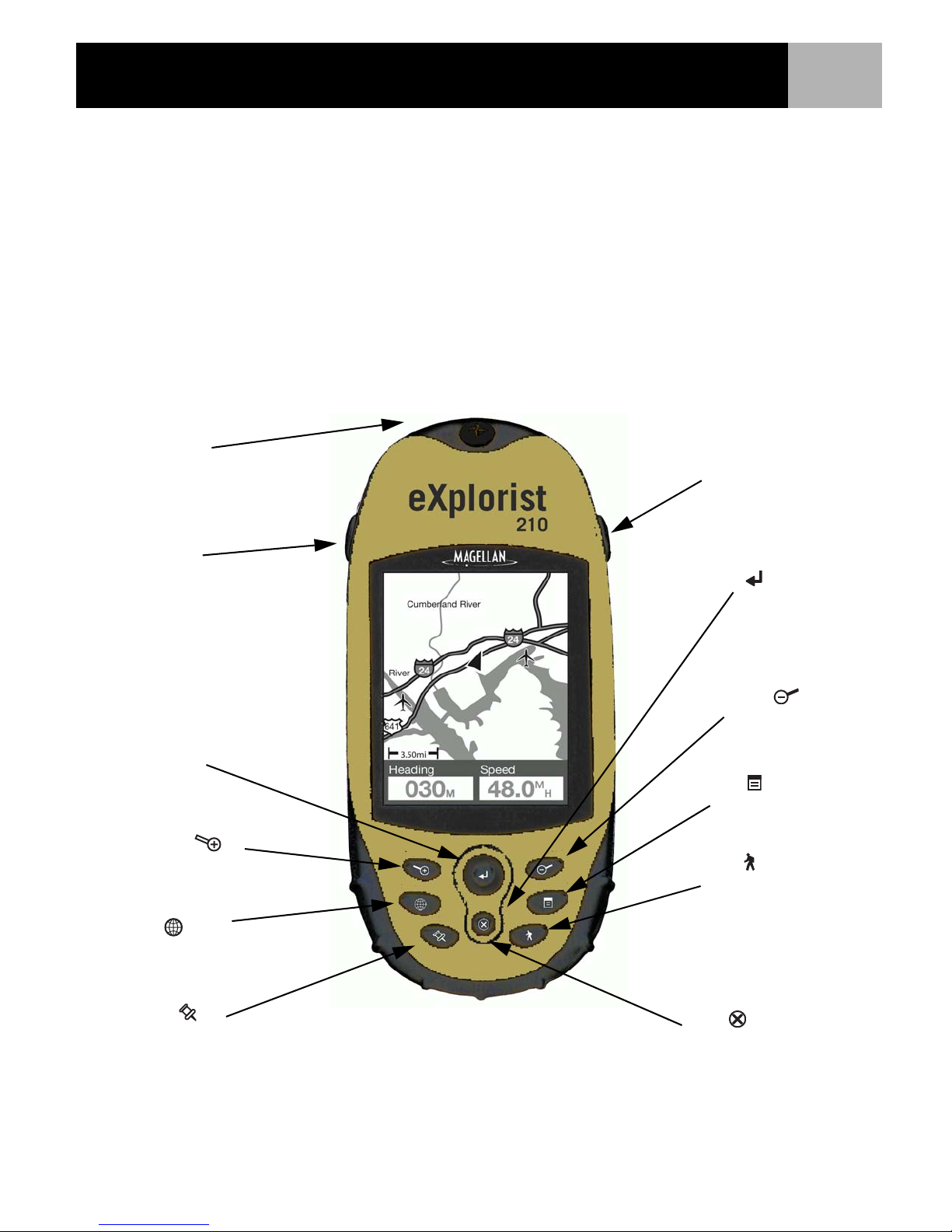

eXplorist 210 GPS Receiver

Antenna

Display Backlight

Button

Arrow Joystick

ZOOM IN

NAV

MARK ESC

GOTO

ZOOM OUT

ENTER

On/Off Button

Features of the Magellan eXplorist GPS receiver:

• Built-in background map (8 MB)

• High-definition grayscale display

• Preloaded points of interest

• Rugged design, rubber-protected

• 22 MB of usable memory

• Superior tracking with 14 parallel channels

• TrueFix™ GPS technology

• 3 meter accuracy (WAAS/EGNOS)

• Multiple track logs

• Pocket-sized and waterproof to IPX-6

eXplorist 210 GPS Receiver 6

Button Descriptions:

On/Off Turns the eXplorist on or off.

Backlight Turns the display backlight on. Sequences from off to low to high intensity.

ENTER Used to access highlighted menu items or accept highlighted buttons.

ESC Cancels data inputs.

Closes the accessed function and goes back to the last viewed screen.

Steps backwards through the navigation screens.

ZOOM IN Used on the Map screen to zoom in the map displayed. The map display can be

zoomed in to 100 ft. (35.0 m).

Also used to quickly step through the list of POIs when doing an alphabetical

search.

ZOOM OUT Used on the Map screen to zoom out the map displayed. The map display can

be zoomed out to 1700 mi (2700 km).

Also used to quickly step through the list of POIs when doing an alphabetical

search.

MENU Brings up a menu with available options. Options can be selected by using the

arrow joystick to highlight the option and pressing ENTER to access it.

NAV Steps through the navigation screens. (Map screen > Compass screen > Position

screen > Satellite Status screen)

MARK Used to save your present position as a point of interest. Points of interest that

you save are stored in the My Points of Interest portion of the database.

GOTO Creates a one-leg route from your present position to a destination selected from

the Points of Interest database or by using the cursor on the background map

Arrow joystick Pans the cursor on the Map screen.

Moves the highlight bar to select menu options and data entry fields.

eXplorist 210 GPS Receiver 7

eXplorist 210 GPS Receiver (back)

Wrist Lanyard Strap

Mounting Hole

Battery Door

Battery Door Fastener

(Unscrew to open

battery door to install

batteries.)

Connector for

external power

and connection to

a personal

computer.

Altri manuali per eXplorist 210

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Magellan GPS

Magellan

Magellan Magellan RoadMate 1210 1200 Series Manuale utente

Magellan

Magellan Switch series Manuale utente

Magellan

Magellan RoadMate Pro 5190T Manuale utente

Magellan

Magellan MobileMapper CX - Hiking GPS Receiver Manuale utente

Magellan

Magellan RoadMate 9055-LM Manuale utente

Magellan

Magellan RoadMate 1424-LM Manuale utente

Magellan

Magellan Maestro 4220 - Automotive GPS Receiver Manuale utente

Magellan

Magellan 300GPS Manuale utente

Magellan

Magellan Maestro 4370 - Widescreen Bluetooth Portable GPS... Istruzioni per il montaggio

Magellan

Magellan eXplorist 200 - Hiking GPS Receiver Manuale utente

Magellan

Magellan RoadMate 3045-LM Manuale utente

Magellan

Magellan MAP330 - MapSend CD For Meridian Manuale utente

Magellan

Magellan MobileMapper CE - Hiking GPS Receiver Manuale utente

Magellan

Magellan RoadMate 760 - Automotive GPS Receiver Manuale utente

Magellan

Magellan Maestro 3220 - Automotive GPS Receiver Guida alla configurazione

Magellan

Magellan RoadMate 3045T Manuale utente

Magellan

Magellan RoadMate 3000T - Automotive GPS Receiver Manuale utente

Magellan

Magellan 1000M Manuale utente

Magellan

Magellan RoadMate 360 - Automotive GPS Receiver Manuale utente

Magellan

Magellan Maestro 4040 - Automotive GPS Receiver Manuale utente

Magellan

Magellan RoadMate 1700-LM Manuale utente

Magellan

Magellan RoadMate 1200 - Automotive GPS Receiver Guida all'installazione

Magellan

Magellan RoadMate 300R Manuale utente

Magellan

Magellan Trailblazer Manuale utente

Manuali GPS popolari di altre marche

Raven

Raven Cruizer II Manuale

Hama

Hama 53118 Manuale utente

Garmin

Garmin SOUNDER 125 Manuale utente

Garmin

Garmin DEZL 580 Manuale utente

Jigabot

Jigabot EX Manuale utente

Pointer

Pointer Cellocator CelloTrack XT LTE Guida all'installazione

Queclink

Queclink GV55LITE Manuale utente

Voxson

Voxson Voxtrack GPS500 Manuale di istruzioni

Garmin

Garmin ECHOMAP PLUS Manuale utente

Starcom Systems

Starcom Systems Kylos Compact Manuale utente

Garmin

Garmin 15 H Series Manuale utente

Cobra

Cobra Marine MC 600Ci Manuale utente

Cellocator

Cellocator CelloTrack T Manuale utente

Enfora

Enfora Mini-MT GSM2228UG001 Manuale utente

LTE

LTE G50B Manuale utente

Garmin

Garmin DEZL OTR500 Manuale utente

SkyGolf

SkyGolf SkyCaddie SG1 Manuale utente

Garmin

Garmin GPSMAP 78 series Manuale utente

Magellan eXplorist 210 Manuale utente

Manuali GPS popolari di altre marche
